Millennium time-scale experiments on climate-carbon cycle with doubled CO2 concentration


Earth system models (ESMs) are commonly used for simulating the climate–carbon (C) cycle and for projecting future global warming. While ESMs are most often applied to century-long climate simulations, millennium-long simulations, which have been conducted by other types of models but not by ESM because of the computational cost, can provide basic fundamental properties of climate–C cycle models and will be required for estimating the carbon dioxide (CO2) concentration and subsequent climate stabilization in the future. This study used two ESMs (the Model for Interdisciplinary Research on Climate, the Earth system model version (MIROC-ESM) and the MIROC Earth system version 2 for long-term simulation (MIROC-ES2L)) to investigate millennium-scale climate and C cycle adjustment to external forcing. The CO2 concentration was doubled abruptly at the beginning of the model simulations and kept at that level for the next 1000 or 2000 years; these model simulations were compared with transient simulations where the CO2 was increased at the rate of 1% year−1 for up to 140 years (1pctCO2). Model simulations to separate and evaluate the C cycle feedbacks were also performed. Unlike the 1pctCO2 experiment, the change in temperature–cumulative anthropogenic C emission (∆T–CE) relationship was non-linear over the millennium time-scales; there were differences in this nonlinearity between the two ESMs. The differences in ∆T–CE among existing models suggest large uncertainty in the ∆T and CE in the millennium-long climate-C simulations. Ocean C and heat transport were found to be disconnected over millennium time-scales, leading to longer time-scale of ocean C accumulation than heat uptake. Although the experimental design used here was highly idealized, this long-lasting C uptake by the ocean should be considered as part of the stabilization of CO2 concentration and global warming. Future studies should perform millennium time-scale simulations using a hierarchy of models to clarify climate-C cycle processes and to understand the long-term response of the Earth system to anthropogenic perturbations.


It is clear that anthropogenic carbon dioxide (CO2) emission via fossil fuel burning and land-use change is the main cause of the current global warming; nations around the world have agreed to make efforts to try to limit global warming well below 2 °C. The global warming induced by anthropogenic CO2 emission involves a series of physical climate and carbon (C) cycle processes—anthropogenically emitted C is partly absorbed by land and ocean, and the CO2 remaining in the atmosphere has changed the atmospheric radiation balance resulting in radiative forcing, leading to the current warming.

To understand the complex nature of the climate–C cycle systems and to make climate projections, Earth system models (ESMs) have been developed; these models have land and ocean biogeochemical components embedded or overlaid onto physical climate models (e.g., Hajima et al. 2014; Kawamiya et al. 2020). Recent studies using ESMs have revealed that the anthropogenically induced global warming can be well explained by the cumulative anthropogenic CO2 emission; global warming is almost linear in relation to the cumulative amount of anthropogenic C emission regardless of the choice of future emission scenario (Allen et al. 2009; Matthews et al. 2009; Gillett et al. 2013). The ratio of global warming to cumulative C emission is called transient climate response to cumulative CO2 emission (TCRE), usually evaluated at the time when the total emission reaches 1000 PgC. This relationship between global warming and anthropogenic CO2 emission helps to estimate the C budget required to not exceed a specific warming target, like the 2 °C target promised in the Paris agreement (United Nations 2015).

Although the findings on TCRE have provided clear perspective on future cumulative emissions and global warming, the near constancy of TCRE irrespective of scenario choice holds in limited conditions. For example, Stocker et al. (2013) suggested that the constant TCRE is valid for cumulative emissions up to about 2000 GtC and until temperatures peak. After that, the characteristics of TCRE have been intensively examined: for example, MacDougall (2017) suggested that there likely exists a limited range for anthropogenic emissions to result in TCRE being independent of scenario choice; Tachiiri et al. (2019) examined TCRE in various types of idealized scenarios and confirmed that TCRE is stable under scenarios of increasing or stable CO2 concentration. Another example of the typical condition that has not been well examined is the period after net zero anthropogenic emission is achieved. Although Rogelj et al. (2018) assumes, in the calculation of the total amount of CO2 that can be emitted to not exceed a specific warming target “remaining carbon budget”, that the temperature change after zero emission (the temperature change is called “zero-emission commitment”, ZEC) would be almost zero, it has not been systematically examined how models project the ZEC (Jones et al. 2019; MacDougall et al. 2020).

Another condition that should be further examined and the main purpose of this study is the long-term response of the climate–C cycle to anthropogenic perturbation. In particular, the long-term stabilization of greenhouse gases and the subsequent climate stabilization correspond to the framework of the United Nations Framework Convention on Climate Change (UN 1992). In addition, the final goal of our attempts in relation to the Paris agreement, beyond the urgent necessity to curb anthropogenic emissions to avoid exceeding a specific warming target, should be the eventual climate stabilization and concentration stabilization of greenhouse gases at a certain level. The eventual stabilization of CO2 concentration can be realized by reducing anthropogenic emissions to the same level as the total natural C sink or by net zero emission of anthropogenic C (in this case, the CO2 concentration would slowly decline over hundreds or thousands of years and then the stabilization of concentration and global temperature will be eventually realized (Eby et al. 2009; MacDougall et al. 2020)). In both cases, the climate–C system continues to change for a long time to adjust to the new external forcing, likely from century to millennium time-scale (Archer et al. 2009; Li et al. 2013; Frölicher et al. 2013; Joos et al. 2013; Yamamoto et al. 2018; Rugenstein et al. 2019).

In the physical climate science field, the degree of eventual warming and the time period necessary to reach a new equilibrium state have been intensively examined in the context of “equilibrium climate sensitivity (ECS)”. ECS is defined as the eventual warming after doubling of the CO2 concentration from the pre-industrial state and is usually evaluated by applying regression analysis to climate model simulations of 150 years to reduce the computational cost of performing simulations over thousands of years (Gregory et al. 2004; Andrews et al. 2012). To accurately estimate ECS, recent studies actually performed simulations of running climate models over thousands of years until they reach the new equilibrium state (e.g., Danabasoglu and Gent 2009; Li et al. 2013; Paynter et al. 2018; Saint-Martin et al. 2019; Mauritsen et al. 2019), and a multi-model comparison study was conducted by Rugenstein et al. (2019).

When compared with physical climate research, there are few studies that examine how long the C cycle continues to change in response to external forcing and how much anthropogenic C eventually accumulates on land and in the ocean on the millennium time-scale. In particular, the feedback strength of C cycle processes has been examined in century-scale simulations where the CO2 concentration is gradually increased by 1% year−1, and thus the feedback strengths have been evaluated as the transient C cycle response against changing magnitude of external forcing. In addition to such century-scale simulations, the quantification of C cycle processes in millennium time-scale simulations, as in the experiments for evaluating ECS, will provide perspective on our long-term climate and CO2 concentration stabilization. Although the long-term simulations beyond centuries and the analysis on climate–C cycle processes have been performed by ESMs of Intermediate Complexity (EMICs) (e.g., Archer et al. 2009; Eby et al. 2013; Zickfeld et al. 2013; Joos et al. 2013), there are few ESM-based studies on the climate–C cycle because of the computational costs (e.g., Frölicher et al. 2013; Joos et al. 2013). Such millennium time-scale experiments by ESMs will reveal the detailed processes on how climate–C cycle processes continue to change toward a new equilibrium state and can provide fundamental understanding on our long-term climate and CO2 concentration stabilization.

In this study, we performed millennium time-scale experiments using ESMs to investigate long-term climate and C cycle adjustment to external forcing. As in the evaluation of ECS, the C cycle process was quantified based on experiments where CO2 concentration was abruptly doubled and kept at that level over 1000 or 2000 years, using two ESMs. By using the simulation results, the relationship between global warming and cumulative anthropogenic C emission can be analyzed. The models and experimental configurations are described in the “Methods” section, and the simulation results are shown in the “Results and discussion” section. We first compare the simulation results of global temperature, ocean, and land C amount, and diagnosed fossil fuel emission, and then the simulation results are analyzed in terms of global warming and cumulative anthropogenic C emission, by comparing with that of transient simulations where the CO2 concentration was increased at the rate of 1% year−1. Such analysis is also applied to existing simulation results performed by EMICs. To explore the mechanisms that produce different patterns between the two types of experiments, ocean heat and C uptakes are analyzed together with the discussion on the limitation of near constancy of TCRE. Finally, the summary and conclusions are described in the corresponding sections.


Earth system models

To examine the long-term climate–C cycle response to external forcing, we used two types of ESMs based on Atmosphere-Ocean General Circulation Models (AOGCM): the Model for Interdisciplinary Research on Climate, the Earth system model version (MIROC-ESM) developed by Watanabe et al. (2011) and the MIROC Earth system version 2 for long-term simulation (MIROC-ES2L), developed by Hajima et al. (2020). The former is a model that was intensively used for the Coupled Model Intercomparison Project phase 5 (CMIP5, Taylor et al. 2012). This model is based on MIROC3.2 coupled with a land C cycle model, a spatially explicit individual-based dynamic global vegetation model (SEIB-DGVM; Sato et al. 2007) and an ocean biogeochemical component including ocean C cycle model and nutrient-phytoplankton-zooplankton-detritus type ocean ecosystem model. The atmospheric grid system employs a T42 horizontal grid with 80 vertical layers, and the ocean has a grid system that consists of longitudinal spacing of about 1.4° and latitudinal grid intervals that gradually become finer close to the equator, with 44 levels of vertical coordinates. The latter model, MIROC-ES2L, is the latest generation of MIROC-based ESM and is expected to be intensively used for CMIP6 (Eyring et al. 2016). The physical core is MIROC5.2, and the horizontal resolution of the atmosphere is the same as that of MIROC-ESM but with reduced vertical layers (40; up to 3 hPa). The ocean grid has the longitudinal grid spacing of 1°, and the meridional grid spacing varies from about 0.5° near the Equator to 1° in the midlatitudes. This model has a land biogeochemical component model, the Vegetation Integrative Simulator for Trace gases model (VISIT; Ito and Inatomi 2012), extended for the ESM and embeds an updated ocean biogeochemical component named OECO2 (Hajima et al. 2020).


Using the two ESMs, we performed several types of millennium time-scale experiments in addition to other experiments performed in CMIP (Table 1). The first was a control run “CTL”, where external forcing like CO2 concentration was fixed at pre-industrial levels. The control run was performed over 2000 years by MIROC-ESM and 1000 years by MIROC-ES2L. These experiments were originally performed for CMIP5/CMIP6 experiments, but in this study, the simulations were extended up to 1000 and 2000 years.

Table 1 Models, experimental configurations, and time periods of simulation used in this study

The second type of experiment was the “FULL2 × CO2” experiment, where the atmospheric CO2 concentration was abruptly doubled (hereafter presented by “2 × CO2”) and held at that level during the same period as in the CTL runs. These experiments were similar to an idealized experiment of CMIP5/CMIP6, where the CO2 concentration abruptly quadrupled over a few centuries, but in this study, the simulation period was extended to 1000 or 2000 years, and the CO2 concentration was doubled, not quadrupled.

The third and fourth experiments, named “BGC2 × CO2” and “RAD2 × CO2”, respectively, were special simulations to evaluate the C cycle feedbacks. These two experiments were performed by MIROC-ESM only. The former experiment was designed to isolate the C cycle change in response to CO2 increase. In this experiment, CO2 concentration change was only detected by C cycle processes, and the atmospheric radiation process was maintained at the pre-industrial level concentration. Thus, in the BGC2 × CO2 experiment, there was no global warming induced by CO2 concentration increase, and direct stimulation of CO2 increase was the main driver of C cycle change. The RAD2 × CO2 experiment, in contrast, was designed to evaluate the C cycle change solely in response to climate change. In this experiment, the atmospheric radiation process detected the CO2 increase, but there was no direct stimulation of CO2 increase on land and ocean C cycle processes. Thus, climate change was the main driver of C cycle change in this experiment. These two types of experiments were originally devised in the multi-model comparison on climate-C cycle models in the Coupled Carbon Cycle Climate Model Intercomparison Project (C4MIP, Arora et al. 2013; Jones et al. 2016), but the CO2 concentration in the original C4MIP experiment was increased by 1% year−1 over 140 years (named “1pctCO2”).

Finally, to analyze the relationship between global temperature change and cumulative anthropogenic C emission, the 1pctCO2 simulation results from MIROC-ESM and MIROC-ES2L were also compared with the millennium time-scale experiment. The 1pctCO2 experiments were performed as one of the experiments of CMIP5/CMIP6 and already reported in several places (e.g., Hajima et al. 2012; Gillett et al. 2013; Hajima et al. 2020).

All experiments performed in this study were based on prescribed CO2 concentration, and thus the anthropogenic C emissions were diagnosed from the prescribed CO2 concentration and simulated C uptake by land and ocean, as shown below:

$$ E=\mathrm{d}{C}_{\mathrm{A}}/\mathrm{dt}+\mathrm{d}{C}_{\mathrm{L}}/\mathrm{dt}+\mathrm{d}{C}_{\mathrm{O}}/\mathrm{dt} $$

where E is the annual anthropogenic emission; CA, CL, and CO are changes in the C amount in the atmosphere, land, and ocean, respectively; and the time derivatives of the land and ocean C amounts corresponded to their net C uptake.

Simulations by EMICs

When compared with ESMs, EMICs have less complexity of climate-C cycle processes in some component models, and thus the models can effectively be run over millennium time-scales. Eby et al. (2013) and Zickfeld et al. (2013) performed various types of long-term simulations using multiple EMICs (named “EMIC-AR5”), and we obtained the simulation results from eight of the EMICs (Bern3D, DCESS, GENIE, IGSM, MESMO, MIROC3-lite-LCM, UMD, and UVic ESCM) for 1pctCO2 (140 years) and FULL2 × CO2 (1000 years) experiments. The results of global temperature and C fluxes were compared with those of MIROC-ESM and MIROC-ES2L simulations.

Results and discussion

Global changes in temperature and C storages

The results of global mean surface air temperature change (ΔT) and changes in land and ocean C amount are shown in Fig. 1 and Table 2, after removing the trends that were found in CTL (the successful removal of the trends can be confirmed in the gray lines in Fig. 1, and the result before the detrending operation is shown in Fig. S1). In the FULL2 × CO2 experiment by MIROC-ESM, there was a temperature increase of about 3 °C in the first few centuries. Then, slight warming started at around 600–700 years, and in the latter half of the simulation, ΔT was almost stabilized and finally reached 3.2 °C above the warming when compared with CTL. This number is much smaller than the ECS estimates of 4.7 °C by Andrews et al. (2012), in which linear regression analyses using 150 year simulations, the so called “Gregory method,” were used for the ECS evaluation. One of the likely reasons for the ECS discrepancy between the actual warming in FULL2 × CO2 and the result of Andrews et al. (2012) is the strong and non-linear warming trend found in the CTL experiment by MIROC-ESM (Fig. S1); although Andrews et al. (2012) considers such global temperature drift in the control run, the analysis relies on 150 year simulation results, which might be insufficient to capture the strong and non-linear drift of MIROC-ESM. Additionally, similar to the MIROC-ESM result, Li et al. (2013) also suggested an overestimation of ECS by the linear regression method; their 6000 year simulation using a climate model also showed smaller global warming than the ECS estimated by the Gregory method. Throughout the simulation period, most of the global warming was realized in the first half of the 2000 year simulation. As expected from the experimental designs, ΔT in BGC2 × CO2 was almost constant and very close to zero because abrupt CO2 doubling does not affect atmospheric radiative processes; ΔT in the RAD2 × CO2 experiment almost overlapped with that of FULL2 × CO2.

Fig. 1

Change in temperature (ΔT) (top) and changes in cumulative land (middle) and ocean (bottom) carbon (C) uptake in the millennium time-scale experiments. Left ac panels present the simulation results from MIROC-ESM; FULL2 × CO2 (black), BGC2 × CO2 (blue), and RAD2 × CO2 (red), where atmospheric CO2 concentrations are abruptly doubled and held constant over 2000 years. Right df panels present the results from MIROC-ES2L with the results from FULL2 × CO2 over 1000 years. The control experiment of each model is shown by the gray line. All simulation results were detrended by the control run of each model, by fitting spline curves over 1000/2000 years

Table 2 The simulation results of FULL2 × CO2, BGC2 × CO2, and RAD2 × CO2 by MIROC-ESM and MIROC-ES2L

In the FULL2 × CO2 experiment by MIROC-ESM, land showed quite a small change in C amount. Although atmospheric CO2 increase actually stimulates land ecosystems (Fig. 1b, results from BGC2 × CO2 experiment shown by the blue line), most of this land C sink induced by CO2 stimulation was opposed by the large C loss that was induced by global warming and the resultant increase in ecosystem respiration (confirmed by the results of the RAD2 × CO2 experiment shown by the red line in the panel). This weak land C sink in the FULL2 × CO2 experiment is consistent with the results of the 1pctCO2 experiment (Arora et al. 2013). The C amount in vegetation and soil kept changing beyond 1000 years (Fig. S2) because (1) the vegetation C kept increasing because of the spatial redistribution of vegetation (e.g., the boreal forest invasion into the tundra region) and (2) soil C kept declining in the northern hemisphere high latitude areas because of the lag in response behind climate change. In contrast, the ocean component showed a strong and long-lasting C sink (black line in Fig. 1c), which was mainly caused by CO2 stimulation of ocean biogeochemistry (blue line in the panel). Although the ocean C sink was somewhat reduced by the global warming effect (red line), the C reduction induced by global warming was smaller than that of land, as confirmed in a previous study (Arora et al. 2013). When compared with land, the ocean continued to accumulate C throughout the simulation period, although the rate of increase gradually declined.

The ΔT in MIROC-ES2L was relatively small compared with that in MIROC-ESM, and the ΔT after 1000 years was about 2.5 °C (Fig. 1d; Table 2). This reduced warming in MIROC-ES2L as opposed to MIROC-ESM was already confirmed by comparing the transient climate response in each model (Hajima et al. 2020: MIROC-ESM is 2.2 K while MIROC-ES2L is 1.5 K), and by comparing ECSs based on the Gregory method (4.7 K for MIROC-ESM by Andrews et al. 2012 and 2.7 K for MIROC-ES2L by Tsutsui 2020). When compared with MIROC-ESM, MIROC-ES2L shows a stronger land C sink of about 500 PgC accumulation (Fig. 1e; Table 2), by increasing the CO2-induced C accumulation and reducing warming-induced C loss (Hajima et al. 2020). Although the global land C change almost ceased within a few hundred years, regional soil C change was still present at around year 1000, and soil C reduction in boreal forest and in other warmer regions was partly compensated by the soil C accumulation in the tundra region. The ocean C sink in MIROC-ES2L was slightly smaller than that of MIROC-ESM at year 1000 (Fig. 1f; Table 2), as expected from the almost unchanged strength of C cycle feedback of the ocean in the two models (Hajima et al. 2020). As in MIROC-ESM, the ocean in MIROC-ES2L continued to show C accumulation over the 1000 year period while the land C was almost stabilized within a few centuries. We note that although MIROC-ES2L explicitly simulates the C removal by the ocean sedimentation process of about 0.07 PgC year−1 (this can be confirmed by the linear ocean C uptake found in CTL, Fig. S1), the contribution of the sedimentation process to ocean C change is excluded in Fig. 1 and in other results displayed herein.

Diagnosed annual anthropogenic emission

The annual mean anthropogenic C emissions diagnosed from the FULL2 × CO2 simulation by two models are shown in Fig. 2 (and the cumulative anthropogenic C emissions are shown in Fig. S2). To maintain consistency with the abrupt CO2 concentration doubling, more than 500 PgC year−1 emission should be added to the atmosphere in the first year of the simulation. In addition, because the land and the ocean start to accumulate C in response to the abrupt CO2 concentration increase, the total annual emissions in the first year exceeded 600 PgC (Fig. 2 a and f) in both models.

Fig. 2

Changes in atmospheric carbon (C) pool, annual land/ocean C uptake, and diagnosed anthropogenic emission in the FULL2 × CO2 experiments: the 2000 years simulation by MIROC-ESM (top) and the 1000 years simulation by MIROC-ES2L (bottom). The annual C emission is diagnosed as the sum of C changes in the atmosphere, land, and the ocean, and presented in the figure as black dotted lines. Color bars represent changes in C storages of atmosphere (orange) and annual C uptake by ocean (light blue) and land (green). In panels c and h, d and i, and e and j, the annual C fluxes were calculated as the averages of 5-, 25-, and 250 year intervals, respectively

After the second year, because the CO2 concentration was fixed at 2 × CO2 level, there should be no change in the atmospheric C concentration. Thus, the annual compatible emission should be identical to the sum of the C changes in land and ocean hereafter. In the first decades, the annual emissions were more than 10 PgC year−1, but the emission rates gradually reduced. Contributions from land and ocean to the annual emission were almost comparable, but the contribution from land was different between the two models—MIROC-ES2L showed larger land contribution than MIROC-ESM because of the intensified land C sink, as mentioned above. After 50 years, although both the natural C sink of land and ocean resulted in anthropogenic emissions exceeding 2 PgC year−1 (Fig. 2 d and i), the land contribution gradually reduced and almost vanished after 250 years; MIROC-ESM showed a slight negative contribution of land to anthropogenic emissions over this time-scale. Even after 1000 years have passed, both models projected positive anthropogenic emission originating from the ocean C uptake, but the emission rates were less than 1 PgC year−1. The slight C uptake by the ocean was maintained even after 2000 years, as simulated by MIROC-ESM.

Relationship between global temperature rise and cumulative emission

To understand the relationship between global warming and anthropogenic emission on the millennium time-scale, ΔT and cumulative anthropogenic C emission (CE) in the experiments were examined (Fig. 3; Table 2). The ΔT–CE relationship is well-known to be almost linear in simulations of 1pctCO2 or historical to future climate projections (Allen et al. 2009; Matthews et al. 2009; Gillett et al. 2013), and this was also confirmed in the 1pctCO2 experiments by the two models (green dots, Fig. 3). In the FULL2 × CO2 experiment, because atmospheric CO2 concentration is instantaneously doubled in the first year, the ΔT–CE plots do not start from the origin of the plot (black dots, Fig. 3). As CE increased, ΔT in FULL2 × CO2 by the two models showed an almost linear increase, overlapping the result on the plot for 1pctCO2. However, after 400 years, the global temperature in the FULL2 × CO2 experiment by MIROC-ESM was almost stabilized at around 3 °C while the CE continued to increase. As a result, the ΔT–CE plot of FULL2 × CO2 started to deviate from that of the 1pctCO2 experiment at around year 400, and this deviation was more clearly recognized in MIROC-ESM than in MIROC-ES2L. As mentioned above, at around 600–700 years the two models showed a slight increase in ΔT (Fig. 1), and this slight warming was confirmed in the ΔT–CE plot (Fig. 3).

Fig. 3

Relationships between cumulative carbon (C) emission and changes in global mean near surface air temperature in two Earth system models. The top panel presents 2000 year simulations by MIROC-ESM; FULL2 × CO2 (black), BGC2 × CO2 (blue), and RAD2 × CO2 (red) experiments where the CO2 concentration is abruptly doubled. The result from the 1pctCO2 experiment is shown in green. The bottom panel presents 1000 year simulations by MIROC-ES2L with the FULL2 × CO2 configuration, together with the result from the 1pctCO2 experiment. Circles presents the final condition of experiments (the last 50 year average). Transient conditions in the Xth year (50 year average centering on the Xth year) are presented by cross marks in white

The BGC2 × CO2 and RAD2 × CO2 simulation results from MIROC-ESM are also presented in Fig. 3 (blue and red dots, respectively). In the BGC2 × CO2 experiment, because the CO2 increase only stimulates the C cycle without CO2-induced global warming, the ΔT–CE plot lies on the horizontal axis, showing CE exceeding 3000 PgC. In the RAD2 × CO2 experiment, because the CO2 increase does not stimulate the C cycle but perturbs the atmospheric radiation balance, CO2-induced global warming occurs as in the FULL2 × CO2 experiment. This global warming reduced the CE in the RAD2 × CO2 experiment to − 195 PgC. The synthesis of the final condition of the BGC2 × CO2 and RAD2 × CO2 simulations (blue circle filled by red in Fig. 3) is close to the final condition of the FULL2 × CO2 experiment (black circle), although there is a mismatch between the FULL2 × CO2 and BGC2 × CO2 plus RAD2 × CO2 in terms of CE. In summary, if the CO2 concentration was doubled without producing radiative forcing, there would be a total C emission of about 3100 PgC by the C cycle response to CO2 increase, but this cumulative C emission should be reduced by about 900 PgC because of the warming effect on natural C uptake, leading to the cumulative emission of about 2200 PgC in the FULL2 × CO2 experiment (Table 2).

Quantifying the dissimilarity of ΔT and CE relationship between 1pctCO2 and FULL experiments

In the sections above, we confirmed that the ΔT–CE relationship in the FULL2 × CO2 experiments was not linear, unlike the case of 1pctCO2, and that this nonlinearity was more evident in MIROC-ESM than MIROC-ES2L—the degree of nonlinearity of the ΔT–CE relationship in FULL2 × CO2 was different between the two models. MIROC-ESM showed strong nonlinearity, which was illustrated as a large deviation of the FULL2 × CO2 experiment from 1pctCO2 in the latter period of the 2000 year simulation (top panel of Fig. 3). In contrast, MIROC-ES2L showed limited nonlinearity in the FULL2 × CO2 experiment, with close positioning of the FULL2 × CO2 result in relation to that of 1pctCO2 (bottom panel of Fig. 3). To quantitatively discuss the difference between the models, we first define several quantities for evaluating temperature, C, and temperature-C, as summarized in Fig. 4.

Fig. 4

Definitions of quantities for evaluating temperature and carbon (C) in 1pctCO2 and FULL2 × CO2 experiments, illustrated in the context of global surface air temperature change (ΔT)–cumulative anthropogenic C emission (CE): transient climate response (TCR); transient C emission (TCE); quasi-equilibrium climate sensitivity (qECS); quasi-equilibrium C emission (qECE); unrealized warming (ΔTUNR); unrealized C uptake (ΔCUNR); additional C uptake (ΔCADD); transient climate response to cumulative C emission (TCRE); quasi-equilibrium climate response to cumulative C emission (qECRE); and the ratio of unrealized warming to unrealized C uptake (RUNR). Note that TCRE is usually defined as the ratio of ΔT to CE when CE reaches 1000 PgC, but we evaluate it here when the CO2 concentration in the 1pctCO2 experiment reaches 2 × CO2 level

For discussing global temperature change in models, some quantities have been conventionally utilized in the climate science field: transient climate response (TCR), equilibrium climate sensitivity (ECS), and unrealized warming (presented here as “ΔTUNR”). TCR is defined as the global temperature rise when the CO2 concentration reaches the 2 × CO2 level in the 1pctCO2 experiment. ECS is an equilibrium temperature rise: this can be realized by providing abruptly doubled CO2 concentration to models and running models over thousands of years until they reach a new steady state; in many cases, the ECS values in models are usually estimated by a linear regression method, as mentioned above. As suggested by previous studies, > 2000 years and up to 10,000 years of simulation will be necessary to obtain the real equilibrium state (e.g., Li et al. 2013). Indeed, the global temperatures at the end of the simulations in this study still have some variations or trends, and thus, we define the global temperature rise at the time of year 1000 as a quasi-ECS “qECS”. The unrealized warming, ΔTUNR, is usually defined as the difference between ECS and TCR. However, since we cannot obtain a real ECS, we thus define ΔTUNR as qECS–TCR.

Similarly, we define C-related quantities for quantifying the ΔT–CE relationship in experiments: transient cumulative emission (TCE), quasi-equilibrium cumulative emission (qECE), unrealized C uptake (ΔCUNR), and additional C uptake (ΔCADD). Analogous to TCR, TCE is defined here as the cumulative C emission when CO2 reaches 2 × CO2 level in the 1pctCO2 experiment (if the cumulative airborne fraction of emitted carbon (AF, defined as CA/CE) of 1pctCO2 in existing models is available, TCE can be estimated by: TCE = CA2 × CO2/AF, where CA2 × CO2 is the atmospheric carbon change at the doubled CO2 concentration level). qECE is defined as the cumulative emission of year 1000 of the FULL2 × CO2 experiment. The difference between the two, qECE–TCE, is defined here as the unrealized carbon uptake ΔCUNR. Thus, ΔCUNR reflects the difference in CE between the final condition of the FULL2 × CO2 experiment, and the condition where CO2 concentration is doubled in 1pctCO2. ΔCADD is similar to ΔCUNR, but this quantity is defined as the CE difference between the two experiments when ΔT reaches qECS in each experiment (as shown by the orange arrow in Fig. 4).

The ratio of ΔT to CE is called the transient climate response to cumulative C emission (TCRE), which is usually evaluated when CE reaches 1000 PgC. In this study, TCRE is evaluated at the time when the CO2 concentration reaches the 2 × CO2 level in the 1pctCO2 experiment. Similarly, the ratio of qECS to qECE is named here as the quasi-equilibrium climate response to cumulative C emission (qECRE). In addition, the ratio of unrealized warming (ΔTUNR) to unrealized C uptake (ΔCUNR) is named here as RUNR. If a model has a value for RUNR that is perfectly identical to the TCRE, the relationship TCRE = RUNR = qECRE holds, presenting no difference between the 1pctCO2 and FULL2 × CO2 experiments.

The ΔTUNR and ΔCUNR of MIROC-ESM were 1.0 °C and 910 PgC, respectively, and thus RUNR of the model was about 1.13 °C/EgC (Table 3, Fig. 5). This RUNR only accounts for 51% of the TCRE, which is visualized in Fig. 5 as the decreasing slope of the ΔT–CE curve in the latter period of the FULL2 × CO2 experiment; the dissimilarity of the ΔT–CE relationship between the FULL2 × CO2 and 1pctCO2 experiments is captured by the relatively small value of RUNR when compared with TCRE. This suggests that in the model, global warming in the FULL2 × CO2 experiment is almost ceased/realized in the first 500–1000 years but cumulative C emission still continues beyond this time-scale—natural C uptake, in particular by the ocean, still continues even after the global warming is almost ceased. In MIROC-ES2L (Table 3, Fig. 5), ΔTUNR and ΔCUNR were respectively 0.94 °C and 1024 PgC, and thus RUNR of this model becomes 0.91. The RUNR of MIROC-ES2L is 67% of the TCRE, indicating that ΔT–CE is relatively similar between 1pctCO2 and FULL2 × CO2 experiments, compared with MIROC-ESM. This suggests that the global warming and cumulative emission projected by MIROC-ES2L almost proceed in pace with each other in the FULL2 × CO2 experiment, as in the 1pctCO2 experiment.

Table 3 Comparison of temperature, carbon, and temperature-carbon quantities in two Earth system models and eight Earth systems Models of Intermediate Complexity
Fig. 5

Relationships between cumulative carbon (C) emission and changes in global mean surface air temperature in the experiments of abruptly doubled CO2 concentration (FULL2 × CO2 1000 years; black) and that where CO2 concentration is increased by 1 % year−1 (1pctCO2; 140 years; gray) by two ESMs (MIROC-ESM and MIROC-ES2L) and eight EMICs from EMIC-AR5 (Eby et al. 2013; Zickfeld et al. 2013). Gray-filled circles represent the time when the CO2 concentration reaches about 2 × CO2 level in 1pctCO2 (calculated as the average of years 61–80); black-filled circles represent the final condition of the FULL2 × CO2 experiment (calculated as the average of years 981–1000). Red, blue, and orange arrows indicate the unrealized warming (ΔTUNR), unrealized C uptake (ΔCUNR), and additional C uptake (ΔCADD), as defined in Fig. 4

Comparison with other models: EMICs

The two types of ESMs showed quite different values of RUNR and TCRE although both models belong to the same family of MIROC. To examine how RUNR and TCRE are uncertain in existing models, the same analyses was applied to the simulation results of EMIC-AR5. Analysis of the results of the eight EMICs is shown in Fig. 5 and Table 3. Five of the eight EMICs (DCESS, GENIE, IGSM, MESMO, and UMD) showed the reduction in slope of ΔT–CE plot in the latter period of the FULL2 × CO2 experiment—these models have lower RUNR than TCRE values, as in the MIROC-ESM simulations. Two of the models (Bern3D and MIROC3-lite-LCM) showed almost similar values for both RUNR and TCRE, thus the final condition of the 1000 year simulation dropped onto the ΔT–CE line of the 1pctCO2 simulation. One model, UVic ESCM, showed larger RUNR than TCRE. On average, all ten models including two ESMs and eight EMICs showed 1.87 ± 0.38 °C/EgC for TCRE, 1.11 ± 0.51 °C/EgC for RUNR, and 1.48 ± 0.37 °C/EgC for qECRE (Table 3). The quantification of TCRE, RUNR, and qECRE also revealed that the standard deviation relative to multi-model mean (the coefficient of variation, Table 3) was the largest for RUNR (0.46), followed by that of qECRE (0.25), and TCRE (0.20), suggesting the importance of constraining the long-term climate and C cycle responses beyond century time-scale in models. Although year 1000 was used in this study for calculating RUNR and qECRE, the values are likely to become smaller in many models if we extend the simulation (e.g., up to more than a few thousands of years) and use the result for calculating the RUNR and qECRE because oceanic C uptake likely persists beyond 1000 years.

If RUNR is smaller than TCRE, it should be accompanied by positive ΔCADD, as indicated by the orange arrows in Figs. 4 and 5. The positive ΔCADD means that the C emission that is eventually achieved by the end of 1000 years simulation should be larger than the cumulative value that is estimated from 1pctCO2. This is owing to the long-lasting C uptake by the ocean, and the ΔCADD was 305 ± 322 PgC (Table 3; a demonstration by a simple climate model to estimate ΔCADD in other climate stabilization scenarios can be found in Fig. S7).

Difference in ocean heat and C uptake

In the above discussion, we have confirmed that both ESMs showed smaller RUNR than TCRE, particularly for MIROC-ESM (Table 3); this was also confirmed in many (five of eight) EMICs. In MIROC-ESM, much of the global warming was already realized by around year 250, and the global warming almost ceased after 1000 years (Fig. 1a). However, ocean C uptake was still present beyond 1000 years (Fig. 1c), leading to the long-lasting anthropogenic C emission (Fig. 2) and increase in cumulative emission (Fig. 3; Fig. S2). As a result, the ΔT–CE relationship, which is usually visualized as an almost linear line on the ΔT–CE plot when using the 1pctCO2 experiment or other historical/future simulation results, became non-linear in the 2000-year simulation (Fig. 3). These results suggest that long-lasting ocean C uptake will be a key for understanding the ΔT–CE relationship in millennium time-scale simulations.

In addition to the important role of the ocean in the long-term C budget, the ocean has been implicated in the control of long-term global warming by absorbing excess heat from the atmosphere, until the outgoing longwave radiation into space counterbalances radiative forcing. Previous studies have suggested that these heat and C uptakes by the ocean likely proceed in pace with each other because both processes are controlled by the same oceanic processes such as wintertime deep convection in polar regions and deep ocean circulation that distributes absorbed excess heat and anthropogenic C over the global oceans (e.g., Jones et al. 2016; MacDougall 2017). Indeed, a multi-model study using CMIP5 ESMs demonstrated the almost similar spatiotemporal pattern of ocean heat and C uptake (Frölicher et al. 2015). Ehlert and Zickfeld (2017) noted in their long-term simulation study on ZEC that thermal equilibrium is likely faster than biogeochemical equilibrium, but they attributed it to the long time-scales of sediment C cycle processes. This widespread understanding appears to be contradictory to the results of this study, which shows that C uptake by the ocean likely continues longer than ocean heat uptake. Indeed, the shape of the curve of annual ocean heat uptake plotted against cumulative ocean C uptake is quite similar to the shape of the ΔT–CE curve in the FULL2 × CO2 experiments in the two ESMs and seven EMICs (Fig. 6, in which one EMIC (UMD) is omitted because the data on ocean heat uptake of the model was not available). This suggests that the long-term response of the ocean forms the shape of the ΔT–CE plots and that the ocean heat uptake and C uptake beyond centuries proceed at different paces, resulting in relatively smaller RUNR than TCRE values.

Fig. 6

The relationship between cumulative oceanic carbon uptake (CO) and (1) changes in global mean air temperature (red dots, T2) and (2) annual ocean heat uptake (black dots, OHU) in the experiments of abruptly doubled CO2 concentration during 1000 years by two ESMs (MIROC-ESM and MIROC-ES2L) and seven EMICs from EMIC-AR5. The UMD model shown in Fig. 5 was omitted because the data on ocean heat uptake of the model was not available

To explore the mechanism behind the different rate of the two processes, we examined the propagation of heat and C in the ocean in the FULL2 × CO2 experiment by MIROC-ESM. Figure 7 shows the result in the Atlantic. Note that the RAD2 × CO2 experiment is used for the analysis of heat transport and that the BGC2 × CO2 experiment is used for C, so as to separately discuss the effect of CO2 doubling on the ocean heat and C uptakes (the figures for the FULL2 × CO2 experiment can be found in Figs. S3 and S4, respectively).

Fig. 7

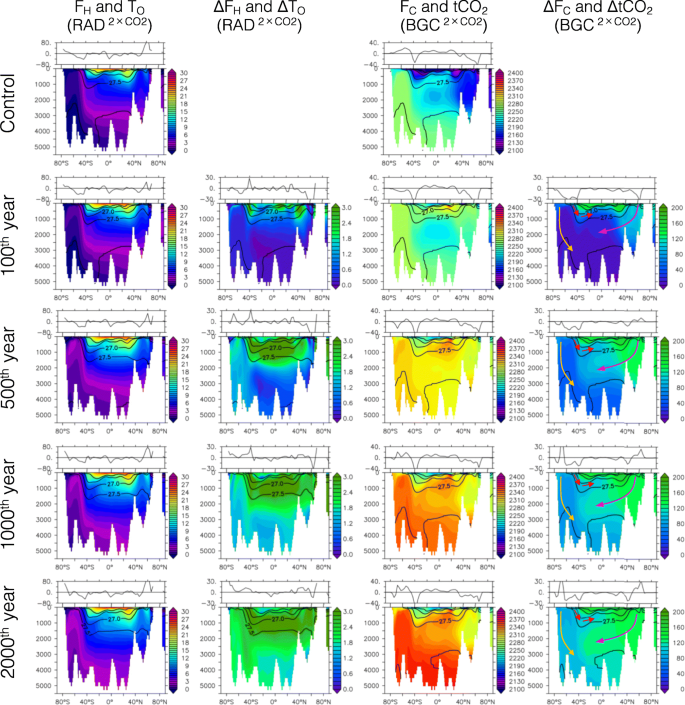

Atmosphere-ocean heat and carbon dioxide (CO2) fluxes (plots) and vertical distributions of ocean temperature and dissolved inorganic carbon (DIC) (TO and tCO2; shades) in the Atlantic ocean (30°W): the first and third columns show the absolute magnitudes of the fluxes and system states (ocean temperature and DIC), and the second and fourth columns show the anomalies from the control run. The units are: W m−2 for ocean net heat flux (FH; negative means ocean uptake), °C for TO, gC m−2 year−1 for ocean net carbon flux (FC; negative means ocean uptake), and mmol m−3 for tCO2. Counter lines in panels show isopycnic surfaces with an interval of 0.5 σθ. The RAD2 × CO2 result by MIROC-ESM is used for the FH and TO analyses, and BGC2 × CO2 for FC and tCO2. All analyses were made based on 30 year averages and anomalies. Red, orange, and magenta arrows represent the anthropogenic C transport by the Antarctic intermediate water (AAIW), Antarctic bottom water (AABW), and North Atlantic deep water (NADW), respectively

In the pre-industrial condition (top panels in Fig. 7), the ocean temperature above the 1000 m depth is relatively warm in the region 40°S–40°N and stratified as characterized by the thermocline, which is roughly located between the 26.5–27.0 σθ isopycnal surfaces; the ocean C is relatively poor above the thermocline. One hundred years after the abrupt CO2 doubling, the surface ocean above the thermocline in the region 40°S–40°N was filled with warmed waters (2nd row in Fig. 7). As schematically explained by Goodwin et al. (2015), this relatively fast uptake of heat is likely based on the processes of the surface turbulent mixed layer development and the warmed water subduction from surface into thermocline along with the isopycnal surfaces. As time passes, the heat is further transported downward, seemingly attributed to both of the above-mentioned warmed water subduction processes and the ocean heat uptake associated with the formation of North Atlantic deep water (NADW) and Antarctic bottom water (AABW). Additionally, diapycnal mixing and resultant downward heat flux across isopycnal surfaces could accelerate the warming above and around the thermocline. Deep-ocean warming became apparent in the Southern Ocean until year 500 (3rd row in Fig. 7), which was likely related to the recovery of deep convection in the Weddell Sea (Yamamoto et al. 2015; Obase et al. 2017). Finally, at the end of the 2000 year-long simulation, the entire Atlantic was warmed.

When compared with the heat transport, the spatial and temporal change in C transport into deeper ocean showed a distinct pattern (the third and fourth columns of Fig. 7), particularly beyond a few centuries. In the first 100 years, the upper ocean, where seawater is well mixed and ventilated, was filled by the anthropogenic C similarly to that of heat uptake. In addition, the North Atlantic also showed moderate anthropogenic C uptake. This relatively fast (decadal to centennial) uptake of anthropogenic C into the thermocline and deeper layers in the North Atlantic was also confirmed in the observational study on ocean C inventory (Sabine et al. 2004; Gruber et al. 2019) and in centennial simulations by CMIP5 and CMIP6 ESMs (Frölicher et al. 2015; Arora et al. 2020). After that, unlike the heat transport, a large part of the anthropogenic C remained above the thermocline in the region 40°S–40°N, while the anthropogenic C absorbed in the high-latitude formation region of NADW was transported into intermediate/deep layers mainly along the lower equatorward branch of the Atlantic Meridional Overturning Circulation (magenta arrows in the third to fifth row of Fig. 7). Again, we note that the BGC2 × CO2 simulation was used for this C uptake analysis, and thus the warming effects on the ocean dynamics can be ignored here.

Like the Atlantic, the surface water in the Pacific also quickly accumulated and transported the anthropogenic C into the thermocline within a century, and the structure where much of the anthropogenic C was trapped in the upper ocean persisted afterwards (Fig. 8). Unlike the Atlantic, there was less anthropogenic C transport into intermediate/deep layers in the Northern hemisphere because there was no deep water formation in the subarctic North Pacific. As a result, the content of anthropogenic C in the intermediate and deep layers was maintained for a long time at levels that were not largely different from those in the pre-industrial condition. The anthropogenic C was gradually transported into deeper layers along the northward intrusion of AABW, but even after 2000 years, the ocean still had potential for anthropogenic C uptake.

Fig. 8

Atmosphere-ocean heat and carbon dioxide (CO2) fluxes (plots) and vertical distributions of ocean temperature and dissolved inorganic carbon (TO and tCO2; shades) in the Pacific Ocean (150°W). See Fig. 7 legend for further details

The possible reasons for non-linear T-CE relationship in millennium-scale experiments

Our simulations show that, on a centennial time-scale, ocean heat and C uptake both proceeded in a similar manner—they occurred in the well-ventilated upper ocean, likely relying on the processes of surface mixing, and warmed, C-rich water subduction into the thermocline, as suggested by previous studies (e.g., Goodwin et al. 2015; Frölicher et al. 2015; Williams et al. 2016; Arora et al. 2020). Additionally, the formation of NADW and associated equatorward flow are also confirmed to play an important role for C transport on this time-scale. Within a few centuries, ocean heat and C uptakes proceeded in a similar manner and at similar rates, but they were not exactly the same; thus, partially opposing effects of oceanic uptake of heat and C act to remain the almost constant TCRE on multi-decadal to centennial time-scales (Goodwin et al. 2015; Williams et al. 2016). Over centuries to millennia, however, the behavior of ocean heat and C uptake is found to be decoupled, and the dominant process in this time-scale changes to the slow ventilation of the intermediate and deep ocean (Figs. 7 and 8; Goodwin et al. 2015). This suggest that the key process to understand the different pace of ocean heat and C uptake beyond centuries exists in the ventilation processes of the intermediate and deep ocean.

One of the possible reasons for such different behavior of ocean heat and C transport into deeper ocean over centuries could be explained by the difference in the time-scales of air-sea exchange of heat and C. The ocean surface water reaches the equilibrium of air-sea heat exchange within a month, while air-sea CO2 exchange, which is buffered by CO2 dissolution and carbonate chemistry in the seawater, occurs over months or about a year (Frölicher et al. 2015; Jones et al. 2014). As a result of the slow air-sea exchange of CO2, a large part of the surface water is subducted into the ocean interior before reaching air-sea CO2 equilibrium, producing a large C deficit between the actual C amount in seawater and the amount of C that can potentially be contained under air-sea equilibrium. Thus, the C deficit, called the “C disequilibrium” or “unsaturated C” component (Ito and Follows 2005; Jones et al. 2014; Schwinger and Tjiputra 2018; Arora et al. 2020), mainly reflects how long the ocean surface is exposed to the atmosphere. A study based on centennial time-scale simulations by Arora et al. (2020) compared this C disequilibrium component among CMIP6 ESMs, and they clearly showed that C disequilibrium is the main driver to keep anthropogenic C in intermediate and deep water at relatively low levels. Although their study was based on much shorter simulations (150 years) than ours, the C disequilibrium component, which is originally derived from the slow rate of air-sea CO2 exchange, could also explain the low level of anthropogenic C in intermediate and deep layers beyond centuries to millennia.

Another possible mechanism could be associated with the heat and C uptake in the Southern Ocean. The Southern Ocean is the dominant region for global heat and C uptake, and about 75% and 43% of heat and C, respectively, are estimated to be absorbed there based on CMIP5 simulations (Frölicher et al. 2015). This significant contribution of the Southern Ocean is maintained by upwelling of cold and low anthropogenic C water from deeper layers to the surface; the upwelled water is transported northwards mainly by the surface wind-driven Ekman flow, with uptake of heat and anthropogenic C from the atmosphere; a certain fraction of the surface water is subducted again into the ocean interior; this provides a pathway of warmed and C-rich surface water into the ocean interior, making the thermocline the main storage mechanism of excess heat and anthropogenic C in decadal to centennial time-scales; the formation of Antarctic intermediate water in the region around 50°S–40°S transports the anthropogenic C into intermediate layers of around 1000 m depth; the anthropogenic C can also be transported into deeper layers by AABW (Sabine et al. 2004; Iudicone et al. 2016; Jones et al. 2014; Gruber et al. 2019). The C uptake from the atmosphere into the Southern Ocean, however, only accounts for 43% of global ocean C uptake—this contribution is large but much less than that of heat uptake in this region (75%; Frölicher et al. 2015), suggesting a low efficiency of oceanic C uptake in this region compared with heat uptake. Indeed, the amount of anthropogenic C on the transport pass of the Antarctic intermediate water (AAIW; the red arrows in Figs. 7 and 8, which almost corresponded to the potential density of AAIW of 27.0σθ–27.55σθ) is clearly lower than that in the above layers; in particular, the anthropogenic C minimum of AAIW is found clearly in the Atlantic Ocean, at year 500 and later in the FULL2 × CO2 (rightmost column in Fig. 7); in the Pacific, the anthropogenic C of AAIW and of the layers below clearly maintains a lower amount of anthropogenic C over the whole 2000 years (Fig. 8). Similarly, the AABW (shown by orange arrows in Figs. 7 and 8) also contains low levels of anthropogenic C. These low levels of anthropogenic C in the intermediate and deep layers are also confirmed in the FULL2 × CO2 by MIROC-ES2L (Figs. S5 and S6).

The low level of anthropogenic C in the water mass formed in the Southern Ocean (AAIW and AABW) might be attributable to the C disequilibrium component as discussed above, which is further associated with the mixed layer depth, buffering effect of C chemistry, existence of sea ice, and other factors like residence time of upwelled water in this region (Jones et al. 2014). In addition, because the upwelled water in the Southern Ocean is cold but already contains abundant C because of the long-term biological effects, the upwelled cold water could more effectively take up the heat from the atmosphere than C. For more detail, we need further examination of the mechanism to produce the low level of anthropogenic C in the Southern Ocean, hopefully based on multi-model comparison. In particular, the regenerated C component, which is one of the oceanic inorganic C components caused by biological regeneration of organic C, might be associated with the millennium-long processes; the regenerated C can contribute to C accumulation in intermediate and deeper layers and thus it may partly accelerate the C uptake, in particular under the effect of global warming (e.g., Schwinger and Tjiputra 2018; Arora et al. 2020).

In the section above, to explain the situation when RUNR is smaller than TCRE (Figs. 3 and 5), we have discussed the decoupled behavior of the ocean heat and C uptake beyond centuries, by attributing it to the C disequilibrium component and the role of the Southern Ocean. Additionally, MacDougall (2017) suggested based on a theoretical framework that constant TCRE can be realized for a limited range of emission rates and that constant TCRE cannot be maintained when emission rates are very high or very low. Indeed, in the FULL2 × CO2 and 1pctCO2 simulations, the two experiments overlap when diagnosed emissions are in the mid-range of emission rates and diverge when the emission rates are very high (> 20 PgC year−1) and very low (< 1 PgC year−1). Thus, even if the ocean heat and C uptake processes remained tightly coupled beyond centuries, we might expect the relationship between global warming and cumulative C emission to be non-linear based on the emission rate (MacDougall 2017; Seshadri 2017).

Summary and conclusions

In this study, by using two ESMs, we performed idealized climate–C cycle simulations where the atmospheric CO2 concentration was abruptly doubled from pre-industrial state and fixed at that level over a millennial time-scale (FULL2 × CO2, BGC2 × CO2, and RAD2 × CO2); the analysis mainly focused on the relationship between global temperature change and diagnosed anthropogenic emission. The results were compared with another idealized experiment, 1pctCO2, where the CO2 concentration is increased by 1% per year, and we confirmed that the ΔT–CE relationship was not linear in the FULL2 × CO2 experiment when compared with that of 1pctCO2, although the degree of similarity of the ΔT–CE plot between the two experiments was dependent on the model. One model, MIROC-ESM, showed a relatively large discrepancy on the ΔT–CE plot between FULL2 × CO2 and 1pctCO2 experiments, which was quantitatively captured by the relatively smaller RUNR (the ratio of unrealized warming to unrealized C uptake in the latter part of the FULL2 × CO2 experiment) than the TCRE (which was evaluated at the doubled CO2 level in the 1pctCO2 experiment). This smaller RUNR than TCRE was also confirmed in EMICs, but the degree of mismatches between RUNR and TCRE was dependent on the models, suggesting that large uncertainty exists in both ΔT and CE in the long-term climate–C cycle simulations by existing models. On average, all 10 models including two ESMs and eight EMICs showed 1.87 ± 0.38 °C/EgC for TCRE, 1.11 ± 0.51 °C/EgC for RUNR, and 1.48 ± 0.37 °C/EgC for qECRE.

In the latter period of the millennium time-scale experiment, RUNR became relatively smaller than TCRE because in this period global warming is almost ceased but the ocean continues to take up C. By considering that long-term global temperature is tightly associated with ocean heat uptake, it is interesting that the small RUNR relative to TCRE suggests that the ocean continues to take up C longer than it takes up heat. However, this is contradictory to the widespread understanding of the role of the ocean in long-term climate and C cycles—the ocean continues to take up heat and C in pace with each other because deep ocean circulation dominates both processes, and thus global warming and ocean C uptake are expected to continue/cease with the same pace. In our study, ESMs showed that the ocean heat propagated into deeper ocean in a straight downward manner, while ocean C transport seemed strongly dominated by the meridional overturning circulations. Because of this, ocean C transport into the deeper ocean slowed, taking more time to dominate and saturate with anthropogenic C throughout the depth of the water column, and leading to the time-lag of ceasing of ocean C uptake behind the ceasing of global warming. We raised two possibilities (C disequilibrium component and the role of the Southern Ocean) to explain this decoupled behavior of ocean heat and C uptake beyond centuries, but further multi-model analysis would be necessary to clarify the detailed mechanism behind this difference.

If models have relatively smaller RUNR than TCRE, they should have larger CE at the end of 1000 years simulation than CE that is evaluated when global warming reaches qECS in the 1pctCO2 experiment. This deficit was quantified as ΔCADD, and many models projected positive values for ΔCADD, indicating that if we aim to stabilize the CO2 concentration and the subsequent climate stabilization over centuries to millennia, we can emit C by ΔCADD in addition to the CE estimated from the linear ΔT–CE plot of 1pctCO2.

The experimental design employed in this study was highly idealized (abruptly doubling CO2 concentration over 1000–2000 years), and thus the direct translation of the simulation results to policy-relevant messages might be difficult. However, performing such experiments by using ESMs can lead us to a fundamental understanding on how the climate–C cycle system proceeds on the millennium time-scale, as partly performed in this study. In particular, the examination of (quasi)equilibrium states of the climate–C cycle system, which were evaluated by qECS, qECE, and qECRE in this study, might provide more basic properties of models because these indices are independent of the choice of scenario (the pathway to reach the doubled CO2 level) and rely on the magnitude of external forcing (and simulation length), as traditionally examined in the physical climate science field. The examination revealed that larger uncertainty exists in RUNR than TCRE, suggesting the importance of constraining the long-term response of the climate–C cycle system in models.

In this study, only two ESMs were used for the analysis, but to confirm the robustness of the conclusions, it is desirable to perform similar simulations by multiple ESMs, as performed by a model intercomparison project “LongRunMIP” by Rugenstein et al. (2019). Although the simulations proposed in this study are computationally expensive and other possible experimental designs exist (e.g., a pulse emission scenario as used in Archer et al. 2009; Frölicher et al. 2013; Joos et al. 2013), the experiments performed in this study are quite simple. Because the abrupt increase in CO2 (quadrupling) scenario was already embedded as one of the fundamental experiments of CMIP5 and CMIP6, extending the simulation up to 1000 years was not difficult and thus this simple design might be favored by modeling centers. Furthermore, a part of the simulations can be performed by off-line models (e.g., the BGC2 × CO2 simulation could be performed by off-line land/ocean models with biogeochemistry; the RAD2 × CO2 experiment could be performed by AOGCMs). Performing millennium time-scale simulations by a hierarchy of climate models (ESMs, AOGCMs, EMICs, and simplified climate models) and comparison of the results will help to obtain further insight on climate-C cycle processes and to understand the long-term response of the Earth system to anthropogenic perturbations.

Availability of data and materials

The simulation outputs of the CTL, FULL2 × CO2, and 1pctCO2 simulations by MIROC-ESM and MIROC-ES2L are distributed and made freely available through the Earth System Grid Federation (ESGF). Details on the ESGF can be found on the website of the CMIP Panel ( Readers are requested to contact the corresponding author if they wish to obtain the outputs of the BGC2 × CO2 and RAD2 × CO2 simulations. The simulation results of EMICs were obtained from the EMIC-AR5 website (
