Cold surge event observed by radiosonde observation from the research vessel “Hakuho-maru” over the Philippine Sea in December 2012

Abstract

The thermal energy transfer from the sea surface to the atmosphere associated with a cold surge event was investigated with observations from radiosondes on the research vessel “Hakuho-maru” over the Philippine Sea in December 2012. These observations were analyzed, and the results were compared with those obtained from observations over the East China Sea in the Air Mass Transformation Experiment in 1974 (AMTEX ‘74). The horizontal advection of cold and dry air associated with the cold surge dominated at heights below 850 hPa. In spite of this strong advection, the local temporal variations in the temperature and moisture were small, because the advection was balanced by the transfer of heat and moisture from the sea surface, which is qualitatively the same behavior as observed during the cold surge event in AMTEX ‘74. The eddy transport of the total heat energy from the sea surface to the atmosphere was estimated at about 410 W/m², which is about half of the maximum value of 780 W/m² observed during AMTEX ‘74. This result shows the existence of considerable heat transfer from the sea surface to the atmosphere over the Philippine Sea, which is the downstream region of the cold surge, after it passed through the East China Sea.

Introduction

Cold surges originating from the Siberian High are common during the Asian winter monsoon and can extend as far as the Southeast Asia, including the Philippines and the Indochina Peninsula. Two active propagation paths are known: the South China Sea (SCS) path and the Philippine Sea path (Compo et al. 1999). Several studies have shown that the surges along the SCS can result in heavy rainfall along the east coast of the Indochina Peninsula. The coupling of the cold surge and the westward-propagating disturbance in the SCS has been suggested as a key process of increased precipitation over central Vietnam (Yokoi and Matsumoto 2008; Wu et al. 2011; Chen et al. 2012). However, changes in the rainfall over the Philippine Sea area associated with a cold surge have not yet been carefully investigated.

Air mass transformation is one of the most important processes during a cold surge event, since it determines the thermodynamic features of the air mass that develops into convection and rainfall. However, a quantitative evaluation based on observations has not yet been conducted, except for the Air Mass Transformation Experiment in 1974 (AMTEX ‘74) (Ninomiya 1975). AMTEX ‘74 was conducted in February 1974 over the East China Sea, and the observation area is shown in Fig. 1. In the experiment, a cold surge and the associated air-mass transformation over the East China Sea were observed, when the cold surge encountered the sea surface after passing over land. Ninomiya (1975) showed that during the cold period of February 23–27, 1974, cold and dry advection dominated and was almost balanced with the eddy heat supply from the sea, which was confined below the 850 hPa level. The total heat supply from the sea to the atmosphere was estimated at about 580 W/m².

Fig. 1

The observation sites of the radiosondes used in this study. Black circles show the launch position of the radiosondes from the R/V Hakuho-maru. The radiosonde stations at Minamidaitojima and Chichijima are indicated by green circles. The AMTEX ‘74 observation area is shown by the black polygon

In December 2012, we succeeded in observing a cold surge event using radiosondes on the research vessel “Hakuho-maru” (hereafter, R/V Hakuho-maru) over the Philippine Sea. Since the observation area was located downstream of the AMTEX ‘74 observation area, we expected that the R/V Hakuho-maru observations would record the air mass that had already traveled over the East China Sea and had been influenced by the air-sea interaction. In this paper, we present a case study of this cold surge event to understand the air-sea interaction at locations far from land and to compare the results with those obtained from AMTEX ‘74.

Methods/Experimental

Observation and data

We conducted radiosonde observations from the R/V Hakuho-maru during December 23–26, 2012 as a part of the Vietnam Philippines Rainfall Experiment (VPREX) 2012 (http://www.jamstec.go.jp/rigc/j/tcvrp/mhcrt/vprex.html) under the Asian Monsoon Year 2007–2012 project (Wang et al. 2010). Figure 1 shows the observation sites and the launch times of the radiosondes. We launched radiosondes at 6- or 12-h intervals during December 23–24 between 29°N and 21°N along the cruise track from north to south. At the southernmost site (21°N, 133°E), we carried out a fixed-point observation at 3-h intervals for about 1.5 days during December 24–25. We then performed an energy budget analysis with the fixed-point observation data combined with the operational radiosonde data from the nearby Japan Meteorological Agency upper-air stations, Minamidaitojima (26°N, 131°E) and Chichijima (27°N, 142°E). We also used the National Centers for Environmental Prediction (NCEP) reanalysis II (Kanamitsu et al. 2002) to examine the large-scale background fields and the Tropical Rainfall Measuring Mission (TRMM) 3B42 data set (e.g., Kummerow et al. 2000) to examine the rainfall intensity.

Thermal and moisture budget analysis

We performed a thermal and moisture budget analysis and compared the results with those obtained by Ninomiya (1975) from AMTEX ‘74. In order to compare these results, we used the same formula and vertical coordinates as those used by Ninomiya (1975), which are briefly described below.

The heat energy and moisture continuity equations averaged over a certain area are written as follows:

$$\begin{array}{@{}rcl@{}} \frac{\delta T}{\delta t} + \frac{\partial}{\partial p} \overline{\omega ' T'} &=& \frac{d T_{R}}{d t} + \frac{L}{C_{p}} m, \end{array} $$

(1)

$$\begin{array}{@{}rcl@{}} \frac{\delta q}{\delta t} + \frac{\partial}{\partial p} \overline{\omega ' q'} &=& - m, \end{array} $$

(2)

where T is temperature, p is pressure, ω is the vertical p-velocity, dT _R /dt is the heating rate due to net radiation, C _p is the specific heat of dry air at constant pressure, q is the water vapor mixing ratio, L is the latent heat of condensation, m is the net condensation, the overbar $\overline {X}$ denotes the area-averaged value of the variable X, and the prime X^′ denotes the deviation from $\overline {X}$. The individual changes, the changes in the area-averaged quantities following the motion, of temperature and moisture were calculated from the area-averaged thermodynamic and moisture budget equations as follows:

$$\begin{array}{@{}rcl@{}} \frac{\delta T}{\delta t} &=& \frac{\partial \overline{T}}{\partial t} + \overline{\boldsymbol{v} \cdot \nabla T} + \overline{\omega} \left(\frac{\partial \overline{T}}{\partial p} - \frac{R}{C_{p}} \frac{\overline{T}}{p} \right), \end{array} $$

(3)

$$\begin{array}{@{}rcl@{}} \frac{\delta q}{\delta t} &=& \frac{\partial \overline{q}}{\partial t} + \overline{\boldsymbol{v} \cdot \nabla q} + \overline{\omega} \frac{\partial \overline{q}}{\partial p}, \end{array} $$

(4)

where v is the horizontal wind and R is the gas constant. The individual change in the equivalent temperature is obtained by eliminating the net condensation m from Eqs. (1) and (2) as follows:

$$\begin{array}{@{}rcl@{}} \frac{\delta}{\delta t} \left(T+\frac{L}{C_{p}}q\right) &=& -\frac{\partial}{\partial p} \overline{\omega ' \left(T' + \frac{L}{C_{p}}q' \right)} + \frac{d T_{R}}{d t}. \end{array} $$

(5)

By integrating Eq. (5) from the surface (p_SFC) to a given pressure level (p), the eddy transport of the total heat energy $F_{c} = -1/g \left (C_{p}\overline {\omega ' T'} + L\overline {\omega ' q'}\right)$ can be evaluated as follows:

$$ \begin{aligned} {}F_{c}(p) = &-\frac{1}{g} \int_{p}^{p_{\text{SFC}}} \frac{\delta}{\delta t} \left({C_{p}}T+Lq\right)dp - \frac{1}{g} F_{c}(p_{\text{SFC}})\\ &+ \frac{C_{p}}{g} \int_{p}^{p_{\text{SFC}}} \frac{d T_{R}}{d t} dp, \end{aligned} $$

(6)

where g is the gravitational acceleration, the second term on the right-hand side can be evaluated beforehand by integrating Eq. (5) from the surface to the top level under the assumption that the eddy heat and moisture transport vanish at the top level as described below, and the third term on the right-hand side can be evaluated by assuming that the radiative heating rate at each layer is as described below.

The area-average of the abovementioned thermodynamic quantities was calculated from the data obtained at R/V Hakuho-maru, Minamidaitojima, and Chichijima. The horizontal gradient and the horizontal divergence were calculated by fitting of the plane surface to the data from the three observation stations as in Davies-Jones (1993).

As in Ninomiya (1975), we evaluate the thermodynamic quantities in three layers: (1) between the surface and 850 hPa, (2) between 850 and 700 hPa, and (3) between 700 and 500 hPa. We assume that the eddy transport of heat and moisture vanish at 500 hPa.

The vertical p-velocity was estimated by accumulation of the horizontal divergence. The surface vertical p-velocity was calculated from the time derivative of the surface pressure. The original estimate of the vertical p-velocity ω_org was adjusted in order to reduce the estimate errors as follows:

$$\begin{array}{@{}rcl@{}} \omega &=& \omega_{\text{org}} - \Delta \omega \\ &=& \omega_{\text{org}} - \left(p - p_{\text{sfc}} \right) \frac{\omega_{\mathrm{org,top}} - \omega_{\text{top}}}{p_{\text{top}}-p_{\text{sfc}}}, \end{array} $$

where subscripts top and sfc denote the top level (500 hPa in this study) and the surface, respectively. The vertical p-velocity at the top level ω_top was estimated by

$$ \omega_{\text{top}} = - \left(\frac{\partial \overline{T}}{\partial t} + \overline{\boldsymbol{v} \cdot \nabla T} - \frac{dT_{R}}{dt} \right) \bigg/ \left(\frac{\partial \overline{T}}{\partial p} - \frac{R}{C_{p}} \frac{\overline{T}}{p} \right), $$

and assuming thermodynamic balance between the adiabatic motion and the radiative heating. This assumption is reasonable because condensation and evaporation did not seem to occur under the dry conditions observed at this level (the relative humidity was under 40%, not shown), and the eddy heat transport from the sea surface did not seem to penetrate the 700 hPa pressure level as discussed later.

For the radiative heating rate dT _R /dt, the climatological values near 20°N and 135°E taken from Katayama (1967) are used as in Ninomiya (1975). They are −0.042, −0.034, and −0.062 K/h for the layers between the surface and at 850 hPa, 850–700 hPa, and 700–500 hPa, respectively, and are insignificant compared with the other terms in the budget analysis of this study (e.g., the change in the equivalent temperature in the near-surface layer was estimated as about 0.5 K/hr).

The net condensation m was assumed to be zero, as we found no TRMM 3B42 precipitation over the analysis area during the analysis period (from 1200 UT on December 24 to 1200 UT on December 25).

Results

Synoptic situation

Figure 2 shows the distributions of the synoptic fields at 925 hPa and their temporal variations during the Hakuho-maru observation period. A tongue shaped ridge extending from the southeastern edge of the strengthened Siberian High appeared on December 21 (the upper panel of Fig. 2). On December 23 (the middle panel of Fig. 2), at the beginning of the observation period at the northernmost site (29°N), an anticyclone with cold air was separated from the southeastern edge of the Siberian High, which was weakened on the same day, and moved to the southern region of China. This anticyclone enhanced the northeasterly flow over the northern Indochina and SCS regions. These variations are typical characteristics of a SCS cold surge (e.g., Compo et al. 1999).

Fig. 2

Horizontal map of relevant meteorological variables during the Hakuho-maru observation period. The NCEP Reanalysis II geopotential height (color shading), temperature (Kelvin, black contours), horizontal wind (arrows), and TRMM 3B42 rainfall (gray shading) at the 925 hPa level at (upper) 1200 UT on December 21, (middle) 0600 UT on December 23, and (lower) 0000 UT on December 26, 2012. The launch sites of the radiosondes from the R/V Hakuho-maru are indicated by red pluses

On the same day, a weak ridge was found in the East China Sea (around 30°N, 125°E) and the associated northwesterly flow reached the Hakuho-maru observation area after passing through the East China Sea. On December 26 (the lower panel of Fig. 2), the ridge became more pronounced and moved southeastward to reach the Hakuho-maru observation area, just as we finished the fixed-point observations at the southernmost site (21°N, 133°E). This ridge extension and the associated anticyclonic flow were considered to be a typical development of the Philippine Sea cold surge.

The downstream northeasterly flow reached the Philippines and seemed to have brought precipitation to the east coast of the Philippines on December 26. In the equatorial region between 0 and 15°N, a westward-propagating, cyclonic flow was observed near 150°E on December 21, near 140°E on December 23, and near 125°E on December 26. The easterly flow at the northern edge of the cyclonic disturbance and the northeasterly flow associated with the cold surge formed a convergence zone offshore of the Philippines. The formation of a similar convergence zone due to a cold surge and a westward-propagating disturbance is considered to be a key driver of the heavy rainfall that occurs in autumn along the east coast of the Indochina Peninsula (Yokoi and Matsumoto 2008; Wu et al. 2011; Chen et al. 2012).

Temperature and moisture variations obtained by the radiosondes

During the observation period between December 23–24 (upper panel of Fig. 3), a stable layer with a large vertical potential temperature gradient formed at a height of about 2 km. Below this layer, the temperature and humidity were higher in the southern area.

Fig. 3

The result of the radiosonde observation of the Hakuho-maru cruise. (Upper) Latitude-height section of water-vapor mixing ratio (gray shading) and potential temperature (black contours) from the moving observations from 29°N to 22°N. (Lower) The same as the upper panel, except for the time-height cross-section during the fixed-point observation during December 24–26, 2012

From the fixed-point observations (lower panel of Fig. 3), the stable layer at a height of around 2 km gradually intensified. Below the stable layer, both the potential temperature and the water vapor mixing ratio showed uniform vertical distributions, which were consistent with the well-mixed layer during a cold surge event.

Energy budget analysis

Using the radiosonde data from the fixed-point observations combined with the operational radiosonde data at Minamidaitojima and Chichijima, we performed a thermodynamic energy budget analysis to evaluate the thermodynamic energy transfer between the atmosphere and ocean.

The fixed-point observations were conducted during the period when the near-surface temperature reached its minimum as shown in Fig. 4. The near-surface temperatures at Minamidaitojima and Chichijima decreased before December 25 and increased after December 26 along with the cold surge passage. The near-surface temperature observed by the radiosondes from the R/V Hakuho-maru showed a temperature decrease between 1200 UT on December 24 and 1200 UT on December 25. We evaluated the thermodynamic and moisture budgets using the data obtained during this period. The area-average, near-surface temperature obtained from the radiosondes from the R/V Hakuho-maru, and at Minamidaitojima and Chichijima showed a slight decrease. Note that the result of the AMTEX ‘74 budget analysis showed the maximum heat and moisture transport from the ocean to the atmosphere near the end of the temperature decrease associated with the cold surge.

Fig. 4

Time series of the near-surface temperature during December 22–29, 2012. Values are the average between the surface and 850 hPa. (blue) Minamidaitojima, (light blue) Chichijima, (black) Hakuho-maru fixed-point observation data (3-hourly), (green filled circle) R/V Hakuho-maru data used in the budget analysis (12-hourly; 1200 UT on December 24, 0000 UT on December 25, and 1200 UT on December 25), (red) mean temperature obtained from the observations at the three site/stations (R/V Hakuho-maru, Minamidaitojima, and Chichijima)

Figure 5 shows the results of the evaluation using Eqs. (3) and (4). In the layer below 850 hPa, the horizontal advection terms of temperature and moisture ($-\overline {\boldsymbol {v} \cdot \nabla T}$, and $-\overline {\boldsymbol {v} \cdot \nabla q}$, respectively) and the individual changes in the temperature and moisture (δT/δt and δq/δt, respectively) were large and had opposite signs, while the local temperature and moisture changes ($\partial \overline {T} / \partial t$ and $\partial \overline {q} / \partial t$, respectively) and the vertical advection terms of temperature and moisture ($\overline {\omega } \left (\partial \overline {T} / \partial p - R / C_{p}\ \ \overline {T} / p \right)$ and $\overline {\omega } \ \partial \overline {q} / \partial p$, respectively) were small. This means the horizontal advection of cold and dry air was almost canceled by the vertical convergence of the eddy transport of temperature and moisture, resulting in the relatively small values of local changes in the temperature and moisture with time. This feature is consistent with the uniform vertical distribution of the potential temperature and water vapor mixing ratio observed with the R/V Hakuho-maru radiosondes shown in the previous section.

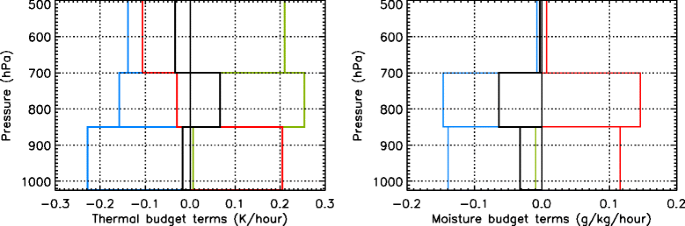

Fig. 5

Vertical profiles of the temperature and moisture budget. (Left) Local temperature change $\partial \overline {T} / \partial t$ (black), horizontal temperature advection $-\overline {\boldsymbol {v} \cdot \nabla T}$ (light blue), vertical temperature advection $-\overline {\omega } \left (\partial \overline {T} / \partial p - R / C_{p} \ \overline {T} / p \right)$ (green), and individual change in temperature δT/δt (red). (Right) The same as the left panel, except for the moisture budget: local moisture change $\partial \overline {q} / \partial t$ (black), horizontal moisture advection $- \overline {\boldsymbol {v} \cdot \nabla q}$ (light blue), vertical moisture advection $- \overline {\omega } \left (\partial \overline {q} / \partial p \right)$ (green), and individual change in moisture δq/δt (red)

In the layer between 850 and 700 hPa, the cold horizontal advection had a similar magnitude to the layer below 850 hPa, and it seemed to balance the warm vertical advection. For the moisture budget in the same layer between 850 and 700 hPa, both horizontal and vertical advection of dry air were observed. Although the local moisture change was negative, it did not fully compensate for the horizontal and vertical advection of dry air, resulting in the large positive value of the individual change in moisture. Although it is possible that this large individual change of moisture was not only due to eddy moisture transport but also due to evaporation, this possibility will not be discussed further in this study, because the effects of evaporation (and condensation) canceled out in the evaluation of the equivalent temperature, which we will show later.

In the layer above 700 hPa, the cold horizontal advection balanced the warm vertical advection. All the moisture terms in this layer were small.

The individual change of the equivalent temperature (left panel of Fig. 6) shows a large value in the layer below 850 hPa, and the value in the layer between 700 and 850 hPa is comparable. The surface value of F _c , i.e., the total heat supply from the ocean to the atmosphere is estimated as 410 W/m². F _c at 850 hPa is estimated as 140 W/m². The results indicate that the thermal influence from the sea surface reached the 700–850 hPa layer through the 850 hPa level.

Fig. 6

Vertical profiles of results from R/V Hakuho-maru and AMTEX ‘74 observations. (Left) Individual change in the equivalent temperature. (Right) Eddy transport of the total heat energy. The results of the R/V Hakuho-maru observations are plotted with solid black lines. The results from AMTEX ‘74 are plotted with dashed lines: (blue) the results over the north area during the cold period, (light blue) the results over the south area during the cold period, and (orange) the results during the warm period

Discussion: comparison with AMTEX ‘74 results

The energy budget in the layer below 850 hPa was qualitatively similar to that observed during the cold period in AMTEX ‘74 when the temperature decreased due to a cold surge; that is, the strong horizontal advection of cold and dry air was almost balanced by the heating and moistening due to eddy transport, and the local temperature and moisture changes were very small. Quantitatively, each term in the thermal budget (Eq. (3)) of this study had about half of the magnitude of that during the AMTEX ‘74 cold period. For the moisture terms, the magnitudes of the R/V Hakuho-maru observations were similar to or larger than those of AMTEX ‘74.

In Fig. 6, the individual change of the equivalent temperature and the eddy transport of the total heat energy obtained by the AMTEX ‘74 observations are indicated with dashed lines. The values were taken from Figs. 12 and 19 in Ninomiya (1975). The individual change of the equivalent temperature in the layer below 850 hPa of this study (about 0.5 K/hr) is about 60% of the magnitude of the averaged value of the north and south areas during the AMTEX ‘74 cold period (about 0.8 K/hr). On the other hand, in the layer between 850 and 700 hPa, the value obtained in this study is larger than that for the northern area during the AMTEX ‘74 cold period, and close to that of the southern area. The difference in the individual change in the equivalent temperature between the surface 850 hPa layer and the 850–700 hPa layer is smaller than that in the AMTEX ‘74 cold period.

The eddy transport of the total heat energy at the surface of this study was about 410 W/m², which is smaller than, but comparable to, those of the northern area (about 450 W/m²) and southern area (about 570 W/m²) during the AMTEX ‘74 cold period, and about half of the maximum value (about 780 W/m²) observed near the end of the AMTEX ‘74 cold period. The eddy transport estimated from the R/V Hakuho-maru observations is much larger than that of the AMTEX ‘74 warm period during February 23–27 when no cold surge was observed. The result suggests that a significant amount of heat exchange occurred even over the open ocean far from land.

Conclusions

We succeeded in observing the air-sea interactions associated with a cold surge event using radiosondes on the R/V Hakuho-maru far from land in the Philippine Sea in late December 2012. We evaluated the thermal energy transport from the sea surface to the atmosphere, and compared it with the results obtained from the AMTEX ‘74 experiment conducted over the East China Sea.

The strong horizontal advection of cold and dry air due to the cold surge dominated in the layer below 850 hPa. In spite of this strong horizontal advection, the local temperature and moisture changes were small, since the horizontal advection was balanced by a supply of heat and moisture from the sea surface, which is qualitatively the same finding as observed in the AMTEX ‘74 cold period. The eddy transport of the total heat energy from the sea surface to the atmosphere was estimated as about 410 W/m², which is roughly similar to the mean value (about 510 W/m²) and about half of the maximum value (about 780 W/m²) observed during the AMTEX ‘74 cold period.

This result shows the existence of considerable heat transfer from the sea surface over the Philippine Sea, in the region downstream of the cold surge after it passed through the East China Sea. The horizontal advection of cold and dry air had an effect on decreasing the local temperature and humidity, i.e., to suppress the convective instability. However, this effect was compensated by the eddy heat and moisture transport from the sea surface. As a result, the convective instability tended to be maintained, which, in the case of this study, possibly led to the enhanced convection and precipitation observed along the east coast of the Philippines.

In this study, it is also indicated that the coupling of the northeasterly flow due to the cold surge and the westward-propagating cyclonic disturbance strengthened the convergent flow toward the convective area over the Philippines. This type of coupling has been highlighted as one of the key drivers of heavy rainfall over the east coast of the Indochina Peninsula in autumn. The indication of a similar development mechanism over the Philippines is a key result of this study.

We hope to estimate the thermal budget during different phases of a cold surge and further south of the region considered in this study in order to understand the effect of cold surges on tropical convection as soon as we have collected the necessary data.
