Fault model of the 2012 doublet earthquake, near the up-dip end of the 2011 Tohoku-Oki earthquake, based on a near-field tsunami: implications for intraplate stress state

Abstract

On December 7, 2012, an earthquake occurred within the Pacific Plate near the Japan Trench, which was composed of deep reverse- and shallow normal-faulting subevents (Mw 7.2 and 7.1, respectively) with a time interval of ~10 s. It had been known that the stress state within the plate was characterized by shallow tensile and deep horizontal compressional stresses due to the bending of the plate (bending stress). This study estimates the fault model of the doublet earthquake utilizing tsunami, teleseismic, and aftershock data and discusses the stress state within the incoming plate and spatiotemporal changes seen in it after the 2011 Tohoku-Oki earthquake. We obtained the vertical extents of the fault planes of deep and shallow subevents as ~45–70 km and ~5 (the seafloor)–35 km, respectively. The down-dip edge of the shallow normal-faulting seismic zone (~30–35 km) deepened significantly compared to what it was in 2007 (~25 km). However, a quantitative comparison of the brittle strength and bending stress suggested that the change in stress after the Tohoku-Oki earthquake was too small to deepen the down-dip end of the seismicity by ~10 km. To explain the seismicity that occurred at a depth of ~30–35 km, the frictional coefficient in the normal-faulting depth range required would have had to be ~0.07 ≤ μ ≤ ~0.2, which is significantly smaller than the typical friction coefficient. This suggests the infiltration of pore fluid along the bending faults, down to ~30–35 km. It is considered that the plate had already yielded to a depth of ~35 km before 2011 and that the seismicity of the area was reactivated by the increase in stress from the Tohoku-Oki earthquake.

Introduction

It is well known that the stress state within the incoming Pacific Plate near the Japan Trench is characterized by shallow tensile and deep horizontal compressional stresses along a direction perpendicular to the trench axis, separated by a thin aseismic (i.e., stress-neutral) “elastic core”, due to the bending of the plate (bending stress, Fig. 1c; e.g., Chapple and Forsyth 1979). It is also well known that the number of normal-faulting earthquakes occurring within the plate and near the trench axis increases, following interplate megathrust earthquakes; this is attributed to the increased horizontal tensile stress caused by the stress release of the interplate coupling (e.g., Christensen and Ruff 1988; Dmowska and Lovison 1988).

Fig. 1
figure1

Location map of this study. a Green inverted triangles, yellow squares, pink triangles, and blue diamonds represent TPG, GPS buoy, KPG, and DART stations, respectively. Small dots denote the aftershocks deduced from the ocean bottom seismographs (Obana et al. 2015). Gray contour lines indicate the coseismic slip distribution of the Tohoku-Oki earthquake (Iinuma et al. 2012) with 10 m intervals. Black dashed line represents the trench axis. b Enlarged map around the focal area. Black star shows the epicenter by Japan Meteorological Agency. Red, blue, and green CMT solutions are from GCMT, Lay et al. (2013) and Harada et al. (2013), respectively. Gray CMT solution denotes the 1967 mb 4.7 earthquake (Seno and Gonzalez 1987). c The vertical cross-section along the A-B line in a. Aftershocks within the dashed rectangle in a are shown. Black curved line is the plate boundary (Ito et al. 2005). Schematic image of the intraplate bending stress state is also shown (red: down-dip compressional stress, blue: extensional stress). The thick line denotes the approximate location of the stress neutral plane

Recently, Craig et al. (2014) investigated the vertical variation in the centroid depth and fault mechanisms based on global catalogs (M > ~5) and noted that temporal changes in the transition depths between normal- and reverse-faulting earthquakes were not detected after the 2011 Tohoku-Oki earthquake. However, Obana et al. (2012, 2014, 2015, 2019) studied ocean bottom seismographs and reported that the down-dip limit of shallow normal-faulting earthquakes (M < ~5) within the plate near the trench axis deepened from ~25 to ~35 km after the same earthquake; they interpreted spatiotemporal change in the intraplate stress as having been caused by the release of stress associated with the Tohoku-Oki earthquake. However, the reason for this inconsistency has not been clarified. Furthermore, the relationship between the stress state in the incoming Pacific Plate and the changes in coseismic stress due to the Tohoku-Oki earthquake have not yet been quantitatively assessed in detail.

On December 7, 2012, an Mjma 7.3 earthquake occurred within the Pacific Plate near the Japan Trench, where the extremely large coseismic slip (> ~50 m) was estimated to have occurred during the 2011 Tohoku-Oki earthquake (e.g., Iinuma et al. 2012; star in Fig. 1b). Detailed teleseismic analyses (Lay et al. 2013; Harada et al. 2013) revealed that this earthquake was composed of two M ~7 subevents. According to the global centroid moment tensor (GCMT) solution (http://www.globalcmt.org/; Ekström et al. 2012), the first subevent had a reverse-faulting mechanism with a depth of ~60 km (Mw 7.2) and the second had a normal-faulting mechanism (~20 km, Mw 7.2) with a time interval of ~12 s (red CMT solutions in Fig. 1b and c). Hereafter, this earthquake is referred to as the doublet earthquake, and the first and the second subevents are referred to as subevent 1 and subevent 2, respectively. Since the fault mechanisms of the two subevents are consistent with bending stress, the source process of the doublet earthquake should reflect the intraplate stress state after the Tohoku-Oki earthquake. The vertical extents of each fault will be key to discussing the temporal change in the vertical variations of the stress state after the 2011 Tohoku-Oki earthquake.

Rupture processes related to the doublet earthquake have been investigated previously. Lay et al. (2013) and Harada et al. (2013) investigated this earthquake using teleseismic data to estimate the CMT solution and the finite fault model. Teleseismic data is generally a powerful dataset for resolving rupture processes of global earthquakes. However, since the teleseismic signals from each subevent overlapped, it is difficult to decompose the rupture process of the doublet earthquake precisely, especially for the latter, shallower, subevent.

Inazu and Saito (2014) estimated the spatial distribution of the initial sea-surface height change (tsunami source) using far-field tsunami data from ~200–2000 km away from the focal area (Additional file 1: Figure S1). In contrast to teleseismic data, tsunami data is useful for constraining the rupture process of the subevent 2, since shallow earthquakes generally excite tsunamis or cause seafloor vertical deformation more effectively than deep earthquakes.

When the 2012 doublet earthquake occurred, off-line autonomous absolute ocean bottom pressure gauges (PGs) installed near the focal area (< ~200 km from the source, Fig. 1a) recorded clear tsunami signals. This dataset is useful to constrain the fault model of subevent 2, which was difficult to constrain with teleseismic data. In the present study, we utilize the tsunami and aftershock data and the results of the teleseismic analysis to estimate the finite fault model of the 2012 doublet earthquake, focusing particularly on the vertical extent of the fault planes of each subevent. We also discuss the relationship between the vertical profile of the intraplate seismicity and its spatiotemporal changes associated with the 2011 Tohoku-Oki earthquake.

Methods/Experimental

Tsunami data

We use the near-field PGs installed by Tohoku University (hereafter TPG; e.g., Hino et al. 2014; Kubota et al. 2017a, 2017b) (green inverted triangles in Fig. 1a). We also use tsunami data obtained by the off-Kushiro online cabled PGs installed by Japan Agency for Marine-Earth Science and Technology (JAMSTEC) (Hirata et al. 2002) (KPGs, pink triangles), by GPS buoys installed by the Port and Airport Research Institute (PARI) (Kato et al. 2005) (yellow squares), and by the Deep-ocean Assessment and Reporting of Tsunamis (DART) system (Bernard et al. 2014) (blue diamonds). Detailed information is given in Table 1.

Table 1 List of tsunami stations used in this study

To retrieve the tsunami waveforms, we remove the ocean-tide component using the theoretical tide model (Matsumoto et al. 2000) and apply the filter from Saito (1978). The lowpass filter we applied has a cutoff of 3 min to the TPG records, and the bandpass filter has a passband of 3–60 min to the KPG, GPS buoy, and DART records. We apply the lowpass filter to the TPG records to preserve the offset in the pressure change caused by the vertical deformation of the seafloor.

The filtered records are shown in Fig. 2. TPGs first capture down-motion tsunamis with amplitudes of ~−5 cm and then larger up-motion tsunamis with amplitudes of ~+10 cm. The durations of both the down- and up-motion tsunamis are ~5 min (black dashed lines in Fig. 2a). Small fluctuations and changes in the pressure offset are observed at the stations near the focal area (Fig. 2b). Tsunami amplitudes at the DART and the KPG stations are very small (~1 cm, black dashed lines in Fig. 2c and d). At the former, dynamic pressure changes caused by seismic waves (e.g., Kubota et al. 2017b) are also observed. Tsunami signals are also detected by some GPS buoys (e.g., ~15 cm at station 801, Fig. 2e).

Fig. 2
figure2

Filtered tsunami records. The records for a TPGs, b TPGs near the epicenter, c DART, d KPGs, and e GPS buoys are shown. Light gray and dark gray waveforms are the de-tided waveforms and 60s-moving-averaged records, respectively. Red waveforms are the filtered records

Step-by-step approach for fault modeling

To decompose the complex rupture process of the 2012 doublet earthquake, we apply a step-by-step procedure to tsunami, teleseismic, and aftershock data. We first estimate an initial sea-surface height distribution of the tsunami (hereafter, the tsunami source model) by inverting tsunami records. Since seafloor crustal deformations, or tsunamis, are very sensitive to shallow earthquakes, we then estimate the fault model of shallow subevent 2 based on the tsunami source model. We also use aftershocks detected around subevent 2 (Obana et al. 2015) to obtain information on the fault geometry. We then calculate the change in residual sea-surface height between the tsunami source model and the vertical displacement from subevent 2. Given that this residual distribution is caused by subevent 1, we then estimate the fault model of subevent 1. Furthermore, because there are large trade-offs between fault size and the focal depth and the amount of slip in a deeper earthquake, we also use the results of teleseismic analyses (Lay et al. 2013; Harada et al. 2013) to obtain prior information on the fault parameters such as fault depth and size for subevent 1.

Tsunami source modeling using near-field tsunami records

We estimate the tsunami source model by inverting tsunami records via the conventional inversion analysis method (e.g., Tsushima et al. 2012; Inazu and Saito 2014; Kubota et al. 2018a). The details of the procedure are identical to those described in Kubota et al. (2018a). Before estimating the tsunami source model, however, we conduct a preparatory tsunami simulation using the tsunami source model in Inazu and Saito (2014) (Additional file 1: Figure S1). Although the pressure fluctuation at the TPGs was explained roughly, the pressure offset changes at the stations closest to the source (G09, TJT1, JFAST, and GJT3) were not explained at all (Additional file 1: Figure S1). This indicates that the latter is not due to coseismic seafloor deformations. Thus, they are probably due to tilts or rotations in the sensors related to the seafloor strong ground motion (e.g., Wallace et al. 2016; Kubota et al. 2018a).

In calculating the Green’s functions for the tsunami, the unit source elements of the seafloor displacements (Kubota et al. 2015, 2018a) are distributed around the focal area. The horizontal dimension of the unit source elements is 20 km × 20 km at a spacing of 10 km (overlapping with the adjacent elements), distributed along 260 km (in the EW direction) × 240 km (NS) area. To calculate the sea-surface displacement from the unit source elements of the seafloor displacement, we consider the spatial filtering effect due to water depth (Saito 2019). In the depth filtering process, we assume a seawater depth of 6 km. To simulate the tsunami, we solve the linear dispersive wave equation in the local Cartesian coordinates (e.g., Saito 2019). The grid spacing is 2 km with a 1 s time step according to interpolation done via ETOPO1 bathymetry data (Amante and Eakins 2009). We assume that the displacements of all unit sources occurred instantaneously and simultaneously. The tsunami propagation velocity expected by the linear long-wave theory is expressed as v = (g0H)1/2 (g0: gravity acceleration constant, H0: water depth). Given the assumed water depth of 6 km and the average depth of the focal area, the propagation velocity is approximated as ~240 m/s (~15 km/min). Thus, the tsunami propagation distance during the duration of the M~7 earthquake (~10 s) and the time interval between two subevents (~10 s) is about 3 km, which is sufficiently small compared to the extent of the tsunami source model (~100 km, Inazu and Saito (2014)). We consider the static pressure offsets related to the calculation of Green’s function of the PGs for permanent seafloor deformation (Tsushima et al. 2012; Kubota et al. (2018a)). The same filter used for the observed records is applied to the simulated waveforms.

All data is resampled to 15 s intervals for the inversion. We use different time windows for each station, including tsunami main phase (Table 1, thick black lines in Fig. 3). The smoothing constraint is imposed and its weight is determined based on the trade-off between the weight and reduction in variance between the observed and simulated tsunami waveforms (Additional file 1: Figure S2). Since the G09, TJT1, JFAST, and GJT3 stations are located near the source and are probably affected by seafloor ground shaking (Additional file 1: Figure S1), we exclude these records from the inversion analysis. Since all TPG stations are located landward of the source region, the constraint for the eastern edge of the tsunami source is likely not very good. Therefore, to improve the source constraint further, we also use the DART and KPG records. Since the amplitudes of TPG records are approximately ten times larger than the DART and KPG records, we weight the KPG and DART data at values ten times that of the TPG data.

Fig. 3
figure3

Results of tsunami source inversion. a Distribution of the tsunami source. Contour line interval is 5 cm. b Comparison of the observed (gray) and synthesized (red) waveforms. Thick black lines denote the time window used for the inversion

Fault modeling of subevent 2

Because we found that the subsidence of the tsunami source was generated by the shallow subevent 2 (see Fig. 4 and Tsunami source model subsection in Results and Discussion section), we first estimate a fault model for subevent 2, which best explains the subsidence region of the tsunami source model. We use the grid-search approach proposed by Kubota et al. (2015, 2018b), which estimates an optimum rectangular planar fault model with uniform slip. Because the short-wavelength component disappeared in the tsunami source model due to the smoothing constraint imposed in the inversion and the spatial smoothing effect used in the deep-sea region during the tsunami generation (see Fig. 4 and Tsunami source model subsection in Results and Discussion section), we consider the smoothing effect in fault modeling by the following procedure. First, we calculate the seafloor deformation using a fault model candidate (a set of unknown parameters) (Okada 1992) and then simulate a tsunami. The simulated waveforms are inverted to obtain the initial sea-surface height distribution, under the same conditions used in the inversion for the tsunami source model. Finally, we evaluate the goodness of the tsunami waveform fitting from the fault model candidate, by comparing the subsided area of the tsunami source model and the inverted sea-surface height.

Fig. 4
figure4

Sea-surface displacement expected from the GCMT solution. Displacements from a the tsunami source model, b the combination of both subevents, c subevent 1, and d subevent 2. The faults are represented by black rectangles

The geometry of the fault plane is assumed to be on the west-dipping plane of GCMT solution (strike = 189° and dip = 50°), which is consistent with the planar structure of the aftershock (Obana et al. 2015). We also assume the rake angle from the GCMT solution (= −90°). Because the aftershock alignment is located ~2 km west from the GCMT centroid, the fault plane is constrained to pass through the point that is 2 km west from the GCMT centroid (hereafter, referred to as the reference point). The unknown parameters are the distance from the reference point to both ends of the fault, along the strike (i.e., length) and dip (width) direction (L1, L2, W1, and W2; see Fig. 5c and d). The search range for these parameters is determined based on the aftershocks and the horizontal extent of the subsidence area of the tsunami source. The fault length (L = L1 + L2) is assumed to be greater than the fault width (W = W1 + W2), as L > W. The top of the fault plane (defined by parameter W2) is constrained as not to extend above the seafloor. The fault model candidate is assessed through variance reduction (VR) of the subsided areas between the tsunami source model and the fault model candidate:

$$ \mathrm{VR}=\left(1-\frac{\sum_{i=1}^N{\left({x}_i^{\mathrm{source}}-D{x}_i^{\mathrm{candidate}}\right)}^2}{\sum_{k=1}^N{\left({x}_i^{\mathrm{source}}\right)}^2}\right)\times 100\left(\%\right), $$
(1)
Fig. 5
figure5

Results for the grid-search of subevent 2. a The optimum fault model is shown by the red rectangle. The top ten fault model candidates are shown by thin black rectangles. b VR (black) and Mw (red) of the fault model candidates searched in the grid-search, arranged in the descending order in terms of VR. The rectangle with blue dashed lines denotes the area used for calculating VR. c, d Vertical profile along A-A’ and B-B’ lines in a. Aftershocks are taken from the rectangular area with the green lines in a. The configuration of the fault parameters is also shown

where \( {x}_i^{\mathrm{source}} \) and \( {x}_i^{\mathrm{candidate}} \) are the displacements of the sea-surface at the ith grid point, from the tsunami source model and the fault model candidate assuming the unit slip, respectively. N is the total number of grid points. The slip amount on fault D is determined so that the VR takes the maximal value. We use the grid points within the subsided area of the tsunami source model (blue dashed line in Fig. 5a) to calculate the VR. The search range of the unknown parameters is listed in Table 2.

Table 2 Search range of the grid-search for fault modeling

Fault modeling of subevent 1

In order to estimate the fault model of subevent 1, we use the residual sea-surface height between the tsunami source model and the sea-surface displacement expected from the fault model of subevent 2 (hereafter, referred to as the residual height distribution). This is because the residual height distribution is expected to correspond to the sea-surface displacement due to subevent 1. Because subevent 1 occurred at the deeper part of the incoming plate, it appears to be difficult to constrain the fault parameters such as fault geometry, depth, size, and slip amount only from the residual height distribution. Meanwhile, the residual height will contribute to constrain the horizontal location of the fault. Thus, we use the results of the teleseismic analyses in previous studies (GCMT; Lay et al. 2013; Harada et al. 2013) to obtain prior information on the fault parameters. We fix the centroid depth, fault geometry (strike, dip, and rake angles), and fault dimension (length and width) based on previous teleseismic analyses. We estimate the optimum horizontal location (longitude and latitude) of the fault and the amount of uniform slip on the rectangular fault using the grid-search approach, as in the fault modeling of subevent 2.

Because Lay et al. (2013) investigated the CMT solution of the 2012 doublet earthquake using the teleseismic W-phase waveforms and showed and discussed the uncertainty of their estimations in detail, we use the CMT solution proposed by them as prior information for our fault modeling. We assume the centroid depth as 60.5 km and the west-dipping nodal plane with geometry of strike = 163° dip = 51°, and rake = 57°. The slip distribution of subevent 1 obtained by the teleseismic analysis (Lay et al. 2013; Harada et al. 2013) had a main rupture area with a dimension of L ~ 30 km and W ~ 20 km; therefore, we fix the fault length and width as 30 and 20 km, respectively (L1 = L2 = 15 km and W1 = W2 = 10 km). The search range of the horizontal location of the centroid is determined based on the evaluation of the uncertainty of the horizontal location of the W-phase analysis of Lay et al. (2013) (see Figure S2 in Lay et al. 2013). The search range is listed in Table 2.

Results and Discussion

Tsunami source model

We obtained a tsunami source distribution that had a pair of large uplifts and subsidences (Fig. 3a). The observed waveforms (red lines in Fig. 3b) were reproduced well. The GPS buoy waveforms, which were not used for the inversion, were also explained. Furthermore, although the offset changes at the stations near the source (G09, TJT1, JFAST, and GJT3) were not reproduced, the fluctuations in the calculated waveforms were similar to the observations. This is consistent with the idea that these changes were due to the tilting or rotation of the sensors (e.g., Wallace et al. 2016; Kubota et al. 2018a).

To investigate the contribution from each subevent on the tsunami source, we compute the sea-surface vertical displacement from the GCMT solution and compared the results with the tsunami source model. We use the equation in Okada (1992), which assumes that the rectangular planar fault on the west-dipping nodal plane has a uniform slip. For simplicity, values of length, width, and slip L = 70 km, W = 35 km, and D = 0.7 m, respectively, are used. The spatial pattern of the tsunami source model (Fig. 4a) is similar to that of the combined deformation of subevents 1 and 2 (Fig. 4b) and the subsidence area is similar to that expected from the CMT solution of subevent 2 (Fig. 4d). The uplift of the tsunami source model is not consistent with either subevent 1 nor 2 alone (Fig. 4c and d). Based on this comparison, we conclude that the subsidence is generated by subevent 2 alone and that both subevents contribute to the uplift. The deformation expected from subevent 2 (Fig. 4d) has a sharp displacement peak that was not estimated in the tsunami source model. This is probably because the short-wavelength components disappeared due to the smoothing constraint imposed in the inversion and the spatial smoothing effect used in the deep-sea region during the tsunami generation (Saito 2019).

Fault models of two subevents of the 2012 doublet earthquake

We obtained an optimum fault model of subevent 2, which had the highest VR value among all the fault model candidates, with a length of 35 km (L1 = 5 km, L2 = 30 km), width of 25 km (W1 = 15 km, W2 = 10 km), and fault slip of 1.1 m (VR = 96 %, Fig. 5). The seismic moment was 5.5 × 1019 Nm (Mw 7.1, assuming the rigidity of 60 GPa). The VR values for all fault model candidates (in the descending order) are shown in Fig. 5b. The VR values for the top ten candidates are almost flat and relatively high (Fig. 5d). This indicates that the top ten candidates reasonably reconstruct the subsidence of the tsunami source model. Hence, we inspect the model parameters for these candidates to evaluate the estimation error of the optimum fault model. They are projected onto the vertical cross-section in Fig. 5c and d (thin black lines), and the histograms of the model parameters are shown in Fig. 6. Among the top ten candidates, most models have the down-dip limit of the fault plane of W1 = 15 km, and all models have fault bottoms shallower than the depth of ~35 km (W1 ≤ 20 km, Fig. 6). This indicates that the lower end of the fault of subevent 2 should be less than ~35 km.

Fig. 6
figure6

Histograms of the top ten model parameters in the grid-search of subevent 2

We also calculated the sea-surface height assuming the faults with smaller dimension with larger slip (Additional file 1: Figure S3). In this calculation, the down-dip end of the fault (W1) and slip amount were changed, and the length (L1, L2) and the up-dip end (W2) of the fault, and seismic moment Mo were fixed to those of the optimum model. In the fault models with W < 15 km (down-dip depth of fault is shallower than ~25 km), the locations of the western edge of the subsided area and of the peak displacement are inconsistent with those of the tsunami source model. This indicates the small fault models are implausible. The subsidence of the tsunami source model could be explained when the small faults are located slightly west of the optimum fault location. However, such faults can be rejected because we used the aftershock distribution of Obana et al. (2014, 2015) to constrain the horizontal location of the fault. It is important to use the aftershock distribution for prior information on the fault horizontal location, in order to accurately constrain the down-dip depth of the subevent 2 fault.

The subsided area calculated from the optimum fault model was consistent with that of the tsunami source model (Fig. 7a and b). We calculate the residual sea-surface height between the tsunami source model (Fig. 7a) and the sea-surface displacement expected from the fault model of subevent 2 (Fig. 7b; the residual height distribution).

Fig. 7
figure7

Sea-surface height changes from the models in the present study. a The tsunami source model with contour intervals of 5 cm. The rectangular area enclosed by the blue dashed lines denotes the area used for the fault modeling of subevent 2. b Subevent 2 fault model; the optimum fault is also shown. c the residual between a and b. CMT solutions for subevent 1 by GCMT, Lay et al. (2013) and Harada et al. (2013) are also shown. The rectangular area enclosed by the blue dashed lines is the area used for the fault modeling of subevent 1. d the subevent 1 fault model; the optimum fault is also shown

From the residual height distribution utilizing the results of the teleseismic analyses, we constrained the fault model of subevent 1. The result is shown in Fig. 8. The slip amount on the fault was 2.2 m, and the seismic moment was 7.8 × 1019 Nm (Mw 7.2, rigidity of 60 GPa). We obtained the optimum VR of 80%. The VR values are relatively high and flat for the top ten fault model candidates (Fig. 8b). The uncertainty of the horizontal location of the fault center for these candidates is likely to be ± ~10 km (Fig. 8a). This horizontal uncertainty is almost consistent with that estimated by Lay et al. (2013).

Fig. 8
figure8

Results for the grid-search of subevent 1. a The optimum fault model is shown by the red rectangle. The top ten fault candidates are shown by thin black rectangles. A rectangle with dot-and-dashed lines denotes the search range for the fault centroid location. b VR (black) and Mw (red) of the fault model candidates searched in the grid-search, arranged in the descending order in terms of VR

Tsunami and teleseismic waveform simulation from optimum fault model

The results of the fault modeling of the 2012 doublet earthquake are summarized in Fig. 9. The sea-surface height displacement expected from the optimum rectangular fault models of subevents 1 and 2 (Fig. 9a) is calculated by the superposition of the displacements from each fault model (Figs. 5a and 8a). The distribution is very similar to that of the tsunami source model (Fig. 4). The optimum models have vertical ranges of ~6 (seafloor)–30 km for shallow subevent 2 and ~50–70 km for deep subevent 1 (Fig. 9d and e).

Fig. 9
figure9

Summary of the fault modeling. a Sea-surface height distribution calculated from the superposition of the those from the fault models of subevents 1 and 2. Locations of the optimum faults are also shown. b The moment rate function used for the teleseismic waveform calculation. c Aftershock distribution on the fault plane of subevent 2. Aftershocks with distances from the fault plane smaller than 5 km are shown. d, e Vertical profile along A-A’ and B-B’ lines in a. Orange and blue rectangles are the optimum fault models of subevents 1 and 2, respectively. Aftershocks are taken from the rectangular areas in a

From the combined displacement, we numerically simulate tsunami waveforms (Fig. 10). The simulated waveforms reasonably explained the observed tsunami waveforms well, not only the near-field TPGs but also the far-field DART, KPG, and GPS buoys (red lines in Fig. 10b). We calculate the VR between the observed and calculated waveforms from Eq. (1), by using the same time window as in the inversion of tsunami records. We finally obtained VR = 79 %.

Fig. 10
figure10

Comparison of the observed (gray) and calculated (red) waveforms based on the superposition of the optimum fault models of subevents 1 and 2

We also simulate the teleseismic P-waves using the fault model parameters for comparison with the observed teleseismic waveforms (Fig. 11). We assume pure double-couple point sources at the centers of the optimum faults of each subevent. We use the calculation programs of Kikuchi and Kanamori (2003). A triangular-shaped source time function with the rise time of 6 s is assumed, considering the typical rupture duration of M ~7 earthquakes (Fig. 9b). After simulating the waveforms of each subevent, we stack the simulated waveforms. We assume that the difference of focal times between subevents 1 and 2 was 10 s, which is determined by inspecting the waveform similarity of the observed and stacked waveforms.

Fig. 11
figure11

Results of the forward calculation of the teleseismic waveforms based on the optimum fault model. a Locations of the teleseismic stations. b Comparison of the teleseismic waveforms. Black lines are the observed waveforms, and the synthetic waveforms using the velocity structure with and without the water layer are shown by red and blue lines, respectively. The bandpass filter of 10–500 s is applied

We use a 1D multi-layered velocity structure model without the water layer, assuming that the source structure was identical to the receiver structure in Table 3 (blue traces in Fig. 11b). The simulated waveforms for each subevent are also shown in Additional file 1:Figure S4. The peak timing and amplitudes of the first up-motion and the subsequent down-motion waves reasonably fitted the observation, although the subsequent phases during 50–80 s did not perfectly match. This is probably because of the assumptions of the velocity structure and simple source time function. We then simulate the teleseismic waveforms incorporating the water layer and oceanic structure, shown in Table 3 (red traces in Fig. 11b). The agreement of the subsequent phases improved compared with the simulation without the water layer. According to the teleseismic analysis by Lay et al. (2013), another smaller normal-faulting subevent was estimated at 40 s after subevent 1. Hence, it is possible that the third smaller subevent also contributed to the generation of the later arrival. It is worth pointing out that it is important to use the teleseismic records to resolve the temporal complexity of the doublet earthquake in detail.

Table 3 Velocity structure used for the teleseismic calculationa

Our fault model explains both tsunami and teleseismic observations. In addition, our fault model of subevent 2 is consistent with the aftershock distribution determined by the ocean bottom seismographs. The rupture area of subevent 2 estimated by Harada et al. (2013) was located at the outer-trench region and concentrated in the shallower portion of the plate (z < ~20 km). The horizontal location of subevent 2 centroid by Lay et al. (2013) (Fig. 1b) was also inconsistent with our fault model and with the aftershock locations. The consistency of our fault model with the tsunami, teleseismic waveforms, and aftershocks indicates that the step-by-step procedure used in this analysis can decompose the complex rupture process of the 2012 doublet earthquake. We conclude that we can obtain a more comprehensive fault model of the 2012 doublet earthquake, than the one estimated from the teleseismic data alone.

Importance of near-field tsunami data for the fault modeling

Inazu and Saito (2014) showed a tsunami source model of the 2012 doublet earthquake using offshore tsunami stations located more than 200 km from the source area (Additional file 1: Figure S1). We compare the tsunami source models of this study with that of Inazu and Saito (2014) (Fig. 12a). The horizontal location of the tsunami source was in agreement with the model of Inazu and Saito (2014), although the amplitudes were lower. The simulated tsunami at the TPG stations using the tsunami source model of Inazu and Saito (2014) is similar to the tsunami peak timing of the observation (Fig. 12b). This indicates that the horizontal location of the tsunami source is reasonably constrained even when using tsunami stations located far from the source (> ~200 km).

Fig. 12
figure12

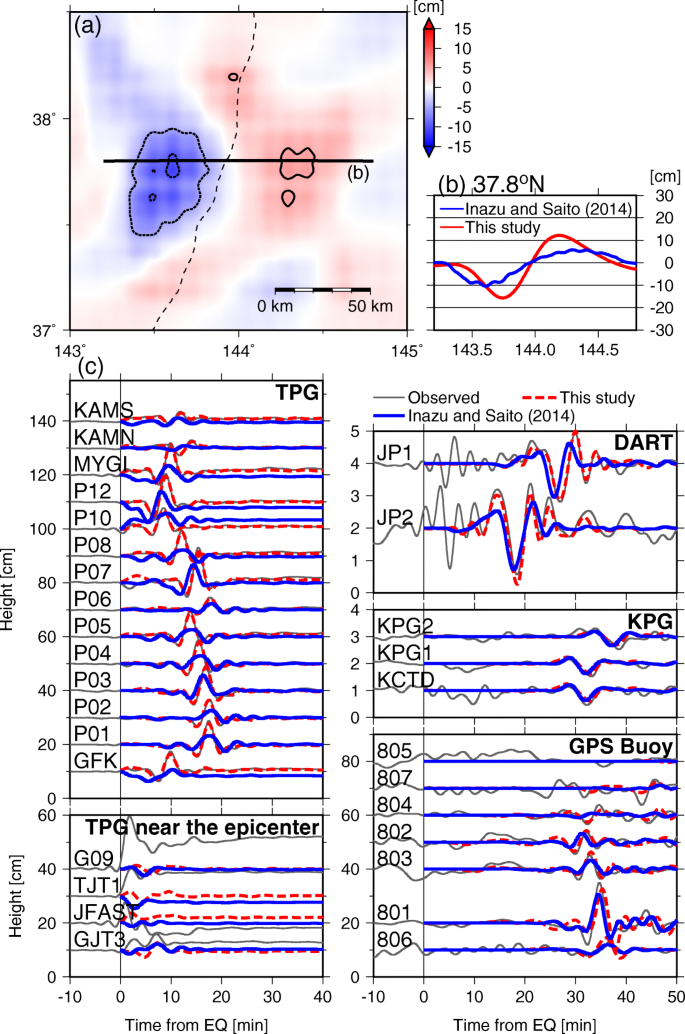

Comparison with the result of Inazu and Saito (2014). a Tsunami source model of Inazu and Saito (2014). b Cross-section of the tsunami sources from this study (red line) and Inazu and Saito (2014) (blue) at 37.8°N. c Comparison of the observed waveforms (gray) and synthesized waveforms. Blue dashed and red lines are synthesized using the tsunami source model of the present study and Inazu and Saito (2014), respectively

However, the dominant period and amplitudes of the simulated waveforms are longer and smaller than the observation. This indicates that the spatial resolution of the far-field tsunami data is not sufficient for the finite fault model, and thus, to constrain the down-dip limit of the fault plane of subevent 2. Using the near-field tsunami data, the constraint of the down-dip limit of the fault plane of shallow subevent 2 is improved. This enables us to discuss the intraplate stress regime after the 2011 Tohoku-Oki earthquake.

The fault dimension and depth of subevent 1 estimated in this study are consistent with previous results of the teleseismic waveforms (Lay et al. 2013; Harada et al. 2013). This is because we used the teleseismic analyses as the prior information for fault dimension. In contrast, the horizontal location and fault dimension of subevent 2 differ from the teleseismic analyses. The down-dip limit of subevent 2 constrained from the teleseismic analysis (Harada et al. 2013) is considerably shallower (< ~20 km) than that of the constrained from tsunami data (~40 km). Our fault model has better consistency with the aftershock distribution, for both horizontal location and depth range. It is likely that the rupture process of subevent 2 was not resolved well from the teleseismic data, because the teleseismic signal from subevent 2 overlaps with that of subevent 1. By using the near-field tsunami records, the resolution of subevent 2 rupture was considerably improved.

Temporal change in down-dip limit of normal-faulting earthquake

The normal-faulting aftershocks around subevent 2 (Obana et al. 2014, 2015) mainly occurred at depths of ~30 km, which corresponds to the down-dip depth of the optimum fault of subevent 2 (Fig. 9b). Some normal-faulting seismicity also occurred at depths of ~35 km, along the down-dip direction (Fig. 9b). According to Obana et al. (2014), the estimation error of the aftershocks is less than 5 km (Figure 2 in Obana et al., 2014). Considering the estimation error of the fault model and aftershock distribution, the down-dip limit where the shallow normal-faulting seismicity can occur around this region is ~30–35 km (Fig. 13).

Fig. 13
figure13

Schematic representation of the vertical-temporal change of seismicity in the outer-rise region. Blue and red stars denote the normal-faulting and reverse-faulting small seismicity shown by previous studies (Seno and Gonzalez 1987; Hino et al. 2009; Obana et al. 2012, 2014, 2015). Note that the aftershocks occurred around the Mw 7.6 outer-rise ~40 min after the Tohoku-Oki earthquake (Obana et al. 2012) are located ~60 km east from the focal area of the 2012 doublet earthquake

We also investigate the temporal change of the intraplate seismicity before and after the Tohoku-Oki earthquake (Fig. 13). The down-dip limit of subevent 2 fault (~35 km) is clearly ~10 km deeper, compared with the down-dip limit of the normal-faulting seismicity observed in 2007 (< ~25 km, Hino et al. 2009). Because both researches use the arrays of the ocean bottom seismometers installed just above the focal area, which have identical sensitivity and were distributed with almost identical spatial intervals (~10 km), the detectability in both observation periods is expected to be identical and thus the difference between the seismicity depths of the lower limit of the shallow normal-faulting seismicity was confidentially significant. In addition, a few deeper (> ~40 km) events were detected in both observations. This also suggests the misdetection of the deeper shallow normal-faulting event (~30–40 km) before the Tohoku-Oki earthquake is unlikely to occur.

In contrast, the up-dip limits of the subevent 1 fault (~50 km) and the deep reverse-faulting seismicity (~50 km, Obana et al. 2015) are almost equivalent to the deep reverse-faulting seismicity before the Tohoku-Oki earthquake (Seno and Gonzalez 1987; Hino et al. 2009), although it is difficult to discuss this in detail because of the very low seismicity. By focusing on the shallow normal-faulting seismicity, we discuss the cause of the deepening of the down-dip limit of the normal-faulting seismicity.

The yield strength of the plate is characterized by the brittle rupture at the shallow portion and ductile failure laws at the deeper parts of the plate (Fig. 14a, e.g., Scholtz 1988; Turcotte and Schubert 2002; Hunter and Watts 2016). Based on the Anderson theory of faulting, the brittle strength along the horizontal direction normal to the trench axis τxx(z) is expressed as (e.g., Turcotte and Schubert 2002):

$$ {\tau}_{xx}(z)=\frac{2\mu \left({\rho}_0{g}_0z-{p}_w\right)}{\sin 2\delta +\mu \left(1-\cos 2\delta \right)}, $$
(2)
Fig. 14
figure14

Vertical profile of the strength and the bending stress within the incoming plate. a A schematic image of vertical profile. Green, gray dashed, and blue lines represent brittle strength, ductile strength, and bending stress, respectively. After the yielding of rock, deviatoric stress occurring within the plate is expressed by a red line. Blue and red background colors show the areas where shallow normal-faulting and deep thrust-faulting earthquakes occur, respectively. b Stress profile at the shallow part of the plate assuming the typical frictional strength condition. Dark red line is the deviatoric stress after the Tohoku-Oki earthquake. Gray hatched area is the region where seismicity becomes active after adding the stress change. c Stress profile assuming the reduced frictional strength. Dark red line is the deviatoric stress after the Tohoku-Oki earthquake, calculated by adding a constant static stress change of 20 MPa

where ρ0 is the crust density, pw is the pore pressure, z is depth (downward is positive), δ is the fault dip angle, and μ is the frictional coefficient. This equation implies that the rock strength is proportional to depth z (green line in Fig. 14a). Further, by assuming the plate as a rigid two-dimensional elastic plane (x- and z-axes are the subducting direction and vertical direction, respectively), the vertical distribution of the bending stress along the dip direction σxx(z) is approximated as (e.g., Turcotte and Schubert 2002; Craig et al. 2014; Hunter and Watts 2016)

$$ {\sigma}_{xx}(z)=-\frac{EC}{1-{\nu}^2}\left(z-{z}_0\right), $$
(3)

where E is the Young’s modulus, C is the curvature of plate bending, ν is the Poisson’s ratio, and z0 is the stress-neutral depth (tensile stress is positive, blue line in Fig. 14a).

At a shallower portion of the plate, where the bending stress exceeds the brittle strength (the blue background area in Fig. 14a), the rock cannot remain elastic and the stress is released, or the rock yields, leading to shallow normal-faulting earthquakes. In contrast, elastic behavior is expected in the depth range where the bending stress does not exceed strength; the range is termed the elastic core (e.g., Craig et al. 2014; Hunter and Watts 2016). The actual deviatoric stress profile within the plate is represented by the red solid line in Fig. 14a. The top of the aseismic elastic core, or the bottom of the vertical range of the normal-faulting seismicity, can be defined as a depth where the bending stress and the frictional strength are equal. As the top of the elastic core is present at a depth of ~30–35 km and the top of the reverse-faulting seismicity (the bottom of the elastic core) at ~45 km, the stress-neutral plane is expected to be located in the depth range between 30–35 and 45 km. This depth range is almost consistent with the depths where fault mechanisms flip from the shallow normal-faulting to the deep thrust-faulting mechanisms, near the trench axis off NE Japan (~25–40 km, Gamage et al. 2009; Koga et al. 2012).

We compare the vertical profiles of the brittle strength and bending stress. Assuming E = 80 GPa and ν = 0.25, and C = 2 × 10-7 m-1 (McNutt and Menard 1982), xx/dz = EC/(1−ν2) is ~15 MPa/km. Assuming the hydrostatic pressure condition pw = ρwg0z (ρw = 1030 kg/m3, seawater density) and ρ0 = 2700 kg/m3 , δ = 50°, and μ = 0.6 (e.g., Byerlee 1978), xx/dz is ~11 MPa/km as per Eq. (2). In this situation, assuming z0 = 40 km, τxx(z) and σxx(z) are equal at z ~25 km (Fig. 14b). This is consistent with the down-dip limit of normal-faulting seismicity observed before the Tohoku-Oki earthquake (Hino et al. 2009). However, considering xx/dz = ~15 MPa/km, the stress increment of ~300 MPa is needed to deepen the top of the elastic core from 25 to 35 km (orange arrow in Fig. 14b). This value is too large compared to the coseismic stress change around subevent 2 expected from the fault model of the Tohoku-Oki earthquake by Iinuma et al. (2012), Δσxx ~20 MPa. The expected depth change of the down-dip limit of the normal faulting seismicity is only a few km (Fig. 14c).

It must be considered that τxx(z) and σxx(z) are equal at ~30–35 km depth before the Tohoku-Oki earthquake (Fig. 14c). In order that the normal-faulting earthquakes occur at a depth of 35 km, the brittle strength must be reduced compared to the typical frictional condition (Fig. 14b). If we assume z0 = 40 ± 5 km (Fig. 13), the frictional coefficient of the fault around the lower end of the fault of subevent 2 is μ ~0.07 ± 0.06 so that τxx(z) and σxx(z) are equal at z = 35 km (Fig. 14c). Even when the top of the elastic core is assumed to be at z = 30 km, the expected frictional coefficient μ is ~0.2 (Additional file 1: Figure S5). These values are much smaller than that of the typical rocks but comparable to that estimated for the other incoming plate (Craig et al. 2014).

Reduction of friction has often been reported in studies on inland earthquakes (e.g., Yoshida et al. 2018); this reduction can be attributed to the existence of the pore fluid (e.g., Bell and Nur 1978). Based on the active seismic survey in the outer-rise region of the Japan trench (e.g., Fujie et al. 2018), the significant seismic wave velocity reduction and high Vp/Vs area were detected at the shallow part of the subducting plate (< 5 km), which are interpreted as being the results of pore fluid penetration through the pre-existing bending faults in the shallower part of the plate (e.g., Peacock 2001). Considering these studies, it is suggested that that the strength reduction within the plate might be related to the pore fluid. Numerical modeling by Faccenda et al. (2009) demonstrated that the pore fluid can infiltrate the plate as deep as the lower limit of the normal faulting seismicity observed in this study. Cai et al. (2018) also reported the serpentinized mantle wedge associated with water infiltration into the subducting plate (down to ~35 km) at the Mariana subduction zone.

However, the majority of the seismicity at depths of 30–35 km is located around the subevent 2’s fault (Fig. 9) and less in the other portions of the plate. This localization of seismicity suggests that the pore fluid, or the strength reduction, is localized within the plate, as also suggested by Faccenda et al. (2009) and Obana et al. (2019).

The activation of the normal-faulting seismicity at depths of 25–35 km after the Tohoku-Oki earthquake can be interpreted as follows: the plate at 25–35 km depths had yielded before the Tohoku-Oki earthquake, leading to intrinsically aseismic region; a stress increment by the Tohoku-Oki earthquake enhanced the horizontal tensile stress in a broad depth range near the top of the elastic core, which activates seismicity. Less normal-faulting seismicity at depths of 25–35 km during observation from April to June 2007 (Hino et al. 2009) may be representative of the long-term-averaged deformation. It is expected that the stressing rate due to the bending deformation is lower near the stress-neutral depth, where null-deformation is expected, than the shallowest part of the incoming oceanic plate.

On the other hand, if EC/(1−ν2) is small, the static stress change by the Tohoku-Oki earthquake can contribute to deepening the elastic core or the lower limit of the shallow normal faulting seismicity. Supposing that the elastic core is deepened by 10 km due to the coseismic static stress change Δσxx of ~20 MPa by the Tohoku-Oki earthquake, EC/(1−ν2) must be ~0.5 MPa/km, which is smaller than the typical elastic condition described above by an order of magnitude. However, it is unlikely that the Young’s modulus or the plate curvature are significantly reduced by an order of magnitude even if supposing the existence of the pore fluid or estimation error of the curvature. Thus, this hypothesis seems unlikely. Although it might be possible that the EC/(1−ν2) is small compared to that assumed in this study, its contribution to deepening the elastic core associated with the Tohoku-Oki earthquake is not highly significant.

Conclusions

In this study, we estimated the fault model of the intraplate doublet earthquake that occurred on December 7, 2012 (subevent 1: a deep reverse-faulting earthquake; subevent 2: a shallow normal-faulting earthquake) strategically utilizing offshore tsunami, aftershocks, and the teleseismic records based on the step-by-step analysis procedure. First, the initial sea-surface height distribution was estimated by inverting the offshore tsunami records and comparing it with the seafloor deformation from the CMT mechanism. It was found that the subsidence and uplift areas were generated by subevent 2 and both subevents, respectively. Then, the fault model of each subevent was estimated based on the initial sea-surface height model, using information from previous studies. As a result, the vertical extent of the fault plane of subevent 2 was obtained as ~5 km (i.e., the seafloor) to 35 km. Finally, we simulated the tsunami and teleseismic waveforms from the fault model, which explained the observation well.

We compared the tsunami source model obtained from the near-field tsunami data acquired at less than 200 km from the epicenter and that from the far-field (> 200 km) data. We found that the horizontal location of the tsunami source was reasonably constrained, even from the far-field tsunami data alone. However, to constrain the finite fault model in more detail, it is necessary to use the near-field tsunami records. We also discussed the stress state within the plate and its spatiotemporal change after the 2011 Tohoku-Oki earthquake. We found that the down-dip limit of the shallow normal-faulting earthquakes was obviously deepened compared with that observed in 2007, from 25 to 35 km. However, comparing the coseismic stress change by the Tohoku-Oki earthquake and the amount of the bending stress within the plate, the plate down to ~35 km in depth should have already yielded before the Tohoku-Oki earthquake, and the top of the elastic core been located at ~35 km. Furthermore, as the bending stress around the top of the elastic core was much smaller than the rock strength expected from the empirical relationship, the frictional strength in the range of the normal-faulting earthquakes is expected to be significantly reduced. The significant strength reduction of the plate suggests pore fluid infiltration down to ~35 km, along the bending faults.
