Cool, alkaline serpentinite formation fluid regime with scarce microbial habitability and possible abiotic synthesis beneath the South Chamorro Seamount

Progress in Earth and Planetary Science20185:74

https://doi.org/10.1186/s40645-018-0232-3

  • Received: 9 May 2018
  • Accepted: 19 October 2018
  • Published:

Abstract

South Chamorro Seamount (SCS) is a blueschist-bearing serpentinite mud volcano in the Mariana forearc. Previous scientific drilling conducted at SCS revealed highly alkaline, sulfate-rich formation fluids resulting from slab-derived fluid upwelling combined with serpentinization both beneath and within the seamount. In the present study, a time-series of ROV dives spanning 1000 days was conducted to collect discharging alkaline fluids from the cased Ocean Drilling Program (ODP) Hole 1200C (hereafter the CORK fluid). The CORK fluids were analyzed for chemical compositions (including dissolved gas) and microbial community composition/function. Compared to the ODP porewater, the CORK fluids were generally identical in concentration of major ions, with the exception of significant sulfate depletion and enrichment in sulfide, alkalinity, and methane. Microbiological analyses of the CORK fluids revealed little biomass and functional activity, despite habitable temperature conditions. The post-drilling sulfate depletion is likely attributable to sulfate reduction coupled with oxidation of methane (and hydrogen), probably triggered by the drilling and casing operations. Multiple lines of evidence suggest that abiotic organic synthesis associated with serpentinization is the most plausible source of the abundant methane in the CORK fluid. The SCS formation fluid regime presented here may represent the first example on Earth where abiotic syntheses are conspicuous with little biotic processes, despite a condition with sufficient bioavailable energy potentials and temperatures within the habitable range.

Graphical Abstract image

Keywords

  • Forearc serpentinite mud volcano
  • South Chamorro Seamount
  • Limit of biosphere
  • Present-days’ chemical evolution
  • Radio-isotope-tracer carbon assimilation estimation

Introduction

Serpentinization of ultramafic rocks that are the major components of the oceanic lithosphere produces highly reductive fluids, in which transformation of inorganic carbon species to organic matter occur (e.g., McCollom 2013). Serpentinization-associated geofluid systems have been recognized as modern analogs of plausible settings for the origin of primordial life (e.g., Russell et al. 2014) as well as ancient microbial communities (e.g., Takai et al. 2006; Ueda et al. 2016). Serpentinization-associated geofluid systems, typically characterized by an abundance of H2 and/or highly alkaline fluids, have been discovered at a range of tectonic/geological settings on the modern Earth where ultramafic rocks encounter water circulation. The most notable examples include slow-spreading mid-oceanic ridges (Charlou et al. 2002; Konn et al. 2015), ocean core complexs (Kelley et al. 2001; Früh-Green et al. 2003), ophiolites (Barnes et al. 1978; Schrenk et al. 2013), coastal springs (Barnes et al. 1967), onshore volcanic hot springs (Homma and Tsukahara, 2008; Suda et al. 2014), inner trench slope along the southern Mariana forearc (Ohara et al. 2012; Okumura et al. 2016a; Onishi et al. 2018), and forearc serpentinite seamounts (Mottl et al. 2004; Fryer, 2011).

Forearc serpentinite mud volcanoes are formed by extensive serpentinization of the mantle, triggered by the injection of slab-derived fluids into the overlying mantle wedge in a subduction setting. These serpentinization products ascend to form the largest mud volcanoes on Earth (Fryer, 2011). Deep-sea serpentinite mud volcanoes are outstanding settings, compared to other serpentinization-associated geofluid systems (Table 1), for studying abiotic organic syntheses (i.e., present-days’ chemical evolution) and for finding the boundary between microbiologically habitable and uninhabitable zones (i.e., limit of life and the biosphere) in natural environments of the Earth. For example, the impermeable mud volcano allows for decreased entrainment of photosynthesis-derived organic matter and seawater-derived microbial populations into the internal part of the volcano where pristine mud and fluid ascend from the deep. As such, if we can obtain these pristine fluids contributing to the formation of serpentinite mud volcanoes, then they can be used to address the unique geochemical and microbiological processes associated with these volcanoes.
Table 1

Deep-sea serpentinization-associated geofluid fields

Name of field

South Chamorro Seamount (SCS)

Shinkai Seep Field

Lost City

Rainbow

Location

13°47 ′N–146°00′E

11°40′N–140°03′E

30°07′N–42°07′W

36°14′N–33°54′W

Tectonics

Forearc seamount chain

Non-accretionary trench slope

Oceanic core complex, MAR

Non-transform offset, MAR

Driving force

Serpentine mud volcanism

(Hydrothermalism?)

Hydrothermalism

Hydrothermalism

Fluid source

Slab-derived fluid

Seawater penetration

Seawater penetration

Seawater penetration

Approach

ODP, CORK, Dive

Dive

Dive, IODP

Dive

Depth (m)

2960

5800

700–800

2300

T max

2

> 91

365

pH

12.5

(Brucite chimney)

10.7

2.8

H2 (mM)

0.01 (possibly < 40)

15

16

CH4 (mM)

37 (possibly < 65)

2

2.5

Note

The strongest alkaline deep-sea geofluid system so far identified. See text for details.

Active alkaline fluid seeping from brucite chimney surrounded by macrofauna colony.

Hot alkaline fluid discharging from tall carbonate chimney, only identified on the modern seafloor at this moment.

Black smoker acidic fluid discharging from sulfide chimney with abundant H2. Similar vent sites have already been found on the modrern seafloor.

Ref

See text

Ohara et al. 2012

Kelley et al. 2001

Charlou et al. 2002



Stern et al. 2014

Früh-Green et al. 2003




Okumura et al., 2016a

Onishi et al. 2018

Proskurowski et al. 2008


The South Chamorro Seamount (SCS) is located at the southern end of a serpentinite mud volcano chain in the Mariana forearc, where the Pacific plate subducts beneath the Philippine Sea plate (Fig. 1a). To date, the SCS is the only known location of active blueschist-bearing serpentinite mud volcanism that hosts lush deep-sea chemosynthetic communities sustained by the serpentinite fluid seepage (Fryer and Mottl, 1997). The Ocean Drilling Program (ODP) Leg 195 drilled the summit of the SCS (Site 1200) in 2001 and obtained core samples in order to examine geological and biogeochemical processes associated with subduction (Shipboard Sci. Party 2002). The serpentinite mud porewater, with the exception of taken near the seafloor, exhibited a highly basic pH of 12.5 and had a composition rich in dissolved sulfate and carbonate. The alkaline porewater chemistry is indicative of slab-derived fluids that had reacted with mantle rocks when ascending through the overlying plate (Fig. 1b), but few studies have investigated the origin of the abundant sulfate in the deep (Mottl et al. 2003, 2004; Hulme et al. 2010). In addition, porewater samples from shallow zones ~ 20 mbsf exhibited sulfate depletion and high alkalinity. The chemistry of these shallow fluids has been interpreted to reflect the oxidation of CH4 (and H2) derived from the deep by a shallow, subseafloor microbial community including sulfate-reducers (Mottl et al. 2003; Aoyama et al. 2018). However, the gas composition of the porewater could not be accurately determined, since the standard ODP sampling retrieval, handling, and on-board procedures resulted in a significant loss of dissolved gases. Microbiological analyses including phospholipid analysis (Mottl et al. 2003), cell count, and cultivation attempts (Takai et al. 2005) were carried out, but the community structure and potential microbial functions could not be determined.
Fig. 1
Fig. 1

Topography and schematic illustration of the Mariana forearc and the SCS. a Seafloor topography of the Mariana forearc region. b Schematic illustration of the ODP Hole 1200C focused in the present study

A cased borehole observatory, the Circulation Obviation Retrofit Kit (CORK), was deployed during the ODP Leg 195 at Hole 1200C on the SCS (Shipboard Sci. Party 2002; Wheat et al. 2008). When the observatory seal was opened on 20 March 2003, 2 years after its installation, over-pressurized fluids discharged from the CORK outlet pipe (this fluid is referred to as the ‘CORK fluid’ hereafter) at a flow rate of ~ 0.2 L/s. The endmember chemical composition of the CORK fluid, estimated from two fluid samples diluted with entrained ambient seawater, was generally similar to those from the porewater samples from deeper zones of the ODP core (Wheat et al. 2008). Although the deep porewater samples obtained during the ODP Leg 195 in 2001 contained abundant sulfate and negligible sulfide, sulfide was present in the highly alkaline (pH 12.4) CORK fluid. This difference implies that partial reduction of sulfate to sulfide could occur within the SCS mud volcano before the formation fluid discharged through the cased borehole (Wheat et al. 2008). Discharge from the open borehole continued for 37 days, until the observatory was resealed on 28 April 2003. During the 2003 campaign, however, no gas-tight fluid sampling was conducted despite gas species such as H2, CO, CH4, and other hydrocarbons are key chemical clues for investigating both abiotic organic synthesis and microbiological habitability/function in an active serpentinite mud volcano.

The present study presents results from four subsequent sample collection campaigns utilizing remotely operated vehicle (ROV) dives with gas-tight fluid samplers (Seewald et al. 2001; Saegusa et al. 2006) and other sampling tools conducted between 2009 and 2012 to collect fresh fluids discharging from the cased borehole of Hole 1200C. The chemistry of the CORK fluid, particularly dissolved gas species, as well as the microbial community composition and function were determined. Carbon and sulfur compositions in the CORK fluids were altered from those from the ODP porewater samples, probably due to changes in the subseafloor hydrological field before and after the scientific drilling event. Analyses of the CORK fluids and the ODP porewater suggested that the sulfate-methane couple likely co-exist in the native SCS formation fluid. However, low biomass and activity were observed environments where physical and chemical conditions, particularly the temperature (~ 3 °C) and bioavailable energy potentials, were suitable for supporting a prosperous microbial community. Multiple lines of evidence, such as low microbial biomass and activity, point to abiotic hydrocarbon synthesis associated with serpentinization occurring beneath the SCS.

Methods/experimental

Site description

In 2001, a series of boreholes were drilled near the seepage sites at the summit of the SCS (ODP Site 1200) (Shipboard Sci. Party 2002). The ODP Hole 1200C was drilled to 266 mbsf prior to casing and the installation of a CORK device. The final configuration was placed at the base of the casing at 202.8 mbsf, providing a screened section from 148.8 mbsf to 202.3 mbsf (Fig. 1b). On 20 March 2003, the CORK monitoring instruments were recovered using the ROV Jason II, and on 28 April 2003 the top of the CORK was resealed by a steel housing holding a downhole pressure sensor (Wheat et al. 2008).

Sampling and analysis

Fluid sampling

CORK fluids were collected for both chemical characterization and analyses of microbial biomass/function during four cruises of the R/V Natsushima with ROV Hyper-Dolphin in January 2009 (NT09-01, HPD#941-947), May–June 2009 (NT09-07, HPD#1007-1010), February 2012 (NT12-04, HPD#1349-1350), and September 2012 (NT12-23, HPD#1433-1434). On 20 January 2009 (HPD#941), the valve on the original-type CORK was opened. The discharging fluid (#941) appeared blackish in coloration, probably due to suspension of sulfide minerals that had accumulated during the past 6 years. The likely source for this blackish fluid is the discharging fluid that occupied the pipe casing when the valve was closed in 2003. After initial samples were collected, the steel plug was replaced with a polyvinyl chloride (PVC) tube and a ball valve. This PVC tube was inserted past the latch holes in the CORK body, sealing the borehole from the bottom seawater. Thus, fluids collected from the top of the CORK can be considered pristine CORK fluids with minimal or no entrainment of the bottom seawater (Wheat et al. 2008). Fluid collected during subsequent dives appeared to be colorless and clear at the mouth of the CORK but the coloration changed to whitish after venting, most likely due to the precipitation of brucite from seawater-derived Mg2+ and CORK fluid-derived OH.

CORK fluids were collected using several types of fluid samplers, including WHATS, Bag, and Isobaric Gas-Tight (IGT) samplers (Seewald et al. 2001; Saegusa et al. 2006). The whitish fluids were also collected into pre-evacuated stainless-steel bottles with radio-isotope-labeled tracers for metabolic activity measurements (see below). The inlet nozzles for WHATS and Bag samplers were inserted as deep as possible into the borehole in order to minimize seawater contamination. For fluids collected using IGT samplers, a polycarbonate reservoir was attached to the CORK ball valve. The reservoir was flushed with several volumes of CORK fluid before the IGT sampler snorkel was inserted into the reservoir through a rubber diaphragm to collect pristine CORK fluid without seawater entrainment.

A special sampling device, named the “Deep Sampler,” was also used during cruises NT12-04 and NT12-23 to collect fluid within the borehole at subseafloor depths where the screened casing is positioned (Fig. 2). The Deep Sampler consisted of a 100 mL gas-tight and pressure-preserved titanium bottle and a valve connected to a winch on the seafloor with a rope. The open titanium bottle-chamber-valve units were lowered to a depth of 179 mbsf within the depth range of the screens, before a messenger weight was dropped from the seafloor to slide the bottle unit to the chamber-valve unit for fluid sampling (a few seconds to 10 s time) and in the end sealing the fluid in two of the chambers (Fig. 2). The temperature was monitored during fluid sampling, which increased from ~ 1.7 °C at the seafloor to 3.3 °C at 170 m below the seafloor (thermal gradient of 9.4 °C/km). Samples collected by the Deep Sampler and the other samplers did not show significant differences in their chemical composition, implying that fluid alteration and seawater contamination during the 12 h ascent through the cased hole (Wheat et al. 2008) was negligible.
Fig. 2
Fig. 2

A schematic illustration and photographs of the “Deep Sampler” used for CORK fluid sampling. a The open titanium bottle, chamber, and valve units were lowered to the screened depths (170 mbsf) through the cased hole. Then, a messenger weight was dropped from the seafloor along the rope, resulting in closing the bottle unit to the chamber-valve unit for fluid sampling. b A photograph showing the Deep Sampler being prepared in the payload of the ROV Hyper-Dolphin. c A photograph showing the on-site operation of the Deep Sampler from 170 mbsf by manipulation of reeling in the support line

Geochemistry

Immediately upon recovery of the ROV, fluid samples were subsampled for liquid and gas analyses. For liquid phase analysis, the fluid sample was withdrawn into disposable plastic syringes for filtration, and then introduced into acid-washed HDPE bottles and glass vials. Shipboard measurements included pH, alkalinity, chlorinity, and hydrogen sulfide. Shore-based analyses with devices such as ion chromatography (IC), inductively coupled plasma atomic emission spectrometry (ICP-AES), and ICP mass spectrometry (ICP-MS) were conducted using techniques similar to those carried out for the ODP 1200 porewater samples (e.g., Mottl et al. 2003, 2004), thus minimizing analytical biases among these studies. Dissolved gas extraction from fluid samples collected with the WHATS sampler was conducted using previously reported techniques (e.g., Kawagucci et al. 2016; Miyazaki et al. 2017). To extract the total inorganic carbon (mainly CO32−) as CO2 for abundance and isotope analyses, the fluid sample was acidified with ~ 3 g of solid sulfamic acid (H3NSO3) in the extraction line. While the total gas content was determined barometrically during the gas extraction, the relative abundance of H2, CH4, CO, CO2, C2H6, and C3H8 in the whole gas phase were determined by gas chromatography using a helium ionization detector. The stable isotopic compositions of H2, CH4, CO2, and C2H6 were determined using the continuous flow method with DELTA XP Advantage and/or MAT253 Isotope Ratio Mass Spectrometer (Thermo Fisher Scientific) in JAMSTEC in accordance with previously published techniques (e.g., Okumura et al. 2016b; Shibuya et al. 2017). In the present study, isotope ratio and isotope fractionation between two molecules is represented by conventional δ and α notations as δ13CA = [(13CA/12CA)/(13CSTD/12CSTD) − 1] (presented in permil scale) and αCA − B = (δ13CA + 1)/(δ13CB + 1). Samples collected using IGT samplers were analyzed at sea for dissolved H2 and CH4 using gas chromatography with thermal conductivity detection, following headspace extraction.

Microbiology

During cruises NT09-01 and NT09-07, microbial cells in subsampled fluids (110–370 mL) were collected on-board the ship onto 0.2 μm pore 47 mm polycarbonate membranes (K020A047A, ADVANTEC, Tokyo Japan) placed in line holder (KS-47, ADVANTEC, Tokyo Japan). The cells were fixed by placing a fixation solution (2% paraformaldehyde-PBS solution) onto the membranes and kept overnight at 4 °C. Then, the membrane was washed by PBS, partially dried by placing on filter paper, and kept at − 20 °C for later cell counting. The fluid sample taken on the cruise NT12-23 was immediately fixed by adding 1/5 volume of 10% Formalin Neutral Buffer Solution (Wako, Japan) and stored at 4 °C until further processing. Since white precipitates formed in fixed fluid samplers during storage at 4 °C, separation of cells was conducted according to Morono et al. (2013), with some modifications. In brief, for 3–15 mL of fixed solution, 1/10 volume each of detergent mix (100 mM EDTA, 100 mM sodium pyrophosphate, 1% [v/v] Tween 80) and methanol were added and treated in an ultrasonic bath (Bioruptor UCD-250, Cosmo Bio, Tokyo Japan) at 160 W with cycles of 1 min ON and 1 min OFF for 20 min. The treated samples were then carefully layered onto step gradient heavy density solution composed of 67% (w/w) sodium polytungstate (SPT1, SOMETU, Berlin, Germany), 80%, 50%, and 30% (w/v) Nycodenz and centrifuged for 120 min at 10,000×g at 25 °C. Light density upper layers were recovered, and 10% of the suspension was passed through a 0.2 μm pore 25 mm polycarbonate membrane to trap microbial cells. The filters were stored at − 20 °C until counting. From Bag sampler (NT09-01) and Deep Sampler (NT12-23), about 10 L and 40 mL of fluids, respectively, were filtered with 0.22 μm-pore-sized cellulose acetate filters to collect microbial cells. Filters were stored at − 80 °C for microbial 16S rRNA gene clone sequencing analysis.

Microbial cell densities in CORK fluid samples were determined using a semi-automated cell counting system (Morono et al. 2009). In brief, trapped and fixed cells collected on a polycarbonate membrane were stained with SYBR green I staining solution (1/40 [v/v] SYBR Green I in TE buffer). The stained filter was washed with 1 ml of TE buffer and then mounted on a glass microscope slide with 3–5 μL of mounting solution (2:1 mixture of VECTASHIELD mounting medium H-1000 and TE buffer). Microscopic fluorescence image acquisition (at 525/36 nm [center wavelength/bandwidth] and 605/52 nm by 490 nm excitation) was performed automatically using a fluorescence microscope equipped with an automatic slide handler (Morono and Inagaki, 2010). The resulting images were analyzed using the macro of the Metamorph software (Molecular Devices, CA, USA) to identify and count microbial cells on the membrane.

Phylotype composition of 16S rRNA genes were determined using clone sequencing in the laboratory based on a previously published methodology (Nunoura et al. 2012) with some modifications. DNA assemblages were extracted from microbial cells on filters using the UltraClean Soil DNA Isolation Kit (MO BIO Laboratories, Carlsbad, CA, USA). Amplification of 16S rRNA genes from the extracted DNA assemblage was accomplished by a Polymerase Chain Reaction (PCR) method with LA Taq polymerase (Takara Bio, Otsu, Japan) using a primer set of 530F/907R. The amplified 16S rRNA gene fragments were applied to electrophoresis and cleaned up with a QIA quick Gel extraction Kit (QIAGEN, Valencia, CA, USA). The 16S rRNA gene clone libraries were constructed using the TA cloning kit (Invitrogen, Carlsbad, CA, USA). The nucleotide sequences of randomly selected clones were determined with a BigDye Terminator version 3.1 sequencing kit (Applied Biosystems, Foster City, CA, USA) using M13M4 (5′-GTTTTCCCAGTCACGAC-3′) and M13RV (5′-TGTGGAATTGTGAGCGG-3′) primers on an ABI PRISM 3730xl Genetic analyzer (Applied Biosystems, Foster City, CA, USA). The sequences were assembled with Sequencher Ver. 4.8 software (Gene Code Corporation, Ann Arbor, MI, USA). The most similar reference sequences were retrieved from RDP and the GenBank database. The nucleotide sequences obtained were deposited to DDBJ (DNA data bank of Japan) with accession numbers LC279286-LC279362.

Radio isotope tracer experiment to estimate potential metabolic rates

Potential activities of microbial assimilations of bicarbonate, methane, carbon monoxide, formate, acetate, and leucine (autotrophic, methanotrophic, carboxydotrophic, and heterotrophic activities, respectively) were estimated by radio isotope tracer experiment using CORK fluid samples obtained during the expeditions NT09-01 and NT09-07. The CORK fluid was collected in multiple evacuated 150 mL stainless-steel bottles, each connected to a three-way valve and a sampling nozzle. All surfaces of the bottle, valve, and nozzle were treated with SilicoNert coating (Silcotek Corporation, Bellefonte, PA, USA) to avoid direct contact between the fluid and stainless steel. The sampling was conducted in duplicates for each of the radio isotope tracers. Prior to the seafloor sampling by the ROV, each of the radio-isotope-tracers (NaH14CO3, 14CH4, 14CO, H14COONa, 14CH314COONa, 14C-leucine) was placed in two bottles (with and without formaldehyde at a final concentration of 4%) as solution (NaH14CO3, H14COONa, 14CH314COONa, 14C-leusin and formaldehyde) or gas (14CH4 and 14CO) in sealed glass ampoules. The final radioactivity level was 0.25 MBq per bottle. In order to assess the methanotrophic activity, three treatments were used: (i) only 14CH4 added, (ii) 14CH4 and O2 (a final concentration of 40 μM O2) added, and (iii) 14CH4 and Na2SO4 and Na2S (final concentrations of 10 mM and 0.5 mM, respectively) added. The additional O2 or Na2SO4 and Na2S were introduced either as a gas or as a solution sealed in a glass ampoule. The final concentrations of 14C-labeled tracers in the bottles were estimated to be about 0.1 mM, 0.4 mM, 0.4 mM, 0.1 mM, 0.1 mM, and 0.1 mM for bicarbonate, methane, carbon monoxide, formate, acetate, and leucine, respectively. After placing the radio isotope tracer into the bottle with three stainless-steel balls, the bottle was evacuated with a vacuum pump. The bottle was then sealed and shaken, which resulted in the stainless-steel balls rapturing the glass ampoules containing the radio-isotope-tracers and formaldehyde. At the seafloor, the sampling nozzle of the radio-isotope-tracer sampler was placed in the discharging CORK fluid and sufficiently flushed. Fluid sample was collected by opening and closing the valve with the ROV manipulator. Immediately after recovery of the ROV, sample bottles were incubated at 4 °C for 49–123 days until measurement in a shore-based laboratory. The bottles containing 4% formaldehyde were used as negative controls (i.e., with no microbial activity).

As a positive control for methane assimilation, stationary phase cells of a gammaproteobacterial methanotroph, Methylomarinum vadi, (Hirayama et al. 2013) were incubated in its medium (Hirayama et al. 2007) at 37 °C for 1 day under the same substrate condition (0.4 mM) as the aerobic methanotrophic activity measurement, as described above. The cell density of M. vadi was adjusted to be 2.0 × 106 cells in the bottle (1.3 × 104 cells/mL). As a positive control for bicarbonate assimilation, natural deep-sea diffusing hydrothermal fluid (average fluid temperature of 57 °C) from the Iheya North field (Takai et al. 2004), sampled in July–August 2010 using the same method described in previous sections of the present study, was incubated at 60 °C for 5 days under the same substrate condition (10 mM). The cell density of microbial community in the CORK fluid was 1.0 × 102 cells/mL, thus each incubation bottle contained 1.5 × 104 cells.

CORK fluid samples (approx. 150 mL) were incubated with radio-isotope-tracers for 49–123 days at 4 °C and then depressurized and filtered with a 0.22 μm-pore-sized cellulose acetate filters. Each filter was fixed with 10 mL of 4% (w/v) paraformaldehyde/PBS solution (pH 7.2) for 30 min, then thoroughly rinsed with filter-sterilized 0.1 M HCl in 3% (w/v) NaCl solution to remove carbonate precipitates. The filter was slurried in 20 mL of Hionic Flour cocktail (PerkinElmer, Waltham, MA, USA), and the radioactivity measured using a Tri Carb 2910TR liquid scintillation counter (PerkinElmer, Waltham, MA, USA). The assimilation rates of the tracers were calculated from concentrations and radio-isotope ratios given as the substrate in the initial state and the radio-isotope abundance of the filter. Blanks were evaluated by non-labeled batch incubation and used for calibration.

Results

pH, chlorinity, and major and minor ions

Concentrations of major and minor ions in the fluids were nearly identical in all samples, regardless of the sampling device used for collection (Additional file 1: Table S1). The chemistry of conservative components in CORK fluids were quite similar to those of deep (> 20 mbsf) porewater samples (DPW) obtained from the ODP Holes 1200 (Additional file 1: Table S1). For example, the fluid chlorinity (503–510 mmol/kg) of CORK fluids was distinguishable from seawater level (540 mmol/kg) and identical to those of the DPW (510 ± 5 mmol/kg) (Fig. 3a). CORK fluids ranged from 12.1 to 12.3 in pH values, which were slightly lower than the highest pH of 12.5 ± 0.1 in the DPW (Fig. 3b). Slight differences between CORK fluids and the DPW in alkali metals (K, Li, Rb) (Additional file 1: Table S1) have been interpreted to be due to sampling artifacts during the core recovery and porewater extraction of the ODP serpentinite samples (de Lange et al. 1992; Wheat et al. 2008). Alkali earth metals (Mg, Ca, Sr) were depleted in the CORK fluids, as well as the DPWs (Fig. 3c). Seawater entrainment during the seafloor sampling cannot be evaluated precisely, because any entrainment of Mg from seawater would be precipitated immediately as brucite. Nevertheless, the nearly identical and high concentrations of B, for example (Fig. 3d), are consistent with a scenario where mixing with ambient seawater during sample collection was minimal. Combined, these data are consistent with the CORK fluids being derived from a deep-sourced formation fluid that flowed into the borehole through screens located at a depth range of 149 and 202 mbsf.
Fig. 3
Fig. 3

Time-series of fluid chemistry since the valve opening. Light and dark gray bars represent the deep part of the ODP porewater at Site 1200 (DPW) (Mottl et al. 2003) and ambient seawater (ASW) composition, respectively. Each symbol represents a type of fluid sampler used: WHATS (circle), Bag (hexagon), IGT (diamond), and Deep Sampler (square). Time (x axis) is in logarithmic scale

Sulfate, alkalinity, sulfide, and ammonium

Sulfate concentrations in the discharging CORK fluids were 0.4–1.7 mM, significantly lower than the concentration of 28 mmol/kg in the DPW and the seawater (Fig. 3e). The alkalinities of these fluids were much higher (119–126 meq/kg) than in the DPW (62 meq/kg) (Fig. 3f) and comparable to the value estimated from the previous CORK fluid observation (104 meq/kg) (Wheat et al. 2008). Both sulfate concentration and alkalinity in the CORK fluid from Dive #941 were in-between values of the DPW and other CORK fluids. These results point to a stoichiometry of 2 meq increase of alkalinity with 1 mmol decrease of sulfate in the CORK fluids when compared to the DPW (Fig. 4a). Dissolved reduced sulfur (sulfide) in CORK fluids was significant despite negligible sulfide concentrations detected in the DPW and showed a temporal decreasing trend: ~ 24 mM in 10 days, 21 mM in 4 months, and ~ 10 mM in more than 36 months (Fig. 3g). The sum of sulfate and sulfide concentrations in the CORK fluids were not higher than 28 mM, suggesting quantitative conversion in addition to the removal of dissolved sulfur to the solid phase (Fig. 4b). Ammonium concentrations were identical at 0.2–0.3 mM among all CORK fluids and the DPW (Additional file 1: Table S1). The highly variable alkalinity with the constantly low ammonium concentrations implies that the alkalinity variation do not result from the decomposition of sedimentary Redfield organic matter (Redfield, 1958) but from that of N-depleted organic carbon such as CH4.
Fig. 4
Fig. 4

Relationships between sulfate and alkalinity, sulfide, CH4, and pH. Filled triangles represent the CORK fluids from the present study, classified by the number of days after the valve was opened. Filled and open circles represent the CORK fluid observed in 2003 and DPW, respectively, shown for comparison. Light gray zones represent the estimated endmember formation fluid composition of the ODP porewater (DPW) or a solubility of CH4 hydrate clathrate under the SCS condition (only shown in panel c). Broken lines in panels (a), (c), and (d) represent ideal changes in the chemical composition based on selected reactions. The dark gray zone in panel (c) represents possible CH4 concentrations of the SCS formation fluid (FF) without post-drilling alteration. The solid curve in panel (b) represents sulfate consumption through CH4-SO4 reaction from the porewater-based endmember. Broken curves in panel (b) represent sulfate consumption with 10, 40, and > 112 mM of H2, in addition to the CH4-SO4 reaction

Gas composition and stable isotopes

Methane concentrations in the CORK fluids were variable between 5.5–6.1 mM in 10 days, 9.2–37.8 mM in 4 months, and 16.1–37.4 mM in more than 36 months after the valve was opened, respectively (Fig. 3h). CH4 concentrations in CORK fluids were significantly higher than those observed in the DPW (< 2 mM). The differences strongly suggest that CH4 was degassed from the DPW during core recovery and sample processing during the ODP Leg 195 (Mottl et al. 2003). This claim is consistent with a solubility-controlled CH4 concentration of ~ 2 mM at room pressure and temperature (Wiesenburg and Guinasso jr, 1979). The CH4 concentrations in CORK fluids are the highest among any deep-sea serpentinization-associated geofluid systems reported to date (< 2 mM) (Charlou et al. 2002; Kumagai et al. 2008; Schrenk et al. 2013; Konn et al. 2015; McDermott et al. 2015; Seyfried et al. 2011). Ethane concentrations were also variable between 0.01 and 0.23 mM. Relative abundances of CH4 to C2H6 (C1/C2) were ~ 27 in 1 day, 216–3178 in 10 days to 4 months, and 231–285 in ~ 36 months after the valve opening. Molecular hydrogen concentrations in the CORK fluids ranged between 0.003 and 0.107 mM and were the lowest among values repoted from deep-sea serpentinization-associated geofluid systems to date (> 1 mM) (Charlou et al. 2002; Kumagai et al. 2008; Schrenk et al. 2013; Konn et al. 2015; McDermott et al. 2015; Seyfried et al. 2011). Relative abundances of CH4 to H2 (CH4/H2) ranged from 333 to 1350 for the CORK fluids. This CH4/H2 ratio is higher than those of seafloor geofluids associated with serpentinization in other geologic settings (< 1). Total dissolved inorganic carbon (DIC), extracted and quantified as CO2, ranged from 17 to 51 mM, which is consistent with the estimated carbonate alkalinity of the DPW (45 meq/kg: Mottl et al. 2003). The potentially insufficient acidification of DIC samples prior to the gas analysis may result in the underestimation of DIC concentrations in the CORK fluids.

Carbon and hydrogen isotopic ratios of methane (δ13CC1 and δDC1) and ethane (δ13CC2 and δDC2) were uniform among the CORK fluids, with values of − 37‰, − 117‰, − 11‰, and − 86‰, respectively, regardless of concentration (Additional file 1: Table S1). The δ13CC1 value of CORK fluids is significantly lower than other serpentinization-associated hydrothermal fluids reported to date (> − 18‰) (Fig. 5a) (Charlou et al. 2002; Kumagai et al. 2008; Schrenk et al. 2013; Konn et al. 2015; McDermott et al. 2015). The higher δ13CC1 value in the shallow ODP porewater observed previously (− 11 ± 5‰ at 15 mbsf: Mottl et al. 2003) is significantly different from the CORK fluid and is likely attributed to 13C enrichment in the remnant CH4 due to microbial methanotrophic activity in the fluid-seawater interface. The δ13CC2 value of the CORK fluids falls into the range of δ13CC2 values observed in serpentinization-associated hydrothermal fluids (− 14‰ to − 2‰) (Konn et al. 2015). The δDC2 value of the CORK fluids (− 86‰) is higher than that of the Lost City field (~ − 150‰) (Fig. 5b). Total DIC of the CORK fluids showed δ13CDIC values of − 2.9‰ to + 1.4‰. The δ13CDIC values close to + 0‰ suggest that the DIC originates from sedimentary carbonate (~ + 0‰) rather than photosynthesis-based organic matter (~ − 25‰) (Sano and Marty 1995). Hydrogen isotope ratios of H2 (δDH2) were − 787‰ to − 761‰, which can be attributed to H2-H2O hydrogen isotope equilibrium at an in situ temperature of 2 °C (Horibe and Craig, 1995) when using the δDH2O value of + 12‰ observed in the DPW (Mottl et al. 2003).
Fig. 5

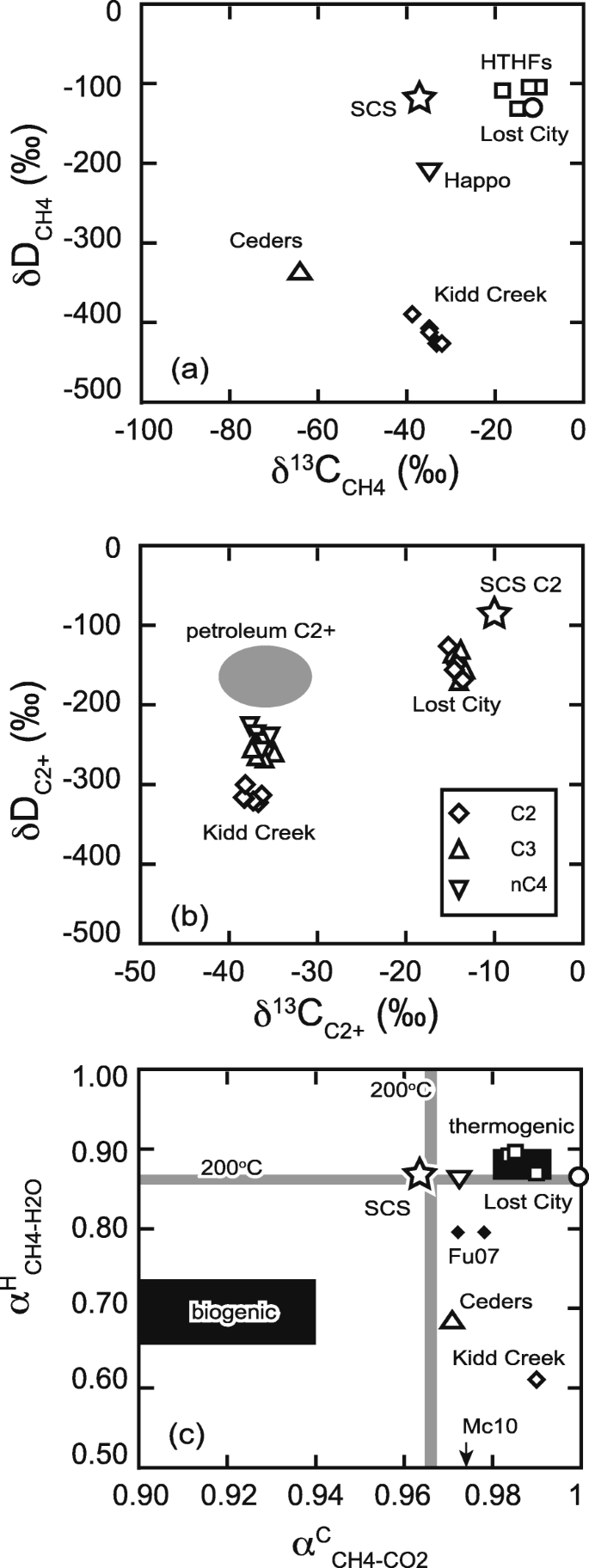

Fig. 5

Stable isotope composition of CH4, C2H6, and the relevant molecules. Open and filled symbols, respectively, represent data from observations of hydrocarbon-enriched geofluid systems and experiments simulating methanogenesis. Data sources are following: high-temperature hydrothermal fluids (Konn et al. 2015; Kawagucci et al. 2016 and references therein), Lost City (Proskurowski et al. 2006; 2008), Happo (Suda et al. 2014), The Ceders (Wang et al. 2015), Kidd Creek (Sherwood-Lollar et al. 2002), petroleum field (Burruss and Laughrey 2010), magnetite experiments (Fu et al. 2007), Fe experiment (McCollom et al. 2010), thermogenic experiment (Seewald et al. 1994) (assuming the CH4-H2O isotope equilibrium), and microbial incubation (Okumura et al. 2016b)

Microbial cell density

Microbial cell densities of CORK fluids were estimated by epifluorescence microscopy (Table 2). In the blackish fluid discharging at the time when the valve was first opened (Dive #941), we measured a microbial cell density of 2.0 × 103 cells/mL. This is much lower than the cell density in the ambient seawater (2.2 × 104 cells/mL) sampled during the same cruise (Table 2). The microbial cell densities in the clear CORK fluid sampled 4 days and 4 months after the valve opening decreased to 4.4–6.6 × 102 and 1.0 × 102 cells/mL, respectively (Table 2). These results suggest that, before the valve opening, certain microbial communities maintained their populations and functions in some of the microhabitats in the stagnant CORK fluid of the sealed borehole and wellhead structures. Such local microbial populations in the stagnant fluid system were flushed out by the newly created discharging fluid flow after the valve was opened. After more than 36 months, however, the microbial cell densities in the CORK fluid were 4.1–7.6 × 103 cells/mL (Table 2).
Table 2

Microbial cell density in the CORK fluid and ambient seawater samples

Cruise ID

HPD dive#

Time after valve opening

Sample type

Cell count (cells ml−1)

NT09-01

941

0 day

Bag

2000

NT09-01

943

2 days

Bag

440

943

(ambient seawater)

Bag

22,000

945

4 days

Bag

660

NT09-07

1007

5 months

Bag

101

1009

5 months

Bag

139

NT12-04

1349

45 months

WHATS

7600

1350

45 months

Deep sampler

4100

Microbial phylotype compositions

The 16S rRNA gene phylotype compositions of microbial communities in CORK fluid samples at the time that the valve was opened, 3 days later, and 45 months later were examined. In total 89, 88, and 44 clones were sequenced for the microbial communities in the CORK fluid samples at the time of valve opening, 3 days later, and 45 months later, respectively (Fig. 6). The phylotype compositions were significantly different among the fluid samples.
Fig. 6
Fig. 6

Phylotype compositions of 16S rRNA genes in microbial communities of the CORK fluids. In total, 88, 89, and 44 clones were sequenced for the microbial communities in the CORK fluid samples at the time of valve opening (0 day), 3 days, and 45 months after the valve was opened, respectively

In the blackish discharging fluid (2.0 × 103 cells/mL of microbial cell density), the gamma-proteobacterial phylotypes dominated the clone library and consisted almost entirely of a single phylotype closely related with Methylobactor, a methanotrophic endosymbiont of Bathymodiolus mussels living in the SCS seepage sites (Fig. 6). The alpha-proteobacterial and actinobacterial phylotypes were the second most abundant groups in the library. Other components were phylotypes of Betaproteobacteria and Firmicutes. In the CORK fluid obtained 3 days after opening (4.4–6.0 × 102 cells/mL of microbial cell density), the gamma-proteobacterial phylotypes, especially the Methylobactor phylotype, significantly decreased in the relative abundance and alpha-proteobacterial phylotypes also decreased in the relative clonal abundances (Fig. 6). In contrast, phylotypes of Deltaproteobacteria, Firmicutes (Alkaliphilius), Actinobacteria, Deinococcus-Thermus, and Archaea increased in relative abundances. Most archaeal phylotypes were related to extremophilic members such as hyperthermophiles and extreme halophiles that do not inhabit the cold and highly alkaline serpentine formation fluid regime of the SCS (Fig. 6). Although this simplified interpretation may lead to misunderstanding since the microbial cell density was decreased by fluid replacement during the 3-day discharge of the CORK fluid, phylotypes that increased in clonal abundances 3 days after the valve opening more likely represent truly indigenous microbial populations entrained by the serpentinite formation fluid derived from the deep. In the CORK fluid obtained by the Deep Sampler 45 months after the valve opening (4.1–7.6 × 103 cells/mL of microbial cell density), the microbial phylotype composition changed drastically (Fig. 6). Most of the predominant phylotypes found in the fluids were different from those sampled 3 days after the valve was opened. At 45 months after, phylotypes of Deltaproteobacteria, Epsilonbacteria, Planktomycetes, Thermus-Deinococcus, and unclassified bacterial group dominated the library. It is still unclear why the CORK fluid obtained by the Deep Sampler 45 months after had a higher cell density and a different microbial phylotype composition compared to the initial phase of CORK fluids. Nevertheless, it should be noted that the sampling scheme by the Deep Sampler was different from those by other fluid samplers, with the Deep Sampler (5 cm in diameter with the bottle being 1 m in length) was delivered to 170 mbsf through the cased borehole. During the descent, the bottle could have hit the casing wall and detached accreted materials which likely contain microbial populations. Thus, the microbial community abundance and composition in the fluid obtained by the Deep Sampler may include, in addition to the microbial communities entrained from the formation fluid (“pelagic”) flow, microbial populations specifically colonizing the steel casing pipe wall (Nakagawa et al. 2006; Nigro et al. 2012).

Microbial carbon assimilation activity

Microbial methane-, carbon monoxide-, formate-, acetate-, and leucine-assimilations (methanotrophic, carboxydotrophic, and heterotrophic activities) were examined with the CORK fluid samples obtained 1 to 6 days after the valve opening, and the bicarbonate-, methane-, formate-, and acetate-assimilation activities were examined with the CORK fluid samples obtained 5 months after the valve opening (Table 3). Methylomarinum vadi is a marine aerobic methanotroph optimally growing at 37 °C with a generation time of 2 h (Hirayama et al. 2013), and the methane assimilation rate of this methanotroph under the maintenance state for 1-day incubation was used as the positive control: 20 nmol/day/L with a cell density of 1.3 × 104 cells/mL (Table 3). In a similar manner, the autotrophic bicarbonate assimilation of natural deep-sea diffusing hydrothermal fluid was determined to be 2.3 nmol/day/L with a cell density of 1.0 × 102 cells/mL (Table 3). These methane assimilation rates of M. vadi and the bicarbonate assimilation of the natural autotrophic microbial community in the discharging fluid are good comparative indexes to estimate the functions of the methanotrophic and autotrophic populations and even the whole microbial community in the CORK fluid.
Table 3

Radio-isotope-tracer carbon assimilation of microbial community in the CORK fluids and positive controls

Cruise ID

HPD dive#

Tracer and incubation condition

Incubation time (days)

Net assimilation (nmol day−1 L−1)

NT09-01

943

14C-CH4 (0.25 MBq per bottle and 0.4 mM)

54

0.036

943

14C-CH4 (0.25 MBq per bottle and 0.4 mM) with 40 μM O2

54

0.049

NT09-01

947

14C-Leucine (0.25 MBq per bottle and 0.1 mM)

52

0.014

947

14C-Formate (0.25 MBq per bottle and 0.1 mM)

52

0.06

947

14C-Acetate (0.25 MBq per bottle and 0.1 mM)

52

0.004

NT09-01

948

14C-CH4 (0.25 MBq per bottle and 0.4 mM) with 10 mM NaSO4 and 0.5 mM Na2S

49

0.039

948

14C-CO (0.25 MBq per bottle and 0.4 mM)

49

n.d.a

NT09-07

1007

14C-CH4 (0.25 MBq per bottle and 0.4 mM)

123

0.2

1007

14C-HCO3 (0.25 MBq per bottle and 0.1 mM) with 0.4 mM H2

123

1.4

1009

14C-Formate and 14C-acetate (each of 0.25 MBq per bottle and 0.1 mM)

122

0.05

An aerobic methanotroph culture

14C-CH4 (0.25 MBq per bottle and 0.4 mM)

1

20

An autotrophic community in diffusing hydrothermal fluid

14C-HCO3 (0.25 MBq per bottle and 0.1 mM)

5

2.3

an.d. not detected

The methane assimilation rates were determined to be 0.036, 0.049 and 0.039 nmol/day/L in the CORK fluid under in situ, microaerobic and fully anaerobic conditions, respectively (Table 3). These values were significantly higher than those of the negative controls with the same tracers and are attributed to activity from the microbial populations in the CORK fluid. In addition, these values correspond to the methane assimilation activity by 2.3–3.2 × 101 cells/mL through aerobic methanotrophy in the maintenance state. Carbon monoxide assimilation was not detected, while heterotrophic carbon assimilation was found to be the highest with formate (0.06 nmol/day/L) and the lowest with acetate (0.004 nmol/day/L). These values are similar to or lower than the methane assimilation activity. In the CORK fluid obtained 5 months after the valve opening, autotrophic bicarbonate assimilation activity was the highest (1.4 nmol/day/L), and methanotrophic and heterotrophic (with formate and acetate) assimilations were lower at 0.2 and 0.05 nmol/day/L, respectively (Table 3). The methanotrophic assimilation was higher than any of the methane assimilation activities using the CORK fluid obtained 1 to 6 days after valve opening and the heterotrophic activity was similar to values reported previously from the CORK fluid, although the cell density in the CORK fluid decreased from 4.4–6.6 × 102 to 1.0 × 102 cells/mL during the 5 months period. Compared to the values of positive controls, these autotrophic and methanotrophic assimilation activities correspond to 7.0 × 101 cells/mL of a natural autotrophic microbial community and 1.3 × 102 cells/mL of relatively inactive aerobic methanotrophs. These results indicate that the small number of microbial cells present in the CORK fluid obtained 5 months post-valve opening may be functionally active and capable of methanotrophic and autotrophic metabolisms. Nevertheless, radio-isotope-tracer experiments clearly indicate that microbial metabolisms and activities in the CORK fluids are detectable.

Discussion

Post-drilling fluid alteration

Sulfate reduction coupled with CH4 oxidation

Except for sulfate, the consistency in the major ion fluid chemistry between the CORK fluid and the DPW suggests that CORK fluids originate from the deep SCS formation fluid. Sulfate depletions in the CORK fluids, as opposed to the sulfate enrichment seen in the DPW, likely resulted from perturbation of the subseafloor geochemical environment during drilling activity. To estimate the abundance of reactive components (particularly CH4 and H2) in the pristine SCS formation fluid, it is necessary to consider processes associated with the drilling operation that could alter the fluid chemistry at ~ 4 °C.

A previous study (Wheat et al. 2008) pointed out that the methane oxidation can cause SO4 depletion in the CORK fluid, as follows:

CH4 + OH + SO42− → CO32− + HS + 2H2O (R1).

R1 produces 1 mol of dissolved sulfide and two equivalents of alkalinity for each mole of OH, CH4, and SO42− consumed. This stoichiometry is consistent with the stoichiometry exhibited by the differences between the DPW and CORK fluids (Figs. 3 and 4). Assuming that R1 fully accounts for the ~ 27 mM-equivalent sulfate consumption in the CORK fluids, the pristine SCS formation fluids would have contained CH4 at concentrations of 35–65 mM (Fig. 4c). The measured pH values of the CORK fluids (12.1–12.3) were higher than would be expected given the consumption of ~ 27 mM OH and a DPW with a pH = 12.5 ± 0.1 that is representative of the SCS formation fluid (Fig. 4d). In addition, some of the measured total DIC contents of the CORK fluids (17–51 mM) were also inconsistent with a DIC concentration of ~ 50 mM expected by a combination of the ~ 27 mM DIC production and the 23 mM DIC being originally present in the pristine SCS formation fluid (Mottl et al. 2003). Differences in the OH and DIC values between the measured and predicted fluid compositions may be due to brucite-magnesite buffer through the following reaction:

Mg(OH)2 + CO32− MgCO3 + 2OH(R2).

The maximum CH4 concentration estimated (65 mM) seems too high but is not unrealistic because it is comparable to the solubility of CH4 clathrate hydrate under relevant concentration-pressure-temperature-salinity condition within the SCS (~ 60 mM at 30 MPa, 2 °C and 3.5%) (Tishchenko et al. 2005). No geophysical data, however, support the presence of layered hydrate boundary, such as bottom simulating reflector (BSR).

Possible H2 consumption coupled with sulfate reduction

The low concentrations of H2 in the CORK fluid (< 0.1 mM) suggest that it may be consumed by sulfate reduction in addition to CH4. H2 oxidation coupled with sulfate reduction progresses as follows:
$$ 4{\mathrm{H}}_2+{{\mathrm{SO}}_4}^{2-}\to {\mathrm{H}\mathrm{S}}^{-}+{\mathrm{OH}}^{-}+3{\mathrm{H}}_2\mathrm{O}\ \left(\mathrm{R}3\right). $$

Because R3 produces OH, H2 consumption during sulfate reduction may contribute to measured pH values that are higher than predicted by R1 (Fig. 4d). Assuming the pH balance is made by R1 and R3, the native SCS formation fluid may contain as much as ~ 40 mM of H2. This H2 level may be realistic because 27 mM of H2 has been observed in a seafloor serpentinization-associated hydrothermal system at > 296 °C (Konn et al. 2015) and > 100 mM of H2 can be attained through serpentinization at 200–300 °C from thermodynamic calculation (McCollom and Bach 2009). If the cool SCS formation fluid contains such abundant H2, the reduction of CO2 to form CH4 is thermodynamically favorable, according to the following reaction:

$$ 4{\mathrm{H}}_2+{{\mathrm{CO}}_3}^{2-}\to {\mathrm{CH}}_4+{\mathrm{H}}_2\mathrm{O}+2{\mathrm{OH}}^{-}\left(\mathrm{R}4\right). $$

However, abiotic CH4 formation represented by R4 is unlikely due to kinetic barriers at the low temperatures within the SCS body (4 °C). In addition to CH4 and H2, native iron and other metals in the casing pipe may function as reductant and cation for the dissolved sulfate removal.

Drilling induced sulfate reduction

The discussions above suggest that abundant CH4 and SO4 coexist in the native SCS formation fluid and is consistent with their presence in the DPW (Mottl et al. 2003). This coexistence is unusual in the subseafloor environment because sulfate reduction coupled with methane oxidation is thermodynamically favorable and usually promoted by ubiquitous microbial consortia of methanotrophic archaea and sulfate reducing bacteria, known as AOM (Orphan et al. 2001). In other words, both abundant CH4 and SO4 in the native SCS formation fluid point to unusually slow kinetics of the sulfate reduction (R1) within the native SCS body. In fact, SO4 reduction coupled with CH4 oxidation (R1) likely occurs in the post-drilling CORK fluids, derived from subseafloor regions affected by the Hole 1200C drilling, casing, and/or CORK installation.

Drilling-induced introduction of external microbial communities into the subsurface environment may account for the post-drilling progression of R1 due to AOM. While the relatively impermeable serpentinite matrix prevented access of the over-pressured aquifer to the microbe-bearing seawater, the drilling operation and the hole made the deep aquifer exposed to deep-sea water and shallow subseafloor sediment containing exogenous microbial communities, including AOM consortia (Mottl et al. 2003). However, the post-drilling microbial AOM function is likely insignificant, as suggested by multiple lines of microbiological evidence such as small biomass, a lack of evidence for 16S rRNA gene phylotype signatures of previously known AOM consortia, and the negligible CH4 assimilation during the 14C experiment (see the “Results” section). Assuming that the dissimilatory AOM activity of consortia does not exceed 102 times higher than the anoxic methane assimilation rate, as the highest methane assimilation activity estimated in this study is 0.0002 μmol/day/L, it can be calculated that a 27 mmol/L SO4 consumption requires > 106 days. This amount of time is much longer than the time elapsed since drilling ceased (< 104 days). This calculation, together with other microbiological results, suggests that the microbial AOM function is not significantly involved in the post-drilling CH4-SO4 reactions, based on experimental conditions at 2 °C. Although faster microbial reaction rates may occur deeper within the seamount where the environment is warmer, the extent of their involvement would be still negligible. It is noted that microbial activity at the pristine interior of the SCS body is more stricly limited than the rate calculated above due to their impermeability and over-pressured aquifer, and probably less biomass.

There are no reliable data for the kinetics of R1 without the involvement of microbial AOM. However, the sudden and rapid progression of R1 after drilling would require some catalytic effects associated with the drilling, casing, and CORK installation operations, other than the introduction of AOM populations. A possible catalyst introduced by drilling and casing the borehole is native iron and other metals used in the casing pipe and the CORK structure. Transition metals such as iron and nickel generally exhibit catalytic function for redox reactions due to their multiple valences. In addition to catalytic reactions occurring locally on the metal surface, high electron conductivity of the elongate casing pipe allows remotely located reducing and oxidizing molecules to be reacted through electron transfer, similar to how a battery functions. Nevertheless, the extent to which drilling and casing operations promoted abiotic sulfate reduction coupled with CH4 oxidation is still not entirely clear.

Origins of CH4 and SO4 in the native serpentine formation fluid of the SCS

Abiotic hydrocarbon synthesis associated with serpentinization—environmental factors

Although it is difficult in natural environments of the modern Earth to distinguish between abiotic synthesis of CH4 from other CH4 sources such as microbial methanogenesis (biogenic CH4) and thermal degradation of sedimentary organic matter (thermogenic CH4) (see reviews, Etiope and Sherwood Lollar, 2013 for example), multiple lines of geochemical and microbiological evidence suggest that contributions of biogenic and thermogenic CH4 in the SCS system are not signficant. During the early stage of subduction, where the temperatures are below the known 122 °C upper limit for the growth of microbes (Takai et al. 2008), microbial methanogenesis is probably absent or insignificant due to the abundantly dissolved sulfate in the sediment pore water in the Pacific plate eastward from the Mariana Trench (ODP sites 800–802) (France-Lanord et al. 1992). During the later stages of subduction, temperatures exceed 122 °C, which is too high for microbial life to survive. The same is also true for regions of extensive serpentinization within the overlying mantle wedge. In the SCS formation fluid regime, where temperatures again become cool and habitable, there is little potential to produce abundant CH4 due to low biomass and microbial function, revealed by the 45 months long observation of the CORK fluids. In addition, the highest known pH limit for the growth of methanogens is < 10 (Methanosalsum zhilinae: Mathrani et al. 1988), significantly lower than the pH of > 12 in the SCS fluids. The extremely low organic contents in the SCS serpentine mud (Mottl et al. 2003) indicate that there is little potential for thermogenic hydrocarbon generation beneath the SCS.

Possibility of abiotic synthesis from thermodynamic and kinetic viewpoints

Abiotic organic synthesis, including the generation of CH4 from CO2, is generally more favorable at lower temperatures from a thermodynamic viewpoint despite unfavorable kinetic constraints (e.g., McCollom, 2008). In the case of the SCS, thermodynamically favorable conditions for the abiotic synthesis of CH4 is expected through the entire formation fluid regime due to sufficiently reducing conditions resulting from serpentinization occur at 200–300 °C (McCollom and Bach, 2009) and subsequent cooled as fluids ascend. The ascending fluid is quenched sufficiently for microbial activity (122 °C: Takai et al. 2008) at 13 km below the seafloor, estimated from the thermal gradient observed (9.4 °C/km). Since formation fluids probably ascend on a geological time span, continuous abiotic synthesis and accumulation of organic compounds is plausible, even at extremely low reaction rates.

The rate of abiotic hydrocarbon synthesis depends on the carbon substrate (McCollom et al. 2010). McCollom et al. (2010) demonstrated that CO-based synthesis is feasible within an experimental timeframe. Even when the CO-based abiotic synthesis is feasible under conditions of the SCS formation fluid, CO production from CO2 represents a bottle-neck in the process due to the several orders of magnitude less CO compared to CO2 in the CORK fluid. Abiotic methanogenesis based on solid-phase carbon, such as graphite derived from metamorphism and carbonate mineral deposits (Etiope and Sherwood Lollar, 2013), cannot be precluded, although the possibility cannot be evaluated here due to limited information about the rates of such processes.

Suggestions from stable isotope signatures

Stable isotope signatures should be interpreted in the context of isotope ratios of individual molecules (Fig. 5a, b) and isotope fractionation between relevant molecules (Fig. 5c) (Etiope and Sherwood Lollar, 2013). The CH4-H2O hydrogen isotopic fractionation factor of the CORK fluid (αHCH4-H2O) is 0.87, which is inconsistent with typical biogenic values of ~ 0.70 (Okumura et al. 2016b) (Fig. 5c). Thermogenic CH4 reservoirs generally have αHCH4-H2O values corresponding to the CH4-H2O isotope equilibrium values at the formation/reservoir temperature (e.g., Stolper et al. 2014; Wang et al. 2015). The αHCH4-H2O and αHC2H6-H2O values of the CORK fluids (> 0.86) correspond to those of the isotope equilibrium values at > 200 °C (Fig. 5b, c) (Horibe and Craig 1995; Reeves et al. 2012), consistent with the uppermost temperature expected at the plate boundary and mantle wedge beneath the SCS (~ 350 °C) (Mottl et al. 2004; Hulme et al. 2010). This suggests that the hydrogen isotope signature of hydrocarbons recorded at > 200 °C has not been altered after these fluids have been cooled to their discharge temperatures. The lack of hydrogen isotope re-equilibrium between CH4 and H2O seems consistent with the half-life for equilibrium exchange, estimated to be approximately one million years at 200 °C (Sessions et al. 2004; Wang et al. 2015). In addition, the hydrogen isotope signature shows no evidence for a contribution of biogenic CH4 produced in the cool formation fluid regime of the SCS. The H2-H2O thermometer value, indicating ~ 2 °C, is inconsistent with the CH4-H2O thermometer but reasonable because of the more feasible H2-H2O equilibrium, even at lower temperatures (Valentine et al. 2004; Proskurowski et al. 2008; Kawagucci et al. 2010; 2016; Pester et al. 2018).

The δ13C-CH4 values of about − 37‰ and the isotope fractionation between CH4-DIC (αCCH4-DIC) of ~ 0.963 seem to be an equivocal signature for thermogenic, biogenic, or abiotic origins (Fig. 5c) (Kawagucci et al. 2013 and references therein). Hydrothermal experiments simulating hydrothermal hydrocarbons generation from the seafloor sediment at 325–400 °C show an αCCH4-CO2 as high as 0.985 (Seewald et al. 1994) (Fig. 5c). Carbon isotope fractionation produced by microbial hydrogenotrophic methanogenesis in the seafloor sediment typically displays αCCH4-DIC of ~ 0.930 (Okumura et al. 2016b and references therein). It is also known, however, that microbial metabolisms sometimes cause unusual isotope effects under extreme growth and survival conditions (e.g., Valentine et al. 2004; Penning et al. 2005; Takai et al. 2008). Microbial methanogenesis in the SCS formation fluid regime may cause an unusual carbon isotope effect as CO32− is the dominant DIC speciation in highly alkaline solutions.

Carbon and hydrogen isotope systematics of CORK fluids suggest that abiotic methanogenesis is occurring at > ~ 200 °C. Hydrothermal experiments, demonstrating CO- and CO2-based abiotic hydrocarbon syntheses, provide consistent αCCH4-CO2 values of 0.97–0.98 (Fu et al. 2007; McCollom et al. 2010), slightly higher than that observed in the CORK fluids (0.963). Experimental determination of CH4-CO2 isotope equilibrium at 200 °C exhibits a αCCH4-CO2 of 0.966 (Horita, 2001), very close to the value observed from the CORK fluid (Fig. 5c). Although carbon isotope exchange between CH4-CO2 below ~ 400 °C is generally thought to become kinetically sluggish without a catalyst, particularly in the CH4-generating direction (e.g., McCollom, 2008), the CH4-CO2 isotope equilibrium could be attained at ~ 200 °C beneath the SCS because of thermodynamically favorable condition for CH4 generation and geological time span. For the hydrogen isotope equilibrium between hydrocarbons and H2O, terminal locality of hydrogen atoms would be more feasible for the exchange with the surrounding hydrogen-bearing molecules, namely, H2O (Reeves et al. 2012; Wang et al. 2015). The H exchange would erase the extremely D-depleted signature (αHCH4-H2O = ~ 0.45: McCollom et al. 2010) exhibited by the (experimental) abiotic CH4 generation. Carbon and hydrogen isotopic thermometers both indicating > ~ 200 °C left in the 2 °C CORK fluid (Fig. 5c), imply that the reactions for isotope exchange are limited at lower temperatures. Thus, the rate of abiotic synthesis would decease after cooling the SCS formation fluid below 200 °C, yet it must continue within the serpentinite matrix at lower temperatures.

Slab-derived SO4 conservation through serpentinization

The abundant dissolved sulfate in the SCS formation fluid was thought to originate from sulfate in the subducting slab (Mottl et al. 2003). This conclusion seems inconsistent with abiotic organic synthesis via serpentinization, in which sulfate should be reduced from a thermodynamic viewpoint. On the other hand, closed-system experiments simulating serpentinization at 200–300 °C (Janecky and Seyfried Jr., 1986; Seyfried 2007) confirmed barriers to sulfate reduction during serpentinization due to rapid sulfate precipitation as anhydrite upon initial heating of the experiment and its subsequent metastable persistence, even in a highly reducing fluid. Accordingly, anhydrite precipitation in the downgoing slab may facilitate sulfate conservation through high-temperature regions of subduction and diapir. In addition, a recent quadruple sulfur isotope study of SCS DPW and CORK fluid suggests that the mantle wedge represents one of the possible sources of sulfate in the SCS formation fluid (Aoyama et al. 2018).

Hypothetical sequence of geochemical processes in the SCS system

We propose a hypothesis for the possible sequence of (bio) geochemical processes in the SCS serpentinite formation fluid regime, based on CORK fluid characteristics and observations from previous studies (Fig. 7). The oligotrophic western North Pacific water provides little sedimentary organic matter, resulting in pelagic sediments of the Pacific plate eastward from the Mariana Trench (ODP sites 800–802) that contain sulfate-rich porewater (France-Lanord et al. 1992; Alt and Shanks III, 2006) and low sedimentary biomass (Kellmeyer et al., 2012). Global seafloor drilling that penetrates into the upper basaltic crust (e.g., Gieskes et al. 1990, 1993; Hensen and Wallmann, 2005) have indeed revealed dissolved sulfate that is ubiquitously abundant in the uppermost part of subducting plate, despite their great depth and distance from the trench seafloor. At an early stage of subduction, some or all of the porewater sulfate is precipitated as anhydrite with requisite Ca supplied by dissolution of sedimentary calcite or reactions with involving basaltic crust. At the deep plate boundary region at ~ 0.6 GPa and ≤ ~ 350 °C (Hulme et al. 2010), metamorphic processes such as compactive dewatering, expulsion of interlayer water, dehydration, and decarbonation forms the DIC-rich initial upwelling fluid (Mottl et al. 2004), which harbors no microbial population due to its high temperature. The initial fluid accompanied with metamorphic minerals such as blueschist and anhydrite penetrates into the overlying mantle wedge and induces serpentinization. Extensive serpentinization produces highly alkaline and strongly reducing H2-rich fluid (McCollom and Bach 2009), leading to the thermodynamic conditions favorable for the abiotic organic synthesis from slab-derived inorganic carbon. Sulfate minerals are not reduced, due to kinetic constraints. The abiotic synthesis of organic molecules occurs within the ascending serpentinite mud until its temperature decreases to ~ 200 °C. Further ascend and cooling decrease the rate of abiotic synthesis while allowing for the dissolution of anhydrite (anhydrite-derived calcium is completely removed by abundant DIC). This sequence results in the co-existence of abiotic CH4 (and possibly H2, C2+ hydrocarbons, and some organic matter) and slab-derived dissolved SO4 in the SCS formation fluid. Although the abundant CH4 and SO4 exhibit sufficient bioavailable energy potentials (Nakamura and Takai 2014) within the habitable temperature range (< ~ 122 °C: Takai et al. 2008), limited microbial biomass and activity are present because the relatively impermeable SCS prevents penetration of microbial community from ambient seawater. As the major conduit for the mud/fluid ascending path consists of 60–100% serpentinite muds (Shipboard Sci. Party 2002), the fluid-serpentinite interaction rather than fluid-peridotite interaction (serpentinization) dominates the current fluid chemistry of the SCS formation fluid. The highly alkaline porewater pH of ~ 12.5 likely prevents the development of subseafloor microbial community due to the CO32−-dominated DIC speciation being disadvantageous for autotrophy (e.g., Schrenk et al. 2013) whereas the known upper pH limit for chemoorganotrophic microorganisms is 12.4 (Takai et al. 2001). Ongoing reactions between the CH4 and SO4, as observed in this study, would have been triggered by the very recent ODP drilling and casing operations carried out in 2001 (Shipboard Sci. Party 2002; Wheat et al. 2008).
Fig. 7
Fig. 7

Illustration for possible C-S-H reactions beneath the SCS. “Cells” represents microbial cells and “Org” represents organic matter in the seawater

Conclusions

The present study investigated the chemical and microbiological characteristics of formation fluids from a serpentinite mud volcano, the SCS. The gas chemistry characterized by abundant CH4 and low H2 is the first of its kind from deep-sea highly alkaline (serpentinization-associated) geofluid systems. The SCS formation fluid regime may also represent the first reported example on Earth where abiotic processes are conspicuous with little biotic processes, despite conditions with sufficient bioavailable energy potentials and temperatures within the habitable range. However, there are still many uncertainties associated with the hypothesis presented here. It is not sufficient to clearly distinguish the geochemical processes in each of the spatio-temporally different stages of fluid-rock interactions beneath the SCS, such as metamorphism associated with subduction, fluid released from the plate boundary zone, extensive serpentinization at the wedge mantle, fluid maturation and cooling in the ascending pathway, episodic mud volcanism, and mass wasting of the SCS body. The behavior of sulfate in subduction systems is a key factor for understanding the (bio) geochemical cycle at forearc geofluid systems. Constraint in keeping the co-existence of the (probably) slab-derived sulfate and abiotic CH4 in the SCS formation, unexpected due to the strong thermodynamic drive for their reaction, remains unidentified. Broadly speaking, abiotic organic synthesis associated with subseafloor serpentinization has been considered to progress in many of the natural serpentinization-associated geofluid systems including the SCS, but has never been confirmed by multiple lines of solid evidences that serve to distinguish it from organic matter degradation and biological carbon fixation. Future studies of the SCS and other serpentinite mud volcanoes in the Mariana forearc are needed to refine conceptual models of reactions within these interesting features that link seafloor materials with the descending slab.

Abbreviations

CORK:

Circulation Obviation Retrofit Kit

DPW:

Deep porewater

IC:

Ion chromatography

ICP-AES:

Inductively coupled plasma atomic emission spectrometry

ICP-MS:

Inductively coupled plasma mass spectrometry

ODP:

Ocean Drilling Program

PVC:

Polyvinyl chloride

ROV:

Remotely operated vehicle

SCS:

South Chamorro Seamount

Declarations

Acknowledgements

We thank the operation team of the ROV Hyper-Dolphin and the crews of R/V Natsushima for their skillful support during cruises NT09-1, NT09-7, NT12-04, and NT12-23. We also thank Dr. Uta Konno for gas and isotope analyses. Drs. Kentaro Nakamura, Takazo Shibuya, and Chong Chen are gratefully acknowledged for useful and fruitful discussions. SK thanks Prof. Gretchen Bernasconi-Green for providing space and opportunity to draft the manuscript as an academic visitor of ETH Zürich.

Funding

This work was partly supported by JSPS KAKENHI Grant Number 25701004 (SK).

Availability of data and materials

All analytical results of this study are included in the main text and tables.

Authors’ contributions

SK, JM, CGW, and KT proposed the topic, conceived, and designed the study. All authors joined cruises for sample collection. JM, YM, JSS, and CGW analyzed the samples and helped in their interpretation. JSS and CGW collaborated with the corresponding author (SK) in the construction of manuscript. All authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interest.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Subsurface Geobiological Analysis and Research (D-SUGAR), Japan Agency for Marine-Earth Science and Technology (JAMSTEC), 2-15 Natsushima-cho, Yokosuka 237-0061, Japan
(2)
Kochi Institute for Core Sample Research, Japan Agency for Marine-Earth Science and Technology (JAMSTEC), Nankoku Kochi, 783-8502, Japan
(3)
Department Marine Chemistry and Geochemistry (MC&G), Woods Hole Oceanographic Institution (WHOI), Woods Hole, MA 02543, USA
(4)
Global Undersea Research Unit, University of Alaska Fairbanks, P. O. Box 475, Moss Landing, CA 95039, USA
(5)
Institute of Geochemistry and Petrology, ETH Zürich, Zürich, Switzerland

References

  1. Alt JC, Shanks WC III (2006) Stable isotope compositions of serpentinite seamounts in the Mariana forearc: serpentinization processes, fluid sources and sulfur metasomatism. Earth Planet Sci Lett 242:272–285.View ArticleGoogle Scholar
  2. Aoyama S, Nishizawa M, Miyazaki J, Shibuya T, Ueno Y, Takai K (2018) Recycled Archean sulfur in the mantle wedge of the Mariana Forearc and microbial sulfate reduction within an extremely alkaline serpentine seamount. Earth Planet Sci Lett 491:109–120.View ArticleGoogle Scholar
  3. Barnes I, LaMarche j VC, Himmelberg G (1967) Geochemical evidence of present-day serpentinization. Science 156:830–832.View ArticleGoogle Scholar
  4. Barnes I, O’neil JR, Trescases JJ (1978) Present day serpentinization in New Caledonia, Oman and Yugoslavia. Geochim Cosmochim Acta 42:144–145.View ArticleGoogle Scholar
  5. Burruss RC, Laughrey CD (2010) Carbon and hydrogen isotopic reversals in deep basin gas: Evidence for limits to the stability of hydrocarbons. Organic Geochemistry 41:1285–1296. https://doi.org/10.1016/j.orggeochem.2010.09.008.View ArticleGoogle Scholar
  6. Charlou JL, Donval JP, Fouquet Y, Jean-Baptiste P, Holm N (2002) Geochemistry of high H2 and CH4 vent fluids issuing from ultramafic rocks at the Rainbow hydrothermal field (36°14’N, MAR). Chem Geol 191:345–359.View ArticleGoogle Scholar
  7. de Lange GJ, Cranston RE, Hydes DH, Boust D (1992) Extraction of pore water from marine sediments: a review of possible artifacts with pertinent examples from the North Atlantic. Mar Geol 109:53–76.View ArticleGoogle Scholar
  8. Etiope G, Sherwood Lollar B (2013) Abiotic methane on earth. Rev Geophys 51:1–24.View ArticleGoogle Scholar
  9. France-Lanord C, Michard A, Karpoff AM (1992) Major element and Sr isotope composition of interstitial waters in sediments from leg 129: the role of diagenetic reactions. In: Larson RL, Lancelot Y et al (eds) Proceedings of teh Ocean Drilling Program Scientific Results, vol 129, pp 267–281.Google Scholar
  10. Früh-Green GL, Kelley DS, Bernasconi SM, Karson JA, Ludwig KA, Butterfield DA, Boschi C, Proskurowski G (2003) 30,000 years of hydrothermal activity at the Lost City vent field. Science 301:495–498.View ArticleGoogle Scholar
  11. Fryer P (2011) Serpentinite mud volcanism: observations, processes, and implications. Annu Rev Mar Sci 4:345–373.View ArticleGoogle Scholar
  12. Fryer P, Mottl MJ (1997) “Shinkai 6500” investigations of a resurgent mud volcano on the Southeastern Mariana forearc. JAMSTEC-R 13:103–114.Google Scholar
  13. Fu Q, Sherwood Lollar B, Horita J, Lacrampe-Couloume G, Seyfried WE Jr (2007) Abiotic formation of hydrocarbons under hydrothermal conditions: constraints from chemical and isotope data. Geochim Cosmochim Acta 71:1982–1998.View ArticleGoogle Scholar
  14. Gieskes J, Gamo T, Kastner M (1993) Major and minor element geochemistry of interstitial waters of site 808, Nankai trough: an overview. In: Hill IA, Taira A, Firth JV et al (eds) Scientific results, Ocean Drilling Program, Leg 131. Ocean Drilling Program, College Station, Texas, pp 387–396.Google Scholar
  15. Gieskes JM, Vroluk P, Blank G (1990) Hydrogeochemistry of the Northern Barbados accretionary complex transect: Ocean Drilling Project Leg 110. J Geophys Res 95:8809–8818.View ArticleGoogle Scholar
  16. Hensen C, Wallmann K (2005) Methane formation at Costa Rica continental margin - constraints for gas hydrate inventories and cross-décollment fluid flow. Earth Planet Sci Lett 236:41–60.View ArticleGoogle Scholar
  17. Hirayama H, Fuse H, Abe M, Miyazaki M, Nakamura T, Nunoura T, Furushima Y, Yamamoto H, Takai K (2013) Methylomarinum vadi gen. nov. sp. Nov., a methanotroph isolated from two distinct marine environments. Int J Syst Evol Microbiol 63:1073–1082.View ArticleGoogle Scholar
  18. Hirayama H, Sunamura M, Takai K, Nunoura T, Noguchi T, Oida H, Furushima Y, Yamamoto H, Oomori T, Horikoshi K (2007) Culture-dependent and -independent characterization of microbial communities associated with a shallow submarine hydrothermal system occurring within a coral reef off Taketomi Island, Japan. Appl Environ Microbiol 73:7642–7656.View ArticleGoogle Scholar
  19. Homma A, Tsukahara H (2008) Chemical characteristics of hot spring water and geological environment in the northernmost area of the Itoigawa Shizuoka tectonic line. Bull Earthw Res Inst Univ Tokyo 83:217–225.Google Scholar
  20. Horibe Y, Craig H (1995) D/H fractionation in the system methane-hydrogen- water. Geochim Cosmochim Acta 59:5209–5217.View ArticleGoogle Scholar
  21. Horita J (2001) Carbon isotope exchange in the system CO2-CH4 at elevated temperatures. Geochim Cosmochim Acta 65:1907–1919.View ArticleGoogle Scholar
  22. Hulme SM, Wheat CG, Fryer P, Mottl MJ (2010) Pore water chemistry of the Mariana serpentinite mud volcanoes: a window to the seismogenic zone. Geochem Geophys Geosyst 11:Q01X09. https://doi.org/10.1029/2009GC002674.View ArticleGoogle Scholar
  23. Janecky DR, Seyfried WE Jr (1986) Hydrothermal serpentinization of peridotite within the oceanic crust: experimental investigations of mineralogy and major element chemistry. Geochim Cosmochim Acta 50:1357–1378.View ArticleGoogle Scholar
  24. Kawagucci S, Miyazaki J, Noguchi T, Okamura K, Shibuya T, Watsuji T et al (2016) Fluid chemistry in the solitaire and dodo hydrothermal fields of the central Indian ridge. Geofluids 5:988–1005. https://doi.org/10.1111/gfl.12201.View ArticleGoogle Scholar
  25. Kawagucci S, Toki T, Ishibashi J, Takai K, Ito M, Oomori T, Gamo T (2010) Isotopic variation of molecular hydrogen in 20°–375°C hydrothermal fluids as detected by a new analytical method. J Geophys Res 115:G03021–9. https://doi.org/10.1029/2009JG001203.View ArticleGoogle Scholar
  26. Kawagucci S, Ueno Y, Takai K, Toki T, Ito M, Inoue K, Makabe A, Yoshida N, Muramatsu Y, Takahata N, Sano Y, Narita T, Teranishi G, Obata H, Nakagawa S, Nunoura T, Gamo T (2013) Geochemical origin of hydrothermal fluid methane in sediment-associated fields and its relevance to the geographical distribution of whole hydrothermal circulation. Chem Geol 339:213–225.View ArticleGoogle Scholar
  27. Kelley DS, Karson JA, Blackman DK, Früh-Green GL, Butterfield DA et al (2001) An off-oxis hydrothermal vent field near the Mid-Atlantic Ridge at 30°N. Nature 412:145–149.View ArticleGoogle Scholar
  28. Kellmeyer J, Pockalny R, Adhikari RR, Smith DC, D’Hondt S (2012) Global distribution of microbial abundance and biomass in subseafloor sediment. PNAS 109:16213–16216.View ArticleGoogle Scholar
  29. Konn C, Charlou JL, Lolm NG, Mousis O (2015) The production of methane, hydrogen, and organic compound in ultramafic-hosted hydrothermal vents of the Mid-Atlantic Ridge. Astrobiology 15:381–399.View ArticleGoogle Scholar
  30. Kumagai H, Nakamura N, Toki T, Morishita T, Okino K, Ishibashi J et al (2008) Geological background of the Kairei and Edmond hydrothermal fields along the Central Indian ridge: implications of their vent fluids’ distinct chemistry. Geofluids 8:239–251.View ArticleGoogle Scholar
  31. Mathrani IM, Boone DR, Mah RA, Fox GE, Lau PP (1988) Methanohalophilus zhilinae sp. Nov., an alkaliphili, halophilic, methylotrophic methanogen. Int J Syst Bacteriol 38:139–142.View ArticleGoogle Scholar
  32. McCollom TM (2008) Observational, experimental, and theoretical constraints on carbon cycling in Mid-Ocean Ridge hydrothermal systems. In: Magma to microbe: modeling hydrothermal processes at ocean spreading centers geophysical monograph series, vol 178, pp 193–213.Google Scholar
  33. McCollom TM (2013) Laboratory simulations of abiotic hydrocarbon formation in Earth’s deep subsurface. Rev Mineral Geochem 75:467–494.View ArticleGoogle Scholar
  34. McCollom TM, Bach W (2009) Thermodynamic constraints on hydrogen generation during serpentinization of ultramafic rocks. Geochim Cosmochim Acta 73:856–875.View ArticleGoogle Scholar
  35. McCollom TM, Sherwood Lollar B, Lacrampe-Couloume G, Seewald JS (2010) The influence of carbon source on abiotic organic synthesis and carbon isotope fractionation under hydrothermal conditions. Geochim Cosmochim Acta 74:2717–2740.View ArticleGoogle Scholar
  36. McDermott JM, Ono S, Tivey MK, Seewald JS, Shanks WC III, Solow AR (2015) Identification of sulfur sources and isotopic equilibria in submarine hot-springs using multiple sulfur isotopes. Geochimica et. Cosmochimica Acta 160:169–187. https://doi.org/10.1016/j.gca.2015.02.016.View ArticleGoogle Scholar
  37. Miyazaki J, Makabe A, Matsui Y, Ebina N, Tsutsumi S, Ishibashi J, Chen C, Kaneko S, Takai K, Kawagucci S (2017) WHATS-3: an improved flow-through multi-bottle fluid sampler for Deep-Sea Geofluid research. Front Earth Sci 5:45. https://doi.org/10.3389/feart.2017.00045.View ArticleGoogle Scholar
  38. Morono Y, Inagaki F (2010) Automatic Slide-Loader Fluorescence Microscope for Discriminative Enumeration of Subseafloor Life. Scientific Drilling 9:32–36. https://doi.org/10.5194/sd-9-32-2010.View ArticleGoogle Scholar
  39. Morono Y, Terada T, Kallmeyer J, Inagaki F (2013) An improved cell separation technique for marine subsurface sediments: applications for high-throughput analysis using flow cytometry and cell sorting. Environ Microbiol 2:2841–2849. https://doi.org/10.1111/1462-2920.12153.
  40. Morono Y, Terada T, Masui N, Inagaki F (2009) Discriminative detection and enumeration of microbial life in marine subsurface sediments. The ISME Journal 3:503–511. https://doi.org/10.1038/ismej.2009.1.View ArticleGoogle Scholar
  41. Mottl MJ, Komor SC, Fryer P, Moyer CL (2003) Deep-slab fluids fuel extremophilic archaea on a Mariana forearc serpentinite mud volcano: Ocean Drilling Program Leg 195. Geochem Geophys Geosyst 4:9009.View ArticleGoogle Scholar
  42. Mottl MJ, Wheat CG, Fryer P, Gharib J, Martin J (2004) Chemistry of springs across the Mariana forearc shows progressive devolatilization of the subduction plate. Geochim Cosmochim Acta 68:4915–4933.View ArticleGoogle Scholar
  43. Nakagawa S et al (2006) Microbial community in black rust exposed to hot ridge flank crustal fluids. Appl Environ Microbiol 72:6789–6799.View ArticleGoogle Scholar
  44. Nakamura K, Takai K (2014) Theoretical constraints of physical and chemical properties of hydrothermal fluids on variations in chemolithotrophic microbial communities in seafloor hydrothermal systems. Prog Earth Planet Sci 1:5.View ArticleGoogle Scholar
  45. Nigro LM, Harris K, Orcutt BN, Hyde A, Clayton-Luce S, Becker K, Teske A (2012) Microbial communities at the borehole observatory on the Costa Rica Rift flank (Ocean Drilling Program Hole 896A). Front Microbiol 3:232. https://doi.org/10.3389/fmicb.2012.00232.View ArticleGoogle Scholar
  46. Nunoura T, Takaki Y, Kazama H, Hirai M, Ashi J, Imachi H, Takai K (2012) Microbial diversity in deep-sea methane seep sediments presented by SSU rRNA gene tag sequencing. Microbes Environ 27:382–390. https://doi.org/10.1264/jsme2.ME12032.View ArticleGoogle Scholar
  47. Ohara Y et al (2012) A serpentinite-hosted ecosystem in the southern Mariana Forearc. Proc Natl Acad Sci U S A 109:2831–2835. https://doi.org/10.1073/pnas.1112005109.View ArticleGoogle Scholar
  48. Okumura T, Kawagucci S, Saito Y, Matsui Y, Takai K, Imachi H (2016b) Hydrogen and carbon isotope systematics in hydrogenotrophic methanogenesis under H2-limited and H2-enriched conditions: implications for the origin of methane and its isotopic diagnosis. Prog Earth Planet Sci 3:14.View ArticleGoogle Scholar
  49. Okumura T et al (2016a) Brucite chimney formation and carbonate alteration at the Shinkai seep field, a serpentinite-hosted vent system in the southern Mariana forearc. Geochem Geophys Geosyst 17. https://doi.org/10.1002/%202016GC006449.
  50. Onishi Y, Yamanaka T, Okumura T, Kawagucci S, Watanabe HK, Ohara Y (2018) Evaluation of nutrient and energy sources of the deepest known serpentinite-hosted ecosystem using stable carbon, nitrogen, and sulfur isotopes. PLoS One 13(6):e0199000.View ArticleGoogle Scholar
  51. Orphan VJ, House CH, Hinrichs K-U, McKeegan KD, DeLong EF (2001) Methane-consuming archaea revealed by directly coupled isotopic and phylogenetic analysis. Science 293:484–487.View ArticleGoogle Scholar
  52. Penning H, Plugge CM, Galand PE, Conrad R (2005) Variation of carbon isotope fractionation in hydrogenotrophic methanogenic microbial cultures and environmental samples at different energy status. Glob Chang Biol 11:2103–2113.View ArticleGoogle Scholar
  53. Pester NJ, Conrad ME, Knauss KG, DePaolo DJ (2018) Kinetics of D/H isotope fractionation between molecular hydrogen and water. Geochim Cosmochim Acta 242:191–212.View ArticleGoogle Scholar
  54. Proskurowski G, Lilley MD, Seewald JS, Fru h-Green GL, Olson EJ, Lupton JE, Sylva SP, Kelley DS (2008) Abiogenic Hydrocarbon Production at Lost City Hydrothermal Field. Science 319:604–607. https://doi.org/10.1126/science.1151194.View ArticleGoogle Scholar
  55. Redfield AC (1958) The biological control of chemical factors in the environment. Am Sci 46:205–221.Google Scholar
  56. Reeves E, Seewald JS, Sylva SP (2012) Hydrogen isotope exchange between n- alkanes and water under hydrothermal conditions. Geochim Cosmochim Acta 77:582–599.View ArticleGoogle Scholar
  57. Russell MJ et al (2014) The drive to life on wet and icy worlds. Astrobiology 14:308–343.View ArticleGoogle Scholar
  58. Saegusa S, Tsunogai U, Nakagawa F, Kaneko S (2006) Development of a multibottle gas-tight fluid sampler WHATS II for Japanese submersibles/ROVs. Geofluids 6:234–240.Google Scholar
  59. Sano Y, Marty B (1995) Origin of carbon in fumarolic gas from island arcs. Chem Geol 119:265–274.View ArticleGoogle Scholar
  60. Schrenk MO, Brazelton WJ, Lang SQ (2013) Serpentinization, carbon, and deep life. Rev Mineral Geochem 75:575–606.View ArticleGoogle Scholar
  61. Seewald JS, Doherty KW, Hammar TR, Liberatore SP (2001) A new gas-tight isobaric sampler for hydrothermal fluids. Deep Sea Res 49:189–196. https://doi.org/10.1016/S0967-0637(01)00046-2.View ArticleGoogle Scholar
  62. Seewald JS, Seyfried WE Jr, Shanks WC III (1994) Variations in the chemical and stable isotope composition of carbon and sulfur species during organic-rich sediment alteration: an experimental and theoretical study of hydrothermal activity at Guaymas Basin, Gulf of California. Geochim Cosmochim Acta 58:5065–5082.View ArticleGoogle Scholar
  63. Sessions AL, Sylva SP, Summons RE, Hayes JM (2004) Isotopic exchange of carbon-bound hydrogen over geological timescales. Geochim Cosmochim Acta 68:1545–1559.View ArticleGoogle Scholar
  64. Seyfried WE Jr, Foustoukos DI, Fu Q (2007) Redox evolution and mass transfer during serpentinization: an experimental and theoretical study at 200 °C, 500 bar with implications for ultramafic-hosted hydrothermal systems at Mid-Ocean Ridge. Geochim Cosmochim Acta 71:3872–3886.View ArticleGoogle Scholar
  65. Seyfried WE Jr., Pester NJ, Ding K, Rough M (2011) Vent fluid chemistry of the Rainbow hydrothermal system (36°N, MAR): Phase equilibria and in situ pH controls on subseafloor alteration processes. Geochimica et Cosmochimica Acta 75:1574–1593. https://doi.org/10.1016/j.gca.2011.01.001.View ArticleGoogle Scholar
  66. Shibuya T, Komiya T, Takai K, Maruyama S, Russell MJ (2017) Weak hydrothermal carbonation of the Ongeluk volcanics: evidence for low CO2 concentrations in seawater and atmosphere during the Paleoproterozoic global glaciation. Prog Earth Planet Sci 4:31. https://doi.org/10.1186/s40645-017-0145-6.View ArticleGoogle Scholar
  67. Sherwood Lollar B, Westgate TD, Ward JA, Slater GF, Lacrampe-Couloume G (2002) Abiogenic formation of alkanes in the Earth's crust as a minor source for global hydrocarbon reservoirs. Nature 416:522–524. https://doi.org/10.1038/416522a.View ArticleGoogle Scholar
  68. Shipboard Sci. Party (2002) In: Peters LL (ed) Site 1200. Proc. Ocean Drill. Prog. Initial Rep., Vol. 195. Ocean Drill. Prog./Texas A&M Univ, College Station. https://doi.org/10.2973/odp.proc.ir.195.103.2002.View ArticleGoogle Scholar
  69. Stern RJ, Ren M, Kelley KA, Ohara Y, Martinez F, Bloomer SH (2014) Basaltic volcaniclastics from the Challenger Deep forearc segment, Mariana convergent margin: Implications for tectonics and magmatism of the southernmost Izu-Bonin-Mariana arc. Island Arc 23:368–382. https://doi.org/10.1111/iar.12088.View ArticleGoogle Scholar
  70. Stolper DA, Lawson M, Davis CL, Ferreia AA, Santos Neto EV, Ellis GS, Lewan MD, Martini AM, Tang Y, Schoell M, Sessions AL, Eiler JM (2014) Formation temperatures of thermogenic and biogenic methane. Science 344:1500–1503.View ArticleGoogle Scholar
  71. Suda K, Ueno Y, Yoshizaki M, Nakamura H, Kurokawa K, Nishiyama E, Yoshino K, Hongoh Y, Kawachi K, Omori S, Yamada K, Yoshida N, Maruyama S (2014) Origin of methane in serpentinite-hosted hydrothermal systems: The CH4–H2–H2O hydrogen isotope systematics of the Hakuba Happo hot spring. Earth and Planetary Science Letters 386:112–125. https://doi.org/10.1016/j.epsl.2013.11.001 View ArticleGoogle Scholar
  72. Takai K, Gamo T, Tsunogai U, Nakayama N, Hirayama H, Nealson KH, Horikoshi K (2004) Geochemical and microbiological evidence for a hydrogen-based, hyperthermophilic subsurface lithoautotrophic microbial ecosystem (HyperSLiME) beneath as active deep-sea hydrothermal field. Extremophiles 8:269–282.View ArticleGoogle Scholar
  73. Takai K, Moser DP, Onstott TC, Spoelstra N, Pfiffner SM, Dohnalkova A, Fredrickson JK (2001) Alkaliphilus transvaalensis gen. nov., sp. Nov., an extremely alkaliphilic bacterium isolated from a deep South African gold mine. Int J Syst Evol Microbiol 51:1245–1256.View ArticleGoogle Scholar
  74. Takai K, Moyer CL, Miyazaki M, Nogi Y, Hirayama H, Nealson KN, Horikoshi K (2005) Marinobacter alkaliphilus sp. Nov., a novel alkaliphilic bacterium isolated from subseafloor alkaline serpentine mud from Ocean Drilling Program Site 1200 at South Chamorro Seamount, Mariana Forearc. Extremophiles 9:17–27.View ArticleGoogle Scholar
  75. Takai K, Nakamura K, Suzuki K, Inagaki F, Nealson KH, Kumagai H (2006) Ultramafic-Hydrothermalism-Hydrogenesis-HyperSLiME (UltraH3) linkage: a key insight into early microbial ecosystem in the Archean deep-sea hydrothermal systems. Paleontological Res 10:269–282.View ArticleGoogle Scholar
  76. Takai K, Nakamura K, Toki T, Tsunogai U, Miyazaki M, Miyazaki J, Hirayama H, Nakagawa S, Nunoura T, Horikoshi K (2008) Cell proliferation at 122 °C and isotopically heavy CH4 production by a hyperthermophilic methanogen under high-pressure cultivation. Proc Natl Acad Sci U S A 105:10949–10954.View ArticleGoogle Scholar
  77. Tishchenko P, Hensen C, Wallmann K, Wong CS (2005) Calculation of the stability and solubility of methane hydrate in seawater. Chem Geol 219:37–52.View ArticleGoogle Scholar
  78. Ueda H, Shibuya T, Sawaki Y, Saitoh M, Takai K, Maruyama S (2016) Reactions between komatiite and CO2-rich seawater at 250 and 350 °C, 500 bars: implications for hydrogen generation in the Hadean seafloor hydrothermal system. Progress in Earth and. Planet Sci 3:35. https://doi.org/10.1186/s40645-016-0111-8..View ArticleGoogle Scholar
  79. Valentine DL, Chidthaisong A, Rice A, Reeburgh WS, Tyler SC (2004) Carbon and hydrogen isotope fractionation by moderately thermophilic methanogens. Geochim Cosmochim Acta 68:1571–1590.View ArticleGoogle Scholar
  80. Wang DT, Gruen DS, Lollar BS, Hinrichs KU, Stewart LC, Holden JF, Hristov AN, Pohlman JW, Morrill PL, Konneke M, Delwiche KB, Reeves EP, Sutcliffe CN, Ritter DJ, Seewald JS, McIntosh JC, Hemond HF, Kubo MD, Cardace D, Hoehler TM, Ono S (2015) Nonequilibrium clumped isotope signals in microbial methane. Science 348:428–431. https://doi.org/10.1126/science.aaa4326.View ArticleGoogle Scholar
  81. Wheat CG, Fryer P, Fisher AT, Hulme S, Jannasch H, Mottl MJ, Becker K (2008) Borehole observations of fluid flow from South Chamorro Seamount, an active serpentinite mud volcano in the Mariana forearc. Earth Planet Sci Lett 267:401–409.View ArticleGoogle Scholar
  82. Wiesenburg DA, Guinasso NL Jr (1979) Equilibrium solubilities of methane, carbon monoxide, and hydrogen in water and sea water. J Chem Eng Data 24:356–560.View ArticleGoogle Scholar

Copyright

© The Author(s). 2018

Advertisement
