Abstract

The dips of boundaries in faults and caldera walls play an important role in understanding their formation mechanisms. The fault dip is a particularly important parameter in numerical simulations for hazard map creation as the fault dip affects estimations of the area of disaster occurrence. In this study, I introduce a technique for estimating the fault dip using the eigenvector of the observed or calculated gravity gradient tensor on a profile and investigating its properties through numerical simulations. From numerical simulations, it was found that the maximum eigenvector of the tensor points to the high-density causative body, and the dip of the maximum eigenvector closely follows the dip of the normal fault. It was also found that the minimum eigenvector of the tensor points to the low-density causative body and that the dip of the minimum eigenvector closely follows the dip of the reverse fault. It was shown that the eigenvector of the gravity gradient tensor for estimating fault dips is determined by fault type. As an application of this technique, I estimated the dip of the Kurehayama Fault located in Toyama, Japan, and obtained a result that corresponded to conventional fault dip estimations by geology and geomorphology. Because the gravity gradient tensor is required for this analysis, I present a technique that estimates the gravity gradient tensor from the gravity anomaly on a profile.

Keywords

Fault dip Gravity gradient tensor Eigenvector Normal fault Reverse fault Kurehayama Fault

Introduction

In recent years, gravity gradiometry surveys have been widely conducted to obtain detailed subsurface structure data (e.g., Jekeli 1988; Dransfield 2010; Chowdhury and Cevallos 2013; Braga et al. 2014). Data collected by these surveys is the gravity gradient tensor defined by second derivatives of the gravity potential, and its response to subsurface structures is more sensitive than the gravity anomaly. At present, gravity gradiometry surveys have mainly been performed using a helicopter. Consequently, their observation interval is about 3 m on the flight profile, and the observation density is very high. The gravity gradiometry surveys allowed for high observation density, high resolution, and high sensitivity to the subsurface structures; therefore, these surveys contribute greatly to the earth science and resource engineering fields in terms of being useful and powerful tools for the estimation of subsurface structures.

Various analysis techniques using gravity gradient tensors have been suggested and discussed (e.g., Zhang et al. 2000; Beiki 2010; Martinez et al. 2013; Cevallos 2014; Li 2015). These are considered to be so-called inversion techniques. A semi-automatic interpretation method that can extract subsurface structure characteristics without geological and geophysical data input has also been developed and applied to field data (e.g., Cooper 2012; Ma 2013; Ferreira et al. 2013).

A typical semi-automatic interpretation method is an edge emphasis technique that uses extraction techniques to find locations (namely, edge) where the potential field changes abruptly due to density variations. The horizontal gravity gradient method and vertical gravity gradient method (e.g., Evjen 1936; Elkins 1951; Tsuboi and Kato 1952; Blakely and Simpson 1986) are classic edge emphasis techniques. In recent years, higher and keener extraction techniques have been suggested (e.g., Miller and Singh 1994; Cooper and Cowan 2006; Sertcelik and Kafadar 2012; Zhang et al. 2014). In addition, attention has been paid to techniques that evaluate the shape of the potential field (e.g., Koenderink and van Doorn 1992; Robert 2001; Zhou et al. 2013; Cevallos 2014).

Among these methodologies, a technique for estimating the dip of geological boundary using the gradient tensor of the potential fields has been developed (e.g., Beiki 2013). Beiki and Pedersen (2010) showed that the maximum eigenvector of the gravity gradient tensor points to the causative body (Fig. 1a). Since this property is common in the potential fields, Beiki (2013) applied it to a magnetic anomaly in the Åsele area (Sweden) and obtained useful information on the dip of the dike swarms. Kusumoto (2015), considering that the basement consists of an aggregate of high-density prisms (Fig. 1b), applied Beiki’s technique (Beiki and Pedersen 2010; Beiki 2013) to the estimation of fault dips. This method provided results wherein the fault dip estimated by the gravity gradient tensor harmonized with the dip observed from seismic surveys (Kusumoto 2015, 2016a). In addition, the dip of an earthquake source fault of the Kumamoto Earthquake that occurred in April 2016 estimated from the gravity gradient tensor also corresponded with the dip of the fault model (normal fault of 60°), thus explaining the crustal movement observed by GNSS (Global Navigation Satellite System) (Kusumoto 2016b). The range for which this method is applicable is wide from low dip to high dip (e.g., Beiki 2013; Kusumoto 2015, 2016a, 2016b), although it has some numerical instability to the vertical fault (e.g., Kusumoto 2015).
Fig. 1

Schematic illustration of the maximum eigenvectors for two-dimensional (2D) structures such as dykes and faults. a Basic model. In this figure, v 1 is the maximum eigenvector of the gravity gradient tensor and points to the causative body. The angle α between the surface and the maximum eigenvector is the dip of the causative body. b Fault model. A basement consists of an aggregate of high-density prisms, and the angle, α, indicates the fault dip

Although analyses using the gravity gradient tensor have yielded excellent results in subsurface structure estimations and edge detections, gravity gradiometry surveys have been conducted in only a few areas, limiting the tensor data available. If we were to carry out these analyses in areas where gravity gradiometry surveys have not been conducted yet, we would have to use the tensor estimated from existing gravity anomaly data.

The procedure for estimating the gravity gradient tensor from gravity anomaly data has already been suggested by Mickus and Hinojosa (2001). This technique estimates the gravity gradient tensor from spatial distribution of gravity anomalies by the Fourier transform. Since the database of gravity anomalies has been prepared, studies using the gravity gradient tensor estimated by Mickus and Hinojosa’s method will progress in the future. On the other hand, it is difficult to apply this method directly to gravity anomalies obtained by gravity surveys conducted on a profile employed frequently in active fault research.

In dense gravity surveys researching fault structures in detail, profiles were set perpendicular to the fault and short-spaced gravity observations were taken along the profiles (e.g., Iwano et al. 2001; Inoue et al. 2004). It is important to find the fault shape, especially its dip, in these studies because the fault dip affects the area of disaster occurrence (e.g., Abrahamson and Somerville 1996; Takemura et al. 1998) and is an important parameter in numerical simulations for hazard map creation (e.g., Irikura and Miyake 2011). Consequently, in two-dimensional gravity surveys for faults, a fault dip estimated from the eigenvectors of the gravity gradient tensor calculated from the gravity anomaly would be of additional value. In addition, since this analysis technique does not require vast calculation times, I expect it will be an effective new technique for analyzing high-resolution data obtained densely, i.e., through dense gravity surveys for fault research and also airborne gravity gradiometry surveys.

In this study, I first introduce the technique for the estimation of the gravity gradient tensor from a gravity anomaly on the profile. After that, I discuss the relationship between fault dips and eigenvectors of the gravity gradient tensor and apply its result to gravity anomaly data obtained on the profile crossing the Kurehayama Fault in Toyama, Japan.

Methods/Experimental

Gravity gradient tensor on the profile

Gravity gradient tensor Γ on the profile is defined as follows (e.g., Beiki and Pedersen 2011)
$$ \varGamma =\left[\begin{array}{cc}\hfill {g}_{xx}\hfill & \hfill {g}_{xz}\hfill \\ {}\hfill {g}_{zx}\hfill & \hfill {g}_{zz}\hfill \end{array}\right] $$
(1)

Here, g xx , g xz , g zx , and g zz are each component of the tensor and are defined as the first derivative of gravity vector components g x and g z for each direction. In addition, gravity vectors g x and g z are given by the first derivative of gravity potential, W, namely, g x = ∂W/∂x and g z  = ∂W/∂z. As the gravity potential satisfies the Laplace equation, 2 W/∂x 2 +  2 W/∂z 2 = g xx  + g zz  = 0, we find the relationship g zz  = −g xx . Also, the relationship is known to be g xz  = g zx because the gravity gradient tensor is a symmetric tensor (e.g., Torge 1989).

Relationship between subsurface structure and gravity anomaly

In the two-dimensional analyses, a structure in one direction is assumed to be infinite. Although this assumption is not realistic, it is a good approximation in fault structure analyses and gives us some practical analysis techniques. In calculations of the gravity gradient tensor from the gravity anomaly, we need gravity anomaly values at different heights. Consequently, I will show the relationship between two-dimensional subsurface structures and gravity anomalies in this subsection before estimating the gravity gradient tensor from the gravity anomaly.

As the simplest subsurface model, I set a two-dimensional double layer model consisting of a sedimentary layer and a basement (Fig. 2). Horizontal positions are given by x, and vertical positions are given by z. Depth is zero (z = 0) on the surface, and z increases with depth. As shown in Fig. 2, an average boundary depth between the sedimentary layer and basement is defined as z = D (>0). When the boundary surface at point Q(x’) deviates by h(x’) from the average boundary depth (Fig. 2), gravity anomaly g z (x) at the point P(x) on the surface caused by this deviation is given by the following equation (e.g., Blakely 1996).
Fig. 2

Model of subsurface structure. A double-layer model consisting of a sedimentary layer and a basement is assumed here. D is the average depth of the stratum boundary, and h(x’) is the deviation of the boundary from the average. Here, the deviation is assumed to be very small, i.e., h(x’) << D

$$ {g}_z(x)=2\gamma \varDelta \rho {\displaystyle {\int}_{-\infty}^{\infty }{\displaystyle {\int}_D^{D+ h\left( x\hbox{'}\right)}\frac{z\hbox{'}}{{\left( x-{x}^{\prime}\right)}^2+ z{\hbox{'}}^2}} d{x}^{\prime } d{z}^{\prime }} $$
(2)
where γ is the gravitational constant and Δρ is the density contrast between the sedimentary layer and basement. The integration on z in Eq. (2) is solved as:
$$ {\displaystyle {\int}_D^{D+ h\left( x\hbox{'}\right)}\frac{z\hbox{'}}{{\left( x-{x}^{\prime}\right)}^2+ z{\hbox{'}}^2}} d{z}^{\prime }=\frac{1}{2} \log \left[\frac{{\left( x-{x}^{\prime}\right)}^2+{\left( D+ h\left({x}^{\prime}\right)\right)}^2}{{\left( x-{x}^{\prime}\right)}^2+{D}^2}\right] $$
(3)
here, if h(x’) is much smaller than D, namely, h(x’) << D, (D + h)2 is {D[1 + (h/D)]}2 ≈ D 2(1 + 2 h/D) = D 2 + 2Dh, Eq. (3) would be rewritten as follows:
$$ {\displaystyle {\int}_D^{D+ h\left( x\hbox{'}\right)}\frac{z\hbox{'}}{{\left( x-{x}^{\prime}\right)}^2+ z{\hbox{'}}^2}} d{z}^{\prime}\approx \frac{1}{2} \log \left[\frac{{\left( x-{x}^{\prime}\right)}^2+{D}^2+2 Dh\left({x}^{\prime}\right)}{{\left( x-{x}^{\prime}\right)}^2+{D}^2}\right]=\frac{1}{2} \log \left[1+\frac{2 Dh\left({x}^{\prime}\right)}{{\left( x-{x}^{\prime}\right)}^2+{D}^2}\right] $$
(4)
In general, if −1 < ξ ≤ 1 in log(1 + ξ), we have the following approximation (e.g., Gradshteyn and Ryzhik 2007)
$$ \log \left(1+\xi \right)=\xi -\frac{1}{2}{\xi}^2+\frac{1}{3}{\xi}^3-\frac{1}{4}{\xi}^4+\cdots ={\displaystyle \sum_{p=1}^{\infty }{\left(-1\right)}^{p+1}\frac{\xi^p}{p}} $$
(5)
The second term, 2Dh/[(x − x’)2 + D 2], in Eq. (4) is small because D > > h. We can use Eq. (5) to derive a linear approximate equation of Eq. (4). By neglecting higher terms of ξ, Eq. (3) or (4) is rewritten as follows:
$$ {\displaystyle {\int}_D^{D+ h\left( x\hbox{'}\right)}\frac{z\hbox{'}}{{\left( x-{x}^{\prime}\right)}^2+ z{\hbox{'}}^2}} d{z}^{\prime}\approx \frac{ D h\left({x}^{\prime}\right)}{{\left( x-{x}^{\prime}\right)}^2+{D}^2} $$
(6)
Consequently, we obtained the following equation.
$$ {g}_z(x)\approx 2\gamma D\varDelta \rho {\displaystyle {\int}_{-\infty}^{\infty}\frac{h\left({x}^{\prime}\right)}{{\left( x-{x}^{\prime}\right)}^2+{D}^2} d{x}^{\prime }} $$
(7)
Here, I introduce a new function, ϕ, defined by:
$$ \varphi (x)=\frac{1}{x^2+{D}^2} $$
(8)
and Eq. (7) is rewritten as follows:
$$ {g}_z(x)=2\gamma D\varDelta \rho {\displaystyle {\int}_{-\infty}^{\infty}\varphi \left( x-{x}^{\prime}\right) h\left({x}^{\prime}\right) d{x}^{\prime }} $$
(9)
This form is convoluted, and we obtain Eq. (10) by applying the Fourier transformation to Eq. (9)
$$ {G}_z=2\gamma D\varDelta \rho \varPhi H $$
(10)
where, G z , Φ, and H are Fourier transforms of g z (x), ϕ(x), and h(x), respectively. As is well known, the Fourier transform of Eq. (8) is (e.g., Blakely 1996; Gradshteyn and Ryzhik 2007)
$$ \varPhi =\frac{\pi}{D}{e}^{- D\left| k\right|} $$
(11)
Here, |k| = ik z  = |k x | (e.g., Blakely 1996) and k x is the wave number in the x direction. Here, I employed the Fourier transform, F, of a function f(x) defined as follows (e.g., Blakely 1996):
$$ F={\displaystyle {\int}_{-\infty}^{\infty } f(x){e}^{- ikx} dx} $$
(12)
By Eq. (11), Eq. (10) is rewritten as:
$$ {G}_z=2\pi \gamma \varDelta \rho H{e}^{- D\left| k\right|} $$
(13)

This is the relationship between gravity anomaly on the profile and two-dimensional subsurface structure.

Relationship between gravity anomaly and gravity gradient tensor

As shown in the previous section, the gravity gradient tensor is given by the second derivative of the gravity potential. The relationship between gravity anomaly g z and gravity potential W is
$$ W=-{\displaystyle \int {g}_z dz} $$
(14)
From Eq. (13), the equation giving the gravity anomaly at point P’(x) of an arbitrary height z from the surface (Fig. 2) is obtained in the Fourier domain as follows:
$$ {G}_z=2\pi \gamma \varDelta \rho H{e}^{-\left( D+ z\right)\left| k\right|} $$
(15)
By integrating this equation to z and substituting z = 0, we obtain the gravity potential at the surface. If the Fourier transform of the gravitational potential is represented by U, from these calculations, the U would be given by G z as follows:
$$ U=\frac{1}{\left| k\right|}{G}_z $$
(16)
As the x direction component of gravity anomaly is given by the first derivative in the x direction of the gravity potential W, the g x in the Fourier domain, G x , would be given by a differential formula in the Fourier domain (e.g., Blakely 1996) as follows:
$$ {G}_x= i{k}_x U $$
(17)
From Eq. (16), we obtained
$$ {G}_x=\frac{i{ k}_x}{\left| k\right|}{G}_z $$
(18)
g xx in the Fourier domain is given by
$$ {G}_{x x}=\frac{-{k}_x^2}{\left| k\right|}{G}_z $$
(19)
We can obtain g xx by applying the inverse Fourier transform to G xx , and g zz would be obtained from the relationship of g zz  = −g xx . The other component g zx (=g xz ) would be given by:
$$ {G}_{z x}={G}_{x z}= i{k}_x{G}_z $$
(20)

where G zx and G xz are the Fourier transform of g zx and g xz .

Here, although I showed a technique to calculate the gravity gradient tensor in the Fourier domain, there is another technique to calculate the tensor by a simple finite-difference method (e.g., Blakely 1996) of gravity vectors g x and g z in the space domain.

Relationship between subsurface structures and eigenvectors

As indicated by Beiki and Pedersen (2010), the maximum eigenvector of the gravity gradient tensor points to the causative body of the gravity anomaly (Fig. 1a). They also pointed out that the minimum eigenvector of the tensor indicates the strike direction of structures such as dikes in three-dimensional analyses. Since there are two perpendicular eigenvectors of the gravity gradient tensor in the two-dimensional analyses, it is expected that the minimum eigenvector of the tensor will point to the low-density causative body or medium if the maximum eigenvector of the tensor points out high-density causative bodies such as a dike in a low-density layer such as a sedimentary layer.

To clear this inference, I calculated the gravity gradient tensor on the profile caused by the model shown in Fig. 3 and investigated the dips of the maximum and minimum eigenvectors of the tensor. The model shown in Fig. 3 has a width and height of 0.25 and 2.0 km, respectively.
Fig. 3

Model of subsurface structures. Here, rectangular causative body of width and height of 0.25 and 2.0 km, respectively, is assumed. Densities of a medium and a causative body are ρ 2 and ρ 1, respectively

Each component of the gravity gradient tensor caused by two-dimensional structures such as the dike shown in Fig. 3 is given by Telford et al. (1990). The relationship between eigenvectors and structural boundaries will be discussed widely in this study; I therefore employed calculation formulas given by Talwani et al. (1959). Talwani et al. (1959) show well-known calculation formulas giving g x and g z for two-dimensional arbitrary structures closed by a polygon. In this study, I obtained g zx (=g xz ) and g xx components by the numerical differentiation of g z and g x , and the g zz component was given by g zz  = −g xx . A simple finite-difference method (e.g., Blakely 1996) was employed for these numerical differentiations. In addition, the dip of each eigenvector (α) was calculated by
$$ \alpha = \arctan \left(\frac{v_z}{v_x}\right) $$
(21)

where v x and v z are x and z components of each eigenvector.

Results and discussion

Density structures and eigenvectors

Figure 4a shows distributions of the maximum (red) and minimum (blue) eigenvectors of the gravity gradient tensor caused by the model structure (Fig. 3) whose density contrast (Δρ = ρ 1 − ρ 2) is 200 kg/m3. Figure 4b shows distributions of the maximum (red) and minimum (blue) eigenvectors of the tensor caused by the model structure (Fig. 3) whose density contrast (Δρ) is −200 kg/m3. In each figure, the lengths of all the eigenvectors are the same.
Fig. 4

Eigenvectors of the gravity gradient tensor caused by the subsurface model shown in Fig. 3. The maximum eigenvector and minimum eigenvector are shown by red and blue, respectively. a Eigenvectors on the high-density causative body (light green). When the high-density causative body was given in the low-density medium, the maximum eigenvector of the gravity gradient tensor points to the causative body and the minimum eigenvector points to the low-density medium. b Eigenvectors on the low-density causative body (light yellow). When the low-density causative body was given in the high-density medium, the minimum eigenvector of the tensor points to the causative body and the maximum eigenvector points to the high-density medium

From Fig. 4a, it is found that the maximum eigenvector of the gravity gradient tensor points to a high-density causative body if the body is embedded in the low-density medium. In this case, the minimum eigenvector of the tensor points to the low-density medium around the high-density body. On the other hand, the minimum eigenvector of the gravity gradient tensor points to a low-density causative body if the body is embedded in the high-density medium. In this case, the maximum eigenvector of the tensor points to the high-density medium around the low-density body. From these results, in the two-dimensional analyses, it was shown that the maximum eigenvector points to a high-density causative body and the minimum eigenvectors points to a low-density causative body.

In Fig. 4, there are vectors pointing to the area z < 0. This indicates that α is negative. Structures exist underground, and the negative α is not realistic. Consequently, I will add π to α if α is negative.

Fault types and eigenvectors

In calderas and/or sedimentary basins, high-density and low-density materials are in contact with each other via normal faults and/or reverse faults. In gravity anomalies and gravity gradient tensors, differences in fault type are defined as differences in density structure. As it was shown that the behavior of each eigenvector is dependent on the density structure in the previous subsection, I investigated the relationship between eigenvectors and fault type by the simplified sedimentary basin models.

Figure 5a is a simplified sedimentary basin model in which the sedimentary layer is in contact with the basement by normal faults, and Fig. 5b is a simplified sedimentary basin model in which the sedimentary layer is in contact with the basement by reverse faults. Density contrast between sedimentary layer and basement is assumed to be −200 kg/m3.
Fig. 5

Simplified sedimentary basin model. Light yellow and white areas indicate sedimentary layer and basement, respectively. a Sedimentary basin model where sedimentary layer is in contact with the basement by normal faults of 45° dip. b Sedimentary basin model where the sedimentary layer is in contact with the basement by reverse faults of 45° dip

In Fig. 6, I showed distributions of the maximum (red) and minimum (blue) eigenvectors of the gravity gradient tensor caused by these models. In each figure, the lengths of all the eigenvectors are the same, because we are interested in the fault dip and only angle information is necessary for this study.
Fig. 6

Eigenvectors of the gravity gradient tensor caused by the simplified sedimentary basin models shown in Fig. 5. The maximum eigenvector and minimum eigenvector are indicated by red and blue, respectively. a Eigenvectors on the sedimentary basin formed by normal faults. When the sedimentary layer is in contact with the basement by normal fault, the dip of the maximum eigenvector follows the dip of the normal fault. b Eigenvectors on the sedimentary basin are formed by reverse faults. When the sedimentary layer is in contact with the basement by reverse fault, the dip of the minimum eigenvector follows the dip of the reverse fault

From Fig. 6a, it is found that the dip of the maximum eigenvector of the gravity gradient tensor closely follows the dip of the normal fault. When the basement distributes near the surface, the maximum eigenvector points in the vertical direction to the high-density basement. The effect of the high-density basement is weak in the sedimentary layer area, while the effect of the low-density sedimentary layer is strong; therefore, the minimum eigenvector points in the vertical direction to the low-density sediment and the maximum eigenvector points in the horizontal direction.

When the boundary is a reverse fault, from Fig. 6b, it is found that the dip of the minimum eigenvector of the gravity gradient tensor indicates the dip of the fault well. The maximum eigenvector on the basement points in the vertical direction to the high-density basement, and the minimum eigenvector points in the horizontal direction. Since the low-density sediment distributes near the surface in the sedimentary layer area, the minimum eigenvector points vertically.

From these results, it was concluded that if the structural boundary is a normal fault, its dip can be estimated from the dip of the maximum eigenvector of the gravity gradient tensor, and if the boundary is a reverse fault, its dip can be estimated from the dip of the minimum eigenvector of the tensor. In addition, in the area away from the boundary, it was found that the maximum eigenvector on the basement and the minimum eigenvector on the sediment point in the vertical direction, and the maximum eigenvector on the sediment and the minimum eigenvector on the basement point in the horizontal direction, regardless of whether the boundary is a normal fault or reverse fault.

Subsurface structures and eigenvectors

By simple numerical simulations, it was found that the maximum eigenvector of the gravity gradient tensor points to a high-density causative body and that the minimum eigenvector points to a low-density causative body. In addition, it was found that the dip of the maximum eigenvector of the tensor closely follows the dip of the normal fault and that the dip of the minimum eigenvector closely follows the dip of the reverse fault.

As mentioned above, Beiki and Pedersen (2010) have already pointed out that the maximum eigenvector of the gravity gradient tensor points to the high-density causative body. The result in Fig. 4a confirms that their results are true for the two-dimensional analyses as well. When the basement distributes near the surface, the maximum eigenvector points in the vertical direction. This property also shows that Beiki and Pedersen (2010) are correct, and the idea of the basement as an aggregate of high-density prisms (Fig. 1b), suggested by Kusumoto (2015, 2016b), would not be incorrect.

As to why the dip of normal fault was given by the dip of the maximum eigenvector of the gravity gradient tensor, I considered that the lower part of the boundary structure (fault) exists inside the low-density area more than its upper part. Therefore, because the gravity gradient tensor is most sensitive to the subsurface structures near the surface, the structure shown in Fig. 5a was considered a high-density body that intruded into the low-density layer, and the dip of the normal fault was given by the dip of the maximum eigenvector. I believe Kusumoto (2015, 2016a, 2016b) was able to obtain results that coincided with seismic surveys since he estimated the fault dip in normal fault regions by the maximum eigenvector of the tensor.

On the other hand, when the maximum eigenvector points to high-density causative bodies embedded in low-density medium or low-density causative bodies embedded in a high-density medium, the minimum eigenvector points to the low-density mediums or to the causative bodies. Beiki and Pedersen (2010) have not explicitly referred to analyses of low-density causative bodies using eigenvectors. Since it is necessary to analyze anomalies caused by low-density bodies in the field, it seems that the result, in which the minimum eigenvector points to the low-density bodies, would play an important role in subsurface structure estimation, although this is the result of two-dimensional analysis.

In addition, it was found that the dip of the minimum eigenvector of the gravity gradient tensor gave the dip of the reverse fault. As to the reason why the dip of reverse fault was given by the minimum eigenvector of the gravity gradient tensor, I considered that the lower part of the boundary structure (fault) exists inside the high-density area more than its upper part. Namely, because this structure was considered a low-density body that intruded into the high-density layer, the dip of the reverse fault was given by the dip of the minimum eigenvector of the gravity gradient tensor.

As is understood from the results and discussions obtained in this study, selecting a suitable eigenvector for estimating the fault dip is important. If the study area is not too wide and prior geological information is available, the eigenvector that should be employed for estimating the fault dip correctly would be selected based on the information. If the study area was a fault area where normal faults were mainly distributed, the maximum eigenvector of the gravity gradient tensor would be employed for estimating the fault dip. If the study area was a fault area where reverse faults were mainly distributed, the minimum eigenvector would be employed.

In the three-dimensional study for high-density causative bodies, it is pointed out that the minimum eigenvector is parallel to the strike direction of the structure (Beiki and Pedersen 2010; Beiki 2013). However, in the two-dimensional analyses, the strike direction of the structure is perpendicular to x- and z-axes and does not appear in the analyses. As it is difficult to directly compare the properties of the minimum eigenvector obtained in different dimensions, in the future, it would be necessary to discuss detailed properties of the minimum eigenvector.

Application to field data

As an application of the techniques, I estimated the dip of the Kurehayama Fault located in Toyama, Japan. The Kurehayama Fault is a reverse fault located at the center of the Toyama basin, and it strikes in the NNE-SSW direction (Fig. 7). The length of the fault is about 22 km, and the fault dip is about 45° (e.g., The Headquarters for Earthquake Research Promotion 2008; Toyama City 2013). The Toyama City has carried out seismic surveys and dense gravity surveys crossing this fault (Toyama City 2013). Toyama City (2013) set three profiles crossing the Kurehayama Fault, and the dense gravity surveys of 50 m spaced measurements have been conducted on these profiles, although spacing of several hundred meters has been usually employed for these surveys. Here, I used gravity anomaly data on the profile located at the shoreline. Figure 8 shows the Bouguer anomaly in which the Bouguer density of 2260 kg/m3 was assumed (Toyama City 2013). The indication “Kurehayama Fault” shown in this figure indicates a rough fault location.
Fig. 7

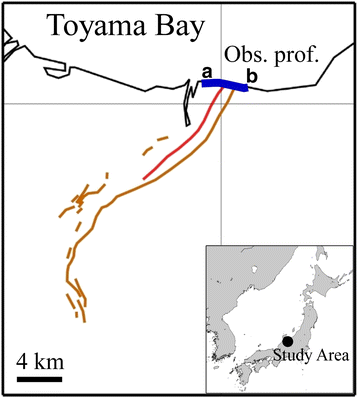

Location map of the study area. Kurehayama Fault is a reverse fault located in the center of the Toyama Basin, Toyama Prefecture, Japan. Its location has been estimated by topographic, geological, and geophysical data. The red line and brown lines denote the estimated location of the Kurehayama Fault, Toyama City (Toyama City 2013), and The Headquarters for Earthquake Research Promotion (The Headquarters for Earthquake Research Promotion 2008), respectively. Blue line a - b indicates the dense gravity survey profile, which has gravity observation points at about 50 m intervals

Fig. 8

Bouguer anomalies on the profiles (after Toyama City 2013). The Bouguer density of 2260 kg/m3 is assumed. The “Kurehayama Fault” shown in this figure indicates a rough fault location by Toyama City (Toyama City 2013). The unit of the gravity anomaly is given in milligal, and mGal = 10−5 m/s2

I applied the techniques to the Bouguer anomaly and obtained the gravity gradient tensor shown in Fig. 9. Figure 10 shows distributions of the maximum eigenvector (red) and the minimum eigenvector (blue) of the gravity gradient tensor. Since the Kurehayama Fault is a reverse fault, I focus on the dip of the minimum eigenvector. From Fig. 10, it is found that the dip (α) of the Kurehayama Fault was about 138°. Since the angle α is measured clockwise from the surface (x-axis), it seems that the obtained dip indicates the dip of the reverse fault of 42°. This fault dip is consistent with conventional data.
Fig. 9

Gravity gradient tensor (g xx , g xz (=g zx ), g zz ) on the profile. These are estimated from the Bouguer anomalies on the profile shown in Fig. 8. The component of g xx and g xz is calculated by a finite-difference method of gravity vectors g x and g z in the space domain. The “Kurehayama Fault” shown in this figure indicates a rough fault location by Toyama City (Toyama City 2013). The unit of the gravity gradient tensor is given in E (Eötvös), and 1 E = 0.1 mGal/km

Fig. 10

Eigenvectors of the gravity gradient tensor on the profile shown in Fig. 7. The maximum eigenvector and minimum eigenvector are indicated by red and blue, respectively. The dips of eigenvectors are given clockwise from x-axis to z-axis. Since it is known that the Kurehayama Fault is a reverse fault, we focus on the minimum eigenvector of the tensor. The “Kurehayama Fault” shown in this figure indicates a tentative fault location in Toyama City (Toyama City 2013). The average dip of the minimum eigenvector in the Kurehayama Fault zone shown by a rectangle with dashed lines is about 138°, and this angle indicates that the Kurehayama Fault would be a reverse fault of 42°. In addition, the maximum eigenvectors on the right side of the “Kurehayama Fault” shown in this figure point to the vertical direction, and the minimum eigenvectors in the left side of the “Kurehayama Fault” point to the vertical direction

The estimated fault dip would be the dip near the surface because the method employs the gravity gradient tensor, which is sensitive to subsurface structures near the surface. Since it is important to know quantitatively which depth the estimated fault dip is, in the future, it would be necessary to develop a technique estimating the depth of the estimated dip or the dip in the arbitrary depth.

Conclusions

In this study, I showed techniques for estimating the gravity gradient tensor from gravity anomalies on the profile and for estimating the fault dip by eigenvector of the observed or calculated gravity gradient tensor on the profile. I also investigated its properties by numerical simulations.

From numerical simulations, it was found that the maximum eigenvector of the tensor points to a high-density causative body and that the dip of the maximum eigenvector closely follows the dip of the normal fault. In addition, if the basement distributes near the surface, the maximum eigenvector points to the vertical direction. They have been pointed out already in previous studies, and the results shown in here confirmed that their results are true for the two-dimensional analyses as well. On the other hand, it was found that the minimum eigenvector of the tensor points to a low-density causative body and that the dip of the minimum eigenvector closely follows the dip of the reverse fault. Since eigenvector analyses of the anomalies caused by the low-density causative body have not been discussed explicitly in previous studies, these results would play an important role in estimations of subsurface structures in the future. From these results, it was found that the eigenvector of the gravity gradient tensor for estimating fault dips is determined by fault type, and we would estimate the fault dip correctly if we were to employ suitable eigenvectors based on prior information.

As an application of suggestions, I estimated the dip of the Kurehayama Fault located in Toyama, Japan, and obtained the fault dip of about 42° as the dip of the minimum eigenvector of the gravity gradient tensor because the fault is the reverse fault. This dip harmonized with conventional geological information.

Since the analysis technique shown in this study does not require complex calculations and vast calculation times, it will be an effective technique for analyzing high-resolution data obtained densely by not only dense gravity surveys for fault research but also airborne gravity or gravity gradiometry surveys.
