Seismic imaging of slab metamorphism and genesis of intermediate-depth intraslab earthquakes
Progress in Earth and Planetary Science volume 4, Article number: 12 (2017)
We review studies of intermediate-depth seismicity and seismic imaging of the interior of subducting slabs in relation to slab metamorphism and their implications for the genesis of intermediate-depth earthquakes. Intermediate-depth events form a double seismic zone in the depth range of c. 40–180 km, which occur only at locations where hydrous minerals are present, and are particularly concentrated along dehydration reaction boundaries. Recent studies have revealed detailed spatial distributions of these events and a close relationship with slab metamorphism. Pressure–temperature paths of the crust for cold slabs encounter facies boundaries with large H2O production rates and positive total volume change, which are expected to cause highly active seismicity near the facies boundaries. A belt of upper-plane seismicity in the crust nearly parallel to 80–90 km depth contours of the slab surface has been detected in the cold Pacific slab beneath eastern Japan, and is probably caused by slab crust dehydration with a large H2O production rate. A seismic low-velocity layer in the slab crust persists down to the depth of this upper-plane seismic belt, which provides evidence for phase transformation of dehydration at this depth. Similar low-velocity subducting crust closely related with intraslab seismicity has been detected in several other subduction zones. Seismic tomography studies in NE Japan and northern Chile also revealed the presence of a P-wave low-velocity layer along the lower plane of a double seismic zone. However, in contrast to predictions based on the serpentinized mantle, S-wave velocity along this layer is not low. Seismic anisotropy and pore aspect ratio may play a role in generating this unique structure. Although further validation is required, observations of these distinct low P-wave velocities along the lower seismic plane suggest the presence of hydrated rocks or fluids within that layer. These observations support the hypothesis that dehydration-derived H2O causes intermediate-depth intraslab earthquakes. However, it is possible that dual mechanisms generate these earthquakes; the initiation of earthquake rupture may be caused by local excess pore pressure from H2O, and subsequent ruptures may propagate through thermal shear instability. In either case, slab-derived H2O plays an important role in generating intermediate-depth events.
Subduction of oceanic lithosphere causes high seismic activity in subduction zones. The shallow portion of the plate interface between a subducting oceanic plate and an overriding continental plate is locked by friction. To release the stress that accumulates from this interplate locking, the locked portion of the plate interface occasionally slips dynamically and causes interplate earthquakes. Plate convergence at subduction zones also causes stress accumulation within both the overriding continental lithosphere and the subducting oceanic lithosphere. To release this accumulated stress, earthquakes take place both in the overriding and subducting plates. Earthquakes that occur in a subducting plate are called intraslab earthquakes because the subducting oceanic lithosphere is referred to as the slab. Intraslab earthquakes can occur as deeply as the bottom of the upper mantle. With the exception of shallow events, all earthquakes occur within the subducting slab. Therefore, the maximum depth of earthquakes on Earth is c. 660 km, or potentially slightly deeper. The global distribution of the focal depths of seismicity is bimodal (Fig. 1). The first, and largest, peak of earthquake frequency with depth occurs at very shallow depths between 0 and 30 km. The frequency decreases almost exponentially to a depth of c. 300 km, where a minimum emerges between c. 300 and 450 km in depth. The frequency then increases to a depth of c. 550 km, where it reaches a local maximum of 550–600 km (Frohlich, 2006; Houston, 2007). Generally, intraslab earthquakes are divided into two groups based on focal depth. Events shallower than 300 km are defined as intermediate-depth earthquakes, and those deeper than 300 km are considered deep-focus earthquakes.
At the depths of intraslab earthquakes, lithostatic pressure, and therefore frictional strength, becomes too great to allow dynamic slips, i.e., earthquakes, along fault planes. In order to generate earthquakes at such great depths, shear stress must exceed that very large frictional strength. However, it is difficult to envision the application of such large shear stress on a fault where intermediate-depth and deep-focus events take place. Nevertheless, intermediate-depth and deep-focus earthquakes do occur in the subducting slab, and therefore the frictional strength must not be as high as expected. Therefore, some special mechanism must operate to lower the strength of friction and generate intermediate-depth and deep-focus intraslab earthquakes (e.g., Frohlich, 1994, 2006).
Although several plausible mechanisms have been proposed, the exact mechanism that generates intermediate-depth and deep-focus earthquakes remains unresolved. Some early studies explored the possibility that implosive phase change of mantle materials could cause intraslab earthquakes (e.g., Leith and Sharpe, 1936). However, subsequent studies have revealed that both intermediate-depth and deep-focus earthquakes generally do not have the large isotropic components that would be expected if this mechanism occurred (e.g., Hara et al. 1996; Kawakatsu, 1991, 1996; Kuge and Kawakatsu, 1993; Okal, 1996; Russakoff et al. 1997; Estabrook, 1999). Therefore, some other mechanism must exist to generate intraslab events. To date, leading hypotheses proposed to explain the occurrence of earthquakes at such great depths include thermal shear instability of plastic deformation (e.g., Ogawa, 1987; Hobbs and Ord, 1988; Karato et al. 2001; Kelemen and Hirth, 2007), transformational faulting and anticrack formation (e.g., Kirby, 1987; Green and Burnley, 1989; Burnley et al. 1991; Green and Houston, 1995; Kirby et al. 1996), and dehydration embrittlement (e.g., Griggs and Handin, 1960; Raleigh and Paterson 1965; Raleigh, 1967; Meade and Jeanloz, 1991; Nishiyama, 1992; Green and Houston, 1995; Kirby, 1995; Kirby et al. 1996; Seno and Yamanaka, 1996).
The thermal shear instability model assumes that intraslab earthquakes occur as follows. If plastic deformation progresses at a faster rate than the rate at which the generated heat dissipates, a positive feedback is produced that further promotes plastic deformation. Consequently, plastic deformation proceeds rapidly until materials in that portion of the slab start to melt, which results in sudden slips, i.e., earthquakes. The transformational faulting hypothesis assumes the following mechanism. As the slab subducts into the mantle transition zone, the phase transformation from olivine to spinel proceeds in the slab. Initially, small lens-shaped spinel crystals (spinel lenses) are formed in this phase transformation. Under the deviatoric stress field within the slab, spinel lenses grow analogously to the cracks that develop at shallow depths. These spinel lenses align along a plane that obliquely intersects with the axis of maximum compressive stress, and eventually, the crystals coalesce in that plane, which results in abrupt slips and therefore earthquakes. The dehydration embrittlement hypothesis posits that hydrous minerals that were present in the lithosphere before subduction decompose as the slab subducts and that the released H2O lowers the effective normal stress, thereby enabling brittle fractures that cause earthquakes. However, all three of these hypotheses are based on extrapolation from the results of laboratory experiments or theoretical calculations to simulate the great depths and scale of natural intraslab earthquakes; therefore, the exact mechanism has not yet been conclusively determined.
The present manuscript is focused on the genesis of intermediate-depth intraslab earthquakes. The transformational faulting model applies only for events that occur at the great depths of the mantle transition zone; therefore, it is not applicable to intermediate-depth events. Dehydration-related embrittlement is thought to be a promising hypothesis as a mechanism of lowering frictional strength sufficiently to generate intermediate-depth intraslab events (Nishiyama, 1992; Kirby, 1995; Seno and Yamanaka, 1996). According to this hypothesis, temperature and pressure increase within the slab with subduction, and as a result, hydrous minerals that have been fixed in the slab are decomposed. H2O is liberated by this process then lowers the effective normal stress. This effect would allow brittle faulting or dynamic slip along a fault even at depths with high lithostatic pressure. The traditional dehydration embrittlement hypothesis refers only to the embrittlement of rock that occurs during dehydration reactions. In a broader sense, however, dehydration-related embrittlement may also include the embrittlement caused by fluid released through dehydration reactions at any distance from the fault and at any time (e.g., Barcheck et al. 2012). We use the term in the latter, broader sense. The thermal shear instability model is another plausible mechanism for causing not only deep-focus earthquakes but also intermediate-depth intraslab seismicity. In some recent studies, the results of laboratory experiments and numerical simulations have supported this hypothesis (e.g., Kelemen and Hirth, 2007; Chernak and Hirth, 2011; Proctor and Hirth 2015).
In the following sections, we review recent research findings about intermediate-depth intraslab seismicity and the internal structure of subducting slabs in relation to slab metamorphism and discuss the generation mechanisms of intermediate-depth intraslab earthquakes.
The double seismic zone and dehydration of metamorphosed crust and serpentinized mantle
Seismic studies of precise intermediate-depth seismicity and the detailed seismic structures of subducting slabs have provided growing evidence that supports the dehydration-related embrittlement hypothesis for earthquakes nucleation.
A non-negligible amount of H2O is contained within subducting lithosphere in the form of hydrous minerals. Hydration of oceanic lithosphere can occur in a number of tectonic settings. (1) When new lithosphere is created at a mid-ocean ridge, hydrous minerals are formed in the shallow portion of the crust by hydrothermal circulation and reactions with seawater (e.g., Dixon et al. 2002; Staudigel et al. 1995). (2) As oceanic lithosphere approaches a trench, it begins to sink and deforms under the bending force, which produces the outer rise. This bending force causes normal faulting in the trench–outer rise, and seawater enters along faults, in which hydrous minerals are then formed (Fig. 2) (e.g., Kirby, 1995; Peacock, 2001; Ranero et al. 2003; Faccenda et al. 2009; Iyer et al. 2012). (3) Seawater enters along transform faults near mid-ocean ridges because of fault movement, and hydrated minerals form along these faults as well (e.g., Bonatti and Honnorez, 1976; Gregg et al. 2007). (4) In addition, Seno and Yamanaka (1996) described a scenario whereby H2O is fixed to the oceanic plate in the form of hydrous minerals as the plate passes directly over mantle plumes or superplumes during its horizontal movement along the earth’s surface. Magma of the plumes or superplumes intrudes into or accretes to the overlying oceanic lithosphere, and H2O contained in the magma is added and eventually fixed in the oceanic plate.
H2O is thus incorporated into oceanic lithosphere and fixed in the form of hydrous minerals through several different processes. It is therefore estimated that oceanic lithosphere contains a considerable amount of H2O prior to its subduction (e.g., Rüpke et al. 2004; Faccenda, 2014). When lithosphere reaches a trench, it then sinks beneath the continental plate, and its temperature and pressure rise with increasing depth. Hydrous minerals that were fixed in the oceanic lithosphere then decompose and release H2O. It is proposed in the dehydration-related embrittlement hypothesis that this liberated H2O causes intraslab earthquakes, especially intermediate-depth events.
If hydrous minerals are present along normal faults in the trench–outer rise region prior to plate subduction, those hydrous minerals decompose and expel H2O along the faults as the plate subducts to depth. It has been proposed that intraslab earthquakes occur along these preexisting planes of weakness that originated as normal faults prior to subduction (e.g., Kirby, 1995). Jiao et al. (2000) tested this hypothesis by examining fault plane solutions of intraslab events in Tonga. The results show that for outer rise events, features of the geometry of the fault system prior to subduction persist down to c. 450 km depth in the subducted slab, which suggests that intraslab events down to this depth are caused by the reactivation of preexisting faults containing hydrous minerals that formed prior to subduction. Similar results were obtained for intermediate-depth intraslab events in the Middle America and Chile subduction zones (Ranero et al. 2005). These observations support the dehydration-related embrittlement hypothesis for the genesis of intermediate-depth intraslab events, especially those that occur within the slab crust. However, subsequent studies by Warren et al. (2007, 2008) have shown that this issue may be more complex. By examining the fault plane orientations of intraslab events in Tonga and Middle America, they identified many subhorizontal faults, which suggest the formation of new faults. Therefore, the outer rise faults are not always reactivated. Further investigations are required to confirm the hypothesized reactivation of preexisting faults.
If intermediate-depth intraslab events are caused by dehydration-derived H2O, these events would not occur everywhere throughout a slab; they would occur only in parts of the slab where hydrous minerals or H2O exist. In particular, it is hypothesized that many of these events occur at the phase boundaries (facies boundaries) of dehydration reactions across which H2O content changes. As described in detail below, recent studies have demonstrated that intermediate-depth intraslab events do in fact show such distribution. To verify whether fluid-related embrittlement is the cause of intermediate-depth events, it is necessary to determine where hydrous minerals are present within the slab and where they decompose and expel H2O. Based on experimentally and theoretically derived phase diagrams of the rocks that compose the oceanic crust and mantle (Fig. 3), Hacker et al. (2003a, b) estimated the existence range of hydrous minerals and the locations of the facies boundaries of dehydration reactions within the slabs beneath the subduction zones of Cascadia, Costa Rica and NE and SW Japan. As predicted, comparing the phase diagrams with hypocenter distributions of intermediate-depth intraslab earthquakes in these subduction zones shows that the earthquakes appear to occur only within the existence range of hydrous minerals and not outside this range. Examples from NE Japan and Costa Rica are shown in Fig. 4.
Moreover, Yamasaki and Seno (2003) found that intermediate-depth intraslab events tend to concentrate along the dehydration reaction boundaries within slabs. Based on experimentally derived phase diagrams, they estimated the locations of dehydration decomposition in metamorphosed crust and serpentinized mantle within the slabs of subduction zones beneath NE and SW Japan, Taiwan, northern Chile, Cape Mendocino, and the eastern Aleutians, and compared these estimated locations with the hypocenter distributions of intermediate-depth earthquakes. Results of this analysis for the Pacific slabs beneath NE Japan and the eastern Aleutians are shown in Fig. 5. In NE Japan, intermediate-depth earthquakes occur in a double-planed deep seismic zone 70–150 km in depth, with subparallel upper and lower planes 30–40 km apart from each other (Tsumura, 1973; Umino and Hasegawa, 1975: Hasegawa et al. 1978a, b). Figure 5a shows that the estimated locations of the dehydration boundary correspond approximately to the upper and lower planes of this double seismic zone. Under the eastern Aleutians, the Wadati–Benioff zone also comprises the double seismic zone, with a slightly smaller separation between the upper and lower planes than that of the NE Japan slab. Figure 5b again shows that the estimated dehydration reaction boundaries roughly correspond to the upper and lower seismic planes. Similar results were also obtained for the remaining four subduction zones included in the study. This correspondence further explains why the lower-plane events of the double seismic zone are generated in the middle of the lithospheric mantle, as previously reported by Peacock (2001).
Since the discovery of an unambiguous double seismic zone in Tohoku (Hasegawa et al. 1978a, b), numerous subduction zones across the world have been similarly investigated, and double seismic zones have been detected with certainty in several subduction zones (e.g., Frohlich, 2006), such as in slabs subducted below Hokkaido (Suzuki et al. 1983), Kuril–Kamchatka (Kao and Chen, 1994), Alaska (Abers, 1992, 1996), Cascadia (Cassidy and Waldhauser, 2003), Mendocino (Smith et al. 1993), northern Chile (Comte and Suarez, 1994; Comte et al. 1999), New Zealand (Reyners et al. 1997), Tonga (Kawakatsu, 1985, 1986), and northern Taiwan (Kao and Rau, 1999). However, double seismic zones are not apparent in all subduction zones worldwide. Furthermore, even when a double subduction zone is present, its depth may range from c. 40 to 180 km, and the separation distance between the upper and lower planes may range between c. 10 and 40 km.
Hypocenters of earthquakes must be accurately determined, especially their focal depths, to evaluate whether a double seismic zone is present in a given subduction zone. Dense seismic observation network data are required for accurate determination of earthquake hypocenters, but few subduction zones are installed with such dense networks. Without relying on data from such local seismic networks, Brudzinski et al. (2007) investigated a number of subduction zones worldwide to evaluate whether double seismic zones were present. They used global seismic network data and selected events with well-constrained focal depths, such as those determined based on depth phases. Using hypocenter data from the EHB catalog (Engdahl et al. 1998; Engdahl and Villaseñor, 2002), they verified the presence of the double seismic zone by investigating whether two peaks appear in the frequency distribution of intermediate-depth intraslab earthquakes with respect to the distance from the slab upper surface. The two peaks in the frequency distribution are interpreted to correspond to the upper and lower planes of the double seismic zone. It thus became clear that (1) the two peaks were apparent for all 30 of the investigated subduction zones, and (2) the distance between the two peaks, i.e., the separation distance between the upper and lower planes, varies by subduction zone, and is proportional to the age of the subducting plate (Fig. 6). These findings are consistent with the predictions of the dehydration-related embrittlement hypothesis. In fact, the lowerplane events correspond to the expected positions of dehydration decomposition in the serpentinized mantle in the slab, as shown in Fig. 6.
Detailed analyses of intermediate-depth intraslab earthquakes in NE Japan have further revealed a characteristic structure of the Wadati–Benioff zone. Igarashi et al. (2001) reported that normal fault type events also occur at the top of the upper plane of the double seismic zone in the depth range of c. 70–100 km. In terms of focal mechanisms, the Wadati–Benioff zone beneath NE Japan is triple-planed; from top to bottom, these three planes are characterized by normal fault, down-dip compressional and down-dip extensional events. Wang (2002) argued that plate unbending combined with dehydration-related embrittlement may account for the morphology and stresses of this triple-planed seismic zone. Metamorphic reactions densify materials and therefore induce tensile stress in the uppermost transformed crust. This tensile stress, as well as high pore fluid pressure, in the uppermost slab crust thus generates the normal fault type seismicity that occurs there. A recent study by Nakajima et al. (2013) revealed that even in a small seismic cluster, normal fault type events occur just 1 km above the down-dip compressional events in the lower crust of the subducting Pacific Plate beneath Niigata, NE Japan. These observations provide evidence for the role of densification-related stresses caused by metamorphic reactions and fluid-related embrittlement in earthquake nucleation within the slab crust.
Seismic wave velocity structure and upper-plane seismicity in the slab crust
A belt of intraslab seismicity and phase transition in the slab crust beneath eastern Japan
As described in the previous section, the locations of upper-plane events in the Pacific slab crust beneath NE Japan roughly correspond to the dehydration reaction boundaries of the metamorphosed crust (Fig. 5a). Recent studies have revealed a more detailed spatial distribution of this upper-plane seismicity, as well as a clear relationship between that distribution and the seismic wave velocity structure of the slab crust, which is likely associated with dehydration reactions. This relationship may be well explained if dehydration-related embrittlement is the cause of intermediate-depth intraslab events.
The hypocenter distribution of events that occurred in the crust of the Pacific slab under eastern Japan is shown in Fig. 7a (Kita et al. 2010). As shown with arrows in this figure, events in the slab crust in Tohoku and eastern Hokkaido form a significant belt-like seismic zone nearly parallel to the 70–90 km depth contours of the upper surface of the slab. The frequency distributions of events in the slab crust as a function of depth along lines (b) through (l) in Fig. 7a are shown in Fig. 7b–l, respectively. The distribution for each of these lines shows a clear peak between the depths of 70 and 90 km, as indicated in the figure by arrows. Figure 8a shows an across-arc vertical cross-section of intraslab seismicity under central Tohoku. The belt-like concentrated earthquake activity shown in the plan view of Fig. 7a is visible at c. 70–90 km in depth in the vertical cross-sectional view in Fig. 8a. Kita et al. (2006) named this seismically active band-shaped region of the slab crust the “upper-plane seismic belt.” If intermediate-depth intraslab events are caused by dehydration-related embrittlement, this upper-plane seismic belt should be located in the existence range of hydrous minerals in the slab crust, particularly around the facies boundaries of the dehydration reaction.
Beneath Kanto, the upper-plane seismic belt is not parallel to the 70–90 -km depth contours of the upper surface of the slab; it becomes deeper locally and is oblique to the 70–90 -km depth contours, as shown in Fig. 7a. This difference is caused by the shielding effect of the Philippine Sea slab that directly overlies the Pacific slab (Hasegawa et al. 2007, 2009, 2016). High-quality data obtained in Japan with a nationwide seismic network have enabled precise estimation of the positions and shapes of both the Pacific and the Philippine Sea Plates subducting under the Japanese archipelago, as well as the contact of the two plates over a wide area under Kanto (Nakajima and Hasegawa, 2007, 2010; Nakajima et al. 2009b; Hirose et al. 2008; Kita et al. 2010a; Uchida et al. 2009, 2010). As shown in Fig. 9a, b, the Pacific slab under Kanto is directly overlain by, and in contact with, the Philippine Sea slab. The extent of the slab–slab contact area, which is enclosed by two thick, broken green lines in Fig. 7a, corresponds approximately to the extent of the Kanto Plain. Figure 7a shows that the down-dip end of the contact area is parallel to the upper-plane seismic belt, adjacent to its shallow side, and oblique to the 70–90 -km depth contours of the upper surface of the slab. This clear spatial correspondence can be understood if we consider the following scenario. (1) The Pacific slab subducting under Kanto is capped by the overlying Philippine Sea slab. (2) This cap prevents temperature rise in the Pacific slab due to heating from the hot mantle wedge above. (3) Therefore, the phase transition associated with the dehydration reaction is significantly delayed in the Pacific slab crust. (4) Consequently, the upper-plane seismic belt in the Pacific slab deepens locally and is oblique to the 70–90 km depth contours of the upper surface of the slab, as shown in Fig. 7a.
A similar local deepening of the upper-plane seismic belt was detected below SW Hokkaido, associated with the junction of the NE Japan and Kuril arcs (Kita et al. 2010). As indicated by the arrows in Fig. 7a, e, the upper-plane seismic belt becomes deeper locally in the area beneath this arc–arc junction and reaches the vicinity of the 110 -km depth contour of the slab’s upper surface. Beneath Hokkaido, on the southwestern edge of the Kuril arc, the Pacific Plate is subducting obliquely to the trench axis. This oblique subduction causes the forearc sliver of the Kuril arc to collide with the forearc of the NE Japan arc (e.g., Kimura, 1986). A seismic tomography study by Kita et al. (2010) clearly imaged the crust portion of the colliding forearc, which has subducted into the mantle wedge and reached the upper surface of the Pacific slab immediately below (Fig. 9c, d). The estimated contact area between the subducted crust thus imaged, and the Pacific slab is enclosed by a thick, broken green line in Fig. 7a. This figure shows that the contact area corresponds closely with the local deepening of the upper-plane seismic belt. Therefore, similarly to the case in Kanto, the local deepening of the upper-plane seismic belt in SW Hokkaido can be understood if we consider the following. (1) The Pacific slab under SW Hokkaido is capped by subducted crust that directly overlies it (2) his capping prevents the Pacific slab from being heated by the mantle wedge immediately above it (3) herefore, the phase transition and dehydration is delayed in the slab crust (4) his delay causes local deepening of the upper-plane seismic belt in this region, as well (Kita et al. 2010).
If the phase transition of the dehydration reaction occurs in the slab crust, seismic wave velocity is expected to become faster across the phase boundary. Therefore, it can be verified based on the distribution of seismic wave velocities obtained through seismic tomography whether the phase transition of the dehydration reaction causes the formation of the upper-plane seismic belt. Figure 8b shows an across-arc vertical cross-section of S-wave velocity in central Tohoku obtained by Tsuji et al. (2008) using the double-difference (DD) tomography method of Zhang and Thurber (2003). A low-velocity layer that corresponds to the slab crust extends down to the depth of the upper-plane seismic belt (A in the figure), and no further. Figure 10a shows the distribution of S-wave velocity in the Pacific slab crust estimated through DD tomography (Nakajima et al. 2009). As also shown in Fig. 8b, the low-velocity layer under Tohoku extends to a depth of approximately 80 km, the depth of the upper-plane seismic belt, and no further. In contrast, the low-velocity layer under Kanto becomes locally deeper in the area that corresponds to contact with the overlying Philippine Sea slab; this area is enclosed by two thick, broken green lines in Fig. 10a. Figure 10a shows that the areal extent of the low-velocity layer is reasonably consistent with the slab–slab contact area. Comparison of Fig. 10a with the hypocenter distribution in the slab crust (Fig. 10b) shows that the location of the locally deepened upper-plane seismic belt is in excellent agreement with the down-dip end of the low-velocity layer in the slab crust. Consequently, the obtained distribution of S-wave velocity in the slab crust further supports the prediction that the phase transition is locally delayed in this region.
Mode-converted seismic waves at the upper plate interface from intermediate-depth intraslab events also provide evidence that the seismic low-velocity layer corresponds to the subducting slab crust (e.g., Matsuzawa et al. 1986, 1990; Zhao et al. 1997; Abers, 2005). P-to-S mode-converted waves at the upper surface of the plate propagate through the slab crust for longer distances than do direct P- and S-waves; therefore, their arrival-time data are convenient for estimating the seismic velocity structure within the slab crust. A recent analysis of P-to-S converted waves under central Tohoku by Shiina et al. (2013) reported that the seismic low-velocity layer persists down to the depth of the upper-plane seismic belt in the subducted oceanic crust. Estimated P-wave velocity at the depth of the upper-plane seismic belt in the low-velocity crust is c. 10% lower than theoretically predicted values for metamorphosed mid-ocean ridge basalt (MORB). Shiina et al. (2013) proposed the coexistence of fluids and hydrous minerals to explain this substantial decrease in P-wave velocity, which provides additional seismic evidence that earthquakes in the slab crust are facilitated by fluid-related embrittlement.
Thus far, we have discussed the phase transition based on the seismic observations that the belt-like concentration of seismic activity is detectable in the slab crust and that the seismic wave low-velocity layer extends down to the depth of this upper-plane seismic belt. Here, we also compare the locations of the upper-plane seismic belt and the down-dip end of the seismic low-velocity layer with thermal–petrological estimates of the positions of the dehydration reaction boundaries in the slab crust, although there is high uncertainty in their positions because of error in the estimation of temperature distribution in the subducting slab. The phase boundaries of jadeite lawsonite blueschist (hereafter JLB) → lawsonite amphibole eclogite (hereafter LAE) and of LAE → eclogite in the slab crust beneath central Tohoku are indicated by the broken black lines B and C, respectively, in Fig. 8a. These boundaries are estimated based on the MORB phase diagram of Hacker et al. (2003b) (Fig. 3a) and the temperature distribution of the slab by Peacock and Wang (1999) (the P–T trajectory of the oceanic crust of Tohoku shown in Fig. 3a). The upper-plane seismic belt indicated as A in the figure is located near or on the shallower side of the phase boundary of JLB with a H2O content of 5.4% → LAE with a H2O content of 3.0%, as indicated by B in the figure. These findings are roughly consistent with the predictions based on the dehydration-related embrittlement hypothesis. Furthermore, earthquakes occur only in the lower crust on the deeper side of the phase boundary of JLB → LAE, and no longer occur after exceeding the phase boundary of LAE → eclogite, as indicated by C in the figure. This observation is also consistent with the predictions drawn from the dehydration-related embrittlement hypothesis. For another example, the estimated dehydration reaction boundary based on the MORB phase diagram by Omori et al. (2009) and the temperature distribution of the slab given by van Keken et al. (2002) is indicated by a thick, one-dot-chain red line in Fig. 8a. In this case, the phase boundary also roughly coincides with the position of the upper-plane seismic belt as predicted based on the dehydration-related embrittlement hypothesis.
The production rate of dehydration-derived H2O appears to clearly explain the formation of the belt-like concentration of upper-plane seismicity at depths of c. 80–120 km in the oceanic crust of the Pacific slab subducting under eastern Japan. Abers et al. (2013) calculated the accumulated amount of dehydration-derived H2O, the H2O production rate, and the overall system volume change from the dehydration reaction, as a function of depth for two representative slabs: the Pacific slab beneath eastern Hokkaido as a cold slab and the Philippine Sea slab beneath Kii as a warm slab (Fig. 11b–d). Their calculations were based on estimated P–T (pressure–temperature) trajectories for the subducting slab crust on the P–T diagram of maximum H2O contents for a hydrated MORB metabasalt, as shown in Fig. 11a. The frequency of earthquakes within the slab crust as a function of depth beneath eastern Hokkaido (Kita et al. 2010) is shown in Fig. 11e for comparison. These figures show that the H2O production rate, the overall volume change from dehydration, and the frequency of earthquakes in the slab crust below eastern Hokkaido (blue lines in Fig. 11c–e) all have peaks at a depth of c. 80–90 km. Although Fig. 11c, d is based on calculations for the top of the slab, the strong correlations of both the H2O production rate and the total volume change with seismicity in the slab crust strongly support the interpretation that embrittlement caused by increased pore pressure from dehydration-derived H2O is the reason for the upper-plane seismic belt.
At present, however, there are large uncertainties in estimating the temperature distribution within subducting slab crust; therefore, further verification of the thermal–petrological estimates of the position of the dehydration reaction boundary is necessary. Nevertheless, the following seismic observations strongly support the dehydration-related embrittlement hypothesis: (1) that there is a belt of upper-plane seismicity nearly parallel to the 80–90 km depth contours of the upper slab surface, (2) that the seismic low-velocity layer corresponding to the slab crust persists down to the upper-plane seismic belt and, no further, (3) that both the upper-plane seismic belt and the down-dip end of the seismic low-velocity layer deepen locally under Kanto and SW Hokkaido, with these local deepenings coinciding spatially with the areas of contact with the Philippine Sea slab and the overlying subducted forearc crust, and (4) that both the H2O production rate and the net volume change caused by dehydration in the slab crust have peak depths at c. 80–90 km, which is approximately consistent with the location of the upper-plane seismic belt.
The upper-plane seismic belt and seismic low-velocity layer in slab crust in other subduction zones
Does a similar upper-plane seismic belt form in the slab crust in other subduction zones? The formation of upper-plane seismic belts should be common to all subduction zones if they are caused by fluids expelled by the dehydration of slab crust materials.

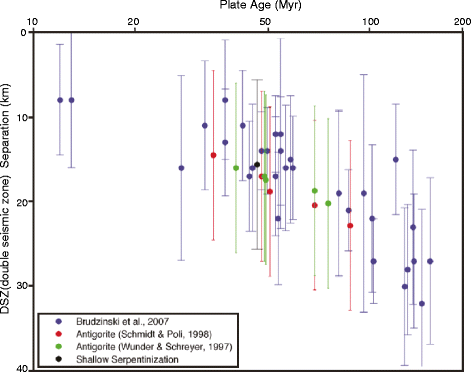

Abers et al. (2013) systematically investigated the relationship between trends in earthquake locations and thermal–petrological conditions within the crust of subducting slabs by comparing several well-characterized subduction zones from different parts of the world. They found that in young (and therefore warm) subduction zones, earthquakes preferentially lie within the slab mantle or very close to the slab Moho. In contrast, in old (and therefore cold) subduction zones, earthquakes occur throughout the oceanic slab crust as well as the slab mantle. They proposed that separation into these two classes is caused by differences in the P–T paths that the slab crust follows as it descends into the mantle. The subducting slab P–T trajectories of young and warm subduction zones and those of old and cold subduction zones encounter different facies boundaries, which produce differences in the way that H2O is released via dehydration. Estimated temperatures along the upper surface of the slab and the slab Moho for each of the six subduction zone segments are plotted on a pressure–temperature diagram of H2O content for hydrated MORB in Fig. 11a. The figure shows that the P–T paths for the cold and warm slabs are characterized by considerably different conditions. At high pressures, the main dehydration reaction is the breakdown of lawsonite (A in Fig. 11a), and the crusts of cold slabs, such as those beneath Hokkaido, Tohoku, and central Alaska, experience this dehydration reaction to eclogite. At lower pressures, the breakdown of zoisite and amphibole (B and C in Fig. 11a) takes place and the crusts of warm slabs, such as those beneath Cascadia, Tokai, and Kii, undergo this dehydration reaction.
The above two dehydration reaction boundaries produce different H2O production rates, as shown in Fig. 11b, c. These figures show a gradual release of H2O in the depth range of c. 20–60 km for the warm slab beneath Kii, but a considerably abrupt release in the depth range of c. 80–95 km for the cold slab beneath Hokkaido. The production rate of H2O in cold slabs is an order of magnitude higher than that for warm slabs (Fig. 11c). Moreover, because of the positive Clapeyron slope, the overall volume change from the dehydration reaction is positive for the cold slab (Fig. 11d), which causes effective increase in pore fluid pressure and thus favors overpressuring. The large H2O production rate and the increase in total volume through the breakdown of blueschist are likely to promote earthquake occurrence in cold slabs. In contrast, the slow H2O production rate and decrease in total volume through the breakdown of zoisite and amphibole probably inhibit, or at least do not promote, earthquake occurrence in the crusts of warm slabs. Abers et al. (2013) showed that the boundary between these two cases can be expressed by the thermal parameter (Kirby, 1995; (plate age) × (vertical descent rate of plate)) of c. 500–1000 km.
The results given by Abers et al. (2013) predict that the formation of the upper-plane seismic belt in the slab crust does not occur only in the subducting Pacific slab beneath eastern Japan but occurs also commonly in cold subduction zones with thermal parameters larger than c. 500–1000 km. In contrast, in the crust of warm slabs with thermal parameters less than c. 500–1000 km, earthquakes occur preferentially within the slab mantle, and therefore, the upper-plane seismic belt does not form. Dense local seismic network data and intense seismic activity in the slab crust are required to ascertain the presence of an upper-plane seismic belt. Few such subduction zones exist, and consequently, clear evidence of the presence of upper-plane seismic belts in other subduction zones has not yet been reported.
The nationwide dense seismic network of Japan also covers the SW Japan subduction zone where the Philippine Sea slab is subducting beneath it. The age of the subducting Philippine Sea Plate at the trench axis varies in the along-arc direction. It is as young as 15–25 Ma between western Shikoku and Tokai, whereas it is older in Kanto (>40 Ma) and Kyushu (> 50 Ma) (Seno and Maruyama, 1984). Therefore, it may be possible to ascertain the presence or absence of the upper-plane seismic belt. Figure 12 shows the hypocenter distribution of events in the crust of the Philippine Sea slab. This figure shows that events in the slab crust under the region from western Shikoku to Tokai are distributed to a maximum depth of c. 40, except for some outliers. In contrast, the down-dip end of the seismicity in the slab crust is deeper under regions where older lithosphere of the Philippine Sea Plate is subducting; it is as deep as 80–90 km in Kanto and is c. 100 km deep in Kyushu. These findings are consistent with the expectation that the colder Philippine Sea slab under Kanto and Kyushu is able to generate earthquakes at greater depths.
Another prominent feature of Fig. 12 is a belt-like concentration of seismicity, as indicated by the arrow, that is nearly parallel to the c. 60 km depth contour of the upper surface of the slab under southern Kyushu (strictly speaking, under the region to the south of the NW extension of the Kyushu–Palau ridge (thick broken line)). This feature is similar to the upper-plane seismic belt detected in the crust of the Pacific slab under eastern Japan. Although a similar belt-like concentration of seismic activity seems to be detectable in the depth range of 40–50 km beneath Kanto and may reflect the same activity, it is not discussed further here because it is unclear. In contrast, such a significant belt-like concentrated earthquake zone is not apparent in the much larger area from western Shikoku to Tokai. This along-arc variation in crustal seismicity is also inferred to be the result of the difference in age (or temperature) of the Philippine Sea slab (Hasegawa et al. 2009). The thermal parameters calculated by Syracuse et al. (2010) indicate that the slab beneath southern Kyushu at 31.22°N, 130.57°E has a value of 1560 km, which means that it belongs to the cold slab group. In contrast, the slab beneath Nankai at 35.3°N, 137.3°E has a value of 450 km, which means it belongs to the warm slab group. Consequently, the belt-like concentrated seismicity in the crust of the older Philippine Sea slab beneath southern Kyushu, which occurs at depths approximately 20 km shallower than the belt of the Pacific slab beneath Hokkaido and Tohoku, is probably caused by the same dehydration reactions of slab crust materials. The absence of such a clear belt-like concentrated seismicity in the crust of the younger portion of the Philippine Sea slab beneath the area from Tokai to western Shikoku (or northern Kyushu) is attributed to the warmer conditions there.
As shown in Fig. 12, the estimated upper-plane seismic belt in southern Kyushu abruptly disappears north of the NW prolongation of the Kyushu–Palau ridge (thick, broken gray line in Fig. 12). Figure 13 illustrates an along-arc vertical cross-section of earthquakes that occurred within the rectangle shown in Fig. 12. This figure also shows that the upper-plane seismic belt, which is visible at depths of c. 50–70 km, and abruptly disappears to the north of the NW prolongation of the Kyushu–Palau ridge, as shown by the thick, broken red line. The sudden disappearance of the upper-plane seismic belt strongly suggests that the formation of the belt is controlled by slab age or temperature, as shown in Fig. 11, because the slab age abruptly changes between the north and south of the Kyushu–Palau ridge.
Studies of several subduction zones have revealed the presence of seismic low-velocity zones that correspond to the subducting crust, although the upper-plane seismic belt has not yet been detected at other sites (e.g., Fukao et al. 1983; Hori et al. 1985; Hori, 1990; Helffrich, 1996; Reyners et al. 1999; Abers, 2000, 2005; Bostok et al. 2002; Kodaira et al. 2000, 2004; Eberhart-Phillips et al. 2005; Hirose et al. 2008a, b; Syracuse et al. 2008; Rondenay et al. 2008, 2010; Abers et al. 2009, 2013; Eberhart-Phillips and Bannister, 2015). These seismic low-velocity layers in subducting crust have been interpreted as evidence for the presence of hydrated rocks or fluids liberated by dehydration reactions. Typical examples of these layers are shown in Figs. 14, 15, and 16.
Figure 14 shows across-arc vertical cross-sections of the P-wave velocity in the slab below Nicaragua and Costa Rica estimated based on inversions of P- and S-wave arrival times of local earthquakes (Syracuse et al. 2008). Nicaragua and Costa Rica lie on the Caribbean Plate, under which the young Cocos Plate is subducting northeastward at a rate of c. 88 mm/year. Inversion results show the presence of P-wave low-velocity zones in this area that probably correspond to the crust of the subducted Cocos Plate. This observation is particularly clear in Fig. 14c, which shows a P-wave low-velocity zone that extends as far as 70 km in depth. The down-dip end may be produced by the phase transformation of materials that compose the slab crust. Moreover, P-wave low-velocity zones were also imaged at the locations of the slab mantle c. 20–30 km below Wadati–Benioff zone seismicity, depths of c. 140 km beneath Nicaragua, and c. 60 km beneath Costa Rica. Syracuse et al. (2008) interpreted these low-velocity zones beneath Nicaragua as 10–20% serpentinized mantle of the subducted Cocos Plate, which may introduce relatively high amounts of H2O into the mantle wedge beneath Nicaragua.
Figure 15 shows across-arc vertical cross-sections of P-wave velocity and Vp/Vs (the ratio of P-wave velocity to S-wave velocity) along the northern Hikurangi subduction zone of New Zealand. These data were obtained by inverting arrival-time data of local earthquakes (Eberhart-Phillips and Bannister, 2015). Onshore–offshore marine-seismic data were also incorporated in these inversions, which improved constraints on the shallow portion of the target area. In this area, the Pacific Plate is subducting obliquely under the Australian Plate, on which the North Island of New Zealand lies, at a rate of 42–47 mm/year. The obtained seismic velocity images shown in Fig. 15 clearly indicate the presence of a P-wave low-velocity zone and a high Vp/Vs zone to depths of 80–100 km associated with the oceanic crust of the subducted Pacific slab. This zone of low Vp and high Vp/Vs is probably caused by hydrated rocks or fluids liberated by dehydration reactions.
Figure 16a shows an across-arc seismic section beneath central Alaska obtained through seismic receiver-function analyses (Rondenay et al. 2008, 2010). In this region, the Pacific Plate has an age of 35–45 Ma at the trench axis and converges with the North American Plate at a rate of c. 55 mm/year, which produces a thermal structure of the slab that falls in the middle of the range globally (Kirby et al. 1996; Rondenay et al. 2008). Along the profile shown in Fig. 16a, the Yakutat terrane, which has a thickness from 15 to 30 km and can be described as an oceanic plateau, is subducting. This subduction was clearly imaged as a dipping low-velocity layer to a depth of c. 130 km. Intraslab earthquakes occur near the top of the subducting slab crust at depths shallower than c. 80 km and then gradually deepen toward the oceanic Moho with increasing depth. Both the intraslab seismicity and the low-velocity slab crust terminate at c. 120–130 km in depth, which suggests that the eclogite-forming phase transition operates in this depth range (Abers et al. 2013).
Figure 16b shows an across-arc seismic migration image below central Cascadia obtained via seismic receiver-function analyses (Abers et al. 2009). In this region, the Juan de Fuca Plate, with an age of 6–9 Ma at the trench axis, is subducting obliquely at a rate of 35–45 mm/year. This slow subduction rate in the vertical direction and the young age of the plate make it one of the hottest slabs in the world (Wada and Wang, 2009; Syracuse et al. 2010). The subducting slab crust was clearly imaged as a dipping low-velocity layer with a thickness of 7–9 km to a depth of c. 40 km. Almost all intraslab earthquakes in this region are located at or just below the slab Moho, and very little seismicity is produced within the subducting crust. The shallow termination depths of the low-velocity slab crust and the very low level of seismicity in the slab crust are consistent with the high-temperature conditions of this slab (Abers et al. 2013). Based on estimations of the thermal structure of the slab and on the phase diagram of crust materials, Rondenay et al. (2008) compared two subduction zones, central Alaska and central Cascadia, and claimed that the termination depths of the low-velocity subducting crust correspond to eclogitization of the metamorphosed crust through dehydration of hydrous minerals, which depends largely on the thermal structure of the subducting slab crust. Overall, seismicity in the slab crust appears to be closely related to the dehydration reactions, although the upper-plane seismic belt is not apparent even in the case of the cold slab described here, which can most likely be attributed to the very small number of earthquake data.
All of these observations seem to support the dehydration-related embrittlement hypothesis as the mechanism behind the genesis of intermediate-depth events within the slab crust.
Seismic wave velocity structure and lower-plane seismicity in the slab mantle: seismic low-velocity zones and serpentinized slab mantle
Until recently, seismic imaging of the subducting slab was performed not to image detailed, inhomogeneous structures inside the slab, but to determine the shape of the subducting slab as a seismic high-velocity zone separate from the surrounding mantle with normal seismic wave velocity. Very high spatial resolution is required to detect the inhomogeneous structure inside the slab, and in the past, this resolution could not be achieved. A high-density seismic network is required for such high-resolution seismic imaging, and recently, this resolution has become possible through dense observation network data. The nationwide dense seismic network has been deployed in Japan, a typical subduction zone with a very high seismic activity, and this development has enabled us to image even the internal structure of the subducted slab below Japan. The seismic low-velocity layer that persists to the depth of the upper-plane seismic belt in the slab crust, as described in the “The double seismic zone and dehydration of metamorphosed crust and 149 serpentinized mantle” section, is one example of such internal structure. Recent seismic tomography studies based on nationwide dense network data have also revealed the detailed structure of seismic velocity inside even the slab mantle.
If hydrous minerals or the H2O released through dehydration reactions are present in some regions of the slab mantle, those regions are expected to have low seismic wave velocities. Precisely, imaging of heterogeneous structures inside the slab mantle with seismic tomography can be challenging, however. The slab mantle exists at greater depths than the slab crust, and consequently, seismic rays arriving at seismic stations above earthquake hypocenters do not sufficiently crisscross the slab mantle, which results in poor resolution in seismic velocity imaging. Therefore, research into the heterogeneous seismic velocity structure of the slab mantle remains very limited.
If many densely distributed events occur in a particular area, that area can be imaged very precisely via seismic tomography because a large number of ray paths will crisscross the area. The occurrence of numerous aftershocks associated with a large intraslab earthquake provides such a rare opportunity. Based on the tomography method of Zhao et al. (1992, 1993), Mishra and Zhao (2004) determined the detailed seismic velocity structure in and around the hypocenter of the 2003 M 7.1 Miyagi–Oki earthquake, which occurred at a depth of c. 70 km in the Pacific slab near the oceanic Moho beneath NE Japan. In their tomographic inversions, they used many data from aftershocks in addition to the background earthquake data, which enabled precise imaging of the source area within the slab. P-wave velocity structures revealed through this method are shown in Fig. 17 in N–S and E–W vertical cross-sections that pass through the mainshock hypocenter. This figure shows an anomalously low-velocity zone across the crust and mantle in the Pacific slab and that the source area of the M 7.1 intermediate-depth intraslab event is located in this zone characterized by a velocity anomaly lower than its surroundings in the slab. Mishra and Zhao (2004) concluded that this low-velocity anomaly and the occurrence of earthquakes within it could be attributed to the process of fluid-related embrittlement caused by the dehydration of hydrous minerals in the slab.
Nakajima et al. (2011) examined the seismic wave velocity structure of the source area of the 2011 M 7.1 Miyagi–Oki earthquake that took place at a depth of c. 65 km in the slab mantle about 1 month after the 2011 Mw 9.0 Tohoku–Oki earthquake. As shown in Fig. 18, the seismic wave velocity structure obtained by using numerous aftershock data in conjunction with the background seismicity data revealed the existence of a low-velocity zone around the fault plane of this M 7.1 intermediate-depth intraslab event. The lateral extent of the low-velocity zone is comparable to the extent of the fault plane of the M 7.1 event. The angle between the mainshock fault plane and the upper slab surface is c. 60°, which is consistent with the dip of the oceanward-dipping normal faults in the outer rise region. Based on these observations, Nakajima et al. (2011) suggested that the M 7.1 intraslab earthquake was generated by reactivation of a buried hydrated fault that had formed in the plate prior to its subduction.
Zhang et al. (2004) were the first to determine the detailed internal structure of the slab mantle to the depth of the lower seismic plane of the double seismic zone. Their tomographic imaging of the slab beneath central Tohoku with DD tomography revealed the existence of a P-wave low-velocity layer along the lower seismic plane, as shown in Fig. 19. The similar P-wave low-velocity layer along the lower seismic plane of the slab mantle was identified in subsequent seismic tomography studies by Shelly et al. (2006) and Nakajima et al. (2009c) under southern Tohoku and eastern Hokkaido, respectively. Figure 20 shows across-arc vertical cross-sections of P- and S-wave velocities under eastern Hokkaido as determined by Nakajima et al. (2009c). A clear P-wave low-velocity layer is visible at the lower plane of the double seismic zone. However, both Figs. 19 and 20 indicate that S-wave velocity is not necessarily low for that layer. Therefore, the Vp/Vs ratio for this layer is not necessarily as high as is expected for the serpentinized mantle, but may be fairly low, as shown in Fig. 19c.
Reynard et al. (2010) investigated the cause of the low Vp and Vp/Vs values imaged via seismic tomography for this layer of the mid-slab mantle below eastern Hokkaido (Fig. 20). They claimed that this anomalous layer is the result of the anisotropy of anhydrous peridotite, which suggests that the same mineralogical composition occurs along the lower-plane seismicity as in the surrounding slab mantle. Based on this interpretation, they further argued that the shear heating instability of plastic deformation (Griggs and Handin, 1960; Ogawa, 1987; Hobbs and Ord, 1988) would therefore be the mechanism behind the lower-plane earthquakes. Conventionally, the thermal shear instability model was thought to be unable to explain the observation that the lower plane of the double seismic zone formed along the isotherm of approximately 600–700 °C in the slab mantle (see Figs. 5 and 6; Yamasaki and Seno, 2003;. Brudzinski et al. 2007). However, a recent investigation by Kelemen and Hirth (2007) based on numerical modeling of a fine-grained viscous shear zone in a coarse-grained elastic half-space revealed that the shear heating instability of peridotite occurs effectively within a narrow temperature range of 650–800 °C. If this is the case, the shear heating instability model of plastic deformation can also explain the observations that the lower-plane events occur along the isotherm of approximately 600–700 °C.
However, if we inspect the seismic tomography images (Fig. 20) of Nakajima et al. (2009c) in detail, regions with P-wave velocity below 7 km/s are distributed entirely along the lower plane of the double seismic zone. It is difficult to explain the distribution of this low P-wave velocity anomaly along the lower seismic plane, but not in the surrounding mantle, based on the anisotropy of anhydrous peridotite alone. The low Vp values over the entire lower seismic plane imaged with seismic tomography suggest that materials with lower Vp were more abundant there than in the surrounding slab mantle, although the anisotropy effect of those materials may contribute in part to the lower Vp and Vp/Vs values detected via seismic tomography. The low Vp and Vp/Vs layer observed along the lower seismic plane is still not fully explained, and further examination and verification are required to determine the cause. Moreover, seismicity in the slab mantle is limited not only in the upper and lower planes of the double seismic zone but also between these planes, although the amount of seismic activity is lower (Kita et al. 2010b). Such interplane events are also shown in Fig. 20. In particular, the aftershock activity associated with the 1993 M 7.5 Kushiro–Oki earthquake at a depth of c. 100 km was distributed along a distinct P-wave low-velocity layer that extended horizontally from the lower seismic plane to the vicinity of the upper seismic plane (black arrow in Fig. 20c). This low P-wave velocity is also difficult to explain through the mechanism of peridotite anisotropy alone. The presence of interplane events (Kita et al. 2010b) indicates that intermediate-depth intraslab events occur even at temperatures much lower than 650–800 °C, which further contradicts predictions based on the estimate of Kelemen and Hirth (2007).
Similar P-wave low-velocity layers along the lower plane of the double seismic zone were detected beneath northern Chile using DD tomography (Dorbath et al. 2008), although these results were less clear than those for beneath Tohoku and Hokkaido (Zhang et al. 2004; Shelly et al. 2006; Nakajima et al. 2009c). Across-arc vertical cross-sections of the estimated P- and S-wave velocities are shown in Fig. 21. This figure shows the presence of P-wave low-velocity zones along the lower seismic plane in all three cross-sections. As in the Pacific slab below eastern Japan, S-wave velocities are not low, but normal along the lower plane, which suggests that the low P-wave velocity and normal S-wave velocity along the lower seismic plane is a common feature across subduction zones. Dorbath et al. (2008) inferred that these P-wave low-velocity zones form along the slab’s flexural neutral plane where fluids released through dehydration of the surrounding hydrated minerals accumulate. Therefore, the P-wave velocities are low and trigger lower-plane seismicity.
For lower-plane events to be triggered by the aqueous fluids liberated from hydrous minerals via dehydration reactions, at least part of the slab mantle near the lower plane must be hydrated. However, the lower seismic plane is usually located at depths of several tens of kilometers, to as deep as c. 40 km, below the upper slab surface. In contrast, hydrothermal circulation and alteration at mid-ocean ridges are limited in many cases to shallow crustal levels. Peacock (2001) suggested that normal faulting in the trench–outer rise regions promotes infiltration of seawater several tens of kilometers into the oceanic plate, which facilitates the serpentinization of affected mantle materials. However, this hypothesis of the deep hydration of the oceanic mantle before the plate subduction has received criticism, and it is still controversial whether seawater infiltration extends to such great depths through bending-related normal faulting.
Seismic reflection/refraction surveys conducted at trench–outer rise regions have revealed the presence of such normal faults that cut across the crust and penetrate into the mantle of the incoming oceanic plate (e.g., Ranero et al. 2003; Ranero and Sallares, 2004). Seismic reflection/refraction profiling experiments have provided further evidence of alteration of the crust and mantle of the incoming plate: anomalously low seismic wave velocities in the crust and mantle (Ivandic et al. 2008; Grevemeyer et al. 2007; Contreras-Reyes et al. 2007, 2011; Fujie et al. 2013). Seismic surveys have thus detected traces of the altered crust and mantle of the incoming oceanic plate, but these surveys are restricted to the uppermost mantle levels, with a maximum depth of c. 20 km. However, this limitation is mainly related to poor resolution at such great depths in the mid-mantle of oceanic plates associated with seismic surveys. In fact, a recent seismic reflection survey along a 233 km-long profile beneath the Wharton Basin in the Indian Ocean clearly imaged a fault that extends down to 40 km depth below the plate upper surface (Qin and Singh, 2015). The negative polarity of the reflection indicates the presence of a low P-wave velocity zone along the fault, likely formed by serpentinization of mantle materials caused by infiltration of seawater. Although it is unclear whether the fault was formed by the bending stresses of the trench–outer rise region, this observation suggests the possibility of deep hydration of the oceanic mantle prior to plate subduction. Moreover, an estimation by Garth and Rietbrock (2014) based on waveform modeling of P-wave coda from intermediate-depth events, whereby a 40 km-thick layer is inferred to be 17–31% serpentinized, indicates bulk hydration of the oceanic mantle.
A possible alternative mechanism for hydration of the deep mantle of an incoming oceanic plate is the hypothesis proposed by Seno and Yamanaka (1996). These workers discussed the possibility of hydration of the middle-to-deep portion of the oceanic plate through H2O released from solidified magma that was involved in plumes. Most of the magma solidifies and releases H2O at the plume head immediately below the oceanic plate; this H2O then accretes to the plate as the plate cools and thickens. In addition, magma injected into the oceanic plate releases H2O as it solidifies. H2O thus released reacts with the surrounding mantle materials, which results in the hydration of the mid-mantle. There are arguments against this hypothesis, as well; for example, Omori et al. (2009) argued that extensive hydration of the lithospheric mantle would not result from such a mechanism because the amount of H2O released decreases at greater depths due to depth-based variation in the solubility of H2O in the melt, and because magma reservoirs are present at shallow depths in the crust rather than such great depths in the mantle.
A dynamic thermomechanical–petrological modeling study of plate subduction by Faccenda et al. (2012) has presented another possibility for the penetration of H2O into the deep slab mantle. The results of their simulation show that during slab subduction, fluids liberated through dehydration of hydrous minerals follow a bimodal migration pattern. Fluids released from the slab crust and the sub-Moho mantle flow upward, whereas those released from deeper levels of the mantle are driven into the cold core of the slab because of the pressure gradients generated by plate unbending stresses. Fluids thus driven downward into the cold core of the slab accumulate progressively and percolate updip along a layer nearly parallel to the slab surface (Fig. 22). The predicted location of this layer of accumulated fluids coincides with the lower plane of the double seismic zone. This lower layer moves deeper with increasing plate age, and the separation distance between this lower layer and the middle of the slab crust is roughly consistent with the separation of double seismic zones observed globally by Brudzinski et al. (2007), as shown in Fig. 23. Both free fluids and serpentinized peridotite are present in this lower layer in the middle of the slab mantle because the mantle rocks there are saturated with bound H2O to the assumed upper limit of serpentinization. If this assumption is accurate and the slab dip is not sufficiently shallow, extremely deep hydration of the slab mantle prior to subduction is unnecessary to explain the lower-plane seismicity. Moreover, if the free fluids are intensively distributed along the lower seismic plane as demonstrated here and if the pores that hold these fluids have small aspect ratios, the lower seismic plane should have low Vp and low Vp/Vs values (e.g., Nakajima et al. 2001; Takei, 2002). As suggested by Dorbath et al. (2008), this possibility may partially explain the low Vp and low Vp/Vs along the lower plane, as is commonly observed in Tohoku, Hokkaido, and northern Chile (Figs. 19, 20, and 21).
The possibility of deep hydration of the slab mantle prior to subduction was also demonstrated by a recent 2-D reactive-flow model simulation of hydration processes at the trench–outer rise region (Iyer et al. 2012). Iyer et al. (2012) developed a reaction-transport model that enables better quantification of the amount and depth at which hydration occurs in an incoming oceanic plate due to normal faulting caused by the bending force. The hydration patterns determined with this model show the formation of a highly serpentinized band in the slab mantle centered at the 270 °C isotherm. The depth of the 270 °C isotherm increases with increasing plate age and is roughly consistent with the separation distance of globally observed double seismic zones (Fig. 6; Brudzinski et al. 2007). If this mechanism actually operates in the mantle, it could explain the formation of double seismic zones. Iyer et al. (2012) suggested that the double hydrated zone at the depths of the slab mantle, through slab unbending (Fig. 22; Faccenda et al. 2012) and maximum serpentinization at c. 270 °C, may together cause the variations in the observed separation of the double seismic zone.
Recently, Korenaga (2017) demonstrated another possible mechanism for deep hydration of the slab mantle prior to subduction. He proposed that mantle hydration first occurs through thermal cracking associated with the cooling of oceanic plates and is later enhanced by bending-related faults in the outer rise region. The amount of fluids required to generate the lower plane of the double seismic zones is not well quantified, but Korenaga estimated the lower bound of the amount of water contained in the slab mantle (0.03–0.07 wt%) and argued that this amount is sufficient to explain the lower-plane seismicity of double seismic zones.
Overall, observations of distinct low P-wave velocities along the lower plane of the double seismic zones under Tohoku, Hokkaido, and northern Chile, as shown in Figs. 19, 20, and 21, strongly suggest the presence of hydrous minerals or fluids in the middle portion of the slab mantle, although further investigation is necessary. We expect this research to progress in the future.
Genesis of intermediate-depth intraslab earthquakes
As described in the previous sections, spatial distribution of intraslab seismicity and the internal seismic structures of subducting slabs provide evidence that strongly supports the dehydration-related embrittlement hypothesis for nucleating intermediate-depth intraslab events. However, much of this evidence is circumstantial. The dehydration-related embrittlement hypothesis posits that H2O expelled from hydrous minerals within the subducting slab generates earthquakes, but the details of the process that actually lead from a state of local excess pore fluid pressure to earthquake rupture are still subject to debate (e.g., Raleigh and Paterson, 1965; Rutter and Brodie, 1988; Ko et al. 1997; Dobson et al. 2002; Jung and Green, 2004; Jung et al. 2004, 2006, 2009; Kelemen and Hirth, 2007; Chernak and Hirth, 2010, 2011; Brantut and Sulem, 2012; Sawai et al. 2013; Proctor and Hirth, 2015; Auzende et al. 2015).
Based on triaxial compression experiments on serpentinite samples at temperatures up to 700 °C and confining pressures up to 0.5 GPa in undrained conditions, Raleigh and Paterson (1965) reported a significant reduction in strength of the samples, and brittle fracturing occurred at temperatures higher than 375 °C, whereas plastic deformation occurred below 340 °C. They attributed the embrittlement and weakening over 375 °C to reduction in the effective normal stress caused by the release of the pore pressure of H2O via serpentine dehydration. This mechanism of dehydration embrittlement would certainly apply at pressures below c. 0.5 GPa (corresponding to c. 15 km depth). However, it is not evident whether the same mechanism can be applied to intermediate-depth intraslab events that occur at much higher pressures. The effective stress law for sliding friction works at shallow depths, as seen in the experimental results of Raleigh and Paterson (1965), but this law does not work efficiently below the brittle–ductile transition depth (c. 15 km depth) (e.g., Hirth and Beeler, 2015). Another point, which is favorable to the dehydration-related embrittlement, in the experiments of Raleigh and Paterson (1965) is the positive Clapeyron slope of serpentine dehydration. The positive overall volume change associated with the dehydration in this case leads to an increase in pore pressure, which should operate to promote brittle fracture. However, at pressures higher than c. 2.2 GPa (which corresponds to c. 60 km depth), the Clapeyron slope of serpentine dehydration is negative (see Fig. 3b), and thus, the overall volume change that accompanies the dehydration becomes negative, which may suppress the occurrence of brittle instability.
In contrast, some laboratory experiments have shown that hydraulic embrittlement occurs even at this high-pressure range. For example, Dobson et al. (2002) detected strong acoustic emission signals during dehydration in serpentinite compression experiments that used a multianvil press at pressures up to 8.5 GPa and temperatures up to 900 °C. Recovered samples show characteristics of the brittle deformation associated with high pore fluid pressures, which suggests that dehydration embrittlement occurs even at pressures over 2.2 GPa. Based on triaxial compression tests of antigorite at pressures up to 6 GPa and temperatures up to 820 °C, Jung et al. (2004) found that antigorite dehydration results in faults delineated by ultrafine-grained solid reaction products independent of the sign of the Clapeyron slope. Jung et al. (2009) conducted in situ measurements of acoustic emissions under compression tests of serpentinite and showed that acoustic waves are generated by dehydration embrittlement even at pressures higher than 2.2 GPa. These experimental results suggest that dehydration embrittlement is a viable mechanism for generating earthquakes independent of depth.
On the contrary, the results of some recent laboratory experiments do not support the dehydration embrittlement hypothesis. For example, Chernak and Hirth (2011) performed deformation experiments on antigorite designed to maximize the possibility of dehydration instability. They showed that unstable fault behavior did not develop in the specimens, but rather that slow slip events took place. Compression experiments of antigorite-rich serpentinite by Gasc et al. (2011), who used a newly developed experimental setup that allows simultaneous collection of in situ X-ray diffraction data and recording of the full waveforms of acoustic emissions with a multi-anvil device, showed that the serpentinite samples did not produce detectable acoustic waves over the course of their dehydration. Proctor and Hirth (2015) conducted deformation tests with a new experimental method to vary the pore fluid pressure. Their results showed that dehydrating serpentinite causes deformation through semi-brittle flow with grain-scale ductile deformation, which suggests that earthquakes do not nucleate due to unstable frictional sliding.
Triaxial compression tests on antigorite conducted recently by Okazaki and Hirth (2016) using a Griggs-type deformation apparatus showed that antigorite samples are associated with slow slips during the dehydration reaction without producing acoustic waves. Their similar deformation tests on lawsonite, however, showed that unstable fault slip certainly takes place and that acoustic emissions are continuously generated in the dehydration of lawsonite, which suggests that lawsonite dehydration may be the cause of intermediate-depth events in the subducting slab crust. These results support the hypothesis that embrittlement through blueschist-facies dehydration reactions in the slab crust may lead to the formation of the belt of upper-plane seismicity observed in the crust of the cold slabs, such as that detected under eastern Japan.
As described above, the detailed process that leads to earthquake rupture is still under debate, and is left to future works. However, because intermediate-depth earthquakes have been found to occur at the dehydration boundaries within the subducting slab as described in the previous sections, a process analogous to hydraulic fracturing may be occurring due to local excess pore fluid pressure formed through dehydration and expulsion of H2O from hydrous minerals. This phenomenon may cause intermediate-depth earthquakes within the slab. Alternatively, intermediate-depth events may be caused by dual mechanisms, both fluid-related embrittlement and thermal shear instability, i.e., the local excess pore fluid pressure may initiate earthquake rupture via hydraulic fracturing, which may then trigger subsequent earthquake ruptures through thermal shear instability. Nevertheless, it is estimated that H2O released by the dehydration of slab materials plays an important role in generating intermediate-depth intraslab earthquakes.
Intermediate-depth intraslab earthquakes occur within the existence range of hydrous minerals in the slab crust and slab mantle. In particular, intermediate-depth events tend to concentrate on the dehydration reaction boundaries in the slab, which forms the double seismic zone in the depth range of c. 40–180 km. Recent studies have revealed detailed spatial distribution of intermediate-depth seismicity that shows a close relationship with slab metamorphism. The pressure–temperature path of the crust for cold subducting slabs encounters facies boundaries with large rates of H2O production and positive total volume change, which are likely to promote the occurrence of earthquakes near the facies boundaries in the crust due to increase in pore fluid pressure. Conversely, the path for warm slabs encounters boundaries with slow H2O production rates and negative volumetric change, which may not effectively promote earthquake occurrence. Observations show that intermediate-depth earthquakes in warm slabs occur preferentially within the slab mantle or very close to the slab Moho, whereas those in cold slabs occur throughout the slab crust as well as in the slab mantle. Precise hypocenter locations of intermediate-depth events in NE Japan further demonstrate the presence of a belt of upper-plane seismicity in the crust of the cold Pacific slab that is nearly parallel to the 80–90 km depth contours of the upper slab surface. This concentration of seismic activity in the slab crust is probably caused by dehydration reactions with large H2O production rates and positive net volume change. A seismic low-velocity layer detected in the slab crust persists down to the depth of this upper-plane seismic belt, but no further, which provides evidence that the phase transformation of the dehydration reaction occurs there. Both the belt of the upper-plane seismicity and the down-dip end of the seismic low-velocity layer deepen locally under Kanto and SW Hokkaido, and these deepenings coincide spatially with the areas of contact with the overlying Philippine Sea slab and subducted forearc crust, respectively. This local deepening is probably caused by delay of the phase transformation of the slab crust because of the thermal shielding effect of the overlying cold bodies. Although the belt of the upper-plane seismicity was also detected in the cold Philippine Sea slab beneath southern Kyushu, it has not been detected in cold slabs of other subduction zones of the world. This absence of evidence may simply reflect the shortage of high-quality data for intermediate-depth events precisely located in those subduction zones. However, similar low-velocity subducting crust with a close relationship with intraslab seismicity has been detected in several other subduction zones. Anomalously, low P- and S-wave velocity zones have been detected in the source area of M7-class large, intraslab events that occurred in the slab crust and the uppermost portion of the slab mantle in NE Japan, which suggests the presence of hydrous minerals or fluids. The situation for lower-plane events is somewhat more complicated. Seismic tomography studies in both eastern Japan and northern Chile again revealed the presence of a P-wave low-velocity layer along the lower plane of the double seismic zone. This P-wave low-velocity layer is not associated with low S-wave velocity, however, which is inconsistent with predictions based on the serpentinized mantle materials. Seismic anisotropy and pore aspect ratio may also play important roles in generating this unique structure. Although further validation is necessary for confirmation, the widespread distribution of a definite low-velocity P-wave layer along the entire lower seismic plane suggests the presence of hydrous minerals or fluids at that level, as well as the fluid-facilitated generation of lower-plane seismicity. All of these observations support the hypothesis that slab-derived H2O causes intermediate-depth intraslab earthquakes. However, the possibility has not been ruled out that H2O contributes only to earthquake nucleation and that seismic ruptures propagate through another mechanism. In other words, intermediate-depth events may be caused by both fluid-related embrittlement and thermal shear instability, i.e., local excess pore pressure may initiate earthquake rupture, and thus trigger subsequent earthquake ruptures through thermal shear instability. We anticipate significant progress in this area of research in the future to further verify this hypothesis for the genesis of intermediate-depth earthquakes, such as improving the accuracy of the temperature model, increasing the spatial resolution of seismic tomography imaging of the internal structures of subducting slabs, and deepening our understanding of the detailed processes that lead to earthquake rupture from a state of local excess pore fluid pressure based on rock deformation experiments or numerical simulations.
