Imaging crustal features and Moho depths through enhancements and inversion of gravity data from the Philippine island arc system
Progress in Earth and Planetary Science volume 9, Article number: 16 (2022)
Abstract
The Philippine archipelago is a complex island arc system, where many regions still lack geopotential field studies. The high-resolution isostatic anomaly and free-air anomaly digital grids from the World Gravity Map (WGM) were processed and analyzed to present a general discussion of the Philippines’ gravity signatures and contribute to understanding its regional geology and tectonics. The isostatic anomaly map was continued upward to investigate the high-density ophiolitic basement rocks and low-gravity sedimentary basins at depth. The first vertical derivative (1VD) filter was applied to the free-air anomaly grid map to locate regional structures represented by density contrast boundaries. The depth to the top of the Moho and basement rock over the Sulu Sea was computed using the two-dimensional (2-D) radially averaged power spectrum analysis. Three-dimensional (3-D) gravity inversion was applied to some major sedimentary basins in the Philippines to present 3-D subsurface density contrast models. The interpreted gravity maps highlighted prominent geologic features (e.g., trench manifestation, ophiolite distribution, basin thickness). The negative isostatic anomalies (< 0 mGal) represent the thick sedimentary basins, while the moderate signatures (0 to 80 mGal) correspond to the metamorphic belts. The distinct very high-gravity anomalies (> 80 mGal) typify the ophiolitic basement rocks. The gravity data’s upward continuation revealed contrasting deep gravity signatures; the central Philippines with continental affinity (with 20–35 mGal) was distinguished from the regions with oceanic affinity (with 45–200 mGal). The 1VD map over the Sulu Sea showed anomalies associated with shallow features dominantly related to the Cagayan Ridge. The 2-D radially averaged power spectrum analysis exposed gravity anomalies with tectonic significance (e.g., basement characterization, Moho depth estimation). The estimated average Moho depth in the Sulu Sea is from 12 to 22 km, while the average basement depth is within the range of 5 to 11 km. Lastly, the 3-D subsurface density contrast models characterized the very low-density zones representing the deep (> 7 km) sedimentary basins in the northern Cagayan Valley and southern Central Luzon basins. Furthermore, thin (~ 3.5 km) sedimentary formations are inferred for the low-density areas in northern Agusan-Davao and eastern Cotabato basins.

1 Introduction
Gravity data are fundamental in understanding and modeling Earth’s interior (e.g., subsurface, crust), especially in studying its relationship to geology and structures. With the advancement of technology, high-resolution satellite gravity data are being utilized for geologic exploration and tectonic studies. Satellite gravity data were processed and interpreted for bathymetry prediction (Majumdar and Bhattacharyya 2005), lineament investigation (Braitenberg et al. 2011), crust-mantle boundary study (Steffen et al. 2011), sediment basin survey (Vaish and Pal 2015), and geologic mapping (Pal et al. 2016). This area of research was made possible by acquiring a more precise Earth gravitational model. The Earth Gravitational Model 2008 (EGM2008) is a recent Earth’s geopotential field model. This model integrates satellite gravimetry, satellite altimetry, and surface gravity measurements (Pavlis et al. 2008). Several studies already assessed and validated the accuracy of EGM2008 (Arabelos and Tscherning 2010; Pavlis et al. 2012). The gravity field data used in generating the high-resolution World Gravity Map 2012 (WGM2012) are derived from the EGM2008.
In the Philippines, regional gravity exploration began in the twentieth century when Teodoro (1970) compiled Luzon Island gravity surveys. A simple Bouguer anomaly map could not have been generated in those years due to the lack of detailed topographic maps (Teodoro 1970). The Philippines’ earliest regional gravity anomaly maps (i.e., free-air, bouger, isostatic) were presented, and different gravity anomalies were discussed relative to various geologic factors by Sonido (1981). Gravity surveys have undergone continuous development during the past twenty years. Ground and marine gravity surveys were employed by several studies focusing on specific regions—e.g., the crustal structure and tectonic evolution along Manila Trench (Hayes and Lewis 1984), the emplacement of Bohol ophiolite (Barretto et al. 2000); the regional tectonics of northern Luzon (Milsom et al. 2006), the arc-continent collision in the central Philippines (Dimalanta et al. 2009), the crustal thickness of Central Philippines (Manalo et al. 2015), the upper crustal structure beneath Zambales Ophiolite Complex (Salapare et al. 2015), and the terrane boundary in northwest Panay (Gabo et al. 2015).
The Philippines' historical overview of gravity surveys presents a wide range of gravity survey scales and applicability. Earlier studies generated and presented gravity maps based on limited point data from local to regional surveys (e.g., ground, marine). With the advent of satellite-derived gravity data and global gravity dataset, geologic studies’ scope is no longer limited to the previously available point data. This study used the isostatic and free-air anomaly grids from WGM to investigate the gravity anomalies in the Philippine island arc system and to identify regional geologic and tectonic features (e.g., structures, sedimentary basins, and basement rocks) including those which may have not been previously delineated on gravity anomaly maps. Two-dimensional (2-D) radially averaged power spectrum analysis was employed to calculate new depth estimates to the top of the Moho and basement rock over the Sulu Sea. Lastly, three-dimensional (3-D) gravity inversion was applied to characterize the density contrast of subsurface geology of major sedimentary basins in the Philippines. This work offers an efficient and effective means of understanding the Philippines’ regional geology and tectonics through gravity signatures.
2 Tectonic and geologic setting
The Philippine island arc system is a complex and tectonically active region. It is characterized by ophiolite accretion, arc magmatism, ocean basin closure, and other tectonic processes (Mitchell et al. 1986; Rangin 1991; Yumul et al. 2008a; Aurelio et al. 2013). The Philippine archipelago consists of two general terranes: the Palawan-Mindoro Microcontinental Block and the Philippine Mobile Belt (PMB) (Mitchell et al. 1986; Rangin 1991; Yumul et al. 2008a) (Fig. 1). The Palawan-Mindoro Microcontinental Block was once part of mainland Asia, while the PMB originated from the sub-equatorial regions (Taylor and Hayes 1980; Holloway 1981; Rangin et al. 1990; MGB 2010). The PMB is an actively deforming zone between two oppositely dipping subduction systems (Mitchell et al. 1986; Rangin 1991; Yumul et al. 2008a; Aurelio et al. 2013) (Fig. 1). The eastern side of the PMB is bounded by the west-dipping East Luzon Trough and the Philippine Trench (e.g., Hamburger et al. 1983; Yumul et al. 2008a). The archipelago’s western side is marked by southeast-dipping subduction zones: Manila Trench, Negros Trench, Sulu Trench, and Cotabato Trench (e.g., Mitchell et al. 1986; Yumul et al. 2008a). The bathymetric map of the Philippines shows very deep features (~ 8 km to 9 km) corresponding to the mentioned subduction zones (Fig. 2). Generally, the eastern side of the Philippines has a deeper bathymetry than the western flank. The left-lateral strike-slip Philippine Fault, which traverses the entire island arc system, accommodates the oblique convergence between the Philippine Sea Plate and Eurasian Plate (Barrier et al. 1991; Aurelio 2000). The amalgamation of different terranes paved the way to form tectonic collages with diverse lithologic characteristics categorized into ophiolitic rocks, metamorphic rocks, magmatic arcs, and sedimentary basins (MGB 2010). Ophiolitic and metamorphic basement rocks overprinted by relatively younger volcanic series and thick sedimentary basins define the Philippines’ present geology.
General tectonic map of the Philippine island arc system (modified from Rangin 1991; Yumul et al. 2008a, b). The continental Palawan-Mindoro Microcontinental Block and island arc Philippine Mobile Belt (PMB) characterize the Philippine Archipelago. The mentioned islands are represented by green labels: LZN = Luzon, MNDR = Mindoro, PLW = Palawan, PNY = Panay, NGR = Negros, SMR = Samar, LYT = Leyte, MNDN = Mindanao. Red areas represent Cretaceous (island arc) metamorphic zones, while blue areas correspond to pre-Cretaceous (continental) metamorphic regions (modified from MGB 2010). The inset map shows the location of the Philippines relative to Southeast Asia. The traces of plate boundaries are from USGS (2019) (https://www.usgs.gov/media/files/plate-boundaries-kmz-file)
Topographic and bathymetric map of the Philippines modified from GEBCO (2020) (https://download.gebco.net) showing major structural and tectonic features. The trenches surrounding the Philippine archipelago correlate with the deep bathymetric features. The topographic highs of Luzon Island include Central Cordillera (CC), Sierra Madre (SM), and Zambales Range (ZR). Katanglad Mountains (KM) and Daguma Range (DR) are the prominent elevated areas in Mindanao Island. Black-line boxes represent the locations of the specific areas where the 2-D radially averaged power spectrum technique (SS) and 3-D gravity inversion (CV, ICL, C, AD) were applied. CV = Cagayan Valley Basin, ICL = Ilocos-Central Luzon Basin, AD = Agusan-Davao Basin, C = Cotabato Basin, SS = Sulu Sea, BR = Benham Rise. A–A′, B–B′, C–C′, D–D′ are section lines representing the geological cross sections presented in Figs. 10 and 11
3 Gravity signatures over the Philippine island arc system
The isostatic gravity anomaly map extracted from the WGM reveals the Philippines’ regional geologic and tectonic features (Fig. 3). The PMB (red to pink; ~ 10 to 100 mGal) is generally surrounded by very low negative anomalies (blue; ~ 0 to − 70 mGal) attributed to the deep trenches and troughs that bound the archipelago. Areas underlain by denser materials reflect more positive anomalies, while lower density zones generate more negative signatures (e.g., Lowrie and Fichtner 2019).
a Isostatic gravity anomaly map of the Philippines showing the Philippine Mobile Belt (PNB) generally bordered by negative anomalies corresponding to the deep trenches. Traces of major structures (e.g., fault, trench) and features (e.g., Palawan-Mindoro Microcontinental Block, PNB) were overlaid on the map. SBM = Sierra Madre Basin, IR = Isabella Ridge, ELT = East Luzon Trough, BR = Benham Rise, P1 = northern Philippine Trench, P2 = southern Philippine Trench, M1 = northern Manila Trench, M2 = central Manila Trench, M3 = southern Manila Trench, ZOE = Zambales Ophiolite extension, NS = Negros and Sulu Trenches intersection, C = southern Cotabato Trench. b Interpretation of seismic reflection profile across the SMB, IR, and ELT (modified from Hayes and Lewis 1984). The location of the seismic reflection profile is marked by the A–A′
The broad north-trending negative anomaly characterizes Luzon Island’s eastern offshore area; it represents the East Luzon Trough (ELT) forearc basin. The very low negative anomaly zones (< − 70 mGal) correspond to the thick accumulation of sediments, as confirmed by previous seismic and bathymetric surveys (Fig. 3b). Lewis and Hayes (1983) defined the plate boundary along eastern Luzon as a young active zone that decreases its activity toward the north. They also noted that gravity signatures do not follow the ELT’s trend, except the low anomalies south of 17° latitude. This observation is consistent with the trace of the ELT gravity anomaly (which propagates to the northeast) that was delineated in the isostatic anomaly map (Fig. 3a). The discrepancy between the active tectonic zone and the ELT suggested that the ELT exemplifies a portion of past subduction episodes (Lewis and Hayes 1983). The northern, very low-gravity zone (< − 70 mGal) was identified as the Sierra Madre Basin (SMB), with a maximum sediment thickness of 4.5 km (Lewis and Hayes 1983). The remnant of the Oligocene subduction zone, the Isabella Ridge, was also delineated in the isostatic gravity anomaly map (Lewis and Hayes 1983). Section A- A’ on the map presents the pattern of the negative Sierra Madre Basin (forearc basin), positive Isabella Ridge (subduction complex), and moderate gravity anomaly East Luzon Trough (trench) (Fig. 3b). The Benham Rise, which is interpreted as a large igneous province (Barretto et al. 2020), is exemplified by the circular high-gravity region on the gravity anomaly map (BR in Fig. 3a). To the south of the ELT, very low negative gravity anomaly zones may indicate very thick sediment accumulations, which defines the active tectonism along eastern Luzon (e.g., Lewis and Hayes 1983). The gravity anomalies along the ELT are in agreement with the known geology and tectonics delineated by previous studies (e.g., Lewis and Hayes 1983; Barretto et al. 2020).
The Philippine Trench is described as a young subduction system with an accretionary prism that disappears toward the Mindanao area (Cardwell et al. 1980; Karig et al. 1986). The isostatic anomaly map showed varying gravity signatures along the Philippine Trench; the northern part (P1) has a higher-gravity anomaly than the southern portion (P2). The very low negative gravity zone (< − 70 mGal) along the southern part of the Philippine Trench system may correspond to very thick sediment accumulation along the forearc basin. The positive low (green) anomaly zones (0 to 20 mGal) (P1 in Fig. 3a) represent the elevated higher-density mantle rocks (seaward) and thinning of sedimentary deposits (landward) (e.g., Lewis and Hayes 1983; Lowrie and Fichtner 2019). The bathymetric anomalies defining the Philippine Trench do not coincide well with the gravity low anomalies indicating a heterogenous subduction zone morphology. Furthermore, a discontinuous feature (L1) was also delineated on the gravity anomaly map, which may represent a structural boundary between the P1 and P2 (Fig. 3a). This gap can also be recognized as linear bathymetric low in Fig. 2.
The east-dipping Manila Trench shows non-uniform negative gravity anomalies that generally correspond to the variable thicknesses of sedimentary deposits overlying basement rocks. Hayes and Lewis (1984) reported that the Manila trench’s forearc basins have a maximum sediment thickness of 4.5 km. They also suggested that the thickness variation in the forearc basin is due to sediment accumulation and the accretionary prism’s local uplift rate. The distinct negative gravity values (< − 40 mGal) on the northern (M1) and southern (M3) portions of the Manila Trench represent a balance between the local accumulation of sediments and the uplift rate of accretionary prisms (Fig. 3a). In contrast, the absence of very low negative gravity anomaly values in the central part (M2) corresponds to the lower rate of local sediment accumulation relative to the rate of accretionary prism uplift (complex forearc) (Hayes and Lewis 1984). The very low negative gravity anomalies (< − 70 mGal) at the northern and southern portions of the Manila Trench correspond to the very thick sediment deposits; high sediment supply comes from the collision zones of Taiwan-Eurasia (north) and the Palawan-Mindoro Microcontinental Block (south) (Hayes and Lewis 1984). Recent seismic reflection and bathymetry data confirm the deformational patterns in the forearc region of the Manila Trench (Armada et al. 2020). The gravity anomalies along the Manila Trench (i.e., M1, M2, M3) (Fig. 3a) correlate well with the bathymetric and seismic data from earlier studies (e.g., Hayes and Lewis 1984; Armada et al. 2020). However, additional regional geologic and tectonic features can be recognized in the gravity anomaly map. The very high and contiguous gravity anomaly along the offshore western Luzon Island (Fig. 3a) was interpreted as the extension of the Zambales Ophiolite Complex. Furthermore, the gravity anomaly map shows a gap (L2) that divides the M3 (Fig. 3a). This west-northwest linear feature can also be recognized in the bathymetric map (Fig. 2) and may correspond to a regional tectonic feature related to the Philippine Fault Zone.
The Negros, Sulu, and Cotabato Trenches have prominent gravity lows generally associated with thick low-density sediments. Based on the generally expected gravity anomaly signatures of trenches and the previously defined correlation between the processed isostatic gravity anomaly map and detailed ground surveys, the complex forearc basin system of these three trenches (i.e., Negros, Sulu, Cotabato) can be understood. The peculiar very low-gravity zones were noted at the intersection of Negros and Sulu Trenches (NS) and the southern part of the Cotabato Trench (C) (Fig. 2a). Since there are no detailed studies about these three trenches, we can deduce that the very low-gravity zones may suggest a very thick accumulation of sediments; these may indicate active local tectonics along the negative zones.
The isostatic gravity anomalies correlate with the subsurface geology, sedimentary basins, and basement rocks of the Philippines. The map reflects the variations of gravity fields caused by density differences of materials in the upper crust. Based on the lithologic classification from published works (e.g., Aurelio and Peña 2002; MGB 2010), regional groupings were overlaid on the gravity anomaly map (Fig. 4). The summary of the regional geologic groupings concerning the gravity anomaly map is presented in Table 1. Generally, negative gravity signatures represent the sedimentary basins (< 0 mGal), moderate gravity anomalies correspond to the metamorphic rocks (0 to 80 mGal), and very high-gravity anomalies typify ophiolitic basement rocks (> 80 mGal).
Isostatic anomaly map of the Philippines showing the general distribution of a sedimentary basins (polygons with hachures), metamorphic rocks (heavy line polygons), and b ophiolitic rocks (modified from MGB 2010). Numbers represent the sedimentary basins of PMB affinity: 1 = Ilocos-Central Luzon (ICL), 2 = Cagayan Valley (CV), 3 = Mindoro, 4 = Southern Luzon-Bicol, 5 = Iloilo, 6 = Visayan Sea, 7 = Samar, 8 = Agusan-Davao (AD), 9 = Cotabato (C). BS = Bohol Sea, NPM = Northern Palawan-Mindoro block (white polygon), AR = Antique Range. Circles symbolize the occurrences of nickel (black) and chromite (white) deposits in the Philippines (MGB 2010)
The gravity anomaly map also correlates well with the three major basins of the Philippines, namely, Ilocos-Central Luzon Basin (ICL), Cagayan Valley Basin (CV), and Agusan-Davao Basin (AD) (Fig. 4a). These sedimentary basins have distinct and defined north-trending negative anomalies (< − 20 mGal). The isostatic gravity anomaly map only shows negative gravity anomalies on significantly thick sedimentary formations. Correlated with the established geology (Aurelio and Peña 2002; MGB 2010), other portions of the basins do not show negative anomalies because of their shallow and/or very dense basement rocks; high-gravity anomaly masks the gravity lows representing the sedimentary formations. Circular gravity lows were also delineated across the Bohol Sea (BS), signifying a very thick sediment accumulation. This feature was previously interpreted as the proto-Southeast Bohol Trench that bound the Western Visayan Block (Yumul et al. 2008b).
The distribution of metamorphic rocks generally coincides with moderate gravity anomaly values (0 to 80 mGal) (Fig. 4a). MGB (2010) classified metamorphic rocks into Pre-Cretaceous (continental) and Cretaceous (island arc) metamorphic zones. Pre-Cretaceous metamorphic zones in the east-central Philippines (i.e., Northern Palawan-Mindoro, Antique Range) are represented by lower gravity anomalies (0 to 30 mGal). The Cretaceous metamorphic rocks, which are sparsely distributed in eastern Luzon, Visayas, and Mindanao islands, have higher-gravity signatures (30 to 60 mGal). The Cretaceous zones are characterized by mafic-to-ultramafic rocks (Aurelio and Peña 2002; MGB 2010). The exception to the positive correlation between the moderate gravity signatures and metamorphic rocks are those areas that are dominantly underlain by ophiolitic rocks. The very high-gravity anomaly signature of ophiolitic rocks masks the gravity lows that represent the metamorphic regions. The documented metamorphosed ophiolitic rocks along the eastern Luzon (Geary et al. 1988; Billedo 1994) and eastern Mindanao (Pubellier et al. 1991; Quebral 1994) are consistent with these observations.
The regional groupings of ophiolitic rocks, delineated by previous works (e.g., Aurelio and Peña 2002; MGB 2010), coincide well with areas having very high-gravity anomalies (> 70mGal) (Fig. 4b). The occurrence of ophiolitic rocks, which serve as basement rocks of most islands, is extensive within the Philippines. Lower-gravity anomalies are due to metamorphism in some ophiolitic zones (e.g., southeastern Luzon). Among the identified ophiolitic regions, the gravity anomaly map presents cluster of very high-gravity zones. These clustered regions have distinguishable massive outcrops of ultramafic rocks: northern Luzon (Ilocos Norte Ophiolite), western Luzon (Zambales Ophiolite Complex), eastern Luzon (Isabela-Aurora Ophiolite), southern Palawan (Palawan Ophiolite), Samar-eastern Mindanao (NE Leyte, Samar, SW Leyte, Dinagat, Surigao, Pujada ophiolites), Central Mindanao (Central Mindanao ophiolites), and western Mindanao (Zamboanga Ophiolite). These regions were described in McCabe et al. (1982), Schweller et al. (1984), Rangin et al. (1985), Mitchell et al. (1986) and MGB (2010). This gravity information is essential in constraining geologic boundaries in areas difficult to map due to inaccessibility. The massive occurrence of ultramafic rocks resulted in highly positive anomalies in these regions. This has previously been reported for some Philippine ophiolites such as the Southeast Bohol Ophiolite (Barretto et al. 2000) and the Zambales Ophiolite Complex (Salapare et al. 2015). Gravity-high anomalies related to ophiolites were also observed in some studies in the USA (Godfrey et al. 1997) and Oman (Manghnani and Coleman 1981). Complete ophiolite suites were also reported in some areas (i.e., Zambales, Isabela, southern Palawan, Pujada). These wide-ranging and regional gravity signatures provide a better picture of the complex Philippine island arc system in correlation with available ground data.
4 Methodology
4.1 Data used
The Philippines’ isostatic anomaly digital grid was acquired from the World Gravity Map (WGM) of the Bureau Gravimetrique International (BGI) (2012). The BGI produced global gravity anomaly maps and digital grids considering an Earth model that accounts for the influence of most surface masses (e.g., atmosphere, land, oceans, lakes) (Balmino et al. 2012). Different corrections were applied to the gravity data to remove the non-geologic effects; three WGM anomaly maps were produced (i.e., surface free air, Bouguer, isostatic) by BGI taking into account the elevation data from ETOPO1 Global relief (Bonvalot et al. 2012). The gravity anomalies were computed based on the spherical geometry of the isostatic equilibrium (Airy–Heiskanen model). In this computation, the effects of deep isostatic roots and anti-roots were removed (Balmino et al. 2012). Thus, the isostatic anomaly map shows the gravity anomalies that correspond to the geologic features in the upper crust (Simpson et al. 1985; Lowrie and Fichtner 2019). The isostatic anomaly grid has a gravity dataset with a 1-min by 1-min (1′ by 1′) spatial resolution (Balmino et al. 2012). The high-resolution isostatic anomaly digital grid of WGM was processed to reveal the Philippines’ geologic structures and features from surface to upper crustal depths. Nonlinear color zoning was used to generate the Philippines' isostatic anomaly map to represent the wide range of grid values (-280 to 200 mGal) efficiently. The elevation data were downloaded from the 30-m Shuttle Radar Topographic Mission (SRTM) Digital Elevation Model (DEM). The bathymetric map of the Philippines was modified from the General Bathymetric Chart of the Oceans (GEBCO) (2020). The distribution of the general geologic groupings was outlined from the ‘Geology of the Philippines’ (e.g., Aurelio and Peña 2002; MGB 2010). ArcGIS software was used to register and overlay secondary data and visualize the features related to gravity anomaly. Geosoft Oasis Montaj software was utilized to process, filter, analyze, and generate gravity anomaly maps.
4.2 Grid enhancement processes
Upward continuation: In understanding deeper large-scale crustal features, gravity anomalies due to smaller local small structures are less important than the regional anomalies. The regional gravity signals can be enhanced to focus on deeper features (Lowrie and Fichtner 2019). Since deep and large bodies produced long-wavelength and broad anomalies, upward continuation was applied to smooth out near-surface effects (e.g., Nabighian et al. 2005). The isostatic gravity anomaly was continued upward to investigate the Philippines’ density distribution according to depths. The digital grid was processed by applying an upward continuation filter at 5 and 20 km distances. The upward continuation estimates and emphasizes the gravity anomaly at a minimum depth of half of the input filter (e.g., 5 km filter = 2.5 km minimum depth) (Jacobsen 1987). The upward continuation was implemented to investigate the high-density ophiolitic basement rocks and low-gravity sedimentary basins at depth (Figs. 5 and 6).
Upward continued maps of the Philippines at 5 and 20 km representing minimum depths of a 2.5 and b 10 km, respectively. a Massive ophiolitic outcrops coincide with very high-gravity anomaly signatures (> 90mGal). Representative ophiolites and ophiolite complexes are labeled on the map: I = Ilocos Norte Ophiolite, ZBL = Zambales Ophiolite Complex, P = Palawan Ophiolite, ZBN = Zamboanga Ophiolite, T = Tacloban Ophiolite Complex, SM = Samar Ophiolite, D = Dinagat Ophiolite, SR = Samar Ophiolite, CM = Central Mindanao Ophiolite. White labels represent the massive magmatic arcs: N = Negros, DR = Daguma Range. White dashed polygons present the four major zones (> 90 mGal) that suggest thicker and more massive ophiolitic basement rocks. b Generally, the central Philippines has lower-gravity anomalies (20–35 mGal) than the rest of the archipelago (45–200 mGal). CP = Central Philippines, LZN = Luzon, MNDN = Mindanao
Upward continued maps of Luzon Island at 5, 10, and 20 km representing minimum depths of a 2.5, b 5, and c 10 km, respectively. The magmatic belts separate Ilocos-Central Luzon Basin (ICL) and Cagayan Valley Basin (CB) along Central Cordillera (CC) (MGB 2010). c Very low-gravity anomaly zones (< 5mGal) indicate portions of the basins with thickest sediment accumulation (e.g., Tamesis 1976; Bachman and Lewis 1983)
First vertical derivative: The first vertical derivative (1VD) filter was applied to the FAA grid map to highlight the edges of gravity anomalies in the Sulu Sea (Fig. 7b). This grid enhancement process helped locate regional structures represented by density contrast boundaries. The first vertical derivative presents the rate of change of the gravity field in a vertical direction. The resolution of the short-wavelength anomalies is significantly enhanced, and the regional (long-wavelength) gravity field signal is attenuated when the first vertical derivative is applied (Nabighian et al. 2005). The shallow near-vertical contacts of the subsurface bodies in the Sulu Sea are represented by the zones that correspond to the zero value. The resulting map was correlated with the Sulu Sea upper crustal structures. The 1VD was only performed over the Sulu Sea to present an example of a supplementary way of deducing large-scale geologic structures and features, especially in remote areas with complex tectonics and scarce ground data.
a FAA map of Sulu Sea showing the three major features: NWB = Northwest Basin, CR = Cagayan Ridge, SEB = Southeast Basin. The numbers represent the center of the sub-windows location for the calculation of the radially averaged power spectrum. b The first vertical derivative map reveals the Sulu Sea’s enhanced shallow features. Prominent lineaments were traced (black dashed line) corresponding to some large-scale structures (e.g., Rangin 1989; Schlüter et al. 1996). BB = Balabac Basin, BR = Banggi Ridge. See text for discussion
4.3 Two-dimensional (2-D) radially averaged power spectrum analysis
The depth to the top of the interfaces with varying regional density contrast (e.g., Moho, basement rock) in the Sulu Sea was estimated using the 2-D radially averaged power spectrum technique. The power spectrum radial value of potential field data can be obtained using a Fourier transform (Spector and Grant 1970; Mishra and Pedersen 1982; Tselentis et al. 1988). Many studies have established the usefulness of the 2-D radially averaged power spectrum analysis for estimating the Moho depth, crustal thickness, and basement rock interfaces (Gómez-Ortiz et al. 2005; Leseane et al. 2015; Kumar et al. 2016; Alemu et al. 2018; Kunnummal and Anand 2019). In this study, the radial power spectra were prepared using the forward fast Fourier transform (FFT) function of the Geosoft software. The natural logarithms of the spectral values were plotted against the wavenumbers. The slope of each segment gives a proportional average depth of the density contrast interface (e.g., Tselentis et al. 1988). The WGM2012 FAA grid in the Sulu Sea region was used in this process to delineate the estimated depths of the abrupt density discontinuities at deeper levels. The Sulu Sea was chosen as the representative area to apply the 2-D radially averaged power spectrum analysis for characterizing the crustal features and estimating the Moho depth because of its complex tectonics (Murauchi et al. 1973; Kudrass et al. 1986; Rangin 1989; Schlüter et al. 1996; Liu et al. 2014).
Firstly, the optimum sub-window size was identified by analyzing power spectra of different grid cell sizes of 0.5° by 0.5° (~ 55 km by 55 km), 1° by 1° (~ 110 km by 110 km), and 2° by 2° (~ 220 km by 220 km). Since the geophysical data available in the Sulu Sea are scarce, an initial estimate of the depth to Moho was obtained using the Crust 1.0 model (Laske et al. 2013) and some limited seismic reflection and refraction data (Murauchi et al. 1973). The Crust 1.0 model presents a range of 18 to 23 km Moho depth over the Sulu Sea, while the seismic refraction measurements estimate a crustal thickness of around 11 km along the NW Sulu Basin. By comparing the calculated depths of the first segment (at different sub-window sizes) using the 2-D spectral analysis and the initial estimate of Moho depths, a good correlation was obtained for a sub-window dimension of 1° by 1°. A total of 60 sub-windows having 50% overlap in all directions were generated. The spectral graph can be generally subdivided into three different slopes that correspond to the average depth of the interfaces. The first segment (lowest wavenumber) represents the deeper depth. The second segment corresponds to the shallower depth; the slope with the highest wavenumber is usually due to the shallow noise.
4.4 Three-dimensional (3-D) gravity inversion
Several studies about the geology of the sedimentary basins of the Philippines have been published focusing on drilling data and seismic profiles (e.g., Caagusan 1978; Tamesis 1981; Saldivar-Sali et al. 1986). These previous studies presented results and geologic cross sections with higher resolution (e.g., basin thickness). However, since not all of the portions of the basins were assessed using seismic and drilling surveys, the wide-ranging coverage of the WGM2012 dataset can fill the gaps or areas without available ground data. The 3-D gravity inversion program was originally developed by the co-author, Dr. Hideki Mizunaga. The program is based on the theory of inverting surface gravity data to retrieve a 3-D distribution of density contrast (Li and Oldenburg 1998). The coarseness of the 3-D inversion result presents a limitation for local and detailed interpretation. Yet, these 3-D models provide supplementary information for a large-scale density estimate of the upper crustal zones.
The 3-D density contrast models of four large representative basins were estimated by applying a linear solution approach. The solution was determined using a linear relationship between the shape/dimension variation and density contrast. A large rectangular superblock was discretized into small rectangular blocks to enable the numerical solution of the inverse problem of the gravity data. A total of 638 gravity data points from the isostatic anomaly map of the WGM 2012 were used to generate a synthetic model of 8,000 blocks. The subsurface was divided into 50 by 40 by 4 in X, Y, and Y directions. The program employed iterations using a least-square solution to minimize the objective function (Haáz 1953). An L2-norm regularization was used with varying smoothness factors to minimize the non-unique solution. Several inversion processes were performed using different smoothness factors. The available geologic cross sections were used to constrain the 3-D models. The smoothness factor that generated the best match with the geologic cross sections (Tamesis 1981) based on drill hole and seismic reflection data was used for the 3-D gravity inversion. A parameter that minimizes the sum of the differences between the observed and calculated gravity anomalies (residual function) should be obtained to solve the inverse problem. The best values of the parameters were calculated by minimizing the sum of squares of the residuals between the observed and calculated anomalies.
5 Results and discussion
5.1 Basement rocks and basins
The Philippines’ upward continuation maps show that the very high-gravity anomalies (> 75 mGal), associated with the dense features, are distributed in Luzon, southern Visayas islands, Mindanao, and southern Palawan (Fig. 5). The 5 km upward continuation delineates areas underlain by very dense ophiolite rocks or may indicate the occurrence of massive magmatic arcs (e.g., Negros, Daguma Range). Very high (> 90 mGal) gravity anomaly signatures coincide with the well-known massive ophiolitic outcrops (e.g., Tamayo et al. 2004; Yumul 2007). The 5 km upward continuation of gravity anomaly can be clustered into four regions: western Luzon, eastern Visayas-Mindanao, western Mindanao, and southern Palawan (Fig. 5a). Very high-gravity anomalies were recognized in western Luzon—representing the Zambales Ophiolite Complex (e.g., Abrajano and Pasteris 1989; Yumul and Dimalanta 1997), and offshore extension of Ilocos Norte Ophiolite northeast of Luzon (e.g., Arai et al. 1997; Pasco et al. 2019). These high-gravity anomalies characterize the dense ultramafic rocks separated by the thick Ilocos-Central Luzon basin. In southern Palawan, the very high-gravity anomaly corresponds to the Palawan Ophiolite (e.g., Rammlmair et al. 1987; Aurelio et al. 2014) perceivable at the eastern offshore of central Palawan. High-gravity signatures of Zamboanga Ophiolite (i.e., Polanco, Titay) (Yumul et al. 2004) are apparent in western Mindanao. Finally, the continuous very high-gravity anomalies along the Leyte and Samar islands due to the Tacloban and Samar ophiolites (e.g., Balmater et al. 2015; Guotana et al. 2017) are very prominent on the 5 km upward continuation map (Fig. 5a). The same anomalies are also remarkable along the easternmost Mindanao due to the Dinagat and Surigao ophiolites (Yumul 2007; MGB 2010). Similar to the case in northern Luzon, the signatures of the very high anomaly zones in western Mindanao and northcentral Mindanao (Central Mindanao Ophiolite) are separated by the negative anomaly signature of the ~ 4.5 km thick Agusan Davao Basin (Ranneft et al. 1960). High-gravity signatures of the massive Negros and Daguma magmatic arcs that persist at deeper levels may indicate dense ophiolitic basement rocks. Limited regional studies of southern Mindanao mentioned the occurrence of serpentinized peridotite as part of the Basement Complex of western Mindanao (e.g., Ranneft et al. 1960). After applying the 20 km upward continuation (Fig. 5b), the exceptionally high anomalies (> 90 mGal) are only recognizable in western Luzon and southwest Mindanao. These anomalies indicate that the sources of the signal are located at a deeper level. The persistence of the very high-gravity anomaly values in southern Mindanao may suggest a very massive and dense ophiolitic basement complex. It is also interesting to note that the central Philippines (CP) has generally lower-gravity signatures (20–35 mGal) compared to the distinct very high-gravity values (45–200 mGal) in Luzon and Mindanao (Fig. 5b). This is a significant indication of dissimilar major basement rocks (i.e., continental and oceanic origins) of the Philippine archipelago, revealed by their characteristic gravity signatures (e.g., Manalo et al. 2015).
In contrast to the high anomaly zones of dense and massive basement rocks, the sedimentary basins manifest a strong negative anomaly due to the mass deficiency of the underlying thick sedimentary rocks and Quaternary alluvium. The gravity anomaly data from Luzon Island were separately presented to understand the range of gravity anomaly values corresponding to the sedimentary basin. Figure 6a shows Luzon Island’s gravity signatures after the 5 km upward continuation filtering; negative gravity anomalies characterize the Philippines’ two major basins, i.e., Ilocos-Central Luzon Basin (ICL), Cagayan Valley Basin (CV). The Oligo-Miocene magmatic belts generally separate the two basins along Central Cordillera (CC) (MGB 2010) (Fig. 6b). The main north-trending negative anomalies (− 15 to − 37 mGal) are still present until the 20 km upward continued depth (Fig. 6c). The Ilocos-Central Luzon Basin (west) exemplified a larger negative anomaly zone than the Cagayan Valley Basin (east). The maximum thickness of the Oligocene to Pleistocene sedimentary deposits underlying the Ilocos-Central Luzon Basin (14 km) is thicker than the sedimentary sequence in Cagayan Valley Basin (10 km) (Tamesis 1976; Bachman and Lewis 1983). The portions dominated by very low anomalies (< 5 mGal) gave a general indication of where sediment accumulation is thickest within the basins. At a 10 km upward continuation, the lowest gravity anomalies were delineated in the central portion of the Cagayan Valley Basin and the southern part of the Ilocos-Central Luzon Basin. The 20 km upward continuation map shows the negative gravity anomaly diminished in the northern part of the Ilocos-Central Luzon Basin; it implies that the dense basement rock is shallower in the northern Ilocos Region than in south-central Luzon. These new regional processed data provided supplemental knowledge in understanding the Philippines’ basins and basements in relation to their gravity signatures.
5.2 Crustal features and Moho depths in the Sulu Sea
Large-scale features in the Sulu Sea were characterized using the FAA grid data of the WGM 2012. The FAA gravity map of the Sulu Sea shows values that range from − 86 to 85 mGal (Fig. 7a). This map reveals regional geologic features (with varying density) representing shallow and deep sources. The Sulu Sea has three distinct gravity features, which will be the focus of this section. The very high-gravity anomaly (> 60 mGal) of Cagayan Ridge (CR) subdivides the basin into two: NW Basin (NWB) and SE Basin (SEB) (Fig. 7a). This east–northeast-trending feature represents a submerged ridge of an extinct volcanic arc, which is generally composed of volcanic rocks (e.g., basalt, andesite) overlain by thick carbonate sediments (Kudrass et al. 1986; Rangin 1989). Gravity low (< − 24 mGal) represents the NWB, while moderate gravity anomalies (20 to 40 mGal) characterize the SEB. The NWB represents a suture zone that marks the collision between the Palawan Continental Block and Cagayan Ridge (Rangin and Silver 1991). There are two prominent hypotheses for the origin of the SEB. The first hypothesis implies that the subduction of the Proto South China Sea (PSCS) triggered the Cagayan arc volcanism and ‘SE Basin’ back-arc formation. The counter hypothesis suggests that the SEB is a marginal basin opened before the Cagayan arc volcanism (Rangin and Silver 1991).
The first vertical derivative (1VD) map was prepared to delineate upper crustal geologic features in the Sulu Sea (Fig. 7b). The 1VD map generally presents how much the gravity potential changes in the vertical direction (e.g., Nabighian et al. 2005). Steep and semi-vertical features, where potential does not change, are represented by zero or near-zero values. Prominent linear features and some large-scale structures (e.g., vertical fault, fold axis) identified by the previous studies (e.g., Rangin 1989; Schlüter et al. 1996) were overlaid on the map. The 1VD map shows that anomalies are associated with shallow features that are dominantly related to the Cagayan Ridge.
Gravity anomaly features at the central part have a general NE–SW orientation. These structures are related to normal faults as delineated from the seismic and Seabeam data (Rangin 1989). The southeast extension of the CR fracture zones was also traced to the map's southwesternmost portion. These features imply the extension of CR to the southwest as represented by the similar rock types identified in the area (Rangin 1989). The NWB and SEB are relatively quiet in terms of 1VD features. However, some large-scale features bound the northern and southern NWB. The ENE-trending features in the northern part of the NWB are associated with the set of folds (Rangin 1989). In contrast, NE and NNW-trending features are attributed to the normal faults along Balabac Basin (BB) and Banggi Ridge (BR) (Rangin 1989). Two NW-trending features were identified in the northern part SEB. The previous studies did not recognize these features; these areas can be sites of interest for future detailed studies. Generally, the good correlations present us with a supplementary way of deducing large-scale geologic structures and features, especially in remote areas without available ground data.
The result of the 2-D spectral analysis presented an estimated depth of Moho and basement rocks along the three prominent gravity high and low zones. Figure 8 shows representative examples of 2-D radially averaged power spectral curves in the Sulu Sea. The results obtained using the 2-D radially averaged power spectrum analysis revealed that the average depth to the top of the deeper segment ranges from 12 to 23 km (Fig. 9a). On the other hand, the average depth to the top of the shallow segment is within the range of 5 to 11 km (Fig. 9b). The deeper segment is associated with the Moho depth based on the 11 to 23 km depth range obtained from the Crust 1.0 model (Laske et al. 2013) and some available seismic reflection and refraction data (Murauchi et al. 1973). The gravity zone associated with the CR can be attributed to a relatively shallow Moho (~ 14 to 16 km). The NWB is generally represented by deep Moho (~ 19 to 22 km), while the SEB is dominantly characterized by very shallow Moho (~ 12 to 14 km) (Fig. 9a). The shallower segment is interpreted as the depth to the basement rock (5 to 11 km). This estimate was constrained by previous works (Murauchi et al. 1973; Rangin 1989). Based on the seismic refraction and reflection study of Murauchi et al. (1973), the layer at a depth of 6 km (SEB) to 10 km (NWB) may represent a volcanic basement or metasediments. The gravity zone associated with the NEB has a deep basement rock (north: 9 to 11 km, south: 7 to 9 km) (Fig. 9b). This occurrence can be attributed to the thickening of the sedimentary deposits (1 to 7.5 km) toward Palawan (Murauchi et al. 1973). The SEB is dominantly characterized by basement rock with shallow depth to the north (5 to 7 km) and relatively deep (7 to 9 km) to the south. The shallow basement rock is due to a basement rock overlain by thin sedimentary deposits (Murauchi et al. 1973; Rangin 1989). Generally, the southeastern side of the CR has ~ 7.5 km depth to basement rock. However, varying depths to the basement were noted on the northwestern side. Some portions at the north have very shallow basement rock (5 to 7 km), while some of the southern parts have deeper basement rocks (8 to 9 km). That may be attributed to the difference in sedimentary thickness along these sides (Murauchi et al. 1973; Rangin 1989).
Two-dimensional (2-D) radially averaged power spectral curves of some representative blocks extracted from 1-degree by 1-degree sub-windows of the FAA anomaly map in the Sulu Sea. See Fig. 7 for the sub-window location
The three prominent FAA gravity anomalies discussed in this section are attributed to the depths of basement rock and Moho. However, based on the pattern and orientation of the depth maps, the FAA gravity anomaly associated with CR and the two sub-basins: NWB and SEB, are predominantly controlled by Moho undulation. The new estimate of Moho depth and pattern, based on the 2-D spectral analysis along the Sulu Sea, supports the back-arc basin evolution hypothesis of the SE Basin (Rangin and Silver 1991). The deep Moho and basement rock (thicker sedimentary deposits) in NWB can be associated with the thickened crust due to the subduction/collision of the Proto South China Sea (PSCS) (Rangin and Silver 1991; Liu et al. 2014). This event triggered the volcanism of the Cagayan arc and the opening of the ‘SE Basin’ oceanic back-arc basin (shallow Moho and basement rock). Although the 2-D spectral analysis scope is limited within the Sulu Sea, the results still present the usefulness and applicability of the WGM 2012 dataset for large-scale mapping and reconnaissance surveys.
5.3 Three-dimensional (3-D) gravity inversion in sedimentary basins
This section presents a general discussion of the results of 3-D gravity inversion in representative areas of major sedimentary basins in the Philippines. The result of the 3-D gravity inversion provides additional knowledge by presenting new 3-D density contrast models of the subsurface with extensive coverage (e.g., estimated thickness, morphology). The 3-D density contrast model of the Cagayan Valley Basin (CV) shows a low-density anomaly belt, which has a general trend NNW direction. This low-density zone corresponds to the low-gravity anomaly of sedimentary basin features in CV (Fig. 10a). Figure 10b shows a low-density zone characterized by deep extension at the northern part of the map (7 km depth). These features were not presented in the southern part of the map. The thick low-density zones to the north were correlated to the upper Neogene to lower Neogene sedimentary deposits underlain by older and denser Cretaceous-Paleogene sedimentary rocks (Tamesis 1981) (Fig. 10e). On the contrary, the 3-D density of the Central Luzon Basin (CL) presents deeper and more extensive low-density zones, especially to the southern part of the map (Fig. 10c). Relatively thin low-density zones, representing thin sedimentary deposits, are recognized in the central part of the map (Fig. 10d). The southern part reveals the very thick Quaternary and Neogene deposits (> 7 km) (Fig. 10f). The very dense zones for both the CV and CL 3-D models represent the basement rocks of the sedimentary basins (e.g., ultramafic complexes, ophiolitic rocks) (e.g., Tamesis 1981).
a Horizontal (at 3, 5, and 7 km depths) and b vertical slices at the Y-axis (at 2, 10, 20, 30, 40, and 50 km distances from the southern edge of the map) of the Cagayan Valley Basin’s (CV) 3-D density contrast model. The c horizontal and d vertical slices at the Y-axis of the 3-D density contrast model of the Central Luzon Basin (CL) present broader and deeper, and negative density contrast zones. Coordinates (a, c) are in WGS 84/UTM Zone51 N (km). The comparison of the geological cross sections (upper) and density contrast model (× 1.5 vertical exaggeration) resulting from the 3-D inversion (lower) are presented for the e CV and f CL. KPG = Cretaceous–Paleogene, LM = Lower Neogene, UN = Upper Neogene, OLM = Oligocene–Lower Miocene, MM = Middle Miocene, UM = Upper Miocene, PP = Plio–Pleistocene. The geological cross sections are modified from Tamesis (1981), and the locations of the maps and section lines are shown in Fig. 2
The basin morphologies in the Agusan-Davao Basin (AD) and Cotabato Basin (C) were also mapped using the 3-D gravity inversion results. Figure 11a and b shows relatively thin and narrow low-density zones representing the Pliocene to Miocene sedimentary deposits. The AD is generally oriented NNW and thickens from south to north. The sedimentary basin thickness can be estimated at 3 to 5 km. Figure 11c and d shows maps and sections of Cotabato Basin that are dominantly influenced by positive density contrast. Higher-density zones correspond to the very shallow basement rocks in the area. The very thin (2 to 3 km) low-density zones are interpreted as Neogene sedimentary deposits distributed in the central and eastern parts of the maps. The very low negative density contrast at the eastern part is attributed to the Quaternary pyroclastics in the area. The model's resolution is coarse due to the coarseness of the dataset and the computational capacity of the program. Nonetheless, the large-scale sedimentary thickness distribution and basin morphology can be mapped using the 3-D gravity inversion results. The use of the WGM2012 dataset for basin characterization and 3-D visualization presents a fast and efficient way of understanding the regional geology of vast areas of interest.

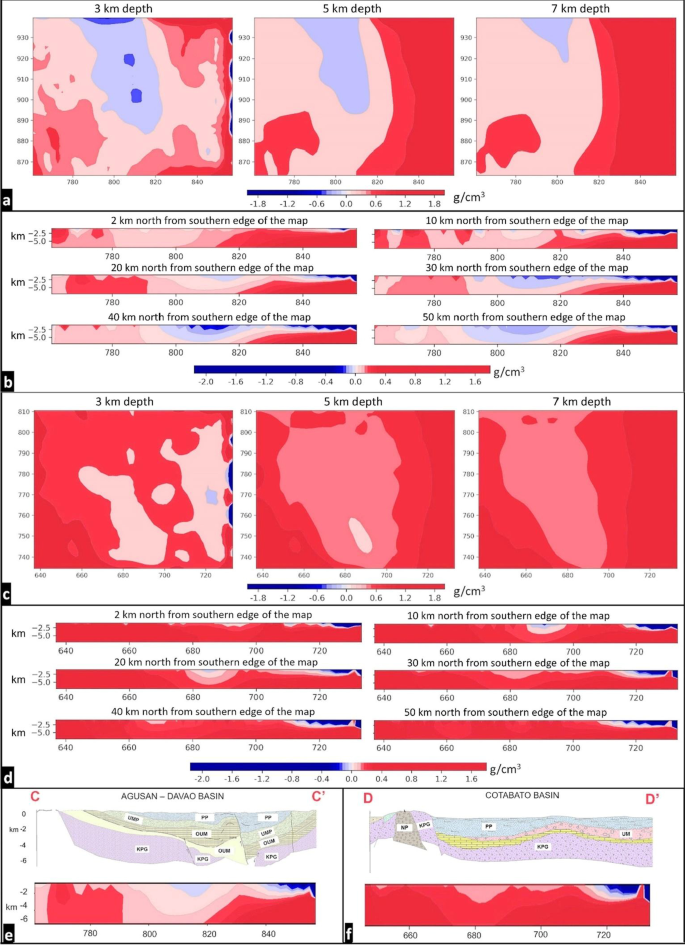

Horizontal (3, 5, and 7 km depth) and b vertical slices at Y-axis (2, 10, 20, 30, 40, and 50 km from southern edge of the map) of the 3-D density contrast model in Agusan- Davao Basin (AD) and c, d Cotabato Basin (C). Coordinates (a, c) are in WGS 84/UTM Zone51 N (km). The comparison of the geological cross sections (upper) and density contrast model (× 1.5 vertical exaggeration) resulting from the 3-D inversion (lower) are presented for the e AD and f C. KPG = Cretaceous–Paleogene, NP = Neogene Pluton, OUM = Oligocene–Upper Miocene, UMP = Upper Miocene–Pliocene, UM = Upper Miocene, PP = Plio–Pleistocene. The geological cross sections are modified from (Tamesis 1981), and the locations of the maps and section lines are shown in Fig. 2
6 Conclusions
Many parts of the Philippine island arc system still lack geopotential field studies; earlier gravity anomaly maps are only based on limited data points. The wide-ranging and complete gravity datasets from the WGM 2012 are very useful in understanding the regional geologic and tectonic features of the Philippine archipelago by providing significant constraints in evaluating the structures from upper to lower crustal depths (e.g., basin, basement, Moho). The investigation of gravity anomalies in the Philippine island arc system presents negative gravity anomaly zones that correspond to the surrounding trenches that bound the PMB and thick sedimentary basins. Areas with moderate gravity anomalies are associated with metamorphic belts and the very high-gravity anomaly regions define the ophiolitic basement rocks. The upward continuation of the gravity data reveals a relatively low gravity (20–35 mGal) in continental central Philippines compared to the gravity highs (45–200 mGal) of the island arc PMB. This study also presents a new estimate of the average Moho (12 to 22 km) and basement (5 to 11 km) depths along the Sulu Sea using the 2-D radially averaged power spectrum analysis. The application of the 3-D gravity inversion in some major sedimentary basins in the Philippines provides an efficient and effective way of characterizing and visualizing the regional subsurface density contrasts. With the availability and proven efficiency of the WGM 2012 data, these techniques can be applied for future structural and geologic explorations in the Philippines and areas with similar geologic and tectonic settings.
Availability of data and materials
The gravity digital grids and data used in this study are available online at https://bgi.obs-mip.fr/data-products/grids-and-models/wgm2012-global-model/. The DEM from the SRTM can be downloaded at https://www2.jpl.nasa.gov/srtm/cbanddataproducts.html, and the bathymetry data can be acquired from https://download.gebco.net.
Abbreviations
- WGM:
-
World Gravity Map
- PMB:
-
Philippine Mobile Belt
- EGM2008:
-
Earth Gravitational Model 2008
- BGI:
-
Bureau Gravimetrique International
- SRTM:
-
Shuttle Radar Topographic Mission
- GEBCO:
-
General Bathymetric Chart of the Oceans
- DEM:
-
Digital Elevation Model
- MGB:
-
Mines and Geosciences Bureau
- ELT:
-
East Luzon Trough
- SMB:
-
Sierra Madre Basin
- ZOE:
-
Zambales Ophiolite Complex Extension
- NS:
-
Negros and Sulu Trenches
- C:
-
Cotabato Trench
- ICL:
-
Ilocos-Central Luzon Basin
- CV:
-
Cagayan Valley Basin
- AD:
-
Agusan-Davao Basin
- BS:
-
Bohol Sea
- 1VD:
-
First Vertical Derivative
- NWB:
-
Northwest Basin
- CR:
-
Cagayan Ridge
- SEB:
-
Southeast Basin
References
Abrajano TA, Pasteris JD (1989) Zambales ophiolite, Philippines - II. Sulfide petrology of the critical zone of the Acoje Massif. Contrib Miner Petrol 103:64–77. https://doi.org/10.1007/BF00371365
Alemu T, Abdelsalam MG, Dawit EL, Atnafu B, Mickus KL (2018) The Paleozoic – Mesozoic Mekele Sedimentary Basin in Ethiopia: an example of an exhumed IntraCONtinental Sag (ICONS) basin. J Afr Earth Sci 143:40–58. https://doi.org/10.1016/j.jafrearsci.2018.03.010
Arabelos DN, Tscherning CC (2010) A comparison of recent Earth gravitational models with emphasis on their contribution in refining the gravity and geoid at continental or regional scale. J Geodesy 84:643–660. https://doi.org/10.1007/s00190-010-0397-z
Arai S, Kadoshima K, Manjoorsa MV, David CP, Kida M (1997) Chemistry of detrital chromian spinels as an insight into petrological characteristics of their source peridotites: an example from the Ilocos Norte ophiolite, northern Luzon, Philippines. J Mineral Petrol Econ Geol 92:137–141. https://doi.org/10.2465/ganko.92.137
Armada LT, Hsu S-K, Dimalanta CB, Yumul GP Jr, Doo W-B, Yeh Y-C (2020) Forearc structures and deformation along the Manila Trench. J Asian Earth Sci X 4:100036. https://doi.org/10.1016/j.jaesx.2020.100036
Aurelio MA (2000) Shear partitioning in the Philippines: constraints from the Philippine fault and global positioning system data. Island Arc 9:584–597. https://doi.org/10.1111/j.1440-1738.2000.00304.x
Aurelio MA, Peña RE, Taguibao KJL (2013) Sculpting the Philippine Archipelago since the Cretaceous through rifting, oceanic spreading, subduction, obduction, collision and strike-slip faulting: contribution to IGMA5000. J Asian Earth Sci 72:102–107. https://doi.org/10.1016/j.jseaes.2012.10.007
Aurelio MA, Forbes MT, Taguibao KJL, Savella RB, Bacud JA, Franke D, Pubellier M, Savva D, Meresse F, Steuer S, Carranza CD (2014) Middle to Late Cenozoic tectonic events in south and central Palawan (Philippines) and their implications to the evolution of the south-eastern margin of South China Sea: Evidence from onshore structural and offshore seismic data. Mar Pet Geol 58:658–673. https://doi.org/10.1016/j.marpetgeo.2013.12.002
Aurelio MA, Peña RE (2002) Geology and Mineral Resources of the Philippines - Volume 1: Geology. Department of Environment and Natural Resources – Mines and Geosciences Bureau, Philippines
Bachman SB, Lewis SD (1983) Evolution of a Forearc Basin, Luzon Central Valley, Philippines. AAPG Bull 67:1143–1162. https://doi.org/10.1306/03B5B718-16D1-11D7-8645000102C1865D
Balmater HG, Manalo PC, Faustino-Eslava DV, Queaño KL, Dimalanta CB, Guotana JMR, Ramos NT, Payot BD, Yumul GP (2015) Paleomagnetism of the Samar Ophiolite: implications for the Cretaceous sub-equatorial position of the Philippine island arc. Tectonophysics 664:214–224. https://doi.org/10.1016/j.tecto.2015.09.024
Balmino G, Vales N, Bonvalot S, Briais A (2012) Spherical harmonic modelling to ultra-high degree of Bouguer and isostatic anomalies. J Geodesy 86:499–520. https://doi.org/10.1007/s00190-011-0533-4
Barretto JAL, Dimalanta CB, Yumul GP (2000) Gravity variations along the Southeast Bohol ophiolite complex (SEBOC), Central Philippines: implications on ophiolite emplacement. Island Arc 9:575–583. https://doi.org/10.1111/j.1440-1738.2000.00303.x
Barretto J, Wood R, Milsom J (2020) Benham Rise unveiled: morphology and structure of an Eocene large igneous province in the West Philippine Basin. Mar Geol 419:106052. https://doi.org/10.1016/j.margeo.2019.106052
Barrier E, Huchon P, Aurelio M (1991) Philippine Fault: a key for Philippine kinematics. Geology 19:32–35. https://doi.org/10.1130/0091-7613(1991)019%3c0032:PFAKFP%3e2.3.CO;2
Billedo E (1994) Geologie de la sierra madre septentrionale et de l’archipel de polillo (ceinture mobile est philippine): implications geodynamiques. Doctoral dissertation, Nice
Bonvalot S, Balmino G, Brias A, Kuhn M, Peyrefitte A, Vales N, Biancale R, Gabalda G, Moreaux G, Reinquin F, Sarrailh M (2012) World Gravity Map. Bureau Gravimetrique International (BGI), map, CGMW-BGI-CNES-IRD Ed., Paris 1:8
Braitenberg C, Mariani P, Ebbing J, Sprlak M (2011) The enigmatic Chad lineament revisited with global gravity and gravity-gradient fields. Geol Soc Spec Pub 357:329–341. https://doi.org/10.1144/SP357.18
Bureau Gravimetrique International (BGI) (2012) BGI Website.pdf. https://bgi.obs-mip.fr/data-products/grids-and-models/wgm2012-global-model/
Caagusan NL (1978) Source material, compaction history and hydrocarbon occurrence in the Cagayan Valley Basin, Luzon, Philippines. In: Offshore South East Asia Conference (Southeast Asia Petroleum Exploration Society, SEAPEX Program), [Proceedings]. p 19
Cardwell RK, Isacks BL, Karig DE (1980) The spatial distribution of earthquakes, focal mechanism solutions, and subducted lithosphere in the Philippine and northeastern Indonesian Islands. Tectonic Geol Evol Southeast Asian Seas Islands Part 1 23:1–35. https://doi.org/10.1029/gm023p0001
Dimalanta CB, Ramos EGL, Yumul GP, Bellon H (2009) New features from the Romblon Island Group: key to understanding the arc-continent collision in Central Philippines. Tectonophysics 479:120–129. https://doi.org/10.1016/j.tecto.2009.02.015
Gabo JAS, Dimalanta CB, Yumul GP, Faustino-Eslava DV, Imai A (2015) Terrane boundary geophysical signatures in Northwest Panay, Philippines: results from gravity, seismic refraction and electrical resistivity investigations. Terr Atmos Ocean Sci 26:663–678. https://doi.org/10.3319/TAO.2015.05.11.03(TC)
Geary EE, Harrison TM, Heizler M (1988) Diverse ages and origins of basement complexes, Luzon, Philippines. Geology 16:341. https://doi.org/10.1130/0091-7613(1988)016%3c0341:DAAOOB%3e2.3.CO;2
GEBCO Compilation Group (2020) GEBCO 2020 grid (gridded bathymetry data download). https://doi.org/10.5285/a29c5465-b138-234d-e053-6c86abc040b9
Godfrey NJ, Beaudoin BC, Klemperer SL (1997) Ophiolitic basement to the Great Valley forearc basin, California, from seismic and gravity data: implications for crustal growth at the North American continental margin. Geol Soc Am Bull 109:1536–1562. https://doi.org/10.1130/0016-7606(1997)109%3c1536:OBTTGV%3e2.3.CO;2
Gómez-Ortiz D, Tejero-López R, BabÃn-Vich R, Rivas-Ponce A (2005) Crustal density structure in the Spanish Central System derived from gravity data analysis (Central Spain). Tectonophysics 403:131–149. https://doi.org/10.1016/j.tecto.2005.04.006
Guotana JMR, Payot BD, Dimalanta CB, Ramos NT, Faustino-Eslava DV, Queaño KL, Yumul GP (2017) Petrological and geochemical characteristics of the Samar Ophiolite ultramafic section: implications on the origins of the ophiolites in Samar and Leyte islands, Philippines. Int Geol Rev 00:1–17. https://doi.org/10.1080/00206814.2017.1336944
Haáz IB (1953) Relations between the potential of the attraction of the mass contained in a finite rectangular prism and its first and second derivatives. Geophys Trans II 7:57–66
Hamburger MW, Cardwell RK, Isacks BL (1983) Seismotectonics of the northern Philippine island arc. Tecton Geol Evol Southeast Asian Seas Islands Part 2(27):1–22. https://doi.org/10.1029/gm027p0001
Hayes DE, Lewis SD (1984) A geophysical study of the Manila Trench, Luzon, Philippines. 1. Crustal structure, gravity, and regional tectonic evolution. J Geophys Res 89:9171–9195. https://doi.org/10.1029/JB089iB11p09171
Holloway NH (1981) The North Palawan block, Philippines: its relation to the Asian Mainland and its role in the evolution of the South China Sea. Bull Geol Soc Malays 14:19–58. https://doi.org/10.7186/bgsm14198102
Jacobsen BH (1987) Case for upward continuation as a standard separation filter for potential-field maps. Geophysics 52:1138–1148. https://doi.org/10.1190/1.1442378
Karig DE, Sarewitz DR, Haeck GD (1986) Role of strike-slip faulting in the evolution of allochthonous terranes in the Philippines. Geology 14:852. https://doi.org/10.1130/0091-7613(1986)14%3c852:ROSFIT%3e2.0.CO;2
Kudrass HR, Wiedicke M, Cepek P, Kreuzer H, Müller P (1986) Mesozoic and Cainozoic rocks dredged from the South China Sea (Reed Bank area) and Sulu Sea and their significance for plate-tectonic reconstructions. Mar Pet Geol 3:19–30. https://doi.org/10.1016/0264-8172(86)90053-X
Kumar A, Roy PNS, Das LK (2016) Vertical density contrast and mapping of basement, Conrad and Moho morphologies through 2D spectral analysis of gravity data in and around Odisha, India. J Asian Earth Sci 124:181–190. https://doi.org/10.1016/j.jseaes.2016.05.002
Kunnummal P, Anand SP (2019) Qualitative appraisal of high resolution satellite derived free air gravity anomalies over the Maldive Ridge and adjoining ocean basins, western Indian Ocean. J Asian Earth Sci 169:199–209. https://doi.org/10.1016/j.jseaes.2018.08.008
Laske G, Masters G, Ma Z, Pasyanos M (2013) Update on CRUST1.0—a 1-degree global model of Earth’s crust. Geophys Res Abstracts 15:EGU General Assembly 2013-2658
Leseane K, Atekwana EA, Mickus KL, Abdelsalam MG, Shemang EM, Atekwana EA (2015) Thermal perturbations beneath the incipient Okavango Rift Zone, northwest Botswana. J Geophys Res Solid Earth 120:1210–1228. https://doi.org/10.1002/2014JB011029
Lewis SD, Hayes DE (1983) The tectonics of northward propagating subduction along Eastern Luzon, Philippine Islands. Wash DC Am Geophys Union Geophys Monogr Ser 27:57–78. https://doi.org/10.1029/gm027p0057
Li Y, Oldenburg DW (1998) 3-D inversion of gravity data. Geophysics 63:109–119. https://doi.org/10.1190/1.1444302
Liu WN, Li CF, Li J, Fairhead D, Zhou Z (2014) Deep structures of the Palawan and Sulu Sea and their implications for opening of the South China Sea. Mar Pet Geol 58:721–735. https://doi.org/10.1016/j.marpetgeo.2014.06.005
Lowrie W, Fichtner A (2019) Fundamentals of Geophysics. Cambridge University Press, Cambridge
Majumdar TJ, Bhattacharyya R (2005) Bathymetry prediction model from high-resolution satellite gravity as applied over a part of the eastern Indian offshore. Curr Sci 89:1754–1759
Manalo PC, Dimalanta CB, Faustino-Eslava DV, Ramos NT, Queaño KL, Yumul GP (2015) Crustal thickness variation from a continental to an island arc terrane: clues from the gravity signatures of the Central Philippines. J Asian Earth Sci 104:205–214. https://doi.org/10.1016/j.jseaes.2014.08.031
Manghnani MH, Coleman RG (1981) Gravity profiles across the Samail Ophiolite, Oman. J Geophys Res Solid Earth 86:2509–2525. https://doi.org/10.1029/JB086iB04p02509
McCabe R, Almasco J, Diegor W (1982) Geologic and paleomagnetic evidence for a possible Miocene collision in western Panay, central Philippines. Geology 10:325–329. https://doi.org/10.1130/0091-7613(1982)10%3c325:GAPEFA%3e2.0.CO;2
Milsom J, Ali JR, Queano KL (2006) Peculiar geometry of northern Luzon, Philippines: Implications for regional tectonics of new gravity and paleomagnetic data. Tectonics 25:1–14. https://doi.org/10.1029/2005TC001930
Mines and Geosciences Bureau (MGB) (2010) Geology of the Philippines, 2nd ed. Mines and Geosciences Bureau; Department of Environment and Natural Resources, North Avenue, Quezon City, Philippines
Mishra D, Pedersen LB (1982) Statistical analysis of potential fields from subsurface reliefs. Geoexploration 19:247–265. https://doi.org/10.1016/0016-7142(82)90030-8
Mitchell AHG, Hernandez F, de la Cruz AP (1986) Cenozoic evolution of the Philippine Archipelago. J Southeast Asian Earth Sci 1:3–22. https://doi.org/10.1016/0743-9547(86)90003-6
Murauchi S, Ludwig WJ, Den N, Hotta H, Asanuma T, Yoshii T, Kubotera A, Hagiwara K (1973) Structure of the Sulu Sea and the Celebes Sea. J Geophys Res 78:3437–3447. https://doi.org/10.1029/jb078i017p03437
Nabighian MN, Grauch VJS, Hansen RO, LaFehr TR, Li Y, Peirce JW, Phillips JD, Ruder ME (2005) The historical development of the magnetic method in exploration. Geophysics 70:33ND–61ND. https://doi.org/10.1190/1.2133784
Pal SK, Majumdar TJ, Pathak VK, Narayan S, Kumar U, Goswami OP (2016) Utilization of high-resolution EGM2008 gravity data for geological exploration over the Singhbhum-Orissa Craton, India. Geocarto Int 31:783–802. https://doi.org/10.1080/10106049.2015.1076064
Pasco JA, Dycoco JMA, Valera GTV, Payot BD, Pillejera JDB, Uy FAAE, Armada LT, Dimalanta CB (2019) Petrogenesis of ultramafic-mafic clasts in the Dos Hermanos Mélange, Ilocos Norte: insights to the evolution of western Luzon, Philippines. J Asian Earth Sci 184:104004. https://doi.org/10.1016/j.jseaes.2019.104004
Pavlis NK, Holmes SA, Kenyon SC, Factor JK (2012) The development and evaluation of the Earth Gravitational Model 2008 (EGM2008). J Geophys Res Solid Earth 117:1–38. https://doi.org/10.1029/2011JB008916
Pavlis NK, Holmes SA, Kenyon SC, Factor JK (2008) An Earth Gravitational Model to degree 2160: EGM2008. General Assembly of the European Geosciences Union
Pubellier M, Quebral R, Rangin C, Deffontaines B, Muller C, Butterlin J, Manzano J (1991) The Mindanao collision zone: a soft collision event within a continuous Neogene strike-slip setting. J SE Asian Earth Sci 6:239–248. https://doi.org/10.1016/0743-9547(91)90070-E
Quebral R (1994) Tectonique du segment méridional de la faille Philippine, Mindanao oriental, Philippines: passage d’une zone de collision à une zone de décrochement. Doctoral dissertation, Paris
Rammlmair D, Raschka H, Steiner L (1987) Systematics of chromitite occurrences in Central Palawan, Philippines. Miner Deposita 22:190–197. https://doi.org/10.1007/BF00206609
Rangin C (1989) The Sulu Sea, a back-arc basin setting within a Neogene collision zone. Tectonophysics 161:119–141. https://doi.org/10.1016/0040-1951(89)90307-7
Rangin C (1991) The Philippine Mobile Belt: a complex plate boundary. J SE Asian Earth Sci 6:209–220. https://doi.org/10.1016/0743-9547(91)90068-9
Rangin C, Stephan JF, Müller C (1985) Middle Oligocene oceanic crust of South China Sea jammed into Mindoro collision zone (Philippines). Geology 13:425–428. https://doi.org/10.1130/0091-7613(1985)13%3c425:MOOCOS%3e2.0.CO;2
Rangin C, Silver EA (1991) Neogene tectonic evolution of the Celebes-Sulu basins: new insights from Leg 124 drilling. Proc, scientific results, ODP, Leg 124, Celebes and Sulu Seas 124:51–63. https://doi.org/10.2973/odp.proc.sr.124.122.1991
Rangin C, Jolivet L, Pubellier M (1990) A simple model for the tectonic evolution of Southeast Asia and Indonesia region for the past 43 m.y. Bulletin de la Société Géologique de France VI:889–905. https://doi.org/10.2113/gssgfbull.vi.6.889
Ranneft TSM, Hopkin RM, Froelich AJ, Gwinn JW (1960) Reconnaissance geology and oil possibilities of Mindanao. AAPG Bull 44:iii. https://doi.org/10.1306/0BDA6014-16BD-11D7-8645000102C1865D
Salapare RC, Dimalanta CB, Ramos NT, Manalo PC, Faustino-Eslava DV, Queaño KL, Yumul GP (2015) Upper crustal structure beneath the Zambales Ophiolite Complex, Luzon, Philippines inferred from integrated gravity, magnetic and geological data. Geophys J Int 201:1522–1533. https://doi.org/10.1093/gji/ggv094
Saldivar-Sali A, Madrid AP, Reyes Jr RA, Flower LG (1986) Tectonic Setting and Petroleum Possibilities of Philippine Sedimentary Basins. In Transactions of the fourth circum-pacific energy and mineral resources conference, pp 223–242
Schlüter HU, Hinz K, Block M (1996) Tectono-stratigraphic terranes and detachment faulting of the South China Sea and Sulu Sea. Mar Geol 130:39–78. https://doi.org/10.1016/0025-3227(95)00137-9
Schweller WJ, Roth PH, Karig DE, Bachman SB (1984) Sedimentation history and biostratigraphy of ophiolite-related Tertiary sediments, Luzon, Philippines. Geol Soc Am Bull 95:1333–1342. https://doi.org/10.1130/0016-7606(1984)95%3c1333:SHABOO%3e2.0.CO;2
Simpson RW, Jachens RC, Saltus RW, Blakely RJ (1985) A new isostatic residual gravity map of the conterminous United States. In: 1985 SEG annual meeting, SEG 1985, pp 197–198
Sonido EP (1981) The State of Gravity Works in the Philippines. J Geol Soc Phil 35:37–50
Spector A, Grant FS (1970) Statistical models for interpreting aeromagnetic data. Geophysics 35:293–302. https://doi.org/10.1190/1.1440092
Steffen R, Steffen H, Jentzsch G (2011) A three-dimensional Moho depth model for the Tien Shan from EGM2008 gravity data. Tectonics 30:1–19. https://doi.org/10.1029/2011TC002886
Tamayo RA, Maury RC, Yumul GP, Polvé M, Cotten J, Dimantala CB, Olaguera FO (2004) Subduction-related magmatic imprint of most Philippine ophiolites: implications on the early geodynamic evolution of the Philippine archipelago. Bull Geol Soc France 175:443–460. https://doi.org/10.2113/175.5.443
Tamesis EV (1976) The Cagayan Valley basin: a second exploration cycle is warranted. In: SEAPEX program, offshore South East Asia conference
Tamesis EV (1981) Hydrocarbon potential of Philippine basins. In: The South China Sea. Elsevier, pp 1181–1206
Taylor B, Hayes DE (1980) The tectonic evolution of the South China Basin. Tecton Geol Evol Southeast Asian Seas Islands Part 1 23:89–104. https://doi.org/10.1029/gm023p0089
Teodoro CF (1970) General Characteristics of Gravity in the Island of Luzon, Philippines by Carlos F. Teodoro. J Geol Soc Philipp 24:20–26
Tselentis G-A, Drakopoulos J, Dimitriadis K (1988) A spectral approach to moho depths estimation from gravity measurements in Epirus (NW Greece). J Phys Earth 36:255–266. https://doi.org/10.4294/jpe1952.36.255
Vaish J, Pal SK (2015) Geological mapping of Jharia Coalfield, India using GRACE EGM2008 gravity data: a vertical derivative approach. Geocarto Int 30:388–401. https://doi.org/10.1080/10106049.2014.905637
Yumul GP (2007) Westward younging disposition of Philippine ophiolites and its implication for arc evolution. Island Arc 16:306–317. https://doi.org/10.1111/j.1440-1738.2007.00573.x
Yumul GP, Dimalanta CB (1997) Geology of the Southern Zambales Ophiolite Complex, (Philippines): Juxtaposed terranes of diverse origin. J Asian Earth Sci 15:413–421. https://doi.org/10.1016/S0743-9547(97)00019-6
Yumul GP, Dimalanta CB, Tamayo RA, Maury RC, Bellon H, Polvé M, Maglambayan VB, Querubin CL, Cotten J (2004) Geology of the Zamboanga Peninsula, Mindanao, Philippines: an enigmatic South China continental fragment? Geol Soc Spec Pub 226:289–312. https://doi.org/10.1144/GSL.SP.2004.226.01.16
Yumul GP, Dimalanta CB, Maglambayarw VB, Marquez EJ (2008a) Tectonic setting of a composite terrane: a review of the Philippine island arc system. Geosci J 12:7–17. https://doi.org/10.1007/s12303-008-0002-0
Yumul GP, Dimalanta CB, Tamayo RA, Barretto JAL (2008b) Contrasting morphological trends of islands in Central Philippines: speculation on their origin. Island Arc 9:627–637. https://doi.org/10.1111/j.1440-1738.2000.00307.x
Acknowledgements
The authors thank the Department of Environment and Natural Resources-Mines and Geosciences Bureau (DENR-MGB), Philippines, and Japan International Cooperation Agency (JICA) for supporting this study. We also thank the members of the Exploration Geophysics Lab. at the Kyushu University–Department of Earth Resource Engineering for their comments and suggestions that improved the quality of the manuscript. Gravity data from Bureau Gravimetrique International (BGI)/IAG International Gravity Field Service are greatly acknowledged. The authors are also thankful to the editor and the three anonymous reviewers who gave significant comments and suggestions for the improvement of this manuscript.
Funding
Not applicable.
Author information
Authors and Affiliations
Contributions
All authors contributed to the study’s conception and design. MAAC performed the data collection and initial analysis of gravity anomalies. HM developed the 3-D gravity inversion FORTRAN program. HM, TT and CBD provided significant inputs in the interpretation of the results. MAAC wrote the first draft of the manuscript. HM, TT, and CBD revised and edited the previous versions of the paper. All authors read and approved the final manuscript.
Corresponding author
Ethics declarations
Competing interests
The authors declare that they have no competing interests.
Additional information
