Quantitative determination of the lowest density domain in major fault zones via medical X-ray computed tomography

Abstract

Determination of the youngest active domains in fault zones that are not overlain by Quaternary sedimentary cover is critical for evaluating recent fault activity, determining the current local stress field, and mitigating the impacts of future earthquakes. Considering the exhumation of a fault zone, the youngest active domain in a fault zone is supposed to correspond to the activity at the minimum fault depth of a buried fault, such that the most vulnerable area, which possesses the lowest rock/protolith density ratio, is assumed to be indicative of this recent fault activity. However, it is difficult to measure the density of fault rocks and map the rock/protolith density ratio across a given fault zone. Here, we utilize medical X-ray computed tomography (CT), a non-destructive technique for observing and analyzing materials, to investigate the fault characteristics of several fault zones and their surrounding regions in Japan, and attempt to determine the lowest density domain of a given fault zone based on its CT numbers, which are a function of the density and effective atomic number of the fault rock and protolith. We first investigate the density, void ratio, and effective atomic number of active and inactive fault rocks, and their respective protoliths. We then calculate the CT numbers after reducing the beam-hardening effects on the rock samples and study the relationships among the CT number, density, and effective atomic number. We demonstrate that the density, effective atomic number, and CT number of the fault rock decrease as the youngest active zone, identified by outcrop observation, are approached, such that the region with the lowest CT number and rock/protolith density ratio defines the lowest density domain of a given fault zone. We also discuss the relationship between the lowest density domain and the youngest active domain in major fault zones and investigate the points to be considered when the youngest active domain is identified from the lowest density domain determined by the CT number.

Introduction

Determination of the youngest active domain in fault zones that are not overlain by Quaternary cover is integral not only for evaluating fault activity and restoring the most recent stress field using slip data but also for proposing local/regional earthquake disaster mitigation measures. Various methods have been employed to potentially determine the youngest active domain in fault zones in bedrock (e.g., Mizoguchi and Ueta 2012; Shigematsu et al. 2017; Tanaka et al. 2018). Considering the exhumation of a fault zone, this youngest active domain in a fault zone is supposed to correspond to the activity at the minimum fault depth of a buried fault, such that this most vulnerable area is assumed to be the area that possesses the lowest rock/protolith density ratio. Previous studies have focused on the density of the rocks around the fault zone (e.g., Morrow and Lockner 2001; Takeuchi et al. 2005); however, a quantitative density-based classification of fault rocks has not been performed to date. Rempe et al. (2013) combined seismic refraction tomography and microstructural observations of the fault rocks along the San Andreas Fault to estimate the effect of density reduction as a factor for the increase in compressional-wave velocity as the main fault plane is approached. Ikeda et al. (2001) performed geophysical well logging in the borehole through the Nojima Fault Zone, which was active during the 1995 Hyogo-ken Nanbu Earthquake, and reported that the non-fractured granite and the fault zone densities were 2.6–2.7 and 1.5–2.5 g/cm3, respectively. However, it is difficult to measure the density of fault rocks without being affected by disturbance because fault rock samples are very fragile. Here, we utilize medical X-ray computed tomography (CT) to quantitatively determine the lowest density domain in each fault zone based on its CT numbers.

X-ray CT is a non-destructive technique that images the three-dimensional (3D) internal structure of materials continuously in a short time. The potential of X-ray CT in geoscience was recognized soon after its development as a medical imaging technique in 1972 (Hounsfield 1973), resulting in numerous geoscience applications since the 1980s (e.g., Wellington and Vinegar 1987; Raynaud et al. 1989; Orsi et al. 1994; Boespflug et al. 1995; Verhelst et al. 1996; Geet et al. 2000; Ueta et al. 2000). Hirono et al. (2008) used X-ray CT to analyze the fault rocks generated during the 1999 Chi-Chi earthquake; however, they were unable to report on the relationship between the CT number and fault rock density, owing to the beam hardening (BH) effect. Aiyama et al. (2017) recently observed the internal structure of a fault fracture zone using medical X-ray CT and reported that the CT image of the fault gouge zone was darker and less dense than that of the surrounding cataclasite.

X-ray CT is generally conducted using either industrial- or medical-grade scanners. Industrial scanners employ high-energy X-rays and are used to examine dense rocks or minerals. Medical scanners can also be employed in a geoscience context to study low-density, unconsolidated sediments (Nishizawa et al. 1995). Medical scanners are easier to operate than industrial scanners, but the resulting CT images, which are obtained at lower X-ray intensities, include artifacts, such as BH (Ketchman and Carlson 2001). Nakano et al. (2000) observed and analyzed the internal structures of lake sediment, basalt, and granite samples using a medical scanner after accounting for X-ray attenuation and reducing the BH effect. However, the applicability of their methodology is not straightforward because a priori knowledge of the X-ray spectrum of the scanner is required. Ketchman and Hanna (2014) and Geet et al. (2000) investigated the use of micro-CT in reducing the BH effects. Geet et al. (2000) estimated the density and effective atomic number via the dual-energy method, which uses CT images acquired at two different tube voltages; this approach is used to discriminate materials by focusing on changes in the contrast of the CT images due to the X-ray energy differences of the imaged materials.

Iwamori et al. (2020) investigated six different mineral samples with known densities and effective atomic numbers using medical CT images, and defined the CT values for these minerals, thereby providing an effective way to reduce the BH effect. Iwamori et al. (2020) also presented a method for determining the density and effective atomic number via the dual-energy method, and a method for estimating the density and effective atomic number using CT images taken with one tube voltage.

Here, we present a method to determine the lowest density domain in major fault zones using medical X-ray CT characteristics on the fault rock densities and effective atomic numbers. We first investigate the density, void ratio, and effective atomic number of active and inactive fault rocks, and their respective protoliths. We then calculate the CT numbers from CT images where the BH effects have been reduced and study the relationship among the CT number, density, and effective atomic number. We also discuss the relationship between the lowest density domain and youngest active domain in major fault zones and investigate the points to be considered when the youngest active domain is identified from the lowest density domain determined by the CT number. We reduce the effects of sample thickness variations and CT image quality deterioration due to the X-ray energy reduction by adjusting the sample size and imaging direction based on a ~ 10 cm X-ray transmission thickness.

Geological structural characteristics and rock structural properties of each analyzed fault

We analyzed three faults, the Median Tectonic Line (MTL), and the Yamada and Tsuruga faults, for our medical X-ray CT analysis. We chose the MTL since it is one of the longest onshore faults in Japan, with both active and inactive fault outcrops; the protoliths of the fault rocks consist mainly of Sanbagawa schists and Ryoke tonalites. We chose the Yamada Fault as an example of an active fault in granite, and the Tsuruga Fault as an example of an active fault at the geological boundary between metabasalt and granite. We focused on the fault rocks in the basement rock since the fault rock characteristics of the basement rock and basement rock–sediment contact zone are thought to be different. The sample details are provided in Table 1, with the geological outline of the study region and detailed geological maps of the investigated faults shown in Figs. 1 and 2, respectively. Here, we define an “active fault” as a fault that has been active since the late Pleistocene, and an “inactive fault” as a fault that has no recorded activity since the late Pleistocene.

Table 1 Locations and fault/protolith details of the analyzed samples (see Figs. 1 and 2 for sample locations)
Fig. 1
figure1

Simplified geotectonic map showing the location of the study area around the MTL and the Tsuruga and Yamada faults. The stars denote the approximate locations where the samples were collected (see Fig. 2 for further details on each sample site)

Fig 2
figure2

Geological maps of the area around a the MTL in the Ina area, b the MTL in the Matsusaka area, c the Tsuruga Fault, and d the Yamada Fault. These maps have been simplified and partly modified after the 1/200,000 geological maps from the National Institute of Advanced Industrial Science and Technology (AIST): a Kofu (Ozaki et al. 2002), b Ise (Nishioka et al. 2010), c Gihu (Wakita et al. 1992), and d Miyazu (Kuroda 1968). The stars denote the approximate locations of fault outcrops and where the samples were collected

MTL in the Ina area, Nagano Prefecture (Hiji outcrop; active fault)

The MTL is the longest onshore fault and extends across the central part of southwestern Japan for more than 1000 km (e.g., Okada 1992). The MTL is an approximately N–S-trending, vertically dipping feature in the Ina area of Nagano Prefecture (Fig. 2a). Mylonitic rocks that originated from Hiji tonalite are distributed within ~ 1 km of the western side of the MTL in this area, with increasing grain-size reduction and alteration closer to the MTL; however, fault breccia and fault gouge are scarcely observed (Takagi 1984). Conversely, the Sanbagawa schist on the eastern side of the MTL is clayey and/or contains fractured lenticular bodies within a few meters of the MTL, with minimal macroscopic fractures 10–20 m from the MTL (Takagi 1984).

The Hiji outcrop (35.80278° N, 138.08278° E) is located under a playground on the eastern bank of Lake Miwa, a dammed reservoir in the Ina area. The MTL, which forms the boundary between the Hiji tonalite and the Sanbagawa schist (Fig. 3a), is clearly exposed, except in spring when the reservoir is full. The fault is located ~ 80 cm east of the MTL in this outcrop, where it cuts a < 100 ka terrace gravel deposit, and extends into the Sanbagawa schist without being displaced by other foliations (Takagi et al. 2019). The strike and dip of the latest fault plane Y are N3E and 74W, respectively, and the observed striations on the slip plane possess a rake of 20–30N (Fig. 3a). The fault gouge zone along fault plane Y clearly shows a dextral sense of shear (Fig. 3a, b). The observed displacement of 60 cm at the base of the terrace gravel deposit due to fault plane Y equates to a real displacement velocity of 0.012–0.0118 m/ky along this fault, assuming the gravel layer was deposited 100,000 years ago (Takagi et al. 2019).

Fig. 3
figure3

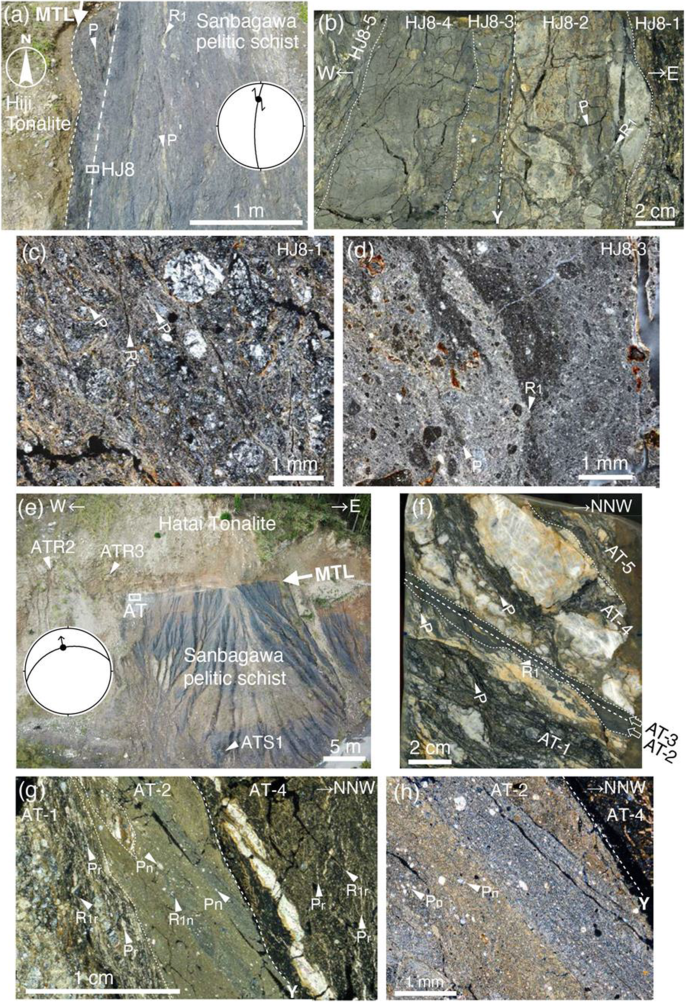

Photographs of the outcrop (a, e), and polished slab (b, f) of the observed brittle fault rocks taken perpendicular to the fault plane and parallel to the lineations, and photomicrographs (c, d, g, h; cross-polarized light) of the fault rock samples. a The Hiji outcrop of the MTL. b HJ8. c HJ8-1. d HJ8-3. e The Awano–Tabiki outcrop of the MTL. f AT. g AT-1–AT-2–AT-4. h AT-2–AT-4. The stereoplots show the orientation of fault plane Y and the direction of slip in the zone formed during the most recent fault movements (a, e). Abbreviations in (g) and (h): P: P foliation; R1: Riedel shear; Pn, Pr: P foliations showing normal and reverse senses of shear, respectively; R1n, R1r: Riedel shear showing normal and reverse senses of shear, respectively

Sample HJ-8, which was derived from the Sanbagawa pelitic schist, was taken from the fault zone that formed during the most recent fault activity identified as an extension of the latest active plane Y described above at the Hiji outcrop. This fault rock sample (Fig. 3b) can be divided into five zones based on their degree of cohesiveness and the classification of Takagi and Kobayashi (1996). Zones HJ8-2–HJ8-4 are classified as fault gouges, whereas zones HJ8-1 and HJ8-5 are cataclasites; the boundary between zones HJ8-2 and HJ8-3 is defined by the main fault plane Y, which cuts the terrace gravel deposit (Fig. 3b).

Protolith sample MZ-5 was collected from an outcrop (35.79150° N, 138.08269° E) located ~ 20 m east of the Mizoguchi outcrop (1.2 km south of the Hiji outcrop), which is where the MTL crops out; this sample was selected for comparison with the fault rocks.

Photomicrographs of the fault rocks are shown in Fig. 3c, d. The cataclasite zone (HJ8-1) contains mainly ≤ 1 mm diameter quartz and albite fragments, with a dextral sense of slip observed. Fine-grained clay minerals are distributed uniformly in the fault gouge zone (HJ8-3), which is adjacent to fault plane Y, with a dextral sense of slip indicated. Sample MZ-5 consists mainly of quartz, albite, phengite, calcite, and chlorite.

MTL in the Matsusaka area, Mie Prefecture (Awano–Tabiki outcrop; inactive fault)

The MTL is an approximately E–W-trending feature in the Matsusaka area of Mie Prefecture (Nishioka et al. 2010; Fig. 2b) that does not disrupt lower river terrace deposits, which means that there has been no known activity during the late Quaternary (Okada 1992). The Hatai tonalite is distributed within 2 km of the northern side of the MTL in this area and consists mainly of plagioclase, hornblende, and chloritized biotite. The Hatai tonalite is affected by mylonitization along the MTL and contains foliations that are almost parallel to the MTL (Takagi 1985).

The Awano–Tabiki outcrop (34.44294° N, 136.25292° E) is located in Awano and Tabiki, Matsusaka City, Mie Prefecture. This outcrop comprises Ryoke Hatai tonalite and Sanbagawa schist (Fig. 3e). The Hatai tonalite consists of weathered, light-brown fault rocks with irregular but well-developed cracks and scarcely observed fault breccia and fault gouge in the Ryoke Belt. Conversely, the Sanbagawa schist is partly clayey and shows a dextral sense of shear within 2 m of the MTL, with minimal macroscopic fractures10–20 m from the MTL.

Shigematsu et al. (2017) reported that four stages of deformation have been recorded in the fault zone at this outcrop since the Paleocene, with the final stage consisting of Miocene-age normal faulting. Here, we investigated faults on the boundary between the Ryoke and Sanbagawa belts, with a focus on one of the two faults that Shigematsu et al. (2017) evaluated as possessing the youngest active domain.

The fault on the boundary between the Ryoke and Sanbagawa belts shows good continuity throughout the outcrop and is not disrupted by other faults. The most recent fault plane strikes N76E and dips 31N, with the striations on the slip plane possessing a rake of 88NNW. The fault gouge zone (1–3 cm wide) along this fault shows a normal sense of shear, which is consistent with the observed features that Shigematsu et al. (2017) identified as the final stage of deformation (Fig. 3e, f).

Sample AT was taken from the fault zone that formed during the most recent fault movement on the geological boundary at this outcrop (Fig. 3f). This fault rock sample can be divided into five zones, based on their degree of cohesiveness: AT-2 and AT-3 are fault gouges, and AT-1, AT-4, and AT-5 are cataclasites. AT-1 and AT-2 correspond to the Sanbagawa Belt, and zones AT-3, AT-4, and AT-5 correspond to the Ryoke Belt, with the boundary between AT-2 and AT-3 representing the main fault plane (Y) of the geological MTL boundary.

We collected four rock samples from the Ryoke Belt (ATR and HA samples) and two rock samples from the Sanbagawa Belt (ATS samples) for analysis. Cataclasite samples ATR-2 and ATR-3 were collected ~ 5 m to the north of the MTL (Fig. 3e), mylonite sample ATR-4 was collected 300 m to the north of the MTL (Fig. 2b), and protolith sample HA-1  was collected 13.5 km ENE of the outcrop (Fig. 2b) to provide a comparison of the fault rock and protolith characteristics with different degrees of cohesiveness. Protolith samples ATS-1 (20 m to the south of the MTL) and ATS-2 (550 m to the south of the MTL) were collected from the Sanbagawa Belt (Figs. 3c and 2b). ATS-2 is a solid pelitic schist with well-developed schistosity, whereas ATS-1 contains 2 cm diameter quartz crystals. The cataclasite samples from the Hatai tonalite were analyzed using X-ray CT imaging (ATR-2) and density and X-ray fluorescence (XRF) analyses (ATR-3).

Photomicrographs of the fault rocks are shown in Fig. 3g, h. The thin AT section can be divided into three zones, AT-1, AT-2, and AT-4, with the latest fault plane Y extending through the section without being displaced by other foliations. Zone AT-1, which consists of a Sanbagawa cataclasite, mainly contains ≤ 0.2 mm diameter albite fragments and shows a reverse sense of shear. Zone AT-4, which consists of a Ryoke cataclasite, contains ≤ 0.5 mm diameter mylonitized quartz fragments that have been affected by cataclastic flow and 0.2 mm wide calcite veins that have been displaced by a reverse sense of Riedel shearing. Fine-grained clay minerals are uniformly distributed throughout the fault gouge in zone AT-2, with a normal sense of slip indicated.

ATS-2, which is a Sanbagawa schist protolith, consists mainly of fine quartz, albite, phengite, and calcite crystals (≤ 0.2 mm diameter crystals), and ATS-1 contains mainly ≤ 0.2 mm diameter quartz, albite, phengite, and graphite fragments. ATS-2 contains less phengite than ATS-1, and the schistosities of both samples are regulated by the arrangement of the quartz and albite aggregates and/or phengite.

Samples HA-1 and ATR-4 consist mainly of quartz, plagioclase, hornblende, and chlorite. HA-1 contains ≤ 2 mm diameter plagioclase and amphibole crystals and ≤ 0.5 mm diameter quartz and chlorite crystals. Conversely, the mylonite ATR-4 sample contains ≤ 1 mm diameter plagioclase and hornblende crystals, and voids that are filled with recrystallized quartz aggregates. The cataclasite ATR-3 sample consists mainly of ≤ 0.2 mm diameter plagioclase, quartz, and chlorite crystals and mylonitized quartz fragments that have been affected by cataclastic flow.

Tsuruga Fault (Oritodani outcrop; active fault)

The Tsuruga Fault is a ~ 25 km long, NE–SW-trending, right-lateral strike-slip fault in the central Fukui Prefecture (National Institute of Advanced Industrial Science and Technology 2016). Koujaku granite (Upper Cretaceous) and metabasalt (Middle–Upper Jurassic accretionary complex) from the Mino–Tanba Belt occur around this fault (Fig. 2c). Kurimoto et al. (1999) performed a trench excavation in the Ikenotani area and reported that the southern part of the Tsuruga Fault was active between the latter half of the twelfth and end of the fourteenth centuries, with a vertical displacement of 1.5–2 m and average vertical displacement velocity of 0.5–0.6 m/103 years.

The Oritodani outcrop (35.53750° N, 136.01906° E), which is located 1.7 km southwest of the Ikenotani area, contains exposures of Koujaku granite and metabasalt, with a 10–20 cm wide fault gouge distributed along the geological boundary (Fig. 4a). The boundary fault between the granite and metabasalt is continuous throughout the outcrop and cuts the terrace gravel deposit. The strike and dip of the most recent fault plane are N49E and 78W, respectively, with the striations on the slip plane possessing a rake of 15N. A very soft fault gouge (T-3-3 zone), which is in contact with the main fault plane Y, is developed in the metabasalt along its boundary with the granite fault gouge (T-3-2 zone) and shows a dextral sense of shear (Fig. 4b, e).

Fig. 4
figure4

Outcrop photographs (a, f), observed brittle fault rocks in the outcrops, photographs taken perpendicular to the fault plane and parallel to the lineations (b, g), and photomicrographs of the fault rock and protolith samples (c, d, e, h, i: cross-polarized light). a The Oritodani outcrop of the Tsuruga Fault. b T-3. c T-3-2–T-3-3. d T-3-2. e T-3-3. f The Mushu outcrop of the Yamada Fault. g YDA. h YDA-4. i YDA-2–YDA-3. Stereoplots show the orientation of fault plane Y and slip direction in the zone formed during the most recent fault movements (a, f). Abbreviations: P: P-foliation; R1: Riedel shear

Sample T-3 was taken from the fault zone, involving T-3-3 described above, that formed during the most recent fault activity at the Oritodani outcrop. This fault rock sample (Fig. 4b) can be divided into four zones based on their degree of cohesiveness: T-3-1, T-3-2, and T-3-3 are fault gouges, and T-3-4 is a cataclasite. T-3-1 and T-3-2 correspond to the Koujaku granite, and T-3-3 and T-3-4 correspond to the metabasalt, with the main fault plane (Y) of the Tsuruga Fault extending through T-3-3. The brown (T-3-1) and white (T-3-2) fault gouge zones are slightly harder than the T-3-3 zone, with the P foliations in T-3-2 that have developed near the boundary with T-3-1 exhibiting a dextral sense of slip (Fig. 4b), which indicates that the zone up to 10 cm from the main fault plane was possibly affected by the most recent fault activity.

We collected cataclasite samples C-2 and C-3 and protolith sample K-1 from the Koujaku granite at the Oritodani outcrop to compare the degrees of cohesiveness in the samples. We also collected cataclasite sample C-1 and protolith sample T-5 from the metabasalt of the Mino–Tanba Belt.

Photomicrographs of the fault rocks are shown in Fig. 4c–e. The latest fault plane Y extends through T-3-3 without being displaced by other foliations. Fine-grained clay minerals are distributed uniformly throughout fault gouge T-3-3 and developed P foliations with a dextral sense of slip are present. Conversely, fault gouge T-3-2 mainly contains ≤ 0.2 mm diameter quartz, K-feldspar, and plagioclase fragments and no clear fault plane (Fig. 4c, d). Therefore, the youngest activity of this fault is thought to have only been recorded in the most vulnerable fault gouge (T-3-3).

Protolith sample K-1 mainly consists of ≤ 3 mm diameter quartz, plagioclase, K-feldspar, and biotite crystals. Cataclasite sample C-2 mainly consists of ≤ 0.3 mm diameter quartz, plagioclase, K-feldspar, and biotite crystals. Conversely, sample T-5 mainly consists of ≤0.1 mm diameter hornblende and clinopyroxene crystals, whereas sample C-1 mainly consists of hornblende, chlorite, and plagioclase fragments, and fewer hornblende crystals than in sample T-5.

Yamada Fault (Musyu outcrop; active fault)

The Yamada Fault Zone is an ENE–WSW-trending dextral fault that forms the ~ 33 km long Yamada Fault Zone at the base of the Tango Peninsula, northern Kyoto Prefecture (Earthquake Research Committee 2004). This fault zone is composed of the Yasukeyama, Yamada, and Koryuji faults; we hereafter identify the Yamada Fault Zone as the Yamada Fault. Miyazu granite (Upper Cretaceous–Paleogene) is present around the Yamada Fault (Fig. 2d).

The Mushu outcrop (35.51722° N, 136.00797° E) contains a cataclasite zone of Miyazu granite and a fault with a 1–2 cm wide fault gouge that is continuous throughout the outcrop (Fig. 4f). The strike and dip of the latest fault plane are N55E and 62W, respectively, with striations on the slip plane possessing a rake of 20S. The fault gouge zone is very soft and shows a dextral sense of shear. Aiyama et al. (2017) investigated the activity of this fault in the Mushu outcrop and reported that the main fault plane, which has been active during the Quaternary, contains a fault gouge zone. Aiyama et al. (2017) also characterized this fault gouge zone as a layered structure with ten fault gouge layers that are indicative of repetitive activity after smectite crystallization. Iwamori et al. (2015) studied the activity of the Yamada Fault over the last ~ 200,000 years based on the faults that cut the sedimentary layer above the Mushu outcrop, and reported that the youngest fault activity occurred between 2000 and 200 years B.P.

Sample YDA was taken from the fault zone that formed during the most recent fault activity, which is an extension of the latest active plane that cuts the Holocene sediments, at the Mushu outcrop (Fig. 4g). This fault rock sample can be divided into four zones based on their degree of cohesiveness: YDA-1 and YDA-2 are fault breccias, YDA-3 is a fault gouge, and YDA-4 is a cataclasite. The boundary between YDA-2 and YDA-3 represents the main fault plane Y, and the fault breccias are dark brown due to iron oxide deposition. We collected a Miyazu granite protolith sample (YK-1) at Karakawa, ~ 6 km WSW of the Mushu outcrop (Fig. 2d), for comparison with the fault rocks.

Photomicrographs of the fault rocks are shown in Fig. 4h, i. The latest fault plane Y extends along the boundary between the YDA-2 and YDA-3 fault gouge zones without being displaced by other foliations. YDA-3 consists of a fine-grained clay mineral matrix that contains a mainly uniform distribution of ≤ 0.2 mm diameter quartz, K-feldspar, and plagioclase fragments, and possesses a P foliation that indicates a dextral sense of slip. Conversely, fault breccia YDA-2 mainly consists of ≤ 0.3 mm diameter quartz, K-feldspar, plagioclase, and biotite fragments in a matrix of brown clay minerals. Cataclasite YDA-4 mainly consists of ≤ 0.2 mm diameter quartz, K-feldspar, plagioclase, and biotite fragments in a clay mineral matrix. Conversely, protolith sample YK-1 is mainly composed of quartz, plagioclase, K-feldspar, and biotite (≤ 5 mm diameter crystals).

Density, porosity, and effective atomic number

Measurement method

Different methods were employed to obtain density measurements for the protolith and fault rock samples since the fault rock samples generally contained many voids. The density analysis for the protolith samples was performed according to the standard Japanese test method for determining the bulk density of rocks (JGS2132-2009; The Japanese Geotechnical Society 2017). The densities of the fault rock samples were determined via mercury intrusion porosimetry (AutoPore IV 9500, Version 2.02; Micromeritics; Norcross, Georgia, USA) at the Central Research Institute of Electric Power Industry (CRIEPI; Abiko-shi, Chiba, Japan); this analysis also allowed an examination of the microcracks and pores within each sample.

The effective atomic number, Ze, of a compound consisting of multiple types of atoms is defined as:

$$ {Z}_{\mathrm{e}}={\left(\Sigma {f}_i\ {Z_i}^{3.8}\right)}^{1/3.8}, $$
(1)

where fi is the fraction of electrons on the ith atomic number species. For example, the effective atomic number of a crystal composed of one silicon atom (Z = 14) and two oxygen atoms (Z = 8) is (14/30 × 143.8 + 16/30 × 83.8)1/3.8 = 11.85. Here we calculated the effective atomic number, Zet, of each sample based on the contents of the main components (SiO2, TiO2, Al2O3, Fe2O3, MnO, MgO, CaO, Na2O, K2O, and P2O5), which were measured via XRF analysis. Fused glass bead samples underwent XRF analysis using a spectrometer at CRIEPI (XRF-1500, Rh X-ray tube; Shimadzu Co., Ltd.; Nakagyo-ku, Kyoto, Japan) to obtain the Zet values.

Measurement results

The density, ρt, porosity, ϕ, and Zet measurement results are shown in Table 2 and Fig. 5, and Table 3 contains the XRF analysis results, which were used to calculate Zet.

Table 2 Density, porosity, and XRF analysis results
Fig. 5
figure5

Density, porosity, and effective atomic number measurement results. a Relationship between fault rock type and real density, ρt. b Crossplot of porosity, ϕ, versus ρt. c Crossplot of the effective atomic number, Zet, versus ρt

Table 3 XRF analysis and effective atomic number (Zet) results for the rock samples

The ρt values of the rock samples decrease as it approaches the latest active plane Y of each analyzed fault identified by the outcrop observation. (Fig. 5a). The mean ρt values are 2.69 g/cm3 (standard deviation (SD) = 0.10 g/cm3) for the protolith, 2.28 g/cm3 (SD = 0.24 g/cm3) for the cataclasite, 2.16 g/cm3 (SD = 0.21 g/cm3) for the fault gouge along the inactive faults, 1.92 g/cm3 (SD = 0.16 g/cm3) for the fault gouge along the active faults, and 1.73 g/cm3 (no SD calculated since there were only two samples) for the fault breccia (Table 2).There is an ~24% increase in ϕ as ρt decreases by 1 g/cm3, regardless of rock type (fault rock or protolith; Fig. 5b). The mean ϕ values are 1.5% (SD = 1.0%) for the protolith, 12.6% (SD = 6.9%) for the cataclasite, 12.0% (SD = 4.8%) for the fault gouge along the inactive faults, 17.4% (SD = 4.6%) for the fault gouge along the active faults, and 32.2% for the fault breccia (Table 2). The fault gouge along active faults has a smaller density and larger porosity than the fault gouge along inactive faults. The average density and porosity of the three cataclasite samples located near the fault gouge along the inactive faults (AT-1, AT-4, and AT-5) are 2.44 g/cm3 and 7.8%, respectively, whereas those of the four cataclasite samples adjacent to the fault gouge along the active faults (HJ8-1, HJ8-5, T-3-4, and YDA-4) are 2.03 g/cm3 and 19.7%, respectively. Furthermore, the density of the fault rock samples increases and the porosity decreases with increasing distance from the latest active fault plane. For example, the average density and porosity of two cataclasite samples located ~ 50 cm from the latest active plane Y (C-1 and C-2) are 2.30 g/cm3 and 14.3%, respectively, and those of a cataclasite sample located ~ 20 m from the same fault plane Y (C-3) are 2.47 g/cm3 and 4.6%, respectively. The density and porosity of sample ATR-3, which is ~ 3 m away from the youngest fault plane of an inactive fault, are 2.56 g/cm3 and 3.3%, respectively. Zhang et al. (2020) conducted an experimental study on the behavior of fault gouge under frictional shear to examine gouge dilation, frictional strength, stability, and healing, and reported that gouge dilation decreased with increasing normal stress. Therefore, the porosity of the fault gouge along the active faults is larger than that of the fault gouge along the inactive faults because the fault gouge along active faults forms at shallower depths and has a larger dilatancy than the fault gouge along inactive faults. For example, the average porosity of the cataclasite samples adjacent to the fault gouge along active faults (C-1 and C-2; 14.3%) is larger than those of the cataclasite samples that are either distal from active faults (C-3; 4.6%) or adjacent to the fault gouge along inactive faults (ATR-3; 3.3%).

Every rock type yielded a positive correlation between ρt and Zet (Fig. 5c), even though the ρt and Zet are expected to vary among different rock types. Fault breccia YDA-1 and YDA-2 of the Yamada Fault both exhibit maximum ρt decreases of ~ 40%, whereas the Zet values are almost the same as that for protolith YK-1, which means that the relationship between ρt and Zet for the fault breccias is quite different from those of the other samples. This is because YDA-1 and YDA-2 have been strongly affected by weathering, as evidenced by their dark-brown color at outcrop and an Fe2O3 content of 4.28 wt%, which is much higher than those of the fault gouge, cataclasite, and protolith samples (Table 3). Therefore, the fault breccia samples were excluded from the subsequent study of the ρtZet relationships among the collected rock samples.

X-ray CT image analysis, and relationships among the CT number, density, and effective atomic number

We conducted X-ray CT image analysis on the fault rock and protolith samples to determine how their CT values, which determine the degree of brightness of the CT image, may relate to ρt and Zet. We also attempted to quantitatively evaluate the characteristics of the fault rocks using CT values. We analyzed 28 samples, excluding the fault breccia samples (YDA-1 and YDA-2) because of their heterogeneity relative to the other samples.

X-ray attenuation principle

CT imaging captures the 3D X-ray attenuation distribution in a sample (e.g., Nakano et al. 2000; Tsuchiyama et al. 2000; Ketchman and Carlson 2001). The basic equation for the attenuation of a monoenergetic beam through a homogeneous material is given by Beer’s Law:

$$ I={I}_0\ \exp\ \left(-\mu S\right), $$
(2)

where I0 is the initial intensity of the incident X-ray beam, I is its emergent intensity, S is the sample thickness, and μ is the linear X-ray attenuation coefficient (LAC) of the sample. The LAC depends on both bulk density, ρ, and the atomic number, Z (Wellington and Vinegar 1987):

$$ \mu =\rho\ \left(a+{bZ}^{3.8}/{E}^{3.2}\right), $$
(3)

where E is the X-ray energy (keV), a is a nearly energy-independent coefficient this is termed the Klein–Nishina coefficient, and b is a constant. Eq. (3) is applicable for monochromatic X-rays, such as those from a synchrotron radiation facility. However, this equation does not hold for most commercial X-ray CT scanners, which use polychromatic X-ray beams, because μ depends on the X-ray energy (e.g., Nakano et al. 2000; Tsuchiyama et al. 2000). The photoelectric absorption of a compound consisting of multiple types of atoms is proportional to the effective atomic number calculated via Eq. (1) (Wellington and Vinegar 1987).

The CT number, NCT, which determines the contrast of a CT image, is defined as:

$$ {N}_{\mathrm{CT}}=1000\times \left(\mu -{\mu}_{\mathrm{w}}\right)/{\mu}_{\mathrm{w}}, $$
(4)

where μw is the X-ray attenuation coefficient of pure water. A polychromatic X-ray CT scanner will allow μ to vary depending on the X-ray energy (effective energy), as described above. The influence of the variations in μ with the energy differences in an X-ray energy distribution is reduced by calculating NCT, which is standardized using the μ ratio in Eq. (4). Substitution of Eq. (3) into Eq. (4) therefore highlights the dependence of NCT on ρ and Ze when the tube voltage and X-ray effective energy of a medical scanner are held constant.

CT image analysis methods

A CT image is essentially a bitmap of each pixel’s CT number; however, it also contains various artifacts due to the X-ray photography and image reconstruction. Therefore, the effects of these artifacts, especially BH, must be eliminated or reduced to ensure the accuracy of the CT numbers and therefore provide an accurate quantitative analysis.

BH artifacts cause the edges of a CT image to appear brighter than the center, such that the CT numbers along the edges of a sample are greater than those in the center. This occurs because the lower-energy X-rays are absorbed more readily than the higher energy ones when polychromatic X-rays pass through a sample near its center, where the transmission thickness is large.

Geet et al. (2000) estimated the density, ρ, and effective atomic number, Ze, via the dual-energy method using a micro X-ray CT scanner. The μE coefficient, which is the effective LAC corresponding to the effective energy of the X-rays, is derived from Eq. (3) as:

$$ {\mu}_{\mathrm{E}}/\rho =A(E)+B(E){Z_{\mathrm{e}}}^{3.8}, $$
(5)

where A and B are constants depending on E. The relationships among ρ, Ze, and μ are expressed as follows, using the A and B values calculated by approximating the relationship between μE/ρ and Ze3.8 values at two different tube voltages:

$$ \rho =\left({\mathrm{B}}_{\mathrm{h}}{\mu}_{E\mathrm{l}}-{\mathrm{B}}_{\mathrm{l}}{\mu}_{E\mathrm{l}}\right)/\left({\mathrm{B}}_{\mathrm{h}}{\mathrm{A}}_{\mathrm{l}}-{\mathrm{B}}_{\mathrm{l}}{\mathrm{A}}_{\mathrm{h}}\right) $$
(6)

and

$$ {Z}_{\mathrm{e}}=\left[\left({\mathrm{A}}_{\mathrm{l}}{\mu}_{E\mathrm{h}}-{\mathrm{A}}_{\mathrm{h}}{\mu}_{E\mathrm{l}}\right)/\left({\mathrm{B}}_{\mathrm{h}}{\mu}_{E\mathrm{l}}-{\mathrm{B}}_{\mathrm{l}}{\mu}_{E\mathrm{h}}\right)\right]\hat{\mkern6mu} \left(1/3.8\right), $$
(7)

where the h and l subscripts refer to the values derived from the high- and low-energy scans, respectively.

Iwamori et al. (2020) used the dual-energy method (tube voltages: 140 and 100 kV) to analyze the medical CT images of six different minerals with known densities and effective atomic numbers (quartz, calcite, fluorite, rhodochrosite, cryptomelane, and hematite). They found that the modal CT number, NCTM, which is calculated from the two-dimensional (2D) CT image whose peripheral CT values are excluded due to significant BH, could be used to estimate the ρ and Ze values of the mineral samples. Iwamori et al. (2020) also reported that the recorded CT values for a single tube voltage (140 kV) can be used to estimate ρ and Ze for the mineral samples since these parameters possess a positive correlation.

We have already highlighted the positive correlation between ρ and Ze for each analyzed fault and rock type in this study (Fig. 5c). Therefore, we investigated the relationship among NCT, ρ, and Ze using the recorded CT images taken for a single tube voltage (140 kV).

We used a third-generation medical X-ray scanner (Aquilion Precision TSX-304A 160-row multi-slice CT; Canon Medical Systems Co., Ltd.; Otawara, Tochigi, Japan) at CRIEPI. The scanner has a 0.25 mm slice thickness and 0.098–0.313 mm pixel size. The X-ray tube has a W target and a 0.4 mm × 0.5 mm focal size. Three-dimensional CT images were acquired using a single tube voltage (140 kV) and a 300 mAs tube current-time product. AIDR 3D (Canon Medical Systems) was used for iterative approximation reconstruction (hybrid iterative reconstruction method), with the FC30 reconstruction function employed. A CT image (1,024 × 1,024 pixels) of an arbitrary 2D cross section near the center of the sample was extracted from the 3D CT image. The effective energy of 140 kV was set to 64.1 keV based on Hubbell’s (1982) measurement results for fixed irradiation using an aluminum plate.

Results

Table 4 shows the X-ray CT image, density, and XRF analysis results. NCTM was obtained from the central part of each 2D CT image (within the white dotted perimeters in Figs. 6, 7, 8 and 9). The periphery of each CT image, where BH is significant and determined relative to the median CT value, NCTMedian, calculated for the entire arbitrary cross-sectional line (along the white dash–dotted line) using the method outlined in Iwamori et al. (2020), was excluded.

Table 4 Relationship among NCTM (calculated from the CT images at 140kV), ρt, and Zet for each of the samples
Fig. 6
figure6

X-ray CT image analysis results for the Hiji outcrop samples. CT images of samples a HJ-8 and b MZ-5. CT number histograms for c HJ8-1, d HJ8-3, and e MZ-5. The modal CT number, NCTM, for each zone was calculated near the center (within the white dotted line), with the peripheral CT numbers excluded. CT number profiles for f HJ-8 and g MZ-5, with the values calculated along the dash–dotted lines in (a) and (b), respectively

The MTL at the Hiji outcrop

The CT images for sample HJ-8, which is from the fault fracture zone in the Sanbagawa Belt, is dark at the fault gouge zones (HJ8-2, HJ8-3, and HJ8-4; Fig. 6a). The NCTM values are in the 994–1109 range across the fault gouge, with the smallest value obtained within zone HJ8-3, which is in contact with the latest main fault plane Y. The cataclasite zones (HJ8-1 and HJ8-5), which are outside the fault gouge zones, appear brighter than the fault gouge, with NCTM values in the 1281–1333 range.

The CT images for sample MZ-5, a pelitic schist protolith in the Sanbagawa Belt, exhibit a striped pattern corresponding to planar schistosity (Fig. 6b) and possesses a NCTM value of 2056. A narrow band (≤ 1 mm wide) that is brighter than the rest of the image is inferred to be a phengite vein, which has a greater effective atomic number than either quartz or albite.

Example histograms of the CT values in each of the sampled zones are shown in Fig. 6c–e. Approximately 40,000–130,000 pixels are analyzed in each region, with the NCTM values generally following a normal distribution and possessing a standard deviation of 112–312 (Table 4). There may either be an increase in the frequency to values lower than NCTM, or a small side peak that is lower than NCTM if the sample contains many cracks; however, NCTM corresponds to the CT value of the matrix, with the influence of cracks excluded.

Figure 6 f and g show the CT value distributions along the white dash–dotted lines in the CT image. We note that the NCTMedian values (HJ-8: 991–1278, MZ-5: 2088) are almost consistent with the NCTM values that were calculated from the 2D CT images.

The NCTMρt relationship for Sanbagawa pelitic schist possesses a high positive correlation (ρt = 9.54 × 10–4 NCTM + 0.76, γ = 0.958; Fig. 10a). The calculated density from this equation, ρc, is consistent with the real value, ρt, and possesses an error of < 9.5% (Table 4).

The NCTMZet relationship (Zet = 2.67 × 10–4 NCTM + 11.8) can be derived from the abovementioned NCTMρt relationship; the ρtZet relationship is shown in Fig. 5c (Zet = 0.28ρt + 11.6, γ = 0.847). The effective atomic number calculated from this equation, Zec, is consistent with the real value, Zet, and possesses an error of < 1.4% (Table 4).

The MTL at the Awano–Tabiki outcrop

The imaging results for samples AT, HA-1, and ATS-2 (Fig. 7a–c) are representative of the seven samples (AT, ATR-2, ATR-3, ATR-4, ATS-1, ATS-2, and HA-1) collected from the Awano–Tabiki outcrop.

Fig. 7
figure7

X-ray CT image analysis results for the Awano–Tabiki outcrop samples. CT images of the a AT, b HA-1, and c ATS-2 samples. CT number histograms for the d AT-1, e AT-2, f AT-4, g HA-1, and h ATS-2 samples. The NCTM value for each zone was calculated near the center (within the white dotted lines in (a)–(c)), with the peripheral areas excluded. CT number profiles for i AT, j HA-1, and k ATS-2, with the values calculated along the dash-dotted lines in (a)–(c), respectively

The CT image for sample AT, which was taken from rocks in the fault fracture zone that formed during the most recent fault activity, appears dark in the fault gouge (AT-2 and AT-3) surrounding the main fault plane Y (Fig. 7a), with NCTM values in the 1209–1665 range. The smallest NCTM value was observed in AT-2, which is in contact with the latest main fault plane Y. The cataclasite samples (AT-1, AT-4, and AT-5), which are outside of the fault gouge zone, produce brighter images than the fault gouge ones, with NCTM values in the 1718–1864 range.

Sample HA-1, a Hatai tonalite protolith from the Ryoke Belt, possesses both dark-gray and mottled white regions throughout the CT images (Fig. 7b), with a NCTM value of 1908. A 1–2 mm thick band that appears brighter than the rest of the image is inferred to be hornblende and chlorite, both of which have larger effective atomic numbers than quartz and plagioclase.

Sample ATS-2, a pelitic schist protolith from the Sanbagawa Belt, possesses striped patterns corresponding to planar schistosity in the CT images (Fig. 7c), with a NCTM value of 1961. A narrow band (at most ~ 1 mm wide) that appears brighter than the rest of the image is inferred to be a thin layer containing phengite and calcite, both of which have larger effective atomic numbers than quartz.

Example CT value histograms for each zone are shown in Fig. 7d–h. Approximately 12,000–200,000 pixels are analyzed in each zone, with the NCTM values generally following a normal distribution and possessing a standard deviation of 90–210 (Table 4). There may be a slight increase in the frequency to values higher than NCTM due to the influence of minerals with a large effective atomic number in some instances; however, NCTM corresponds to the CT value of the matrix, with the influence of these minerals excluded.

Figure 7 i–k show the CT value distributions along the white dash–dotted line in the CT image. We note that the NCTMedian values (AT: 1386–1801, HA-1: 1965, ATS-2: 1953) are almost consistent with the NCTM values calculated from the 2D CT images.

The NCTMρt relationships for the Sanbagawa pelitic schist and Ryoke tonalite possess high positive correlations (pelitic schist: ρt = 1.08 × 10–3 NCTM + 0.56, γ = 0.857; tonalite: ρt = 1.19 × 10–3 NCTM + 0.40, γ = 0.813; Fig. 10b, c). The ρc values are consistent with the ρt values and possess errors of < 10.7% (Table 4).

The NCTMZet relationships (pelitic schist: Zet = 1.57 × 10–3 NCTM + 9.47; tonalite: Zet = 3.31 × 10–3 NCTM + 5.87) can be derived from the abovementioned NCTMρt relationships; the ρtZet relationships are shown in Fig. 5c (pelitic schist: Zet = 1.45ρt + 8.7, γ = 0.827; tonalite: Zet = 2.78ρt + 4.76, γ = 0.802). The Zec values are consistent with the Zet values and possess errors of < 7.9% (Table 4).

The Tsuruga Fault at the Oritodani outcrop

The CT results for samples T-3, K1, and T-5 (Fig. 8a–c) are representative of the five samples (T-3, C-2, K-1, C-1, and T-5) collected from the Oritodani outcrop.

Fig. 8
figure8

X-ray CT image analysis results for the Oritodani outcrop samples. CT images of samples a T-3, b K-1, and c T-5. CT number histograms for d T-3-1, e T-3-3, f T-3-4, g K-1, and h T-5. The NCTM value in each zone was calculated near the center (within the white dotted lines in (a)–(c)), with the peripheral values excluded. CT number profiles for i T-3, j K-1, and k T-5, with the values calculated along the dash-dotted lines in (a)–(c), respectively

Sample T-3, which was taken from the rocks in the fault fracture zone that formed during the most recent fault activity, appears dark in the fault gouge (T-3-1, T-3-2, and T-3-3) around the main fault plane Y in the CT image (Fig. 8a), with NCTM values in the 1185–1492 range. The smallest NCTM value is in T-3-3, which is in contact with the latest main fault plane Y. We consider T-3-2 to be possibly affected by the most recent fault activity based on our abovementioned analysis, but its NCTM value is 1428, which is about the same as that in T-3-1 and exceeds that in AT-2, a fault gouge along an inactive fault. Furthermore, the observed microstructures in T-3 suggest that repetitive fault activity, which is indicative of an active fault, is limited to fault gouge T-3-3. Therefore, we classify T-3-1 and T-3-2 as inactive fault gouge, and T-3-3 as active fault gouge in this analysis. The cataclasite (T-3-4) outside of the fault gouge appears brighter than the fault gouge, with a NCTM value of 1622.

Sample K-1, a Koujaku granite protolith, possesses dark-gray and fine-grained white areas throughout the CT images (Fig. 8b), with a NCTM value of 1656. The small white areas (≤ 2 mm diameter) in the image are inferred to be biotite, which has a larger effective atomic number than either quartz or plagioclase.

Sample T-5, which is a metabasalt protolith, is largely gray in the CT image, with the exception of a white area at the upper right of the sample (Fig. 8c) and has a NCTM value of 2590.

Example CT value histograms for each zone are shown in Fig. 8d–h. Approximately 20,000–310,000 pixels are analyzed in each region, with the NCTM values generally following a normal distribution and possessing a standard deviation of 70–206 (Table 4). There may be a slight increase in the frequency to values above NCTM due to the influence of minerals with a large effective atomic number in some instances, but NCTM corresponds to the CT value of the matrix, with the influence of these minerals excluded.

Figure 8 i–k show the CT value distributions along the white dash-dotted lines in the CT images We note that the NCTMedian values (T-3: 1204–1553, K-1: 1706, ATS-2: 2612) are almost consistent with the NCTM values calculated from the 2D CT images.

The NCTMρt relationships for Koujaku granite and metabasalt have high positive correlations (granite: ρt = 1.23 × 10–3 NCTM + 0.45, γ = 0.872; metabasalt: ρt = 5.47 × 10–4 NCTM + 1.42, γ = 0.967; Fig. 10d, e). The ρc values are the ρt values and possess errors of <3.7% (Table 4).

The NCTMZet relationships (granite: Zet = 2.83 × 10–4 NCTM + 11.6; metabasalt: Zet = 7.66 × 10–4 NCTM + 12.1) can be derived from the abovementioned NCTMρt relationships; the ρtZet relationships are shown in Fig. 5c (granite: Zet = 0.23ρt + 11.5, γ = 0.528; metabasalt: Zet = 1.40ρt + 10.1, γ = 0.669). The Zec values are consistent with the Zet values and possess errors of < 3.7% (Table 4).

The Yamada Fault at the Mushu outcrop

Sample YDA, which is from the Miyazu granite in the fault fracture zone at the Mushu outcrop, appears dark in the fault gouge of the CT image (YDA-3; Fig. 9a), with a NCTM value of 1108. The smallest NCTM value is in YDA-3, which is adjacent to the latest main fault plane Y. The cataclasite zone (YDA-4), which is outside of the fault gouge, is brighter than the fault gouge, with a NCTM value of 1333.

Fig. 9
figure9

X-ray CT image analysis results for the Mushu outcrop samples. CT images of the a YDA and b YK-1 samples. CT number histograms for c YDA-3, d YDA-4, and e YK-1. The NCTM values were calculated near the center (within the white dotted lines in (a) and (b)) of each zone, with the peripheral areas excluded. CT number profiles for f YDA and g YK-1, with the values calculated along the dash–dotted lines in (a) and (b), respectively

Sample YK-1, a Miyazu granite protolith, possesses dark-gray and fine-grained white areas throughout the CT images (Fig. 9b), with a NCTM value of 1730. The white area (≤ 2 mm diameter) in the image is inferred to be biotite, which has a larger effective atomic number than both quartz and plagioclase.

Example CT value histograms for each zone are shown in Fig. 9c–e. Approximately 50,000–330,000 pixels were analyzed in each region, with the NCTM values generally following a normal distribution and possessing a standard deviation of 119–224 (Table 4). There may be a slight increase in the frequency to values above NCTM due to the influence of minerals with a large effective atomic number in some instances; however, NCTM corresponds to the CT value of the matrix, with the influence of these minerals excluded.

Figure 9 f and g show the CT value distributions along the white dash–dotted lines in the CT image. We note that the NCTMedian values (YDA: 1105–1325, YK-1: 1782) are almost consistent with the NCTM values that were calculated from the 2D CT images.

The NCTMρt relationship for Miyazu Granite has a high positive correlation (ρt = 9.79 × 10−4 NCTM + 0.85, γ = 0.893; Fig. 10f). The ρc value is consistent with ρt and possesses the error of < 9.1% (Table 4).

Fig. 10
figure10

ρtNCTM crossplots for the sampled fault rocks and protoliths. a Schist (Hiji outcrop). b Schist (Awano–Tabiki outcrop). c Tonalite (Awano–Tabiki outcrop). d Granite (Oritodani outcrop). e Metabasalt (Oritodani outcrop). f Granite (Mushu outcrop)

The NCTMZet relationship (Zet = 6.95 × 10–4 NCTM + 11.2) can be derived from the abovementioned NCTMρt relationship; the ρtZet relationship is shown in Fig. 5c (Zet = 0.71ρt + 10.6, γ = 0.975). The Zec value is consistent with Zet, and possesses an error of < 0.7% (Table 4).

Discussion

We have concluded that NCTM can be used to estimate ρt and Zet for the protolith and fault rock samples. Here we further investigate the ρtρc and ZetZec relationships, the lowest density domain, and the youngest active domain relationships in major fault zones, as well as the fault rock characteristics based on the NCTM–rock/protolith ratio (ρt and Zet) relationship, to validate the feasibility of employing CT-based methods to characterize fault zones.

ρ tρ c and Z etZ ec relationships

There is no significant difference in the ρϕ relationship for various fault rock and protolith types (Fig. 5b), whereas the trend of the ρtZet relationship appears to be dependent on the analyzed fault rock/protolith type (Fig. 5c). This indicates that NCTM, which is a function of ρ and Ze, must be treated as an effective parameter for examining fault rock and protolith characteristics by fault rock/protolith type. We observe strong correlations between ρc and ρt, and Zec and Zet for each fault rock and protolith type, as shown in Fig. 11 (ρ: γ = 0.944, Ze: γ = 0.895). Therefore, NCTM, which is calculated by fault rock/protolith type, should be a reliable parameter for calculating the ρt and Zet values of a given rock sample and determining its fault rock/protolith characteristics.

Fig. 11
figure11

Crossplots of a the real density, ρt, versus the measured density, ρc, which is calculated from NCTM, and b the real effective atomic number, Zet, versus the measured effective atomic number, Zec, which is calculated from NCTM. Regression lines were determined via least-squares analysis

Fault rock characteristics based on the N CTM–rock/protolith ratio (ρ t and Z et) relationship

We have demonstrated that ρt, Zet, and NCTM all decrease as the main fault plane, identified by outcrop observation, is approached Furthermore, ρt is affected by Zet, as shown in Fig. 5c, with a distinct ρtZet relationship for each fault and protolith type. Therefore, the effect of Zet on ρt is suppressed by using the rock/protolith density ratio of each fault and protolith type.

Table 5 shows the results of the analyzed fault rock characteristics based on the relationships between NCTM and the ρt and Zet rock/protolith ratios. The statistics of the determined NCTM values and the ρt and Zet rock/protolith ratios are provided in Table 6 and Fig. 12a–c.

Table 5 Comparison of ρt, Zet, NCTM, and the rock/protolith ratios (ρt and Zet3.8) for each of the analyzed samples
Table 6 Statistics of the determined NCTM values and rock/protolith ratios (ρt and Zet3.8)
Fig. 12
figure12

Box plots of a NCTM, b rock/protolith ρt ratio, c rock/protolith Zet3.8 ratio, and d crossplot of NCTM versus rock/protolith ρt ratio

The NCTM values (taken at 140 kV) were ~ 1900 ± 300 for the protoliths, ~ 1650 ± 250 for cataclasite, ~ 1450 ± 200 for the fault gouge along inactive faults, and ~ 1100 ± 100 for the fault gouge along active faults, as shown in Fig. 12a. Both the NCTM values and NCTM variations decrease as the fault rock becomes more heavily deformed and the main fault plane is approached.

The rock/protolith ρt ratio was ~ 0.8 ± 0.15 for cataclasite and the fault gouge along inactive faults, and ~ 0.7 ± 0.1 for the fault gouge along active faults, as shown in Fig. 12b. The ρt ratio decreases as the fault rock becomes more heavily deformed and the main fault plane is approached, whereas the variation in the ρt ratio is approximately constant. Furthermore, the ρt ratio differences among the different rock types are smaller than the NCTM differences.

The rock/protolith Zet ratio was ~ 0.85, with no major difference between the analyzed fault rock types, as shown in Fig. 12c. Therefore, Zet is not closely related to the fault rock types, which indicates that any distinct characteristics are dependent on differences in the protolith type (Fig. 5c).

This study demonstrates that analysis of the NCTM values in CT images provides the best proxy for detecting changes in fault rocks characteristics as the youngest active domain of a fault zone is approached. Furthermore, the ρt ratio of the active fault is smaller than those of other fault rocks, and the Zet ratio decreases by ~ 15%, regardless of the protolith type. This occurs because NCTM, which is a function of both ρ and Ze, is affected by both the changes in ρ (dependent on the fault rock type) and decreases in Ze. This is also due to how NCTM and the rock/protolith ratios are calculated: NCTM is calculated from more than 12,000 pixels of data by eliminating the sample area due to the influence of cracks or minerals with a large effective atomic number, with the rock/protolith ρt and Zet ratios also calculated using only a portion of each sample area.

The NCTM–rock/protolith ρt ratio relationship is shown in Fig. 12d. Both NCTM and the rock/protolith ρt ratio decrease as the main fault plane is approached and/or the degree of fracturing increases. However, there is a significant overlap between the NCTMρt ratio distribution areas for the fault gouge along the inactive fault and cataclasite, making it difficult to classify them using NCTM and the ρt ratio. This is due to the porosity increase, NCTM decrease, and rock/protolith ρt ratio decrease of the cataclasite adjacent to the fault gouge along active faults (HJ8-1, HJ8-5, T-3-4, YDA-4), which indicate that the fault activity affected the cataclasite at shallow depth.

The lowest density domain and youngest active domain relationships in major fault zones

The lowest NCTM value for each analyzed fault is at the fault gouge (HJ8-3, AT-2, T-3-3, and YDA-3), which is in contact with the latest main fault plane Y, and the rock/protolith ρt ratio is also the lowest at or near fault plane Y; these low values are due to the fact that the depth at which these samples are affected by the youngest fault activity is the shallowest at/near the active fault plane. Therefore, the lowest density domain of a fault may correspond to the youngest active domain of each fault, and the youngest active domain may be estimated using the NCTM, which is a function of the density and effective atomic number. However, it should be noted that the lowest density region of a fault may not necessarily correspond to the youngest active domain of the fault because the density reduction of fault rocks may result from shear damage due to the fault activity, as well as the formation of secondary minerals due to mineral precipitation, phase transition, dissolution into groundwater, and other mechanisms. The possibility that the lowest density domain identified by the NCTM corresponds to the youngest active domain should be carefully examined in conjunction with detailed outcrop and microstructural observations to confirm the presence of lineations and composite planar fabric in the fault gouge due to shearing. Outcrop observations of each fault gouge from the youngest active domain identified in the four analyzed faults highlighted lineations and composite planar fabric due to shearing and possessed the lowest density domain identified by the NCTM. Therefore, the four faults in this study can be classified as cases in which the lowest density domain corresponds to the youngest active domain of fault activity.

It may therefore be possible to recognize the youngest active domain of a fault zone via a joint analysis of the lowest density domain identified by the NCTM, and fault outcrop and fault gouge microstructure observations. It is expected that the accuracy of the ρt and Zet values obtained from the CT values in the fault fracture zone will be further enhanced as more studies conduct CT analyses on both active and inactive faults, and a greater diversity of protoliths.

Conclusions

This study considered fault rock and protolith samples that were derived from pelitic schist, tonalite, metabasalt, and granite along active faults (MTL, and Tsuruga and Yamada faults) and an inactive fault (MTL). The density, porosity, and effective atomic number were determined for the different fault and protolith types, and relationships among the CT value, density, and effective atomic number were investigated. Our major findings and conclusions are as follows.

  1. (1)

    The fault rock density, ρt, decreases as it approaches the youngest active fault plane, and the porosity, ϕ, tends to increase by ~24% as ρt decreases by 1 g/cm3, regardless of the fault rock or protolith type. The porosity of the cataclasite adjacent to the fault gouge along the active faults is 19.7%, which is significantly larger than those of the other cataclasite sample locations; this increased porosity may be due to the shallow depth that is affected by this proximal fault activity.

  2. (2)

    The mean ϕ values are 1.5% (SD = 1.0%) for the protoliths, 12.6% (SD = 6.9%) for cataclasite, 12.0% (SD = 4.8%) for the fault gouge along the inactive fault, 17.4% (SD = 4.6%) for the fault gouge along the active faults, and 32.2% for the fault breccia.

  3. (3)

    There is a positive correlation between ρt and the effective atomic number, Zet, which is unique to each fault and protolith type.

  4. (4)

    The modal CT number, NCTM, which is calculated from a 2D CT image (excluding the periphery where BH is significant, and the influences of cracks and minerals with a large effective atomic number) can be used to estimate the ρt and Zet values of the protolith and fault rock samples.

  5. (5)

    The NCTM values were ~ 1900 ± 300 for the protolith, ~ 1650 ± 250 for cataclasite, ~ 1450 ± 200 for fault gouge in the inactive fault, and ~ 1100 ± 100 for fault gouge in the active faults. Both NCTM and the variation in NCTM decreased near the main fault plane. The NCTM of the fault rock in each fault is the lowest in the fault gouge from the youngest active domain.

  6. (6)

    The rock/protolith density ratio was ~ 0.8 ± 0.15 for cataclasite and fault gouge along the inactive fault and ~ 0.7 ± 0.1 for fault gouge along the active faults.

  7. (7)

    The change in fault rock characteristics due to the transition to the youngest active domain of the fault zone is more distinct when analyzing NCTM, which is a function of the ρt and Zet, than the rock/protolith (ρt and Zet) ratios.

  8. (8)

    The NCTM can be used to identify the lowest density domain of a fault.

  9. (9)

    It may be possible to recognize the youngest active domain in major fault zones via a joint analysis of the lowest density domain identified using the NCTM and fault outcrop and fault gouge microstructure observations.

Availability of data and materials

Data sharing not applicable to this article as no datasets were generated now. Please contact author for data requests.

References

  1. Aiyama K, Tanaka S, Sasaki T (2017) Consideration of the activity of a fault based on detailed structural analysis of a fault fracture zone: case study of the Yamada Fault, Western Japan. J Japan Soc Eng Geol 58(1):2–18

    Article  Google Scholar

  2. Boespflug X, Long BFN, Occhietti S (1995) CAT-scan in marine stratigraphy: a quantitative approach. Marine Geol. 122(4):281–301. https://doi.org/10.1016/0025-3227(94)00129-9

    Article  Google Scholar

  3. Earthquake Research Committee (2004) Long-term evaluation of the Yamada Fault Zone. The Headquarters for Earthquake Research Promotion. https://www.jishin.go.jp/main/chousa/katsudansou_pdf/74_yamada.pdf/*

  4. Geet MV, Swennen R, Wevers M (2000) Quantitative analysis of reservoir rocks by microfocus X-ray computerized tomography. Sedimentary Geol. 132(1-2):25–36. https://doi.org/10.1016/S0037-0738(99)00127-X

    Article  Google Scholar

  5. Hirono T, Sakaguchi M, Otsuki K, Sone H, Fujimoto K, Mishima T, Lin W, Tanikawa W, Tanimizu M, Soh W, Yeh E, Song S (2008) Characterization of slip zone with the 1999 Taiwan Chi-Chi earthquake: X-ray CT image analyses and microstructural observation of the Taiwan Chelungpu fault. Tectonophysics 449:63–84

    Article  Google Scholar

  6. Hounsfield GN (1973) Computerized transverse axial scanning (tomography): Part I. Description of system. Br J Radiol 46(552):1016–1022. https://doi.org/10.1259/0007-1285-46-552-1016

    Article  Google Scholar

  7. Hubbell JH (1982) Photon mass attenuation and energy-absorption coefficients from l keV to 20 MeV. Int. J Appl Radiat Isot. 33(11):1269–1290. https://doi.org/10.1016/0020-708X(82)90248-4

    Article  Google Scholar

  8. Ikeda R, Omura K, Iio Y, Arai T, Kobayashi K, Matsuda T, Shimada K, Tanaka H, Tomita T, Hirano S (2001) Drilling investigation through the Nojima Fault of the 1995 Hyogo-ken Nanbu Earthquake, Japan. National Res Ins Earth Sci Disaster Prev Res Rep 61:141–153

    Google Scholar

  9. Iwamori A, Sasaki T, Sugimori T, Aiyama K, Goto N, Yanagida M, Shigemitsu Y, Tanaka Y (2015) Activity history of the Yamada fault in the late Quaternary-outcrop survey at Mushu, Tanto-cho. Proceedings of the 2015 Autumn Meeting of the Active Fault Society of Japan, pp 62–63

    Google Scholar

  10. Iwamori A, Takagi H, Asahi N, Sugimori T, Nakata E, Nohara S, Ueta K (2020) Development of a method for presuming the density and effective atomic number of mineral samples by utilizing medical X-ray CT scanning. Jap Mag Mineral Petrol Sci 49:101–117

    Google Scholar

  11. Ketchman RA, Carlson WD (2001) Acquisition, optimization and interpretation of X-ray computed tomographic imagery: applications to the geosciences. Comp Geosci. 27(4):381–400. https://doi.org/10.1016/S0098-3004(00)00116-3

    Article  Google Scholar

  12. Ketchman RA, Hanna RD (2014) Beam hardening correction for X-ray computed tomography of heterogeneous natural materials. Comp Geosci. 67:49–61. https://doi.org/10.1016/j.cageo.2014.03.003

    Article  Google Scholar

  13. Kurimoto C, Naito K, Sugiyama Y, Nakae S (1999) Geological map of Japan 1:50,000, Tsuruga, National Institute of Advanced Industrial Science and Technology

    Google Scholar

  14. Kuroda K (1968) Geological map of Japan 1: 200,000. Miyazu, National Institute of Advanced Industrial Science and Technology

  15. Mizoguchi K, Ueta K (2012) Evaluation of fault activity based on fault-zone properties – Microfracture analysis of damage zone along an active fault located east of epicentral area of the 1943 Tottori Earthquake, Japan. Civil Engin Res Lab Rep No. N11041:17

    Google Scholar

  16. Morrow CA, Lockner DA (2001) Hayward fault rocks: Porosity, density and strength measurements. U.S. Department of the Interior, USGS Open-File Report 2001-421

    Google Scholar

  17. Nakano T, Nakashima Y, Nakamura K, Ikeda S (2000) Observation and analysis of internal structure of rock using X-ray CT. J Geol Soc 106:363–378

    Article  Google Scholar

  18. National Institute of Advanced Industrial Science and Technology (2016) 151 Tsuruga earthquake fault. Active fault database of Japan. https://gbank.gsj.jp/activefault/

    Google Scholar

  19. Nishioka Y, Nakae S, Takeuchi K, Banno Y, Mizuno K, Ozaki M, Nakashima R, Sanematsu K, Nawa K, Komazawa M (2010) Geological map of Japan 1:200,000, Ise, National Institute of Advanced Industrial Science and Technology

    Google Scholar

  20. Nishizawa O, Nakano T, Noro H, Inazaki T (1995) Recent advances of X-ray CT technology for analyzing geologic materials. Bull Geol Surv 46:565–571

    Google Scholar

  21. Okada A (1992) Proposal of the segmentation on the Median Tectonic Line active fault system.Mem. Geol Soc 40:15–30

    Google Scholar

  22. Orsi TH, Edwards CM, Anderson AL (1994) X-ray computed tomography: a nondestructive method for quantitative analysis of sediment cores. J Sed Res A64:690–693

    Article  Google Scholar

  23. Ozaki M, Makimoto H, Sugiyama Y, Mimura K, Sakai A, Kubo K, Kato H, Komazawa M, Hiroshima T, Sudo S (2002) Geological map of Japan 1: 200,000. Kofu, National Institute of Advanced Industrial Science and Technology

    Google Scholar

  24. Raynaud S, Fabre D, Mezerolle F, Geraud Y, Latiere HJ (1989) Analysis of the internal structure of rocks and characterization of mechanical deformation by a non-destructive method: X-ray tomodensitometry. Tectonophysics. 159(1-2):149–159. https://doi.org/10.1016/0040-1951(89)90176-5

    Article  Google Scholar

  25. Rempe M, Mitchell T, Renner J, Nippress S, Ben-Zion Y, Rockwell T (2013) Damage and seismic velocity structure of pulverized rocks near the San Andreas Fault. J Geophys Res Solid Earth 118(6):2813–2831. https://doi.org/10.1002/jgrb.50184

    Article  Google Scholar

  26. Shigematsu N, Kametaka M, Inada N, Miyawaki M, Miyakawa A, Kameda J, Togo T, Fujimoto K (2017) Evolution of the Median Tectonic Line fault zone, SW Japan, during exhumation. Tectonophysics. 696–697:52–69

    Article  Google Scholar

  27. Takagi H (1984) Mylonitic rocks along the Median Tectonic Line in Takato–Ichinose area, Nagano Prefecture. J Geol Soc 90:81–100

    Article  Google Scholar

  28. Takagi H (1985) Mylonitic rocks of the Ryoke belt in the Kayumi area, eastern part of the Kii Peninsula. J Geol Soc 91:637–651

    Article  Google Scholar

  29. Takagi H, Kobayashi K (1996) Composite planar fabrics of fault gouges and mylonites—comparative petrofabrics. J Geol Soc 102:170–179

    Article  Google Scholar

  30. Takagi H, Sugiyama K, Tamura I, Mizuno K, Kitazawa N, Kawamoto K (2019) Identification of the youngest activity of the Median Tectonic Line at Hiji outcrop, Ina City, Nagano Prefecture. Active Fault Res 50:1–12

    Google Scholar

  31. Takeuchi F, Nakamura K, Matsumura K, Watanabe K (2005) Density of stones observed near and around the Yamazaki Fault System. Annu Disas Prev Res Inst Kyoto Univ 48B

  32. Tanaka Y, Kametaka M, Okazaki K, Suzuki K, Seshimo K, Aoki K, Shimada K, Watanabe T, Nakayama K (2018) Examination of Evaluation Method for Fault Activity Based on Morphological Observation of Fault Planes. J Japan Soc Eng Geol 59(1):13–27

    Article  Google Scholar

  33. The Japanese Geotechnical Society (2017) Japanese Geotechnical Society Standards Vol. 2–Laboratory Testing Standards of Geomaterials, p 300

    Google Scholar

  34. Tsuchiyama A, Uesugi K, Nakano T (2000) A study of three-dimensional structures of rocks and minerals using a high-resolution X-ray CT method—primitive materials in the solar system and chondrules. J Geogr (Chigaku Zasshi) 109:845–858

    Article  Google Scholar

  35. Ueta K, Tani K, Kato T (2000) Computerized X-ray tomography analysis of three-dimensional fault geometries in basement-induced wrench faulting. J Eng Geol 56(1-2):197–210. https://doi.org/10.1016/S0013-7952(99)00143-X

    Article  Google Scholar

  36. Verhelst F, David P, Fermont W, Jegers L, Vervoort A (1996) Correlation of 3D-computerized tomographic scans and 2D-colour image analysis of Westphalian coal by means of multivariate statistics. Int J Coal Geol. 29(1-3):1–21. https://doi.org/10.1016/0166-5162(95)00026-7

    Article  Google Scholar

  37. Wakita K, Harayama S, Kano K, Mimura K, Sakamoto T, Hitoshima T, Komazawa M (1992) Geological map of Japan 1: 200,000. Gifu, National Institute of Advanced Industrial Science and Technology

    Google Scholar

  38. Wellington SL, Vinegar HJ (1987) X-ray computerized tomography. J Petrol Tech. 39(08):885–898. https://doi.org/10.2118/16983-PA

    Article  Google Scholar

  39. Zhang F, An M, Zhang L, Fang Y, Elsworth D (2020) Effect of mineralogy on friction-dilation relationships for simulated faults: implications for permeability evolution in caprock faults. Geosci Front 11(2):439–450. https://doi.org/10.1016/j.gsf.2019.05.014

    Article  Google Scholar

Download references

Acknowledgements

We thank Seiji Matayoshi and Yasuhiro Yamada for their assistance with the analyses at CRIEPI. We are grateful to Tadahiro Nishizaki for his assistance during the sample collection in the field. Kana Tanabe, Shotaro Yamamoto, Kozo Kiyose, Koichi Hojo, and Koudai Kuramoto provided careful guidance during the X-ray effective energy measurements and CT imaging. Two anonymous reviewers provided valuable suggestions in adding discussion of the relationship between the lowest density domain and the youngest active domain in major fault zones, which greatly improved this paper.

Funding

This work was funded by Kansai Electric Power Co. Inc.

Author information

Affiliations

Authors

Contributions

AI proposed this study and performed compilation and interpretation on all analysis results. HT provided support and guidance for all analyzes and interpretation of analysis results. NA captured CT images and performed XRF analysis. TS took the lead in sampling of fault rocks. EN, SN, and KU collaborated with the corresponding author to interpret analysis results. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Akiyuki Iwamori.

Ethics declarations

Competing interests

The authors of this article declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Iwamori, A., Takagi, H., Asahi, N. et al. Quantitative determination of the lowest density domain in major fault zones via medical X-ray computed tomography. Prog Earth Planet Sci 8, 54 (2021). https://doi.org/10.1186/s40645-021-00442-7

Download citation

Keywords

  • Medical X-ray CT
  • CT number
  • Beam hardening
  • Bulk density
  • Effective atomic number
  • Rock/protolith density ratio
  • The lowest density domain of a fault zone
  • The youngest active domain of a fault zone
