Deep mantle melting, global water circulation and its implications for the stability of the ocean mass


Oceans on Earth are present as a result of dynamic equilibrium between degassing and regassing through the interaction with Earth’s interior. We review mineral physics, geophysical, and geochemical studies related to the global water circulation and conclude that the water content has a peak in the mantle transition zone (MTZ) with a value of 0.1–1 wt% (with large regional variations). When water-rich MTZ materials are transported out of the MTZ, partial melting occurs. Vertical direction of melt migration is determined by the density contrast between the melts and coexisting minerals. Because a density change associated with a phase transformation occurs sharply for a solid but more gradually for a melt, melts formed above the phase transformation depth are generally heavier than solids, whereas melts formed below the transformation depth are lighter than solids. Consequently, hydrous melts formed either above or below the MTZ return to the MTZ, maintaining its high water content. However, the MTZ water content cannot increase without limit. The melt-solid density contrast above the 410 km depends on the temperature. In cooler regions, melting will occur only in the presence of very water-rich materials. Melts produced in these regions have high water content and hence can be buoyant above the 410 km, removing water from the MTZ. Consequently, cooler regions of melting act as a water valve to maintain the water content of the MTZ near its threshold level (~ 0.1–1.0 wt%). Mass-balance considerations explain the observed near-constant sea-level despite large fluctuations over Earth history. Observations suggesting deep-mantle melting are reviewed including the presence of low-velocity anomalies just above and below the MTZ and geochemical evidence for hydrous melts formed in the MTZ. However, the interpretation of long-term sea-level change and the role of deep mantle melting in the global water circulation are non-unique and alternative models are reviewed. Possible future directions of studies on the global water circulation are proposed including geodynamic modeling, mineral physics and observational studies, and studies integrating results from different disciplines.


The habitability conditions of a planet are often defined as the conditions in which its surface can maintain liquid water for billions of years (e.g., Kasting and Catling 2003; Kopparapu et al. 2013; Langmuir and Broecker 2012). When the habitability conditions are defined in this way, it is implicitly assumed that if these conditions are met, oceans will have covered some (but not all) parts of a planet for billions of years. However, this is not necessarily true because the ocean mass on Earth-like planets is controlled by the dynamic equilibrium between the removal of volatile components from Earth’s interior (degassing) and the transport of volatiles back into Earth’s interior (regassing) (e.g., Holland 2003; Rubey 1951). Depending on the balance between regassing and degassing, oceans may disappear, or the surface may flood extensively. If either of them (or both) occurs for sufficient time, it will be difficult for life to emerge and evolve (e.g., Kite and Ford 2018). Therefore, commonly assumed “habitable conditions” are the necessary, but not the sufficient conditions to develop the biosphere we live in.

Both regassing and degassing involve global water-circulation processes in Earth’s interior. Most previous studies emphasize shallow-mantle processes, such as degassing at mid-ocean ridges and regassing at subduction zones (Crowley et al. 2011; Franck and Bounama 2001; Karlsen et al. 2019; Korenaga 2011; Korenaga et al. 2017; McGovern and Schubert 1989; Rüpke et al. 2006) or the competition between degassing at ocean ridges and serpentinization in the ocean floor (e.g., Cowan and Abbot 2014; Kite and Ford 2018). Processes below the mantle transition zone (MTZ; a layer between ~ 410 and ~ 660 km depth) have been treated in a highly simplified fashion, with a few exceptions (Bercovici and Karato 2003; Karato 2012; Karato et al. 2006) where the role of melting above the MTZ on global chemical circulation was emphasized. Observational evidence for deep-mantle melting and water transport has been reported (e.g., Kuritani et al. 2011; Li et al. 2020; Liu et al. 2016, 2018; Schmandt et al. 2014; Tao et al. 2018; Tauzin et al. 2010; Yang and Faccenda 2020; Zhao and Ohtani 2009).

Nakagawa et al. (2015) is an important exception where they emphasized the separation of subducted oceanic crust into the MTZ. However, the degree to which oceanic crust carries water to the MTZ is unclear, nor did they explain the stability of water within the MTZ. The relationship between MTZ water content and the ocean-mass was not discussed in other studies.

In this paper, we review various observations to show the importance of the MTZ in the global water circulation. Motivated by seismic evidence of partial melting above and below the MTZ, we propose a new model in which partial melting around the MTZ buffers its water content, and hence (indirectly) stabilizes the ocean mass. However, given large uncertainties in the interpretation of various observations such as the sea-level change, we will also review alternative models.

Water in Earth’s mantle: Importance of the mantle transition zone

Water-storage capacity in mantle minerals

Figure 1 illustrates regions that may play an important role in the global water circulation. Due to mantle convection and resultant partial melting and melt transfer, water may circulate deep into the mantle and return through Earth’s surface into the oceans. For each region, we also estimate the water-storage capacity based on experimental results (e.g., Bolfan-Casanova 2005; Fu et al. 2019; Inoue et al. 2016; Inoue et al. 2010; Litasov et al. 2003; Peslier et al. 2017) (Fig. 2). The total water-storage capacity of the mantle is about 10× the present-day ocean mass. Particularly remarkable is the high water-storage capacity of the MTZ, roughly 6× Earth’s ocean mass. The potential size of the MTZ water reservoir draws attention to its possible influence on surface-ocean mass, complementing familiar shallow-mantle reservoirs, such as the asthenosphere and subduction-zone mantle wedges.

Fig. 1

A cartoon showing the nature of global water circulation. Water is added to the oceans by degassing associated with volcanism. Some surface water goes back to Earth’s interior by subduction. A large fraction of subducted water comes back to the surface by arc volcanism. However, water stored in relatively deep portions of a subducting plate survives and is transported to the deep mantle contributing to regassing the mantle transition zone and deeper part

Table 1 Mass and the water storage capacity (the maximum water content that can be dissolved in minerals (or melts) in each region)

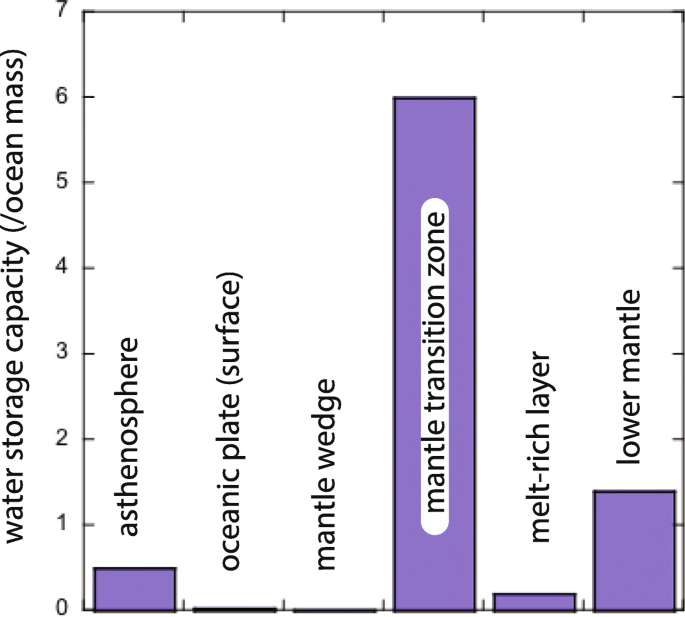

Fig. 2

The water storage capacity in several regions of the mantle. Note a large water storage capacity in the mantle transition zone. For the data source and uncertainties, see Table 1

However, high water-storage capacity in the MTZ minerals does not guarantee high MTZ water-content. Water diffusion is inefficient for large-scale material transport: over ~ 100 Myr, the diffusion distance of hydrogen is ~ 1 km (Karato 2006). Consequently, large regions of Earth’s interior can be dry, regardless of the water-storage capacity. Large-scale advection of volatile-bearing materials is required to hydrate Earth’s interior to near its storage capacity, and a dynamic equilibrium is required to maintain hydration over geological history. In particular, melting and the resultant melt-solid separation can effectively transport water (volatiles) for long distances. Efficient transport of water from Earth’s surface into its interior could be catastrophic for life, if planetary water fills the MTZ to its capacity, with no mechanism to escape draining the oceans dry. Therefore, we must consider mechanisms for removing MTZ water as well as adding it. The actual water distribution in Earth provides key clues as to the processes of global water circulation.

Richard et al. (2002) modeled numerically the distribution of water, during mantle convection, where the depth dependence of water solubility (water storage capacity) was assumed including a peak in the MTZ. However, they only considered diffusional transport of water, and not advection. Their simulations showed no peak in water content within the MTZ, i.e., a dry MTZ. We show in this paper that Earth’s distribution of water is determined by the large-scale mass transport associated with partial melting and subsequent melt-solid separation. A dry MTZ is a natural consequence of a model without these large-scale processes. The actual water distribution provides clues to the history of partial melting and melt-solid separation, i.e., chemical evolution of Earth.

Water distribution in Earth’s mantle

The most direct way to estimate the water content of Earth’s interior would be to measure the water content of mantle samples (for a review, see Peslier et al. 2017). However, the interpretation of these measurements is not straightforward because it is unclear how the water of a mantle sample is modified during its transport to the surface (e.g., Demouchy and Bolfan-Casanova 2016; Karato 2006). Regions from which mantle samples can be collected are limited. Most samples originate from < 200 km depth. Occasionally, samples from deeper regions have been identified from diamond inclusions (e.g., Nestola and Smyth 2016; Pearson et al. 2014; Tschauner et al. 2018), but it is not clear if these samples represent typical water content of the deep mantle.

Although indirect, the mid-ocean-ridge basalt (MORB) provides a better estimate of the water content of the asthenosphere. MORB is formed via ~ 10% partial melting of the asthenosphere materials at a global scale with near-homogeneous composition. Knowing that a majority of water in the original rock partitions into the melt upon partial melting, we can estimate the water content of the asthenosphere from the known water content of MORB (~ 0.1%; Dixon et al. 2002; Ito et al. 1983) to be ~ 0.01 wt%. Although less precise, we can estimate water content in the deeper mantle from ocean-island-basalt (OIB) that is formed from rocks that rise from the MTZ or the lower mantle. OIB shows a wider range of composition than does MORB, including water content, but they invariably show higher levels of water and other incompatible elements. These observations suggest that the deep mantle contains higher water content than the asthenosphere but water content in the deep mantle is likely more heterogeneous than in the asthenosphere.

Support for water-rich deep mantle is provided by recent discoveries of water-rich inclusions in diamonds of deep mantle origin. For example, Pearson et al. (2014) reported water-rich small (~ 50μm) inclusions in diamond. The water content is close to the solubility limit (~ 1.5 wt%). A report of ice VII inclusions in diamonds that rose from the deep mantle through the MTZ argues for at least some water-rich regions at these depths (Tschauner et al. 2018). However, it is not known if such samples are representative of either the MTZ or deeper regions, making water-content estimates of the MTZ and deeper regions difficult.

In contrast to a geological approach, a geophysical approach provides constraints on the water (hydrogen) distribution in a more regional to global scale (Fei et al. 2017; Houser 2016; Karato 2011; Li et al. 2013; Suetsugu et al. 2006; Wang et al. 2019a). However, geophysical inference is not straightforward, and a broad range of water content, from nearly zero (Houser 2016) to nearly saturated (Fei et al. 2017), has been reported for Earth’s mantle. The studies that report these two extreme water contents have technical ambiguities such as the insensitivity of seismic wave velocities to water content that undermine the validity of their conclusions (for details, see Supplementary Material). In the following, we assume that the MTZ contains a substantially larger amount of water (0.1–1 wt%) than the asthenosphere (~ 0.01 wt%) based on the studies on electrical conductivity (Karato 2011) and on the seismological observations (Li et al. 2013; Suetsugu et al. 2006; Wang et al. 2019a). We note that these estimates have large uncertainties, and it is likely that the water content in the MTZ is heterogeneous (Karato 2011; Wang et al. 2019b; Zhu et al. 2013).

In contrast, there are few constraints on the water content of the lower mantle. The agreement of electrical conductivity of dry bridgmanite with the geophysically estimated electrical conductivity of the shallow lower mantle (Xu et al. 1998) suggests a dry lower mantle, but both experimental and geophysical studies on electrical conductivity in the lower mantle are highly preliminary. There are no experimental studies on the influence of hydrogen on electrical conductivity in lower-mantle minerals.

Partial melting across the mantle transition zone

Melting across the mantle transition zone

Melting below mid-ocean ridges occurs because materials are brought up to shallow regions adiabatically and cross the solidus that increases more steeply with depth. Water helps melting below the mid-ocean ridges (e.g., Hirth and Kohlstedt 1996; Plank and Langmuir 1992), but the presence of water is not essential. As a result, mid-ocean ridge basaltic magma contains only a small amount of water (~ 0.1 wt%).

In contrast, melting in the middle mantle, above and below the MTZ, cannot occur without the help of water or other volatile elements. Without volatiles, the solidus (~ 2200–2300 K) would be substantially higher than any plausible geotherm (~ 1800 K) (e.g., Andrault et al. 2011; Katsura et al. 2010; Ohtani 1987)). However, when water (and/or carbon dioxide) is added, the solidus temperature drops substantially, and partial melting becomes possible for a typical geotherm (Hirschmann et al. 2009; Kawamoto 2004; Litasov et al. 2013). The solidus water content defines the minimum water content for partial melting to occur. The melt formed by partial melting under hydrous conditions contains a large amount of water.

When water-rich transition-zone materials are transported to either above or below it, partial melting likely occurs because material assemblages outside of the MTZ have substantially smaller water-storage capacity than those inside the MTZ (Bolfan-Casanova et al. 2006; Inoue et al. 2010). For melting above the 410 km, the threshold water content in the MTZ material is ~ 0.05 wt% for a typical temperature of ~ 1800 K (e.g., Hirschmann et al. 2009; Karato et al. 2006). The water solubility in the lower mantle minerals is less well constrained. However, the available data show that the water solubility in the lower mantle minerals is less than or similar to that in the upper mantle minerals just above the 410 km (e.g., Fu et al. 2019; Inoue et al. 2010). Consequently, the threshold water content for partial melting just below the 660 km is likely 0.1 wt% or less.

Both temperature and water content in or around the MTZ are likely heterogeneous (Wang et al. 2019b; Zhu et al. 2013). The MTZ near a subduction zone likely has lower temperatures where stagnant slabs are present (Fukao et al. 2001). Consequently, the melt composition and hence density likely depend on where melting occurs. For example, where temperature is 1500 K (~ 300 K less than the temperature in the warm regions), then the critical water content for partial melting will be ~ 0.1 wt% (Supplementary Material).

When partial melting occurs, a majority of water goes to the melt, and the residual solids will be depleted of water. When the melt density differs from the solid density and if the melt is inter-connected as suggested by the experimental studies (Panero et al. 2015; Yoshino et al. 2007), melt-solid segregation occurs by gravity-induced compaction as well as by the flow caused by the lateral pressure gradient (Leahy and Bercovici 2007; Ribe 1985a). Consequently, regional-scale (~ 100 km or more) re-distribution of water will result.

Evidence of partial melting around the mantle transition zone

The presence of low-velocity bodies in Earth’s deep interior is often attributed to the presence of melt. However, the validity of this interpretation is unclear because partial melting can explain seismologically observed low-velocity regions only when (i) the melt fraction is large (a few %) and/or when (ii) melt completely wets grain-boundaries (see, e.g., Mizutani and Kanamori 1964; Spetzler and Anderson 1968; Stocker and Gordon 1975; Takei 2002). Both of these factors differ markedly between above and below the MTZ. Just above the 410 km discontinuity, an experimental study showed that melt completely wets olivine grain-boundaries (Yoshino et al. 2007). Consequently, even for a small amount of melt (say 0.1%), seismic wave velocity should be reduced substantially (a few % or more) in regions just above the 410 km. In contrast, in the lower mantle, the available data suggests that melt does not completely wet the grain-boundaries (dihedral angle of ~ 30°) (Panero et al. 2015). Therefore in order to cause seismologically observable low-velocity regions below the 660 km, there must be a melt-rich layer (MRL) containing a few % of melt with a thickness comparable to or greater than the wavelength of seismic waves.

Under the influence of gravity, melt tends to be squeezed out if the melt density differs from the density of the surrounding solids. As a consequence, significant amounts of melt will exist only in a thin layer whose thickness is called the “compaction length” (Karato et al. 2006; McKenzie 1985; Ribe 1985b). During compaction, permeable flow of melt occurs only if the surrounding solids deform plastically. When there is a general background flow, the thickness of an MRL will also depend on the background flow velocity. Let us consider a case of one-dimensional (vertical) flow by mantle convection in which light (heavy) melt is produced at a boundary at ~ 750 km (at ~ 410 km) where melt will accumulate. We denote these layers LVL-750 and LVL-410. In such a case, the thickness of an MRL is given by (Karato et al. 2006; Ribe 1985b).

$$ H=\sqrt{\frac{U_o{\eta}_S}{\left|\Delta \rho \right|g}} $$

where Uo is the velocity of background flow, ηS is the viscosity of solid matrix, g is acceleration due to gravity, and Δρ is density contrast between melt and surrounding solids.

Figure 3 shows a plot of H as a function of Uo and ηS. The compaction length depends strongly on the solid viscosity (ηS) and the velocity of background vertical motion (Uo). Both parameters differ substantially for MRL above and below the MTZ. For the up-welling flow that produces melt above 410 km, the background velocity is ~ 1 mm/year (Bercovici and Karato 2003) and the solid viscosity is ~ 1018–1020 Pa s. Note that the average viscosity at ~ 400 km depth is ~ 1020 Pa s (Peltier 1998), but viscosity could be substantially lower near 410 km due to the presence of melt. For a plausible range of parameters, H above the 410 km is ~ 1 km or less and consequently, it will not be visible seismologically if a large melt fraction were the cause for the low velocity. Low velocities observed above the 410 km discontinuity are most likely due to the fact that melt completely wets grain-boundaries (Karato 2014a).

Fig. 3

The thickness of a melt-rich layer. When melt is formed in a region of vertical flow (with the velocity Uo), and when melt flows to the opposite direction of the background flow as in the most case of partial melting across the MTZ, a melt-rich layer is formed near the region where melt is formed. The thickness of this layer, H, is given by \( H\approx \sqrt{\frac{U_0{\eta}_S}{\left|\Delta \rho \right|g}} \)(Karato et al. 2006; Ribe 1985a) (ηS: viscosity of solids, |Δρ|: density difference between the melt and the solids (~ 100 kg/m3), g: acceleration due to gravity). Both Uo and ηS are markedly different between the melt-rich layer above and below the MTZ leading to largely different values of H

In contrast, in a layer at ~ 750 km (LVL-750), the down-welling velocity of materials is similar to the velocity of a subducting plate (~ 3–10 cm/year), that is, much higher than the up-welling velocity near ~ 410 km. The solid viscosity is also higher, on the order of 1021 Pa s (Peltier 1998) (could be reduced somewhat by the presence of melt). A combination of these two factors predicts the thickness of the MRL to be ~ 20–50 km. This would be seismologically detectable even though melt may not completely wet grain-boundaries. Note, however, that melt accumulation to explain the LVL-750 will occur only if melt is lighter than co-existing solids. If melt is denser than co-existing solids, it will drain and accumulate only at a deeper depth at which melting stops. For heavy melts, the melt content near 750 km will be small and not much velocity reduction will occur. Therefore, the presence of a thick MRL caused by the accumulation of a buoyant melt is a plausible explanation of the LVL-750 (for more detail, see Section 6).

Melt density

Most melts are lighter than coexisting rocks in the shallow Earth and this is why magmas ascend to the surface to form a volcano. However, melt buoyancy is more complicated in the deep interior of Earth. Melts are more compressible than solids (Jing and Karato 2011) and melt density approaches or exceeds that of co-existing solids at high pressures (Stolper et al. 1981). Consequently, the density contrast between a melt and co-existing solids is delicately controlled by the composition and the compressibility of melt and solid under high-pressure conditions.

Figure 4a shows the density of three melts up to 60 GPa based on the first-principle calculations as well as from experiments (Karki et al. 2018; Sakamaki 2017; Sanloup et al. 2013; for the technical details of melt density calculation, see Supplementary Material). The results show that the melt is always lighter below the solid-transformation depth but the melt is heavier than the solid, in most cases, above the solid-transformation depth. This is due to the fact that the structure of solids (e.g., a change in the coordination number of Si-O) changes sharply at the solid phase transformation, whereas a similar structural change occurs more gradually for the melts. In melts structural change starts at a lower pressure than in solids and structural change develops gradually with pressure, completing at a pressure higher than the sharp crystalline phase change (Fig. 4b).

Fig. 4

The melt density across the mantle transition zone. a Melt density compared with the density of co-existing solids. The broken line shows the solid density. Black and red curves are the melt density based on the first-principles calculations of dry and hydrous (Mg0.75,Fe0.25)2SiO4 melts (with hatched regions showing the influence of different compositions). A green curve is the density of dry MORB determined by (Sanloup et al. 2013) and a blue curve is the density of hydrous peridotite melt determined by (Sakamaki 2017) from high-pressure experiments. The gray region shows the effects of a change in FeO content by ± 5%, and the pink region shows the effects of water by ± 2 wt.%. b A schematic diagram showing how density of melt and solid changes across a phase transformation. Structural change in a solid is abrupt, but it is gradual in a melt. This leads to higher density of a melt than a solid above the transition pressure, but below the transition pressure, melt density tends to be lighter than the solid density

The melt-solid density contrast depends also on chemical composition. For plausible ranges of FeO and water content, the density of melt below the 660 km is mostly less than that of co-existing solids. This is caused by a large density jump in solids across the 660 km. In contrast, the density trade-off is more delicate at ~ 410 km—see calculations graphed in Fig. 5. Water content in the melt changes with the temperature at which melting occurs. At low temperatures, melting occurs only for high volatile content within the MTZ mineral assemblage, and the water content of the melt is large. Consequently, melts produced in the cooler regions, e.g., where stagnant slabs are present, will be buoyant whereas melts formed in the warmer regions will be heavy. The consequences of temperature on the density contrast will be examined in a later section where we propose a new model of global water circulation.

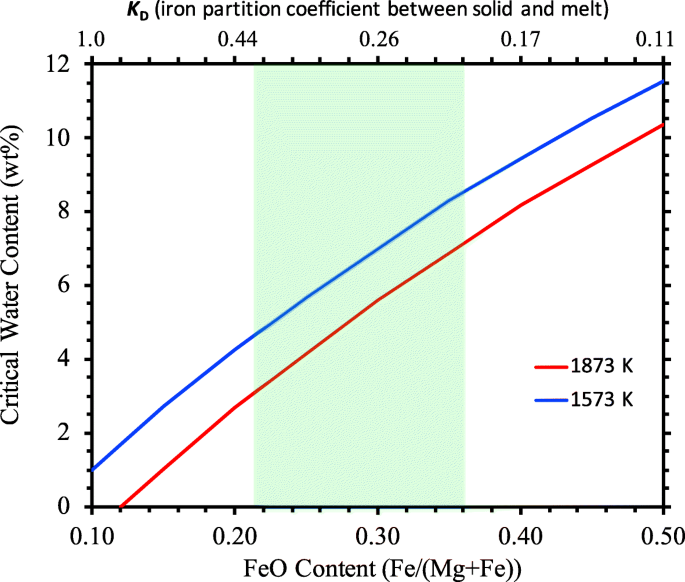

Fig. 5

The critical water content for the neutral buoyancy at 410 km. The shaded region represents an experimental range for the coefficient of iron portioning between the melt and mineral (\( {K}_D=\frac{{\left(\mathrm{FeO}/\mathrm{MgO}\right)}_{\min \kern0em \mathrm{eral}}}{{\left(\mathrm{FeO}/\mathrm{MgO}\right)}_{\mathrm{melt}}} \)). Results may depend also on the concentrations of other components such as K2O and CO2 (Jing and Karato 2012). According an experimental study \( {K}_D=\frac{{\left(\mathrm{FeO}/\mathrm{MgO}\right)}_{\mathrm{olivine}}}{{\left(\mathrm{FeO}/\mathrm{MgO}\right)}_{\mathrm{melt}}} \) is insensitive to temperature (Mibe et al. 2006), but water content in the melt increases with decreasing temperature. This makes melts buoyant at relatively low temperatures

Sea-level history

An important clue on the history of ocean mass can be obtained from the sea-level history. Sea-level changes via a variety of mechanisms (e.g., Mitrovica et al. 2000; Wise 1972). For the time scale of 1000–10,000 years, the largest contribution is ice-sheet formation/melting and resultant isostatic vertical crustal motion (e.g., Nakada and Lambeck 1987; Peltier 1998). The contribution of this process to the sea-level change is large, up to ~ 200 m. However, for time scales longer than 100 Myrs, the influence of ice sheet formation/melting cancels when averaged over time. Over these longer time scales, sea-level history is controlled by tectonic (geological) factors and/or changes in the ocean mass (e.g., Eriksson 1999; Korenaga 2007; Korenaga et al. 2017; Wise 1972)).

Figure 6 shows such results, i.e., the sea-level history during the Phanerozoic period (present to ~ 540 Ma) (after Parai and Mukhopadhyay 2012). Although there are some differences in the reported sea-level history, the common and remarkable observation is that the sea-level fluctuates substantially on 10–100 Myr time scales (2 to 3 m/Myrs), yet it remains nearly constant (less than ~ 0.5 m/Myrs) when averaged over the last ~ 500 Myrs. If the higher rate of change had persisted for a billion years, most oceans would have disappeared or the surface would have extensively flooded over ~ 1 Gyrs. However, despite large fluctuations, sea-level appears to recover and the average sea-level does not change so much.

Fig. 6

Sea-level change during the Proterozoic (after Parai and Mukhopadhyay 2012). The sea-level variations show large fluctuations, yet an average sea-level changes only weakly with time (hatches are added by the present authors to emphasize the short-term fluctuations)

Which part of the observed sea-level change reflects the ocean mass history and which part is caused by tectonic processes? If sea-level change were mostly by tectonic processes, then ocean mass would remain nearly constant. In contrast, if sea-level change is largely due to the change in the ocean mass, then one needs to explain how ocean mass can fluctuate a lot but remains nearly constant on average.

Figure 7 shows a cartoon illustrating the processes that determine the sea-level where h is the sea-level measured at the coast, \( \overline{z} \) is the mean depth of ocean (3710 m at present), f is the fraction of the surface covered by the continents, and X is dynamic topography associated with the vertical stresses caused by mantle convection. The volume of oceans relates to these parameters as

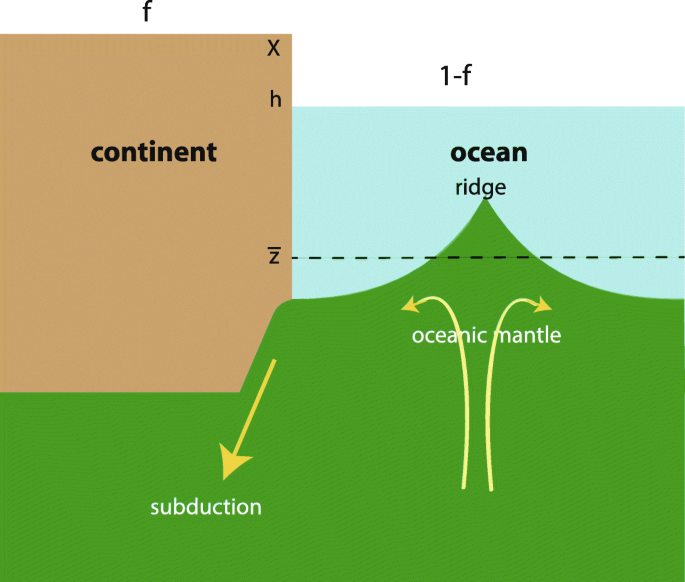

Fig. 7

A cartoon illustrating the factors affecting the sea-level (from Karato 2015). h: the sea-level, f: areal fraction of continents, \( \overline{z} \): the mean depth of the ocean that depends on the mean age of the ocean floor, X: height of the continental margin that depends on the dynamic topography determined by the mantle flow

$$ V(t)=\left[h(t)+X(t)-\overline{z}(t)\right]\cdot \left[1-f(t)\right]\cdot S $$

where S is the area of oceans.

Dynamic topography is the deviation of continental topography out of isostatic equilibrium, depending on material flows that are regional and time dependent. Gurnis (1993) invoked dynamic topography to explain the flooding of continents during the Phanerozoic Eon. This effect is sensitive to the viscosity (η) of convecting material (Xη) in the relevant region. For sea-level measurements, viscosity of the mantle below the continental margin is relevant, and the viscosity in the continental margins can vary a lot among different regions. Where subduction occurs, viscosity will be substantially lower than other regions, as suggested by Billen and Gurnis (2001). Gurnis (1993) used a standard one-dimensional viscosity-depth model, such as Hager and Clayton (1989), that does not have a low viscosity region in the wedge mantle. If regional low viscosity in the supraslab mantle wedge is included, the magnitude of dynamic topography will be substantially lower (Billen and Gurnis 2001). The influence of continental growth (f(t)) is not very large when we focus on the sea-level in the Phanerozoic where the continental growth is less than ~ 10% (Korenaga 2018). Consequently, among various tectonic effects, the influence of variation of the mean depth of oceans (\( \overline{z}(t) \)) is likely most important. \( V(t)\approx \left[h(t)-\overline{z}(t)\right]\cdot S \).

The depth of oceans depends on the age of ocean floor through isostatic equilibrium as \( z={z}_0+A\sqrt{t} \) (e.g., Parsons and Sclater 1977) in the half-space-cooling model, where zo is the ocean depth at a mid-ocean ridge where t (age) is zero and A is a constant (A = 330 m/\( \sqrt{My} \)). Therefore in order to have ~ 300 m variation in sea-level for ~ 100 My time period, a change of the mean depth of ~ 30% is needed. The variation in the mean depth of the ocean floor can be evaluated based on the data on the age-area distribution of the ocean floor (Parsons 1982) and the plausible models and observations of the temporal variation in ridge spreading rate and subduction rate (Korenaga 2007). Using this line of discussion, Korenaga (2007) concluded that changes in the heat flux since 200 Ma are too small to explain a large variation in the sea-level (the change in the average age is a few % or less, corresponding to the change in the average age of ~ 5% or less). However, the estimate of the mean age of sea floor is complicated, and much larger variation has also been reported, e.g., by Müller et al. (2016). Karlsen et al. (2019) used this model and attribute a large fraction of observed sea-level change to the change in tectonic processes. Accepting these uncertainties, we will discuss models based on these two models of history of plate motions, i.e., models with small and strong influence of \( \overline{z}(t) \).

Among the inferred sea-level changes in various time span, the sea-level change in the recent ~ 100 Myrs is best constrained. The sea-level has dropped rapidly in this period with a rate of 2–3 m/Myrs. If this were due to the change in the ocean mass, the rate of change in the ocean mass would be ~ (1.0–1.5) × 1018 kg/Myr. Garth and Rietbrock (2014) and Cai et al. (2018) reported seismological observations on the Kuril and Mariana trench respectively suggesting the deep hydration (to 20–40 km from the top of the subducting slab) of subducting plates. Deeply hydrated regions likely survive against dehydration caused by heating during subduction (e.g., Rüpke et al. 2004) and from these observations, they estimated a high regassing rate of ~ 2 × 1018 kg/Myr that agrees with the rate of sea level drop during the last ~ 100 Myr. Although the estimate of regassing is highly uncertain, its order-of-magnitude supports the notion that some part of the recent sea-level change is due to the change in the ocean mass.

Water circulation across the mantle transition zone: the role of deep mantle melting

Let us now examine various models with the emphasis on how they can explain two notions summarized above: (i) the high water content of the MTZ, and (ii) the long-term stability of the average sea-level despite large fluctuations. Remembering the fact that the MTZ has the largest water-storage capacity and large water content, these two notions are linked by mass conservation.

$$ {M}_{\mathrm{MTZ}}\frac{dX_{\mathrm{MTZ}}}{dt}\approx -\frac{dW_{\mathrm{ocean}}}{dt} $$

where MMTZ is the mass of the MTZ, XMTZ is the mass fraction of water in the MTZ, and Wocean is the mass of oceans. On time scales long enough for hydrated rock to subduct or ascend through the upper mantle, the evolution of MTZ water is directly related to the evolution of the ocean mass and hence sea-level history.

In the following, we will develop a simple conceptual model to explain a peak in water content of 0.1–1 wt% in the MTZ that also explains the negative feedback in the evolution of the ocean mass suggested by the observed sea-level history and compare our new model with others. In seeking a model to explain the observed sea-level history, we will focus on explaining why sea-level is nearly constant with large medium-term fluctuations. Since Earth’s deep interior is a big water reservoir, it is likely that some process of negative feedback operates within it.

As outlined in Fig. 1, the processes of water transport are different between up-welling and down-welling regions, and hence water content in the MTZ is likely heterogeneous. However, to simplify the analysis, we will consider a model where only the average water content of the MTZ is considered.

$$ {M}_{\mathrm{MTZ}}\frac{dX_{\mathrm{MTZ}}}{dt}={\Gamma}_{\mathrm{MTZ}}^{+}-{\Gamma}_{\mathrm{MTZ}}^{\hbox{-} } $$

where \( {\Gamma}_{\mathrm{MTZ}}^{+,-} \) is the regassing (or degassing) rate to (or from) the MTZ. In such a case, the model becomes one-dimensional where a single parameter, XMTZ, represents the average water content of the MTZ. Such a simplification is justifiable if we consider the evolution of the ocean mass since mixing of mass in the ocean is quick. However, such a model does not provide any detailed prediction of the lateral variation in the water content in the MTZ.

Under this simplification, it is easy to show that if there is no melting, then the steady-state average water content in the MTZ will be given by (see Supplementary Material)

$$ {\tilde{X}}_{\mathrm{MTZ}}^{\mathrm{no}\;\mathrm{melting}}=\frac{1}{2}\left({X}_{\mathrm{up}}+{X}_{\mathrm{down}}\right) $$

where Xup is water content in the upwelling regions (~ water content of the lower mantle) and Xdown is the average water content in materials in the down-welling regions just above the MTZ. Both Xup and Xdown are small: Xup is not well constrained but its upper limit is the water solubility in the lower mantle minerals (0.01 wt% or less (Bolfan-Casanova et al. 2006; Inoue et al. 2010)) and Xdown ~ 0.01 wt% or less. Assuming a 5 km-thick layer of 1 wt% water (oceanic crust) with a 500 km-wide down-welling region, one would get Xdown ~ 0.01 wt%. If one includes the influence of shallow dehydration, Xdown would be substantially less. Therefore, we conclude that without partial melting, the MTZ would be nearly dry (< 0.01 wt%). This agrees with the results of Richard et al. (2002).

Let us now consider a case where dehydration melting occurs both above and below the MTZ in material that advects out of it (Fig. 8). We first assume that all the melt formed above the 410 km is heavier than surrounding solids (this assumption will be relaxed later), and the melt formed below the 660-km is lighter than the surrounding solids (Fig. 5). In such a case, the MTZ can maintain high water content since most of water is in the melts and melts return to the MTZ. The steady-state water content of the MTZ in this case can be calculated by solving the mass balance Eq. (4) with appropriate formulae for Γ+, − (see Supplementary Material) as

Fig. 8

A model of water transport across the mantle transition zone. a A model without melting fu: area fraction of upwelling, fd: area fraction of down-welling, Uu: velocity of upwelling, Ud: velocity of down-welling. From the mass conservation, \( {f}_u{U}_u={f}_d{U}_d\equiv \frac{1}{2}U \). b A model with melting. In this model, we assume that melts formed above the MTZ are heavy and the melts formed below the MTZ are light. U the velocity of migration of the MRL materials from upwelling regions to the subduction zones (this depends on mantle viscosity and is fast only above 410 km)

$$ {\tilde{X}}_{\mathrm{MTZ}}^{\mathrm{melting}}=\frac{{\tilde{X}}_{\mathrm{MTZ}}^{\mathrm{no}\;\mathrm{melting}}-\frac{U^{\prime }}{U}\frac{X_S}{X_L-{X}_S}}{1-\frac{U^{\prime }}{U}\frac{X_L}{X_L-{X}_S}}\approx \frac{{\tilde{X}}_{\mathrm{MTZ}}^{\mathrm{no}\;\mathrm{melting}}}{1-\frac{U^{\prime }}{U}}\ge {\tilde{X}}_{\mathrm{MTZ}}^{\mathrm{no}\;\mathrm{melting}} $$

where U is the velocity of general circulation (mantle convection) and U′ is the velocity of entrainment (U′<U); XL, S is the water content at the liquidus and the solidus respectively. This model predicts higher water content of the MTZ than that for a case of no melting, but evaluation of the steady-state water content is difficult because entrainment rate (U′) is not well constrained. If entrainment is very efficient (\( \frac{U^{\prime }}{U}\to 1 \)), then the water content becomes unbounded: all water would be eventually trapped in the MTZ, and oceans will shrink to negligible size.

This entrainment paradox arises from the assumption that all water partitions to the melts surrounding the MTZ and all the melts return to the MTZ. This paradox is mitigated because some of the original water remains in the residual solids, so that a small amount of water escapes from the MTZ. This escaped water defines the water content of the asthenosphere (Karato 2012). However, the amount of water escape by this process is small, and would only replenish Earth’s ocean mass in ~ 10 Gyr (e.g., Parai and Mukhopadhyay 2012).

Is there any process by which water leaks from the MTZ more efficiently than a general slow leak from the hot region? Temperature in the MTZ is heterogeneous (Figs. 9 and 10). Since cooler down-welling flow is concentrated in regions near the subduction zone, the majority of the MTZ is warm. However, there are cooler regions including the regions where stagnant slabs are present. In cooler regions, partial melting occurs only if the water content of materials is high (XMTZ > XC0) and the water content in the melt is higher than the melt derived from warmer MTZ regions (in contrast to water, FeO content in the melt (FeO/MgO ratio of the melt) relative to that in mineral is insensitive to temperature (Mibe et al. 2006), so melt density (relative to the solid density) changes with temperature mainly through the temperature effect on the water content in the melt). With sufficient water content, the melt will be buoyant (Jing and Karato 2012) (see Fig. 5). Consequently. buoyant melt could be formed in cool regions.

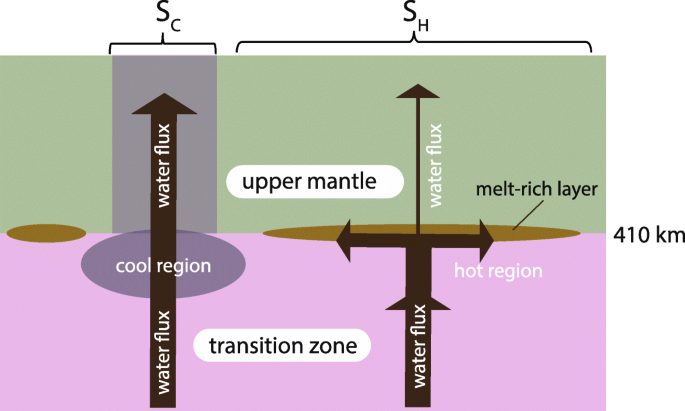

Fig. 9

Processes of water transport across the 410 km with heterogeneous temperature. In the hot region (area SH (a majority of regions)), melts are dense and spread on the 410-km boundary and eventually be entrained into the transition zone (Bercovici and Karato 2003; Karato et al. 2006). Only a small amount of water is transported upward by the residual solids to define the composition of the asthenosphere (Karato 2012). In the cool region (area SC), melt is buoyant and if there is enough amount of buoyant melt present (a caseXMTZ ≥ XC2 (shown here)), substantial degassing from the MTZ will occur

Fig. 10

A schematic phase diagram at ~ 410 km. A green region represents temperature distribution. TH, C is temperature in the hot (H) or the cold (C) regions respectively. TCr is temperature at which the melt has high enough water content and is buoyant. \( {X}_S^{H,C},{X}_L^{H,C} \) are the water content at the solidus and liquidus in the hot or the cold region respectively. XC1 is the minimum water content in the transition zone where the melt will ascend (~ 0.2%). XC2 is the water content above which hydrated materials above the MTZ are buoyant to form a plume (~ 1%; Supplementary Material)

However, buoyant melt does not always carry water upward efficiently (Fig. 11). When a buoyant melt moves upward in the upper mantle made of relatively dry rocks, some water is removed from the melt to the surrounding rocks. When the initial water content of the MTZ materials (XMTZ) is small (XC1 > XMTZ ≥ XC0; regime I), then melt fraction is small and migrating melt will lose its water immediately and the melt becomes denser and does not migrate up. However, when the water content of the MTZ is higher, then the melt fraction is higher (XMTZ ≥ XC1) and the hydrous melt above the 410 km will keep its buoyancy and migrates up to transport water to the shallower regions. However, when the initial water content (XMTZ) is less than a critical value XC2 (XC2 > XMTZ ≥ XC1; regime II), surrounding minerals are not much hydrated and remain dense (because they are cool) and stay in their original location and only melt migrates upward. In this case, the melt will eventually lose its water during ascent, and not much water is transported to the shallow mantle. When the initial water content (XMTZ) is larger (XMTZ ≥ XC2; regime III), then a larger amount of hydrous melt will be formed and therefore hydration of surrounding materials is extensive and the whole materials (hydrous melt + hydrated minerals) become buoyant to form a hydrous plume. Using the lever rule (mass balance), melt and solid density and water partitioning considerations, we estimate XC1≈0.2 wt% and XC2≈1 wt% for the temperature difference of 300 °C (Supplementary Material).

Fig. 11

Cartoons showing how water is transported across the cool regions of 410 km (SC in Fig. 9). In a cool region, when water-rich buoyant materials (XMTZ ≥ XC0) move up to ~ 410 km, a buoyant melt is formed. a Regime I: If XMTZ is small (XC1 > XMTZ ≥ XC0), water in the melt is removed to surrounding minerals immediately and melt does not ascend. b Regime II: When XMTZ exceeds a critical value (XMTZ ≥ XC1), melt does not lose its buoyancy immediately. However, if XMTZ is not very high (XC2 > XMTZ ≥ XC1 (XC1~0.2%, XC2~1%)), then surrounding minerals remain dry and heavy, and only melt ascend (regime II). In this case, ascending melt will lose most water to the surroundings, and not much water is transported to the shallow region. c Regime III: When XMTZ is high (XMTZ ≥ XC2(~ 1%)), then wet melt hydrates surrounding minerals extensively, and melt and minerals together become buoyant. They ascend together to transport water to the shallow regions. Wet materials migrate up in the MTZ as well, but the velocity of transportation of wet materials is much faster in the upper mantle than in the MTZ due to the difference in solid viscosity between these regions

The critical water content is proportional to the temperature difference. If the temperature is too low, then the critical water content will be too large and wet plume will not be formed. However, cold regions (e.g., regions with stagnant slabs) will be warmed up with time, and at a certain point temperature becomes warm enough (but still colder than most regions) to produce wet plumes.

In short, when materials with water content exceeding the threshold water content (XC2) are transported to the shallower regions, all materials will ascend. The flux of water transported by this process is given by SCXMTZUplumeρ (SC: cool area where this mechanism operates (area where XMTZ ≥ XC2), Uplume: the upwelling velocity of a plume, ρ: the density of upwelling materials). Since the upwelling velocity of a plume depends on the buoyancy, \( {U}_{\mathrm{plume}}={U}_{\mathrm{plume}}^0\frac{X_{\mathrm{MTZ}}-{X}_{C2}}{\left\langle {X}_{\mathrm{MTZ}}-{X}_{C2}\right\rangle } \) (〈XMTZ − XC2〉≈0.015 % (Supplementary Material): the mean value of XMTZ − XC2, \( {U}_{\mathrm{plume}}^0\approx \)1 m/year (Yuen and Peltier 1980). Note that this is the ascending velocity of a plume in the upper mantle. Hydrous materials are buoyant in the deeper mantle and they will also ascend (except near subduction zones), but the velocity of ascent is much slower because of the higher viscosity in the deeper mantle.

Motivated by the recent rapid sea-level drop (Fig. 6) associated with the old age of subducting slabs (Müller et al. 2016), we assume initial excess regassing (addition of excess water to the MTZ by subduction of old deeply hydrated plates) during a time span of τ1 (= 100 Myr) (Fig. 12). During this process, the ocean mass decreases. Excess water transported to the deep mantle promotes melting in the shallow lower mantle producing highly hydrous melt. An MRL is formed in the uppermost lower mantle (LVL-750). When plate geometry changes due to the supercontinental cycle (e.g., Lithgow-Bertelloni and Richards 1998), the water-rich materials formed in the subduction zone (LVL-750) will be located away from the subduction zone. Because these water-rich materials are less dense than the surrounding materials, they will move upward to join the MTZ. A region of hydrous materials (low seismic velocity) will be formed in the MTZ. When these materials move up into cold regions just above 410 km boundary, then hydrous melt is formed that promotes a wet plume to enhance degassing from the MTZ. The transition time from the excess regassing to excess degassing (τ2) is determined by the time scale of a change in plate geometry associated with supercontinental cycle and is on the order of 100–200 Myrs (Lithgow-Bertelloni and Richards 1998). In our approach, we assume plausible τ1 and τ2, and seek how big an area of MTZ-derived volcanism (SC) would be needed to explain the negative feedback.

Fig. 12

Model of global water circulation involving deep mantle melting. a A schematic diagram of water circulation. Excess regassing occurs associated with cold subduction (τ1: duration of excess regassing). This produces partial melting in the lower mantle (LVL-750). Due to the change in plate boundary geometry (associated with supercontinent cycle (Lithgow-Bertelloni and Richards 1998), the hydrated and buoyant materials will be transported to the MTZ, and when these materials reach to ~ 410 km, excess degassing starts (after τ2 since the beginning of the excess regassing (this is controlled largely by the time scale of change in plate boundary geometry)). b Definition of two functions:

Γ+(t) a function characterizing excess regassing pulse

Γ(t) a function characterizing excess degassing

Therefore, the evolution of the MTZ water content in response to a regassing pulse can be described as

$$ {M}_{\mathrm{MTZ}}\frac{d\Delta {X}_{\mathrm{MTZ}}}{dt}={\Delta \Gamma}_{\mathrm{MTZ}}^{+}\cdot {F}^{+}(t)-{\Delta \Gamma}_{\mathrm{MTZ}}^{-}\cdot {F}^{-}(t) $$

where ΔXMTZ is the change in the MTZ water content caused by an excess regassing, \( {\Delta \Gamma}_{\mathrm{MTZ}}^{+} \) is the amplitude of excess regassing (we use a value consistent with the sea level change of 2–3 m/Myr), \( {\Delta \Gamma}_{\mathrm{MTZ}}^{\hbox{-} } \) is the amplitude of excess degassing that is proportional to SC (XMTZ − XC2), and F+(t), F(t) are the functions of time that include τ1 and τ2 respectively (for details, see Supplementary Material). Because the excess degassing rate is proportional to (XMTZ − XC2), this effect provides a negative feedback and stabilizes the transition zone water content.

We show the results of calculated XMTZ(t) during and after the regassing pulse for various values of SC and τ2 (Fig. 13). Using an approximate mass balance relationship (Eq. 3), we calculate the sea-level history from

Fig. 13

Results of model calculations on ocean mass history. Regassing parameters (rate of regassing and duration of regassing pulse (τ1)) are chosen to reproduce the inferred rapid sea-level drop (2–3 m/Myrs (in the last ~ 100 Myrs); Fig. 6). Degassing parameters include the area of cool regions with excess degassing (SC) and the delay time (τ2) for degassing since the beginning of excess regassing (and the plume upwelling velocity (~ 1 m/year)). a History of the water content in the MTZ (τ1 = τ2=100 Myrs). b Sea-level change corresponding to the model shown in (a) using a relation \( \Delta z\approx -\overline{z}\frac{M_{MTZ}\Delta {X}_{MTZ}}{W_{\mathrm{ocean}}} \)z: sea-level change, \( \overline{z} \): average depth of the oceans (= 3730 m), MMTZ: mass of the MTZ (= 4 × 1023 kg)), ΔXMTZ: change in the water content of the MTZ; Wocean: mass of oceans (=1.4 × 1021 kg)). b Same as (a) except that τ1=100 Myrs, and τ2=200 Myrs. c Same as (b) except that τ1=100 Myrs, and τ2=200 Myrs. Observed sea-level changes (Fig. 7) can be explained with SC=(3–10) × 1010 (m2) (i.e., a region with 200–350 km diameter)

$$ \frac{\Delta z}{\overline{z}}=-\frac{M_{MTZ}}{W_{ocean}}\cdot \Delta {X}_{MTZ} $$

where Δzis the sea-level change, \( \overline{z} \) is average ocean depth, and Wocean is the ocean mass.

Note that a relatively large change in the sea-level correlates with a small change in XMTZ, illustrating the buffering function of the MTZ for the ocean mass. It is seen that, with SC≥1010 m2, this model explains the rapid degassing following a rapid regassing. This SC is a substantially smaller area compared to the area of mid-ocean ridge volcanism (7 × 1012 m2). The main reason for the efficient degassing by this mechanism is that both the ascent velocity of water-rich materials (Uplume) and the water content of upwelling materials (XMTZ) are much larger than the same properties associated with the mid-ocean ridge volcanism.


Evidence of partial melting above and below the MTZ

Seismic evidence for the LVL-410 is widespread from ScS reverberations (Revenaugh and Sipkin 1994), receiver functions (Tauzin et al. 2010; Vinnik and Farra 2007), and body-wave triplications (Song et al. 2004), consistent with this expectation. Wei and Shearer 2017 found evidence of LVL-410 over 33–50% of the Pacific Ocean region with reflected S waves. Higher-frequency Ps receiver functions show evidence for LVZ-410 associated with localized MTZ upwelling near the Japan slab (Liu et al. 2016) and surrounding the European Alps (Liu et al. 2018).

Evidence for LVL-750 is more sporadic. LVL-750 is observed in regions near subduction zones and other known zones of down-welling (Liu et al. 2016, 2018; Schmandt et al. 2014). Seismological observations on the LVL-750 may also help distinguish whether melt is lighter or heavier than the surroundings. If the melt produced within LVL-750 is heavier than the surrounding rock, then melt will drain downward and therefore melt content near 750 km will be controlled by the melt production rate. The melt production rate is not well known at this depth, but since melt is produced by water, the melt production rate is on the order of the rate of transportation of water. Given a typical water content in the MTZ of ~ 0.1 wt%, then the estimated melt fraction near 750 km for the heavy melt will be ~ 0.5% (assuming water content in the melt is 20%). With the dihedral angle of 30°, this would result in ~ 1% velocity reduction (we used the results by Takei 2002 to calculate the velocity reduction). In contrast, for a buoyant melt, melt will be accumulated with a characteristic thickness determined by the solid viscosity and the velocity of the background flow (Fig. 3). The peak melt content is on the order of 5–10% according to a model by Karato et al. (2006), and therefore we assume a velocity-depth profile shown in Fig. 14a. The results from a model of ~ 50 km-thick MRL are consistent with the seismological observations of Schmandt et al. (2014), who mapped estimated Vs anomalies ranging from − 1.25 to − 2.6% beneath the central USA. Liu et al. (2016, 2018) imaged smaller Ps converted waves from interfaces below the 660 km discontinuity with smaller amplitudes, corresponding to − 1.5% Vs anomalies beneath the Japan slab and − 0.5–1.5% Vs anomalies beneath the European Alps. We used models inspired by these parameters to compute synthetic receiver-function responses (Fig. 14b).

Fig. 14

Results of forward modeling of receiver functions for various models of LVL-750. a The velocity-depth relationship for various models of a LVL at ~ 750 km. b Corresponding receiver function. Three models are considered: (1) A low velocity channel cause by the presence of chemically distinct materials such as subducted oceanic crust (e.g., (Gréaux et al. 2019)). (2) A case for a heavy melt. In a region of down-welling background flow (i.e., subduction zones), heavy melt will drain down and there is no melt accumulation. Consequently, velocity is only slightly lower than the background velocity. (3) A case for a light melt. Light melt will be accumulated in s region of down-welling background flow (i.e., subduction zones) and a melt-rich layer will be formed resulting in a substantial velocity reduction near the top of the melt-rich layer

In this calculation, we also considered a model by Gréaux et al. (2019) who suggested that the LVL-750 is caused by a layer of paleo-oceanic crust. This model predicts velocity discontinuity in both top and bottom of the LVL and a double peak in receiver function will result as shown in Fig. 14 (for technical details, see Supplementary Material). This is not consistent with the observations. Therefore, we conclude that seismic observations support a buoyant melt model but not a model invoking the presence of chemically distinct materials such as subducted oceanic crust.

Evidence of wet plumes

We note that a plume produced in the regime III (XMTZ ≥ XC2) will be geophysically visible, but migrating melt in the regime II (XC2 ≥ XMTZ ≥ XC1) without substantial hydration of minerals will be hard to detect geophysically. There is evidence from seismic tomography (Tao et al. 2018; Zhang et al. 2018; Zhao and Ohtani 2009) and magnetotelluric (Li et al. 2020) studies for plumes originated from the MTZ. Those might correspond to plumes formed under the condition of XMTZ ≥ XC2. We also note that geophysical anomalies in the Appalachian (Evans et al. 2019) might represent evidence for a wet plume associated with the breakup of the Pangea. In addition to geophysical observations, geochemical observations suggest the important contributions of MTZ materials to the composition of some volcanic rocks (e.g., Bonatti 1990; Kuritani et al. 2013; Li et al. 2020; Metrich et al. 2014; Nichols et al. 2002; Sobolev et al. 2019).

Water content of the mantle transition zone

In our model, the water content in the MTZ is buffered by the melting relationship: water re-distribution by melting and resultant melt-solid separation. In the simplest version of our model, water of the MTZ is transported to the shallow upper mantle by buoyant plumes (regime III), and this critical water content is XC2≈ 1%. This percentage agrees reasonably well with the water content of the MTZ in the east Asia (Karato 2011; Suetsugu et al. 2006). Our model also suggests that degassing from the MTZ can occur at lower water content, or in an earlier stage of MTZ degassing, for XMTZ ≥ XC1≈0.2%. Therefore, the model presented here would apply for heterogeneous MTZ water content ranging from 0.1 to 1.0%, consistent with some geophysical estimates (Karato 2011; Li et al. 2013; Suetsugu et al. 2006; Wang et al. 2019a).

Comparison to other models

Previous studies on the evolution of the ocean mass may be classified into two categories: (i) studies of the long-term evolution of ocean mass on 0.5–4.0 Ga time scales (e.g., Crowley et al. 2011; Franck and Bounama 2001; Korenaga 2011; McGovern and Schubert 1989; Nakagawa et al. 2018; Nakagawa et al. 2015; Rüpke et al. 2006)), and (ii) studies on 10–100 Ma time scales, with the focus on explaining the observed sea level change in the Phanerozoic (e.g., Gurnis 1993; Karlsen et al. 2019).

Most studies did not consider the role of the MTZ and therefore their models do not explain a high water content with the MTZ. An exception is Nakagawa et al. (2015) where the role of the MTZ was included through the transport of water-rich paleo-oceanic crust into the MTZ. Nakagawa’s model can explain the high water content of the MTZ, but the results depend strongly on the assumed water content of the oceanic crust and the efficiency of transport of crustal materials to the MTZ. The way in which subducted oceanic crust may be mixed into the MTZ is poorly understood and highly controversial (e.g., Gaherty and Hager 1994; Karato 1997; van Keken et al. 1996). At this stage, the Nakagawa model does not explain the cycling of deep-mantle water that likely regulates the ocean mass.

In some studies of long-term ocean evolution, feedbacks through water-sensitive rheology are considered (e.g., Crowley et al. 2011; McGovern and Schubert 1989; Schaefer and Sasselov 2015). However, the way in which water-sensitive rheology should be included in such an approach is not clear. First, although water sensitivity of rheological properties is relatively well known for upper-mantle minerals such as olivine (e.g., Karato and Jung 2003; Mei and Kohlstedt 2000a, 2000b), water sensitivity of rheological properties within the lower mantle minerals is unconstrained by experiment. Water may have negligible effects on rheological properties of the lower mantle mineral (Mg, Fe)O (Otsuka and Karato 2015). Second, if the plastic flow occurs via diffusion creep (e.g., Karato et al. 1995), then water would increase the viscosity through enhanced grain-growth kinetics, and in such a case, the water effect is to make materials stronger. Third, following the concept that water may affect the thickness of plate through the influence of water on dehydration depth, Korenaga (2011) proposed a model where high water content makes global water cycling slower, an idea that is opposite to a conventional idea proposed by Crowley et al. (2011) and McGovern and Schubert (1989). However, the validity of Korenaga’s model can be questioned because the extent to which the strength of the lithosphere controls the overall convection rate is unclear, and also it is not clear if the strength of the lithosphere is controlled mostly by its thickness. Importance of dynamic weakening in friction to control the strength of the lithosphere was proposed by Karato and Barbot (2018).

Perhaps more important is the role of deep mantle melting that could buffer the water content. If we consider degassing only by mid-ocean ridge volcanism, plus a small addition from hotspot volcanism, the water effect is very slow-acting. The whole ocean mass can be created in ~ 10 Gyrs. In contrast, regassing via MTZ-related melting starts with “wetter” MTZ rock and concentrates its water in Earth’s handful of “wet” plumes. “Wet” plumes would be more efficient because of the much higher water content in these magmas and the higher velocity of transport.

In the studies on the ocean mass evolution for several 100 s Myr time-scale, the key issue is the interpretation of the sea-level fluctuation (e.g., Gurnis 1993; Karlsen et al. 2019 ). The sea-level record for the Phanerozoic Eon shows medium-term fluctuation with a time scale of ~ 100 Myrs (Fig. 6). Previous studies tried to explain the fluctuation by invoking a direct link between surface plate motion and the sea-level change, considering only shallow mantle processes. The main motivation for such models is the similarity between the sea-level record and the inferred history of plate motions in this period. For example, during the last ~ 400 Myrs, the supercontinent Pangea was formed at ~ 300 Ma and started to break up at ~ 170 Ma (e.g., Condie 1998 ). During this interval, the motion of plates changed dramatically including the location of subduction zones and ridges as well as the average plate velocity (Lithgow-Bertelloni and Richards 1998; Müller et al. 2016). Although the details of plate motion history are controversial (see also Korenaga 2007; Korenaga et al. 2017; Torsvik and Cocks 2019), it is clear that when a supercontinent exists, the mean plate size is large and hence the age of subducting plate is old, leading to high regassing rate. In contrast, when a supercontinent is broken into small pieces, the mean age of subducting plates is young and regassing rate is less. Also the young mean age will make sea-level higher. Consequently, such a model explains some of the observed sea-level history.

One obvious limitation of these models is that because they do not consider deep mantle processes, they cannot explain the high water content of the MTZ. Another limitation is that because these models accept enhanced regassing but their model of corresponding enhanced degassing in only modest, ocean mass should have been declining through the geological history. The amount of sea-level drop during the enhanced regassing is 100–300 m. Supercontinents have cycled a few times in Earth’s history (Condie 1998; Nance and Murphy 2013), and consequently, the net drop of sea-level would be more than several 100 m implying that a large areas of continents should have been flooded in the Precambrian time. This is not observed in the sea-level record (e.g., Eriksson 1999; Wise 1972, 1974).

We should note that there is a possible way to test our model through the study of processes of supercontinent breakup. During the assembly of a supercontinent, the subduction of old plates will be vigorous. Some plate would form stagnant slabs in the MTZ, as seismology images now in Eastern Asia. The stagnant slabs will form cold MTZ below the supercontinent. According to our model, these regions are prone to produce wet plumes. Wet plumes will weaken the lithosphere and hence help breakup of the supercontinent. There are some reports suggesting a link between plumes and supercontinents (e.g., El Dien et al. 2019; Le Pichon et al. 2019; for the link between volcanism and continental rifting, see also Sengör and Burke 1978). As some of these papers suggest, plumes linked to supercontinent breakup might originate in the lower mantle. However, because deep-mantle plumes must traverse the MTZ, the entrainment and/or melting of hydrated portions of the MTZ may control how water-rich materials are transported to the surface.

Price et al. (2019) developed a three-dimensional model of water transport in the mantle where the influence of deep mantle melting is included. However, in their model, melt is assumed to be lighter than the co-existing rocks in all situations, and rises to the near-surface region. This assumption would prevent the MTZ from retaining water and is not consistent with the experimental observations on the melt density (Jing and Karato 2012; Sakamaki 2017; Sanloup et al. 2013).

Yang and Faccenda (2020) presented a model to explain the intra-plate volcanism originating from the MTZ such as the Changbaishan volcano in the North-East China. They assume the formation of highly hydrous and buoyant melt similar to our model, but they did not discuss the implications of this type of volcanism to the global water circulation and the stability of the ocean mass. Also, some key essence such as the water transport rate is not discussed by Yang and Faccenda (2020).

Remaining issues

In our model presented here, the emphasis is to evaluate the role of deep mantle melting in a semi-quantitative fashion to see if deep-mantle melting can buffer the MTZ water content and consequently the ocean mass. In doing so, we left a few key issues unexplored:

The efficiency of degassing (water transport from solid Earth to oceans)

Degassing processes to add water to the oceans are given by the product of the flux of water in the materials transported to the near surface times efficiency of degassing. At mid-ocean ridges, basaltic magmas are transported to the ocean bottom, and upon cooling some water is added to the oceans. But some water in basalts remains in basalts (as water trapped in intrusive rocks). In most models, this efficiency is assumed to be a constant on the order of 50% (e.g., Rüpke et al. 2006).

In a new type of degassing proposed here, water-rich materials are transported to near-surface regions in the continental regions. It is not clear how water transported to near surface regions in the continents adds water to oceans. Those volcanoes add water and other volatiles to the atmosphere and to the surface rocks. Water in the atmosphere will be added to oceans eventually through ocean-atmosphere mass exchange. Similarly, water in surface rocks will eventually be added as sediments and this will in turn enhance degassing by the arc magmatism in subduction zones. Also, it is possible that some of these volcanisms are related to continental rifting (e.g., Sengör and Burke 1978). If rifting develops enough, then new oceans will be formed and water will be added directly. In such a case, we expect high degassing rate from these volcanoes and ocean ridges in the incipient stage of supercontinent breakup.

Water-rich plumes may not be limited to continental regions. If old plates subduct in oceanic regions, and cool the transition zone, then wet plumes could also be formed in the oceanic environment. All of these details need to be investigated.

The role of plate motion history

In the current version of our model, the role of plate motion history is included only implicitly. Namely, when we introduce excess regassing followed by excess degassing caused by deep mantle melting, we assumed the time function characterizing excess regassing and degassing Γ+, −(t) where plate history is included. It is important to investigate the nature of these functions by incorporating the realistic plate motion history.

In the same token, we did not consider the role of change in the average age of oceanic plates that may modify the sea level. If the variation in the mean age of oceans is as large as suggested by Müller et al. (2016), this effect needs to be included in analyzing the sea-level history to understand the evolution of the ocean mass. For example, Karlsen et al. (2019) tried to explain the sea-level history of the last ~ 210 Myrs based on the plate motion history by Müller et al. (2016). Consequently, the sea-level high at ~ 100 Ma is explained by the change in the mean age of oceanic plates rather than enhanced degassing by Karlsen et al. (2019).

Characterization of wet plumes from the MTZ

A key concept proposed in this paper is efficient water transport from the MTZ to the surface in the cooler regions of the MTZ via wet plumes. As reviewed before, a number of geophysical observations suggest the presence of presumably wet plumes from the MTZ particularly in the East Asia. The present model predicts that such volcanism was likely more extensive just before and after the breakup of a super continent (~ 170 Ma in case of Pangea). More geological, geochemical, and geophysical studies need to be made to characterize the nature of these volcanisms. Geochemical studies will be particularly important to assess the history of these volcanisms.

Water content in the lower mantle

Our model suggests that the lower mantle has substantially smaller water content than the MTZ. This notion is not confirmed because there is no constraint on the water content of the lower mantle. One promising way is to extend the study on electrical conductivity. There are two ways in which we should do this. First, geophysical estimates of lower mantle conductivity are still not mature (e.g., Kelbert et al. 2019; Kelbert et al. 2009; Kuvshinov 2012). Second, essentially nothing is known on the influence of water (hydrogen) in electrical conductivity of lower mantle minerals. By analogy of ceramic materials, one expects that hydrogen enhances electrical conductivity of bridgmanite (Navrotsky 1999), but the experimental studies to test this hypothesis have not been made. Although there are some studies on the electrical conductivity in bridgmanite and (Mg, Fe)O, the role of water (hydrogen) was not studied in any detail. Given the recent experimental study showing relatively high water solubility in bridgmanite in the shallow lower mantle (Fu et al. 2019), and increased water solubility in (Mg, Fe)O at elevated pressures (Otsuka and Karato 2015), it is urgent to test this hypothesis.

Influence of water dependent rheology

In the first study of the ocean mass history, McGovern and Schubert (1989) focused on the influence of water content sensitive rheology on the history of degassing. Similar studies were made by Crowley et al. 2011 and Franck and Bounama (2001) (we note that Rüpke et al. 2006 and van Keken et al. 2011 did not consider the feedback between water-dependent rheology and global water cycling). In our approach, water-dependent rheology does not have a direct feedback to the global water circulation because the water flux is determined largely by the melting relationship. However, rheological properties change the rate of ascent of wet plumes.

Wetting relation of melts in lower mantle minerals

There is only one report on the wetting relationship of melt with minerals under the shallow lower mantle conditions (Panero et al. 2015) showing non-wetting behavior (dihedral angle ~ 30°). If melts completely wet grain-boundaries in the lower mantle, then seismologically detected low velocity region starting at ~ 750 km would mean the depth at which melting starts, but it will not constrain the melt density.

Water cycling in the geologic history

Earth has been cooling and therefore the melting regime has likely evolved with time. When mantle temperature was very high, melts formed above 410 km would be water-poor and dense. Heavy melts above the 410 km would linger and eventually return to the MTZ. Consequently, water added to the MTZ remained there, decreasing the ocean mass over time. However, since the regassing rate is also low in a hot young Earth, not much water subducted into the mantle.

As Earth’s mantle cooled, melts formed above the MTZ would have more water in general. At this stage, melts formed in cooler regions will have a sufficiently large amount of water to form wet plumes, if the water content of the MTZ materials in these regions exceeds a critical value: now the water valve starts to regulate the water content of the MTZ (and hence the ocean mass). With further cooling in Earth’s future, the temperature in the MTZ will eventually become too low to induce partial melting within convecting masses that cross the 410 km discontinuity. At this point, water-rich materials in the MTZ will be transported out of the MTZ without melting, no heavy melt will return to the MTZ, and mantle water content will lose its peak concentration within the MTZ. Ocean mass would not be regulated and can be predicted to decrease with time due to cold subduction, effecting a large regassing rate without a corresponding large degassing rate.

Summary and perspectives

We reviewed our current understanding of the global water circulation including water storage capacity of the mantle, water distribution in the mantle, melting relationship in the mantle (particularly across the MTZ), melt density relative to solid density, and geophysical and geochemical observations related to partial melting and the distribution of wet materials. We conclude that there is a peak in water content in the MTZ and there is strong evidence for partial melting both above and below the MTZ. Sea-level history during the Phanerozoic period (to ~ 540 Ma) is also reviewed that shows large fluctuation on 10–100 Ma time scales but a nearly constant long-term average. Causes for sea-level variation are reviewed including tectonic origin and the changes in the ocean mass.

Focusing on partial melting and melt transport around the MTZ, we present a conceptual model that explains two important geological/geophysical inferences in a unified fashion: the high water content of the MTZ and the long-term stability of the sea-level despite the short-term large variations. However, the details of the model remain uncertain. One major limitation is that it is a one-dimensional model where the influence of horizontal mass transport is only roughly included. Extending this model to three-dimensions including a realistic history of plate boundary geometry (history of mantle convection) would be important.

An important conclusion from this model is that, in addition to well-known melting at mid-ocean ridges, deep mantle melting likely influences the global water circulation substantially. So far, much of the focus in the study of global water circulation has been on the volcanism associated with the MORB. But the MORB is essentially dry (~ 0.1 wt% water) and its contribution to the ocean mass budget is not so large. In contrast, deep melts are water-rich (~ 5–10 wt% water) and hence could make an important contribution to the global water circulation. Evidence for transition zone-originated melt is identified by geochemical studies (Kuritani et al. 2013; Sobolev et al. 2019). Seismological studies also show low-velocity regions across the MTZ suggesting partial melting in these regions (Tao et al. 2018; Zhang et al. 2018; Zhao and Ohtani 2009). Also, a study on electrical conductivity suggests upwelling of water-rich materials from the MTZ (e.g., Li et al. 2020). However, details of how water transported by wet plumes is added to the oceans are not well known. Some of the wet materials might accumulate below the continents (Griffin et al. 2013), although some water in these regions will eventually be transported to the surface by shallow volcanism. Further studies on these volcanisms will be warranted to better understand the global water circulation and why Earth is a habitable planet.

From the planetary science perspectives, in order for the proposed water valve to operate in a planet, there must be a transition zone in the mantle. Consequently, the size of a planet should be substantially larger than Mars (~ 0.1 of Earth mass), a planet whose transition zone is located at the bottom of its silicate mantle (e.g., Spohn et al. 1998). But the planetary mass should be smaller than ~ 10 Earth mass; otherwise, it will be a gaseous planet (e.g., Hayashi et al. 1985; Rogers et al. 2011). In addition, plate tectonics must operate to maintain extensive material circulation including the oceans and planetary interiors. For plate tectonics to occur on a terrestrial planet, the lithosphere must be relatively weak (e.g., Bercovici 2003; Karato 2014b; Karato and Barbot 2018). The surface temperature is presumably the most important parameter to determine the strength of the lithosphere (e.g., Foley et al. 2012; Karato and Barbot 2018): surface temperature must be low enough to allow brittle fracture with unstable fault motion (Karato and Barbot 2018). This critical temperature is ~ 700 K. In summary, the habitability conditions where the ocean mass remains nearly constant for billions of years are the modest mass of a terrestrial planet (~ 0.2× to ~ 10× of Earth mass) in addition to the appropriate distance from the star. Long-term presence of oceans under these conditions is secured partly through the deep mantle melting that regulates the water content of the mantle and the ocean mass.

Availability of data and materials

Data sharing not applicable to this article as no datasets were generated or analyzed

during the current study.



Mantle transition zone


Mid-ocean ridge basalt


Ocean-island basalt


Melt-rich layer


Low velocity layer


Low-velocity layer above 410 km depth


Low-velocity layer at around 750 km depth


Upper mantle


Lower mantle
