Visualization of the morphology and mode of occurrence of Cenomanian rudists within a drillcore by X-ray CT scanning and 3D modeling

Abstract

Rudists are a group of bizarrely shaped marine bivalves that lived in the Tethys Ocean from the Late Jurassic to the latest Cretaceous. They are morphologically variable, including snail-like, cup-like, and horn-like shapes. In the Middle East, Cretaceous carbonates with rudists and rudist fragments are well exposed in many outcrops as well as oil and gas fields. For rudist-bearing carbonates in the subsurface, knowledge of rudist morphology and mode of occurrence must be derived from observation of drillcores; however, understanding the three-dimensional (3D) geometry of rudists from observation of core surfaces is difficult. In paleontological studies of rudists, X-ray computerized tomography (CT) scans have been carried out to reconstruct the inside texture of rudist shells for the purpose of taxonomic research. In contrast, in the oil and gas industry, application of X-ray CT scanning technology is generally focused on direct measurement of reservoir properties. Studies of rudist fossils within drillcores by means of X-ray CT have not yet been conducted. We have developed a new protocol to observe core interiors using X-ray CT. We obtained high-resolution 3D images of rudists in a drillcore by means of surface rendering, volume rendering, and 3D printing. X-ray CT and 3D modeling is a novel method for non-destructive analyses of the morphology and mode of occurrence of fossils within drillcores.

Introduction

The Late Cretaceous was the only time interval in Earth history when bivalves were one of the major components of carbonate platforms. The bivalves were rudists, a group of bizarrely shaped marine bivalves living in the Tethys Ocean from the Late Jurassic to the latest Cretaceous. They are morphologically variable, including snail-like, cup-like, and horn-like shapes. Cretaceous rudist-bearing carbonates are proven exploration targets for hydrocarbons and form the reservoirs of a number of giant fields, including the Bu Hasa, Fateh, Fahud, Idd El Shargi, Rumaila, Shaybah, Shah, and Umm Al-Dalkh fields (Neo 1987, 1996; Scott 1990; Alsharhan and Nairn 1993; Alsharhan 1995; Al-Zaabi et al. 2010; van Buchem et al. 2011; Yamamoto et al. 2016; Kojima et al. 2017; Yamanaka et al. 2018, 2019a). In the case of the Cenomanian–lower Turonian Mishrif Formation, which is an important reservoir rock throughout the Middle East, high porosity and permeability are restricted to the rudist-bearing facies, which therefore constitute the main oil-producing reservoir zones in this formation. (Alsharhan 1995). The mode of occurrence (presence/absence, distribution, whether autochthonous or allochthonous, and sedimentological roles) of rudists in carbonate platforms is of scientific importance. The depositional environment of rudist-bearing carbonates and their porosity and permeability are closely related and, thus, important for oil/gas exploration (e.g., Yamanaka et al. 2019b). This is the case for Upper Cretaceous platform carbonates in the southern Arabian Peninsula including at Abu Dhabi (Burchette and Britton 1985; Burchette 1993; Skelton et al. 1995; Cestari and Sartorio 1995; Özer et al. 2009).

Cretaceous rudist-bearing carbonates are widespread in the Arabian Peninsula in outcrop and in the subsurface. Observations regarding rudist morphology and taxonomy have been mainly derived from outcrop studies (Skelton and Masse 2000; Schumann 2000), and this knowledge is the starting point for use of rudists for sedimentological and paleontological analyses of drillcores. However, in drillcore analyses, observations are limited to the two-dimensional (2D) core surface and it is therefore very difficult to obtain three-dimensional (3D) information on the sedimentary structure and morphology of macrofossils, including rudists.

To increase the amount of information that can be obtained from core observation, a 3D imaging technique using X-ray computerized tomography (CT) has been introduced to the fields of sedimentology (Seard et al. 2010) and paleontology (e.g., Sutton et al. 2014; Racicot 2016), and successful outcomes have already been achieved.

Hughes et al. (2004) attempted to analyze the outer and inner morphology of rudists within drillcores using X-ray CT images. However, it was very difficult to delineate the morphology of carbonate shells embedded in a carbonate matrix with CT values achievable at that time, and only a dim outline of the outer morphology was distinguished. Subsequent studies (Molineux et al. 2007; Molineux et al. 2010) of rudist morphology using X-ray CT images dealt with silicified material isolated from a carbonate matrix. Recently, the spatial resolution of X-ray CT images has been greatly increased and new image-processing techniques such as surface rendering and volume rendering have been invented and markedly improved. In addition, 3D printers can create precise plastic figures of objects at low cost. In this article, these advanced techniques are applied to rudist-bearing core samples, yielding clearly delineated 3D images. Here, we demonstrate the first use of 3D images of rudists for identification of rudisit taxa and characterization of fossil occurrences. These advanced techniques will be applicable to many types of fossil and, thus, are expected to significantly facilitate progress in paleontology.

Methods/experimental

Material

In this study, one core was collected from Cenomanian carbonates in the “A field” located offshore of the United Arab Emirates (UAE) and 20 km northeast of Abu Dhabi City (Fig. 1). A reservoir horizon in the A field consists of Cenomanian shallow water, rudist-bearing carbonates (Neo 1987; Al-Zaabi et al. 2010; Yamamoto et al. 2016). Five radiolitid genera (Sphaerulites, Praeradiolites,Eoradiolites, Sauvagesia, and Durania) and one ichthyosarcolitid genus (Ichthyosarcolites) comprise most of the rudist occurrences in the Cenomanian carbonate platform outcrops of northern Oman (Philip et al. 1995). Similar rudist assemblages are known from Cenomanian strata in Sinai, Egypt (Saber et al. 2009; Zakhera 2011). Broken and intact rudist shells belonging to these taxa are common to abundant and are locally associated with autochthonous specimens in the high-energy platform margin/barrier facies of the Cenomanian–lower Turonian sequences on the eastern Arabian Plate (e.g., Alsharhan and Nairn 1993; van Buchem et al. 2011). Therefore, radiolitid and ichthyosarcolitid rudists were expected to occur in the studied cores.

Fig. 1
figure1

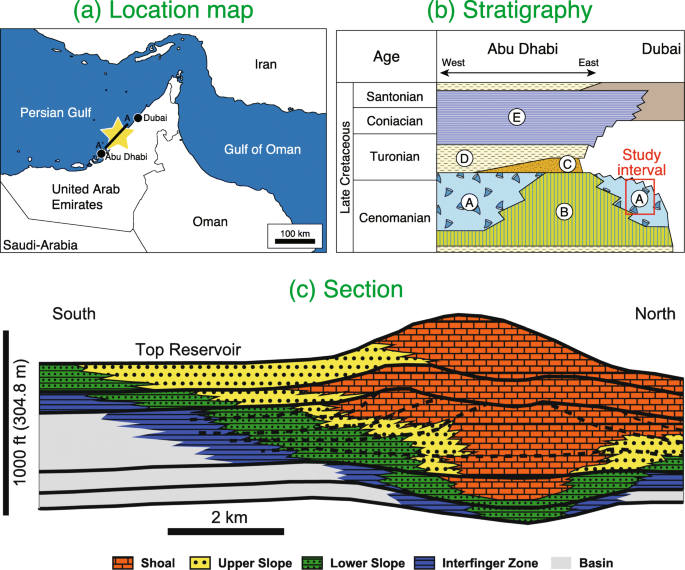

Location, schematic cross-section, and lithostratigraphy of the “A field”. a Location of the A field, indicated by a yellow star. b Stratigraphic outline of the Upper Cretaceous succession in the Abu Dhabi to Dubai area (modified from Al-Zaabi et al. 2010 and Yamamoto et al. 2016). The stratigraphic interval examined in this study is indicated (red square). A, rudist-bearing porous limestone facies comprising mainly rudist-bearing rudstone and floatstone with a matrix of grainstone–packstone–wackestone; B, organic-rich dark-gray mudstone–wackestone–mudstone, partially stylolitized; C, siliciclastic sediments extensively filling the remaining accommodation space in the preceding intrashelf basin; D, platform facies comprising argillaceous limestone in central and western Abu Dhabi; E, dark grayish-brown to black shale, locally interbedded with dense limestone. Note that the facies C, D, and E were not deposited in eastern Abu Dhabi, due to uplift of this area. c Schematic cross-section of the A field (orange color denotes limestone-shoal facies, yellow upper-slope facies, green lower-slope facies, and blue basinal facies). Diagram modified from Neo (1996)

A core drilled and recovered from shoal facies in this field comprised grainstone–packstone–wackestone containing common gravel-sized rudists and fragments of those rudists. The studied material was a one-third split of a seven-inch-diameter core (hereafter termed “the core”; 8 cm long, 7 cm wide) of the packstone (Fig. 2a–e). Rudist fragments were randomly scattered on the core surface.

Fig. 2
figure2

Core photographs and X-ray CT images. ae External appearance of the core. Note that rudists A–D, F, H. and I are indicated. a,d Side view of the external core surface. b, e Side view of the split core surface. c Top view. f, g Vertical slice images of the core obtained by X-ray CT.f Side view. g Side view of the core at ~ 0.5 cm from the external surface. Horizontal slice images of the numbered horizons (43, 62, 112, 134, 139, and 153) are shown in Fig. 4. α, Radiolitidae α with a thick outer layer; β, Radiolitidae β with a thin outer shell layer; i, Ichthyosarcolites

The studied material is stored in the Technical Research Center of INPEX Corporation at Tokyo, Japan.

Work flow

The work flow followed in the present study is summarized in Fig. 3. X-ray CT scanning of the core was undertaken after initial visual observation of the core surface, followed by detailed visual study of fossil rudists on the core surface taking into account the X-ray CT scan results. We used a third-generation dual-source medical X-ray CT scanner (SIEMENS, SOMATOM Definition Flash, Munich, Germany) at the Technological Research Center of the Japan Oil, Gas and Metals National Corporation, Chiba, Japan. A single-source X-ray was utilized with tube voltage optimized to 140 kV and a scanning interval of 0.5 mm. Approximately 160 slice images were obtained from the studied core. A “CT value” represents the relative density of an object relative to water (zero) and air (− 1000) and is expressed in Hounsfield units. For example, CT values of hard tissues such as bones and teeth range from 300 to > 1000. In typical X-ray CT images calculated from CT values, darker colors represent soft tissues or porous areas such as pores, whereas lighter colors indicate hard tissues or dense (non-porous) areas such as rock. As a result, gray-scale slice images can be obtained at a resolution of 0.2 mm pixel–1.

Fig. 3
figure3

Flow chart of the X-ray CT image analysis conducted in the present study.

Two steps of image analysis were conducted for rudists in the studied core. Step 1 was visual observation of rudists at the core surface (A). Step 2 included direct observation (1, B) and processing of X-ray CT images of rudists in the core interior. To understand rudist morphology and spatial configuration, two techniques were adopted for X-ray CT image processing: surface rendering (2) and volume rendering (3) (further details of the surface rendering and volume rendering are provided in Additional file 1: Document S1). From the results of the surface rendering, one 3D-printed model was made (4). By integrating all results, we visualized the morphology and mode of occurrence of the rudists

We applied “surface rendering” and “volume rendering” to X-ray CT scan data to visualize 3D structures using Molcer Plus software (White Rabbit Ltd., Tokyo, Japan). Surface rendering is a method for viewing the surfaces of masses above a certain threshold of CT value. Volume rendering is a method for changing opacity to make the interior contents visible. Surface rendering is a drawing of the “equality surface,” which is a closed surface that allows voxel data to be double-valued at a certain threshold and corresponds to the topographic contours of the material. Surface rendering is usually composed of a collection of triangular polygons, while volume rendering displays all voxel values. We created volume-rendering images following three steps: at first time, determine any one direction, from this voxel column, (1) display the highest value; (2) add a back-side voxel value to a front-side voxel value continuously in a line voxel and change the color (pseudo-color) and transparency on the basis of the voxel values; and (3) prioritize where the voxel values change abruptly. One 3D-printed model was made to identify the growth history of a rudist based on the results of the surface rendering (for more details regarding the surface and volume rendering, see Additional file 1: Document S1). The rudist (rudist B; see below) had a thick outer shell layer and was preserved in growth position near the center of the core sample. We created a transparent resin model with a 3D printer (Objet500 Connex3, Stratasys 3D printer, Tokyo, Japan) at the Tokyo Metropolitan Industrial Technology Research Institute, Tokyo, to visualize the internal structure of the core. We used a transparent resin, Veroclear (Stratasys Ltd., Eden Prairie, MN, USA). The outer and the inner shell layers were produced in different colors; magenta for the inner and cyan for the outer. The mold was polished using a compound to remove the modeling marks. The resin model is stored in INPEX Corporation at Tokyo, Japan.

Results and discussion

By comparing the visual core surface observation, surface rendering, volume rendering, and 3D modeling, we discriminated four types of rudists: (1) Radiolitidae α with a thick outer layer; (2) Radiolitidae β with a thin outer shell layer; (3) Radiolitidae γ, characterized by its large size; and (4) Ichthyosarcolites (Figs. 2, 4, and 5).

Fig. 4
figure4

Horizontal slice images obtained by X-ray CT. a Upper-upper slice (slice number 43 in Fig. 2). Note mesh-like (celluloprismatic) structure in the center. b Upper-middle slice (slice number 62 in Fig. 2). Note rudist C on the left-hand side. c Upper-lower slice (slice number 112 in Fig. 2). Note rudists B and C. d Lower-upper slice (slice number 134 in Fig. 2). Four rudists (rudists B, D, E, and G) are present. e Lower-middle slice (slice number 139 in Fig. 2). Three rudists (rudists B, D, and E) are present. f Lower-lower slice (slice number 153 in Fig. 2). Three rudists (rudists A, D, and B) are discernible. Rudist B possesses the thick outer shell layer (red arrows in c,d, and e). Yellow arrows in bf indicate individual rudists

Fig. 5
figure5

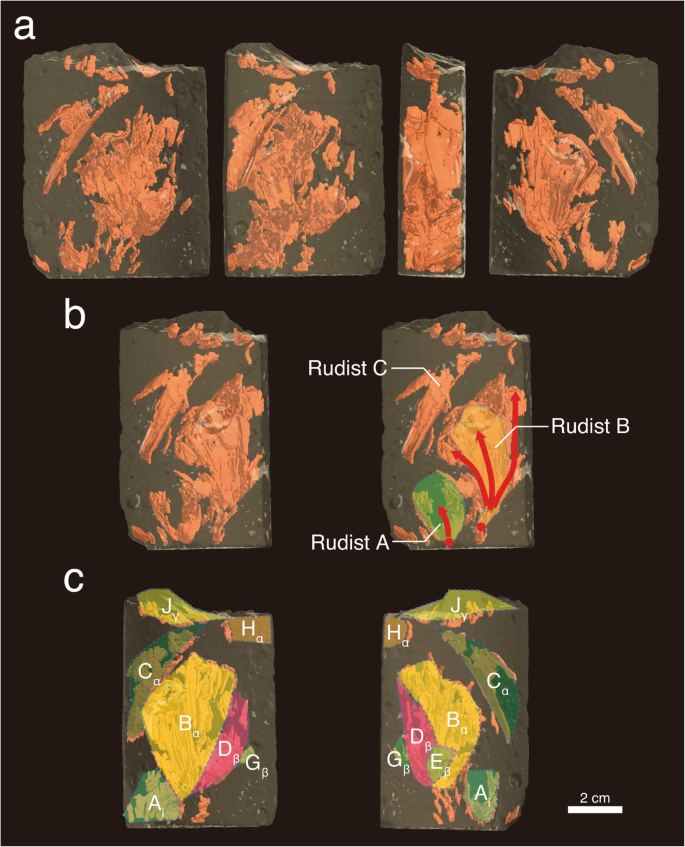

X-ray CT images processed with a surface-rendering technique. a Surface-rendering-processed images of the studied core. The images are shown in clockwise rotation from the external core surface (left) to the split core surface (right). Orange color indicates rudists inside the core. b Surface-rendering-processed image (left) and its interpretation (right). Red lines and dots indicate the growth directions and spats from which the shell growth started, respectively. c Occurrences of rudists detected by the surface-rendering technique (left: external core surface, right: split core surface)

Ten individual rudists assigned to the four types were identified in the core, with the following succession from the bottom to the top: I, Ichthyosarcolites; A, Ichthyosarcolites; B, Radiolitidae α, showing its early growth stage; D, Radiolitidae β; E, Radiolitidae β; G, Radiolitidae β; F, Ichthyosarcolites; C, Radiolitidae α; H, Radiolitidae α; and J, Radiolitidae γ.

Visual observation of the core surface and X-ray CT scan imaging

Seven rudists were identified during initial visual observation of the core surface: four on the external core surface (rudists B, C, H, and I; Fig. 2d) and four on the split core surface (rudists A, C, D, and F; Fig. 2e). Of these, two rudists (B and C) were relatively more noticeable. Rudist B lay in the center part of the external core surface (Fig. 2d, e). This rudist had a conical external shape, grew upward, and exhibited visible celluloprismatic structure in its outer shell layer. The growth of rudist C was directed downward, suggesting an allochthonous mode of occurrence (Fig. 2e).

X-ray CT scan images enabled us to clearly differentiate rudists, matrix, and dissolution cavities even if the rudists were somewhat broken and fragmented (Fig. 2f, g). A series of slice images obtained from the X-ray CT scan was useful in revealing outer shapes, internal structures, and configurations of rudists in the core. We describe the rudists in detail below (Additional file 2: Figure S1).

Additional file 2: Figure S1 Movie file of X-ray CT imaging.

Three slice images were obtained from the upper (slice numbers 43, 62, and 112; Fig. 4a–c) and lower (slice numbers 134, 139, and 153; Fig. 4d–f) parts of the core. Mesh-like (celluloprismatic) shell structure (rudist C) was recognized in the central part of the uppermost slice (slice number 43; Fig. 4a). Rudist C occurred also in the left-hand side of the upper-middle slice (slice number 62; Fig. 4b), which was 9.5 mm below slice number 43. In the upper-lower slice (slice number 112; Fig. 4c), two rudist shells (rudists B and C) were recognized. Rudist B had a thick outer shell layer (red arrows in Fig. 4). Four rudist shells (rudists B, D, E, and G) occurred in the lower-upper slice (slice number 134; Fig. 4d); of these, rudist B preserved a thick outer shell layer. In the lower-middle slice (number 139; Fig. 4e), which was 2 mm below the lower-upper slice, three rudist shells (rudists B, D, and E) were discernible. Rudist B still possessed a thick outer shell layer. Three rudist shells (rudists A, D, and B) were present in the lowermost slice (number 153; Fig. 4f).

An outer shell layer was not recognized in rudist A. The slice images indicated that rudist B was preserved in an upright position and had a thick outer shell layer. The boundary between the inner and outer shell layers could be easily recognized, although the inner shell layer was mostly dissolved. The lattice-like (celluloprismatic) outer shell layer of rudist C was not apparent in the X-ray CT scan images, although it could be detected by visual core surface observation. This difference in the visibility of the structure is related to X-ray CT resolution. Because the scanning interval of the X-ray CT image was 0.5 mm per slice, detail that is less than this size, such as the celluloprismatic structure of the outer shell layer, cannot be detected.

From visual observation of the core surface and X-ray CT scan imaging, nine rudists (rudists A–I) were identified. These rudists were grouped into two types on the slice images: rudists possessing a thick outer shell layer (rudists B, C, and H) and rudists lacking a thick shell layer (rudists A, D–G, and I). Rudist C had a thick outer shell layer, which was confirmed to be present by visual observation of the core but not by X-ray CT imaging.

Surface rendering

Evaluation of the whole morphology of rudists in drillcores based on the limited and fragmentary information obtained by visual core surface observation is difficult. It is possible, by applying a surface-rendering technique to X-ray CT images of drillcores, to connect such limited and fragmentary information together to yield a single image and to understand how the shells of individual rudists developed (Fig. 5; Additional file 3, Figure S2). This new information will facilitate taxonomic and paleoecological studies of rudists.

Additional file 3: Figure S2 Movie file of X-ray CT imaging processed with a surface-rendering technique.

The images produced by applying the surface-rendering technique show that rudist B, which is cone-shaped, was located in the central part of the studied core (Fig. 5), in close proximity to rudist A below and rudist C above. The images also indicate that rudist A grew obliquely to the sea bottom and may have retained its growth position in bioclastic sediments during burial. Rudist B settled on a hard substrate (see “volume rendering”) immediately adjacent to rudist A shortly after settlement of the latter judging from the short distance between the base of the two rudists. Rudist B grew in a conical shape while developing the thick outer shell layer. It is noteworthy that the surface-rendering technique made apparent the isolation of rudist B from rudists A and C; in other words, the outer layer of rudist B was not connected with those of rudists A and C. Rudist C was an allochthonous, fragmented shell in an inverted position overlying rudist B, suggesting post-mortem transportation of the former. The reconstructed succession indicates that three rudists did not bud from individuals located below (in other words, did not settle on individuals located below) but grew independently. The images produced with the surface-rendering technique also demonstrate that rudists D and E started to grow on the flank of rudist B near its base (Fig. 5c).

Volume rendering

Volume rendering, unlike surface rendering, makes it easier to recognize objectives as hologram images (Fig. 6a; Additional file 4: Figure S3). Volume rendering revealed two modes of rudist occurrence in the core: in the original growth position (four rudists: rudist A and possibly rudists B, D, and G); and fragmented and in a standing or inverted position (e.g., rudist C; Fig. 5).

Fig. 6
figure6

X-ray CT images processed with a volume-rendering technique. a Volume-rendering-processed images of rudist B in the studied core. The images are shown in clockwise rotation from the external core surface (left) to the split core surface (right).b Enlarged images of the spat of rudist B

Additional file 4: Figure S3 Movie file of X-ray CT imaging processed with a volume-rendering technique.

The detailed images (Fig. 6b) of the basal part of rudist B clearly indicate that its growth began from the settlement of a juvenile (spat in Figs. 5 and 6) on a hard substrate such as a rock or a shell fragment. This finding is consistent with the direct observation of settling of juvenile specimens onto gravel or the shells of adult rudists (Gili and Götz 2018).

This type of growth process is generally difficult to infer from visual observation of core surfaces because the observable area is very limited (8 cm long and 7 cm wide), and the interior of the core is not visible. Volume rendering enables rotation of 3D images, which is useful in taxonomic identification and analysis of the mode of occurrence of rudists. However, experience of the technique is required to determine the threshold at which CT values should be rejected as noise on the image of the rudist surface during 3D modeling.

3D printer modeling

To visually understand the relationship between the inner shell layer and the outer shell layer (Fig. 7; Additional file 5: Figure S4), we made a 3D-printed model using the surface-rendering technique for rudist B, which is preserved in an upright position and has a relatively thick outer shell layer (Fig. 8). The created 3D-printed model yielded information on the growth history of rudist B. Figures 7 and 8 indicate that the outer shell layer started to be developed from 7 mm above the base of the inner shell layer, and subsequently extended upward to wrap around the inner shell layer. Finally, both inner and outer shell layers grew upward together.

Fig. 7
figure7

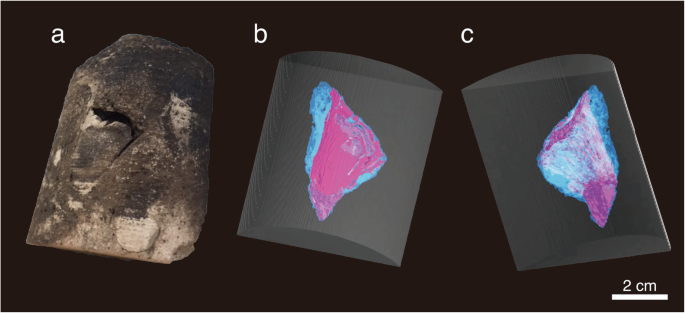

Three-dimensional modeling of rudist B. a External surface of the studied core seen diagonally from the bottom right. b, c 3D model of rudist B seen from the external core surface (b) and the split core surface (c). Magenta and cyan colors indicate the inner and outer shell layers, respectively

Fig. 8
figure8

Three-dimensional printed model of rudist B. Photographs of the studied core (left) and images of the 3D model of rudist B (right). a High-angle images.b Images of the external core surface. c Images of the split core surface. Magenta and cyan colors indicate the inner and outer shell layers, respectively

Additional file 5: Figure S4 Movie file of the 3D model of rudist B.

The 3D-printed model also clearly shows the settlement of the juvenile of rudist B. This is the first detection of a rudist spat in the interior of a core.

Evaluation of X-ray CT imaging and image processing

We show, in Fig. 9, a comparison of the occurrence of rudists detected by visual observation of the core (Fig. 9a, b), the surface-rendering technique (Fig. 9c, d), and the 3D-printed model (rudist B, Fig. 9e). We identified seven rudists by means of visual observation of the core surface and extracted limited information on their morphology and mode of occurrence (preservation state, spatial distribution, and growth history). However, the combination of several methods allowed identification of 10 rudists assigned to four types in the studied core. Surface and volume rendering were useful in identifying the initiation (settlement), development, and succession of rudists in the core interior. The volume-rendering technique and the making of a 3D model from a transparent resin allowed observation of the rudists from all directions.

Fig. 9
figure9

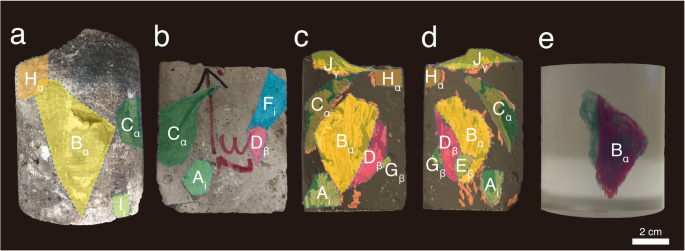

Visualization of the morphology and mode of occurrence of rudists in the studied core. Comparison of the occurrences of rudists detected by visual observation: a external core surface, b split core surface; and the surface-rendering technique: c external core surface, d split core surface. The 3D model of rudist B is also shown (e). Magenta and cyan colors indicate the inner and outer shell layers, respectively

Conclusions

X-ray CT imaging, combined with surface rendering, volume rendering, and 3D modeling, allows us to obtain various types of information on rudists, such as their morphology (including the presence/absence of pores/voids within shells), mode of occurrence (including preservation states), and distribution in core samples. This information will be useful in analyzing the sedimentary facies and paleoenvironment of rudist-bearing carbonates and the paleoecology of rudists. We consider that, if X-ray CT images become part of the routine work of core analysis, this process will yield an important database for taxonomic, phylogenetic, and functional morphological research on many fossils as well as sedimentological analysis of various deposits regardless of their geological ages.

Application of X-ray CT imaging to petroleum engineering has already led to advances in our understanding of quantitative representation of the porosity and permeability of oil and gas reservoir rocks. The combination of X-ray CT imaging with the three techniques for visualizing the CT data allows us to clarify the morphology and vertical and spatial development of rudist bioherms/biostromes and delineate their initiation, development, and demise. This information is essential for creating and improving geological models for oil/gas exploration. In addition, our new techniques for studying core samples, in combination with direct visual observation, enable identification of rudists at the species level if they are in a good state of preservation, which will facilitate future studies of rudist biostratigraphy. Furthermore, we can accurately estimate the number of rudists in a sample and delineate their occurrence (e.g., autochthonous or allochthonous), which is essential for reconstructing rudist paleoecology.

Our study clearly indicates that X-ray CT imaging and related techniques can yield new visual data that have not yet been collected. This source of new information will potentially expand our paleontological and paleoecological knowledge as well as assist in development of oil and gas exploration technology. Many drillcores have been obtained for oil and gas exploration in many fields, leaving numerous core samples that have been left uninvestigated after conventional measurements and analysis. Our results highlight the potential of such cores as an important data source for future studies in Earth science.
