Saildrone-observed atmospheric boundary layer response to winter mesoscale warm spot along the Kuroshio south of Japan

Abstract

Using an unmanned sailing vehicle, known as a Saildrone, we observed mesoscale and smaller scale structures of oceanic and atmospheric variables across the Kuroshio south of Japan during the winter of 2018/2019. From December 28 to December 29, 2018, the Saildrone crossed just north of the center of a very warm (23C) mesoscale spot in the Kuroshio centered around 31.5 N, 135.8 E. The northerly winter monsoon wind was intensified by 2 m s1 over the mesoscale warm spot (MWS) and accompanied by a submesoscale sea level pressure undulation of 1 hPa possibly due to two oppositely rotating ageostrophic vortices. At this time, the wind reached a maximum speed of greater than 12 m s1 and removed heat from the ocean at a rate of 1141 W m2. Subsequently (January 3–5, 2019), the Saildrone observed weakening of wind and heat release to the atmosphere on the southern edge of the MWS, which was associated with the approaching low-pressure system over the Kuroshio. The observed submesoscale structures of atmospheric and oceanic variables near the center of the MWS suggest that the atmospheric boundary layer responded to the MWS through the pressure adjustment mechanism in the Kuroshio, where in situ high-resolution measurements have not been performed before.

Introduction

The Kuroshio, the western boundary current of the North Pacific subtropical gyre, originates east of the Philippines, flows northeastward through the East China Sea, proceeds south of Japan, and extends further eastward as the Kuroshio Extension (Nitani 1972). The Kuroshio transports a huge amount of heat from the tropics to the subtropics (e.g., Bryden and Imawaki 2001; Nagano et al. 2009, 2010). In the Kuroshio region, sea surface temperatures (SST) are relatively high compared with the interior central and eastern regions of the subtropical gyre. Cold dry wind from the Eurasian Continent blows over the warm Kuroshio region, particularly during the boreal winter, thus removing heat from the ocean (e.g., Hsiung 1986; Konda et al. 2010). Atmospheric variables such as sea level pressure (SLP), air temperature, and wind speed and direction have also been observed being affected by the high SST water in the Kuroshio region during the winter (e.g., Tokinaga et al. 2006; Tomita et al. 2013; Kawai et al. 2014).

SST varies across the Kuroshio, with sea surface water around the Kuroshio current axis being noticeably warmer than its onshore and offshore sides. Based on observations performed in June and July of 1977, the water temperature of the warm core water was higher than 28.5C (Taft 1978). The water in the warm core was characterized by low salinity (<33.9‰) and low dissolved oxygen concentration principally related to the high SST. The warm core in the Kuroshio is observed to be approximately 50 m thick, as indicated by hydrographic casts (e.g., Worthington and Kawai 1972; Taft 1978; Nagano et al. 2009). Furthermore, warm core water properties are not uniform along the Kuroshio. Very high temperatures are observed at intervals of approximately 10–500 km, i.e., mesoscale or smaller scales, along the warm core of the Kuroshio. Fuglister and Worthington (1951) observed similar anomalously warm spotty sea surface water masses along the Gulf Stream, the western boundary current of the North Atlantic subtropical gyre. Because of the very high SST in the Kuroshio, such mesoscale warm spots (MWSs) are considered to play critical roles in air-sea interactions.

The atmosphere in extratropical regions is considered to locally respond to spatial SST variation in two ways, which were both originally revealed operating to the atmospheric boundary layer over SST fronts in tropical regions. One is known as the pressure adjustment mechanism. An SST front induces positive and negative anomalies in SLP on the cold and warm sides of the front, respectively, and the generated pressure gradient modifies sea surface wind (Lindzen and Nigam 1987). The other is the vertical mixing mechanism. Strengthened vertical mixing in the atmospheric boundary layer over a high SST descends high wind momentum from aloft to the sea surface and enforces sea surface wind (Wallace et al. 1989; Hayes et al. 1989). These two mechanisms provide different structures of the atmospheric boundary layer. If the pressure adjustment mechanism operates, SLP is changed to adjust to wind change. Otherwise, SLP would not be modified. Thus, by examining oceanic and atmospheric variables, it can be elucidated how the atmosphere responds to a high SST of a Kuroshio MWS.

Knowledge on mesoscale or smaller scale variations of the Kuroshio and the overlying atmosphere is based mainly on oceanic and atmospheric surveys conducted by research vessels. Under severe weather conditions in the East Asian winter monsoon, air-sea interactions presumably occur associated with active heat release to the atmosphere (e.g., Hsiung 1986; Konda et al. 2010). However, because of stormy weather and rough seas during the winter, ship-based observations are frequently abandoned. Satellites permit near real time observation of variations in the ocean and atmosphere. Data assimilation techniques provide dynamically consistent data based on observations. However, satellite data for air-sea interaction studies, which resolutions are mostly approximately 0.25 (e.g., Tomita et al. 2019), and assimilation data do not yet have enough spatial and temporal resolution to reproduce mesoscale or smaller air-sea interactions. Higher spatial and temporal resolution in situ data are required to reveal mesoscale and smaller wintertime air-sea interactions in the Kuroshio region.

Various types of unmanned surface vehicles have been developed recently (e.g., Manley 2008). Saildrones (SDs) are a type of unmanned surface vehicle powered by winds (https://www.saildrone.com) and are currently being put into scientific research use (e.g., Meinig et al. 2015; Zhang et al. 2019). SDs can be at sea for several months, remotely controlled from land, and can transmit collected data to land via satellite communication in near real time. Measurements and data transmissions are maintained by a solar-powered battery management system. After being launched from port, SDs perform unmanned observations regardless of weather and ocean conditions and obtain data with minimal platform-induced atmosphere and ocean disturbances. At a sailing speed up to 8 knots, SDs can also quickly reach predetermined observation areas and complete the spatially high-resolution observations in fairly short times at sufficiently short transects. Because of these advantages, we expect that observations by SDs can reveal the mesoscale and smaller scale oceanic effects on the atmospheric boundary layer.

Since September 2017, the Kuroshio has taken a stable current path, referred as the large-meander path, that is associated with a large southward meander south of Japan (Nagano et al. 2019). Several anomalously high-temperature spots are present along the warm core of the Kuroshio, as indicated by letter W in the satellite-based SST map on January 1, 2019 shown in Fig. 1. To reveal the horizontal mesoscale and smaller scale structures of the ocean and atmosphere near the sea surface, we performed a repeat observation by an SD across the MWS centered near 31.5 N, 135.8 E, which has the highest SST. We found that wind is intensified over the MWS and that turbulent heat flux from the ocean to the atmosphere is large, likely resulting from the air-sea interaction over the spotty warm area of the Kuroshio. In this paper, focusing on influences of the MWS on the atmosphere and turbulent heat flux, we described the horizontal mesoscale and smaller scale structures of atmospheric and oceanic variables near the sea surface around the Kuroshio.

Fig. 1
figure1

Satellite-derived sea surface temperature map on January 1, 2019. Saildrone observations were performed in the region enclosed by the dashed square. The areas labeled with the letter W indicate anomalously warm spotty sea surface Kuroshio water masses

Methods/experimental

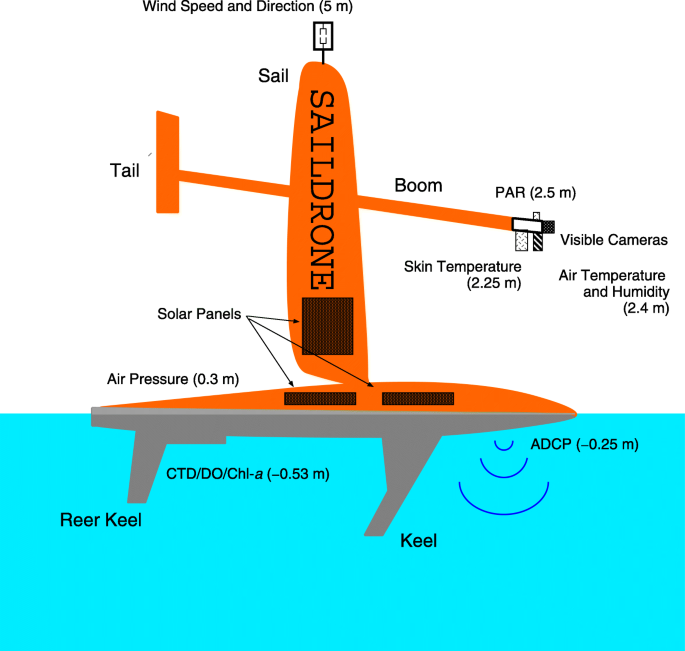

Figure 2 shows a diagram of the SD Generation 5 vehicle used for this observation. The SD is 5 m tall and 7 m long. An ultrasonic wind speed and direction sensor (Gill Instruments) was installed on the top of the sail (5 m height). On the sail boom, sensors for measuring air temperature/relative humidity and air pressure were installed at heights of 2.4 and 0.3 m, respectively. Atmospheric variables were collected at 5 min intervals. A downward looking infrared thermometer (Heitronics) was set on the boom at a height of 2.25 m; however, this instrument did not collect data in the study region because it malfunctioned as described below. Four visible light cameras were also installed near the air temperature/relative humidity sensors on the sail boom, facing up, down, left, and right, and took pictures around the SD four times per day during daylight hours.

Fig. 2
figure2

Diagram of Saildrone Generation 5. The positive and negative numbers in parentheses indicate the heights of meteorological sensors and depths of oceanic sensors, respectively

Water temperature, salinity, dissolved oxygen concentration, and chlorophyll-a content were measured at 1 min intervals using a CTDO2 sensor and fluorometer (RBRoem C.T.ODO.FL) installed on the rear keel at a depth of 53 cm. A downward looking 300 kHz acoustic Doppler current profiler (ADCP) (Teledyne RD Instruments) installed at a depth of approximately 25 cm collected velocity vector data at 5 min intervals from approximately 6 m to 80 m depths. All the instruments were tested and calibrated by the manufacturers before the observations.

We determined in real time the SD track, referring to SST, sea surface salinity (SSS), current velocity, air temperature, relative humidity, and SLP derived from an ocean assimilation system based on the Hybrid Coordinate Ocean Model and the Global Forecast System of the U.S. National Centers for Environmental Prediction. Saildrone, Inc. operators performed observation along the track. Observations began on October 16, 2018, by launching an SD (Generation 4) from Guam. Unfortunately, after the launch, on October 24, the SD lost control on the way. Another SD (Generation 5) was then launched from Guam on December 5 and reached the region south of Japan on December 20 (Fig. 3a). Until December 30, the SD sailed across the Kuroshio twice as planned due to favorable winds from behind. However, the wind direction changed on December 31, making the wind inadequate for crossing the Kuroshio; therefore, the SD drifted to the southeast on the swift current. Eventually, a serious incident occurred on the SD on January 8, 2019, and data collection and transmission stopped probably due to vandalism by a fishing boat. The SD was then recovered on January 30. Therefore, we used data obtained from December 20, 2018, to January 8, 2019.

Fig. 3
figure3

Plots of a satellite-observed sea surface temperature (SST), b Saildrone-observed SST, c air temperature, d air-sea temperature difference, e specific humidity, f wind vector, g turbulent (latent plus sensible) heat fluxes on the Saildrone track and altimetric sea surface height (SSH, contours) on January 1, 2019, and h satellite-observed SST averaged from December 28, 2018, to January 8, 2019. In a and h, the Saildrone tracks are illustrated by thick white line. The SSH contour interval is 10 cm and, except for a, gray shaded areas indicate SSH values between 90 and 140 cm

Based on the calibration after recovery, SST and SSS measurement accuracies were better than 0.0105C and 0.1277, respectively. SSS data collected by this SD observation were found to include a sensor drift after December 20, 2018. Assuming that there was no sensor drift until December 20, we performed a fitting of salinity values to a quadratic function and determined regression coefficients to obtain sensor drift using the least squares method. After subtracting sensor drift from the salinity data, we further removed noisy features using a 15 sampling length (15 min) median filter. The root-mean-square (RMS) difference of the corrected salinity data is 0.1610. Although the RMS difference is comparable to the measurement error, results based on the SSS data should be carefully interpreted.

Applying the COARE 3.0b bulk flux algorithm (Fairall et al. 2003), we computed sea surface sensible and latent heat fluxes. Measurement of skin temperature was stopped on December 25, 2018, before the observation of the Kuroshio south of Japan. Because the SD did not measure shortwave and longwave radiation fluxes, we cannot perform skin temperature correction. Instead, we used the temperature data obtained by the CTDO2 sensor at a depth of 53 cm (Fig. 2) without skin temperature correction. Throughout the SD observations in the region south of Japan, we obtained continuous spatial variations in turbulent heat flux data at 2 km intervals along the track.

We used daily absolute sea surface height (SSH) data, i.e., delayed-time updated mapped SSH anomaly data (DT_SLA-H) added to the mean dynamic topography data (MDT_CNES-CLS13; Rio et al. 2011) and daily 1/4×1/4 gridded SST data (NOAA OI SST V2 High Resolution Dataset; Reynolds et al. 2007) from December 21, 2018, to January 8, 2019, in the region spanning 20– 45N, 120– 160E. SLP fields in this region were obtained from 1.25×1.25 gridded data of the Japanese 55-year Reanalysis (JRA-55) conducted by the Japan Meteorological Agency (Kobayashi et al. 2015). We used 1/3×1/3 gridded sea surface current velocity data from Ocean Surface Current Analyses Real-time (OSCAR; Bonjean and Lagerloef 2002), from December 21, 2018, to January 6, 2019. OSCAR data consist of sea surface current velocity vector constructed every 5 days based on satellite-sensed SSH gradients and sea surface winds. Using OSCAR data, we evaluated divergence of currents.

Results

The Kuroshio south of Japan is illustrated by a sharp offshoreward increase in SSH (Fig. 3a). A tongue-like structure of warm sea surface water has been observed along the Kuroshio current by satellite SST measurements (Figs. 1 and 3a). The SD observations found the SST gradient to be greater on the inshore side of the current axis than the offshore side (Figs. 3a and 3b), as reported by Taft (1978). Throughout the observation period, the SD-observed SST change is mostly attributable to passages of the SD across the temperature front of the Kuroshio but not to periodic variations such as diurnal cycle (Fig. 4a). The SST in the Kuroshio region is higher than air temperature during the winter; in other words, air-sea temperature difference (SST minus air temperature) is positive (Fig. 3d). Thus, heat is released to the atmosphere (Fig. 3g), as observed in previous studies (e.g., Hsiung 1986; Konda et al. 2010).

Fig. 4
figure4

Plots of Saildrone-observed a SST, b air temperature, and c air pressure with respect to time during the observation off the southern coast of Japan from December 21, 2018, to January 7, 2019. Periods of observations along the A and B tracks are indicated by pink and yellow bands, respectively

Additionally, spots of very high SST are found along the Kuroshio at approximately 50–100 km intervals (Figs. 1 and 3a), as Fuglister and Worthington (1951) observed in the Gulf Stream in the North Atlantic. The SD crossed twice the Kuroshio just north of the center of the MWS (31.5N, 135.8E) and crossed the southern edge three times (white lines in Fig. 3a). The dimensions of the MWS parallel and perpendicular to the Kuroshio current direction were approximately 100 and 50 km, respectively, making it the largest of the MWSs observed by satellite SST measurements in the region south of Japan during the study period. The SST around the center of the MWS is higher than 23C (Fig. 3a). The MWS continued to exist in almost the same location for approximately two weeks from late December 2018 to early January 2019, as denoted in the map of satellite-observed SST averaged from December 28, 2018, to January 8, 2019, in Fig. 3h.

Meanwhile, atmospheric conditions over the region south of Japan greatly varied due to the passages of low-pressure systems during the observation period (Figs. 4b and 4c). Therefore, air temperature (Fig. 3c) and specific humidity (Fig. 3e) were different each time the SD crossed the Kuroshio. In particular, air temperature and specific humidity were low on December 28–30, 2018. During this period, SD-observed air pressure continued to increase (Fig. 4c) and cold dry northerly or northwesterly winds blew from the continent under typical winter weather conditions around Japan, as indicated by SLP maps based on the JRA-55 data in Fig. 5. The winter weather condition was persistent while the SD crossing the Kuroshio. The influence of the Kuroshio on the atmosphere is identified (Fig. 3f), and the winds were remarkably intensified over the Kuroshio from December 28 to December 30, exceeding 12 m s−1.

Fig. 5
figure5

Variation in sea level pressure (SLP) in hPa while the Saildrone crossing the A track. Maps of SLP are shown every 12 h from a December 28 12:00, 2018, to c December 29 12:00, 2018 (UTC). Data are based on JRA-55 (Kobayashi et al. 2015) and contour intervals are 2 hPa. The study region is the region enclosed by the dashed line square and track A is indicated by white line

Similar enhancements of winds over high-SST areas have been reported in the tropical regions (e.g., Lindzen and Nigam 1987; Wallace et al. 1989; Hayes et al. 1989) as well as over the Kuroshio and the Kuroshio Extension (e.g., Tanimoto et al. 2011; Tomita et al. 2013; Kawai et al. 2014). Because of the low air temperature and strong winds in this period, sea surface turbulent (sensible plus latent) heat flux (Fig. 3g) was estimated to be noticeably high (>700 W m−2) in comparison with other periods. Moreover, the strengthened northerly wind over the Kuroshio enforced sea surface upward turbulent heat flux.

Turbulent heat flux and its related atmospheric and oceanic variables along the track during the high heat flux period from December 28 09:00 to December 29 20:00 (UTC) (track A in Fig. 3a) are shown with respect to latitude by red lines in Fig. 7. These values are averaged within intervals of approximately 2 km, which is equivalent to a time average of approximately 30 min. The A track crossed just north of the center of the MWS (Fig. 3a). For comparison, the variables observed along the track in the case of low turbulent heat flux from January 3 03:00 to January 5 03:00 (track B) are indicated by blue lines in Fig. 7. The B track is along the southern edge of the MWS. When the SD began to cross the B track, JRA-55-based SLP was high west of the study region and low to the east and the background large-scale wind south of Japan was northerly (Fig. 6a and b). These background SLP and wind conditions are like those in the period of the A track; however, after that, the atmosphere rapidly became warm (Fig. 4b) in association with an SLP decline (Fig. 4c) due to the approach of a low-pressure system to the B track (Fig. 6c, d). Along the A and B tracks, the Kuroshio current axis, defined as the maximal sea surface current observed by the ADCP, was present at latitudes of 32.05 N and 31.60 N, respectively. To compare the atmospheric and oceanic parameters around the Kuroshio current axis, the ordinates in Fig. 7 were adjusted relative to the location of the current axis to match the locations of the Kuroshio current axis along both tracks.

Fig. 6
figure6

Same as Fig. 5, but for the period of the B track from a January 3 06:00, 2019, to d January 4 18:00, 2019 (UTC)

Fig. 7
figure7

a Turbulent (latent plus sensible) heat flux, b sea surface temperature (SST), c air temperature, d air-sea temperature difference, e wind speed, f specific humidity, g air pressure, and h sea surface salinity (SSS) on the A (red lines) and B (blue lines) tracks. Values were averaged within approximately 2 km intervals. Positions where the Saildrone observed the maximal surface current speed on the tracks are matched to make a comparison. Red arrows indicate locations of SST peaks corresponding to wind speed peaks

The Kuroshio MWS is found to not have a simple cross-current structure with a single SST peak (Fig. 7b). Large air-sea temperature differences (Fig. 7d) basically correspond to the high SST near the MWS. The maximum SST (23C) and large air-sea temperature difference on the A track (red line) within the MWS (31.9 N) largely corresponds to the maximum wind speed (>14 m s−1) (red line in Fig. 7e). The intensification of wind over the SST maximum relative to the surrounding regions exceeds 2 m s−1 and is associated with an SLP depression of approximately 1 hPa (red line in Fig. 7g). The turbulent heat flux reached a maximum of 1141 W m−2 (red line in Fig. 7a), which is much larger than wintertime climatological heat flux in the Kuroshio and Kuroshio Extension region (600 W m−2) (e.g., Konda et al. 2010; Sugimoto and Hanawa 2011).

Another SST peak around a latitude of 31.7N on the A track (red line in Fig. 7b) is also accompanied by a wind speed peak (red line in Fig. 7e) and pressure depression (red line in Fig. 7g). The southwestward sailing SD reached the northern primary SST peak at 05:40 and southern secondary peak at 12:20 in local sidereal time (LST) before the expected peak time of diurnal SST cycle (circa 13:00 LST) studied by Koizumi (1956). The SD-observed SST decreased with time toward noon. As described above, the diurnal SST cycle is also not clear throughout the study period (Fig. 4a). Therefore, the SST peaks are principally attributable not to the diurnal SST cycle but to the intrinsic sea surface structure of the Kuroshio.

These SST and wind speed peaks yield remarkable turbulent sea surface heat flux peaks (red lines in Fig. 7a). The enhancements of latent heat flux in association with strengthened evaporation correspond to peaks in specific humidity (red line in Fig. 7f). Note that the moist air masses are considered to be advected from a little upstream of the A track. Associated with the atmospheric response, a peak in air pressure was exhibited between the depressions (red line in Fig. 7g). This submesoscale structure of SLP intensified the northwesterly wind over the SST peaks. This is consistent with the slightly high SSS observed around latitudes of 31.7 N and 31.9N on the A track (red line in Fig. 7h), but differs from observed low SSS around the warm core during the summer by Taft (1978). This is probably because summer is not a season of active ocean heat release to the atmosphere.

It should be noted that the time series of air pressure (Fig. 4c) includes periodic variations probably due to the atmospheric tides. The power spectrum of this time series exhibits a significant peak at a semidiurnal period of 11.3 h, which exceeds the 95% confidence interval. Meanwhile, no clear such periodic variations are displayed in the time series of SST (Fig. 4a) and air temperature (Fig. 4b). On the other hand, the submesoscale structure of SLP over the MWS of the Kuroshio is accompanied by the corresponding spatial changes in SST and other atmospheric variables, as described above. For this reason, the submesoscale SLP change over the MWS is considered to be caused not by the atmospheric semidiurnal tide but by the air-sea interaction in the MWS.

On the B track, which is along the southern edge of the MWS, SST and air-sea temperature difference peak values were reduced (blue lines in Fig. 7b, d). As a low-pressure system approached to over the warm core of the Kuroshio, the southwestward sailing SD observed a steep pressure decrease of approximately 10 hPa (blue line in Fig. 7g). Associated with the SLP decrease, the background northerly wind changed to the southwesterly weak wind (Fig. 3f and blue line in Fig. 7e). Consequently, the upward sea surface turbulent heat flux on the B track was smaller while the SD crossing the warm core of the Kuroshio (<300 W m−2) than the surrounding regions (blue line in Fig. 7a). The weakening in turbulent heat flux over the Kuroshio is, therefore, mostly caused by the weakening of wind due to the approach of the low-pressure system. The B track being apart from the MWS center, the influence of the Kuroshio warm core on the atmosphere is insignificant in comparison with the A track near the MWS center.

Large fluctuations in SSS were observed on the B track (blue line in Fig. 7h). However, as noted in “Methods/experimental” section, the SD-observed SSS data includes the sensor drift. Because the exact function form of the sensor drift is unknown, we should be cautious to make a comparison between absolute values of SSS along the A and B tracks. SSS values on the B track such as at latitudes of 31.10– 31.25 N and 31.48– 31.55N are low and values between these areas are high. The magnitudes of the fluctuations are approximately 0.2–0.3 (psu), which are larger than the RMS difference. The high-salinity fluctuations are likely caused by evaporation and wind-driven mixing of underlying high salinity water derived from the North Pacific tropical water. Meanwhile, low-salinity fluctuations might be attributable to water freshened by rainfall due to the passage of an atmospheric low-pressure system on December 26, 2018, that was cooled by heat release and subducted to the sensor depth (53 cm).

Latent (sensible) heat flux, FL (FS), is a function in terms of SST TS, air temperature TA, specific humidity q, and wind speed U. The spatial heat flux variation, ΔF, is approximated as

$$ {}{\Delta}F \: \!{\approx}\! \: \left(\frac{\partial F}{\partial T_{\mathrm{S}}} \right) {\Delta}T_{\mathrm{S}} + \left(\frac{\partial F}{\partial T_{\mathrm{A}}} \right) {\Delta}T_{\mathrm{A}} \,+\, \left(\frac{\partial F}{\partial q} \right) {\Delta} q \!+ \left(\frac{\partial F}{\partial U} \right) {\Delta}U, $$
(1)

where ΔTS, ΔTA, Δq, and ΔU are spatial variations in SST, air temperature, specific humidity, and wind speed, respectively. To examine which variables dominantly contribute to the turbulent heat flux, we decomposed the heat flux variations into the variation components due to the four variables on the basis of Eq. (1). Because the turbulent heat flux function form is not simple, each term of the right hand side (RHS) of Eq. (1) in this study was evaluated as the rate of the change of a variable by using the mean values for the other three variables on each SD track.

Figure 8a and b show the respective contributions of the variables for latent and sensible heat fluxes on the A track. The sums of the contributions to the variations in both latent and sensible heat fluxes from the four variables, the RHS of Eq. (1), are in good agreement with the variations in ΔF, the left hand side (LHS) of the equation (Fig. 9). Wind speed intensification is found to be the largest positive factor for both latent and sensible heat fluxes around the warm core of the Kuroshio (orange lines in Fig. 8). Remarkably, spatial variation of the heat fluxes on scales of approximately 0.1 latitude (10 km) and smaller are almost solely attributable to wind speed variations. In particular, the widths of wind peaks are approximately 10 km or slightly more. The peak winds primarily contributed to the latent (sensible) heat flux in the MWS around latitudes of 32.0 N and 31.6 N by approximately 170 (70) and 70 (30) W m−2, respectively. The contribution of peak SST to the latent (sensible) heat flux, which is approximately 70 (30) W m−2, is secondary (magenta lines). Although air temperature and specific humidity have less effect on the heat fluxes than wind speed and SST near the current axis of the Kuroshio, a cold air mass from the continent intensifies the sensible heat flux on the onshore side of the Kuroshio (green line in Fig. 8b).

Fig. 8
figure8

Spatial variation components in a latent and b sensible heat fluxes on track A due to wind speed, (F/UW)ΔUW in Eq. (1) (orange line), sea surface temperature (SST) (F/TS)ΔTS (magenta line), air temperature (F/TA)ΔTA (green line), and specific humidity (F/q)Δq (cyan line). Values were averaged within intervals of approximately 2 km. Gray arrows are the same as the red arrows in Fig. 7. In b, sensible heat flux variations due to specific humidity variations are not plotted because sensible heat flux is independent of specific humidity

Fig. 9
figure9

Spatial variations in a latent and b sensible heat fluxes, ΔF (black solid lines) and the sum of the contributions from variations in SST, air temperature, specific humidity, and wind speed, i.e., the right hand side of Eq. (1), (gray dotted lines) on track A

On the B track (Fig. 10a, b), latent and sensible heat fluxes are reduced in the Kuroshio owing principally to the attenuation of wind due to the approach of the low-pressure system. In comparison with the A track, the RHS of Eq. (1) on the B track underestimates the attenuation of the latent and sensible heat releases to the atmosphere due to the large wind speed change while the low-pressure system approaching to the south of 32.0 N (Fig. 11). The discrepancies for the latent and sensible heat fluxes are not more than approximately 50 W m−2 and 40 W m−2, respectively. Despite the discrepancies, the spatial patterns of the RHS and LHS of Eq. (1) on the B track are similar to each other. Thus, it is certain that the wind variation is responsible to the attenuation in turbulent heat fluxes.

Fig. 10
figure10

Same as Fig. 8, but for track B

Fig. 11
figure11

Same as Fig. 9, but for track B

Despite such a large heat release observed on the A track, the Kuroshio MWS continued to exist for at least approximately 2 weeks, as mentioned previously. If the MWS is 50 m thick, a monthly mean value of winter net heat flux (600 W m−2) near the Kuroshio current axis (e.g., Tomita et al. 2019) is evaluated to reduce the water temperature at a rate of 0.3 K d−1. This evaluated temperature decrease rate is too large to allow the very high SST of the MWS to be maintained for 2 weeks. Additionally, because the Kuroshio current speed (>2 m s−1) is very fast, disturbances are passively advected by the Kuroshio (e.g., Nagano and Kawabe 2005), unlike the MWS. Therefore, the heat content in the MWS should be supplied by the continuing local horizontal current convergence. As shown in the map of horizontal divergence of currents based on OSCAR data (Fig. 12), the MWS centered at approximately 31.5 N, 135.8 E is found to be in the convergence (or no significant divergence) regions. Although the examination cannot be conclusive evidence as OSCAR data are derived from spatially low-resolution satellite data, the MWS might be maintained by the convergence of warm surface water. This can be clarified by future well-organized observations using unmanned surface vehicles such as SDs.

Fig. 12
figure12

Sea surface current divergence (10−6 s1, black contours), sea surface temperature (C, color shading), and sea surface height (cm, white contours). Contour intervals of current divergence and SSH are 5×10−6 s1 and 10 cm, respectively. Meshing indicates regions where current divergence is greater than 5×10−6 s1. Current divergence was derived from OSCAR data prepared by Bonjean and Lagerloef (2002)

Summary and discussion

SDs can finish observations of atmosphere and ocean variations on mesoscale or smaller scales in fairly short times without disturbing the variations. Therefore, SDs are considered to reveal more exact mesoscale or smaller scale oceanic effects on the atmospheric boundary layer than other methods such as by using only research vessels, satellites, and data assimilation techniques. Using an SD, we performed high-resolution (2 km) measurements of atmospheric and oceanic variables across the Kuroshio south of Japan from December 21, 2018, to January 8, 2019. Based on satellite SST and SSH observations, we found that the SD passed near the center of a locally very warm spot in the Kuroshio, referred to as a mesoscale warm spot (MWS) in this paper, around 31.5 N, 135.8 E. This MWS has dimensions of approximately 100 and 50 km parallel and perpendicular to the Kuroshio, respectively, and a very warm (>23C) water mass around its center.

The SD observation revealed smaller, i.e., submesoscale, features of atmospheric and oceanic variables around the Kuroshio MWS. From December 28 to December 29, 2018, the SD crossed just north of the MWS center (track A). Two SST peaks were exhibited across the MWS. The SST value of the primary peak on the track nearest the MWS center was 23C. Furthermore, the MWS affects wind and SLP. The peak widths of wind speed and associated heat flux are approximately 10 km or slightly more. Corresponding to the two SST peaks within the MWS, the wind was enhanced by approximately 2 m s−1 over the MWS, reaching a maximum of 14 m s−1. As a result, the sea surface turbulent (latent plus sensible) heat flux was enhanced to upwards of 1141 W m−2. Local heat convergence due to horizontal currents is anticipated to maintain the persistent high SST feature of the Kuroshio MWS.

Associated with the enhancements of the northerly winter monsoon wind over the SST peaks just north of the center of the MWS, i.e., on the A track, SLP was observed to be depressed by approximately 1 hPa. An SLP peak was observed between the depressions. As these wind and SLP changes appear to be in the geostrophic balance, the observed characteristics of the oceanic and atmospheric variables are consistent with the pressure adjustment mechanism that Lindzen and Nigam (1987) and others proposed. While the SD crossed the southern edge of the MWS from January 3 to January 5, 2019 (track B), the background strong northerly wind changed to southwesterly weak wind in association with an SLP decrease of 10 hPa due to the approach of a low-pressure system. The weakening of the wind reduced heat release to the atmosphere while the SD crossing the Kuroshio warm core.

It is noteworthy that, on the A track, we observed the submesoscale structure of SLP on a spatial scale of 15 km across the Kuroshio MWS, which is related to the strengthening of the northwesterly wind over the SST peaks. This submesoscale SLP structure has not been shown by previous studies but can be interpreted by three-dimensional ageostrophic convective circulations induced by a horizontal SST difference, as studied by Dalu and Pielke (1993) for example. Because over the onshore (32.0 N) and offshore (31.6 N) edges of the MWS, where SST is maximal, uplifts of air occur in association with the low pressures, cold dry air flows toward the edges from outside the MWS. Around the central part of the MWS, there appears a descending flow and pressure enhancement between the pressure depressions. Such a pair of ageostrophic vortices induces convergences of warm water toward the MWS and increases SST near the MWS edges. This air-sea interaction is a positive feedback mechanism, which is considered to maintain the observed submesoscale structures across the MWS.

In previous studies based on low-resolution reanalysis data and so on, the influences of large-scale oceanic disturbances on the atmosphere have been obtained by averaging a large number of data. Meanwhile, in this study, the SD “snapshot” observations revealed submesoscale structures of atmosphere and ocean in the MWS of the Kuroshio unresolved in previous studies. Smirnov et al. (2015), for instance, examined how the atmospheric response to the Oyashio (the subarctic western boundary current) SST front depends on spatial resolutions of numerical models. In their high-resolution (0.25 grid) experiment, transient eddy (2–6 days timescales) variability is greater than the mean wind, whereas, in the low-resolution (1 grid) experiment, the mean wind dominates the eddy variability. High-resolution SD observations permit us to reveal the oceanic impact on the atmosphere as the changes of the overlying wind on a spatial scale of approximately 10 km and are also useful for improvements in data assimilation and coupled ocean-atmosphere models.
