Pliocene integrated chronostratigraphy from the Anno Formation, Awa Group, Boso Peninsula, central Japan, and its paleoceanographic implications


The Pliocene climate is one of the best analogs for the climate of a globally warmer future. Here, we present a new Pliocene integrated chronostratigraphy from the Anno Formation in the uppermost Awa Group, which is distributed throughout the Boso Peninsula, central Japan, based on paleomagnetic and benthic foraminiferal oxygen isotope records. This new chronostratigraphy provides valuable constraints for paleoceanographic and paleoclimatic studies in the northwestern Pacific Ocean, where the number of paleoceanographic records is limited due to the lack of calcareous microfossils from deep-sea sediment cores, with the exception of some plateaus at water depths above the calcite compensation depth (CCD). Paleomagnetic results indicate that the Anno Formation corresponds to the period extending from the Nunivak normal polarity subchronozone (4.493–4.631 Ma) to Chron C2An.2n (3.116–3.207 Ma), which is just above the Mammoth reversed polarity subchronozone. Although foraminifera are not found in the middle Anno Formation, our oxygen isotope records from the upper and lower Anno Formation demonstrate the recording of glacial–interglacial cycles. However, the amplitude of our δ18O profile is much larger than that of the LR04 stack, with similar to slightly lower glacial values and much lower interglacial values. This observation implies that the bottom water had lower δ18O values and/or a warmer water mass during interglacials compared with global average deep-water regions.


During the Pliocene, Earth’s climate was substantially warmer; it was characterized by limited variations in ice volume, global temperatures that were ~ 2–3 °C higher relative to the present day, CO2 concentrations that were comparable to or higher than those today, suppressed Northern Hemisphere glaciation, and fully established East and West Antarctic Ice Sheets (Lisiecki and Raymo 2005; Naish et al. 2009; Lunt et al. 2010; Seki et al. 2010; Salzmann et al. 2011; De Schepper et al. 2014). Therefore, the Pliocene climate is one of the best analogs for a globally warmer future climate (Salzmann et al. 2011). However, Pliocene paleoceanographic records from the northwestern Pacific Ocean are limited, which is attributable to the lack of calcareous microfossils from deep-sea sediment cores, with the exception of some plateaus at water depths above the Pacific calcite compensation depth (CCD).

The upper Awa Group is a middle Miocene–upper Pliocene marine deposit that is distributed throughout the Boso Peninsula and faces the North Pacific subarctic front between the Kuroshio and Oyashio Currents, which are wind-driven western boundary currents (Suzuki et al. 1995; Qiu 2001; Fig. 1a, b). In this deposit, calcareous nannofossils, foraminifera, radiolaria, and diatoms are well preserved (Oda 1977; Haga and Kotake 1996; Watanabe and Takahashi 2000; Kameo et al. 2002; Sawada et al. 2009; Kameo et al. 2010; Kameo and Sekine 2013), and widespread tephra beds are intercalated with these sediments (Kurokawa and Higuchi 2004; Satoguchi et al. 2005; Tamura et al. 2005; Tamura et al. 2008; Tamura and Yamazaki 2010; Satoguchi and Nagahashi 2012). Therefore, the Awa Group is known as a typical Neogene sequence in Japan, and it is suitable for reconstructing paleoceanographic environments during that period in the northwestern Pacific Ocean. However, no chronostratigraphy with a time resolution comparable to the span of glacial–interglacial cycles has yet been established. Here, we present a new Pliocene integrated chronostratigraphy based on new magnetostratigraphy and oxygen isotope stratigraphy results, which we constrain using existing calcareous nannofossil data and the radiometric dating results obtained from tephra beds in the Anno Formation of the uppermost Awa Group. We also discuss the paleoceanographic implications of the benthic foraminiferal oxygen isotope record.

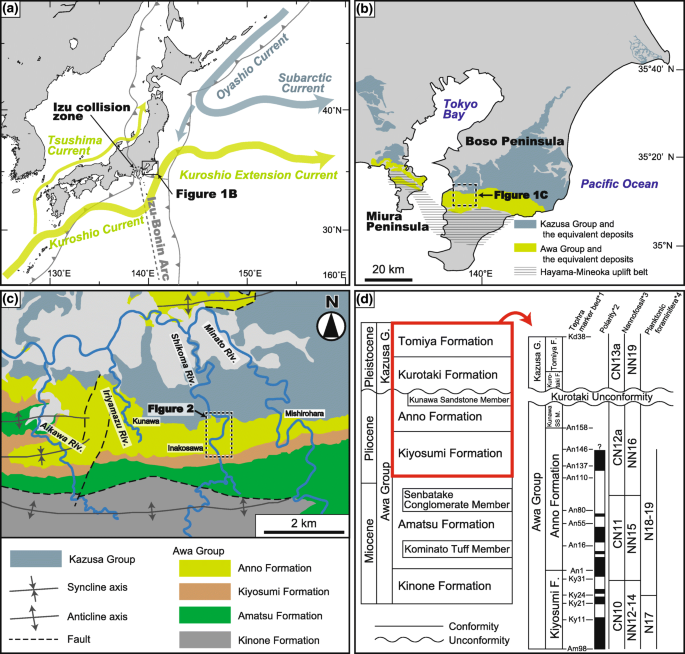

Fig. 1

Location map of the study site and stratigraphic summary of the Awa Group. a The Japanese archipelago with surface oceanography and tectonic setting. Surface oceanic currents are drawn after Qiu (2001). Tectonic setting is drawn after Tatsumi et al. (2016). b Distribution of the Awa and Kazusa Groups on the Boso and Miura Peninsulas based on Mitsunashi and Suda (1980), Unozawa et al. (1983), Sakamoto et al. (1987), and Takeuchi et al. (2015). c Distribution of the upper Awa Group. The Anno, Kiyosumi, Amatsu, and Kinone Formations in the Futtsu District are based on Nakajima and Watanabe (2005). The dashed box indicates the study area. d Typical stratigraphies of the upper Awa Group and lowermost Kazusa Group in the western Boso Peninsula are based on Nakajima and Watanabe (2005), and detailed stratigraphies are based on previous studies marked with asterisks. Calcareous nannofossil assemblage zonal schemes follow the CN and NN zonal code notations after Okada and Bukry (1980) and Martini (1971), respectively. Planktonic foraminiferal assemblage zonal schemes follow the N zonal code notation after Blow (1969). *1 Nakajima and Watanabe (2005), *2 Niitsuma (1976), *3 Kameo and Sekine (2013), and *4 Oda (1977)

Geological setting

The upper Awa Group is a middle Miocene–upper Pliocene forearc basin-fill deposit situated in the northern Hayama-Mineoka belt in the Boso Peninsula, which is located on the Pacific side of central Japan (Ito et al. 2016; Fig. 1a, b). The upper Awa Group consists of the Kinone, Amatsu, Kiyosumi, and Anno Formations, in ascending order, and it is unconformably overlain by the Kurotaki Formation above the Kurotaki Unconformity; this formation represents the lowermost Kazusa Group (Nakajima et al. 1981; Nakajima and Watanabe 2005; Fig. 1c, d). The erosion of the eastern Awa Group across this unconformity is larger than that in the western part. The resultant age gap in the western Boso Peninsula was inferred to be at least 1 million years based on the calcareous nannofossil biostratigraphy (Kameo and Sekine 2013). In contrast, the erosion reaches down to the Kiyosumi Formation in the eastern part of the peninsula, where the Anno Formation is completely missing (Tokuhashi and Iwawaki 1975).

The Anno Formation is a submarine fan deposit that settled within a submarine basin above the Kiyosumi Formation (Nakajima 1978; Tokuhashi 1988). It consists of the siltstone-dominated alternation of siltstones and sandstones with intercalated tephra beds. The siltstone becomes coarser toward the west, while the sandstone becomes thinner. In the westernmost Boso Peninsula, the Anno Formation consists of the alternation of sandy siltstones and tephra beds (Nakajima et al. 1981; Nakajima and Watanabe 2005). The uppermost Anno Formation, which has been named the Kunawa sandstone member, consists of sandstone and tuffaceous sandstone (Nakajima and Watanabe 2005). A total of 182 tephra marker beds labeled An1 through An182 are numbered, in ascending order, from the bottom to the top of the formation (Nakajima et al. 1981; Natural History Museum and Institute, Chiba 1993, 1995, 1996). Some tephra marker beds (An51, An53, An77, An85, An112, An129, and An130) are widely recognized throughout the Japanese Islands and are known as Trb1-Ya4, Sk-Ya5, Ksg-An77, Znp-Ohta, Ymp-SF8.3, Hgs-An129, and Sr-Ity, respectively (Kurokawa and Higuchi 2004; Satoguchi et al. 2005; Tamura et al. 2005, 2008; Tamura and Yamazaki 2010; Satoguchi and Nagahashi 2012). In particular, the Znp-Ohta and Sr-Ity tephra beds, which facilitate the comparison of Pliocene stratigraphies and paleoenvironmental records between the Japan Sea and the northwestern Pacific Ocean, have also been observed at the deep-sea sediment cores in the Japan Sea (Tada et al. 2018).

Previous chronostratigraphic studies of the Anno Formation

Magnetostratigraphy (Niitsuma 1976), planktonic foraminiferal biostratigraphy (Oda 1977), calcareous nannofossil biostratigraphy (Kameo and Sekine 2013), and fission track dating (Tokuhashi et al. 2000) studies have been conducted on the Anno Formation (Fig. 1d). Niitsuma (1976) analyzed the remanent magnetization of sedimentary rocks from the upper Awa and Kazusa Groups using an astatic magnetometer and correlated the Anno Formation to the interval ranging from the upper Nunivak normal polarity subchronozone to the lower Gauss normal polarity chronozone. Meanwhile, Oda (1977) reported the planktonic foraminiferal assemblages of the Awa Group and correlated the lower–middle Anno Formation with the N18–N19 zones (Blow 1969). However, because these magneto–biostratigraphic studies were conducted before the current extensive tephra stratigraphic system was prepared, the stratigraphic correlations between bioevent horizons, polarity reversal horizons, and tephra marker beds have remained ambiguous. More recently, Kameo and Sekine (2013) correlated the Anno Formation with the calcareous nannofossil zones CN11–CN12a (Okada and Bukry 1980) and NN15–NN16 (Martini 1971), thereby facilitating the stratigraphic correlations between those bioevents and tephra marker beds.

Some radiometric ages have also been reported for tephra markers and widespread tephra beds that can be correlated with those in the Anno Formation. Tokuhashi et al. (2000) reported fission track ages for An49 (3.9 ± 0.4 Ma) and An73 (3.7 ± 0.2 Ma) following the ζ-calibration (Hurford 1990a) of tephra marker beds from the lower Anno Formation. The Kosugaya volcanic ash bed in the Tokai Group (known as Ksg-An77) was dated to 4.0 ± 0.5 Ma using fission track dating (Makinouchi et al. 1983). Similarly, the Nakatsugawa I and II volcanic ash beds in the Tokai Group correlate to An85 (known as Znp-Ohta) and were dated to 3.97 ± 0.39 Ma and 3.94 ± 0.07 Ma using fission track and U-Pb dating methods, respectively (Ueki et al. 2018). These radiometric ages can help constrain the chronostratigraphy presented below.


Field observations

We conducted lithological observations of the Anno Formation from the tephra marker bed of An1, which marks the base of the Anno Formation, to its upper limit at the Kurotaki Unconformity along the Shikoma River, where the Awa Group is well exposed (Fig. 1c). We constructed a 1/2500 route map (Fig. 2) and a 1/50 lithologic column (Fig. 3), in which the tephra marker beds follow the reports of Nakajima et al. (1981), the Natural History Museum and Institute, Chiba (1993, 1995, 1996), and Nakajima and Watanabe (2005), to develop a reliable stratigraphic framework of the studied sequence.

Fig. 2

Locations of tephra marker beds and sampling sites within the study area

Fig. 3

Simplified lithology of the Anno Formation within the study area and sampling horizons. The thickness of the sequence is measured from the base of tephra marker bed An1, which is the boundary between the Kiyosumi and Anno Formations. Sak, Amg, Tkw, and Tak are the names of slump beds from Nakajima and Watanabe (2005)

Paleomagnetic and rock-magnetic measurements

One to four drill cores (with 25-mm diameters) for rock-magnetic and paleomagnetic measurements were obtained at 200 horizons from siltstones or sandy siltstones (Figs. 2 and 3). These samples were collected using a portable drill and were oriented with a magnetic compass. Then, each paleomagnetic core was cut into a 2-cm-long specimen for paleomagnetic and rock-magnetic measurements at Ibaraki University.

The natural remanent magnetization (NRM) of each specimen was measured using a three-axis cryogenic magnetometer (SRM-760R; 2G Enterprises, USA) in a magnetically shielded room at the National Institute of Polar Research (NIPR) and the Center for Advanced Marine Core Research, Kochi University (KCC). To extract the primary magnetic component that indicates the geomagnetic field when a given geologic formation was formed, we conducted two demagnetization experiments to remove secondary components from the NRMs. Progressive alternating field demagnetization (pAFD) was performed in 5- to 10-mT increments from 5 to 80 mT using an AF demagnetizer with a set of static three-axis AF demagnetization coils installed on the magnetometer at the NIPR. Progressive thermal demagnetization (pThD) was performed at 50 °C increments from 100 to 600 °C using thermal demagnetizers (TDS-1; Natsuhara Giken, Japan) at the NIPR and KCC. Both progressive demagnetization techniques were performed on two selected specimens at each horizon.

Two experiments were conducted on selected specimens to identify the magnetic minerals in specimens. Thermomagnetic experiments were performed using a thermomagnetic balance (NMB-89; Natsuhara Giken, Japan) at the KCC. The specimens were heated to 700 °C and then cooled back to room temperature in a vacuum in an applied field of 0.3 T. The J-T curves obtained by these experiments allow us to infer the magnetic minerals in specimens based on their Curie/Néel temperatures, blocking temperatures, and temperatures of thermal alteration. Low-temperature magnetic experiments were performed using a Magnetic Property Measurement System (XL5; Quantum Design, USA) at the KCC. The specimens were magnetized in a 1 T field and warmed to 300 K after cooling to 10 K in a zero-T field. Such experiments reveal the magnetic phase transition temperatures of the magnetic minerals included in a specimen without causing their alteration due to heating and/or oxidation.

Measurements of the magnetic hysteresis curve and first-order reversal curves (FORCs) were performed to infer the magnetic domain states of the magnetic particles within the studied specimens. The state of the magnetic domain is divided into a single domain (SD), a multi-domain (MD), and a magnetic vortex state, which has traditionally been termed the pseudo-single domain (PSD) (Roberts et al. 2017). The domain state depends on the grain size of the magnetic particles. The magnetic grains of the SD and/or vortex state (PSD), in which the grain size is much finer than that of the MD, play an important role in paleomagnetism because the magnetic stability is high enough to keep original magnetic signals throughout geologic time. Therefore, knowledge about the magnetic domain of magnetic particles within a studied sample is significant for validating paleomagnetic data. Magnetic hysteresis measurements were performed on selected specimens using an alternating gradient magnetometer (PMC MicroMag 2900 AGM; Lake Shore Cryogenics Inc., USA) at the NIPR with a maximum magnetic field of 0.5 T. The Day diagrams (Day et al. 1977) was used to determine a broad distribution of the magnetic domain states of ferrimagnetic particles based on the saturation remanence to saturation magnetization (Mrs/Ms) ratios and remanence coercivity to coercive force (Hcr/Hc) ratios, which were observed from the magnetic hysteresis curves. FORC measurements were performed on selected samples using a vibrating sample magnetometer (PCM MicroMag 3900 VSM; Lake Shore Cryogenics Inc., USA) at the KCC. We measured 143 FORCs for each sample, with a field increment of 2 mT and an average time of 150 ms, in a 1 T saturating field. A FORC diagram represents a contour plot of the coercivity distribution of magnetic particles within a sample and their interaction field strengths (Pike et al. 1999; Roberts et al. 2000; Rowan and Roberts 2006). FORC distributions were calculated using a smoothing factor of 5 with the free FORCinel software (Harrison and Feinberg 2008).

Oxygen isotope analysis

Rock samples with dry weights of 300–400 g were obtained at the same horizons as paleomagnetic cores and in 10 horizons representing a total of 210 samples (Figs. 2 and 3). These samples were disaggregated using Na2SO4, and non-magnetic grains, including fossil foraminifera, were isolated from magnetic grains using a Frantz magnetic isodynamic separator. We manually picked benthic foraminiferal tests of Bolivinita quadrilatera, Melonis pompiloides, and Uvigerina spp. from the non-magnetic and > 100 μm fractions of each sample. Selected foraminiferal tests were crashed and cleaned by ultrasonication in methanol for sample preparation. Oxygen isotope measurements were performed using a Finnigan-MAT 253 isotope ratio mass spectrometer with a Kiel IV carbonate device installed at the Department of Geology and Paleontology, National Museum of Nature and Science (NMNS) and a GV Instruments Ltd. IsoPrime stable isotope mass spectrometer with the Multicarb preparation system installed at the KCC. JCp-1, CO-1, and NBS-19 were used as analytical standards to calibrate the isotopic values to the Vienna Pee Dee Belemnite (VPDB). The analytical precision of the oxygen isotopes obtained from the replicated CO-1 measurements at the KCC is 0.049‰, and that for the oxygen isotopes obtained from the replicated NBS-19 measurements at the NMNS is 0.038‰.

Results and discussion

Rock-magnetic properties

The results of the thermomagnetic and low-temperature magnetic analyses of the two selected specimens are shown in Fig. 4. The thermomagnetic experiments performed in vacuum demonstrate that the specimens have a single Curie/blocking temperature at approximately 570 °C, without steep changes occurring throughout the heating and cooling processes, although the normalized induced magnetization (J/J0) through cooling is slightly larger than that through heating (Fig. 4a, b). These results indicate that the specimens contain (titano)magnetite with a Curie temperature close to that of magnetite at 585 °C (e.g., Hunt et al. 1995). The cooling curves are not reversible because of the degradation of iron oxyhydroxides within the specimens into ferrimagnetic minerals through heating or the minor thermal alteration of titanomagnetite (Bowles et al. 2013).

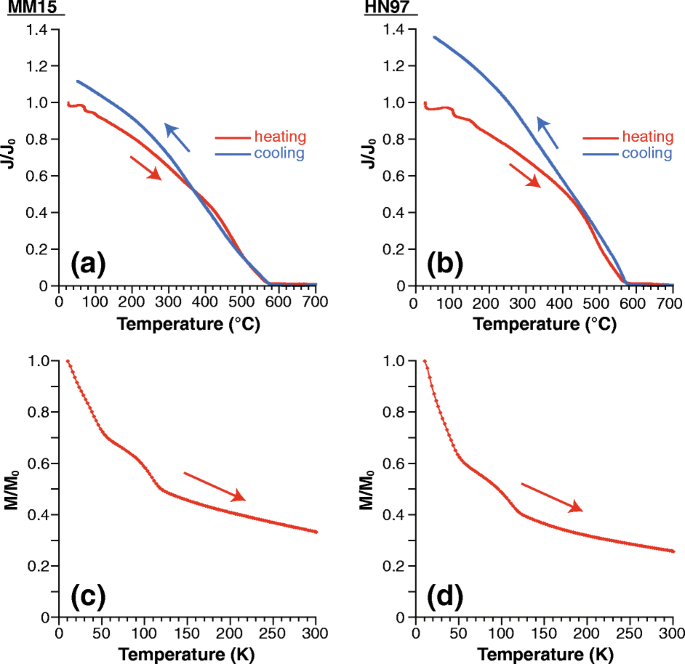

Fig. 4

Typical results of thermal magnetic and low-temperature magnetic experiments. Vertical axes indicate normalized values. a, b Results of thermal magnetic experiments in vacuum. Red and blue lines indicate induced magnetizations during heating and cooling, respectively. c, d Results of low-temperature magnetic experiments using specimens from the same horizons as (a) and (b), respectively

The low-temperature remanence curves (Fig. 4c, d) indicate the presence of a Verwey transition, where the magnetite transforms from a monoclinic to a cubic spinel structure between 110 and 120 K (Verwey 1939; Özdemir et al. 1993); the curves are characterized by a rapid remanence decline of 30–40% from 10 to 50 K, with a broad Verwey transition from 100 to 120 K. Özdemir et al. (1993) reported that the Verwey transition tends to shift to lower temperatures with a wider transition temperature range because of maghemitization (oxidation) occurring on the surface of magnetite. The rapid decrease in remanence occurring between 10 and 50 K is considered due to the influence of superparamagnetic particles (Özdemir et al. 1993; Özdemir and Dunlop 2010).

The Day diagram of selected specimens is shown in Fig. 5. The boundaries of the magnetic domain state regions for the Day diagram are indicated after Dunlop (2002). Almost all of the specimens fall into the vortex state (PSD) (Roberts et al. 2017) region, which can also be explained as mixtures of particles in the SD and MD states, although the data distribution is quite wide.

Fig. 5

Day diagram of hysteresis parameters and FORC diagrams for selected specimens. SD single domain, PSD pseudo-single domain, MD multi-domain; after Dunlop (2002)

The FORC diagrams in Fig. 5 show the distributions of the magnitudes of magnetic interaction (Bi) and coercivity (Bc) for three selected specimens whose data fall into a wide range of the vortex state (PSD) region in the Day diagram. In a FORC diagram, the vertical and horizontal axes provide the magnitudes of Bi and Bc, respectively. For example, MD particle systems with weak domain wall pinning give rise to broad distributions along a vertical axis with low coercivities. In contrast, noninteracting uniaxial SD particle systems produce a sharp ridge-like horizontal distribution without a broad distribution along a vertical axis (Roberts et al. 2017, and references therein). In Fig. 5, MM11, which is close to the SD region, shows a horizontal ridge-like distribution by a coercivity of ~ 90 mT with a narrow distribution of Bi between ± 20 mT, and it is similar to the FORC distributions obtained for SD particle systems (e.g., Pike et al. 1999; Roberts et al. 2000). HN66, which is close to the MD region, produces a broad distribution of Bi between ± 60 mT with a high coercivity of ~ 60 mT. MM15, which falls into an intermediate vortex state (PSD) region in the Day diagram, shows a distribution as broad as that of HN66 along a vertical axis but a higher coercivity than HN66. These two FORC distributions are typical distributions of magnetic vortex state (PSD) particles (Roberts et al. 2017), although the distribution for HN66 seems to be reflected in a larger magnetic particle size. Therefore, the results of the rock-magnetic experiments indicate that the magnetic particles within the studied specimens generally consist of vortex state (titano)magnetite, which could acquire detrital remanent magnetization (DRM) as a primary magnetic signal.

Remanent magnetization

Typical orthogonal vector diagrams (Zijderveld 1967) for the NRMs obtained from pAFD and pThD are shown in Fig. 6. Most of the results from pAFD indicate that the NRMs consist of one or two characteristic remanent magnetizations (ChRMs). Secondary magnetization components were removed at a peak field of 15 mT, and the remanences demagnetize linearly toward the origin, but half of the intensity was removed by 10 mT for some specimens (Fig. 6a). The demagnetization paths for the pThD results also consist of one or two components, with the secondary components demagnetized by 200–300 °C (Fig. 6). The remanences were linearly demagnetized toward the origin by 600 °C without any curvilinear demagnetization paths. These results indicate that both methods provide almost identical demagnetization paths for each specimen (Fig. 6b–d), although the specimen in Fig. 6a had a pAFD path with a partly overlapping coercivity spectrum. The components linearly demagnetized toward the origin by 600 °C are carried by (titano)magnetite, which indicates that the primary magnetic signal is DRM.

Fig. 6

Typical results of progressive alternating field demagnetization (pAFD) and progressive thermal demagnetization (pThD). a, e Results from the polarity transitions. b, c Results from the normal palarity zones. d Result from the reversed polarity zone.  Blue, light green, and red arrows in (e) represent low- (0–150 °C), medium- (200–350 °C), and high-temperature (400–600 °C) declination components, respectively

In Fig. 6e, three components are evident, namely low- (0–150 °C), medium- (200–350 °C), and high-temperature (400–600 °C) components in the pThD result. In contrast, only one component shows a linear trend to the origin in the pAFD result, which has a direction similar to the low-temperature component in the pThD result. Specimens with different demagnetization patterns between pAFD and pThD, as shown in Fig. 6e, originate from horizons that record polarity transitions. This observation indicates that a low-temperature component of pThD resulting from a polarity transition is carried by a magnetically hard but low-Curie/Néel temperature mineral, such as goethite.

The geomagnetic field decays by approximately one order of magnitude during polarity transitions based on data sets derived from marine sediments (e.g., Valet et al. 2005) and lavas (e.g., Mochizuki et al. 2011). Sediment samples from transition zones tend to record the field, as there is no clear univectorial component attenuating to the origin, but as scattered data points because of the rapidity of geomagnetic changes in a weak field, which may generate multiple remanence components due to an acquisition mechanism of DRM (Valet and Fournier 2016). These studies suggest that a primary remanence recorded by a sedimentary rock during a polarity transition may be represented as a noisy component, and its intensity becomes much weaker than a secondary remanence recorded after the post-transitional recovery of the geomagnetic field.

From the Awa Group, Niitsuma (1976) observed goethite with a reflecting microscope in specimens with weak remanence and reported that thermal demagnetization at 200 °C was required to remove secondary remanence. These observations suggest that the secondary remanence is likely carried by goethite, which is characterized by a very high coercivity but a low Néel temperature of approximately 100–150 °C (O’Reilly 1984). The coercivity of goethite varies from ~ 25 to ~ 314 mT depending on its crystalline size (Dekkers 1989), and it could not be saturated even in an applied field of 57 T (Rochette et al. 2005). On the other hand, poorly crystalline nanophase goethite has low coercivity (Till et al. 2015, 2017). Although these studies indicate that the coercivity of goethite varies within a few orders of magnitude depending on the type of goethite, the secondary remanence carried by goethite is generally difficult to remove by AF demagnetization due to its high coercivity, and its thermal demagnetization is suitable. Therefore, the low-temperature component (Fig. 6e), which is probably composed of the chemical remanent magnetization (CRM) carried by goethite, may be dominant in the NRM from polarity transition horizons where pThD is needed to remove the CRM originating from goethite. Thus, we use the virtual geomagnetic pole (VGPs) from the ChRMs obtained from the pThD results to distinguish geomagnetic polarities (Additional file 1: Table S1).

The ChRM declinations from both demagnetization methods clearly indicate a clockwise rotation of declinations (Fig. 7b), which implies that the Anno Formation along the Shikoma River experienced a regional tectonic rotation as described below. The ChRM declination anomalies (degrees from geographic north) from pThD are shown in Fig. 7a, where reversed polarity declinations were converted into normal polarity ones, except for the transitional zones, which are indicated as vertical gray bars. The declination anomalies undergo a stepwise change at the stratigraphic position of 223 m. We took the averages and 95% confidence limits of the declinations within their respective stratigraphic segments as follows: 26.3 ± 4.0° for 0–223 m and 9.0 ± 3.0° for 223–307 m. Consequently, we corrected the ChRM declinations by subtracting these averages before making VGP calculations. Then, we identified magnetic polarities based on the VGP latitudes, where latitudes of > 45° denote normal polarity, latitudes of < − 45° denote reversed polarity, and latitudes of < |45|° denote intermediate polarity. Therefore, we identified six polarity transitions over stratigraphic intervals of 9.1–10.9 m, 50.75–55.4 m, 64.2–70.1 m, 222.45–223.7 m, 294.1–298 m, and 305.95–309.7 m (Fig. 7d, f; Additional file 1: Table S1).

Fig. 7

Paleomagnetic direction profiles for the studied sequence. a Declination anomaly of declinations from true north (0°) deduced from the ChRM directions from pThD results. The horizontal dashed line and light blue shading indicate the average declination and its 95% confidence limit for each stratigraphic interval, respectively. b Declinations of ChRMs from pAFD (red) and pThD (gray) and corrected declinations from pThD in which the average declinations are adjusted to true north (blue). c Inclinations of ChRM directions from pAFD (red) and pThD results (blue). d Virtual geomagnetic pole (VGP) latitudes from corrected ChRM directions from pThD results shown in (b) and (c). Black, white, and gray circles indicate normal, reversed, and intermediate polarities, respectively. e Maximum angular deviation (MAD) values of ChRMs from pThD results. The horizontal dashed line indicates MAD of 15°, which is the criterion for extracting of ChRMs in this study. f Polarities based on the VGP latitudes shown in (d). Black, white, and gray bars indicate normal, reversed, and intermediate polarities, respectively


The VGP latitude variations plotted with tephra marker beds and other data obtained from previous studies and the resultant polarity reversal horizons in the Anno Formation are shown in Fig. 8 and Table 1. The calcareous nannofossil biostratigraphy of the Anno Formation was reconstructed by Kameo and Sekine (2013), who correlated the stratigraphic intervals of the tephra marker beds between An94 and An100, An117 and An128, and An146 and An158 to the last occurrence (LO) of Reticulofenestra pseudoumbilicus (3.79 Ma; Lourens et al. 2004), the LO of Sphenolithus spp. (3.65 Ma; Lourens et al. 2004), and the LO of Reticulofenestra minutula var. A (3.31–3.44 Ma; Kameo and Takayama 1999), respectively (Fig. 8a–c). We note that the LO of R. pseudoumbilicus is represented between An94 and An102 in Fig. 8 because An100 was not observed in the Shikoma River section. We correlated the polarity zones using the Geomagnetic Polarity Time Scale 2012 (Ogg 2012) based on the calcareous nannofossil stratigraphy (Kameo and Sekine 2013). The basal age of the Anno Formation was reported to be approximately 4.5 Ma because the LO of Amaurolithus spp. correlates to just below Ky31 (Kameo et al. 2010), which is the uppermost tephra marker bed for the Kiyosumi Formation. Therefore, the lowermost polarity transition, which is observed at the 9.1–10.9 m interval between tephra marker beds An3 and An4, corresponds to the top of the Nunivak normal polarity subchronozone (4.493 Ma). The polarity transitions observed at 50.75–55.4 m and 64.2–70.1 m are correlated to the bottom (4.300 Ma) and top (4.187 Ma) of the Cochiti normal polarity subchronozone, respectively. These correlations are consistent with the fission track age of the An49 bed (3.9 ± 0.4 Ma; Tokuhashi et al. 2000) and the stratigraphic position of the LO of R. pseudoumbilicus (3.79 Ma), which is located approximately 70 m above this horizon (Kameo and Sekine 2013; Fig. 8c). The polarity transition at 222.45–223.7 m (between An129 and An130) is correlated to the Gilbert–Gauss boundary (3.596 Ma) because the interval between An117 and An128 corresponds to the LO of Sphenolithus spp. at 3.65 Ma (Kameo and Sekine 2013; Fig. 8). Based on the stratigraphic position of the LO of R. minutula var. A (3.31–3.44 Ma) (Kameo and Sekine 2013), the polarity transitions at 294.1–298 m (just below An155) and 305.95–309.7 m (within An157) correspond to the bottom (3.330 Ma) and top (3.207 Ma) of the Mammoth reversed polarity subchronozone, respectively.

Fig. 8

Summary of geochronological data for the Anno Formation. a Tephra marker beds and slump bed names. Red tephra marker beds indicate widespread tephra. b Lithological column for the study area. c Age constraints from previous studies. Vertical arrows indicate the calcareous nannofossil data from Kameo and Sekine (2013). Red triangles indicate radiometric ages for tephra marker beds from previous studies as follows: *1 An85 from Ueki et al. (2018), *2 An77 from Makinouchi et al. (1983), and *3 An73 and An49 from Tokuhashi et al. (2000). d Polarities based on the vertual geomagnetic pole (VGP) latitudes shown in Fig. 7d. Colored squares indicate polarities (black: normal; white: reversed; gray: intermediate). e Variation of the VGP latiutde shown in Fig. 7d. f Oxygen isotope stratigraphy of the Anno Formation. g Age model based on correlating the oxygen isotope profile of the Anno Formation with the LR04 benthic stack from Lisiecki and Raymo (2005). Letters and numbers represent marine isotope stages (MISs) from the LR04 benthic stack, and colors indicate the following: red: interglacial; blue: glacial; gray: stages not observed in this study. h Geomagnetic Polarity Time Scale 2012 from Ogg (2012). i Pliocene subepoch based on Hilgen et al. (2012). Darker shading represents polarity reversal horizons. Light shading represents the hiatus of the Sak slump bed. Dashed gray boxes are shown in Fig. 9. VPDB Vienna Pee Dee Belemnite

Table 1 Stratigraphic positions for the polarity reversal horizons

Tectonic rotations associated with the collision of the Izu-Bonin Arc with the Japanese Honshu Arc have been recognized from Miocene–Pleistocene sediments in the Boso and Miura Peninsulas (Fig. 1a). Amano (1991) identified four accreted thrust-bounded blocks (i.e., the Kushigata-yama, Misaka, Tanzawa, and Izu blocks) within the Izu collision zone (ICZ) (Fig. 1a) and proposed that these blocks collided at 12, 9–7, 5–3, and 1 Ma, respectively. Based on paleomagnetic measurements in the southern Boso Peninsula, Kotake et al. (1995) reported an early Pleistocene clockwise rotation of 10–13° associated with the Izu block collision. Yamamoto and Kawakami (2005) also reported that a late Miocene accretionary prism and early Pliocene trench-slope cover sediments in the southern Boso Peninsula underwent clockwise rotations of up to 80° between 6.80 and 3.75 Ma due to the collisions of the Tanzawa and/or Izu blocks. In the Miura Peninsula (Fig. 1a), the late Miocene sediments underwent clockwise rotation due to the Izu-Bonin Arc collision, which occurred after 4 Ma (Yoshida et al. 1984). Moreover, the paleomagnetic record of Pliocene sediments during the Mammoth reversed polarity subchronozone in the Miura Peninsula shows a clockwise rotation of 28.4° (Utsunomiya et al. 2017). Several paleomagnetic studies have implied that the collisions of the Izu-Bonin Arc affected the paleomagnetic directions of Miocene–Pleistocene sediments in the Boso and Miura Peninsulas. Based on our paleomagnetic record, the paleomagnetic declinations in the Anno Formation exhibit clockwise rotation, and the trend of declination anomalies varies at approximately 3.6 Ma (Figs. 7 and 8). These results indicate that the Anno Formation in the western Boso Peninsula was affected by the collisions of the Tanzawa and/or Izu blocks.

Oxygen isotope stratigraphy

Oxygen isotope analyses were mainly conducted on the 0–59 m and 221–315 m stratigraphic intervals because only a small number of foraminiferal tests were obtained from the interval between 59 and 221 m. The foraminifera species used for stable isotope analyses should be identical in a stratigraphic sequence because of differences in the isotopic values between different species, even if they are from the same rock sample. In this study, there are three dominant benthic foraminifera, Uvigerina spp., B. quadrilatera, and M. pompiloides. Therefore, we carried out an interspecies correlation to calibrate the δ18O values obtained from B. quadrilatera18OBo) and M. pompiloides18OMe) to the δ18O values of Uvigerina spp. (δ18OUv), which is a genus that is globally used to construct oxygen isotope stratigraphies. We extracted 18 sets from B. quadrilatera and M. pompiloides and 11 sets from B. quadrilatera and Uvigerina spp. in which these 2 species coexist in the same rock sample, and we obtained the average differences between these pairs of species as follows: δ18OBo − δ18OMe = 0.56 ± 0.09‰ and δ18OBo − δ18OUv = − 0.16 ± 0.22‰ (errors are standard deviations). Therefore, we corrected δ18OBo and δ18OMe to δ18OUv using additional values of 0.16‰ and 0.72‰, respectively (Additional file 2: Table S2).

The resultant oxygen isotope profile fluctuates between 1.68 and 3.61‰, with an average value of 2.72‰ (Fig. 8; Additional file 3: Table S3). To reconstruct an age model for the Anno Formation, our oxygen isotope profile was correlated with the LR04 stack as a target curve (Lisiecki and Raymo 2005). Based on the visual correlation between the oxygen isotope profile of the Anno Formation and the LR04 stack, we assigned 24 tie points where the LR04 stack exhibited either a peak or a trough to complete the magnetostratigraphy (Fig. 9; Table 1). Based on the resultant age model, the stratigraphic interval between tephra marker beds An1 and An30 corresponds to marine isotope stage (MIS) N4 through Co4, although MIS CN1, CN2, CN3, CN6, and CN7 are missing because they are barren of fossil foraminifera (Table 2). In contrast, in the oxygen isotope profile for the upper Anno Formation, foraminifera were yielded from almost every horizon, which correspond to MIS Gi1 through KM5 (Table 2). However, MIS M1 and KM6 are missing because of the hiatus by a slump bed known as the Sak slump (Figs. 38 and 9).

Fig. 9

Age-thickness correlations for the Anno Formation based on Table 2a δ18O profile on the 221–315 m stratigraphic interval shown in Fig. 8b δ18O on the 0–59 m stratigraphic interval shown in Fig. 8. Closed blue circles indicate tie points with the LR04 benthic stack. Light gray shading represents a hiatus interval. Dashed vertical lines represent average δ18O values of the Anno Formation at interglacial (red) and glacial peaks

Table 2 Age model based on the oxygen isotope record for the Anno Formation

Nakajima and Watanabe (2005) reported that the Sak slump, which is located between tephra marker beds An155 and An157 in the uppermost Anno Formation along the Shikoma and Minato Rivers (Fig. 1c), has eroded strata with a thickness of approximately 8–15 m. The An156 bed, which has been recognized in other sections, is missing along the Shikoma and Minato Rivers (Nakajima and Watanabe 2005; Figs. 8 and 9). The polarity transitions that correspond to the bottom and top of the Mammoth reversed polarity subchronozone contain transitional features with VGP paths that traverse intermediate latitudes across both boundaries (Fig. 7). The δ18O value at the 303.4 m horizon (MM23 in Additional file 3: Table S3), which is the highest value in our oxygen isotope record, should correspond to MIS M2 (Fig. 8), which is one of the four largest Pliocene short cooling events (De Schepper et al. 2014). These observations suggest that the slump bed is intercalated within the Mammoth reversed polarity subchronozone between MIS M2 and KM5. Therefore, the Sak slump bed may have eroded strata for a duration of approximately 90 kyr, which extends from immediately after the peak of MIS M2 (3.295 Ma) to just before the polarity switch at the termination of the Mammoth subchron (3.207 Ma).

An age model based on our chronostratigraphy of the Anno Formation is shown with the calcareous nannofossil bioevents (Kameo and Sekine 2013) and radiometric ages of tephra marker beds (Makinouchi et al. 1983; Tokuhashi et al. 2000; Ueki et al. 2018) in Fig. 10. The sedimentation rates estimated from our chronostratigraphy vary between 2 and 61 cm/kyr. The horizon with the lowest value corresponds to the hiatus mentioned above.

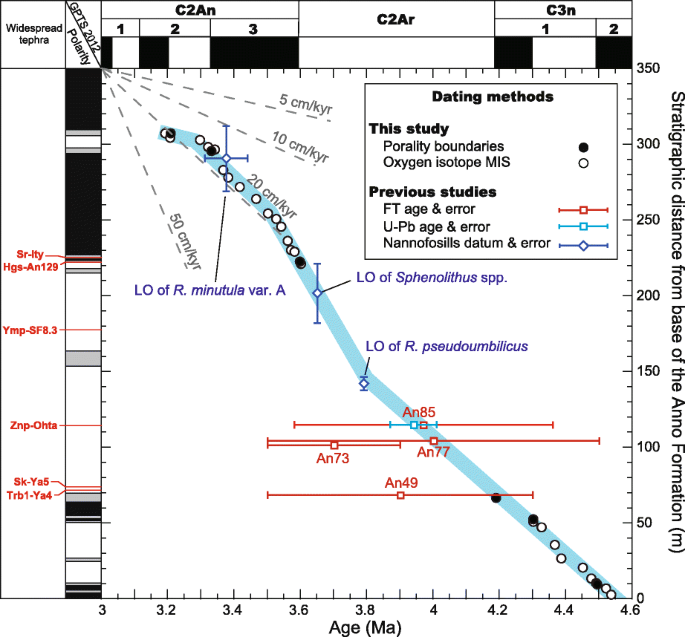

Fig. 10

Age versus thickness diagram for the Anno Formation. Data points are based on the polarity reversal events and marine isotope stages (MISs) listed in Tables 1 and 2, in addition to calcareous nannofossil bioevents (Kameo and Sekine 2013) and radiometric ages (Makinouchi et al. 1983; Tokuhashi et al. 2000; Ueki et al. 2018). The Geomagnetic Polarity Time Scale (GPTS) 2012 is based on Ogg (2012)

Pliocene paleoceanographic implications for the northwestern Pacific Ocean

The amplitude of our δ18O profile is larger than that of the LR04 stack within the same time interval, and it is suppressed after 3.4 Ma (Fig. 9). Comparing the average δ18O values of each interglacial and glacial between our δ18O record and the LR04 stack until 3.4 Ma reveals that the average difference (0.63‰) at interglacial peak points is obviously larger than that (0.24‰) at glacial peak points (Fig. 9). On the other hand, from 3.4 to 3.3 Ma, the average differences at interglacial (0.25‰) and glacial peaks (0.14‰) are more comparable than those until 3.4 Ma (Fig. 9). This observation implies that a warm water mass and/or a lower-δ18O seawater component influenced only interglacial benthic δ18O until 3.4 Ma. The local hydrographic variations during interglacial periods until 3.4 Ma correspond to ~ 2.7 °C higher bottom water temperatures (deduced by − 0.23‰/°C; Erez and Luz 1983) or ~ 1.2 psu lower salinity (deduced by + 0.52‰/psu; Oba et al. 2006) relative to the global average. The depositional water depth of the Anno Formation is believed to be between 1000 and 2800 m based on benthic foraminiferal assemblages (Hatta and Tokuhashi 1984). This is comparable to the average core depth of approximately 2800 m used in the LR04 stack between 3 and 4.5 Ma (Lisiecki and Raymo 2005). Considering the paleodepth of the sedimentary basin, these variations may have been attributed to deep or intermediate waters.

In the modern deep North Pacific Ocean, the Pacific Deep Water (PDW) is recognized at depths of 2000–3000 m as the return flow of the south-sourced Circumpolar Deep Water (CDW) (e.g., Mantyla and Reid 1983). In addition, a north-sourced intermediate water characterized by a salinity minimum at a depth of ~ 300–800 m has been recognized and defined as the North Pacific Intermediate Water (NPIW) (Reid 1965). A deep-water body is not generated in the modern North Pacific. On the other hand, Burls et al. (2017) suggested that the formation of subarctic North Pacific Deep Water (NPDW), which was warmer and fresher than modern deep-water in the North Pacific, constructed a Pacific meridional overturning circulation (PMOC) cell during the Pliocene based on complementary measurement and modeling evidence. They also reported orbitally paced maxima in the calcium carbonate mass accumulation rate (CaCO3 MAR), with accompanying pigment and total organic carbon measurements supporting deep-ocean ventilation-driven preservation as their cause (Burls et al. 2017). Enhanced north-sourced deep-water ventilation during the early Pliocene has also been recognized in the northeastern Pacific based on benthic δ13C records (Kwiek and Ravelo 1999; Ravelo and Andreasen 2000). Moreover, a deep western boundary current at a water depth of 1000–2000 m flowing along the western margin of the North Pacific Ocean was simulated (Burls et al. 2017). These results imply that the Pliocene warm NPDW could have migrated into the sedimentary basin of the Anno Formation. This local hydrographic influence was suppressed at approximately 3.4 Ma (Fig. 9), when benthic δ13C records in the northeastern Pacific decreased, and south-sourced deep-water was dominant (Kwiek and Ravelo 1999; Mix et al. 1995). These observations imply that the Pliocene deep Pacific circulation began to cease in stages, eventually becoming similar to its modern mode at approximately 3.4 Ma.

In the CaCO3 MAR record (Haug et al. 1995) used in Burls et al. (2017), an interval of poor CaCO3 preservation has been recognized around 4 Ma, which corresponds to the foraminifera-barren interval observed in the middle Anno Formation between 3.6 and 4.3 Ma (Fig. 8). Interestingly, a hiatus missing depositions between 3.6 and 4.3 Ma was recognized from the Antarctic Drilling Program’s (ANDRILL) AND-1B core from the Ross Embayment, which implies non-glacial erosion or non-deposition, possibly due to bottom water currents that were invigorated by modest ice sheet expansion during this time interval (McKay et al. 2012). In addition, a modeling study showed that ice advances in the Pacific sector of East Antarctica could invigorate the expansion of CDW into the deep North Pacific basin (Hill et al. 2017). Therefore, the lack of foraminifera in the middle Anno Formation is presumably explained by the shallowing of the CCD due to the enhanced penetration of south-sourced deep-water into the sedimentary basin instead of north-sourced deep-water.


Based on paleomagnetic and oxygen isotopic data, the new, integrated chronostratigraphy of the Pliocene Anno Formation, which is located in the Boso Peninsula, central Japan, reveals the relationship between the tephra marker beds, Pliocene MISs, and geomagnetic reversal boundaries within the Anno Formation. Rock-magnetic experiments reveal that specimens from the Anno Formation contain vortex state (PSD) (titano) magnetites that can preserve reliable paleomagnetic signals. Paleomagnetic results illustrate that pAFD cannot remove the secondary magnetizations of polarity transition intervals and that pThD was suitable for reconstructing the magnetostratigraphy of the Anno Formation.

The Anno Formation corresponds to the period from the Nunivak normal polarity subchron to Chron C2An.2n, which corresponds to just after the Mammoth reversed polarity subchron. Although fossil foraminifera are not found in the middle Anno Formation, our oxygen isotope records from the upper and lower Anno Formation reveal glacial–interglacial cycles. However, the amplitude of our δ18O profile is much larger than that of the LR04 stack, which is associated with similar to slightly lower glacial values and much lower interglacial values. The paleodepth of the Anno Formation based on benthic foraminiferal assemblage analyses and our oxygen isotope stratigraphy imply that the sedimentary basin during the Pliocene was occupied by water with lower-δ18O values and/or by a warmer water mass during interglacial periods compared with the global average deep-water variation.



Alternating field demagnetization


Calcite compensation depth


Circumpolar Deep Water


Characteristic remanent magnetization


Last occurrence




Marine isotope stage


North Pacific Deep Water


North Pacific Intermediate Water


Natural remanent magnetization


Ocean Drilling Program


Pacific Deep Water


Pacific meridional overturning circulation


Pseudo-single domain


Single domain


Thermal demagnetization


Virtual geomagnetic pole


Vienna Pee Dee Belemnite
