Emissions of nitrous oxide (N2O) from soil surfaces and their historical changes in East Asia: a model-based assessment
Progress in Earth and Planetary Science volume 5, Article number: 55 (2018)
This study assessed historical changes in emissions of nitrous oxide (N2O), a potent greenhouse gas and stratospheric ozone-depleting substance, from the soils of East Asia to the atmosphere. A process-based terrestrial ecosystem model (VISIT) was used to simulate the nitrogen cycle and associated N2O emissions as a function of climate, land use, atmospheric deposition, and agricultural inputs from 1901 to 2016. The mean regional N2O emission rate in the 2000s was estimated to be 2.03 Tg N2O year−1 (1.29 Tg N year−1; approximately one-third from natural ecosystems and two-thirds from croplands), more than triple the rate in 1901. A sensitivity analysis suggested that the increase of N2O emissions was primarily attributable to the increase of agricultural inputs from fertilizer and manure. The simulated N2O emissions showed a clear seasonal cycle and interannual variability, primarily in response to meteorological conditions and nitrogen inputs. The spatial pattern of the simulated N2O emissions revealed hot spots in agricultural areas of China, South Korea, and Japan. The average N2O emission factor (emission per unit nitrogen input) was estimated to be 1.38%, a value comparable to previous estimates. These biogeochemical modeling results will facilitate identifying ways to mitigate global warming and manage agricultural practices in this region.
Nitrous oxide (N2O) is one of the long-lived anthropogenic greenhouse gases, which are attracting particular attention in the context of mitigating global warming. In addition, N2O is recognized as the most important ozone-depleting substance in the stratosphere (Ravishankara et al. 2009). Despite the relatively small contribution N2O has made to historical climatic warming (about 10% of the effect of carbon dioxide [CO2] on historical radiative forcing; Intergovernmental Panel on Climate Change [IPCC] 2013), N2O is among the most remarkable of the greenhouse gases in several respects. First, N2O emissions are intimately linked with the biogeochemical cycle of nitrogen (N), which has been greatly impacted by anthropogenic effects that include fertilizer use and industrial activities that lead to atmospheric deposition of reactive nitrogen (e.g., Davidson 2009; Zaehle et al. 2011). Evaluation of the magnitude of N2O emissions requires a model of the N cycle, and the data needed for calibration and validation of such a model differ from those used to estimate CO2 and methane (CH4) emissions. Second, N2O emissions from soil, one of the major sources, are quite heterogeneous spatially and vary greatly temporally (e.g., Nishina et al. 2012; Bellingrath-Kimura et al. 2015). In soils, instantaneous N2O production occurs within microzones (i.e., hot spots) of high-microbial activity and bursts of N2O emissions often occur after rainfall and thawing of frozen soil (e.g., Kim et al. 2012; Muhr et al. 2008). Such high variability is intriguing from the standpoint of biogeochemical mechanisms but confounds quantification of emission rates with a small number of instruments.
Several studies have attempted to evaluate broad-scale (e.g., national, regional, and global) N2O budgets. Galloway et al. (2004) have synthesized an overview of the global N cycle from available data and have shown that global continental N2O emissions in 1860 and in the early 1990s were about 8 and 11 Tg N year−1, respectively. Del Grosso et al. (2009) used the DAYCENT model to estimate that global annual N2O emissions from corn, wheat, and soybean croplands in the 1990s totaled 1.15 Tg N year−1. Syakila and Kroeze (2010) analyzed the global N2O budget from 1500 to 2006 and estimated the global agricultural and natural soil emissions in 2000 to be 4.9 and 6–7 Tg N year−1, respectively. Xu-Ri et al. (2012) used the DyN-LPJ model to simulate the global terrestrial N cycle and estimated total N2O emissions in the twentieth century of 8.2–9.5 Tg N year−1. Hashimoto (2012) has used an empirical model to estimate mean global soil N2O emissions of 4.4 Tg N year−1. Recently, more mechanistic models have been developed and used to evaluate global N2O emissions from soils, the largest source to the atmosphere (Tian et al. 2018). However, large uncertainties remain in the present estimates of the broad-scale greenhouse gas budget because relevant data and understanding of biogeochemical processes are incomplete.
The global N2O budget is very sensitive to human activities in Asia, especially East Asia. Rapid growth of the human population in Asia and associated economic expansion have led to a considerable increase of fertilizer use and industrial emissions that have caused serious environmental problems such as air pollution and water body eutrophication. This region is under the influence of the Asian monsoon climate system, and there is a clear gradient in precipitation from wet coastal areas to dry inland areas. A credible evaluation of the regional N2O budget of East Asia requires taking account of such region-specific conditions. Shindo et al. (2003), for example, used a model developed for this region to conduct a study focused on N fluxes in the food production–supply system and related environmental impacts. Several country-specific studies have also been conducted. Yan et al. (2003) have used IPCC guidelines to estimate nitrogenous gas emissions of Asian countries. For China, Tian et al. (2011) used the Dynamic Land Ecosystem Model and estimated N2O emissions from terrestrial ecosystems of 0.6 Tg N year−1. For Japanese forests, Hashimoto et al. (2011) used a statistical model and estimated N2O emissions of 0.00194 Tg N year−1. Because of the paucity of regional studies that used up-to-date forcing data, it is still a challenging task to estimate N2O emissions from East Asia.
In this study, we used a process-based terrestrial biogeochemical model of the East Asia region and the historical record of various driving factors (climate, land use, N inputs, and atmospheric CO2 concentrations) to estimate the history of N2O emissions from natural and agricultural soils. Riverine export of N and emissions from inland waters and coastal areas are interesting aspects of the N cycle, but they were excluded from the scope of this study. We analyzed the spatial patterns and temporal variability of the simulated N2O emissions. Sensitivity simulations were conducted to relate the contributions of the driving factors to changes of historical emissions. We then examined the contributions of N2O emissions from East Asia to the regional and global budgets. Finally, we assess the possibility of mitigating the impact of those emissions for climate management in the future, and we delineate future research needs and opportunities for improving model reliability.
Description of biogeochemical model
We used a process-based terrestrial ecosystem model, Vegetation Integrative SImulator for Trace gases (VISIT; Inatomi et al. 2010; Ito and Inatomi 2012a). The model consists of component schemes that simulate the energy budget, hydrology, carbon (C) cycle, and N cycle in various types of terrestrial ecosystems, and it can be applied at global scales by selecting appropriate spatial grid systems. The model was developed for terrestrial biogeochemical and ecophysiological studies; the associated water and C cycle schemes have been described and examined in previous papers (Ito and Oikawa 2002; Ito and Inatomi 2012b). To consider the effects of land use, the model simulates natural vegetation and croplands separately at each grid. The hydrological scheme is represented by two (near-surface and below) soil water and snow pools, and it simulates evapotranspiration from the soil surface and vegetation canopy surface, infiltration, and runoff discharge. The carbon cycle scheme consists of three (leaf, stem, and root) plant and two (litter and humus) soil carbon pools and simulates carbon flows, including photosynthetic assimilation, respiratory emission, allocation to C pools, litterfall, and microbial soil decomposition. Each material flow or process is simulated in a mechanistic manner, i.e., on the basis of environmental regulation and biological responsiveness. The model has been validated by comparisons with measurements of atmosphere–ecosystem CO2 exchange (Ito 2008; Inatomi et al. 2010) and satellite-based estimates of photosynthetic parameters (Ito et al. 2017).
The N cycle scheme consists of two (photosynthetic and non-photosynthetic) plant, two (litter and humus) soil-organic and two (ammonium [NH4+] and nitrate [NO3−]) soil-inorganic pools, as well as a microbial pool (see Inatomi et al. 2010 for the schematic diagram). The N cycle scheme simulates major N flows such as mineralization, nitrification, denitrification, NH3 volatilization, nitrate leaching, microbial immobilization, and plant assimilation. To facilitate broad-scale application, the model takes account of these processes with an intermediate complexity; i.e., the simulations use forcing and characteristic data available at regional scales to account for specific processes. The principal processes that emit N2O, nitrification and denitrification, are simulated separately by using the generalized parameterization of Parton et al. (1996) developed on the basis of laboratory and field data. The nitrification-associated N2O emission rate (FN2Onit) is calculated as follows:
where fWnit, fTnit, fpHnit, and fNH4 are the coefficients that quantify the influence of soil water, temperature, pH, and NH4+ availability on the nitrification rate; Knit is the N turnover coefficient; and MXnit is the maximum rate of N2O emission associated with nitrification when there is excess soil NH4+. The denitrification-associated N2O emission rate (FN2Oden) is calculated as follows:
where fNO3 and fCO2 represent the effects of soil NO3− and soil respiration (a proxy of C availability), fWden is a metric of the effect of soil water on denitrification; min () denotes the smallest value of the term in the parenthesis; and RN2/N2O is the N2 to N2O emission ratio from denitrification-associated emissions and is formulated as another function of soil NO3−, soil respiration, and soil moisture content. The effect terms, fNH4 and fNO3, and the coefficients, fWnit, fTnit, fCO2, fWden, and RN2/N2O, are provided as empirical functions (Parton et al. 1996) and are calculated at each grid for every time step. The fpHnit coefficient is calculated at each grid using soil data and is assumed to be constant through time. Knit and MXnit are constant parameters. Soil moisture content simulated by the hydrology scheme and soil respiration by the carbon cycle scheme is used to estimate N2O emissions.
The N cycle in the model thus responds directly to climate conditions such as temperature and precipitation. Atmospheric CO2, which affects the ecosystem C cycle by its fertilization effect (e.g., Norby et al. 2010), can influence the N cycle by altering plant-root N uptake and soil respiration. The driving forces of the terrestrial N cycle include biological N fixation (estimated using the parameterization of Cleveland et al. 1999), atmospheric deposition of NH4+ and NO3−, and fertilizer inputs to croplands. In this study, the external drivers for the ecosystem (i.e., atmospheric deposition and fertilizer input) were obtained from appropriate datasets (explained later). Land use changes between natural (unmanaged) and agricultural (managed) ecosystems also affect regional N budgets by altering cropland area and are considered by the model (Kato et al. 2013).
Simulations and analyses
The continental-scale simulations were conducted at a spatial resolution of 0.5° × 0.5° in latitude and longitude, and then results for East Asian countries (alphabetically, China, Chinese Taipei, Japan, Mongolia, and North and South Korea) were extracted by using common-use national boundary data. The total land area was about 11.6 × 106 km2, and the total population in 2010 was about 1.58 billion. After a spin-up period of at least 300 years to obtain stable carbon and N budgets under a stationary climate condition, the simulation was started in January 1901 and ended in December 2015. Atmospheric CO2 concentrations for the historical period were derived from atmospheric observations (e.g., Keeling and Whorf 2009). Monthly temperature, precipitation, humidity, and cloud cover during the simulation period were obtained from the CRU TS3.25 dataset (Harris et al. 2014) for each grid. Soil properties such as bulk density, clay/sand composition, and field capacity were derived from the International Satellite Land Surface Climatology Project dataset (Hall et al. 2006). A map of soil pH was derived from IGBP-DIS (2000). Transitional land use change was derived from the global land use dataset compiled by Hurtt et al. (2011) for climate studies. Croplands were classified on the basis of global crop distribution maps (Monfreda et al. 2008) into the following three categories: rice, generic C3 crops (except rice, e.g., wheat), and generic C4 crops (e.g., maize). To facilitate regional implementation of the model, agricultural management practices were classified in a generic way. For example, cultivation of legume species with symbiotic N fixers was not explicitly included. Historical chemical fertilizer and manure inputs into croplands were derived from datasets produced by Nishina et al. (2017) and Potter et al. (2010), respectively. In the fertilizer dataset, country statistics from the Food and Agriculture Organization were down-scaled to 0.5° meshes after filling data gaps. Notably, the dataset differentiated fertilizer N into NH4+ and NO3− and considered seasonal crop calendars of dominant crops. Historical trends of atmospheric N deposition were derived from Galloway et al. (2004); seasonal variability, based on the results of atmospheric chemistry model simulation studies (Sudo et al. 2002; Dentener et al. 2006), was included. Figure 1 shows the spatial distribution of N inputs to East Asian land areas in 2000 that was assumed in this study.
The baseline simulation experiment (called EX0) considered all driving factors, and the results were analyzed to assess the characteristics of the N budget in this region. In addition, to separate the contribution of individual factors, we conducted the following series of sensitivity simulations:
EX1: fertilizer input was always fixed at the level in 1901
EX2: manure input was always fixed at the level in 1901
EX3: atmospheric N deposition was always fixed at the level in 1901
EX4: land use was always fixed at the level in 1901
EX5: fertilizer and manure inputs were always fixed at the levels in 1901
EX6: land use, fertilizer, and manure inputs were always fixed at the values in 1901
EX7: manure was ignored (i.e., always zero) throughout the simulation
The EX1–4 simulations separated the effects of individual N inputs; EX5 separated the effect of direct N input to croplands; and EX6 separated the human impacts on land systems. EX3 separated the effect of N inputs from atmospheric deposition and indirectly included anthropogenic inputs. EX6 removed direct impacts of local human manipulations and showed the effects caused by elevated CO2 concentration and climate change. EX7 was conducted to quantify the impact of ignoring manure inputs, which have been inconsistently considered in terrestrial N model studies (discussed later).
The emission factor, which is defined as the mean atmospheric emission per unit mass of substrate or input to a system, is a useful metric for greenhouse gas studies because it facilitates estimates of emissions and clarification of regional characteristics. Here, the emission factor for N2O was defined as the N2O emission per unit N input as chemical fertilizer, manure, and atmospheric deposition (Stehfest and Bouwman 2006) on a yearly basis. The model simulation enabled us to estimate a representative emission factor for East Asia during a time when N inputs were changing. Most results are shown on an N2O weight basis (e.g., Tg N2O year–1) to facilitate conversion to a CO2-equivalent weight basis with a global warming potential of 298 (IPCC 2013; 100-year horizon); the values can be converted to an N weight basis (e.g., Tg N year−1) by multiplying by 28/44.
Regional N2O emissions
In the EX0 simulation (i.e., all inclusive and so presumably closest to reality), total N2O emissions from the soil surface of East Asia in the 2000s (2000–2009) were estimated to be 2.03 Tg N2O year –1 (i.e., 1.29 Tg N year−1). Natural ecosystems and croplands contributed 32.3% and 67.7%, respectively, to the total emissions.
The spatial patterns of simulated N2O emissions from natural and cropland soils differed markedly (Fig. 2). In most natural ecosystems (Fig. 2a, not weighted by land-use fractions), N2O emissions occurred at low rates and land use patterns created a heterogeneous distribution of emissions. The relatively high rates in the middle of China were consistent with the high rates of N deposition in that area (Fig. 1c). The N2O emissions from croplands were relatively high (Fig. 2b, not weighted by land-use fractions), especially in central China, western South Korea, and parts of Japan. The total emission map (Fig. 2c, weighted by land-use fractions) showed that high-N2O emissions occurred in central to southern parts of China and parts of South Korea and Japan. In contrast, N2O emissions were quite low in the interior regions covered mainly by grasslands and alpine meadows.
The simulated N2O emissions showed clear seasonal patterns (Fig. 3). Regional N2O emissions were high from June to September, the warm and rainy period of the monsoon climate cycle. Average regional N2O emission rates varied from 0.03 Tg N2O month−1 in January to 0.38 Tg N2O month−1 in July during the 2000s. The period of high emissions clearly corresponded to the season of agricultural cultivation and fertilizer application.
Historical changes in N2O emissions

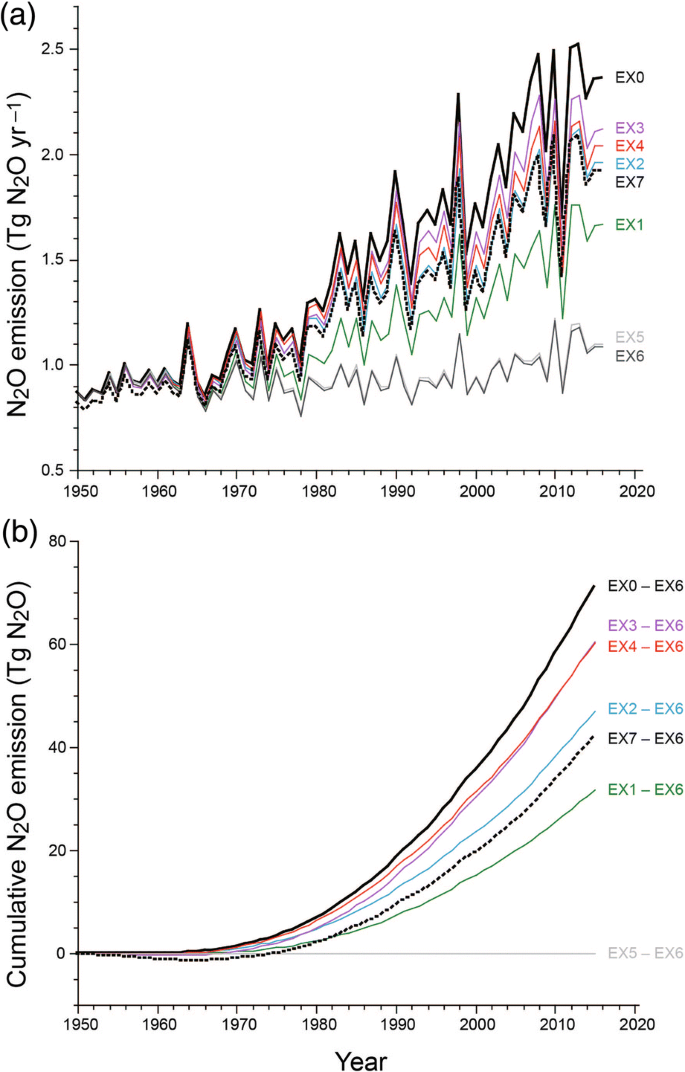

In the EX0 experiment, regional soil N2O emissions increased from 0.60 Tg N2O year–1 (0.38 Tg N year−1) in 1901 to 2.35 Tg N2O year –1 (1.50 Tg N year−1) in 2015 (Fig. 4a). The increase was especially evident after 1960, i.e., the era of increased agricultural production stimulated by the Green Revolution. Between the 1960s and the 2000s of EX0, N2O emissions from natural ecosystems increased by 0.01 Tg N2O year−1 (+ 1.8%), while emissions from croplands increased by 1.05 Tg N2O year –1 (+ 331.2%). The dominant source therefore shifted from natural ecosystems (66.9% of the total in the1960s) to croplands (67.7% of the total in the 2000s). Spatially, an increase of N2O emission was evident in cropland areas (Fig. 5 and Additional file 1: Figure S1). From 1901 to 2016, fertilizer and manure inputs to croplands in this region intensified from 5.8 Tg N year−1 to 55.5 Tg N year−1, and atmospheric N deposition also increased from 2.49 Tg N year−1 to 4.4 Tg N year−1 (especially NH4+ deposition). Biological N fixation showed a small increase of 0.2 Tg N year−1.
From the 1960s to the 2000s, temperatures over East Asia increased by 0.88 °C on average, but annual precipitation did not change significantly (from 561 mm year−1 to 564 mm year−1). The very small increase of N2O emissions driven by climate in the sensitivity simulation (EX6; Fig. 4), from 0.90 Tg N2O year−1 in the 1960s to 0.97 Tg N2O year−1 in the 2000s, indicated a weak influence of climate. When the effect of land use change was included (EX5), the result did not vary much from that of EX6 (i.e., from 0.91 Tg N2O year−1 to 0.99 Tg N2O year−1), because N inputs from fertilizer and manure into croplands were kept at low levels.
In contrast, the sensitivity simulations for fertilizer, manure, and N deposition inputs clearly suggested strong influences from these driving factors. When N deposition was fixed (EX3), regional N2O emissions in the 2000s were estimated to be 1.87 Tg N2O year−1, 92.2% of the emission in EX0. When manure inputs were fixed (EX2), regional N2O emissions were estimated to be 1.69 Tg N2O year−1, 83.5% of the emissions in EX0. When chemical fertilizer input was fixed (EX1), regional N2O emissions were estimated to be 1.42 Tg N2O year−1, 70.3% of the emissions in EX0. Cumulatively, the increases of the N inputs since 1950 led to about 70 Tg of additional N2O emissions to the atmosphere (Fig. 4b). Thus, the historical increase of soil N2O emissions from this region was primarily (more than half) attributable to the increase of fertilizer input to croplands and secondarily to increments of manure use and atmospheric deposition.
Relationships with driving factors
The simulated annual soil N2O emissions from East Asia were very weakly correlated with annual temperature anomalies (Fig. 6a) but more closely correlated with annual precipitation anomalies (Fig. 6b). Note that linear trends were removed from both the N2O emissions and climate factors to focus on interannual variability (i.e., anomaly), defined as a year-to-year deviations from the long-term linear trend. This result therefore implies that interannual variability of soil N2O emissions in this region is limited mainly by soil wetness, which is largely determined by the precipitation anomaly (and partly by evapotranspiration variability). Among the N2O production processes, denitrification, which occurs under anaerobic conditions, was more closely related to precipitation anomalies (coefficient of determination [R2] = 0.63) than was nitrification (R2 = 0.08). This result is consistent with the positive response of total N2O emissions to precipitation anomalies. During the twentieth century, the highest annual N2O emission rate (2.28 Tg N2O year−1 in EX0) occurred in 1998, a very strong El Niño year with the warmest temperature and highest precipitation of the century.
The simulated regional N2O emissions were strongly correlated with N inputs (Fig. 7 for EX0). The slope of a linear regression of N2O emission versus N inputs is a metric of N2O emission factor: in this study, 0.0216 Tg N2O Tg− 1 N or 0.0138 Tg N-N2O Tg− 1 N (i.e., 1.38%). The estimated emission factor for cropland, calculated on the basis of direct N inputs to cropland, was almost the same (1.38%) as the regional mean, which includes both natural and agricultural ecosystems. The relationship between N inputs and N2O emissions during the period 1960–2015 was almost linear (R2 = 0.88), and there were corresponding increases of residual N outflows by NO3− leaching and NH3 volatilization with increasing N inputs (data not shown). The simulated N2O emission factor was not uniform throughout the study region (Fig. 8b). The emission factor ranged from low values in interior dry regions and northern parts of China to high values in humid regions in southern parts of China, the Korean Peninsula, and Japan. The weak relationship between the distribution of emission factors and land use for agriculture (Fig. 8a, b) implied that emission factors were primarily affected by climatic and intrinsic soil conditions.
The model simulation allowed us to evaluate soil N2O emissions and their spatial and temporal variability in East Asia; the methodology we used may be applicable to other regions. Compared with global N2O emissions (18.3 Tg N2O year−1 in the 2000s; unpublished result of a global simulation), the East Asia region accounts for about 11% of the global total (5.9% of natural ecosystems and 18.9% of croplands). Note that the global result is comparable with previous studies (Syakila and Kroeze 2010; Wells et al. 2018): in 2002, 6–7 Tg N year−1 (9.4–11 Tg N2O year−1) from soils and 4.9 Tg N year−1 (7.7 Tg N2O year−1) from agriculture. Using the global warming potential value of 298, we estimated the N2O emission of 2.03 Tg N2O year− 1 to be equivalent to 605 Tg CO2-eq. year− 1 (on a carbon basis, 165 Tg C year− 1). Soil N2O emissions can be a substantial fraction of the total greenhouse-gas budget for this region. For example, an integrated synthesis of regional C budgets by Piao et al. (2012) conducted an integrated synthesis of regional C budgets and concluded that land ecosystems in East Asia are a net CO2 sink of 224–413 Tg C year−1 at the present time. The range of numbers reflects differences in estimation methods such as bottom-up summation and top-down inversion. The estimated soil N2O emission is therefore likely to offset 40–74% of the mitigation effect of CO2 sequestration by terrestrial ecosystems in this region. Reducing soil N2O emissions from the region should therefore contribute greatly not only to mitigation of global warming but also to amelioration of environmental pollution (e.g., eutrophication and acidification) by reducing agricultural N use. For example, the distribution of emission factors estimated in this study (Fig. 8b) may enable optimization of N fertilizer and manure use, which are related to both food production and environmental loads. Although not addressed in this study, the simulation of N leaching and of NH3 and NO emissions by the model leads to reductions of water use and air pollution. In addition, changes of ecosystem N stocks are linked with the degree of N limitation, which can alter ecosystem structure (including biodiversity), functions, and services (Aber et al. 1995). Such co-benefits and trade-offs of N management are among the focal themes of the International Nitrogen Management System (INMS, http://www.inms.international/). The INMS aims at synthesizing the achievements and challenges on N research, and our research may therefore make some contribute to activities such as regional demonstration.
The large soil N2O emissions from this region are attributable to extensive use of land for agriculture and high N inputs from chemical fertilizer, organic manure, and atmospheric deposition. Note that other anthropogenic emissions of N2O from industrial and urban sectors (not included in this study) are likely substantial in this region (e.g., Ohara et al. 2007). Emissions of N2O from the soil surface have apparently increased during the last few decades in East Asia, mainly because of human interventions in the N cycle, as demonstrated by the sensitivity simulations. These simulation results, in conjunction with data for other factors such as food production and environmental pollution, should inform identification of strategies for mitigation of global warming and N management in this region (Shibata et al. 2015). The mean emission factor of 1.38% for N2O in East Asia estimated in this study is slightly higher than the default value of the IPCC guideline, i.e., 1% for mineral fertilizer and organic amendments to cropland, but within the range of uncertainty (0.3–3.0%) (IPCC 2006). Several meta-analysis studies have indicated that emission factors derived from observations of soil N2O emissions vary widely, from 0.03 to 10% (e.g., Kim et al. 2013; Charles et al. 2017). The mean value estimated in this study is within this range, but there was much variability of both observations and model estimates (e.g., inter-grid standard deviation, 2.09%). The simulated N2O emission factor (Fig. 8b) varied between low values (~ 1%) in northern area and high values (> 1%) in the southern area, irrespective of agricultural contributions (Fig. 8a). Remarkably, higher emission factors were found in the Tibetan Plateau, where N2O emissions were low because of low N inputs (Fig. 1) and cool temperatures. In contrast, emission factors were low in north-central China, which has been intensively cultivated (Additional file 1: Figure S1) and is receiving high N inputs (Fig. 1). Such regional heterogeneity in the emission factor implies a need for diverse regulatory mechanisms. In the model used in this study, N2O emission rates from both nitrification and denitrification were sensitive to soil moisture conditions, which are affected by precipitation and soil water-holding capacity. In this regard, the model estimation of N2O emissions from paddy fields could be improved by considering water management and associated characteristics of the N cycle specific to the land cover type. For example, an empirical study by Yan et al. (2003) obtained an N2O emission factor of 0.93% (versus 1.38% in this study). As noted by Lesschen et al. (2011), variability of N2O emission factors influences regional greenhouse gas accounting.
The model used in this study is one of the models used in the terrestrial N model intercomparison and global N2O synthesis project (Tian et al. 2018). Comparison of soil N2O emissions simulated by different biogeochemical models has shown that the VISIT model provides broad-scale estimates comparable to those of other contemporary models. However, it is difficult to relate the regional N2O emissions simulated here with atmospheric measurements for validation because of the long atmospheric residence time of N2O, urban emissions, and exchanges of N2O with the stratosphere (Ishijima et al. 2010). The trends of the observed atmospheric N2O concentrations in East Asia increased linearly with time, but seasonal patterns were unclear (Additional file 1: Figure S2). Comparison with the results of atmospheric inversion studies would provide further insights. For example, Thompson et al. (2014) have reported surface N2O fluxes inferred using atmospheric inversion models based on chemistry transport models. Their estimates of N2O emissions in East Asia have indicated a spatial distribution comparable to that simulated in the present study, e.g., high emissions in parts of southern China and low emissions in interior drylands and northern areas. The peak emission intensity in parts of southern China, around 8 kg N ha−1 yr−1, is also comparable between the two studies. Recently, Wells et al. (2018) made a similar analysis using a different atmospheric model and data-assimilation techniques and obtained comparable results for total (i.e., including soil and other sources) N2O emissions. Saikawa et al. (2014) have presented another model-based estimate of global and regional N2O emissions derived from atmospheric observational data. In their results, Southern Asia (i.e., East, South, and Southeast Asia) was estimated to release N2O at a rate of 3–5 Tg N year−1 in 1995–2008; this estimate is consistent with our model estimate of 3.3 Tg N year−1 for the corresponding area.
It is difficult, however, to compare simulated regional N2O fluxes directly with field observations based on chamber methods, because of the large difference in spatial scales: i.e., square meter for chamber measurements vs 104–106 km2 of model simulations. Recently, several numerical techniques have been developed to extrapolate (i.e., scale up) field measurements to the global scale (e.g., Jung et al. 2011; Tramontana et al. 2016). A more realistic strategy for validating model estimates would be a comparison with these up-scaled flux estimates. Hashimoto (2012) has provided a global dataset of soil greenhouse gas emissions extrapolated from field data using a statistical model based on extensive field data (e.g., Morishita et al. 2007). Spatial patterns of the estimated N2O emissions (Additional file 1: Figure S3a, a revised estimate of Hashimoto 2012) is roughly comparable with those of the present study. Both studies capture higher emissions from parts of southern China and from hot spots in central China. In general, however, the intensities of the emissions estimated by Hashimoto (2012) in the study region are lower (Additional file 1: Figure S3b: − 25% on average), probably because his study used data obtained mainly from temperate forests (Morishita et al. 2007). As noted by Hashimoto (2012), statistical methods might capture background emissions from croplands. The VISIT-estimated emissions in natural ecosystems are closer to the regional estimates of Hashimoto (2012). Further validations using multiple observational data, similar to the validation conducted in this study, will clearly be needed to evaluate and reduce uncertainties in model-based assessments.
Several limitations of this study remain. First, this study used a single model (i.e., VISIT) and is therefore susceptible to model-specific bias. Such a study based on a small number of models is effective for conducting many simulations to separate the influence of driving factors, but a composite of multiple model results is likely to provide more robust outcomes. A recent model intercomparison project (Tian et al. 2018) has provided us with an opportunity to assess inter-model variability and to obtain less biased estimates. Moreover, systematic analyses of the formulations and parameters related to pivotal processes are required to scrutinize inter-model differences. Second, our incomplete understanding of N biogeochemical processes leads to insufficient formulations in N models. The complexity of biochemical processes mediated by microbes such as mineralization, nitrification, and denitrification (Butterbach-Bahl et al. 2013; Isobe and Ohte 2014) makes it difficult to formulate mechanisms accurately. Physical processes such as freezing and thawing and their impacts on the N cycle (Yanai et al. 2011; Hosokawa et al. 2017) are sufficiently complicated that most models do not adequately characterize them. Also, human manipulations by agricultural practices such as reduced tillage (Koga et al. 2004), enhanced-efficiency fertilizer (Akiyama et al. 2010), and inoculation of soils with microbes that process N more efficiently (Itakura et al. 2012) can affect N2O emissions but have not been adequately incorporated into biogeochemical models. Third, there are still uncertainties in the forcing input data. In this study, we used popular datasets to drive the model. Recent studies have been providing updated datasets for fertilizer (e.g., Lu and Tian 2017), manure (e.g., Wolf et al. 2017; Zhang et al. 2017), and land use (Lawrence et al. 2016). Use of these recent and forthcoming datasets in future studies is expected to considerably improve the accuracy of the simulated results.
Our estimated N2O emissions from the soil surface of East Asia of 2.03 Tg N2O year−1 in the 2000s based on a process-based model showed that the region was a significant source of N2O emissions to the atmosphere. The estimated mean emission factor, 1.38%, was robust through time but showed high-spatial heterogeneity. Compared to previous studies, this study used up-to-date forcing data, simulated longer periods, and provided detailed emission maps. Despite the uncertainty of the model estimates, this study demonstrated the effectiveness of model-based evaluations of regional N2O budgets, which are difficult to obtain from direct methods by tower and satellite measurements. The capability of male long-term analyses is another advantage of the model-based approach. Our historical simulation results imply that there has been a significant increase of regional soil N2O emissions, by a factor of three or more, mainly because of human activities. Our results also suggest opportunities for mitigation of climatic impacts through application of appropriate emission reduction measures such as optimization of fertilizer use and agricultural practices (e.g., tillage and water management). Because of the importance of N2O as a greenhouse gas, contemporary climate policies such as the Paris Accord of the United Nations Framework Convention of Climate Change should pay more attention to N2O emissions. Also, management of N2O emissions from soil should provide other benefits in terms of environmental quality through reduction of excessive N inputs to water and air and losses from soil. Further studies are nevertheless required to elucidate the biogeochemical processes involved in N dynamics, the interactions between the N cycle and the water and C cycles, and the best way to enlarge the spatial scale of models.
Climate Research Unit
International Geosphere-Biosphere Program Data and Information System
Vegetation Integrative SImulator for Trace gases
Aber JD, Magill A, McNulty SG, Boone RD, Nadelhoffer KJ, Downs M, Hallett R (1995) Forest biogeochemistry and primary production altered by nitrogen saturation. Water Air Soil Poll 85:1665–1670
Akiyama H, Yan X, Yagi K (2010) Evaluation of effectiveness of enhanced-efficiency fertilizers as mitigation options for N2O and NO emissions from agricultural soils: meta-analysis. Glob Chang Biol 16:1837–1846. https://doi.org/10.1111/j.1365-2486.2009.02031.x
Bellingrath-Kimura SD, Kishimoto-Mo AW, Oura N, Sekikawa S, Yonemura S, Sudo S, Hayakawa A, MInamikawa K, Takata Y, Hara H (2015) Differences in the spatial variability among CO2, CH4, and N2O gas fluxes from an urban forest soil in Japan. Ambio 44:55–66. https://doi.org/10.1007/s13280-014-0521-z
Butterbach-Bahl K, Baggs EM, Dannenmann M, Kiese R, Zechmeister-Boltenstern S (2013) Nitrous oxide emissions from soils: how well do we understand the processes and their controls. Phil Trans R Soc A:20130122. https://doi.org/10.1098/rstb.2013.0122
Charles A, Rochette P, Whalen JK, Angers DA, Chantigny MH, Bertrand N (2017) Global nitrous oxide emission factors from agricultural soils after addition of organic amendments: a meta-analysis. Agr Ecosys Env 236:88–98. https://doi.org/10.1016/j.agee.2016.11.021
Cleveland CC, Townsend AR, Schimel DS, Fisher H, Howarth RW, Hedin LO, Perakis SS, Latty EF, Von Fischer JC, Elseroad A, Wasson MF (1999) Global patterns of terrestrial biological nitrogen (N2) fixation in natural ecosystems. Glob Biogeochem Cycles 13:623–645
Davidson EA (2009) The contribution of manure and fertilizer nitrogen to atmospheric nitrous oxide since 1860. Nat Geosci 2:659–662. https://doi.org/10.1038/NGEO608
Del Grosso SJ, Ojima DS, Parton WJ, Stehfest E, Heistemann M, DeAngelo B, Rose S (2009) Global scale DAYCENT model analysis of greenhouse gas emissions and mitigation strategies for cropped soils. Glob Planet Chang 67:44–50. https://doi.org/10.1016/j.gloplacha.2008.12.006
Dentener F, Drevel J, Lamarque JF, Bey I, Eickhout B, Fiore AM, Hauglusteine D, Horowitz LW, Krol M, Kulshreshtha UC, Lawrence M, Galy-Lacaux C, Rast S, Shindell D, Stevenson D, Van Noije T, Atherton C, Bell N, Bergman D, Butler T, Cofala J, Collins B, Doherty R, Ellingsen K, Galloway J, Gauss M, Montanaro V, Müller JF, Pitari G, Rodriguez J et al (2006) Nitrogen and sulfur deposition on regional and global scales: a multimodel evaluation. Glob Biogeochem Cycles 20:GB4003. https://doi.org/10.1029/2005GB002672
Galloway JN, Dentener FJ, Capone DG, Boyer EW, Howarth RW, Seitzinger SP, Asner GP, Cleveland CC, Green PA, Holland EA, Karl DM, Michaels AF, Porter JH, Townsend AR, Vörösmarty CJ (2004) Nitrogen cycles: past, present, and future. Biogeochem 70:153–226
Hall FG, de Colstoun EB, Collatz GJ, Landis D, Dirmeyer P, Betts A, Huffman GJ, Bounoua L, Meeson B (2006) ISLSCP Initiative II global data sets: surface boundary conditions and atmospheric forcings for land-atmosphere studies. J Geophys Res 111:D22S01. https://doi.org/10.1029/2006JD007366
Harris I, Jones PD, Osborn TJ, Lister DH (2014) Updated high-resolution grids of monthly climatic observations – the CRU TS3.10 dataset. Int J Climatol 34:623–642. https://doi.org/10.1002/joc.3711
Hashimoto S (2012) A new estimate of global soil greenhouse gas fluxes using a simple data-oriented model. PLoS One 7:e41962. https://doi.org/10.1371/journal.pone.0041962
Hashimoto S, Morishita T, Sakata T, Ishizuka S (2011) Increasing trends of soil greenhouse gas fluxes in Japanese forests from 1980 to 2009. Sci Rep 1:116. https://doi.org/10.1038/srep00116
Hosokawa N, Isobe K, Urakawa R, Tateno R, Fukuzawa K, Watanabe T, Shibata H (2017) Soil freeze–thaw with root litter alters N transformations during the dormant season in soils under two temperate forests in northern Japan. Soil Biol Biochem 114:270–278. https://doi.org/10.1016/j.soilbio.2017.07.025
Hurtt GC, Chini LP, Frolking S, Betts RA, Feddema J, Fischer G, Fisk JP, Hibbard K, Houghton RA, Janetos A, Jones CD, Kindermann G, Kinoshita T, Klein Goldewijk K, Riahi K, Shevliakova E, Smith S, Stehfest E, Thomson A, Thornton P, van Vuuren DP, Wang YP (2011) Harmonization of land-use scenarios for the period 1500–2100: 600 years of global gridded annual land-use transitions, wood harvest, and resulting secondary lands. Clim Chang 109:117–161. https://doi.org/10.1007/s10584-011-0153-2
IGBP-DIS (2000) Global Soil Data Products CD-ROM. Oak Ridge National Laboratory, Oak Ridge
Inatomi M, Ito A, Ishijima K, Murayama S (2010) Greenhouse gas budget of a cool temperate deciduous broadleaved forest in Japan estimated using a process-based model. Ecosystems 13:472–483. https://doi.org/10.1007/s10021-010-9332-7
Intergovernmental Panel on Climate Change (IPCC) (2006) 2006 IPCC Guidance for National Greenhouse Gas Inventories. Institute for Global Environmental Strategies, Hayama
Intergovernmental Panel on Climate Change (IPCC) (2013) Climate Change 2013: The Physical Science Basis. Cambridge University Press, Cambridge and New York
Ishijima K, Patra PK, Takigawa M, Machida T, Matsueda H, Sawa Y, Steele LP, Krummel P, Langenfelds RL, Aoki S, Nakazawa T (2010) Stratospheric influence on the seasonal cycle of nitrous oxide in the troposphere as deduced from aircraft observations and model simulations. J Geophys Res 115:S20308. https://doi.org/10.1029/2009JD013322
Isobe K, Ohte N (2014) Ecological perspectives on microbes involved in N-cycling. Microb Env 29:4–16. https://doi.org/10.1264/jsme2.ME13159
Itakura M, Uchida Y, Akiyama H, Hoshino YT, Shimomura Y, Morimoto S, Tago K, Wang Y, Hayakawa C, Uetake Y, Sánchez C, Eda S, Hayatsu M, Minamisawa K (2012) Mitigation of nitrous oxide emissions from soils by Bradyrhizobium japonicum inoculation. Nat Clim Chang 3:208–212. https://doi.org/10.1038/NCLIMATE1734
Ito A (2008) The regional carbon budget of East Asia simulated with a terrestrial ecosystem model and validated using AsiaFlux data. Agr For Meteorol 148:738–747. https://doi.org/10.1016/j.agrformet.2007.12.007
Ito A, Inatomi M (2012a) Use and uncertainty evaluation of a process-based model for assessing the methane budget of global terrestrial ecosystems. Biogeosci 9:759–773. https://doi.org/10.5194/bg-9-759-2012
Ito A, Inatomi M (2012b) Water-use efficiency of the terrestrial biosphere: a model analysis on interactions between the global carbon and water cycles. J Hydrometeorol 13:681–694. https://doi.org/10.1175/JHM-D-10-05034.1
Ito A, Nishina K, Reyer CPO, François L, Henrot A-J, Munhoven G, Jacquemin I, Tian H, Yang J, Pan S, Morfopoulos C, Betts R, Hickler T, Steinkamp J, Ostberg S, Schaphoff S, Ciais P, Chang J, Rafique R, Zeng F, Zhao F (2017) Photosynthetic productivity and its efficiencies in ISIMIP2a biome models: benchmarking for impact assessment studies. Env Res Lett 12:085001. https://doi.org/10.1088/1748-9326/aa7a19
Ito A, Oikawa T (2002) A simulation model of the carbon cycle in land ecosystems (Sim-CYCLE): a description based on dry-matter production theory and plot-scale validation. Ecol Model 151:147–179
Jung M, Reichstein M, Margolis HA, Cescatti A, Richardson AD, Arain MA, Arneth A, Bernhofer C, Bonal D, Chen J, Gianelle D, Gobron N, Kiely G, Kutsch W, Lasslop G, Law BE, Lindroth A, Merbold L, Montagnani L, Moors EJ, Papale D, Sottocornola M, Vaccari F, Williams C (2011) Global patterns of land-atmosphere fluxes of carbon dioxide, latent heat, and sensible heat derived from eddy covariance, satellite, and meteorological observations. J Geophys Res 116:G00J07. https://doi.org/10.1029/2010JG001566
Kato E, Kinoshita T, Ito A, Kawamiya M, Yamagata T (2013) Evaluation of spatially explicit emission scenario of land-use change and biomass burning using a process based biogeochemical model. J Land Use Sci 8:104–122. https://doi.org/10.1080/1747423X.2011.628705
Keeling CD, Whorf TP (2009) Atmospheric CO2 concentrations - Mauna Loa observatory, Hawaii, 1958–2008. Numerical data package NDP001. Oak Ridge National Laboratory, Oak Ridge. https://doi.org/10.3334/CDIAC/atg.ndp001
Kim D-G, Hernandez-Ramirez G, Giltrap D (2013) Linear and nonlinear dependency of direct nitrous oxide emissions on fertilizer nitrogen input: a meta-analysis. Agr Ecosys Env 168:53–65. https://doi.org/10.1016/j.agee.2012.02.021
Kim D-G, Vargas R, Bond-Lamberty B, Turetsky MR (2012) Effects of soil rewetting and thawing on soil gas fluxes: a review of current literature and suggestions for future research. Biogeoscie 9:2459–2483. https://doi.org/10.5194/bg-9-2459-2012
Koga N, Tsuruta H, Sawamoto T, Nishimura S, Yagi K (2004) N2O emission and CH4 uptake in arable fields managed under conventional and reduced tillage cropping systems in northern Japan. Glob Biogeochem Cycles 18:GB4025. https://doi.org/10.1029/2004GB002260
Lawrence DM, Hurtt GC, Arneth A, Brovkin V, Calvin KV, Jones AD, Jones CD, Lawrence PJ, de Noblet-Ducoudré N, Pongratz J, Seneviratne SI, Shevliakova E (2016) The Land Use Model Intercomparison Project (LUMIP) contribution to CMIP6: rationale and experimental design. Geosci Model Dev 9:2973–2998. https://doi.org/10.5194/gmd-9-2973-2016
Lesschen JP, Velthof GL, de Vries W, Kros J (2011) Differentiation of nitrous oxide emission factors for agricultural soils. Env Pollut 159:3215–3222. https://doi.org/10.1016/j.envpol.2011.04.001
Lu C, Tian H (2017) Global nitrogen and phosphorus fertilizer use for agriculture production in the past half century: shifted hot spots and nutrient imbalance. Earth Sys Sci Data 9:181–192. https://doi.org/10.5194/essd-9-181-2017
Monfreda C, Ramankutty N, Foley JA (2008) Farming the planet: 2. Geographic distribution of crop areas, yields, physiological types, and net primary production in the year 2000. Glob Biogeochem Cycles 22:GB1022. https://doi.org/10.1029/2007GB002947
Morishita T, Sakata T, Takahashi M, Ishizuka S, Mizoguchi T, Inagaki Y, Terazawa K, Sawata S, Igarashi M, Yasuda H, Koyama Y, Suzuki Y, Toyota N, Muro M, Kinjo M, Yamamoto H, Ashiya D, Kanazawa Y, Hashimoto T, Umata H (2007) Methane uptake and nitrous oxide emission in Japanese forest soils and their relationship to soil and vegetation types. Soil Sci Plant Nutr 53:678–691
Muhr J, Goldberg SD, Borken W, Gebauer G (2008) Repeated drying-rewetting cycles and their effects on the emission of CO2, N2O, NO, and CH4 in a forest soil. J Plant Nutr Soil Sci 171:719–728. https://doi.org/10.1002/jpln.200700302
Nishina K, Akiyama H, Nishimura S, Sudo S, Yagi K (2012) Evaluation of uncertainties in N2O and NO fluxes from agricultural soil using a hierarchical Bayesian model. J Geophys Res 117. https://doi.org/10.1029/2012JG002157
Nishina K, Ito A, Hanasaki N, Hayashi S (2017) Reconstruction of spatially detailed global map of NH4 + and NO3 − application in synthetic nitrogen fertilizer. Earth Sys Sci Data 9:149–162. https://doi.org/10.5194/essd-9-149-2017
Norby RJ, Warren JM, Iversen CM, Medlyn BE, McMurtrie RE (2010) CO2 enhancement of forest productivity constrained by limited nitrogen availability. Proc Natl Acad Sci U S A 107:19368–19373. https://doi.org/10.1073/pnas.1006463107
Ohara T, Akimoto H, Kurokawa J, Horii N, Yamaji K, Yan X, Hayasaka T (2007) An Asian emission inventory of anthropogenic emission sources for the period 1980-2020. Atm Chem Phys 7:4419–4444
Parton WJ, Mosier AR, Ojima DS, Valentine DW, Schimel DS, Weier K, Kulmala AE (1996) Generalized model for N2 and N2O production from nitrification and denitrification. Glob Biogeochem Cycles 10:401–412
Piao S, Ito A, Li SG, Huang Y, Ciais P, Wang XH, Peng SS, Nan HJ, Zhao C, Ahlström A, Andres RJ, Chevallier F, Fang JY, Hartmann J, Huntingford C, Jeong S, Levis S, Levy PE, Li JS, Lomas MR, Mao JF, Mohammat A, Muraoka H, Peng CH, Peylin P, Poulter B, Shen ZH, Shi X, Sitch S, Tao S et al. (2012) The carbon budget of terrestrial ecosystems in East Asia over the last two decades. Biogeosci 9:3571–3586. https://doi.org/10.5194/bg-9-3571-2012
Potter P, Ramankutty N, Bennett EM, Donner SD (2010) Characterizing the spatial patterns of global fertilizer application and manure production. Earth Interact 14:1–23. https://doi.org/10.1175/2009EI288.1
Ravishankara AR, Daniel JS, Portmann RW (2009) Nitrous oxide (N2O): the dominant ozone-depleting substance emitted in the 21st century. Science 326:123–125. https://doi.org/10.1126/science.1176985
Saikawa E, Prinn RG, Dlugokencky E, Ishijima K, Dutton GS, Hall BD, Langenfelds R, Tohjima Y, Machida T, Manizza M, Rigby M, O'Doherty S, Patra PK, Harth CM, Weiss RF, Krummel PB, van der Schoot M, Fraser PJ, Steele LP, Aoki S, Nakazawa T, Elkins JW (2014) Global and regional emissions estimates for N2O. Atm Chem Phys 14:4617–4641. https://doi.org/10.5194/acp-14-4617-2014
Shibata H, Branquinho C, McDowell WH, Mitchell MJ, Monteith DT, Tang J, Arvola L, Cruz C, Cusack DF, Halada L, Kopáček J, Máguas C, Sajidu S, Schubert H, Tokuchi N, Záhora J (2015) Consequence of altered nitrogen cycles in the coupled human and ecological system under changing climate: the need for long-term and site-based research. Ambio 44:178–193. https://doi.org/10.1007/s13280-014-0545-4
Shindo J, Okamoto K, Kawashima H (2003) A model-based estimation of nitrogen flow in the food production-supply system and its environmental effects in East Asia. Ecol Model 169:197–212
Stehfest E, Bouwman L (2006) N2O and NO emission from agricultural fields and soils under natural vegetation: summarizing available measurement data and modeling of global annual emissions. Nutrient Cycl Agroecosys 74:207–228. https://doi.org/10.1007/s10705-006-9000-7
Sudo K, Takahashi M, Kurokawa J-I, Akimoto H (2002) CHASER: a global chemical model of the troposphere. 1. Model description. J Geophys Res 107:4339. https://doi.org/10.1029/2001JD001113
Syakila A, Kroeze C (2010) The global nitrous oxide budget revisited. GHG Measure Manage 1:17–26. https://doi.org/10.3763/ghgmm.2010.0007
Thompson RL, Chevallier F, Crotwell AM, Dutton G, Langenfelds R, Prinn RG, Weiss RF, Tohjima Y, Nakazawa T, Krummel PB, Steele LP, Fraser P, O'Doherty S, Ishijima K, Aoki S (2014) Nitrous oxide emissions 1999 to 2009 from a global atmospheric inversion. Atm Chem Phys 14:1801–1817. https://doi.org/10.5194/acp-14-1801-2014
Tian H, Xu X, Lu C, Liu M, Ren W, Chen G, Melillo J, Liu J (2011) Net exchanges of CO2, CH4, and N2O between China’s terrestrial ecosystems and the atmosphere and their contributions to global climate warming. J Geophys Res 116:G02011. https://doi.org/10.1029/2010JG001393
Tian H, Yang J, Lu C, Xu R, Canadell JG, Jackson R, Arneth A, Chang J, Chen G, Ciais P, Gerber S, Ito A, Huang Y, Joos F, Lienert S, Messina P, Olin S, Pan S, Peng C, Saikawa E, Thompson RL, Vuichard N, Winiwarter W, Zaehle S, Zhang B, Zhang K, Zhu Q (2018) The global N2O Model Intercomparison Project (NMIP): objectives, simulation protocol and expected products. Bull Am Meteorol Soc 99:1231–1251. https://doi.org/10.1175/BAMS-D-17-0212.1
Tramontana G, Jung M, Schwalm CR, Ichii K, Camps-Valls G, Ráduly B, Reichstein M, Arain MA, Cescatti A, Kiely G, Merbold L, Serrano-Ortiz P, Sickert S, Wolf S, Papale D (2016) Predicting carbon dioxide and energy fluxes across global FLUXNET sites with regression algorithms. Biogeosci 13:4291–4313. https://doi.org/10.5194/bg-13-4291-2016
Wells KC, Millet DB, Bousserez N, Henze DK, Griffis TJ, Chaliyakunnel S, Dlugokencky EJ, Saikawa E, Xiang G, Prinn RG, O’Doherty S, Young D, Weiss RF, Dutton GS, Elkins JW, Krummel PB, Langenfelds R, Steele LP (2018) Top-down constraints on global N2O emissions at optimal resolution: application of a new dimension reduction technique. Atm Chem Phys 18:735–756. https://doi.org/10.5194/acp-18-735-2018
Wolf J, Asrar GR, West TO (2017) Revised methane emissions factors and spatially distributed annual carbon fluxes for global livestock. Carbon Balance Manag 12:16. https://doi.org/10.1186/s13021-017-0084-y
Xu-Ri, Prentice IC, Spahni R, Niu HS (2012) Modelling terrestrial nitrous oxide emissions and implications for climate feedback. New Phytol 196:472–488. https://doi.org/10.1111/j.1469-8137.2012.04269.x
Yan X, Akimoto H, Ohara T (2003) Estimation of nitrous oxide, nitric oxide and ammonia emissions from croplands in East, Southeast and South Asia. Glob Chang Biol 9:1080–1096
Yanai Y, Hirota T, Iwata Y, Nemoto M, Nagata O, Koga N (2011) Accumulation of nitrous oxide and depletion of oxygen in seasonally frozen soils in northern Japan – snow cover manipulation experiments. Soil Biol Biochem 43:1779–1786. https://doi.org/10.1016/j.soilbio.2010.06.009
Zaehle S, Ciais P, Friend AD, Prieur V (2011) Carbon benefits of anthropogenic reactive nitrogen offset by nitrous oxide emissions. Nat Geosci 4:601–605. https://doi.org/10.1038/NGEO1207
Zhang B, Tian H, Lu C, Dangal SRS, Yang J, Pan S (2017) Global manure nitrogen production and application in cropland during 1860–2014: a 5 arcmin gridded global dataset for earth system modeling. Earth Sys Sci Data 9:667–678. https://doi.org/10.5194/essd-9-667-2017
This work is a contribution to the N2O-integrated synthesis of the Global Carbon Project and the regional demonstration of the Integrated Nitrogen Management System.
This study was supported by the Japan Society for the Promotion of Sciences KAKENHI grant (nos. 26281014 and 17H01867) and by the Environmental Research Fund (2-1710) of the Ministry of the Environment, Japan, and Environmental Restoration and Conservation Agency.
Availability of data and materials
Please contact author for data requests.
The authors declare that they have no competing interests.
