Authigenic carbonate precipitation at the end-Guadalupian (Middle Permian) in China: Implications for the carbon cycle in ancient anoxic oceans

Abstract

Carbonate precipitation is a major process in the global carbon cycle. It was recently proposed that authigenic carbonate (carbonate precipitated in situ at the sediment–water interface and/or within the sediment) played a major role in the carbon cycle throughout Earth’s history. The carbon isotopic composition of authigenic carbonates in ancient oceans have been assumed to be significantly lower than that of dissolved inorganic carbon (DIC) in seawater, as is observed in the modern oceans. However, the δ¹³C_carb values of authigenic carbonates in the past has not been analyzed in detail. Here, we report authigenic carbonates in the uppermost Guadalupian (Middle Permian) rocks at Chaotian, Sichuan, South China. Monocrystalline calcite crystals <20 mm long are common in the black mudstone/chert sequence that was deposited on a relatively deep anoxic slope/basin along the continental margin. Textures of the crystals indicate in situ precipitation on the seafloor and/or within the sediments. The calcite precipitation corresponds stratigraphically with denitrification and sulfate reduction in the anoxic deep-water mass, as indicated by previously reported nitrogen and sulfur isotope records, respectively. Relatively high δ¹³C_carb values of the authigenic carbonates (largely −1 ‰) compared with those of organic matter in the rocks (ca. −26 ‰) suggest that the main carbon source of the carbonates was DIC in the water column. The calcite crystals precipitated in an open system with respect to carbonate, possibly near the sediment–water interface rather than deep within the sediments. The δ¹³C_carb values of the carbonates were close to the δ¹³C_DIC value of seawater due to mixing of ¹³C-depleted remineralized organic carbon (that was released into the water column by the water-mass anaerobic respiration) with the large DIC pool in the oceans. Our results imply that δ¹³C_carb values of authigenic carbonates in the anoxic oceans might have been systematically different from the values in the oxic oceans in Earth’s history, controlled by the depth of the redoxcline in the water column and sediments. If our model is correct, authigenic carbonates with relatively high δ¹³C_carb values in the ancient anoxic oceans may have had a less substantial influence on the bulk δ¹³C_carb values in geologic records than has been previously suggested.

Background

Carbonate precipitation is a major process in the global carbon cycle and is thought to have been closely related to climate changes throughout Earth’s history (e.g., Walker et al. 1981; Kasting 1993; Ridgwell and Zeebe 2005). The precipitation of carbonate has also been an important factor in the carbon isotope mass balance in both ancient and modern oceans. In a general model of the global carbon cycle, the input of carbon to the oceans is balanced by its output via two major pathways, normal marine carbonate precipitation and organic carbon burial (Shackleton and Hall 1984). Biotic and/or abiotic carbonate precipitation of dissolved inorganic carbon (DIC) in the oceans exhibits little carbon isotope fractionation, whereas organic matter generated by biological carbon fixation is depleted in ¹³C relative to seawater DIC. The carbon isotopic composition of seawater DIC (δ¹³C_DIC), and consequently that of the carbonate mineral (δ¹³C_carb), is interpreted to represent the partitioning of carbon between the two major sinks. On the basis of a compilation of δ¹³C_carb values in geologic records from numerous previous studies, carbonate precipitation is suggested to have accounted for up to 80 % of total carbon removal from the ocean during most of Earth’s history (Hayes et al. 1999; Shields and Veizer 2002).

Recently, Schrag et al. (2013) introduced a new component into a model of the global carbon cycle in the past. They proposed that authigenic carbonate, inorganically precipitated in situ at the sediment–water interface and/or within the sediments associated with anaerobic respiration (sulfate and iron reduction), has played a major role in Earth’s history. They also suggested that the global authigenic carbonate sink represented a major component of the carbon isotope mass balance in the past, particularly in the anoxic oceans in the Precambrian and Paleozoic, although this sink may also be significant in the modern oxic oceans (Sun and Turchyn 2014). According to the model of Schrag et al. (2013), secular changes in the size of the global sink of ¹³C-depleted authigenic carbonate could change the δ¹³C_DIC value in the oceans without large fluctuations in atmospheric O₂ and CO₂ levels. They assumed that the δ¹³C_carb values of authigenic carbonate have been substantially lower than the δ¹³C_DIC value of seawater in the past, as observed in the modern oceans. However, the δ¹³C_carb values of authigenic carbonate throughout Earth’s history have yet to be studied in detail.

We analyzed the Guadalupian–Lopingian (Middle–Upper Permian) rocks in the Chaotian section in northern Sichuan, South China, to examine the environmental changes related to the end-Guadalupian extinction (Fig. 1; Isozaki et al. 2004). In our previous studies, we identified evidence for anoxia and for water-mass denitrification and sulfate reduction on the relatively deep slope/basin along the continental margin, prior to the extinction (Fig. 1c; Isozaki et al. 2008; Saitoh et al. 2013a, 2013b, 2014a). Here, we report on the occurrence of anomalous carbonate crystals in a characteristic interval of deep-water facies in the uppermost Guadalupian at Chaotian. To clarify the origin of these crystals, we describe the textures and analyze the inorganic carbon and oxygen isotopic compositions of the carbonates. We classify the Chaotian carbonates as authigenic carbonate and discuss their generation mechanisms. Moreover, based on our results, we argue the influence of authigenic carbonate on the bulk δ¹³C_carb values in geologic records, considering the systematic difference in δ¹³C_carb values between authigenic carbonates in the oxic and anoxic oceans throughout Earth’s history.

Fig. 1

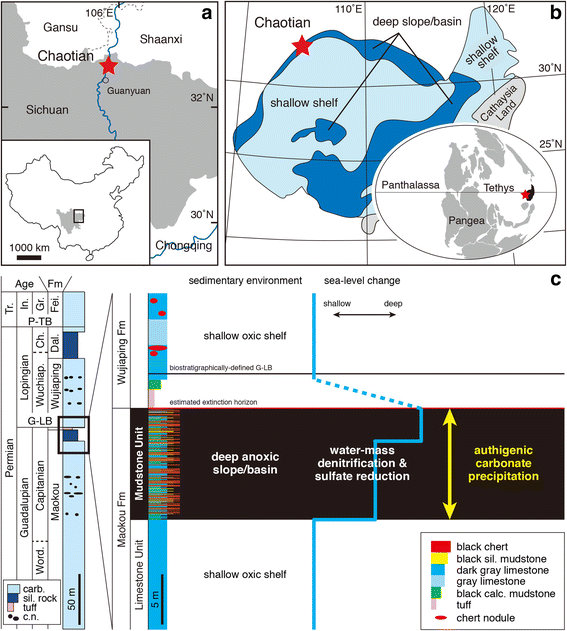

Stratigraphy of the Chaotian section. a Location of the Chaotian section. b Paleogeography of South China in the Capitanian (Late Guadalupian) modified from Wang and Jin (2000). The global paleogeography is shown in the inset. South China is shown in black, and a red star represents the location of Chaotian. c Stratigraphy across the Guadalupian–Lopingian (Middle–Upper Permian) boundary (G–LB) at Chaotian. The sedimentary environments and sea-level changes are modified from Saitoh et al. (2013a). carb. carbonates, calc. calcareous, sil. siliceous, c.n. chert nodule, Word. Wordian, Wuchiap. Wuchiapingian, Ch. Changhsingian, Dal. Dalong, Tr. Triassic, In. Induan, Gr. Griesbachian, Fei. Feixianguan, P–TB Permian–Triassic boundary

Methods

The Chaotian section is located nearly 20 km north of the city of Guangyuan in northern Sichuan, South China (32° 37′ N, 105° 51′ E; Fig. 1a; Isozaki et al. 2004). At Chaotian, Middle Permian to lowermost Triassic carbonates are continuously exposed along the bank of the Jialingjiang River in a narrow gorge called Mingyuexia (Fig. 1c). We mapped the eastern bank of the gorge, particularly focusing on the ~30 m thick Middle–Upper Permian rocks. Fresh rock samples were collected by field mapping and by deep drilling to a depth of >150 m. We described the textures of the rocks based on petrographic observations of polished slabs and thin sections. To determine the mineral compositions of the carbonate samples, X-ray diffraction (XRD) analyses were conducted on a new D8 Advance (Bruker) diffractometer equipped with a graphite monochromator at The University of Tokyo and operated at 40 kV and 40 mA using Cu–Kα radiation. Selected samples were powdered and mounted on plastic holders (ø = 25 mm, depth = 1 mm). The oriented samples were scanned over an interval of 5°–60° (2θ) at a scanning speed of 1.375°/min for every 0.03° (2θ) step. The divergence, scattering, and receiving slits were 0.6, 0.6, and 0.10 mm, respectively.

In addition to the lithofacies description and XRD analysis, the inorganic carbon and oxygen isotopic compositions of carbonate samples were analyzed at Tokyo Institute of Technology. Powdered samples were reacted with >100 % phosphoric acid at 80 °C for >12 h using a Thermoquest GasBench II. The extracted CO₂ was separated in a chromatography line with a helium flow, and the carbon and oxygen isotope ratios were measured with a DELTA Plus XL mass spectrometer, following a modified version of the method in Revesz and Landwehr (2002). The carbonate carbon and oxygen isotope compositions (δ¹³C_carb and δ¹⁸O_carb) are reported in per mil notation relative to Vienna Peedee Belemnite (‰ VPDB). The analytical reproducibility of the δ¹³C_carb and δ¹⁸O_carb values, determined by replicate analyses of the laboratory standard, were better than 0.3 and 0.4 ‰, respectively.

We conducted simple thermodynamic calculations to examine changes in chemical compositions (e.g., the saturation state of carbonate) in hypothetical Permian seawater associated with anaerobic respiration. We used a one-box model with the chemical compositions of the initial seawater based on values taken from previous studies (Tables 1 and 2). We assumed that the total Na concentration (∑Na = Na⁺ + NaCO₃ ⁻ + NaCl (aq) + NaHCO₃ (aq) + NaOH (aq)) and the total Cl concentration (∑Cl = Cl⁻ + CaCl⁺ + CaCl₂ (aq) + NaCl (aq) + HCl (aq)) in the initial seawater were 500 mmol/L. We also assumed that the total S concentration (∑S = SO₄ ^2– + HSO₄ ^– + CaSO₄ (aq) + H₂S + HS⁻ + S₂ ⁻) in the initial seawater was 20 mmol/L according to a recent reconstruction of the secular changes in seawater sulfate concentrations in the Phanerozoic based on sulfur isotope records (Algeo et al. 2015). The total Ca concentration (∑Ca = Ca²⁺ + CaCO₃ (aq) + CaCl⁺ + CaCl₂ (aq) + CaHCO₃ ⁺ + CaSO₄ (aq)) at the initial condition was assumed to be 15 mmol/L based on secular variations in the Phanerozoic reconstructed by Stanley and Hardie (1998). We assumed that the total DIC concentration (∑CO₂ = CO₂ (aq) + HCO₃ ^– + CO₃ ^2– + CaCO₃ (aq) + CaHCO₃ ⁺ + NaCO₃ ^– + NaHCO₃ (aq)) in the initial seawater was 2 mmol/kg according to an estimation by Arvidson et al. (2014). Although nitrate concentrations in the Permian oceans are poorly constrained, we assumed that the total N concentration (∑N = NO₃ ^– + HNO₃ (aq) + N₂ (aq)) in the initial seawater was 15 μmol/L based on the vertical NO₃ ⁻ profile in the modern oceans (Lam et al. 2009) and on the estimated water depth of the sedimentary environment of the Mudstone Unit at Chaotian (>150 m deep) (Saitoh et al. 2013a). The pH of the initial seawater was assumed to be 7.8 on the basis of the model results by Ridgwell (2005). The temperature of the seawater was assumed to be 15 °C. The δ¹³C_DIC value of the initial seawater was assumed to be +2 ‰ based on the previously reported δ¹³C_carb records in the Mudstone Unit (Saitoh et al. 2013b). Model input parameters are listed in Table 1, and the calculated chemical composition of the initial seawater is listed in Table 2. We calculated the saturation index of calcite (Ω) as follows:

Table 1 Model input parameters

Table 2 Chemical compositions of the initial seawater (SW_i) for the thermodynamic calculations

$$ \Omega =\left({\upgamma \mathrm{C}\mathrm{a}}^{2+} \bullet {\upgamma \mathrm{C}\mathrm{O}}_3^{2\hbox{--}}\right)/{K}_{\mathrm{sp}} $$

(1)

where γCa²⁺ and γCO₃ ^2– are the activities of Ca²⁺ and CO₃ ^2– in seawater, respectively, and K _sp is the solubility constant for calcite. The net reaction formulas for denitrification and sulfate reduction can be written as

$$ {\mathrm{N}\mathrm{O}}_3^{\hbox{--} }+5/4\left({\mathrm{CH}}_2\mathrm{O}\right)+{\mathrm{H}}^{+}\to 1/2{\mathrm{N}}_2+5/4{\mathrm{CO}}_2+7/4{\mathrm{H}}_2\mathrm{O} $$

(2)

$$ {\mathrm{SO}}_4^{2\hbox{--} }+2\left({\mathrm{CH}}_2\mathrm{O}\right)+2{\mathrm{H}}^{+}\to {\mathrm{H}}_2\mathrm{S}+2{\mathrm{CO}}_2+2{\mathrm{H}}_2\mathrm{O} $$

(3)

The composition of the seawater is modified as these reactions proceed, which were calculated using the REACT module in the computer code Geochemist’s Workbench (Bethke 2008). The reaction path mimics the incremental addition of organic matter (as the addition of C and H₂O because of the absence of thermodynamic data for CH₂O) into the seawater, in which the respiration reaction and the resulting compositional modification of the seawater is reevaluated at each step based on the reactions listed in Table 3. Minerals (e.g., carbonate and sulfide) were not allowed to precipitate in calculations of the calcite saturation state and alkalinity during the reaction process. In the calculations, we used a default thermodynamic dataset (thermo.com.V8.R6.full) (Bethke 2008) with the B-dot activity model (Helgeson 1969; Helgeson and Kirkham 1974), while Na⁺ was used to compensate for unbalanced charges in the initial seawater. We also calculated the δ¹³C_DIC value in the seawater at each step assuming that the δ¹³C value of the remineralized organic carbon, added to the box by the anaerobic respiration, was −26 ‰ based on the δ¹³C_org records in the Mudstone Unit (Saitoh et al. 2014a). In addition, we mixed the initial seawater (SW _i ) with the seawaters generated in the box by anaerobic respiration (SW₁, SW₂, SW₃), assuming mixing of the deep-water mass with the ambient seawater in the water column. The chemical compositions of SW₁, SW₂, and SW₃ are shown in Table 4. Mixing ratios of the generated seawaters to SW _i are between 0 and 0.5. We then calculated the δ¹³C_DIC value and calcite saturation index of the mixed waters.

Table 3 Reaction formulas for the thermodynamic calculations in association with sulfate reduction

Table 4 Chemical compositions of the seawaters used in the mixing calculations

Results

Geologic setting and stratigraphy

During the Permian, South China was located at low latitudes on the eastern side of Pangaea, where shallow-marine carbonates and terrigenous clastics with diverse fossils accumulated extensively on the continental shelves (Fig. 1b; Zhao et al. 1981; Scotese and Langford 1995; Jin et al. 1998). In northern Sichuan, along the northwestern edge of South China, carbonates and mudstones of relatively deep-water facies were thickly accumulated in a slope/basin environment (Fig. 1b; Wang and Jin 2000). At Chaotian, the Permo-Triassic rocks (>300 m thick in total) include the Guadalupian Maokou Formation, the Lopingian Wujiaping and Dalong formations, and the lowermost Triassic Feixianguan Formation, in ascending order (Fig. 1c; Isozaki et al. 2004, 2008; Saitoh et al. 2013a, 2013b, 2014b). The Maokou Formation, >150 m thick, consists mainly of massive dark gray bioclastic limestone with abundant shallow-marine fossils such as calcareous algae, brachiopods, and fusulines. The uppermost part (~11 m thick) of the Maokou Formation is composed of thinly bedded black mudstone and chert containing radiolarians and conodonts. The Wujiaping Formation, ~70 m thick, is composed mainly of massive dark gray bioclastic limestone containing shallow-marine fossils such as fusulines, calcareous algae, and brachiopods. The Dalong Formation, ~25 m thick, is composed mainly of thinly bedded black mudstone and siliceous mudstone with abundant radiolarians. The Feixianguan Formation, >30 m thick, is dominated by thinly bedded light gray micritic limestone containing few conodonts and ammonoids.

The Guadalupian–Lopingian boundary (G–LB) interval (~30 m thick) analyzed here consists of three stratigraphic units: (1) the early Capitanian (Late Guadalupian) Limestone Unit of the Maokou Formation, (2) the early–late Capitanian Mudstone Unit of the Maokou Formation, and (3) the lower part of the early Wuchiapingian (Early Lopingian) Wujiaping Formation, in ascending order (Fig. 1c; Isozaki et al. 2008; Saitoh et al. 2013a). The Limestone Unit of the Maokou Formation, ~11 m thick, is composed of bioclastic limestone with abundant shallow-marine fossils (e.g., calcareous algae, fusulines, and corals) deposited on a euphotic and oxic shelf. In contrast, the overlying Mudstone Unit, ~11 m thick, is composed mainly of black calcareous mudstone, black chert/siliceous mudstone, and dark gray carbonates containing abundant radiolarians, conodonts, and ammonoids. This unit was deposited on a relatively deep disphotic slope/basin under anoxic conditions. The lower Wujiaping Formation, ~11.5 m thick, is mainly bioclastic limestone with shallow-marine fossils including calcareous algae deposited on a euphotic and oxic shelf. A ~2 m thick tuffaceous Wangpo bed occurs at the base of the Wujiaping Formation. The end-Guadalupian extinction horizon is assigned to the top of the Mudstone Unit, while the biostratigraphically defined G–LB is placed at the base of the lower Wujiaping bioclastic limestones based on index fossils such as conodonts, fusulines, radiolarians, and ammonoids.

Petrology of the carbonate

Characteristic carbonate crystals occur frequently in the Mudstone Unit of the Maokou Formation at Chaotian (Figs. 1c and 2). Their occurrence is limited to the unit of deep-water facies, and no similar crystals are observed in the underlying and overlying shallow-marine bioclastic limestones. The carbonate crystals form several-centimeter-thick beds (5 cm on average) in multiple horizons in the Mudstone Unit (Fig. 2a, b). There are two major types of calcite crystal textures: “randomly oriented” and “bundled.” In the first texture, monocrystalline calcite crystals (~200–300 μm long) occur in a randomly oriented manner within a bed (Fig. 2c). The aspect ratios (the ratio of the lengths of the long and short axes of a crystal) of these “randomly oriented” calcite crystals are largely <5, with no remarkable size variation. Each calcite crystal is consistently elongate along the c-axis of the trigonal system (Fig. 2c–e), yet the c-axes themselves are randomly, and therefore isotropically, oriented in a bed. However, in certain beds, the long axes of the crystals are generally perpendicular to the bedding (Fig. 2f, g). The matrix of the crystal beds is composed of very fine clay-sized silicate particles, recognized as dark areas on photomicrographs. In the second crystal texture type, 0.2–20 mm long monocrystalline calcite crystals are bundled together within a bed (Fig. 2h–k). These “bundled” calcite crystals are consistently elongate along the c-axis, and their aspect ratios are largely >6. The bundled crystals mainly grow upward and are consistently perpendicular to the bedding. Certain crystals originate from brachiopod shells contained in the bed and grow both upward and downward. Inclusions of 1–2 μm in size are aligned along grain boundaries in the bundled monocrystalline crystals. The bundled calcite crystals generally do not coexist with the randomly oriented crystals, although in some beds, the randomly oriented crystals gradually transition upward to bundled crystals (Fig. 2a). A small number of a third type of calcite crystal also occurs in the Mudstone Unit (Fig. 2b, k). Calcite crystals <200 μm long are densely packed in certain beds. These “packed” calcite crystals are also elongate along the c-axis, though their aspect ratios are low (primarily <3). The bedding of the packed crystal beds is wavy, and few bioclasts are contained within the beds. The results of XRD analyses show that the Chaotian carbonates are composed solely of calcite (Fig. 3).

Fig. 2

Authigenic carbonates at Chaotian. a, b Drill core samples of a calcite crystal bed. In a, the lower and upper parts of the carbonate bed are composed of “randomly oriented” and “bundled” calcite crystals, respectively, and the bed is parallel to the overlying and underlying black mudstone beds. In b, “packed” calcite crystals form a wavy bed. c Photomicrograph of randomly oriented monocrystalline calcite crystals (crossed nicols). The horizontal direction corresponds to the bedding. Note that the interference colors of the elongate crystals (circled in red) are consistently high order (typical of calcite), whereas those of circular crystals (circled in yellow) are low order. d Enlarged photomicrograph of a crystal rotated 45° relative to the bedding (crossed nicols). e Normal velocity curve of an optically negative uniaxial calcite. The optical characteristics of monocrystalline crystals in C show that the crystals are elongate along the c-axis because the interference color of calcite is determined by the angle between the c-axis and the cross section. When the angle is low (e.g., the cross section represented by the red dashed line in e), the apparent shape of the crystals in thin section is elongate and the crystals’ interference colors are high order (the crystals circled in red in c). The opposite is true for high-angle cross sections (the yellow dashed line in e and the circular crystals circled in yellow in c). f, g Photomicrographs of the same sample from a calcite bed. The horizontal direction corresponds to the bedding. The crossed polarizer and analyzer in f and g are parallel/perpendicular to and rotated 45° relative to the bedding, respectively. Note the contrast in brightness between the photos. This difference indicates that the crystals are largely perpendicular to the bedding because calcite exhibits straight extinction. h–j Photomicrographs of the bundled calcites. h (opened nicols) and i (crossed nicols) show the same field of view. The horizontal direction corresponds to the bedding in each photo. Some bundled crystals grow from brachiopod shells (arrows) upward and partly downward. k Photomicrograph of packed calcite crystals (opened nicols). Up to 200 μm long calcite crystals are densely packed in the bed

Fig. 3

Representative XRD pattern of the authigenic carbonates at Chaotian. The pattern shows that the carbonate is composed solely of calcite (Cc)

Isotopic composition of the carbonate

Table 5 lists all the measured δ¹³C_carb and δ¹⁸O_carb values of the carbonates. Figure 4 shows stratigraphic profiles of the δ¹³C_carb values, and Fig. 5 shows a cross-plot of the δ¹³C_carb and δ¹⁸O_carb values of the analyzed samples. The δ¹³C_carb values of the randomly oriented calcite crystals range from −6.6 to +1.6 ‰, with an average value of approximately −0.8 ‰. The δ¹³C_carb values of the bundled calcite crystals range from −6.7 to +2.6 ‰, with an average value of approximately −0.6 ‰. The δ¹³C_carb values of the packed calcite crystals range from −11.7 to −5.1 ‰, with an average value of approximately −8.7 ‰. The δ¹⁸O_carb values of the randomly oriented calcite crystals range from −13.8 to −3.5 ‰, with an average value of approximately −6.7 ‰. The δ¹⁸O_carb values of the bundled calcite crystals range from −14.2 to −3.3 ‰, with an average value of approximately −7.1 ‰. The δ¹⁸O_carb values of the packed calcite crystals range from −10.4 to −4.9 ‰, with an average value of approximately −7.3 ‰. No linear correlation is observed between the δ¹³C_carb and δ¹⁸O_carb values of each calcite type, suggesting that any diagenetic overprinting is not significant (Fig. 5; Knauth and Kennedy 2009), although some of the δ¹⁸O_carb values are considerably low and imply some diagenetic isotopic alteration. As described above, the analyzed carbonate crystals are monocrystalline calcite elongate along the c-axis. This mineralogical characteristic indicates that the carbonate crystals were not affected by dissolution/remineralization during diagenesis (as discussed in detail in the next section) and that secondary isotopic alteration of the carbonates by these processes was not significant. In each type of carbonate, most of the δ¹³C_carb values are relatively high in the lower part and relatively low in the upper part of the Mudstone Unit.

Table 5 Results of carbon and oxygen isotope analyses

Fig. 4

Chemostratigraphic profile of the δ¹³C_carb values of the authigenic carbonates at Chaotian. The δ¹³C_carb values of the bioclastic limestone and black calcareous mudstone (open circles) were reported in Saitoh et al. (2013b). Except for some samples with lower values, the δ¹³C_carb values of the carbonates are similar to or slightly lower than those of the black mudstone. U.P. upper part

Fig. 5

Relationship between the δ¹⁸O_carb and δ¹³C_carb values of the authigenic carbonates at Chaotian

Thermodynamic and mixing calculations

Figure 6 shows calculated changes in the concentrations of inorganic carbon and sulfur chemical species, pH, carbonate alkalinity, saturation index of calcite (Ω), and the δ¹³C_DIC value in response to sulfate reduction in the hypothetical Permian seawater. The pH value decreases abruptly from the initial value 7.8 to 6.9 in the early stage of the reaction, in association with dissociation of hydrogen sulfide generated by sulfate reduction and an addition of CO₂ species derived from decomposition of organic matter. It then remains nearly consistent, with values around 6.8, due to carbonate buffering in the middle to late stages. Carbonate alkalinity monotonously increases in response to sulfate reduction. Calcite is supersaturated under the initial conditions. In the early stage, calcite becomes undersaturated mainly due to the pH decrease, despite carbonate alkalinity increasing. Calcite is again supersaturated as alkalinity increases substantially in the late stage of the reaction. The δ¹³C_DIC value in the seawater monotonously decreases to −25 ‰ in response to sulfate reduction. The results of this study are generally consistent with those of Meister (2013), who examined carbonate saturation states as a result of sulfate reduction. The pH, alkalinity, and Ω do not change significantly in response to denitrification, owing to the relatively low nitrate concentration (15 μmol/L) (results not shown).

Fig. 6

Changes in the concentrations of inorganic carbon and sulfur chemical species, pH, carbonate alkalinity, calcite saturation index, and the δ¹³C_DIC values in response to sulfate reduction in the hypothetical Permian seawater

We mixed the initial seawater (SW _i ) with the seawaters generated by sulfate reduction (SW₁, SW₂, SW₃) (Fig. 6). Figure 7 shows the relationships between the δ¹³C_DIC value and Ω of the mixed waters. When SW₁ is mixed with SW _i , the Ω value gradually and monotonously decreases from ~2.0 to 0.5 according to an increase of the mixing ratio of SW₁ to SW _i (from 0 to 0.5). When a small amount of SW₂ is mixed with SW _i , the mixed water becomes undersaturated with respect to calcite, possibly due to a pH decrease. The Ω value then gradually increases with increasing mixing ratios of SW₂ to SW _i but does not reach 1.0 even when the mixing ratio is 0.5. When SW₃ is mixed with SW _i , the Ω value also abruptly decreases to ~0.5 and then increases to >1.0 according to the increase in the mixing ratio. This is probably because of the high carbonate alkalinity of SW₃ (>30 meq/L) although the pH of the water is ~6.8. The Ω value reaches >3.0 when the mixing ratio is 0.5.

Fig. 7

Relationship between the δ¹³C_DIC value and calcite saturation index (Ω) of the waters generated by mixing of the initial seawater (SW _i ) with the seawaters in which sulfate reduction occurred (SW₁, SW₂, SW₃) (Fig. 6). The mixing ratios of SW _x to SW _i (x = 1, 2, 3) are 0 to 0.5, and the tick marks on each curve represent the ratios; 0.1, 0.2, 0.3, 0.4, and 0.5 from right to left on each curve. The arrows represent the main ranges of δ¹³C_carb values of randomly oriented and bundled calcites (right) and of packed calcites (left)

Discussion

Authigenic carbonate precipitation at Chaotian

The elongate morphology along the c-axis of the calcite crystals from Chaotian is an important feature that allows us to clarify their origin (Fig. 2c–k). This mineralogical characteristic suggests that the calcites were precipitated directly from oversaturated seawater, causing the calcite to grow along the c-axis. The Chaotian calcite crystals are neither bioclasts nor clastic grains, as it is unlikely that this remarkable mineralogical characteristic was generated by normal sedimentary processes. The possibility that the crystals were originally precipitated as other minerals, such as aragonite and gypsum, is also excluded because secondary calcite with a replacement origin usually exhibits a mosaic texture (e.g., Porter 2007), which is not the case for the monocrystalline calcites at Chaotian. Although apparently inconsistent with the general view that aragonite was preferentially precipitated (relative to calcite) in the Permian oceans (Sandberg 1983; Stanley and Hardie 1998), the calcite precipitation in the Chaotian section may have been caused by local “calcitic” conditions in the ocean of northwestern South China. No evidence for microbially induced precipitation of the crystals, such as “micropores” (Bosak et al. 2004), is recognized in the Chaotian carbonates.

Several lines of evidence suggest that the carbonate crystals at Chaotian were authigenically precipitated on the seafloor and/or within the soft sediments. The randomly oriented texture of the calcite crystals indicates that they were generated primarily on the seafloor and/or within the soft sediments below the seafloor in the early diagenetic stage (Fig. 2c). In either case, the crystals were generated in situ and are not allochthonous. If the crystals were originally precipitated in shallower environments and secondarily transported to the deeper slope/basin by gravity flow, the long axis of each crystal should be aligned parallel to the bedding, which clearly differs from the observed randomly oriented texture of the Chaotian crystals. Similarly, it is unlikely that the crystals were originally generated in the water column and subsequently sank to the slope/basin. The texture of the bundled crystals clearly indicates that they were generated in situ (Fig. 2h–j). Moreover, certain bundled crystals were generated from brachiopod shells in a bed and grew both upward and downward. This texture, particularly the downward growth, strongly suggests that the bundled crystals grew from the shells within the sediments. The packed calcite crystal beds contain few bioclasts, and it is unlikely that they are allochthonous carbonate debris flow deposits (Fig. 2k). The wavy bedding of the packed crystal beds may imply that they were generated below the seafloor, pushing the upper and lower sediments up and down, respectively, in an early diagenetic stage (Fig. 2b). The consistent c-axis elongation of all the Chaotian calcite crystals suggests that no solid obstacle prevented growth during crystallization; the crystals likely precipitated in a free space and/or soft sediments.

The occurrence of the carbonate crystals in the Mudstone Unit at Chaotian corresponds stratigraphically to anoxic conditions and water-mass anaerobic respiration in the unit (Fig. 1c). Saitoh et al. (2013a) suggested that the Mudstone Unit was deposited under anoxic conditions based on the absence of bioturbation, high total organic carbon contents (up to 16 %), and abundant pyrite framboids. An anoxic water mass likely developed in the deep part of the water column, although the surface ocean may have remained oxic. Moreover, Saitoh et al. (2014a) reported the nitrogen and sulfur isotope records of the Mudstone Unit. The substantially high δ¹⁵N values (up to +14 ‰) and consistently low δ³⁴S values (approximately −37 ‰) in the unit indicate denitrification and sulfate reduction, respectively, in the anoxic deep waters. The clear stratigraphic correspondence implies that the authigenic carbonates at Chaotian may have precipitated in association with the water-mass anaerobic respiration.

Carbon isotopic composition of the carbonate

The inorganic carbon isotopic compositions of the authigenic carbonates at Chaotian are useful for identifying the carbon source of the carbonates. Generally, there are three potential carbon sources for authigenic carbonate: (1) seawater DIC, (2) remineralized organic carbon, and (3) remineralized methane carbon. The δ¹³C_DIC value of the seawater is estimated to be approximately +2 ‰ based on the δ¹³C_carb records of black mudstone in the Mudstone Unit in which carbonates are exclusively fragmented bioclasts of shallow-marine fossils (Fig. 4; Saitoh et al. 2013b). The δ¹³C values of the organic carbon in the Mudstone Unit are approximately −26 ‰ (Saitoh et al. 2014a). The δ¹³C value of biogenic methane is generally extremely low (less than −40 ‰; Whiticar 1999). The δ¹³C_carb values of the authigenic carbonates at Chaotian were most likely determined by a degree of mixing of these three carbon sources. In the lower part of the Mudstone Unit, the δ¹³C_carb values of the randomly oriented and bundled calcite crystals are largely +1 to +2 ‰ and are almost the same as or slightly lower than those of the black mudstone (Fig. 4). These observations indicate that almost all the carbon in these calcites was derived from the seawater DIC. In the upper part of the Mudstone Unit, the δ¹³C_carb values of the randomly oriented and bundled calcites are largely about −1 ‰ (Figs. 4 and 5). These δ¹³C_carb values suggest that >80 % of the carbon in these calcites was also derived from the seawater DIC. The main carbon source of the randomly oriented and bundled calcites in the Mudstone Unit is likely the seawater DIC. Although the textures of the randomly oriented and bundled calcite crystals suggest that the crystals may have grown within the sediments, these carbonates precipitated primarily in an open system with respect to carbonate, likely on the seafloor and/or immediately below the sediment–water interface.

The δ¹³C_carb values of the packed calcites are clearly lower (ranging from −12 to −4 ‰) than those of the randomly oriented and bundled calcites (Figs. 4 and 5). The low δ¹³C_carb values are attributed to greater contributions of ¹³C-depleted remineralized carbon from decomposed organic matter and/or methane. The packed calcite crystals may have grown within the deep part of the sediments in a relatively closed system with respect to carbonate. The wavy bedding of the packed crystal beds suggests that the carbonates were generated within the sediments, which is consistent with their relatively low δ¹³C_carb values (Fig. 2b). In ancient and modern oceans, the δ¹³C_carb values of certain authigenic carbonates are relatively high due to methanogenesis in the sediments (e.g., Naehr et al. 2007; Heindel et al. 2015; Li et al. 2015). Microbial methanogenesis enriches the residual pore water within the sediments in ¹³C, representing another potential mechanism for the relatively high δ¹³C_carb values of the randomly oriented and bundled calcites at Chaotian. However, when authigenic carbonates are precipitated in sediments in which methanogenesis occurs, the δ¹³C_carb values vary widely (up to 80 ‰) due to methane production and its subsequent anaerobic oxidation, as is observed in modern oceans (e.g., Meister et al. 2007; Naehr et al. 2007). In marked contrast, the δ¹³C_carb values of the randomly oriented and bundled calcites at Chaotian largely fall within the relatively narrow range of −2 to +2 ‰ (Figs. 4 and 5). Only certain carbonates, including the packed calcites, exhibit relatively low δ¹³C_carb values (less than −4 ‰). It is therefore unlikely that the observed carbon isotopic variations at Chaotian were caused by methanogenesis in the sediments.

The water-mass anaerobic respiration in the Mudstone Unit at Chaotian, as suggested by the nitrogen and sulfur isotope records, implies that remineralized carbon with a relatively low δ¹³C value was released from suspended organic matter into the water column by the respiration. This ¹³C-depleted carbon would have markedly decreased the δ¹³C_DIC value in the deep-water mass in the water column (Fig. 6). However, the δ¹³C_carb records of the authigenic carbonates imply that the δ¹³C_DIC values in the deep-water mass at Chaotian were likely +1 to +2 ‰ in the lower part and approximately −1 ‰ in the upper part of the Mudstone Unit (Fig. 4). The vertical δ¹³C_DIC gradients in the water column between the surface oceans and the deep-water mass were likely <1 and <3 ‰ in the lower and upper parts of the unit, respectively. The upper part of the Mudstone Unit was probably deposited on the deeper slope/basin than the lower part of the unit due to a relative deepening (Fig. 1c; Saitoh et al. 2013a). The δ¹³C_DIC value of the anoxic deep water in the upper part of the Mudstone Unit was lower than the value in the lower part of the unit. The estimated vertical δ¹³C_DIC gradients in the water column at Chaotian (<3 ‰) are similar to those in the modern and ancient oceans in the Phanerozoic (e.g., Kroopnick 1985; Kennett and Stott 1991; Huber et al. 1995; D’Hondt 2005). Although the δ¹³C_DIC value in the deep water is lower than the value of the surface oceans as previously suggested at Chaotian (Saitoh et al. 2013b), our results demonstrate that the δ¹³C_DIC value in the deep-water mass was not decreased remarkably by the addition of remineralized carbon released from the suspended organic matter by the water-mass anaerobic respiration. The relatively high δ¹³C_carb values of the Chaotian authigenic carbonates suggest that the ¹³C-depleted carbon released from the organic matter into the water column was quickly mixed with and diluted by a large DIC pool in the ocean. The addition of the remineralized organic carbon with low δ¹³C values may have had only a small influence on the carbon isotopic composition of the large DIC pool.

The mixing of seawaters in the water column, suggested by the relatively high δ¹³C_carb values of the Chaotian carbonates, is in concordance with our calculated results (Figs. 6 and 7). The thermodynamic calculations show that, although a deep-water mass would have become undersaturated locally with respect to carbonate in the early stage of the reaction, the successive sulfate reduction elevates alkalinity and Ω values, driving carbonate precipitation (Fig. 6). Moreover, the mixing calculations demonstrate that all of the δ¹³C_carb values of the Chaotian carbonates can be explained by the mixing of the hypothetical Permian seawater (SW _i ) with the deep-water masses where sulfate reduction had occurred (SW₁ and SW₃) (Fig. 7). The deep-water mass undersaturated with carbonate locally generated by the water-mass sulfate reduction could be diluted by the ambient seawater that is supersaturated with respect to carbonate, stimulating the precipitation of the randomly oriented and bundled calcites at Chaotian. The mixing calculation results are also consistent with the greater contributions of ¹³C-depleted remineralized organic carbon to certain carbonates with relatively low δ¹³C_carb values, including the packed calcites, that were possibly generated within the sediments (Fig. 7). The relatively deep disphotic slope setting at Chaotian on the northwestern edge of South China at low latitudes might have been favorable to the seawater mixing by deep-water upwelling along the continental margin (Van der Kooij et al. 2010; Saitoh et al. 2013b). Moreover, Higgins et al. (2009) suggested that, in the ancient anoxic oceans, a gradient in carbonate saturation in the water column and sediments might have been small, thus promoting seafloor carbonate precipitation. The small Ω gradient in the Permian anoxic water column may also have contributed to the Chaotian carbonate precipitation near the sediment–water interface.

Authigenic carbonate precipitation in the anoxic oceans

Schrag et al. (2013) proposed that authigenic carbonate played a major role in the ancient carbon cycle. According to their model, authigenic carbonates are generally generated within the sediments by the decomposition of sedimentary organic matter via anaerobic respiration (such as sulfate and iron reduction) (e.g., Irwin et al. 1977; Meister et al. 2007; Dela Pierre et al. 2012). The anaerobic respiration in the sediments increases the alkalinity in the pore waters and remineralized organic carbon with low δ¹³C values is released, promoting the in situ carbonate precipitation. The waxing and waning of the global sink of ¹³C-depleted authigenic carbonate may have changed the δ¹³C_DIC value in the ancient oceans without large fluctuations in atmospheric O₂ and CO₂ levels. Schrag et al. (2013) suggested two mechanisms for δ¹³C_carb excursion in geologic records associated with authigenic carbonate precipitation. The change in δ¹³C_DIC values due to a change in the size of the global authigenic carbonate sink would be recorded as a δ¹³C_carb excursion in geologic records (“type 1 excursion” according to Macdonald et al. 2013). Moreover, a local addition of ¹³C-depleted authigenic carbonate to normal marine carbonate would have declined the bulk δ¹³C_carb value in rock samples (“type 2 excursion” according to Macdonald et al. 2013).

Schrag et al. (2013) assumed that, in general, the δ¹³C_carb values of authigenic carbonates have been substantially lower than the δ¹³C_DIC value of seawater in Earth’s history. However, our results from Chaotian imply that the δ¹³C_carb values of the authigenic carbonates in the oxic and anoxic oceans in the past may have been systematically different (Fig. 8). We propose that the depth of the redoxcline in the oceans has controlled the generation depth and δ¹³C_carb values of the authigenic carbonate. In the oxic oceans, anaerobic respiration is largely restricted within the sediments because the redoxcline is below the seafloor. The authigenic carbonate precipitation due to increased alkalinity caused by respiration is also restricted within the sediments, as is observed in the modern oceans. The upward diffusive transport of remineralized carbon released from sedimentary organic matter and the downward diffusive transport of seawater DIC within the sediments are low, and vertical mixing of these two inorganic carbon pools is suppressed. As a result, the δ¹³C_carb values of authigenic carbonate generated within the sediments are relatively low compared with that of the DIC in the water column. In marked contrast, the redoxcline in the anoxic oceans is generally within the water column and water-mass anaerobic respiration is enhanced. When the water-mass anaerobic respiration occurs, it is likely that remineralized carbon from suspended organic matter is released into the water column and mixed with the large oceanic DIC pool. The low δ¹³C values of remineralized organic carbon are likely diluted by the large DIC pool. In other words, the water-mass anaerobic respiration promotes the recycling of fixed organic carbon back to the large oceanic DIC pool. In the anoxic oceans, authigenic carbonate is mainly generated near the sediment–water interface rather than deep within the sediments (Higgins et al. 2009; Bergmann et al. 2013). As a result, the δ¹³C_carb values of the authigenic carbonate precipitated near the sediment–water interface are close to the δ¹³C_DIC value of seawater, although a minor amount of ¹³C-depleted carbonate may also have been generated within the sediments (Fig. 8).

Fig. 8

Schematic diagram representing differences in the form of authigenic carbonate precipitation between the oxic and anoxic oceans, proposed in this study. In the oxic oceans, the redoxcline is generally below the sediment–water interface and a small amount of authigenic carbonate is generated within the sediments. The δ¹³C_carb value of the carbonate is relatively low as a result of weak mixing between the remineralized carbon released from sedimentary organic matter and seawater DIC. In contrast, in the anoxic oceans, the redoxcline is above the sediment–water interface and large amounts of authigenic carbonate precipitate near the seafloor. The δ¹³C_carb value of the carbonate is relatively high due to the strong mixing of remineralized organic carbon and the large DIC pool in the water column. Ω the carbonate saturation index

Carbonates precipitated abundantly on the seafloor in the Archean (e.g., Sumner and Grotzinger 2000), while the occurrence of carbonate seafloor precipitates and cements declined during the Proterozoic (e.g., Grotzinger and James 2000), except for a brief revival in the late Neoproterozoic (e.g., Grotzinger and Knoll 1995; James et al. 2001; Pruss et al. 2008). In the Phanerozoic, carbonate seafloor precipitates are rare although they were widespread in the Paleozoic–Mesozoic transition interval where their precipitations are often associated with oceanic anoxia (e.g., Grotzinger and Knoll 1995; Woods et al. 1999, 2007, 2014; Heydari et al. 2003; Pruss et al. 2006; Baud et al. 2007). This secular trend in carbonate seafloor precipitation in Earth’s history suggests that the carbonate precipitation has been generally related to oceanic anoxia (e.g., Grotzinger and Knoll 1995; Higgins et al. 2009). However, other factors may have also influenced the authigenic carbonate precipitation because oceanic anoxic events (OAEs) in the Phanerozoic were not always associated with the widespread occurrence of authigenic carbonates (e.g., Bergmann et al. 2013). Nonetheless, our results from Chaotian imply that when the authigenic carbonates precipitate near the sediment–water interface in anoxic oceans, their δ¹³C_carb values are close to the δ¹³C_DIC value of seawater. The systematic δ¹³C_carb differences in authigenic carbonate due to its generation depth have also been recognized in some Phanerozoic geologic records; the δ¹³C_carb values of Lower Triassic carbonate cements precipitated on the anoxic seafloor in California are relatively high (+2.8 to +4.2 ‰) (Woods et al. 1999), whereas those of early diagenetic subseafloor carbonates around the Triassic–Jurassic boundary in British Columbia are relatively low (−7.6 to −3.7 ‰) (Greene et al. 2012). Certain authigenic carbonates have been generated by anaerobic oxidation of methane in the ancient and modern oceans (e.g., Ritger et al. 1987; Michaelis et al. 2002; Allison et al. 2008; Bayon et al. 2013), although a detailed discussion of methane-derived carbonates is beyond the scope of this study.

Our model for authigenic carbonate precipitation in the oxic and anoxic oceans does not exclude the significance of the authigenic carbonate sink over the course of Earth’s history (Schrag et al. 2013). However, when the δ¹³C_carb value of authigenic carbonate was relatively high and close to the δ¹³C_DIC value in the oceans, the influence of a local addition of authigenic carbonate to normal marine carbonate on the bulk δ¹³C_carb value, causing a type 2 excursion in geologic records (Macdonald et al. 2013), would have been small. In the Precambrian anoxic oceans, diagenetic carbonates with relatively high δ¹³C_carb values may have been extensively generated within the methane zone in the sediments (Li et al. 2015). Low sulfate and high DIC concentrations in the Precambrian oceans may also have suppressed ¹³C depletion in authigenic carbonates (Bristow and Grotzinger 2013). Our model implies that, in the ancient anoxic oceans, the type 2 excursions may be less significant in geologic records than previously suggested (Schrag et al. 2013). In other words, the type 2 excursions might be limited to geologic records from oxic intervals in Earth’s history because these excursions are caused by authigenic carbonates with substantially low δ¹³C_carb values. The existence of type 2 excursions, such as the Shuram anomaly in the Ediacaran (e.g., Grotzinger et al. 2011; Macdonald et al. 2013; Schrag et al. 2013), may therefore suggest oxic conditions in the oceans.

Conclusions

Authigenic carbonates are common in the anoxic interval of the upper Guadalupian Maokou Formation at Chaotian, Sichuan, China. Calcite crystals precipitated in situ mainly near the sediment–water interface, possibly associated with the water-mass anaerobic respiration. The relatively high δ¹³C_carb values of the carbonates (largely about −1 ‰) indicate that their main carbon source was seawater DIC. Our results suggest that the forms of authigenic carbonate precipitation in the oxic and anoxic oceans in the past may have been substantially different. In the anoxic oceans, authigenic carbonates likely precipitated near the seafloor with δ¹³C_carb values close to that of seawater DIC. The influence of authigenic carbonate on the bulk δ¹³C_carb values in geologic records from ancient anoxic oceans might have been overestimated in previous studies. A large negative δ¹³C_carb excursion caused by the local addition of ¹³C-depleted authigenic carbonate to normal marine carbonate (type 2 excursion in Macdonald et al. 2013) may have been limited to oxic intervals in Earth’s history and thus might be a useful indicator of the oxic conditions in the ancient oceans.
