Can clay minerals account for the behavior of non-asperity on the subducting plate interface?
Progress in Earth and Planetary Science volume 2, Article number: 30 (2015)

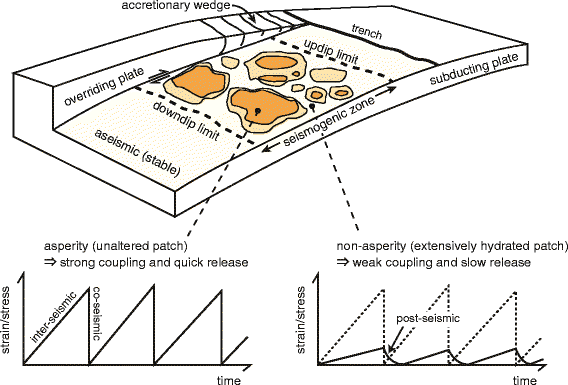

Seismicity along the subducting plate interface shows regional variation, which has been explained by the seismic asperity model where large earthquakes occur at strongly coupled patches that are surrounded by weakly coupled regions. This suggests that the subduction plate interface is heterogeneous in terms of frictional properties; however, the mechanism producing the difference between strong and weak couplings remains poorly understood. Here, we propose that the heterogeneity of the fluid pathway and of the spatial distribution of clay minerals plays a key role in the formation of non-asperity at the subducting plate interface. We use laboratory measurements of frictional properties to show that clay minerals on a simulated fault interface are characterized by weak and slow recovery, whereas other materials such as quartz show relatively quick recovery and thereby strong coupling on the fault surface. Aqueous fluids change the mineralogy at the plate interface by producing clay minerals due to hydrate reactions, suggesting that the hydrated weakly coupled regions act as a non-asperity and form a barrier to rupture propagation along the plate boundary at the depths of seismogenic zone.
A plate-boundary earthquake at a subduction zone represents the slip between the subducting and overriding plates, and therefore, differences in the level of seismicity can be attributed to differences in the strength of mechanical coupling at the subducting plate interface (Kanamori 1986). Strongly coupled regions are termed asperity, which ultimately released seismic energy through large megathrust earthquakes due to slip concentration, whereas the weakly coupled regions are known as non-asperity and show slow and continuous slip (e.g., Lay et al. 1981; Beroza and Ide 2011). This asperity model suggests that the subduction plate interface is heterogeneous in terms of the strength of mechanical coupling; however, the mechanism that generates the spatial difference between strong and weak couplings remains unclear.
Laboratory experiments have shown that the frictional strength of fault materials under stationary contact increases with holding time, and this healing process is likely to make an important contribution to the recovery of fault strength during the period between successive seismic cycles (e.g., Marone 1998; Beeler et al. 2001). This recovery process could be different in fault materials, such as reported for the San Andreas Fault, which shows weak or no frictional healing due to the presence of clay minerals, resulting in the mechanical weakness of this active tectonic fault (Carpenter et al. 2011). The alteration of materials at the plate interface by aqueous fluids could form clay minerals, which could in turn contribute to a weakening of the mechanical coupling at the subducting plate interface. To test this hypothesis, we systematically measured the frictional healing of clay minerals in the presence of water, on which basis we examine whether the frictional properties of clays can account for the weakly coupled regions at the subducting plate interface.
Chlorite and saponite are common alternation products of basaltic rocks (e.g., Kameda et al. 2011), and illite is frequently recognized in the pelagic sediments that cover oceanic crust (e.g., Underwood 2007). We therefore used these clay minerals for frictional experiments to examine time-dependent frictional healing. Rochester shale was used as the illite-rich simulated gouge. This shale contains 60 % illite, 9 % kaolinite, 20 % quartz, and minor plagioclase (Saffer and Marone 2003). The saponite and chlorite samples are monomineralic. The saponite samples were synthesized by Kunimine Industries, Japan, and the chlorite samples were collected as clinochlore megacryst from the Korshunovskoe mine, Russia. We also tested quartz powder for comparison with the clay minerals. Illite and chlorite were prepared by crushing in a disk mill to produce powders with grain size <75 μm. These powders, along with the original powders of saponite and quartz with grain <50 μm, were used for the friction experiments. These samples were kept in a desiccator at 70 °C for 48 h before experiments. Each of the powdered materials (2.0–2.5 g) was sandwiched between blocks; the thickness of the simulated gouge layer was approximately 0.5 mm in each experiment.
We conducted a series of slide-hold-slide frictional experiments using a biaxial frictional testing machine at Hiroshima University, Japan. The powdered samples were placed on the simulated fault surface between gabbro blocks, and two side blocks and central block were placed together to produce a double-direct shear configuration (Additional file 1: Figure S1). A normal stress of 15 MPa was applied via a hydraulic press on the side blocks, and then shear stress was applied by advancing the central block downward at a constant velocity of 3 μm/s. Similar experiments were reported for serpentine gouge in Katayama et al. (2013). The electromagnetic transducer monitored axial displacement, which was corrected by the machine stiffness (4.4 × 108 N/m). The total axial displacement was limited to 20 mm in our assembly (Additional file 1: Figure S1), and we usually started the slide-hold-slide test after 10 mm displacement achieving the steady-state friction. Mechanical data were recorded by data logger (KYOWA EDX-100A) with a sampling rate of 10 Hz. The friction coefficient was calculated from the shear stress divided by the normal stress, assuming zero cohesion. In addition to dry conditions, we performed frictional experiments under wet environments using a water tank to assess the effect of water on frictional healing, where water chemistry was controlled by pure (distilled) water or 0.5 mol/L NaCl solution.
In the experiments, the axial loading was interrupted for periods ranging from 10 to 3000 s after steady-state friction, and we measured the difference between the steady-state friction and the peak friction after each holding period. Friction under stationary contact is known to increase with the logarithm of time as follows: μ(t) = μ 0 + b log(t), where μ 0 is the friction at the beginning of stationary contact, t is holding time, and b is the healing rate (Marone 1998).

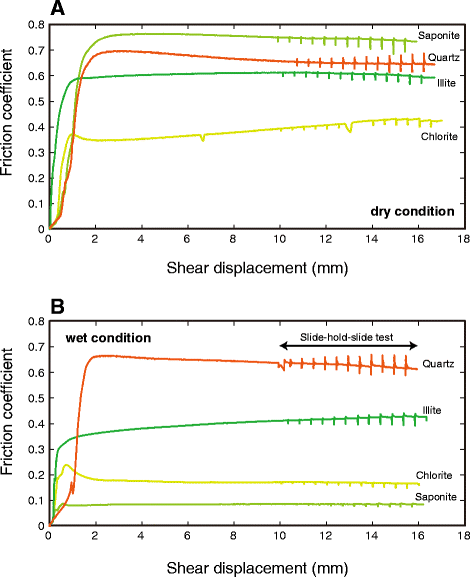

The experimental results show that the friction coefficient increases with displacement and attains a steady-state level after few millimeters of displacement (Fig. 1). The steady-state friction coefficient shows systematic differences between the studied minerals: 0.65 for quartz, 0.61 for illite, 0.75 for saponite, and 0.39 for chlorite under dry conditions and 0.64 for quartz, 0.41 for illite, 0.09 for saponite, and 0.18 for chlorite under wet conditions (Table 1). The substantial reduction in the friction coefficient of clay minerals in the presence of water is consistent with the results of previous experiments reported by Morrow et al. (2000), in which adsorbed or interlayer water strongly influences the frictional strength of phyllosilicates. Moreover, a first principle calculation suggests that adsorbed water molecules on clay minerals prevents direct contact between mineral surfaces, which results in a substantial reduction in friction coefficient (Sakuma 2013). Water chemistry has only a minor influence on the frictional properties (Table 1), and therefore, the discussion below focuses mainly on the results for wet experiments using pure water.
After achieving steady-state friction, the axial loading was stopped in each case and held for a period to analyze the effect of frictional healing. Figure 2 shows an example of slide-hold-slide test for illite under wet condition. Friction coefficient decays from the steady-state level during a holding period due to stress relaxation. A peak friction appears when the piston was advanced, and then, it decays to the steady-state friction. The frictional healing, ∆μ, is calculated as the difference between the peak and steady-state frictions after each holding period. The results for wet conditions show that the frictional healing of clay minerals increases slightly with holding time (Fig. 3), but the rate of strength recovery is substantially lower than that of quartz at same conditions. Figure 4 shows the experimental results for frictional healing, and the results were summarized in Table 1. The quartz gouge shows a high healing rate, b = 0.014, which means a relatively quick recovery of fault strength, whereas clay minerals show low healing rate, b = 0.001–0.004, suggesting a slow recovery of fault strength. Illite shows a slightly higher healing rate than the other clay minerals probably because of the mixture of quartz in the Rochester shale. Under dry conditions, the healing rate is slightly suppressed, but the clay minerals show a significantly slower strength recovery than quartz, similar to the pattern observed for the wet experiments.
After each holding period, the peak friction decayed to the steady-state friction when the axial piston was advanced. Quartz displays oscillatory and transient variation in frictional behavior at times after the peak friction has been attained, whereas the experiments on clay minerals show a continuous decay from peak friction to the steady-state value (Fig. 3). The transient distance from the peak to steady-state friction seems to be systematically different between quartz and clay minerals, in which clay minerals tend to exhibit a large slip-weakening distance.
Mechanism of frictional healing of clay minerals
Our experiments indicate that frictional healing varies with mineralogy in the simulated faults. In particular, clay minerals are characterized by a low healing rate. Similar weak healing has been reported in clay-rich natural fault materials from the San Andreas Fault (Carpenter et al. 2011) and from the Zuccale Fault in central Italy (Tesei et al. 2012). Serpentines, the products of mantle hydration, have also been reported to exhibit a low healing rate and large slip-weakening distance (Katayama et al. 2013).
The time-dependent healing of frictional strength is thought to result from changes in the contact area along a fault surface (Dietrich 1972). At the microscopic scale, it is the normal stress applied at a contacting asperity that represents the actual contact area on a fault surface, meaning that the local stress can be significantly higher than the macroscopic stress, resulting in creep at the point contact. The area of indentation has been observed to increase with the logarithm of time (e.g., Dieterich and Conrad 1984), and the evolution of contacting asperities has been directly observed in optically transparent materials (Dietrich and Kilgore 1994). This indicates that the observed difference in healing between quartz and clay minerals could be caused by the creep strength of clay minerals, in which clay minerals are characterized by a markedly small yielding stress, several orders of magnitude smaller than that of quartz (Shen et al. 2004). Although the weak creep strength of clay minerals means that their real contact area can easily increase over time, the shear stress needed to break the contact could be much smaller than that for quartz. The rapid growth of creeping asperities in clay-rich faults causes a near saturation in contact surface area after only a short period of time. This mechanism could explain the low healing rate in the simulated clay faults.
The healing tests of clay minerals are also characterized by the relatively large transient distance after peak to steady-state friction. The sliding of fault surface after stational holding results in the asperity contact of prior state to be removed, and the new population of contact reaches to a steady state after slip over a characteristic distance. This suggests that the transient distance from peak to steady-state frictions relates to the actual contact dimension (e.g., Scholz 2002). The relatively large slip-weakening distance found in clay minerals is therefore attributed to the extended real contact area.
As temperature increases along subduction, healing processes might be enhanced by thermally activated creeping, particularly under hydrothermal conditions. Nakatani and Scholz (2004) conducted experiments under hydrothermal conditions to examine the frictional healing of quartz. They showed that the frictional healing under hydrothermal conditions is controlled mainly by fluid-assisted solution transfer processes. Although the pressure solution creep is unlikely to operate in our room temperature experiments, it might be important for healing processes in natural fault zones.
Implications for the subducting plate interface
Clay minerals are frequently observed in the sediment layers of incoming plates into subduction zones and are commonly recognized in drill cores recovered from accretionary prisms (e.g., Underwood 2007). In the shallow part of a subduction zone, the plate boundary is poorly coupled due to the presence of unconsolidated sediments, meaning that earthquakes are rare in these regions. However, slip along the subducting plate can occasionally occur at close to the trench, which generates tsunami by seafloor displacement (e.g., Satake and Tanioka 1999). Although regions predominated by clay minerals cannot accumulate a large elastic strain, the frictional weakness of such layers might enhance the rupture propagation at shallow parts of subduction zones. In fact, the samples recovered from the Japan trench show a dynamic weakening during high-velocity rotary experiments, which can explain shallow slip and heat anomalies in the slip zone during the Tohoku-oki earthquake (Ujiie et al. 2013).
Along subduction zones, the layer of clay minerals becomes dehydrated as temperature increases (e.g., Moore and Vrolijk 1992), and this layer is also trapped by hanging-wall crust due to tectonic erosion (e.g., Hilde 1983). Seismic reflection surveys show that the decollement step-down to the top of the subducting oceanic basement in the Nankai accretionary wedge due to underplating of the sediment layer (Park et al. 2002). Consequently, it is possible that the hydration state of relatively deep plate boundaries and seismogenic zones is controlled mainly by fluid supply and migration from the subducting oceanic crust (e.g., Hyndman and Peacock 2003). Seismic velocities and attenuation beneath the forearc regions of northeast Japan indicate a highly heterogeneous fluid distribution along the plate boundary that may be spatially correlated with the occurrence of repeated large earthquakes (Zhao 2015).
Our experimental results indicated that the recovery of fault strength differs according to materials, in which clay minerals show weak and slow recovery. In the regions of extensively hydrated plate boundaries that produce abundant clay minerals such as chlorite, a large elastic strain is difficult to accumulate and does not generate large thrust earthquakes, whereas the regions escaped from the hydration reactions could result in a strong mechanical coupling that acts as a seismic asperity. The descending plate undergoes changes in mineralogy at certain pressures and temperatures; however, these mineralogical transformations cannot explain the lateral heterogeneity in coupling along the plate interface. The subduction of seamounts may explain such variations in coupling (Cloos 1992; Scholz and Small 1997). However, Wang and Bilek (2011) suggested that subducted seamounts are mostly aseismic and produce numerous small earthquakes, indicating that the regions containing subducted seamounts are unlikely to be locked; instead, they release strain energy by slip on complex fracture systems. This behavior is probably due to the relatively high permeability around seamounts inferred from heat flow data (Hutnak et al. 2008). Audet and Schwartz (2013) proposed that the spatial distribution of fluid supply is a consequence of the complex hydrological structure of oceanic crust and is related to the geometry of palaeospreading ridges. Irregularities in seafloor topography could also contribute to heterogeneity in fluid pathways along subduction interfaces. Hydration reactions result in a progressive change in mineralogy at the plate interface. The frictional properties of a fault zone depend on the amount of clay minerals, as friction coefficient decreases with increasing clay content (Tembe et al. 2010). Consequently, the boundary between extensively hydrated and unaltered regions may display a transitional behavior. Moreover, in addition to mineralogical variations, pore fluid pressure plays a key role in controlling the occurrence of slip at the subducting plate interface (e.g., Seno 2003).

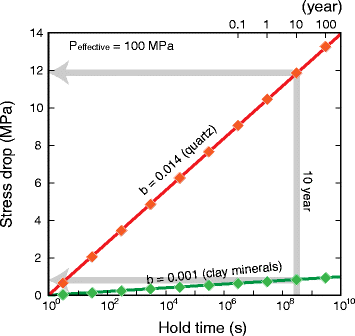

We calculated the stress accumulation during an inter-seismic period using the experimentally determined healing rates. The results indicate 11.9 MPa for an altered patch and 0.8 MPa for a clay-rich patch, assuming an effective normal stress of 100 MPa and an inter-seismic time interval of 10 years (Fig. 5). Note that the seismologically determined stress drop is the average value for the entire slip patch and is not directly linked to our calculation. In any case, these results indicate that the stress accumulation during inter-seismic periods can differ substantially between unaltered and hydrated regions. When dynamic rupture occurs in unhydrated regions, the surrounding hydrated area also begins to slip; however, the rate of moment release is relatively low because of the large transient distance in clay-rich faults, which may control the rate of post-seismic slip after the main shock (Fig. 6). Global positioning system data have shown that the accumulated fault slip due to post-seismic movement is comparable to that released by the co-seismic event, but the rate of moment release is much lower than that of co-seismic rupture (Heki et al. 1997). The slow propagation of post-seismic events is simulated by fault properties with a large slip-weakening distance (Ariyoshi et al. 2007), which is consistent with the frictional properties of clay-rich faults.
In this study, we focused mainly on the recovery process of fault strength; however, the velocity dependence of friction is another important parameter that controls whether a fault has potential for seismic or aseismic slip. Velocity-weakening behavior is known to accelerate slip propagation that is potentially unstable and may cause a rupture to propagate, as opposed to the self-stabilizing behavior of velocity-strengthening materials (e.g., Scholz 1998). Most clay minerals exhibit velocity-strengthening behavior at room temperature (Saffer and Marone 2003; Ikari et al. 2007; Moore and Lockner 2007). However, complex behavior of velocity dependence of clay minerals has been reported at elevated temperatures, in which velocity-weakening behavior is found at intermediate temperatures for illite-rich gouges, whereas velocity-strengthening behavior occurs predominantly at lower and higher temperatures (den Hartog et al. 2012). Further experiments are needed to test whether such behaviors are common in other clay minerals.
In our experiments, the fault strength showed a strong dependence on mineralogy, suggesting the importance of mineralogy in controlling mechanical coupling of the subducting plate interface. Since phase transformations cannot explain the spatial distribution of earthquakes along subduction zone, fluid supply and the products of hydration reactions could be key factors controlling regional variations in seismic coupling. This possibility is supported by the observed patterns of seismic velocities and attenuation in subduction zones, which indicate a highly heterogeneous fluid distribution along the plate boundary (Zhao 2015). Recent advances in seismic imaging allow the detailed structure and fluid pressure along the subduction zone to be monitored (Kodaira et al. 2004; Tsuji et al. 2008), and such monitoring of fluid pressure and movement may further help to determine the strength of coupling at the subducting plate interface.
