Water-melt interaction in hydrous magmatic systems at high temperature and pressure

Abstract

Experimental data on the structure and properties of melts and fluids relevant to water-melt interaction in hydrous magmatic systems in the Earth's interior have been reviewed. Complex relationships between water solubility in melts and their bulk composition [Al/Si-ratio, metal oxide/(Al + Si) and electron properties of metal cations] explain why water solubility in felsic magmas such as those of rhyolite and andesite composition is significantly greater than the water solubility in basalt melts. The silicate solubility in aqueous fluid is also significantly dependent on composition with metal oxide/(Al + Si) and electron properties of the metal cations, the dominant variables. Hydrogen bonding is not important in hydrous fluids and melts at temperatures above 500°C to 550°C and does not, therefore, play a role in hydrous magmatic systems. The properties of hydrous melts and aqueous solutions are governed by how the silicate speciation (Qn species, where n is the number of bridging oxygen in an individual species) varies with bulk composition, silicate composition, temperature, and pressure. The reactions that describe the interactions are similar in melts, fluids, and supercritical fluids. The degree of melt polymerization caused by dissolved water varies with melt composition and total water content. Silicate- and alkali-rich felsic magmatic melts are more sensitive to water content than more mafic magmas. Transport and configurational properties of hydrous magmatic melts can be modeled with the aid of the Qn speciation variations. Liquidus and melting phase relations of hydrous systems also can be described in such terms, as can minor and trace element partition coefficients. Stable isotope fractionation (e.g., D/H) can also be rationalized in this manner. Critical to these latter observations is the high silicate concentration in aqueous fluids. These components can enhance solubility of minor and trace elements by orders of magnitude and change the speciation of H and D complexes so that their fractionation factors change quite significantly. Data from pure silicate-H2O systems cannot be employed for these purposes.

Review

Introduction

The principal mass and energy transport agents in the Earth are magmatic melts and water-rich fluids. Their transport properties are sensitive to their water and silicate content. Experimental characterization of solubility and solution mechanisms of water and silicate components is, therefore, central to our understanding of magmatic and metasomatic processes in the Earth’s interior.

Properties of magmatic melts are sensitive to their water content as first noted by Spallanzani (1798). Perhaps the most well-known among these effects is a several hundred degree centigrade temperature depression at high pressure of solidii and liquidii of silicate phase assemblages (including natural mineral assemblages) (e.g., Kushiro et al. 1968a, b; Grove et al. 2012). Liquidus phase relations (including partial melt compositions), transport, and volume properties of hydrous melts also vary in important ways with variations in water content (Kushiro 1972; Richet et al. 1996; Ochs and Lange 1999; Grove et al. 2003).

Aqueous solutions in the Earth's interior are efficient solvents of oxide components (Zhang and Frantz 2000; Manning 2004). Several mol% of silicate components dissolve under conditions corresponding to those of the deep continental crust and upper mantle. In the upper mantle, there can be complete miscibility between H2O and silicate (Bureau and Keppler 1999; Mibe et al. 2007). Major element solutes in aqueous fluids (silicate components) can also enhance the solubility of other components by up to orders of magnitude (Pascal and Anderson 1989; Antignano and Manning 2008; Mysen 2012a, b; Ayers and Watson 1993). Transport, volume, and mixing properties of silicate-rich aqueous fluids differ in important ways from those of pure H2O (Audetat and Keppler 2004; Hunt and Manning 2012; Hack and Thompson 2012; Foustoukos and Mysen 2013).

The property behavior of melts and fluids in hydrous silicate systems at the high temperatures and pressures can be traced to the relationships between fluid and melt structure and their properties. Most experimental and theoretical studies have focused on the behavior in chemically simpler systems in order to isolate the effects of individual intensive and extensive variables. With the information from chemically simpler systems, we can model melt and fluid behavior in systems relevant to natural processes. In this review, these relationships will be presented and their applications to natural systems will be discussed.

Water and properties of hydrous magma

Melting phase relations

The solidus temperature depression of mantle peridotite caused by H2O ranges between approximately 1200°C and approximately 1600°C at the upper mantle pressures (Figure 1A). The water solubility in partial melts from a peridotite parent in this pressure range is 20 to 40 wt% (Hamilton et al. 1964; Holloway and Jakobsson 1986). Furthermore, the extent of the solidus temperature depression depends on silicate composition and increases, for example, with increasing silica content (Figure 1B). In natural systems, this effect helps explain why the liquidus depression caused by H2O of a felsic composition (e.g., granitic composition) is greater than that of peridotite (Figure 1A). An implication of these observations is that in a subduction zone water has a greater effect on solidus temperature of descending crustal material near the slab/peridotite interface than in an overlying peridotite wedge or in an underlying depleted oceanic lithosphere (200°C to 300°C temperature difference; Kushiro et al. 1968b; Grove et al. 2012).

Figure 1
figure 1

Pressure/temperature trajectories. (A) Granite with and without H2O (granite-H2O and anhydrous granite) and peridotite with and without H2O (peridotite-H2O and anhydrous peridotite) solidi (Stern et al. 1975; Kushiro et al. 1968a ) and (B) silica polymorphs and enstatite with and without H2O (cristobalite-H2O, enstatite-H2O, anhydrous cristobalite, and anhydrous enstatite) (Boyd et al. 1964; Kushiro et al. 1968a; Jackson 1976; Boettcher 1984).

The composition of a melt in equilibrium with silicate mineral assemblages at high pressure is affected by H2O (Figure 2). For example, at 2 to 3 GPa, in equilibrium with enstatite + diopside + forsterite in the CaMg2O6-Mg2SiO4-SiO2 system, the melt is quartz normative in the presence of H2O and olivine normative under volatile-free conditions (Kushiro 1969). In natural peridotite systems, this difference persists so that partial melting of hydrous peridotite at least to 2 GPa is quartz normative (andesite or quartz tholeiite), whereas anhydrous peridotite melting under these conditions results in olivine tholeliite (Kushiro 1990). The silica content of partial melts is not, however, the only compositional variable affected by H2O at high pressure and temperature. This is evident in the system NaAlSi3O8-KAlSi3O8-SiO2 system (Figure 2B). Here, increasing water pressure (which means increasing concentration of H2O in the melt) leads to a rapid expansion of the quartz liquidus volume relative to that of feldspar components. This evolution means increasing alumina/silica ratio in hydrous melts derived from partial melting of pelagic sediments compared with melting products of hydrous oceanic basaltic crust in the upper portion of subducting plates the higher the water content (see, for example, Poli and Schmidt 2002).

Figure 2
figure 2

Liquidus phase relations in hydrous and anhydrous silicate and aluminosilicate systems. (A) Pyroxene/olivine liquidus boundary at 2 GPa in the Mg2SiO4-CaMgSi2O6-SiO2 system with and without H2O from Kushiro (1969). (B) Evolution of feldspar/quartz liquidus boundaries in the NaAlSi3O8-KalSi3O8-SiO2 system with increasing H2O pressure compared with anhydrous 0.1 MPa liquidus boundaries H2O (data from Tuttle and Bowen 1958; Luth et al. 1964).

Properties of hydrous silicate melts

Transport properties of silicate melts (e.g., viscosity, diffusion, conductivity) are quite sensitive to their water content. For example, melt viscosity decreases by several orders of magnitude by a solution of as little as 1 wt% H2O (Richet et al. 1996). This effect, however, is strongly non-linear and diminishes with increasing water content (Figure 3A). Furthermore, deviation of melt viscosity from Ahrrenian behavior is increasingly pronounced the higher the water content (Figure 3B). Water effects on viscosity are more pronounced the more felsic the melt. Water effects also are more pronounced the higher the alkali/alkaline earth ratio. This means that the viscosity of rhyolitic melts is more sensitive to water content than basalt and that alkali basalt is more sensitive to water content than olivine tholeiite.

Figure 3
figure 3

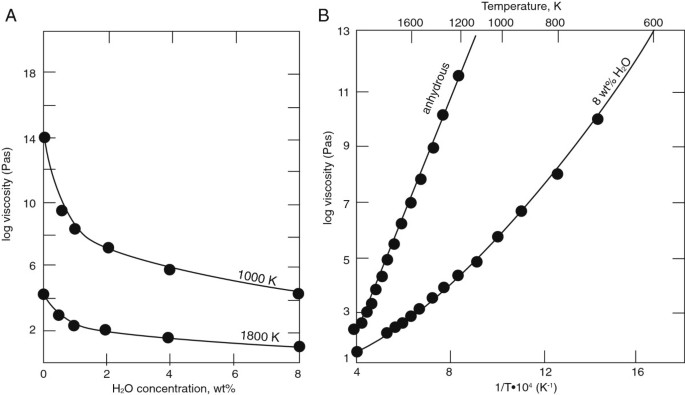

Viscosity of silicate melts as a function of their total H 2 O content and temperature. (A) Hydrous andesite melt viscosity from Richet et al. (1996) recorded at ambient pressure by using a sample synthesized at 400 MPa and 1400˚C before viscosity measurement at ambient pressure and temperatures indicated. (B) Temperature-dependence of melt viscosity of granite composition with (8 wt%) and without H2O as indicated on curves from Hess and Dingwell (1996).

Most other physical properties of silicate melts show analogous relations with water content and silicate composition. Examples include cation and water diffusion in melts (Watson 1994; Behrens and Nowak 1997), effects of water on glass transition temperature (Richet et al. 1996, 1997; Whittington et al. 2000), and electrical conductivity (e.g., Takata et al. 1981; Satherley and Smedley 1985). These effects exist because of the functional relationships that exist between these transport properties (Nernst 1888; Einstein 1905; Eyring 1935a, b).

Water solubility in magmatic melts

In order to understand better the solubility behavior of H2O in silicate melts and the silicate solubility in aqueous solutions, examination of schematic phase relations in silicate-H2O systems can be helpful (Figure 4). There exists a range of pressures and temperatures where H2O-saturated silicate melts and silicate-saturated aqueous fluids coexist (‘melt + fluid’ field in Figure 4). This boundary defines the water solubility in the silicate melts. The boundary between ‘aqueous fluid’ and ‘silicate melt + aqueous fluid’ describes the silicate solubility in aqueous fluid. At temperatures above the solvus (above the critical point (c.p.) in Figure 4), there is complete miscibility between silicate melt and aqueous fluid. The temperature/pressure coordinates of the critical point ranges from about 1 GPa near 1,200°C for granitic compositions to nearly 4 GPa near 1,200°C for peridotite-H2O (Bureau and Keppler 1999; Mibe et al. 2007). The slope of the phase boundaries at lower temperatures depends on pressure and temperature itself (Holtz et al. 1995).

Figure 4
figure 4

Schematic and simplified phase relations in silicate-H 2 O systems at two different pressures, P 1 and P 2 , where P 1 > P 2 .

It follows that water solubility in magmatic melts is temperature, pressure, and silicate composition dependent. The water solubility in melts in the simplest of silicate systems, SiO2-H2O, at low pressures is a linear function of the square root of water fugacity, f H 2 O (Moulson and Roberts 1961; see Figure 5A). However, with increasing pressure (and f H 2 O ), the solubility is a non-linear function of f H 2 O (Figure 5) and where the pressure dependence itself is pressure dependent (Kennedy et al. 1962; see Figure 5B).

Figure 5
figure 5

H 2 O solubility in silicate melts at low and high pressures as a function of fugacity of H 2 O, f H 2 O . (A) Solubility in SiO2 melt at and below ambient pressure from Moulson and Roberts (1961). (B) Solubility in SiO2 melt at high pressure as a function of f H 2 O from Kennedy et al. (1962). (C) Solubility in various silicate melts as a function of f H 2 O as compiled by McMillan (1994).

The features in Figure 5 notwithstanding, the pressure dependence of water solubility in more complex melts, including natural basalt and other aluminosilicate compositions, shows no simple solubility relationship with pressure (or f H 2 O ) (Figure 5C). These complex relations likely reflect several effects on the solubility of H2O of individual silicate components. For example, in ternary metal oxide aluminosilicate systems, water solubility is correlated with metal/Si and Al/Si ratios and electronic properties of the metal cation (Kurkjian and Russell 1958; Behrens et al. 2001; Mysen and Cody 2004; see also Figure 6). At high metal oxide/silica ratio, the water solubility decreases as this ratio increases, but this relationship reverses near composition where alkali metal/Si ratio is near 1 (Kurkjian and Russell 1958). Furthermore, whereas water solubility in peralkaline silicate melts decreases with increasing Al/Si ratio (Figure 6B), the reverse relationships have been observed for melts along SiO2-NaAlO2 (meta-aluminosilicate) joins (McMillan and Holloway 1987).

Figure 6
figure 6

H 2 O solubility in silicate and aluminosilicate melts with silicate composition. (A) Solubility at 1,200°C and 0.8 GPa as a function of Na/Si of the melt from Mysen (2002). (B) Solubility at 1,200°C and 2 GPa as a function of Al2O3 content in Na2O·4SiO2 and CaO·4SiO2 melts as a function of added Al2O3 from Mysen and Wheeler (2000).

Given the complex relationships between melt composition and water solubility, it is not surprising that the solubility varies significantly in different magmatic systems. In general, water solubility in felsic magmas such as those of rhyolite and andesite composition is significantly greater than the solubility in basalt melts (Hamilton et al. 1964; Dixon and Stolper 1995; Behrens and Jantos 2001; Zhang 1999). This would be expected because of the higher alkali/alkaline earth and Si/Al ratios in rhyolite and andesite melt compared with melts of basaltic composition. These solubility relationships have been modeled with a variety of empirical models (e.g., Spera 1974; Burnham 1975; Dixon and Stolper 1995; Behrens and Jantos 2001). However, quantitative linkage between solubility behavior in chemically simple melts and more complex natural magma compositions await detailed structural characterization of the water solution mechanisms in simple and complex magmatic melts.

Silicate solubility in aqueous fluids

In the schematic phase diagram in Figure 4, the boundaries silicate melt + aqueous fluid/aqueous fluid and silicate crystals + aqueous fluid/aqueous fluid define the silicate solubility in the fluid above and below the solidus of the system. The solubility of SiO2 in H2O has been the subject of more extensive experimental study than other chemically more complex silicates. From a compilation of available high-pressure/high-temperature solubility data, an effective way to describe solubility is in terms of temperature and the density of pure H2O at the temperature (and pressure) of interest (Manning 1994; see also Figure 7). It must be emphasized, however, that the empirical relationship used for this purpose,

Log m SiO 2 mol / kg = 4.262 - ( 5764.2 / T K + 1.7513 10 6 / T 2 - 2.2868 10 8 / T 3 + 2.8454 - 1006.9 / T + 3.5689 10 5 / T 2 log ρ H 2 O ,
(1)

uses the density of pure H2O to describe the silica solubility, and it is known that silicate components in the solution affects the density of the solution (Mysen 2010a, b).

Figure 7
figure 7

Silica solubility in fluid in equilibrium with quartz. As a function of the density of pure H2O at 1 GPa and temperatures indicated calculated with the algorithm of Manning (1994) (Equation 1).

Additional components affect the silicate solubility in aqueous fluid. For example, addition of MgO to SiO2 reduces the SiO2 solubility (Zhang and Frantz 2000; Kawamoto et al. 2004; see also Figure 8). The Mg/Si ratio of the fluid increases with pressure (Kawamoto et al. 2004). Below about 3 GPa, MgO cannot be detected in the fluid (Zhang and Frantz 2000; Kawamoto et al. 2004). The decreased Mg/Si ratio of fluid with increasing pressure likely reflects the interaction between dissolved silica and MgO - perhaps similar to the solubility behavior of Al2O3 in fluids in the system SiO2-Al2O3-H2O-NaCl where increasing SiO2 content in the fluid enhances the Al2O3 solubility (Figure 9). In the latter system, there is also a pronounced positive effect of increasing NaCl in the fluid (Newton and Manning 2008).

Figure 8
figure 8

Solubility of silica (SiO 2 ) in fluid. Coexisting with enstatite + forsterite (0.49 to 1.7 GPa pressure, closed symbols) and with enstatite (3.6 GPa pressure, closed symbols) in MgO-SiO2-H2O fluid calculated with the algorithm of Newton and Manning (2002) (results from Mysen et al. 2013).

Figure 9
figure 9

Solubility of Al 2 O 3 in aqueous fluid in the system Na 2 O-Al 2 O 3 -SiO 2 -H 2 O-NaCl. As a function of silica solubility and NaCl mol fraction in fluid. Symbols indicate the coexisting solid phases. Data from Newton and Manning (2008).

Oxides that are essentially insoluble in pure H2O also can be affected quite strongly by other solutes such as silicate and aluminosilicate components. As an example, the solubility if Ti4+ in fluid in equilibrium with melt in the Na2O-Al2O3-SiO2-TiO2-H2O is a strong positive function of concentration of aluminosilicate component in addition to temperature and pressure (Antignano and Manning 2008; Mysen 2012a; see Figure 10). This is a very different solution behavior than that of TiO2 in the simple system, TiO2-H2O; here, the Ti solubility is in the parts per million range (Audetat and Keppler 2005; Antignano and Manning 2008). Similar effects have been observed for P5+ and other high field strength cations (Mysen 2011; Bernini et al. 2013). It follows, therefore, that during dehydration of subducting slabs where the fluid is quite silicate rich, it will likely carry significantly greater proportions of nominally refractory oxides than that expected from solubility measurements with pure H2O as the solute (see also Manning 2004).

Figure 10
figure 10

TiO 2 solubility in fluids in equilibrium. With rutile in the system TiO2-Al-silicate (NaAlSi3O8 starting composition) as a function of SiO2 in solution. Data from Antignano and Manning (2008).

Melt and glass

Glass transition

Most of the experimental data on solubility and solution behavior of water in silicate melts at high temperature have been obtained by analysis of the glass formed by temperature quenching from a high-temperature/high-pressure hydrous melt. Temperature-dependent structure may change during such a cooling process and eventually gets frozen in at the temperature of the glass transition (Dingwell and Webb 1990). By definition, the glass transition temperature (actually a small temperature range), therefore, is that below which the material is not relaxed on the time scale of a measurement (glass), whereas above that temperature, the material is relaxed (liquid). In the temperature interval between a liquidus and glass transition temperature, the material is a supercooled liquid with the same property behavior as that of the melt above the melting temperature. These distinctions are important when a property measured on a glass is applied to the property behavior of its melt.

Principles of silicate melt structure

Characterization of water solution mechanisms in silicate melts, including magmatic melts, requires understanding of the principles of silicate melt structure. A basic structure concept is a degree of polymerization of the silicate network of oxygen tetrahedra with their centrally located tetrahedrally coordinated cation (T-cation) (Figure 11). The dominant T-cations in magmatic melts and glasses are Si4+ and Al3+ provided that the pressure is less than that where these cations may undergo coordination transformations (coordination transformations begin to take place ≥5 to 6 GPa depending on whether it is Al3+ or Si4+; see, for example, Ohtani et al. 1985; Lee et al. 2004). There are two types of oxygen forming the corners of these tetrahedra. An oxygen shared by neighboring tetrahedra is termed a bridging oxygen (BO), and the one shared between a tetrahedron and a neighboring polyhedron that does not form tetrahedral network is termed nonbridging oxygen (NBO) (see Figure 11).

Figure 11
figure 11

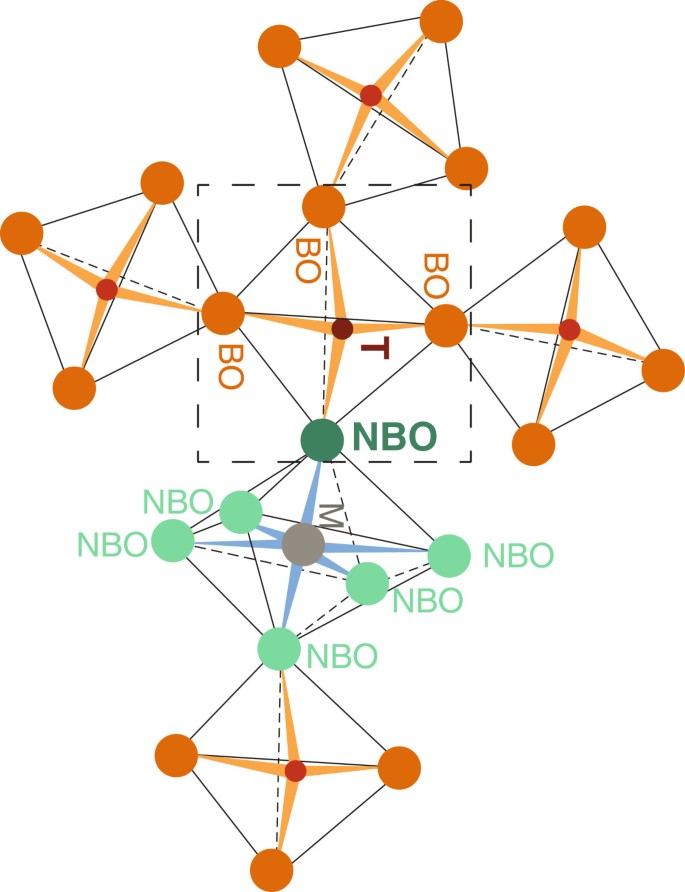

Schematic representation of the concept of bridging (BO) and nonbridging (NBO) oxygen.

The degree of melt polymerization is defined as the proportion of nonbridging oxygen per tetrahedrally coordinated cations, NBO/T. The NBO/T of a silicate melt and glass can be calculated from its bulk composition provided that the type and proportion of T-cations are known. This can be done by keeping in mind that electrical neutrality requires T-cations to be assigned a formal charge of 4+ and oxygen 2- so that

NBO / T = 4 X T - 2 X O / X T ,
(2)

where XT and XO are the atomic proportions of tetrahedrally coordinated cations and oxygen, respectively.

The distribution of NBO/T of major rock-forming magmatic melts suggests a general correlation between aluminosilicate concentration in the magma and their degree of polymerization, NBO/T (Figure 12). The NBO/T of common magmatic melts is the 0 to 1 range (Figure 12). It is for this reason that most studies of simple system melt structure have focused on melt compositions in this NBO/T range.

Figure 12
figure 12

Distribution of NBO/T values for melts of some common igneous rocks. The inset shows the relationship between average values of SiO2 + Al2O3 of rhyolite (SiO2 + Al2O3 = 85.4 wt%), phonolite (SiO2 + Al2O3 = 79.5 wt%), dacite (SiO2 + Al2O3 = 80.8 wt%), andesite (SiO2 + Al2O3 = 74.4 wt%), and tholeiite (SiO2 + Al2O3 = 65.1 wt%) melts (rock composition data from http://Earthchem.org used as described by Mysen and Richet 2005, ch. 17).

Silicate glasses and melts, including those of natural magma and many commercial glasses, can be described in terms of a small number of discrete silicate polymers with integer values for their average NBO and BO (BO = 4 - NBO) between 0 and 4 (Virgo et al. 1980; Stebbins 1987; Maekawa et al. 1991; Buckermann et al. 1992). These entities sometimes have been described in terms of their silicate stoichiometries (TO4, T2O7, TO3, T2O5, and TO2) and sometimes by using the Qn species notation, Q0, Q1, Q2, Q3, and Q4, where the superscript indicates the number of BO. Consequently, Q0 = TO4, Q1 = 0.5T2O7, Q2 = TO3, Q3 = 0.5T2O5, and Q4 = TO2. The proportion of these species, but not their stoichiometry, varies as a function of melt composition (metal oxide/Si and Si/Al ratios). For any melt composition, its degree of polymerization, NBO/T, can be calculated from the proportion of the Qn species:

NBO / T = n = 0 n = 4 4 - n X Q n
(3)

where n is the number of bridging oxygen and X Q n mol fraction of individual Qn species. However, Qn species abundance obviously cannot be calculated from NBO/T values alone.

Solution mechanisms of silicate and water in fluids and melts in hydrous magmatic systems

Most structural data from hydrous silicate melts have been obtained from analysis of samples quenched from high temperature and pressure to ambient conditions prior to chemical and structural analysis. These data reflect, therefore, the melt structural environment near the glass transition temperature. Temperature-dependent structural features cannot be captured in such studies. That notwithstanding, many important principles have been derived from studies of quenched melt.

The behavior of an aqueous fluid in equilibrium with molten or crystalline silicates at high temperature and pressure may not be addressed by examination of quenched materials because most, perhaps all, of their properties (including the structure itself) cannot be determined by examination of the high-temperature/high-pressure fluid after quenching to ambient conditions. Fluid structure studies require, therefore, examination while the sample is at the temperature and pressure of interest. However, before addressing such experimental environments, structural data from quenched melts will be discussed.

Hydrous melts quenched from high temperature at high pressure

Water is dissolved in silicate melts in the form of water molecules, H2O0, and structurally bound hydroxyl groups, OH. The OH groups can form bonds with Si4+ and Al3+ as well as with other metal cations (Mysen and Virgo 1986; Xue and Kanzaki 2004; Cody et al. 2005). In either case, water dissolved in the form of OH groups in silicate melts affects their structure.

In the simplest of silicates, SiO2, the OH formation is via breakage of bridging oxygen bonds (Wasserburg 1957; Farnan et al. 1987):

Si - O - Si + H 2 O = 2 Si - OH ,
(4)

where Si-O-Si represents an oxygen bridge and Si-OH a broken bridge terminated with H+. Formulated in terms of Qn species and supported by 29Si and 1H-29Si CP MAS NMR (cross-polarization magic angle spinning nuclear magnetic resonance) data for SiO2-H2O (Farnan et al. 1987; Cody et al. 2005), this reaction can be written as

2 Q 4 + nH 2 O = 2 Q 4 - n H ,
(5)

In chemically more complex systems, the OH-forming process also is more complex as will be discussed further below.

From the experimental studies of temperature-quenched hydrous glasses, the proportion, X OH / X H 2 O 0 , varies with total water concentration and with bulk chemical composition of the melt (Stolper 1982; Dixon and Stolper 1995; Zotov and Keppler 1998; see also Figure 13). Above the glass transition temperature, the X OH / X H 2 O 0 is positively correlated with temperature so that a simple water speciation reaction,

H 2 O 0 + O 2 - = 2 OH - ,
(6)

shifts to the right with temperature (Nowak and Behrens 1995; see also Figure 13B). From the temperature-dependent equilibrium, an enthalpy change, ∆H, of about 30 kJ/mol has often been reported (Nowak and Behrens 1995).

Figure 13
figure 13

Abundance of OH groups and molecular H 2 O as a function of water concentration and temperature. (A) Evolution of abundance of OH groups and molecular H2O as a function of total water concentration in quenched melts (quenched from 1,100°C at 200 MPa pressure) of compositions indicated (data from Zotov and Keppler 1998). (B) Abundance of OH groups and molecular H2O in haplogranite composition glass and melt as a function of temperature from Nowak and Behrens (1995) recorded in situ while the sample was at the temperature of interest as shown with the pressure constant at 150 MPa.

Data such as those in Figure 13 do not provide information about how the OH groups form bonding with the silicate melt structure. In the simple form of Equation 4 whereby Si-OH bonding is formed, there is depolymerization of the melt (NBO/T increases). By adding one or more alkali metal or alkaline earth to SiO2, bridging oxygen bond breakage also takes place and an increase in NBO/Si as water is dissolved. The rate of NBO/Si change at constant total water concentration decreases with increasing metal oxide/silicon ratio (Na/Si in the case of the data in Figure 14; see also Cody et al. 2005). The rate of change also decreases with increasing total water content (Figure 15).

Figure 14
figure 14

Effect of composition of Na 2 O-SiO 2 melt on the change of NBO/Si caused by dissolved water. Samples were quenched at 100°C/s from 1,400°C at 1.5 GPa. In this system, the Na/Si ratio is equal to the NBO/Si of the anhydrous melt (data from Cody et al. 2005).

Figure 15
figure 15

Relationship between degree of polymerization, NBO/T (T = Al + Si), of aluminosilicate melts. As a function of the total water content for different values of the Al/(Al + Si) of the melt at 1.5 GPa and 1,400°C. Data from Mysen (2007).

The NBO/Si decrease caused by increasing metal/silicon ratio (Figure 14) could occur either because the X OH / X H 2 O 0 decreases with increasing metal/Si or it is because some of the OH groups form bonding with a network-modifying metal cation instead of breaking oxygen bridges to form Si-OH bonds. A simple example is what might be expected in an Na2O-SiO2 melt, where Na+ in the anhydrous melt forms bonding with nonbridging oxygen. Here, in addition to a reaction such as shown schematically in Equation 4, a structural interaction with Na+ can be written as

2 Q 3 Na + H 2 O = Q 4 + 2 NaOH .
(7)

In this example, the network-modifying Na+ bonding with nonbridging oxygen in a Q3 species (with NBO/Si = 1) in an anhydrous melt reacts with H2O to form NaOH complexes in hydrous Na2O-SiO2 melts. This interaction causes the nonbridging oxygens bonded to Na+ in anhydrous Q3 to be transformed to bridging oxygens resulting in the formation of the more polymerized Q4 species. Silicon-29 MAS NMR data from melts quenched from 1,400°C along the Na2O-SiO2 join show that this is exactly the situation and that the abundance of NaOH complexes increases with increasing Na/Si (Cody et al. 2005). Similar conclusions have been reported for alkaline earth silicate glasses wherein Ca..OH and Mg..OH groups were formed in CaO-MgO-SiO2 melts (Xue and Kanzaki 2004).

From a compositional perspective, aluminosilicate melts are more akin to natural magmatic melts than metal oxide silicate melts. At pressures less than 5 to 6 GPa, Al3+ is in tetrahedral coordination where it is charge-balanced with alkalis or alkaline earths in a manner conceptually similar to that observed in crystalline aluminosilicates such as feldspars (see Lee et al. 2004; for high-pressure structural data). The aluminate groups (AlO2 -) in aluminosilicate melts can interact with dissolved water to form either Al-OH or metal-OH bonding (metal can be alkali metal or alkaline earth), or both, in addition to Si-OH bonding (Mysen and Virgo 1986; Schmidt et al. 2001). The extent to which aluminate interaction takes place is correlated with the Si/Al ratio of the melt (Mysen and Virgo 1986). The nature of the Al3+ charge balance probably also affects the solution mechanism because the Al-O bond strength depends on the electronic properties of the charge-balancing cation (Roy and Navrotsky 1984).

The formation of Al-OH bonding can be illustrated schematically by using aluminate complexes, denoted as Mm + 1/m Al m O2m , to describe the silicate speciation, and Al(OH)3 as a representation of Al-OH formation in the melt:

2 M 1 / m m + A l m O 2 m + 3 m H 2 O + 2 Q n 2 m Al OH 3 + 2 Q n - 1 1 / m M m + ,
(8)

Additional complexity may exist because in melts with mixed Mm+ cations and H+, the H+, because of its size for steric reasons, exhibits preference for forming OH groups in the silicate portion of the network by reacting with the nonbridging oxygen in Qn species with the largest number of nonbridging oxygens (Cody et al. 2005).

Transformation of tetrahedrally coordinated Al3+ OH-bearing complexes, therefore, results in silicate depolymerization wherein the rate of depolymerization with H2O increases the more aluminous the melt (Figure 15). This depolymerization (increasing NBO/T) takes place because as the tetrahedrally coordinated Al3+ interacts with H2O to form Al-OH bonds, an equivalent proportion of the charge-balancing cation becomes a network-modifier, or charge-balancing Na+ for Na-OH bonds leading to network-modifying Al3+, or both. This depolymerization is also reflected in water concentration-dependent Qn abundance as a function of total water content (Figure 16) where the abundance of individual Qn species at a given total water content also varies with the Al/(Al + Si) of the melt (Mysen 2007). The example from the Na2O-Al2O3-SiO2-H2O system shows how depolymerized species, Q3 and Q2, become more important as more polymerized species, Q4, abundance decreases (Figure 16).

Figure 16
figure 16

Evolution of Qn species abundance. In quenched (at 100°C/s from 1,400°C at 1.5 GPa) hydrous Na-aluminosilicate melts as a function of H2O content at fixed Al/(Al + Si) (data from Mysen 2007).

The decreasing (NBO/T)/ X H 2 O with increasing water content, X H 2 O , reflects the decreasing rate of change of the abundance ratio, X OH / X H 2 O 0 , as the total water content increases. This evolution, in turn, reflects the diminishing rate by which the Qn species changes with increasing concentration of water in the melt (Figure 16). These composition-dependent solution mechanisms of water in aluminosilicate melts also explain why the solubility of water in silicate melt at any temperature and pressure is significantly dependent on the bulk chemical composition of the melt itself.

Hydrous melts and aqueous fluids at high temperature and pressure

Experimental protocols have recently been implemented for examination of fluids and melts in hydrous silicate systems at deep crustal and mantle pressures and temperatures in situ while the sample is at the desired pressure and temperature conditions. Structural data obtained under such conditions are, therefore, increasingly available from all regions of silicate-H2O phase diagrams (Figure 4). In considering such data, commonly obtained in so-called hydrothermal diamond anvil cells (e.g., Bassett et al. 1994), the experiments usually are conducted in such a manner that pressure is a variable dependent on temperature. This means that increasing temperature normally is associated with increasing pressure. In the following discussion, this is the case unless otherwise indicated.

High-temperature/high-pressure in situ examination of hydrous silicate systems includes characterization of pure H2O, characterization of the silicate components, and mixtures between the two. For the H2O component itself, the diminishing extent of hydrogen bonding with temperature is the only structure observable. There are, however, differences between hydrogen bonding of water dissolved in melts (typically supercooled liquids), of silicate-saturated aqueous fluid, and pure H2O. The ∆H for hydrogen bond formation in such melts is near 10 and about 22 kJ/mol for silicate-saturated aqueous fluid (Figure 17). The ∆H for pure H2O is slightly above 25 kJ/mol (Walrafen et al. 1986). Hydrogen bonding cannot be detected spectroscopically at temperatures above 500°C to 550°C (Foustoukos and Mysen 2012; Mysen 2013).

Figure 17
figure 17

Evolution of ratio of hydrogen bonded to isolated OH bonds. In hydrous Na-aluminosilicate melts and in silicate-saturated aqueous fluids as a function of temperature (and pressure) (data from Mysen 2012a, b.)

In hydrous silicate systems, the ratio of mol fraction of water species, X OH / X H 2 O 0 , in fluid, melt, and supercritical fluid varies with temperature (Mysen 2010b; see also Figure 18). The X OH / X H 2 O 0 ratio of water in fluid and melt converges at the second c.p. (Figure 18). The existence of OH groups in all three phases (melt, fluid, supercritical fluid) implies structural interaction between water and silicate components. In fact, structural data obtained from vibrational spectroscopy indicate that in any silicate systems, the types of Qn species in fluids, melts, and supercritical fluids resemble one another (Mysen 2009) although their concentration at any temperature and pressure depends on the silicate composition and whether in fluids or melts. The latter differences are evident in the NBO/T of the silicate melt being considerably lower (the melt is more polymerized) than coexisting fluid (Figure 19). The NBO/T values approach each other with increasing temperature and pressure until they merge at c.p. Interestingly, at higher temperature and pressure above those that define the c.p., the silicate in supercritical aqueous fluids becomes further depolymerized (NBO/T increases) (see Figure 19).

Figure 18
figure 18

Abundance evolution (mol%) of OH groups and molecular H 2 O. In coexisting melts and fluids and in supercritical fluid as a function of temperature (and pressure) in a hydrous Na-aluminosilicate system (data from Mysen 2010a).

Figure 19
figure 19

Degree of silicate polymerization, NBO/T. In silicate in hydrous melts, silicate-saturated aqueous fluid, and supercritical fluid in a hydrous Na-aluminosilicate system (data from Mysen 2012a, b)

The NBO/T variations illustrated in Figure 19 reflect temperature- and pressure-dependent Qn species in fluids and melts. Their partition coefficients, K Qn fluid/melt, at any temperature and pressure are sensitive functions of the degree of polymerization of the species (Figure 20). The K Qn fluid/melt of the least polymerized Qn species is the largest and then decreases systematically as the n value increases. Moreover, this effect becomes increasingly pronounced as the temperature and pressure decreases. The latter effect results from two factors. First, the aluminosilicate solubility in aqueous fluid decreases with decreasing pressure and temperature. The lowered silicate concentration leads to increasing abundance of less polymerized Qn species in the fluid (Mysen 2010a). Second, the extent to which the silicate species in the hydrous melts are affected by dissolved water is a positive function of water content (Figure 16) and water solubility decreases with decreasing pressure (and temperature). Both effects would cause the K Qn fluid/melt partition coefficients to increase.

Figure 20
figure 20

Qn species partitioning between coexisting fluid and melt. As a function of type of Qn species, temperature, and pressure in a hydrous Na-aluminosilicate system (data from Mysen 2012a, b).

In the compositionally simple silica-H2O system in the 400°C to 900°C temperature range at pressures at and below about 1.4 GPa, only Q0 and Q1 species in the fluid can be detected. The equilibrium constant for the polymerization equilibrium in fluids is

K = X Q 1 / X Qo ,
(9)

with ∆H = 13.3 ± 1.5 kJ/mol (Mysen 2010b) if it is assumed that ∆V = 0 for this equilibrium, and, therefore, that the increasing pressure governed by increasing temperature does not affect the equilibrium. However, the partial molar volume of Q0 species is smaller than that of Q1 species (Bottinga and Richet 1995) so that with the likelihood of ∆V > 0, the ∆H = 13.3 kJ/mol is a minimum value. At higher pressures (≥1.8 ± 0.2 GPa; see Mysen et al. 2013), the positive pressure- and temperature-dependent total silica concentration in fluid leads to further polymerization of the silicate species, and Q2 species are also observed (Mysen et al. 2013) with the Qn species equilibrium,

2 Q 1 Q 0 + Q 2 ,
(10)

for which the ∆H clearly is pressure dependent (Figure 21). The pressure/∆H relationship reflects the fact the ∆V of reaction (10) is between -1 and -2 cm3/mol (Mysen et al. 2013).

Figure 21
figure 21

Temperature (1/T) vs. ln K relationship for the equilibrium, 2 Q1Q0+Q2 , (Equation 10). From the system SiO2-H2O with aqueous fluid in equilibrium with quartz (lower pressure) or coesite (higher pressure). Data from Mysen et al. (2013).

The system SiO2-H2O is too simple for modeling natural processes because neither Al2O3 nor alkali metals and alkaline earths are involved. The system Na2O-Al2O3-SiO2 is more realistic even though alkaline earths, in particular, have not yet been addressed. The Na2O-Al2O3-SiO2 system is also useful for characterization of the chemical interaction between nonbridging oxygen and important network-modifying cation (Na+) and protons (H+).

From NMR spectroscopy of quenched melts in this system, there is a strong preference of H+ for nonbridging oxygen in the least polymerized of the Qn species (Q0), whereas Na+ forms bonds with nonbridging oxygen in the more polymerized Qn species (Cody et al. 2005; see also Equation 7). From the in situ structural characterization in alkali aluminosilicate systems, a more complex reaction (Mysen 2010a)

12 Q 3 M + 13 H 2 O 2 Q 2 M + 6 Q 1 M + 4 Q 0 H ,
(11)

describes the equilibrium. Here, M denotes an alkali metal and where (M) and (H) indicate where alkali metals and protons form bonding with the relevant nonbridging oxygens, respectively. The tetrahedrally coordinated cations forming the Qn species can be either Al3+ or Si4+. The ∆H for this equilibrium (350 to 400 kJ/mol) is the same, within uncertainty for melt fluids and supercritical fluids (Mysen 2010a). With increasing Al/(Al + Si), equilibrium (11) likely shifts to the left (∆H decreases) because Al3+ will preferably occupy the most polymerized of available Qn species (Merzbacher and White 1991). In Equation 11, that species is Q3, but for other more polymerization melt compositions, Q4 species likely also would be involved. The principles outlined in equilibrium (11) may also be applied to alkaline earths, but quantitative information awaits further experiments. These are all considerations necessary for the application of the experimental data to hydrous magmatic systems. However, the necessary experimental data are at present insufficiently comprehensive for quantitative application.

Discussion

Dissolved water and melt properties

The evolution of Qn species abundance of a melt with water content can be used to characterize how dissolved water governs phase relations and mixing properties of melts. For example, the rapid abundance increase of depolymerized species at the expense of polymerized species with water content of the melt enhances the stability of depolymerized relative to more polymerized liquidus phases. An example of this effect can be seen in the silica/pyroxene liquidus boundary of the Mg2SiO4-CaMgSi2O6-SiO2 system where the silica polymorph is more polymerized than pyroxene (their NBO/Si are 0 and 2, respectively) (Figure 2A). The magnitude of liquidus boundary shifts will reflect the size of the NBO/Si difference between the minerals coexisting along a liquidus boundary. The greater the NBO/Si difference, the greater is the effect of water on the shift of the boundary as illustrated, for example, by the different shifts of olivine/pyroxene and pyroxene/silica liquidus boundaries (Kushiro 1969). Effects such as these also explain why hydrous melts in equilibrium with peridotite mineral assemblages is more silica rich (quartz normative andesitic melts) than under anhydrous conditions (olivine normative tholeiitic melts) during melting and crystallization in the upper mantle.

Configurational properties of melts can be linked to transport and thermodynamic properties of melts (Adam and Gibbs 1965; Richet 1984; Lee and Stebbins 1999). For example, melt viscosity, η, is a function of configurational entropy:

η = A e exp B e / T S conf
(12)

where Ae and Be are constants, T is temperature, and Sconf is configurational entropy. The Sconf is described in terms of configurational heat capacity:

S conf T = C p conf T g / T g + T g T C p conf / T dT ,
(13)

where T g is glass transition temperature, T is the temperature of interest (T > T g), and C p conf(T g) is the configurational heat capacity at the glass transition temperature. This configurational heat capacity of hydrous magmatic melts is a systematic function of the water content of the melt (Richet et al. 1996; Bouhifd et al. 2006).

Changes in configurational heat capacity resulting from H2O dissolved in the melt can be calculated from the experimental data on Qn species abundance in hydrous melts combined with the knowledge of the partial molar heat capacity of individual species (Richet and Neuville 1992; see also Mysen 2007). For example, with such information, the effects of water on the heat capacity change across the glass transition measured for a phonolite melt can be modeled quite precisely from a hydrous haplophonolitic composition in the Na2O-Al2O3-SiO2 system (Figure 22). The NBO/T and Al/(Al + Si) of this haplophonolite melt resemble that of the natural phonolite melt composition. The good match between calculated and observed configurational heat capacity changes with water content illustrates how those compositional parameters are central to characterization of configurational properties of melts.

Figure 22
figure 22

Calculated and observed change of configuration heat capacity. Comparison of calculated and observed change of configuration heat capacity, C p conf , across the glass transition for a hydrous phonolite melt as a function of water content of the melt. Experimental data for phonolite from Bouhifd et al. (2006). Structural and thermodynamic data used to derive partial molar configurational entropy of Qn species are from Mysen (2010a) and Richet and Neuville (1992), respectively. This calculation was originally reported in Mysen (2007).

Water and fluid-melt equilibria

Trace and minor element partitioning is also sensitive to melt polymerization (Mysen and Virgo 1980; Kohn and Schofield 1994; Jaeger and Drake 2000; Toplis and Corgne 2002). From the relationship between NBO/T and water contents of such melts

NBO / T = 1.10 - 0.57 e - 0.068 X H 2 O ,
(14)

and NBO/T and K Mg ol-melt (Kushiro and Mysen 2002; see also Figure 23A), changes in the olivine/melt partition coefficient with water content can be calculated (Figure 23B). In the calculation in Figure 23, it is assumed that there is no structural interaction between the silicate components and the element in question (Mg). Under such circumstances, the NBO/T changes in melt have effects on partition coefficients in ways analogous to NBO/T changes affected by adding other oxide components. The 25% change in the Mg partition, which reached with near 20 mol% H2O, is not an unreasonable situation during island arc melting and crystallization (see, for example, Grove et al. 2012, for review of data).

Figure 23
figure 23

Olivine-melt partition coefficients for Mg. As a function of the NBO/T of the melt from experimental data in the Na2O-K2O-CaO-MgO-FeO-Al2O3-SiO2 system (Kushiro and Mysen 2002) coupled with the effect of dissolved H2O on NBO/T (Mysen 2007) of melts to derive effect of dissolved water in melt on the partition coefficient as discussed by Mysen 2012a, b. (A) The K Mg ol-melt data fitted to the equation shown in this figure. (B) Resulting calculated change in Mg partition coefficients as a function of water content.

Stable isotope fractionation

Vibrational spectroscopy has also been used to determine D/H ratios in fluids and melts in equilibrium during experiments in diamond anvil cells at the high temperatures and pressures of interest (Foustoukos and Mysen 2012; Mysen 2013). In silicate-saturated fluids and hydrous silicate melts, D+ and H+ forms bonding with nonbridging oxygen in the Qn species. From deuterium and proton MAS NMR of silicate melts, a D/H fractionation between the different structural positions has been found (Wang et al. 2011). This means that if the proportion and/or type of Qn species vary with temperature and/or pressure so that the D/H fractionation within and between fluids and melts also become temperature and pressure dependent (Figures 24 and 25).

Figure 24
figure 24

Evolution of D/H ratio of coexisting fluid (A) and melt (B) for (H 2 O + D 2 O)-bearing Na-aluminosilicate melts., the fluid density governs the relationship between temperature and pressure as shown in the figures. Data from Mysen 2013.

Figure 25
figure 25

(D/H) fluid-melt partition coefficients for coexisting fluid and melt (Figure 24 ). For low- and high-density aqueous fluid from the data in Figure 24.

The temperature and pressure effects in Figure 24 reflect the changes in silicate concentration and speciation in the coexisting aqueous fluid and silicate melts. Furthermore, different D/H values for different fluid densities again reflect the concentration and type of Qn species because the different density trajectories reflect pressure/temperature trajectories of the diamond cell experiments that followed different pressure paths (Mysen 2013). It follows from the different trajectories of D/H ratios in fluids and melts that the D/H partitioning between fluids and melts will also be dependent on temperature and pressure (Figure 25). Finally, in silicate mineral/aqueous fluid or silicate mineral/hydrous melt environments, temperature- and pressure-dependent partitioning will also take place because of the temperature/pressure dependence of the D/H fractionation with the fluid and melt phases.

Conclusions

Understanding the role of hydrous melts and silicate-rich fluids in transport processes depends sensitively on how chemical composition, temperature, and pressure govern the physicochemical properties of these materials (viscosity, diffusion, thermodynamics of mixing, element partitioning between phases, phase relations, etc.; see, for example, Mysen and Richet 2005, for review of experimental and theoretical information of structure-property relations of silicate glasses and melts). Attainment of this objective requires well-determined solubilities in and partitioning between melts, fluids, and crystalline phases, detailed understanding of the oxide solution mechanisms in melts and fluids, and determination of how fluid and melt structure governs those properties.

Structural information cannot be obtained directly on chemically complex natural systems because the resolving power of spectroscopic methods employed for such purposes diminishes rapidly with increasing chemical complexity. However, structural data from simpler binary and ternary systems can be used to describe the more complex systems. This objective requires, however, detailed characterization of silicate speciation in fluids and melts as a function of Al/Si ratio, the type of charge balance for tetrahedrally coordinated cations, and the type and proportion of network-modifying metals (alkali metals and alkaline earths). Currently, a combination of structural information and empirical relationships can be applied to describe liquidus phase relations and fluid/mineral/melt element and stable isotope partitioning. Transport properties can be understood and sometimes quantified in terms of configurational properties of individual Qn species. However, the experimental database used for these purposes dominantly is from alkali silicate and alkali aluminosilicate systems. This permits application to felsic magmatic systems. However, the lack of much information in alkaline earth aluminosilicate system makes quantitative application to hydrous basaltic less quantitative.
