Ambient noise multimode surface wave tomography
Progress in Earth and Planetary Science volume 11, Article number: 4 (2024)
Abstract
Seismic techniques using earthquakes are powerful tools for exploring the Earth’s internal structure. However, the earthquake distribution limits the spatial resolution. In recent years, ambient noise surface wave tomography using ambient seismic wave field has resolved these limitations. A typical ambient seismic wave field is microseisms excited by ocean swell activities. Ambient noise surface wave tomography is a technique in seismic interferometry that extracts seismic wave propagation between pairs of stations by cross-correlating the seismic records. The cross-correlation function can be interpreted as an impulsive response at a station with a virtual source at the other station. This technique became standard with the development of modern dense seismic networks. This paper reviews a theory of seismic interferometry for ambient noise surface wave tomography and procedures for practical data processing to calculate cross-correlation functions. The tomographic method typically consists of four steps: (1) the construction of reference 1-D models, (2) phase velocity measurements for each path, (3) 2-D phase velocity inversions, and (4) the construction of a 3-D S-wave tomographic model obtained from series of local 1-D inversions at all the grids. This paper presents the feasibility of multimode surface wave dispersion measurements for improving depth resolution.
1 Introduction
Seismic techniques are powerful tools for exploring the Earth’s internal structure from local to global scales. Earthquakes are a primary illumination source of the Earth’s interior. Seismic tomography using earthquakes revealed the lateral heterogeneities of the Earth on various scales (e.g., Romanowicz 2003; Thurber and Ritsema 2015). Although the method has produced many significant results, it has inherent limitations attributed to the earthquake distribution. Earthquakes occur only in tectonically active areas, and large earthquakes do not occur frequently. The source and station distributions limit the spatial resolution of the tomographic images.
Even on seismically quiet days, the Earth persistently oscillates because ocean swells excite seismic waves. They are known as microseisms (e.g., Nishida 2017), which is a kind of ambient seismic wave field (also known as ambient seismic noise). Seismic interferometry (SI) provided a clue to overcome the limitations due to the earthquake distribution because SI produces a virtual earthquake record from the ambient seismic wave field. An application of SI for imaging Earth’s internal structure is known as ambient noise surface wave tomography (ANT). This section briefly introduces SI, ambient seismic wave field, and ANT followed by the scope of this paper.
1.1 Brief history of seismic interferometry
In seismology, an origin of SI is Aki’s Ph.D. thesis (Aki 1957), inspired by the seminal book Cybernetics (Wiener 1947). He proposed the SPatial AutoCorrelation (SPAC) method; later studies show that the method is mathematically equivalent to SI (e.g., Chávez-Garía and Luzón 2005; Harmon et al. 2010; Tsai and Moschetti 2010) under certain conditions. Aki’s idea had not been paid attention until the 1980s. After 26 years, a group at Hokkaido University (Okada and Sakajiri 1983) developed a survey method for shallow structure using microtremor, now known as the microtremor survey. After this work, this method became popular for surveying subsurface structures in seismic engineering (e.g., Cho et al. 2006), which was also extended to multimode inversion (Tokimatsu et al. 1992).
A key for SI is a cross-correlation function (CCF) between a pair of stations. The CCF exhibits an impulsive response at a station by a virtual source at the other station. The idea of SI dates back to the 1950s in different research fields: acoustic (Eckart 1953), ocean acoustic (Cox 1973), seismic exploration (Claerbout 1968), and seismology (Aki 1957). Although the ideas were proposed independently, they are mathematically identical under certain conditions (e.g., Chávez-Garía and Luzón 2005; Harmon et al. 2010; Tsai and Moschetti 2010). SI is applied not only to the Earth but also to experimental studies, such as ultrasonic waves (Lobkis and Weaver 2001), building responses (Snieder and Wapenaar 2010; Nakata et al. 2013), helioseismology (Gizon and Birch 2002; Duvall et al. 1993; Hanasoge et al. 2016) and ocean acoustic (Cox 1973). Later studies (e.g., Godin 2007; Snieder and Larose 2013) show that the principle of SI is akin to the fluctuation–dissipation theorem in physics (e.g., Callen and Welton 1951), which was generalized as linear response theory by Kubo (1957). The theorem establishes a connection between the response to an external force and the CCF of specific fluctuating properties when the system reaches thermal equilibrium.
1.2 Ambient seismic wave field
Ocean wave activities excite ambient seismic wave fields, even on seismically quiet days. Based on the types of ocean surface gravity waves and excitation mechanisms, we classified ambient seismic wave fields into (1) seismic hum from \(1\times 10^{-3}\) to 0.02 Hz, (2) primary microseisms from 0.02 to 0.1 Hz, and (3) secondary microseisms between 0.1 and 0.5 Hz (Nishida 2017).
The ocean surface gravity waves can be classified as ocean infragravity (IG) waves below 0.02 Hz and ocean swell above the frequency. IG wave is a shallow-water wave, whereas the ocean swell is physically a deep-water wave. The pressure fluctuations of the IG waves reach the seafloor in the pelagic and coastal regions, whereas those of the ocean swells cannot reach the seafloor in the pelagic regions.
IG waves excite background Love waves and Rayleigh waves predominantly from 1 to 20 mHz, known as seismic hum, through the topographic coupling on the seafloor (Nishida et al. 2008b; Fukao et al. 2010; Nishida 2013). Ocean swell activities excite microseisms from 0.05 to 0.5 Hz (Nishida 2017). Primary microseisms are excited by shoaling waves through the topographic coupling on the sea floor (e.g., Hasselmann 1963; Ardhuin et al. 2015). Secondary microseisms are excited by ocean swell activities in both the pelagic and coastal regions through the nonlinear interaction (Longuet-Higgins 1950; Hasselmann 1963). In the history of earthquake seismology, secondary microseisms have been a prominent noise source for earthquake signals. Historical seismological studies took different approaches depending on two frequency bands below and above the typical frequency of secondary microseisms. This frequency is also important in characterizing the physical nature of seismic waves (Aki 2003). Above the frequency, strong lateral heterogeneities in the crust and sediment make the seismic wave field complex on a regional or global scale (see Sect. 6.2 for details), stimulating the development of a stochastic approach. Below the frequency, the waveform can be reproduced in a deterministic manner. SI turns stochastic wave fields into a deterministic signal as a virtual seismic record, which can be applied to seismic tomography. Thus, the operation of cross-correlating seismic wave fields, or SI, bridges the stochastic and deterministic approaches in seismology, which had been incompatible, as noted by Aki (2003).
1.3 ANT
Campillo and Paul (2003) demonstrated that SI can extract virtual seismic records from the ambient seismic wave field. This paper describes the analysis of the coda wave, a diffusive wave field, in Mexico. Cross-correlating the seismic records of coda waves extracted clear Love and Rayleigh wave propagations between every pair of stations. Although this paper analyzed earthquake coda, the method can be applied to ambient seismic wave fields. Shapiro and Campillo (2004) subsequently showed that the CCFs of the microseisms also exhibited clear surface propagations between every pair of stations. This result suggested the possibility of seismic imaging without earthquakes, now known as ANT.
Shapiro et al. (2005) achieved the milestone of the ANT studies. They demonstrated the feasibility of ANT using a modern dense seismic network. After this study, ANT became a standard technique for dense broad-band observations because ANT does not require waiting for earthquakes, i.e., a long observation period. After the paper, ANT was applied to many regions: the USA (e.g., Bensen et al. 2007; Moschetti et al. 2007; Liang and Langston 2008; Lin et al. 2008; Yang et al. 2008), Australia (e.g., Saygin and Kennett 2010), Europe (e.g., Yang et al. 2007), China (e.g., Zheng et al. 2008), Japan (e.g., Nimiya et al. 2020; Nishida et al. 2009), and the global scale (Nishida et al. 2009; Haned et al. 2016). With the increase in seismic stations with continuous observations at many seismic stations in the 2000s, ANT has become a standard analysis method. Today, ANT is first applied after deploying a dense seismic array.

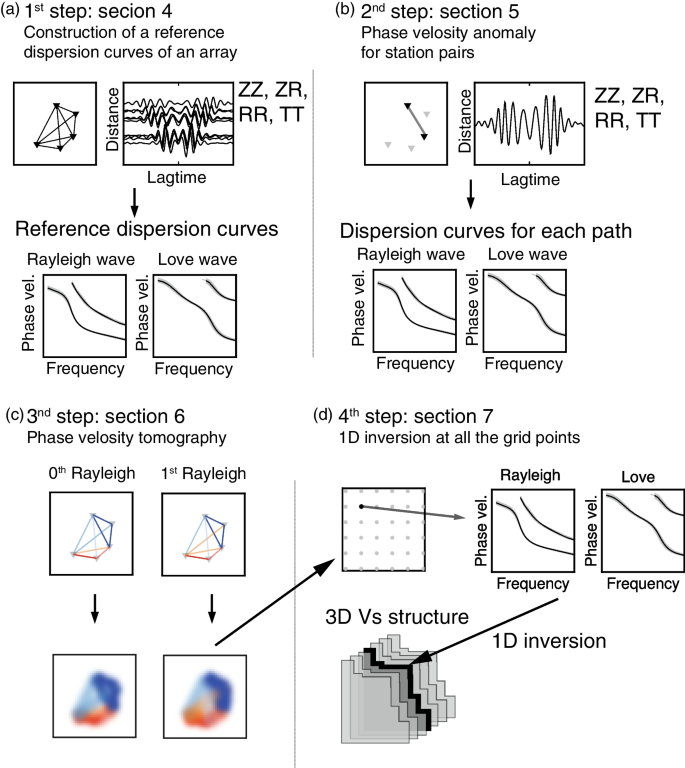

a Construction of reference 1-D models. b Phase/group velocity measurements for each path. c 2-D phase/group velocity inversions for multimodes. d A 3-D S-wave tomographic model is obtained from a collection of local 1-D inversions at all the grids. Modified from Takagi and Nishida (2022)
1.4 What is covered/not covered in this review
There are already many review papers on SI and ANT (e.g., Snieder and Larose 2013; Wapenaar et al. 2010a, 2010b) and textbooks (e.g., Schuster 2009, Ritzwoller and Feng 2019, Nakata et al. 2019, and Chapter 10 in Sato et al. 2012). This review focuses on a consistent theoretical treatment and systematic comparison among different phase velocity measurement methods.
This review also focuses on multimode measurements. Recent developments in dense arrays enable us to extract multimode dispersion (e.g., Spica et al. 2018; Chmiel et al. 2019; Savage et al. 2013; Jiang and Denolle 2022; Socco et al. 2010). Multimode inversions have significantly improved depth resolution, although the dispersion of fundamental mode branches alone has poor vertical resolution. As multimode dispersion measurement has inherent difficulties, this review aims to provide clues for practical applications.
Because SI does not require earthquakes, it accelerates the progress in monitoring the temporal change in seismic velocities. Monitoring the temporal change with events requires repeating earthquakes or repeating active sources. In most cases, they are not realistic. In the last ten years, SI has become a standard technique for monitoring the temporal change in seismic velocities associated with environmental origins (e.g., precipitation, groundwater, and temperature), volcanic eruptions, and earthquakes (e.g., Sens-Schönfelder and Wegler 2006a; Wegler et al. 2007; Brenguier et al. 2008a, b, Wang et al. 2017). Because this review does not cover such topics, see review articles (e.g., Sens-Schönfelder and Wegler 2011; Obermann and Hillers 2019) for further information.
This paper does not cover conventional surface wave tomography using earthquake data. Because many excellent reviews are already available (e.g., Romanowicz 2003, 2020, 2021; Laske and Widmer-Schnidrig 2015; Levshin et al. 2018; Barmin et al. 2001), please refer to those references.
This paper also does not cover attenuation tomography using CCFs of ambient seismic noise. Some studies inferred the attenuation structure from the amplitude information of CCFs (Prieto et al. 2009, 2011; Lin et al. 2011). Although the effects of source heterogeneities (e.g., Tsai 2011) can bias the estimation, recent developments to extract amplitude information from ambient noise cross-correlations (e.g., Lin et al. 2012b; Zhou et al. 2020; Liu et al. 2021) have made it reliable. Because this topic is beyond the scope of this paper, we refer only to the aforementioned papers.
Section 2 summarizes a theory of SI for ANT. Section 3 describes the procedures for practical data processing to calculate CCFs. Ambient noise multimode surface wave tomography (multimode ANT) consists of four steps (Fig. 1). The first step (Sect. 4) is the measurement of multimode surface wave dispersion for a local seismic array. The dispersion curves are also crucial for constructing local 1-D structures, which can be an initial model of ANT. The second step (Sect. 5) is the dispersion measurements for each path. The third and fourth steps (Sects. 6 and 7) are how to infer 3-D seismic velocity models from the dispersion measurements. The procedures consist of two steps: (1) the 2-D inversion of phase/group velocities in Sect. 6 and (2) a local 1-D inversion at each grid in Sect. 7. Figure 1 shows such procedures based on our previous studies (Nishida et al. 2008a; Nagaoka et al. 2012; Takagi and Nishida 2022; Takeo et al. 2022; Yamaya et al. 2021). This review will focus on and compare our previous studies with other studies.
2 A brief review of SI
Theories of SI originate from various backgrounds and have developed independently. Although they require different assumptions in different settings (e.g., an open or closed system), they are closely related. Theoretically, it is natural to consider a closed system for the global scale, whereas it is natural to consider an open system for the regional or local scale. This section provides an overview of the theories of SI in a closed system and an open system to understand the physical pictures. To model CCFs for ANT, we formulate synthetic CCFs for the homogeneous source distribution in a 2-D homogeneous medium. However, the heterogeneous source distribution realistically causes an apparent travel-time anomaly from the synthetic CCF for the homogeneous source distribution. We evaluate such biases based on the analytic formulation.
2.1 SI in a closed system
Here, we consider SI in a closed system. In the case of a finite body, we evaluate CCFs based on a normal mode approach (Lobkis and Weaver 2001). Because the Earth is a finite-size sphere, this approach is also feasible for multi-orbit propagations on a global scale (Nishida et al. 2002, 2009). For simplicity, this subsection describes a scalar 1-D case, but it can be easily extended to elastic 2-D and 3-D cases.
2.1.1 Repeating seismic experiments
Virtually, we consider repeating seismic experiments in a closed system of a perfect elastic body. Before the initial time \(t=0\), the body did not deform, and a random force \(f^k(x)\) was applied to the body at \(t=0\) in the kth experiment, where x is the spatial location. We consider a finite body from \(x=0\) to \(x=L\) and impose rigid or free boundary conditions at both ends. The equation of motions is given by
where \(\kappa\) is the elastic constant, \(\rho\) is the density and \(u^k\) is the displacement at the kth experiment. After the force is applied, the displacement is measured at the stations. These experiments are repeated K times. Note that we cannot consider a persistent force in this system because no attenuation leads to an infinite increase in the amplitude over time.
We evaluated the displacement \(u^k(x,t)\) by a convolution between the force \(f^k(x)\) and the Green’s function. The Green’s function can be written in terms of normal mode theory (Dahlen and Tromp 1998) as
where \(\omega _n\) is nth eigenfrequency and \(\mathcal{U}_n\) is nth eigenfunction, which satisfies orthonormality:
Then, the displacement can be represented by the convolution
where \(A_n^k = \int _0^L \mathcal{U}_n(x) f^k(x)\textrm{d}x\). We consider the energy partition of the modes for a random external force in the next section.
2.1.2 Energy partition of modal energy
This subsection discusses the energy balance of each mode: how the work done by external forces is distributed to the kinematic and elastic energy. First, we evaluate the work done by the external force can be given by
where the particle velocity \(v^k_n\) of nth mode in the kth experiment is written by \(v^k_n = A^k_n \mathcal{U}_n(x)\cos (\omega _n t)\).
The kinetic energy of nth mode \(T_n\) can be evaluated by integrating the kinetic energy density in space as
The elastic energy \(V_n\), on the other hand, can be evaluated by integrating the strain energy density in space. The partial integral with the boundary condition leads to
The total energy \(T_n+V_n\) is
which balances the work done by external forces.
Here, we consider an excitation by random force \(F^k_i\) at location \(x_i\) as
where I is the number of the force. We also assume that \(F^k_i(x)\) is white noise as
where \(\langle \rangle _k\) is ensemble average with respect to k. To simplify the problem, we consider the constant density \(\rho _0\). The expected value of the cross-correlation of \(A_n\) can be evaluated as follows.
where \(\mathcal{E}\) is the modal energy. The amplitudes of the different modes \(A_n\) do not correlate with each other, and the total energy of each mode is distributed equally. The expected value of the modal energy is constant for each mode when the external force f is white noise. When a system meets this condition, we call the state the equipartition of energy. We note that the fluctuation–dissipation theorem in physics (Callen and Welton 1951) requires a thermal equilibrium that satisfies the equipartition of energy. Equation 10 can be derived from the principle of equal a priori probabilities in the case.
2.1.3 CCFs under the equipartition of energy
Here we define a CCF \(\phi ^k(x_1,x_2; \tau )\) between \(u^k(x_1)\) and \(u^k(x_2)\) under the equipartition of energy as,
where \(x_1\) shows the location of station 1, and \(x_2\) shows that of station 2. We note that there are two types of CCF definitions. The sign of the second term of the other type is flipped.
The ensemble average of \(\phi (x_1,x_2;t)\) over K time experiments is defined by the ensemble average \(\left\langle \phi ^k(x_1,x_2;\tau )\right\rangle _k\). Then, the CCF can be represented by
which relates the CCF to Green’s function (Snieder 2004). The frequency dependence of this equation differs slightly from Aki’s formulation (e.g., Haney et al. 2012). Although the formulation showed that the Hilbert transform of the CCF can be related to Green’s function, the difference can be attributed to spectral normalization.
Compared to CCFs for real data, the biggest problem is the assumption of the equipartition of energy. Because the excitation sources are distributed near the surface, fundamental modes dominate the observed wave field. Energy is not partitioned equally among different mode branches. Indeed, the observed dominance of fundamental modes (e.g., Nishida 2017) shows that the energy is not equally distributed in the radial direction. When considering a single-mode branch, the energy is distributed equally in the horizontal direction if the external force is white noise distributed on the entire surface.
Although the theory assumed K experiments, practically, only one observation is possible. Therefore, the ensemble averages need to be replaced by time averages to calculate the CCFs of observed data for persistent external forces (e.g., ocean waves). However, no attenuation in a closed system causes the problem of diverging amplitudes without attenuation; that is, the seismic wave field in a closed system never meets the equilibrium for persistent sources. Physically, it is natural to consider the equilibrium between the energy dissipation due to attenuation and the work performed by external forces (Kobayashi and Nishida 1998; Fukao et al. 2002).
We note that the term Green’s function is often used in a less mathematically rigorous sense in studies on SI. Mathematically, a CCF converges to the Green’s function only in limited cases. A similar situation occurs in quantum field theory. The Green’s function refers to CCFs, although it does not satisfy the mathematical definition (Zagoskin 2014).
2.2 SI in an open system
Next, we consider SI in an open system. The formulations in an open system depend on the source-receiver configuration: (1) random point sources distributed over the whole space, (2) random sources distributed on a closed curve, and (3) uncorrelated plane wave incidents from various directions. This subsection describes the relationship between the different configurations of an open system. Mathematically, the theory of an open system differs from that of a closed system. We cannot use normal mode theory for an open system because the system loses energy from the radiation boundary.
For ANT, CCFs are usually formulated in an open system, which better approximates the source-receiver configuration. Because the surface wave can be formulated as a 2-D problem with a membrane approximation (e.g., Tanimoto 1990; Tromp and Dahlen 1992b, 1992a, 1993), we can consider them as a 2-D potential problem in an open system. For ANT, we explicitly express the mixed-component CCFs of surface waves in a simplified case at the end of the subsection.
2.2.1 Seismic excitation by an infinite number of sources
We consider one realization of the background seismic wave field excited by an infinite number of sources in an open system. When external force acts on the body at a location \({{\textbf {r}}}\) and time \(t = 0\), the 2-D wave equation is given by
where \(C({{\textbf {r}}})\) is phase velocity, and \(f_i\) is ith external force at the location \({{\textbf {r}}}_i\) (\(i=0,\cdots ,\infty\)). The potential \(\psi (x,t)\) is given by
where \(g^{2D}\) is the Green’s function in time domain.
The Fourier component of the potential \(\psi ({{\textbf {r}}},t)\) is written by
where \(G^{2D}\) is the Green’s function in frequency domain. In this paper, we define the Fourier transform as follows (Dahlen and Tromp 1998),
We note that the Fourier convention depends on the literature. For example, Aki and Richards ’s definition has the opposite sign in the exponential term.

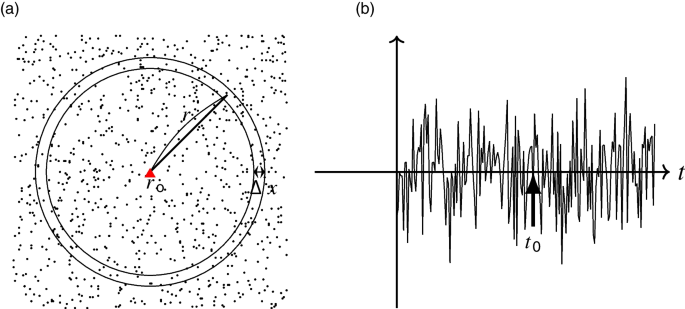

Schematic figure for random sources in 2-dimension. a Source distribution in space. The red triangle shows the observed station. b Potential \(\psi ({{\textbf {r}}}_o,t)\) observed at the origin \({{\textbf {r}}}\) at time t. The wave packet at time \(t_0\) is traveled from the source within the concentric circle with radius r shown in (a)
Here, we consider a potential \(\psi ({{\textbf {r}}}_o,t_0)\) in a simplified case with constant phase velocity as \(C({{\textbf {r}}})=C_0\), where \({{\textbf {r}}}_o\) is the location of the origin and time denotes an arbitrary positive time. The \(\psi ({{\textbf {r}}}_o,t_0)\) is represented by the sum of the arrivals excited by sources along the concentric circle with radius \(r=C_0 t_0\). The typical separation of the sources is assumed to be \(\Delta x\). Within the circle with the band \(\Delta x\), about \(2\pi r/\Delta x\) sources are distributed (Fig. 2 left). Because the amplitude decay is proportional to \(r^{1/2}\), the mean square amplitude \(\psi ({{\textbf {r}}}_o,t_0)\) is estimated to be about \(2\pi r/(\Delta x (r^{1/2})^2)=2\pi /\Delta x\), which does not depend on the distance r. Therefore, after \(t>0\), the fluctuations of \(\psi\) last for a semi-infinite time with the same mean squared amplitudes (Fig. 2 right).
2.2.2 Random sources distributed on a closed curve
The second source configuration is random sources on an arbitrary curve enclosing stations. Now, we observe the potential \(\psi\) at \({{\textbf {r}}}_o\) within the circle with radius r (Fig. 2). Based on the representation theorem, the wave excited by distributed sources outside the circle can be completely reproduced from the stresses and displacements on the circle (e.g., Aki and Richards 1980). The contribution of the sources within the circle for the CCF can be neglected because the contribution from the sources outside the circle becomes infinitely large when considering infinitely long times. These features mean that it is equivalent to persistent sources distributed only on the circle. Suppose that uncorrelated random sources with white spectra on an arbitrary surface enclose stations in a heterogeneous medium. In this case, the time derivative of the corresponding CCF represents the exact Green’s function between a pair of stations (Wapenaar et al. 2010a).
2.2.3 Uncorrelated plane wave incidents
The third source configuration is uncorrelated plane wave incidents from various directions. Assuming that the source-station distances are sufficiently longer than the aperture of the seismic array, the assumption leads to a plane-wave approximation (Nakahara 2006; Haney et al. 2012). The above discussions for a homogeneous source distribution lead to the identical formulation of CCFs regardless of the source configurations, as shown in the following subsection. When we consider a heterogeneous source distribution, the first source configuration is the most flexible to represent the source, and the second and third are gradually less flexible. The flexibility of the first two source configurations causes a complex dependence of a CCF on the locations of the two stations. In contrast, the inflexibility of the third source configuration causes a simple dependence of the CCF only on the relative location between the stations (only the distance and the azimuth). In many cases, the ocean swell activities are far enough away from the stations to approximate the phenomenon well. For simplicity, we will use the third source configuration to represent CCFs based on plane wave incidents in the following subsections.
2.2.4 CCFs for homogeneous source distribution in a 2-D homogeneous medium
For ANT, we explicitly express the CCFs between all pairs of three-component seismometers in an open system when multimode Love and Rayleigh waves dominate the ambient seismic wave field. We evaluated the CCFs for the surface waves in a 2-D problem with a membrane approximation (e.g., Tanimoto 1990; Tromp and Dahlen 1992a, b, 1993). We show an expression of the mixed-component CCFs of surface waves.

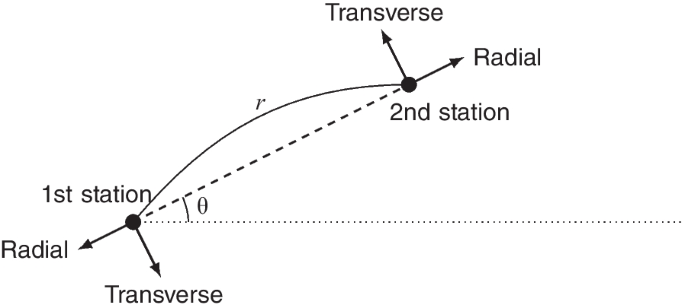

Schematic of the geometry of a pair of stations with separation distance r and the coordinate. The figure shows the radial and transverse directions for the station pair. To simplify the equation, the signs of the directions are different from those of other studies. The difference changes the signs of CCF in the components of RR, TT, RZ, and ZR
An arbitrary seismic wave field \({{\textbf {u}}}(r,\theta ; \omega )\) in 2-D can be represented by a superposition of multimode Love and Rayleigh waves as
where \(f^{\textrm{Ray}}_{n,m}(\omega )\) is forcing for Rayleigh waves, and \(f^{Love}_{n,m}\) is forcing of Love waves. \(U_n\) and \(V_n\) are eigenfunctions of the nth overtone of the Rayleigh wave, and \(W_n\) is the eigenfunction of the nth overtone of the Love wave, which has a real value. The basis functions \({{\textbf {P}}}_{m}\), \({{\textbf {B}}}_{m}\) and \({{\textbf {W}}}_{m}\) are given by
where \(c^{\textrm{Ray}}_n(\omega )\) is the phase velocity of nth overtone of Rayleigh wave, and \(c^{Love}_n(\omega )\) is nth overtone of Love wave.
An assumption of equipartition of energy leads to
where \(P^{\textrm{Ray}}_n(\omega )\) is the power spectrum of nth overtone of Rayleigh wave, and \(P^{Love}_n\) is the power spectrum of nth overtone of Love wave.
The mixed-component cross-spectra for multimode Rayleigh waves are written as,
where a cross-spectrum represents the CCF in frequency domain. The mixed-component cross-spectra for multimode Love waves are written as,
where \(J_{0-2}(z)\equiv J_0(z)-J_2(z)\) and \(J_{0+2}(z)\equiv J_0(z)+J_2(z)\). Z represents the vertical component, and R and T represent the horizontal components according to the polarization direction (Fig. 3).
These equations are identical to the result of Haney et al. (2012). A similar formulation for DAS observation is given by Nakahara et al. (2021). We note that the difference of sign \(\Phi ^{\textrm{Ray}}_{RZ}\) originates from the definition of the radial direction, which differs from this study. Using this formulation, cross-spectra for Rayleigh waves lead to a symmetric relation between the RZ and ZR components as \(\Phi _{RZ}^{\textrm{Ray}} = \Phi _{ZR}^{\textrm{Ray}}\), whereas cross-spectra for body waves lead to an antisymmetric relation as \(\Phi _{RZ}^{\textrm{body}} = -\Phi _{ZR}^{\textrm{body}}\) (Takagi et al. 2014).
Attenuation becomes significant when considering a seismic wave field in sediment above 0.1 Hz (Nishida et al. 2008a; Prieto et al. 2009, 2011). However, physically plausible attenuation measurements are practically difficult (e.g., Liu and Ben-Zion 2013; Tsai 2011) because there is ambiguity between the source heterogeneities and the attenuation. Although new techniques have been developed to overcome this problem (e.g., Liu et al. 2021; Magrini and Boschi 2021; Bowden et al. 2015), they are beyond the scope of this study. Even if the physically plausible attenuation estimation is difficult, apparent Q measurements are feasible for better fitting a synthetic cross-spectrum to an observation (e.g., Nishida et al. 2008a).
2.3 Travel-time anomalies due to the source heterogeneities
In this subsection, we evaluate travel-time anomalies due to source heterogeneities. Although the mode decomposition in the previous subsection can be applied to more general source distributions, the resultant CCF for heterogeneous source distribution becomes complex. With a stronger assumption of the 2-D ambient seismic wave field described by a superposition of uncorrelated plane waves from all azimuths (the third source-receiver configuration), the resultant CCF depends only on the relative location between the station pair. The condition that the excitation sources exist at infinite distances simplifies the problem (see Sect. 2.2.3 for details). Reducing variables simplifies the effects on the source heterogeneities. This assumption is sufficiently realistic, because we consider the on-land observation of the ambient seismic wave field excited by distant ocean swells. This estimate is consistent with Weaver et al. (2009), but with a different derivation.
Schematic figure of the geometry of stations and the stationary phase regions shown in blue. The sources are located sufficiently distant from the stations, and the distribution is given by \(B(\theta )\) as a function of the incident azimuth \(\theta\)
We assumed that the sources were located along a closed curve surrounding the stations. If the source is distant enough compared with the wavelength, the cross-spectrum \(\Phi\) between a pair of stations is given by
where wavenumber \(k(\omega )\) is \(\omega /c(\omega )\), m is the azimuthal order, \(\theta\) is azimuth (Fig. 4), and the Fourier coefficients of the source intensities \(\beta _{m}(\theta )\) are real value as
where \(a_{m}\) and \(b_m\) are Fourier coefficients of the source distribution (Harmon et al. 2010; Cox 1973). The spatially symmetric part of the cross-spectrum with even m is a real function, whereas the antisymmetric part with odd m is an imaginary function. The symmetric feature originated from the plane wave decomposition by the Bessel function as
Here, we evaluate a travel-time anomaly due to source heterogeneities of CCFs by the asymptotic expansion of the Bessel function for a large argument given by Eqs. 9.2.5 and 9.2.6 of Abramowitz et al. (1988),
where \(N_m\) is the Bessel function of the second kind (also known as the Neumann function) and \(\chi \equiv kr-\pi /4\). The real part of the cross-spectrum can be evaluated by only even orders as,
Insertion of the asymptotic Bessel function into the above equation leads to the following equations. The real part of the cross-spectrum is given by
and the imaginary part of the cross-spectrum is given by
where \(B_{od}\) and \(B_{ev}\) are defined by
The real and imaginary parts lead to the following cross-spectrum \(\Phi\) as,
where \(B\equiv B_{ev}(\theta )+B_{od}(\theta )\). \(B(\theta )\) represents the intensity of incident plane waves as a function of azimuth \(\theta\). Here, we use the following relations.
To evaluate the travel-time anomalies due to source heterogeneity, we consider the far-field approximation (\(kr\gg 1\)) of the Hankel function of the first kind:
We also assume that the source heterogeneity is weak as
The causal part of the cross-spectra (Eq. 38) can be written by
Therefore, the travel-time anomaly \(\delta t\) of the causal part can be estimated by
where t is the travel time and \(\omega\) is the nominal angular frequency. Figure 4 shows the stationary phase regions, which dominate the contribution of the CCF (Snieder 2006). The aperture \(\delta \theta\) of the stationary phase regions is proportional to the square root of the ratio between the wavelength and the station separation distance r (Froment et al. 2010). Because the narrower the aperture at the higher frequency, the travel-time anomaly decreases for a longer distance and a higher frequency. The equation does not include the first derivative of the intensity B because the symmetry cancels the contribution (Weaver et al. 2009). Equation 42 gives an error proportional to the second derivative of the intensity B to the azimuth. This equation can estimate the phase velocity bias due to source heterogeneities and correction (Weaver et al. 2009; Froment et al. 2010).
Finally, the analytic representation of a cross-spectrum for heterogeneous sources is given by
where Green’s function in 2-D is given by
This subsection shows how to estimate travel-time anomalies due to source heterogeneities. We note that the CCFs still satisfy the original wave equation even if the source distribution is heterogeneous. This property ensures that phase velocity measurements can be possible even for a heterogeneous source distribution if the station density is sufficiently high and the excitation sources are located outside the station array. Following Lin et al. (2013), we briefly show the relation in the following.
Here we consider potential \(\psi\), which satisfies a wave equation \(\mathcal{L}\) as
We also assume that no sources are distributed within the station array. The CCF \(\phi\) is defined by
The CCF satisfies the wave equation as
where \(\mathcal{L}_1\) is the wave equation concerning \({{\textbf {r}}}_1\). The CCF also satisfies the wave equation for \({{\textbf {r}}}_2\). Because the CCF satisfies the wave equation only without spectral whitening and one-bit normalization, these procedures often create unphysical phases (Nakata et al. 2013).
3 Data processing
If the seismic wave field is stochastic stationary, data processing for the CCF calculation is straightforward. In a realistic situation, the spectral structure of seismic records changes with time. Moreover, seismometers record transient phenomena such as earthquakes, which are noise for the CCF calculations. Instrumental noise is also problematic. To improve the quality of CCF, we need to select and regularize seismic records (Bensen et al. 2007; Ritzwoller and Feng 2019). This section explains the practical data processing.
3.1 Instrument
Before processing data, we must consider the influence of instrumental characteristics. This review considers the geophysical observable of ground motions and pressure in the ocean. The seismometer records the ground motions, and they can be categorized into strong motion sensors, short-period sensors, and broad-band sensors according to the frequency and amplitude ranges.
3.1.1 Sensors
Today, on a global scale, broad-band seismometers are commonly used. Because instrumental responses depend on sensor types, the responses should be removed prior to data analysis. Typically, broad-band sensors have a flat response in particle velocity above the corner frequency of about 10 to 100 s, and the response decreases with decreasing frequency below the corner frequency.
Short-period sensors (typically velocity seismometers with a corner frequency of 1 Hz) are also commonly used on a local scale. In the recent development of dense observation with more than 1000 stations (also known as a large-N array, e.g., Lin 2013), geophones with a natural frequency of 10 Hz are also often used. Although only nominal responses are available in many cases, the responses are slightly different from one to another (Ueno et al. 2015; Takeo et al. 2022). When we use the data with a frequency close to the natural frequency, the difference might cause an apparent phase shift, which could be problematic for a short separation distance.
When a sensor is deployed on the seafloor, pressure gauges are also commonly used (Webb 1998). Cross-correlation analysis of ocean bottom pressure gauges exhibits Rayleigh wave propagations by cross-correlation analysis (e.g., Takeo et al. 2014). When a sensor is deployed on the seafloor or bottom of a borehole, the orientation of the sensor is unknown (e.g., Takagi et al. 2019). In such cases, the orientations should be determined by known events, such as an active shot or teleseismic events.
3.1.2 Instrumental corrections
In ambient noise cross-correlation analysis, small-amplitude seismic wave signals are used compared to regular earthquake signals. Moreover, the signals may fall within the lower frequency band than the natural frequency of the seismometers, potentially residing below the instrument noise level. In such cases, instrument noise can significantly impact the quality of CCFs. Instrument noise can be categorized into incoherent and coherent noises across observation stations. Incoherent noise between stations decreases with the square root of the number of stacks of CCFs. However, coherent noise does not diminish and remains in the CCFs even with many stacks.
Takagi et al. (2015) conducted an ambient noise cross-correlation analysis using Hi-net short-period seismometers in Japan and found periodic pulses at 60-second and 1-second intervals within the CCFs. The stacking of raw records revealed that these periodic pulses were not a result of data analysis but were inherent in the raw records shared across all stations. Although the amplitudes were extremely small, less than 1 bit, they appeared in the CCFs at frequencies lower than the natural frequency band because of their coherence across stations. Similar instrument noise and its impact on CCFs have also been reported in other observation systems (e.g., Wang et al. 2017). This coherent periodic instrument noise is attributed to load fluctuations in data loggers, such as time calibration and data recording. There is also temporally random but coherent instrument noise across stations. The coherent random instrument noise appears as pulses near the zero lag in the CCFs. Such coherent random noise was found in DAS observations (e.g., Tribaldos and Ajo-Franklin 2021) and cabled ocean-bottom seafloor seismometers (Takagi et al. 2021).
It is crucial to remove coherent instrument noise to utilize CCFs to image subsurface structure. Several methods have been proposed to deal with periodic coherent instrument noise. One method involves creating waveforms of periodic coherent instrument noise by stacking many raw records and subtracting them from the raw observation records (Takagi et al. 2015). Alternatively, instead of computing instrument noise waveforms, one can calculate the difference of raw observation records (e.g., the difference between two adjacent days) and then compute the CCFs of these differential waveforms (Takagi et al. 2021). To reduce randomly coherent instrument noise, practical methods such as modeling and estimating the spectral shape of instrument noise (Takagi et al. 2021) or subtracting the median of CCFs from each trace (Tribaldos and Ajo-Franklin 2021) have been proposed. By taking advantage of dense DAS observations, the F-K filtering of fast-propagating phases before computing the CCFs is effective (Fukushima et al. 2022). In summary, while coherent periodic or coherent random instrument noise across observation stations can contaminate CCFs, understanding the characteristics of the noise and applying appropriate removal methods enable us to expand the analyzable frequency range and ultimately improve the resolution of structural imaging.
The time reliability is crucial for the cross-correlation analysis between stations. For onshore observations, satellite systems, such as the Global Navigation Satellite System (GNSS), usually give a precise time stamp. When GNSS reception fails, the temporal change in the CCFs has been used to estimate the error in the time stamps (Sens-Schönfelder 2008; Hirose and Ueda 2023). For offshore observations, precise time stamps are mostly given at deployment and recovery, and the drift of the internal clock can be linearly corrected. When the time stamp cannot be obtained either at the beginning or at the end of the observation, the temporal change in the CCFs can be used again to estimate the drift (Hannemann et al. 2014; Gouédard et al. 2014; Takeo et al. 2014). The time asymmetric shape of the CCFs can also be used to estimate unknown instrumental responses such as the constant time shift of the logger or the frequency-dependent phase response of the differential pressure gauges (Takeo et al. 2014).
3.2 Data selection
We must choose seismic data that satisfy a local stationary state to apply the SI. Outliers such as earthquake records and instrumental glitches decrease the SNR. This subsection introduces (1) one-bit normalization, (2) RMS-based data selection, and (3) polarization-based data selection.
3.2.1 One-bit normalization
To suppress the effects of transient phenomena such as earthquakes, one-bit normalization (e.g., Aki 1955; Bensen et al. 2007; Cupillard et al. 2011) keeps only the sign of the original information, changing all positive values to 1 and all negative values to -1. Because this method is simple, it has been widely used. When transient phenomena (e.g., many aftershocks and packet loss during data logging) occur frequently, their contributions decrease the quality of the CCFs. In such a case, careful reduction of transient signals allows us to improve the CCF’s quality. A disadvantage of this method is the loss of amplitude information. Different amplitude normalizations among components cause problems in the cross-correlation analysis of multicomponent data.
3.2.2 RMS-based data selection
If the signal obeys a stationary process, we can reject outliers using an RMS threshold. In a strict sense, secondary microseisms do not follow a stationary process but are in a local stationary state: RMS changes significantly by several orders of magnitude on a timescale of several days (Fig. 5). We must define the local background levels for the rejection, which change slowly over several days.
Here, we introduce an example for estimating the local background level by Nishida and Takagi (2022). To define the typical background level of the whole network at the ith time step, we calculate the median of MS amplitudes for all stations \(P_i\). Here, we consider a situation: ith time step is the latest accepted time step, and we reject n successive time steps. If \(P_{i+n}\) changes suddenly, we reject the (\(i+n+1)\)th time step with the threshold \(\epsilon\):
we reject all data at time step \(i+n+1\) with the criterion proportional to the rejection duration (orange points in Fig. 5).
3.2.3 Data rejection associated with large earthquake using a catalog
Seismometers record global propagations of many seismic phases excited by large earthquakes, typically with moment magnitudes greater than 6 (Ekström et al. 2012). In most frequency ranges, the RMS criterion can reject the corresponding data. However, the secondary microseisms are still large enough to hide some earthquakes. Even smaller amplitudes can bias the CCFs because the earthquake signals are coherent among the stations. Careful rejections of large earthquakes improve the quality. Using a global earthquake catalog (e.g., the global Centroid Moment Tensor (CMT) catalog (Ekström et al. 2012)), data rejection based on the magnitude in the catalog is feasible to exclude hidden seismic phases.
Approximately the amplitude of earthquake data decays exponentially with time. The typical duration \(D_e\) is:
where f is the dominant frequency, Q is the typical quality factor, M is the moment, and J is a typical geometrical spreading (Nishida and Kobayashi 1999; Tanimoto and Um 1999). Data were rejected for \(D_e\) seconds after the arrival. The orange dots in Fig. 5 show a typical example of rejected data (Nishida and Takagi 2022). Data can be rejected until the earthquake signal is much smaller than the background noise levels.
Example of the data selection process. The orange dots show data excluded using the global CMT catalog (Ekström et al. 2012), and the blue dots show data transients when the amplitude changes suddenly. The black dots represent selected segments. The vertical axis shows the relative power normalized by the Peterson NLNM (Peterson 1993)), which represents the lowest ground noise on Earth. Taken from Nishida and Takagi (2022)
3.2.4 Polarization-based data selection
If the excitation processes are stochastic stationary in time and space, the energy partition among the mode branches should be constant. The energy partition changes over time because they are not stationary in a realistic situation. For example, Takagi et al. (2018) pointed out that the energy partition of P-wave microseisms at periods of 4–8 s becomes more significant on seismically quiet days based on the polarization analysis of Hi-net data in Japan. When we want to emphasize overtones of seismic surface waves, data selection based on polarization information can potentially improve the detection of overtone branches. Pedersen et al. (2023) proposed the data selection based on the H/V spectral ratio to extract teleseismic body wave microseisms, and this strategy may be applicable for detecting overtone branches.
3.3 Regularization: weight and normalization of CCFs
If both the signal and the noise are subjected to the Gaussian distribution, calculating the CCFs from selected data is straightforward. However, neither noise nor signal behaves well in a realistic situation. Regularization of data is required as part of the preprocessing (Bensen et al. 2007).
3.3.1 Weighting of cross-spectra
The weighting on the data is important when we calculate a cross-spectrum between a station pair (Nishida 2014). The amplitudes of microseisms at frequencies around 0.1 Hz change with time, which reaches more than one order of magnitude on a timescale of one day. Spectral whitening efficiently reduces the non-stationarity (e.g., Bensen et al. 2007). The amplitudes of the seismic hum in the mHz band are stationary, although the local noise level is higher than the signal levels. In this case, the weighting of the data depending on the local noise level can be effective (Nishida 2014; Takeo et al. 2013). In the mHz band, the noise levels of the horizontal components are orders of magnitude higher than those of the vertical components. For the calculation of the cross-spectrum, we suppressed noisy Fourier components using the data weighting as follows.
We calculated a weighted cross-spectrum \(\Phi _{ij}(f)\) between the ith and jth stations at a frequency f as
where \(U^{k}_i (f)\) is a Fourier spectrum of ground acceleration of the kth segment at the ith station. The weighting factor \(w^k_{ij}(f)\) depends on the situation. If the noise is much larger than the signal, the weight can be estimated by
We can evaluate the uncertainty \(\sigma _{ij}(f)\) of the resultant \({\Phi }_{ij}(f)\) as
where \(N_{ij}(f)\) is number of stacked traces (Takeo et al. 2013). The corresponding CCF \(\phi _{ij}(t)\) is calculated by the inverse Fourier transform of \(\Phi _{ij}(f)\) (e.g., Fig. 6).
Cross-correlation functions as a function of interstation distances filtered at 20–30 s, 10–20 s, and 5–10 s. The amplitudes are multiplied by \(\displaystyle \sum _k w^k_{ij}(f)\) in the frequency domain to produce similar noise levels for different pairs of stations. The dashed pink line shows the group velocity of each specified mode at a typical period for the 1-D isotropic model. The modes include the fundamental mode and first-higher-mode Rayleigh waves, 0 S, and 1 S. The TT components show wave packets of Love waves xT, which could not be identified as a single mode due to possible interference between the fundamental mode and the higher mode with very similar group and phase velocities. Taken from Takeo et al. (2016)
3.3.2 Spectral whitening
If the signal is larger than the noise, the assumption of the previous Sect. 3.3.1 is broken down. Although simple stacking works for signals with Gaussian distribution, the signal level changes significantly with time. In particular, the amplitudes of secondary microseisms can change by several orders of magnitude over a timescale of a few days. Without regularizing the amplitude, the resultant CCFs emphasize days of high-ocean-swell activities too much. For the amplitude regularization, the cross-spectrum \(\Phi _{ij}\) is normalized by the amplitude (e.g., Aki 1957; Nishida et al. 2008a; Prieto et al. 2009) as,
The \(\Phi _{ij}\) with spectral whitening is also known as cross-coherency. The equation is similar to the weighting, but the factor \(\sum _k w_{ij}^k\) is not required.
Although direct waves are accurately reconstructed with spectral whitening, they cause many pseudo-arrivals. Therefore, if we ignore the pseudo-arrivals, all normalizations work practically (Nakata 2020). To mitigate the pseudo-arrivals, smoothing of \(w_{ij}^k\) in the frequency domain was proposed (Tauzin et al. 2019).
Another implementation is performed by spectral whitening of the individual seismic trace before calculating CCFs (Bensen et al. 2007). Specifically, the inverse Fourier transform of \(U^{k}_i (f)/|U^{k*}_i (f)|\) corresponds to the whitened seismic trace.
3.3.3 Temporal flattening
Different amplitude normalizations at different stations become problematic if we utilize amplitude information (e.g., attenuation). Although this topic is beyond the scope. Temporal flattening (Zhou et al. 2020; Weaver 2011) was proposed to preserve the amplitude information.
4 Dispersion measurement of surface waves for constructing local 1-D structures
In the first step of ANT (Fig. 1a), a reference dispersion curve of phase or group velocities is measured using the CCFs of an array. This section briefly summarizes the measurement methods: (1) frequency–time analysis, (2) slant stack technique, (3) SPAC method, (4) FJ method, and (5) waveform fitting. The dispersion curves are also important for the construction of local 1-D structures, which can be an initial model of ANT (see Sect. 6.3.1).
4.1 Frequency–time analysis (FTAN)
Frequency–time analysis is a common method for measuring the dispersion curves of earthquake data (Levshin et al. 1992; Cotte and Laske 2002; Romanowicz 2020). This method is also feasible for ambient noise CCFs (Bensen et al. 2007; Harmon et al. 2007; Yao et al. 2011; Spica et al. 2018). For the measurements, we usually use the time-symmetric part of CCF to reduce the effects of source heterogeneities (see equations 34 and 35 in Sect. 2.3). In this subsection, we use the folded CCF to lag time 0 \(\phi ^+_{ij}\) as,
and the corresponding Fourier component is defined by \(\Phi ^+_{ij}(f)\). The folding procedure distorts the waveform when the separation distance is shorter than about one wavelength. The tail of the acausal wave packet contaminates the causal peak because the CCF does not satisfy causality, as in the case of Green’s function.
A group velocity-period diagram can be calculated for each CCF. The general outline of the procedures is as follows, although there are some other implementations. Figure 7 shows an example of a synthetic test.
At a given center frequency f, a narrow-band filter with the center frequency \(f_0\) is applied to the CCF. For example FTAN (Levshin et al. 2018; Ritzwoller and Feng 2019) use a Gaussian filter
where \(\alpha\) is the coefficient, determining the bandwidth (Fig. 7a, b). Because a smaller \(\alpha\) broadens the bandwidth, a smaller \(\alpha\) provides a stable estimate for noisy data. At the same time, smaller \(\alpha\) can bias the estimation in cases of strong dispersion. \(\alpha\) often changes with the separation distance (Ritzwoller et al. 2011) as
where \(\alpha _0\) is the reference value at the separation distance \(r_0\). In a synthetic test shown in Fig. 7, \(\alpha _0\) is 40, and \(r_0\) is 200 km.
The envelope functions of the filtered CCFs are plotted against the periods and corresponding group velocities calculated from the separation distance and the lag time (Fig. 7c). Correction for \(f_0\) using the instantaneous frequency based on the analytical signal is feasible for a better estimate (Shapiro and Singh 1999; Levshin et al. 2018). In this case, a synthetic CCF is given by
where n is Gaussian noise with a standard deviation of 0.03. We can measure group velocities by tracing the loci of a local maximum as a function of the period. Because a strong frequency dependence on the spectral content can bias the group velocity measurements, the correction is necessary for accurate measurements. AFTAN (Automatic Frequency–Time Analysis) package (Barmine 2018) is available for this type of measurement. We show an example of the estimation errors at 0.1 Hz as a function of the separation distance (Fig. 7d).
We can also measure the phase velocity from the phase of \(\Phi ^+_{ij}(f)\) (e.g., Levshin 2018; Ritzwoller and Feng 2019) if a single mode is dominant. Multimode interference is problematic for such measurements. To isolate a single mode, we must apply a proper filter. Here, we introduce two typical filters: (1) time variable filter (Landisman et al. 1969) and (2) floating filter (Levshin et al. 1992).
a Gaussian filters for various separation distances at 0.1 Hz. b Gaussian filter for \(r = 200\) km. c FTAN diagram for a synthetic CCF with the observation error is 1%. The separation distance is \(r = 200\) km. The black line shows the theoretical group velocity and the red dots show measured values using synthetic data. d Group and phase velocity anomalies for the synthetic CCFs with 1% measurement errors as a function of separation distance at 0.1 Hz. e Measured phases (blue dots) and the theoretical values (dashed lines) at 0.1 Hz. f Histogram of group and phase velocities estimation errors at 0.1 Hz
The time variable filter (Harmon et al. 2007; Landisman et al. 1969) isolates a single-mode wave packet by windowing the CCF around the arrival time predicted by the group velocity measurements. Window length is set according to the dispersion because the stronger dispersion makes the duration of the wave packet longer. A typical window length (Harmon et al. 2007) \(T_w\) is given by
where U is group velocity, and \(\tau\) is period.
Floating filtering is also a common procedure for extracting a single mode (Levshin et al. 1992). Based on the group velocity measurement, phase correction \(\psi (\omega )\) is defined by
where r is the separation distance, and \(t_1\) is a constant. \(\Phi ^+_{ij}(\omega )\) is multiplied by \(e^{i\psi }\) to compress the signal around the average group time. \(t_1\) is chosen to focus on the average group arrival. After cleaning up the signal, \(\phi ^+\) is recovered by the inverse Fourier transform with \(e^{-i\psi }\).
The phase velocity C can be measured from the phase of \(\Phi ^+(\omega )\) (Lin et al. 2008; Harmon et al. 2007) as,
where N is an integer number. The \(\pi /4\) originates from the Bessel function, and the \(2\pi\) ambiguity can be solved if a good starting model is available. Note that \(\Phi ^+(\omega )\) is out of phase by \(\pi /2\) with the corresponding empirical Green’s function (see Sect. 2 of Lin et al. (2008)).
Figure 7e shows the phase of the synthetic test and the theoretical values. Although they agree, the finite bandwidth of the Gaussian filter biases the measured phases. At higher frequencies, estimating the phase ambiguity N is difficult due to the ambiguity of an initial model. If a dense array is available, the array methods, as discussed in the following subsections, are feasible for measuring the phase velocity at higher frequencies. The measurement using FTAN has a limitation for the separation distance of CCFs. The group velocity measurements are accurate when the separation distance exceeds three wavelengths. For this reason, (Bensen et al. 2007) recommended that the longest period should be r/12.
Histograms in Fig. 7f show the estimation errors of the group and phase velocities. Although the measured phase velocities were relatively accurate, the dispersion caused bias. When applying this method to strongly dispersive wave fields, we must carefully consider bias, particularly for low-SNR data.
An advantage of the FTAN method is the ability to measure the dispersion of a single station pair. As already pointed out, the FTAN method also has the disadvantage that the dispersion measurements are difficult for separation distances shorter than about three wavelengths. FTAN method is still feasible for measuring multimode dispersion if a wave packet of each mode branch is isolated in the time domain. If multiple phases overlap in time domain, an array-based method (slant stack or SPAC) is appropriate.

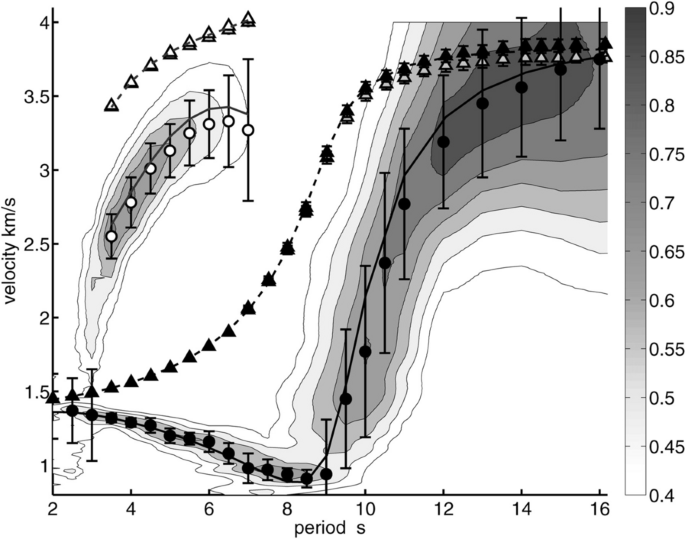

Figure 8 shows an example of a multimode Rayleigh wave dispersion diagram measured using ocean-bottom seismometers. The figure shows two clear branches. The fundamental mode with a period 8 s has energy in the ocean, while it has energy in the crust and the uppermost mantle with the longer period. The overtone also has energy in the crust and the uppermost mantle. This behavior of a multimode Rayleigh wave in an oceanic region is common, as shown in Fig. 6. A seismic array on a soft sediment layer records multiple mode branches above about 0.2 Hz (e.g., Spica et al. 2018).
Group and phase velocities and the average spectrogram of raw data. Gray-scale filled contours represent the averaged spectrograms of all the CCF that met the SNR requirements, where the maximum value for each period in the individual spectrograms was normalized to one. The fundamental and second mode Rayleigh wave is visible in these data as the broad regions. Filled black circles with error bars indicate the average group velocities for the fundamental mode, while open circles with error bars indicate the average group velocities for the higher-mode Rayleigh wave. Black triangles with error bars indicate fundamental mode uncorrected phase velocities; gray triangles with error bars indicate \(-\pi /4\) corrected phase velocities for higher and fundamental mode phase velocities, and open triangles with error bars indicate higher mode phase velocities. Taken from Harmon et al. (2007)
4.2 Slant stack technique
Suppose that a dense array with station spacing comparable to the wavelength is available. In this case, the slant stack technique, also known as the frequency–wavenumber (F-K) method, is a common array processing (Rost and Thomas 2002; Gouédard et al. 2008). This method also assumes that the superposition of plane waves can represent the wave field. The beam power \(B_p\) is defined by a sum of time-shifted waveforms \(\Phi ^+(\omega )\) with expected travel-time anomaly \(\omega {{\textbf {p}}}\cdot {{\textbf {x}}}_i\)
where k and l represent the station number, \(r_{kl}\) is the separation distance between kth station and lth station, and \({{\textbf {x}}}_k\) is the location vector of kth station represented by a Cartesian coordinate with the origin at the array centroid. The term \(\sqrt{r_{kl}}\) corrects the amplitude decay due to geometrical spreading for a surface wave.
The disadvantage of this method is a potential bias due to the plane wave assumption. Equation 31 shows that the \(J_0\) (vertical component) the \(J_{0-2}/2\) (radial and transverse component) can be approximated as
The contribution of the terms \((8kr)^{-1}\) and \(7(8kr)^{-1}\) is significant for a shorter station pair. These equations suggest that the bias of the horizontal components could be larger. We tested the bias of the vertical component using a synthetic CCF at 0.15 Hz given by Eq. 57 and the slowness of 0.3 s/km. Figure 9 shows the station distribution of the array (Hi-net stations with a radius of about 100 km) and the result. The beam peaks at 0.3 s/km, consistent with the theoretical value. To verify the bias, we measured the peak slowness for 10,000 experiments. Figure 10 shows the histogram. Although the measurements fluctuate, the central value is 0.05% lower than the theoretical value. The bias of about 0.05% is consistent with \(-(8k^2r^2)^{-1}\) estimated from equation 62 with a typical separation distance of 60 km.
This method can reveal multimode dispersion on a scale of 100 m to 100 km: DAS observation on a 100 m scale (Dou et al. 2017), a 10 km scale ocean bottom DAS (Viens et al. 2022; Williams et al. 2021), and a 100 km scale basin structure (e.g., Boué et al. 2016; Jiang and Denolle 2022). Li et al. (2020) demonstrated that supervised machine learning methods are feasible for separating multimode information.
There is another implementation to calculate the F-K spectrum. When calculating the slant stack, the separation distances between stations are not regular. We can re-sample the CCFs on regular grids if all the station separation distances are shorter than half the wavelength. CCFs can be mapped from the spatial domain to the F-K domain using the 2-D fast Fourier transform (FFT) after a correction \(r^{1/2}\) for geometrical spreading (Gabriels et al. 1987). This method is applied to joint inversion of the first overtone and fundamental mode for deep imaging in the Valhall oil field using ambient seismic noise (Tomar et al. 20172018).
Synthetic test of slant stack, SPAC, and FJ methods. We assumed an ambient seismic wave field with a slowness of 0.3 s/km. a Station distribution. b Histogram of separation distance between station pairs. c Plot in slowness domain: slant stack, variance reduction of the SPAC method, and the FJ spectrum as a function of slowness. The noise is assumed to be 3% of the signal
Bootstrap errors of the estimated slowness by SPAC, slant stacking, and FJ method. The noise is 3% of the signal, and the sampling number for the bootstrap method is 10,000
4.3 SPAC method
This subsection explains the implementation of the SPAC method. In the case of homogeneous source distribution in a stratified medium, the synthetic cross-spectrum \(\rho ^{\textrm{syn}}_{ZZ}\) between vertical components can be represented by a Bessel function (see Sect. 2.2.4) as
where r is the separation distance of the station pair. Assuming an arbitrary wavenumber \(k(\omega )\) at a given frequency, we determine the optimum amplitude a, by minimizing the squared difference S between the observed cross-spectrum \(\Phi _i\) of ith pair and \(\rho ^{syn}(r_i,a,C;\omega )\) (e.g., Nishida et al. 2008b) with weight \(w_i\). S is given by
where N is number of the pairs. By minimizing S at a given frequency \(\omega\), we infer the phase velocity \(C(\omega )\) and the amplitude \(a(\omega )\). Regarding a, S can be minimized analytically as
We obtain the optimum a for given C and \(\omega\) as
To minimize S with respect to C in \(\omega\), we maximize the variance reduction \(V_R\) given by
The maximum is inferred using the grid search method. The estimate can be refined using a generalized least-squares method (Menke and Jin 2015).
Figure 9 shows a test of the SPAC method using a synthetic cross-spectrum at 0.15 Hz given by Eq. 57 and the slowness of 0.3 s/km. We used an array with a radius of about 100 km shown in Fig. 9a. Most of the separation distance ranges from 40 to 130 km (Fig. 9b). Figure 9c shows \(V_R\) as a function of slowness (1/C). Because the amplitude of the surface wave decreases with \(1/\sqrt{r}\), the appropriate modeling by SPAC sharpens the peak compared to the beam power.
We measured the maximum of \(V_R\) for 10,000 experiments to evaluate the estimation errors. Figure 10 shows the histogram. The measurements fluctuate within 0.05%, and the median value is around the theoretical value.
Modeling \(\Phi _{RR}\) and \(\Phi _{TT}\) in horizontal components is more complicated because both Love and Rayleigh waves contribute to these components, as shown by Eqs. 26 and 27. The corresponding synthetic cross-spectra \(\rho ^{syn}_{RR}\) and \(\rho ^{syn}_{TT}\) can be represented by
When we analyze the station with a separation distance shorter than the wavelength, we must consider the Love/Rayleigh wave for the RR/TT component, respectively. Although the Love and Rayleigh waves are coupled in this system, we can solve this equation directly. The maximum search becomes complex because the variance reduction at a given frequency is a function of \(C^R\) and \(C^L\).
Here, we consider a simplified problem with a far-field approximation. Because \(J_{0+2}\) is proportional to \(r^{-3/2}\), the term becomes negligible for r longer than the wavelength (e.g., Takeo et al. 2013). In this case, we can simply apply the SPAC method to these components separately by replacing \(J_0\) of the vertical component with \(J_{0-2}\). Figure 11 shows \(V_R\) using the SPAC method in Japan (Nishida et al. 2008a). The diagram shows clear Rayleigh and Love branches. Although this method assumed a single-mode branch, the figure exhibits multimode branches, which enable us to increase depth resolution (e.g., Ikeda et al. 2012). The SPAC method is also applied to seismic data from the ocean floor (Takeo et al. 2013, 2014; Lin et al. 2016; Takeo et al. 2016, 2018; Kawano et al. 2023). To separate multimode Rayleigh waves, polarization information could also be useful (Nayak and Thurber 2020).
On a global scale, cross-spectra can be modeled using the Legendre function instead of the Bessel function (Nishida et al. 2002; Nishida 2014).
Frequency–phase velocity spectra using all pairs of stations. a A spectrum of radial components shows a clear Rayleigh wave branch, and b that of transverse components, which shows a fundamental Love wave branch, first overtone branch, and second overtone branch. Taken from Nishida et al. (2008a)
4.4 FJ method
The frequency–Bessel (FJ) method (Wang et al. 2019a; Hu et al. 2020; Nimiya et al. 2023) is closely related to Aki’s SPAC method. Here, we reinterpret the FJ method with the SPAC method. For simplicity, we consider the ZZ component in this subsection. Refer to Hu et al. (2020) for other components.
If we observed \(\phi (r,\omega )\) as a function of the separation distance r, the squared difference with weight r can be evaluated by the following integration,
By minimizing S for given C and \(\omega\), we obtain
If \(r_N\) is much longer than the wavelength, the denominator can be approximated by
\(a^{\textrm{opt}}(C,\omega )\) can be approximated by the integral (the numerator) evaluated at discrete points (Hu et al. 2020) as
where
and \(\Phi _i\) is the cross-spectrum of the ith station pair. FJ spectrum \(I(C,\omega )\) defined by Nimiya et al. (2023) can be approximated by
Although Hu et al. (2020)’s definition of the coefficient \(\omega ^2/C^3\) instead of \(\omega ^2/C\) has a physical meaning, the emphasis on small phase velocity C may bias the estimation, as shown below. We can interpret the FJ spectrum as a variant of SPAC method with weight \(w_i\) defined by
We again tested the FJ method using a synthetic cross-spectrum given by Eq. 57 and the slowness of 0.3 s/km. Figure 9c shows the FJ spectrum. The peak width is narrower, but the side lobes are more significant than the others. Let us evaluate the side lobes using Eq. 71. If \(r_N\) is sufficiently longer than the wavelength, the FJ spectrum \(\omega\) for synthetic data \(J(\omega r_i/C_0)\) can be approximated (see Eq. 31) by
This integral can be interpreted as the Fourier series. Fourier series without a taper function cause significant spectral leakage (Oppenheim and Schafer 2014). If \(r_N\) is sufficiently large, \(I(C,\omega )\) has value only at \(C=C_0\) like the delta function, due to the orthogonality of the cosine function (more precisely, the orthogonality of the Bessel function). This means that the FJ method has, in principle, the highest resolution in phase velocity.
To evaluate the accuracy, we measured the peak slowness for 10,000 experiments using the FJ method. Figure 10 shows the histogram. The estimated value of the FJ spectrum of Hu et al. (2020) is about 0.2% larger than the theoretical value. The bias is caused by the fall-off of the spectra at low phase velocity of \(C^{-2}\) (Shapiro and Singh 1999). The drop in the \(C^{-2}\) term (Nimiya et al. 2023) of equation 78 significantly reduces bias, as shown in Fig. 10. The greater variation in the estimates is due to the greater weight of the smaller amplitudes at longer separation distances (Eq. 77). When the observation error is sufficiently small, the high resolution of the FJ method in the slowness domain will be beneficial for separating multimode surface waves. When the observation error is significant, the SPAC method can consider the noise using appropriate weights.
Figure 12 shows an example of field data (Hu et al. 2020). Although this subsection mentioned only the ZZ components, it can be applied to other components. Because the RR and TT components record both Love and Rayleigh waves, as shown by Eq. 69, their coupling complicates the estimation of the FJ spectra in the RR and TT components. Hu et al. (2020) proposed procedures to separate the Love and Rayleigh wave using orthogonal relations of the Bessel functions (Fig. 12).
Multicomponent frequency–Bessel spectrograms of field data in North America. a–d are the FJ spectrograms \(I_{R0}\), \(I_{R1}\), \(I_{R2}\), and \(I_{L0}\), respectively. Here, \(I_{R0}\) is FJ spectrum of Rayleigh wave using ZZ components, \(I_{R1}\) is FJ spectrum of Rayleigh wave using RZ and ZR components, \(I_{R2}\) is FJ spectrum of Rayleigh wave using RR and TT components, and \(I_{L0}\) is FJ spectrum of Love wave using RR and TT components. The black arrow in (a) indicates the location where the fundamental mode Rayleigh wave is bifurcated into two branches. The ith overtone is labeled next to each dispersion curve, and 0 indicates the fundamental mode. Taken from Hu et al. (2020)
4.5 Multimode dispersion measurements by waveform fitting in a model space
Array-based dispersion measurement of the real data. a 1-D shear velocity structure modeled with six layers of variable thickness (parameterization A). The thick and thin black lines represent the mean and standard deviation of the estimated models from the 100 bootstrap samples. b Rayleigh wave dispersion curves estimated with model A. The thick and thin white curves represent the mean and three times the standard deviation of the 100 bootstrap results. The background image is the average of the variance reductions of the conventional cross-spectral fitting for the ZZ, ZR, and RR components. The frequency range without the white shadow is used in the dispersion measurement. c Love wave dispersion curves estimated with model A. Taken from Takagi and Nishida (2022)
The frequency–phase velocity diagram does not show clear mode branches in regions with strong lateral heterogeneities, such as volcanoes and ocean sediments (Takeo et al. 2022; Takagi and Nishida 2022). For example, Fig. 13 shows an example of SPAC diagrams in an oceanic area offshore the central part of northern Japan near the Japan Trench. They show fundamental Rayleigh and Love waves below 0.08 Hz, but other mode branches are intermittent and ambiguous. Lateral variations of the shallow soft sediment distort the dispersion curves of multiple modes. Moreover, multimode interference also complexes the diagrams. In this case, the physically plausible phase velocity measurements are difficult. A physically plausible constraint on the dispersion is crucial for better measurements. One strategy is to skip phase velocity measurements using a SPAC method. For a given S-wave velocity structure, the corresponding phase velocity of jth overtone \(C^j({\beta };\omega )\) can be evaluated, where \({\beta }\) is a vector with components of S-wave velocity at each depth. The variance reduction given by Eq. 68 is summed over in a frequency range from \(\omega _0\) to \(\omega _1\) and the N mode branches as
where \(V_R^{all}\) is the summed variance reduction. By maximizing \(V_R^{all}\) for \({\beta }\), we can infer the local 1-D structure. This method can be applied to the RR and TT components even if Love and Rayleigh waves appear in both the RR and TT components with shorter separation distances. Figure 13 shows an example. Figure 13a shows the S-wave velocity models, and Fig. 13b, c shows the corresponding mode branches. Along the calculated mode branches, \(V_R\) is summed over the frequency and all wave types. By maximizing \(V_R^{all}\), we can infer the local 1-D model. This method searches for the global maximum of \(V_R^{all}\) in the model space. Physically implausible models can be rejected automatically. The plot of \(V_R\) against frequencies and phase velocities, as shown in the figures, is feasible to check the validity of the estimated model. Liu et al. (2023) proposed an inversion method, which directly compared multimode dispersion diagrams with the synthetic kernel of the Green’s function, which shares a similar idea as the method here.
5 Dispersion measurements for each path
In the second step of ANT (Fig. 1b), phase or group velocity is measured for each path. This section introduces four methods to measure dispersion for each CCF: (1) FTAN, (2) the zero-crossing method, (3) the SPAC-based waveform fitting in the phase velocity domain, and (4) the waveform fitting in a model space. FTAN and the zero-crossing method (Ekström et al. 2009) are feasible to measure the phase velocity of a single mode. The latter two methods measure phase velocities by SPAC-based waveform fitting. The first measures the phase velocity directory under an assumption of single-mode dominance, whereas the second measures by fitting synthetic CCF to the observed one with the help of reference CCF constructed by the local 1-D structural inversion.
5.1 FTAN
FTAN explained in Sect. 4.1 can also be used for phase and group velocity measurements of a single trace (e.g., Lin et al. 2008). We can measure the group velocities of multimode surface waves by picking up local maxima from a stacked FTAN diagram over an area (Spica et al. 2018). However, multimode interference makes phase velocity measurements using FTAN difficult. Even in the case of multimodes, if we can isolate a single mode by a time variable filter (Landisman et al. 1969) or (2) a floating filter (Levshin et al. 1992), we can measure the phase velocities.
5.2 Zero-crossing method
The zero-crossing method (Ekström et al. 2009) is briefly summarized here. We will consider the ZZ component for simplicity, but it can be easily extended to other components. For the frequency \(\omega _n\) of the nth zero-crossing observed, the phase velocity can be evaluated by
where \(z_n\) of is the nth zero of the Bessel function \(J_0\), \(m=0, \pm 1, \pm 2\), which represents the ambiguity of n. This formulation allows missed or extra zero crossings because observed noise makes measurement of \(z_n\) difficult. The messed or extra zero crossings 2m arise from the distinction between positive-to-negative zero and negative-to-positive zero. The advantages of this method over the FTAN method are (i) applicability even for a shorter separation distance (typically shorter than three wavelengths) and (ii) smaller bias for shorter distances owing to no far-field approximation. Although zero-crossing measurements are practically robust (Ekström et al. 2009), the low-SNR CCF behaviors become unstable. In particular, because strong lateral heterogeneities distort the phase information, appropriate filtering prior to application is crucial for stable measurements.
5.3 SPAC-based waveform fitting in phase velocity domain
This method measures the phase velocity anomaly in the ith frequency band from \(\omega _i\) to \(\omega _{i+1}\) under the assumption of single-mode dominance. If we already inferred local 1-D models based on the SPAC method, the synthetic cross-spectrum can be represented by
where \(\epsilon\) is phase velocity anomaly. We infer \(\delta a\) and \(\epsilon\) by minimizing the squared difference defined by
where \(\epsilon _i\) is the phase velocity anomaly at \(\omega _i\), and \(\alpha _i\) is an amplitude correction term at \(\omega _i\). \(\alpha _i\) is estimated first by the least-squares method for \(\epsilon _i\). With the estimated \(\alpha _i\), \(\epsilon _i\) is measured using the grid search method (Nagaoka et al. 2012; Yamaya et al. 2021).
5.4 Multimode dispersion measurements by waveform fitting in a model space
In the case of the dense spacing of the mode branches in the phase velocity domain, there is a method for estimating the multimode dispersion curve by waveform fitting using a 1-D velocity structure as model parameters. Yoshizawa and Kennett (2002) developed the original idea of measuring the phase velocity dispersion curve for each path of teleseismic surface waves. We applied this method to the cross-spectra of ambient noise continuously (Takagi and Nishida 2022; Takeo et al. 2022). The advantages of this method are that it provides physically achievable dispersion curves and can simultaneously measure dispersion curves for multimode surface waves. Given the 1-D velocity structure, it is possible to calculate dispersion curves for all corresponding higher-order modes, explaining observed waveforms through the superposition of multimode surface waves. For the superposition of multiple modes, it is necessary to know the excitation amplitudes for each mode. In the case of teleseismic surface waves, the excitation amplitudes for each surface wave mode can be calculated from the seismic source mechanism. We can use the amplitudes \(a^j\) calculated from the array-based SPAC method for the cross-spectrum of ambient noise (Eq. 67). Given a reference 1-D structure of the first step (Sect. 4), the synthetic cross-spectrum can be represented by
where \(\delta \beta\) is a perturbation of 1-D structure, N is the number of the mode branches, and j represents the order of the mode branch. We infer \(\delta \beta\) by minimizing the residual sum of squares given by
It is worth noting that the 1-D velocity structure, which serves as a model parameter, does not necessarily represent the true Earth structure (Yoshizawa and Kennett 2002). The 1-D structure model is not unique with respect to band-limited dispersion curves; different 1-D models can reproduce similar dispersion curves. The main products here are the multimode dispersion curves calculated by the 1-D structure. Thus, the search range of the model space should be wide enough to reproduce a dispersion curve that nicely fits the waveform.
These equations correspond to the vertical component but can be readily extended to other components. In waveform fitting, a relatively wide frequency range is often handled, and multicomponent data can be simultaneously processed. Therefore, it is important to consider the weighting of the data in practical applications. The error estimate of the SPAC method based on the array can be utilized as the weights (Takagi and Nishida 2022).
Figure 14 exemplifies its application to S-net data (Takagi and Nishida 2022). Even in this case, where the signal-to-noise ratio of the CCFs is low, it is possible to robustly estimate multimode dispersion curves by utilizing the entire waveform of multicomponent CCFs and applying physical constraints based on 1-D structure.
Dispersion measurement for a single path by waveform fitting in a model space. a Modeled pair-specific 1-D shear velocity structure for the S-net station pair N.S2N08-N.S3N20. The thick and thin black lines represent the mean and standard deviation of the 1-D structures estimated by the bootstrap method. The gray line results from the reference model obtained by the array-based SPAC method in Fig. 13a. b Phase velocity dispersion curves of the fundamental-mode Rayleigh wave (0R), the first-overtone Rayleigh wave (1R), and the fundamental-mode Love wave (0 L). The thin blue and red lines are the means and three times standard deviations of the estimated pair-specific dispersion curves. The thick blue and red curves represent the frequency ranges that meet the quality control criteria based on variance reductions within narrow frequency bands. The gray ones are the results of the array-based measurement in Fig. 13b, c. c Fitting of the cross-spectra for this pair. The black and red are the data and the modeled cross-spectra, respectively. d Same as in (c), but both cross-spectra are normalized by the standard deviation of the cross-spectral data estimated from the array-based SPAC method. Taken from Takagi and Nishida (2022)
6 2-D multimode ANT
In the third step of ANT (Fig. 1c), we conduct a 2-D inversion of the phase/group velocity of multimode surface waves from the phase/group velocity measurements for all pairs of stations. The method has been developed to explore the mantle structure using earthquake data (e.g., Woodhouse and Dziewonski 1984; Nakanishi and Anderson 1982; Tanimoto and Anderson 1985; Ekström et al. 1997; Nolet 2008). Because review papers covering ANT are available (e.g., Barmin et al. 2001; Montagner, 2015 Rawlinson et al. 2010; Thurber and Ritsema 2015; ), see them for details.
For inversion, we should consider the sensitivity kernels of the phase/group velocity. Although in an idealized situation, the kernel is identical to a finite-frequency kernel for an earthquake, a heterogeneous distribution of the noise source distorts the kernels (e.g., Nishida 2011; Tromp et al. 2010; Hanasoge 2013; Fichtner 2014; 2015; Fichtner et al. 2016; de Vos et al. 2013).
The first subsection describes how source heterogeneities affect the kernel using an analytical method for a simplified case. The next section explains the conditions for the application of surface wave tomography. The last subsection briefly summarizes the 2-D inversion methods: local 1-D inversion, ray-theoretical inversion, and finite-frequency inversion.
6.1 2-D phase velocity sensitivity kernel for ANT
The sensitivity kernel for 2-D phase velocity is evaluated based on the Born and Rytov approximations (Born et al. 1999; Ishimaru 1997; Nolet 2008). The Born approximation relates the scattered wave to the phase velocity perturbations with the first-order approximation, but it does not separate the effects on the amplitude and the phase. On the other hand, the Rytov approximation by taking the logarithm of the wave (e.g., Yoshizawa and Kennett 2005) enables us to separate the logarithmic amplitude term and the phase term.
Here, we consider the Born sensitivity kernel K, which relates the phase velocity perturbation and the cross-spectrum perturbation \(\delta \Phi\) as
where C is phase velocity and \(\delta C\) is the perturbation. The locations \({{\textbf {r}}}_{1}\), \({{\textbf {r}}}_2,\) and \({{\textbf {r}}}_3\) are shown in Fig. 15a. The kernel K is given by
where \(\Phi ({{\textbf {r}}}_1,{{\textbf {r}}}_2;\omega )\) is the cross-spectrum between \({{\textbf {r}}}_1\) and \({{\textbf {r}}}_2\) at frequency \(\omega\) (e.g., Nishida 2011), and G is the Green’s function in frequency domain. Although the kernel was generally calculated numerically, it can be estimated by observed data in principle if dense data were available (Chmiel et al. 2018).
a Schematic map of the geometry of stations. The star symbols show the station locations at \({{\textbf {r}}}_1\) and \({{\textbf {r}}}_2\). The open circle shows the location of a phase velocity anomaly at \({{\textbf {r}}}_3\). b Elliptic curves with constant \(|r_{13}-r_{23}|\), and hyperbolic curves with constant \(|r_{13}-r_{23}|\)
With an assumption of the 2-D ambient seismic wave field described by a superposition of uncorrelated plane waves as in Sect. 2.3, Eq. 43 gives the analytic representation of \(\Phi\). Assuming that \(\omega \delta t\) and kr are small enough, the kernel can be rewritten by
where \(B(\theta )\) represents the intensity of incident plane waves as a function of azimuth \(\theta\), and \(r_{ij}\) is the distance between \({{\textbf {r}}}_i\) and \({{\textbf {r}}}_j\), \(\chi _{ij} \equiv kr_{ij}-\pi /4\) (see Fig. 15a). The form of a phase sensitivity kernel for a homogeneous source distribution is the same as that of the earthquake data (Nishida 2011).
The Rytov approximation is feasible to evaluate the phase sensitivity kernel (e.g., Yoshizawa and Kennett 2005; Nishida 2011). Although the approximation requires a single-wave packet, the cross-spectrum \(\Phi\) given by Eq. 43 (\(\theta =0\), and \(r=r_{12}\)) includes both the causal and acausal parts. We divide the cross-spectrum \(\Phi\) and the kernel K into causal and acausal parts according to the sign of the exponent, approximately. The causal part can be represented by \(e^{-kr+\omega t}\), while the acausal part can be represented by \(e^{kr+\omega t}\), where the wavenumber k and the angular frequency \(\omega\) are positive. The cross-spectrum \(\Phi\) is divided into the causal part \(\Phi ^{c}\) and the acausal part \(\Phi ^{ac}\) as,
The Born sensitivity kernel K is also divided into the causal part \(K^c\) and the acausal part \(K^{ac}\) according to the sign of the exponent as,
and
where the region \(r_{13} > r_{23}\) corresponds to the first and fourth quadrants, whereas the region \(r_{13}<r_{23}\) corresponds to the second and third quadrants (Fig. 15b). The Born kernels also satisfy \(K=K^{a}+K^{ac}\) from the definition.
The causal perturbation \(\delta \Phi ^a\) and acausal perturbation \(\delta \Phi ^{ac}\) are related to phase velocity anomalies as
Most studies on ANT used the time-symmetric part of the cross-correlation function to measure phase velocity anomalies. The time-symmetric part of cross-spectrum \({\bar{\Phi }}\) is defined by
We consider the relation between perturbation of \({\bar{\Phi }}\) and the corresponding Born kernel \({\bar{K}}\) as
where
The Rytov approximation is employed to obtain a phase sensitivity kernel for phase velocity perturbations (Nishida 2011). In the Rytov method, the logarithm of the cross-spectrum \({\bar{\Phi }}\) is considered instead of the cross-spectrum itself. By taking the logarithm, \({\bar{\Phi }}\) can be divided into real (amplitude) and imaginary (phase) parts, as follows:
where A is the amplitude of the causal part, and \(\psi\) is its phase. The phase perturbation \(\delta \psi\) can be written by
where the phase sensitivity kernel \(K_p\) is the imaginary part of \(-{\bar{K}}/{\bar{\Phi }}\).
Then, the phase kernel \(K_p\) can be written by
where we neglect the first-order term.

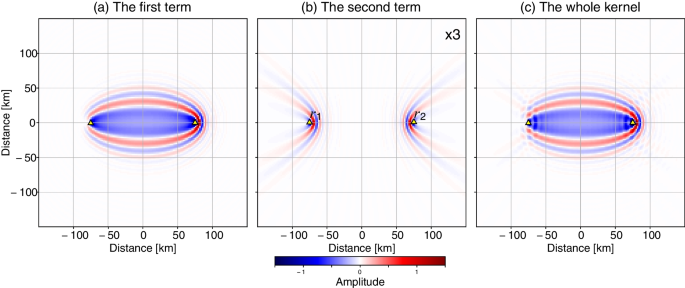

Figure 16 shows an example of sensitivity kernels. The separation distance of the station pair is 150 km, and the phase velocity is 3 km/s. The source \(B(\theta )\) is assumed to be \(\cos \theta +1\).
The first term has an elliptical shape (Fig. 15b), as shown in Fig. 16a, corresponding to the finite-frequency kernel of an earthquake. The kernel along the line between the station pair (\(\theta _1=0\) and \(\theta _2=\pi\)) is identical to the finite-frequency kernel of an earthquake. The width of the kernel at the midpoint is proportional to \(\sqrt{\lambda r_{12}}\), where \(\lambda\) is the wavelength \(2\pi /k\). As a location moves away from the line between, the source heterogeneity increases the sensitivity on the \(r_2\) side.
The second term with the dependency of \(|r_{13}-r_{23}|\) exhibits a hyperbolic shape (Fig. 15b) caused by source heterogeneity (Fig. 16b), and the term oscillates rapidly outside the stationary zones behind it. The effect tends to be smoothed out when the typical spatial scale of the lateral heterogeneity is larger than the wavelength.
When the spatial scale of the source distribution is large (i.e., the azimuthal dependence of \(B(\theta )\) is smooth), the shape of the kernel is similar to the finite-frequency kernel of an earthquake (e.g., Spetzler et al. 2002; Yoshizawa and Kennett 2005). Because an approximation of the finite-frequency kernel of an earthquake works for most cases practically, most studies did not consider the source heterogeneity effect of the kernel. To check the effects, travel-time anomalies due to the source heterogeneities given by Eq. 42 can be a common criterion. In particular, because source heterogeneities cause apparent azimuthal anisotropy, the travel-time anomalies given by Eq. 42 are useful to evaluate accuracy. Although attenuation measurements are beyond the scope, the corresponding amplitude kernel is more sensitive to the source distribution, so that the source heterogeneities should be considered.
a The first term of the phase kernel \(K_p\) for \(B=\cos \theta +1\). The first term has an elliptical shape. The yellow triangles show the station location. b The second term of the phase kernel \(K_p\). The second term has a hyperbolic shape. c The whole kernel of the phase kernel \(K_p\). The background phase velocity is 3 km/s. The frequency range is from 0.1 to 0.2 Hz. We also apply a cosine taper for averaging in the frequency range
6.2 Conditions for application of surface wave tomography

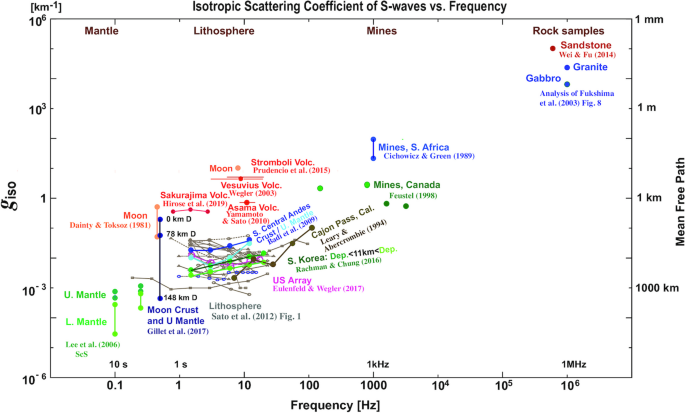

Log–log plot of reported isotropic scattering coefficients against frequency. The left vertical axis shows the isotropic scattering coefficient \(g_{iso}\), and the right vertical axis shows the corresponding mean free path (\(g_{iso}^{-1}\)). Grey lines are for the lithosphere. Taken from Fig. 1 of Sato (2019)
This subsection briefly summarizes the conditions for applying the 2-D inversion method, known as phase/group velocity tomography. Surface wave tomography requires weak scattering of the surface waves during propagation because we measure phase or group velocity anomalies of the direct waves. Because the propagation distance ranges from hundreds to several thousand km, the distance should be shorter than the mean free path. Otherwise, strong scattering makes phase or group velocity measurements difficult. Figure 17 shows the mean free path as a function of the frequency compiled by Sato (2019). When we explore the mantle structure using earthquake data, we use surface waves below 0.05 Hz. The mean free path longer than 1000 km at the frequency validates the application of the method of surface wave tomography.
\(ka-kL\) diagram (Aki and Richards 1980) for a classification of wave propagation, where k is the wavenumber, a is the scale of heterogeneities, and L is the propagation distance. Red lines show propagation distances from 10 to 150 km, and blue lines show those from 150 to 2000 km. The mean free path at 0.03 Hz is 5000 km, that at 0.1 is 500 km, and that at 0.2 Hz is 30 km
To understand applicability, Fig. 18 shows a classification of wave propagation and the applicable method in \(ka-kL\) diagram (Aki and Richards 1980), where k is the wavenumber, a is the scale of heterogeneities, and L is the propagation distance. Here, we assume that the mean free path is comparable to a, although this estimate is very crude. The mean free path of northern Japan from 0.5–1Hz is estimated to be about 30 km (Hirose et al. 2020), and that of Germany is estimated at 0.2 Hz to be about 500 km (Sens-Schönfelder and Wegler 2006b). The red lines show propagation distances from 10 to 150 km, and the blue broken lines show those from 150 to 2000 km. At 0.03 Hz, the surface wave propagation at teleseismic distance beyond 2000 km is within the regime of ray theory. At 0.2 Hz, the strong scattering makes measurements difficult for propagation distances longer than 200 km. This is the reason why earthquake surface wave tomography is practically difficult above 0.1 Hz. Before applying ANT, setting up an appropriate problem based on the observed situation is important.
Let us consider the difference in ray geometry between ANT and earthquake surface wave tomography. In the case of regional-scale earthquake surface wave tomography with source-receiver paths, the target area is surrounded by earthquakes, which are limited along active tectonic areas (Fig. 19a). Because most ray paths travel across the area, the travel-time anomalies reflect the seismic structure along lines over the scale. Because the perturbations of the inferred phase/group velocity map strongly depend on the damping of the tomographic inversion, the absolute velocities tend to be ambiguous. Although the damping problem is common in ray-theoretical inversion, including ANT, an initial local 1-D model for ANT constructed from multimode dispersion measurements using subarrays (see Sect. 6.3.1) can mitigate the ambiguity.
In contrast, in the case of ANT with a dense array, the distribution of the ray path is uniform (Fig. 19b). Above 0.05 Hz, CCFs with longer separation distances (typically longer than 1000 km) become complex. Ray paths with separation distances shorter than 1000 km enable us to infer tomographic maps even in regions with strong lateral heterogeneities above 0.1 Hz. This situation is similar to earthquake tomography using the two-station method (e.g., Dziewonski and Hales 1972; Hamada and Yoshizawa 2015), which measures the phase differences between seismograms for two stations on a common great-circle path. The drawbacks of the two-station method are (1) that it requires both stations to be located close to the common great-circle path, which reduces the available ray paths, and (2) that the longer earthquake-receiver distance tends to cause the wave propagation to enter the regime of multiple scattering at a higher frequency (Fig. 18).
The shape of the sensitivity kernel is elliptical along the ray path, and the width at the midpoint is proportional to \(\sqrt{\lambda r_{12}}\), where \(\lambda\) is the wavelength. Because the lengths of ray paths of earthquake data become longer in general, the widths become wider than those of ANT. The wider width tends to average the anomalies within the fat ray, and the averaging over a long distance makes restoring the small-scale image difficult.
a A typical example of earthquake-receiver geometry for earthquakes. The gray lines show ray paths between the earthquakes and the stations. Red stars show the earthquakes, and black dots show stations. b A typical example of station geometry for ANT. The lines show ray paths between the station pairs
The advantages of ANT are the homogeneous path distribution and the shorter ray paths. These features enable us to estimate phase/group velocity maps above 0.1 Hz.
6.3 Implementations of the 2-D phase/group velocity inversions
The subsection briefly summarizes implementations of 2-D phase/group velocity inversions using phase/group velocity anomalies measured from ambient noise CCFs: (1) regionalization using subarrays, (2) the ray-theoretical inversion of ANT, and (3) finite-frequency inversion of ANT.
6.3.1 Regionalization using subarrays
If dense stations are distributed over a large area, the stations can be divided into local subarrays. Phase/group velocity maps can be inferred from phase/group velocity measurements with the subarrays, such as F-K analysis (Jiang and Denolle 2022), FJ method (Fu et al. 2022; Nimiya et al. 2023), and slant stack (Qin et al. 2022). These methods can easily incorporate information on multimodes with smaller amplitudes because array analysis enhances the SN ratios.
The inferred map is also helpful as an initial model for further inversions. Most ANT studies employ linearized inversion to obtain 2-D phase/group velocity maps (e.g., Rawlinson and Sambridge 2004) because the computational cost of fully nonlinear inversion (e.g., Markov Chain Monte Carlo (MCMC); Bodin and Sambridge 2009; Bodin et al. 2012; Galetti et al. 2016) is still high. A good initial model is crucial for better modeling for linearized inversion, because an inappropriate initial model may lead to a solution with a local minimum. An inappropriate initial model sometimes requires strong damping to stabilize the inversion. The appropriate initial model could mitigate the degradation of a tomographic image.
6.3.2 Ray-theoretical inversion of ANT
The most common method of tomographic inversion of phase/group velocity anomalies is ray-theoretical inversion with the assumption of a high-frequency limit. For example, tomo_sp_cu_s is a program (Barmin 2018) designed for estimating 2-D models from regional- or global-scale surface wave phase/group velocity measurements (Barmin et al. 2001; Ritzwoller 2002). The program also assumed a straight ray for a weakly heterogeneous medium. Another implementation to solve the eikonal equation is the fast marching method (Sethian 1996; Rawlinson and Sambridge 2004; White et al. 2020). SURFTOMO (Rawlinson 2008) is an iterative nonlinear travel-time tomography code in 2-D spherical shell coordinates. Figure 20 shows an example of wavefront tracking using the final tomographic results. Although the figure shows the concentric wavefront within the arc distance of 10\(^{\circ }\), it shows kinks in Eastern Australia, which can be explained by triplication due to the low-velocity zones. This figure also suggests that CCFs with a separation distance longer than \(10^{\circ }\) are difficult to model above 0.1 Hz without the help of a good initial model. An advantage of ANT is that we can choose ray paths that meet the conditions according to the problem setting owing to the homogeneous distribution of the ray paths.
The eikonal tomographic method (for example, Lin et al. 2009) also assumes a high-frequency limit with a single mode and solves the eikonal equation directly. The eikonal tomographic method tracks the evolution of the wavefront using only local information with dense array data. The phase velocity can be estimated by the in situ spatial gradient of the phase travel time without an inversion. The method can be applied to a more general condition of the source distribution than equal energy distribution because the method does not require CCFs to be related to the corresponding Green’s function. This method works as long as the phase travel time satisfies the eikonal equation (see the end of Sect. 2.3; Snieder et al. 2006; Lin et al. 2013; Lehujeur and Chevrot 2020). If a dense array satisfies the station spacing shorter than the wavelength, this method is feasible to infer the phase velocity map (e.g., de Ridder and Dellinger 2011; Lin et al. 2013; Ritzwoller and Feng 2019; Chen et al. 2022).

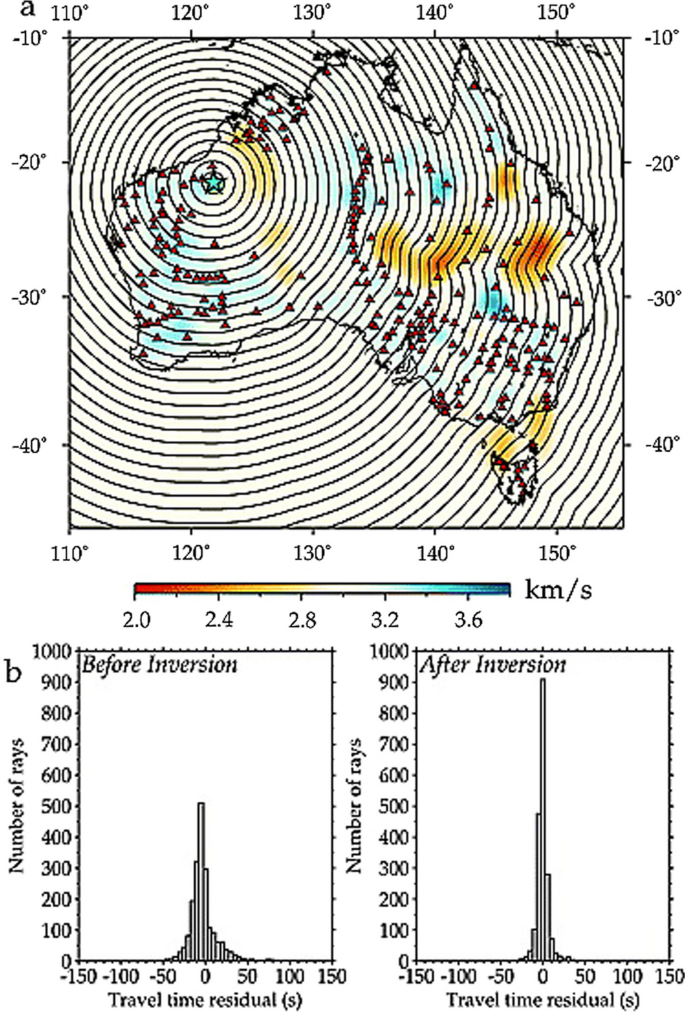

a Evolution of the wavefront in the case of strongly heterogeneous media. The station with a green star acts as the source, and the red triangles show the stations concerning the advancing wavefronts. Note the triplication effects around the low-velocity zones. b Histograms of passage time residuals for measurements at 10 s for Rayleigh waves, initially compared to a uniform reference model with a velocity of 2.8 km/s with great-circle paths, and after the inversion with 6 iterations of the subspace method with deviated paths. Taken from Fig. 4 of Saygin and Kennett (2012)
6.3.3 Finite-frequency inversion of ANT
Although the patterns of the ray-theoretical inversions are robust in different studies, the retrieved strength of phase/group velocity perturbations differs (e.g., Yoshizawa and Kennett 2004). Finite-frequency inversion is crucial to improve the amplitude recovery of velocity perturbations. As shown in Sect. 6.1, the sensitivity kernel has an elliptical shape, and the width at the midpoint is proportional to \(\sqrt{\lambda r_{12}}\). For a heterogeneous data set with multiple scales, the difference in the width of the sensitivity kernels becomes problematic, because it becomes difficult to recover the amplitude of velocity perturbations by a ray-theoretical inversion. This subsection summarizes recent developments on finite-frequency inversions.
As explained in Sect. 6.1, a finite-frequency sensitivity kernel of a CCF also depends on the source distribution. Consequently, the phase/group velocity structure has a trade-off with the source distribution (Fichtner 2015). To improve the structural image, we must infer the source distribution simultaneously (Fichtner et al. 2016; Sager et al. 2020, 2017). To mitigate the effects of source heterogeneities, measurements of differential travel times between two pairs of three stations were proposed (Liu 2020). The sensitivity kernels of the three-station method significantly reduce the effect of the heterogeneous source distribution. Because CCF amplitudes are more sensitive to source heterogeneities (Tsai 2011), the considerations of the source information will become more crucial in inferring the attenuation structure.
Because the computational cost of the sensitivity kernels for both the structure and the source distribution is still high, the earthquake sensitivity kernel for phase/group velocities is instead used practically (Gao and Shen 2015a; Yang and Gao 2018; Covellone et al. 2015; Gao and Shen 2015b; Emry et al. 2019; Yang et al. 2022; Gao and Shen 2014; Wang et al. 2019b2020; Lu et al. 2020; Crosbie et al. 2019; Janiszewski et al. 2019; Russell and Gaherty 2021; Zhao et al. 2020). The approximation becomes exact under the condition of equipartition of energy (Nishida 2011). Although the kernel does not consider the source heterogeneities, it improves the image from ray-theoretical inversion.
Another implementation of the finite-frequency effect of ANT is Helmholtz tomography (Lin and Ritzwoller 2011b; Lin et al. 2012b; Mordret et al. 2013). This method is a natural extension of eikonal tomography to consider finite-frequency effects by introducing the amplitude correction term. Although this method requires dense data, the phase velocity can be estimated without the sensitivity kernel and the inversion, as in the case of eikonal tomography. This method can be applied to a more general condition of the source distribution (see the end of Sect. 2.3).
7 3-D seismic velocity inversion using the multimode dispersion
In the fourth step of ANT (Fig. 1d), a 3-D seismic velocity structure is constructed from the inferred phase/group velocity maps in the previous step, which exhibit the dispersion curves at each grid point. The local 1-D structure at each grid point can be inverted from the dispersion curves. 3-D seismic velocity structures can then be constructed by collecting local 1-D structures. In most cases, only the dispersion of fundamental modes (Love and Rayleigh waves) is utilized for the inversion because the excitation sources are distributed on the surface. Recent studies reveal that a dense array enables us to utilize multimode dispersion. Joint inversion with the H/V or receiver function is feasible to improve the depth resolution.
7.1 1-D seismic velocity inversion at each grid
a Phase velocities of the fundamental (0th) and first-higher modes of surface waves for the modified PREM (Dziewonski and Anderson 1981). The sudden phase velocity decrease marked by the ellipse corresponds to the transition of modal energy from solid to ocean. b, c Sensitivities of phase velocities to P-wave and S-wave velocities (\(K_{\alpha }\) and \(K_{\beta }\), respectively). The two lines in each panel show the depths of the seafloor and Moho. Taken from Takeo et al. (2013)
The measured dispersion curves are inverted to obtain local 1-D structures. Inversion methods can be categorized into a Monte Carlo method (Shapiro and Ritzwoller 2002; Maraschini and Foti 2010) and a linearized method (Tarantola and Valette 1982; Tarantola 2005; Montagner 2015). Because the local 1-D inversion is identical to the earthquake data, this section briefly summarizes the related studies mentioned above.
All 1-D inversions require a code to calculate the surface wave dispersion (e.g., DISPER80, Saito 1988; senskernel-1.0, Levshin 2018; Computer Programs in Seismology, Herrmann 2013). These codes also calculate the depth sensitivity kernel, which is also useful for a Monte Carlo inversion. Figure 21 shows a typical example of depth sensitivity kernels for a model based on a reference Earth model PREM (Dziewonski and Anderson 1981), where the thickness of the ocean is changed from 3.0 to 4.6 km, and the thickness of the crust is reduced from 22 to 6 km (Takeo et al. 2013). Fundamental Love and Rayleigh waves have sensitivity at shallower depths. The higher modes are not sensitive to the S-wave structure at shallower depths, and they are more sensitive to the S-wave velocity structure at greater depths than the corresponding fundamental models. With increasing periods, the kernels have higher sensitivity at greater depths. A multimode inversion can improve depth resolution because overtones have different sensitivities from fundamental modes.
a Stations of the ocean bottom seismometers array in the region off Ibaraki. The station intervals are about 6 km. The yellow triangles show the stations deployed on October 17, 2010, and the red triangles show those deployed on February 15, 2011. b, c S-wave velocities along the A-A’ and B-B’ lines. The red, orange, and green regions reflect layer 1, layer 2, and layer 3, respectively. We interpret the red and orange regions to be sedimentary layers, the green region to be Cretaceous sediment, and the blue region to be the upper crust, respectively. The black lines show the depth of the acoustic basement (between the orange and green regions) and the top of the upper crust (between the green and blue regions). Modified from Figs. 1 and 8 of Yamaya et al. (2021)
Figure 22 shows an example of the 1-D inversion (Yamaya et al. 2021) using multimode dispersion under the ocean. The study used a computer program package SEIS_FILO (Akuhara 2022) for the inversion, which implements a transdimensional Bayesian interface and reversible-jump MCMC (rj-MCMC) (Green 1995). They assumed a uniform distribution for the prior probability distribution (1–10 for the number of layers; 2.3–10 km for depths of the discontinuities; and 2.3 km for seafloor depth and 0.1–5 km/s for S-wave velocities). P-wave velocities and densities were scaled by the empirical relation (Brocher 2005). The multimode dispersion constraints enable us to infer both sediment thickness and S-wave velocity. To demonstrate the feasibility of multimode measurements to improve depth resolution, let us compare the inversions of Fig. 22 with and without higher-mode surface wave dispersion. Figure 23d shows the inversion result using multimode dispersion, whereas Fig. 23e shows the result using only fundamental modes. These figures show that the inversion using multimode dispersion is feasible to constrain the shallow sediment structure, improving the resolution of the crustal structure. Although Rayleigh waves also have sensitivity to the P-wave velocity, the limited sensitivity only at shallow depths (Fig. 21b) makes it difficult to constrain the P-wave velocity structure practically. With an empirical relation (e.g., Brocher 2005), the P-wave velocity and the density are scaled to the S-wave velocity to reduce the number of parameters.
Many groups have already published crust and uppermost mantle models using fundamental modes, although this paper focuses on multimode ANT. Since there is no space to discuss individual models, we introduce Data Services Products: EMC, A repository of Earth models (Trabant et al. 2012; IRIS DMC 2011), which is a resource that offers access to different Earth models, along with visualization tools to preview models, facilities to extract data and metadata from the models, and access to software and scripts that others in the research community have contributed.
Comparison of 1-D S-wave velocity structure inversions using both the fundamental and the first-higher modes of Rayleigh wave (a, b, d) with that using only the fundamental modes (c, e). a Phase velocity of the fundamental mode of the Rayleigh wave. The blue points show the average phase velocities. The Markov chain Monte Carlo method calculated the posterior probabilities for 1-D average S-wave velocity structures. b Phase velocity of the first-higher mode of the Rayleigh wave. Blue points show the 1-D average phase velocities. c The phase velocity of the fundamental mode of Rayleigh waves with posterior probabilities using only fundamental modes. d S-wave velocity structure inferred by the MCMC method using both the fundamental and the first-higher modes of Rayleigh wave. The blue line shows the median velocity at each 0.1 km depth grid point. Layers 1 and 2 are well constrained despite the given loosely bounded uniform priors. e S-wave velocity structure inferred by the MCMC method using only the fundamental modes. Modified from Figs. 5 and 10 of Yamaya et al. (2021)
Seismic anisotropy gives us a clue to understanding the rheology and deformation of the Earth. In some cases, an isotropic S-wave velocity model cannot explain the observed discrepancy between the Love wave dispersion and the Rayleigh wave dispersion, which can be explained by radial anisotropy (e.g., Aki and Kaminuma 1963; Anderson 1962). Radial anisotropy in the upper mantle can be explained by lattice-preferred orientation in the low-velocity zone or partial melt under shear stresses (e.g., Montagner 2015). Radial anisotropy also exists in the lower crust, which can be explained by the lattice-preferred orientation (LPO) of anisotropic crustal minerals under extension (Moschetti et al. 2010a, b; Huang et al. 2010). ANT also revealed radial anisotropy in volcano areas (Jaxybulatov et al. 2014; Harmon and Rychert 2015; Spica et al. 2017; Lynner et al. 2018; Jiang and Denolle 2022; Jiang et al. 2023, 2018; Miller et al. 2020). The layering of a partial melt layer in the magma reservoir can explain them. Thus, radial anisotropy is feasible for discussing the stress state and the texture. Azimuthal anisotropy can also provide information on rheology and deformation (Lin et al. 2009; Yao et al. 2010; Ritzwoller and Feng 2019; Russell and Gaherty 2021): for example, the flow in the uppermost mantle related to plate motion (Takeo et al. 2016). We note that apparent anisotropy due to the lateral heterogeneities of the isotropic S-wave velocity structure is problematic (Lin and Ritzwoller 2011a; Fichtner et al. 2013). When estimating anisotropy by the tomographic method, the anisotropy has trade-offs with the lateral heterogeneities. Moreover, ANT has another difficulty that source heterogeneity can yield up to about 1% apparent azimuthal anisotropy (Harmon et al. 2010; Takeo et al. 2014, 2016), which can be estimated by Eq. 42 (equivalent to Weaver et al. (2009)).
7.2 Joint inversion with other observations
Although multimode ANT improves depth resolution, surface wave tomography has an inherent low depth resolution. Joint inversions with other geophysical observables are feasible for a better depth resolution at the 4th step.
A thin low-velocity layer near the surface is problematic. Rayleigh waves are essentially less sensitive to the S-wave velocity structure near the surface, as shown in Fig. 21. The poor sensitivity of Rayleigh waves at shallow depths makes resolving the shallow structure difficult, although the layer can still change the dispersion curves of surface waves. The polarization of the Rayleigh wave provides information on the shallow S-wave velocity structure beneath a seismic station. If the amplitude ratios between the horizontal and vertical components (ellipticity) for individual mode branches are available, the joint inversion can constrain shallower depths (Lin et al. 2012a). Even if the ratios of individual modes are difficult to measure, the spectral ratio of the horizontal to vertical (H/V) components at a station (Nakamura 1989; Sánchez-Sesma et al. 2011; Bahavar et al. 2020) can be robustly measurable. The H/V ratio allows us to constrain the shallow structure by joint inversion with an assumption of equipartition of modes (Spica et al. 2018). We note that the ellipticity also has information on the azimuthal anisotropy (Lin and Schmandt 2014) because the ellipticity also depends on the azimuth from one station to the other station.
In particular, single-mode surface wave inversion is difficult to distinguish between the smooth Vs model and the layered model because the dispersion curves of surface waves are insensitive to velocity jumps. A joint inversion with the receiver function allows us to improve the resolution of the seismic discontinuities (e.g., Bodin et al. 2012; Gao and Shen 2015b; Zhou et al. 2020; Akuhara et al. 2023; Ai et al. 2023). A joint inversion of multimode dispersion with the receiver function for earthquake data (e.g., Taira and Yoshizawa 2020) could be feasible to improve depth resolution, although not yet applied to ANT.
8 Conclusions
The first section introduces theories of SI for ANT. Although they are based on different assumptions, the resultant CCFs can be related to the Green’s function under the equipartition of energy. In a realistic situation, although the modal energy is not equally distributed among different mode branches, they work for the individual mode branches. Heterogeneities of the noise sources break the equipartition of energy even for a single-mode branch. We evaluated the apparent anomaly caused by the source heterogeneities. The important point is that the CCF still satisfies the wave equation even for a heterogeneous source distribution, leading to the robustness of the ANT results.
We summarize practical data processing on the calculation of CCFs. For calculating a good quality CCF (satisfying the theoretical assumptions), it is important to choose appropriate data processing depending on the behavior of the data and the noise. Because recent phase velocity measurement methods used waveform information for precise measurements, amplitude information should be considered by careful data selection and normalization of CCFs.
Since most conventional ANT studies utilized only the fundamental modes, it has inherited a great uncertainty regarding the depth structure. Recent developments in measurement techniques and dense observations enable us to utilize information on multimode dispersion. We show a typical inversion of multimode ANT, which consists of the following four steps. The first step is the multimode dispersion measurement of surface waves to construct local 1-D structures. The second step is to measure the phase/group velocity for each path. Multimode interference was problematic in measuring multimode dispersion because most studies implicitly assumed the dominance of the fundamental mode. The dispersion measurements by waveform fitting in a model space are feasible for the multimode case. The third step is the 2-D phase/group velocity inversions. Ray-theoretical inversion was commonly used in most cases, but the finite-frequency effect has been considered recently. To evaluate the effects of source heterogeneities on the sensitivity kernel, we show an analytic kernel with source heterogeneities in a simplified case. Helmholtz tomography is also feasible for considering finite-frequency effects and the source heterogeneities for sufficiently dense stations compared to the wavelength because CCFs for a heterogeneous source distribution still satisfy the wave equation. The fourth step is a local 1-D inversion on each grid to construct a 3-D S-wave tomographic model. The multimode inversion improves the depth resolution of the S-wave velocity structure. Joint inversions with other geophysical observations, such as the H/V ratio and receiver functions, could be feasible to improve depth resolution further.
Availability of data and materials
The Python code of the synthetic tests (Figs. 7, 9, 10 and 16) will be available on the Zenodo page https://doi.org/10.5281/zenodo.10313732.
Abbreviations
- 1-D, 2-D, 3-D:
-
One-dimensional, two-dimensional, and therein-dimensional
- ANT:
-
Ambient noise surface wave tomography
- CCF:
-
Cross-Correlation Function, which is the time-domain representation of a cross-spectrum
- CMT:
-
Centroid Moment Tensor
- FFT:
-
Fast Fourier transform
- FJ method:
-
The frequency–Bessel method
- FTAN:
-
Frequency–time analysis
- Hi-net:
-
A high-sensitivity seismograph network of nearly 800 stations with an average spacing of 20 km. Seismometers are installed at the bottom of boreholes at a depth of 100–3500 m to reduce noise caused by winds, ocean waves, and human activity. Observed data is digitized at each station and continuously transmitted to NIED. https://doi.org/10.17598/NIED.0003
- H/V spectral ratio:
-
The ratio between the Fourier amplitude spectra of the horizontal and vertical components of microtremors.
- IRIS:
-
IRIS (Incorporated Research Institutions for Seismology[1]) was a university research consortium dedicated to exploring the interior of the Earth by collecting and distributing seismographic data. On January 1, 2023, IRIS merged with UNAVCO to form the EarthScope Consortium.
- LPO:
-
Lattice-preferred orientation
- mHz:
-
Milli-Hertz (10−3 Hz)
- MCMC:
-
Markov Chain Monte Carlo
- MS:
-
Mean Squared amplitude
- multimode ANT:
-
Ambient noise multimode surface wave tomography
- NLNM:
-
New Low Noise Model (Peterson 1993)
- PREM:
-
Preliminary Reference Earth Model (Dziewonski and Anderson 1981)
- rj-MCMC:
-
Reversible jump Markov Chain Monte Carlo
- RMS:
-
Root Mean Squared amplitude
- SI:
-
Seismic Interferometry
- SPAC:
-
SPatial AutoCorrelation method
- USArray:
-
A 15-year program to place a dense network of permanent and portable seismographs across the continental USA. Seismographs record local, regional, and distant (teleseismic) earthquakes. https://doi.org/10.7914/SN/TA
References
Abramowitz M, Stegun IA, Romer RH (1988) Handbook of mathematical functions with formulas, graphs, and mathematical tables. Am J Phys 56(10):958. https://doi.org/10.1119/1.15378
Ai S, Akuhara T, Morishige M, Yoshizawa K, Shinohara M, Nakahigashi K (2023) Layered evolution of the oceanic lithosphere beneath the Japan basin, the sea of Japan. J Geophys Res. https://doi.org/10.1029/2022jb025581
Aki K (1955) Relay computer for correlogram analysis. Zisin 8(1):56–58
Aki K (1957) Space and time spectra of stationary stochastic waves, with special reference to microseisms. Bull Earthq Res Inst 35:415–457
Aki K (2003) Earthquake prediction by monitoring the loading process of plate-driving forces at the Brittle-Ductile transition zone. In: Seventh workshop on non-linear dynamics and earthquake prediction. Trieste, Italy, pp 1–166
Aki K, Kaminuma K (1963) Phase velocity of low waves in Japan (part 1): Love waves from the Aleutian shock of march 9, 1957. PhD thesis, The University of Tokyo
Aki K, Richards PG (1980) Quantitative seismology, vol 2. San Francisco, W. H. Freeman, p 557
Akuhara T (2022) SEISmological transdimensional inversion tools for Flat and Isotropic Layered structures in the Ocean (SEIS\_FILO). https://doi.org/10.5281/zenodo.6330840
Akuhara T, Yamashita Y, Ohyanagi S, Sawaki Y, Yamada T, Shinohara M (2023) Shallow low-velocity layer in the Hyuga-nada accretionary prism and its hydrological implications: insights from a passive seismic array. J Geophys Res. https://doi.org/10.1029/2022jb026298
Anderson DL (1962) Love wave dispersion in heterogeneous anisotropic media. Geophysics 27(4):445–454. https://doi.org/10.1190/1.1439042
Ardhuin F, Gualtieri L, Stutzmann E (2015) How ocean waves rock the earth: Two mechanisms explain microseisms with periods 3 to 300 s. Geophys Res Lett 42(3):765–772. https://doi.org/10.1002/2014GL062782
Bahavar M, Spica ZJ, Sánchez-Sesma FJ, Trabant C, Zandieh A, Toro G (2020) Horizontal-to-vertical spectral ratio (HVSR) IRIS station toolbox. Seismol Res Lett 91(6):3539–3549. https://doi.org/10.1785/0220200047
Barmin MP (2023) RayTomo: seismic surface wave isotropic/azimuthally anisotropic group/phase speed 2-D tomography. https://github.com/NoiseCIEI/RayTomo. Accessed 9 Aug 2023
Barmin MP, Ritzwoller MH, Levshin AL (2001) A fast and reliable method for surface wave tomography. Pure Appl Geophys 158:1351–1375. https://doi.org/10.1007/PL00001225
Barmine M (2023) AFTAN: seismic surface wave dispersion measurements with automatic frequency time analysis. https://github.com/NoiseCIEI/AFTAN. Accessed 12 July 2023
Bensen GD, Ritzwoller MH, Barmin MP, Levshin AL, Lin F, Moschetti MP, Shapiro NM, Yang Y (2007) Processing seismic ambient noise data to obtain reliable broad-band surface wave dispersion measurements. Geophys J Int 169(3):1239–1260. https://doi.org/10.1111/j.1365-246X.2007.03374.x
Bodin T, Sambridge M (2009) Seismic tomography with the reversible jump algorithm. Geophys J Int 178(3):1411–1436. https://doi.org/10.1111/j.1365-246X.2009.04226.x
Bodin T, Sambridge M, Tkalćić H, Arroucau P, Gallagher K, Rawlinson N (2012) Transdimensional inversion of receiver functions and surface wave dispersion. J Geophys Res 117(2):1–24. https://doi.org/10.1029/2011JB008560
Born M, Wolf E, Bhatia AB, Clemmow PC, Gabor D, Stokes AR, Taylor AM, Wayman PA, Wilcock WL, (1999) Principles of optics: electromagnetic theory of propagation, interference and diffraction of light, 7th edn. Cambridge University Press, Cambridge, p 985. https://doi.org/10.1017/CBO9781139644181
Boué P, Denolle M, Hirata N, Nakagawa S, Beroza GC (2016) Beyond basin resonance: characterizing wave propagation using a dense array and the ambient seismic field. Geophys J Int 206(2):1261–1272. https://doi.org/10.1093/gji/ggw205
Bowden DC, Tsai VC, Lin FC (2015) Site amplification, attenuation, and scattering from noise correlation amplitudes across a dense array in long beach. CA Geophys Res Lett 42(5):1360–1367. https://doi.org/10.1002/2014gl062662
Brenguier F, Campillo M, Hadziioannou C, Shapiro NM, Nadeau RM, Larose E (2008) Postseismic relaxation along the San Andreas fault at Parkfield from continuous seismological observations. Science 321(5895):1478–1481. https://doi.org/10.1126/science.1160943
Brenguier F, Shapiro NM, Campillo M, Ferrazzini V, Duputel Z, Coutant O, Nercessian A (2008) Towards forecasting volcanic eruptions using seismic noise. Nat Geosci 1(2):126–130. https://doi.org/10.1038/ngeo104
Brocher TM (2005) Empirical relations between elastic wavespeeds and density in the earth’s crust. Bull Seismol Soc Am 95(6):2081–2092. https://doi.org/10.1785/0120050077
Callen HB, Welton TA (1951) Irreversibility and generalized noise. Phys Rev 83(1):34–40. https://doi.org/10.1103/PhysRev.83.34
Campillo M, Paul A (2003) Long-range correlations in the diffuse seismic coda. Science 299(5606):547–549. https://doi.org/10.1126/science.1078551
Chávez-García FJ, Luzón F (2005) On the correlation of seismic microtremors. J Geophys Res 110(B11):1–12. https://doi.org/10.1029/2005JB003671
Chen Y, de Ridder SAL, Rost S, Guo Z, Wu X, Chen Y (2022) Eikonal tomography with physics-informed neural networks: Rayleigh wave phase velocity in the northeastern margin of the Tibetan plateau. Geophys Res Lett. https://doi.org/10.1029/2022gl099053
Chmiel M, Roux P, Herrmann P, Rondeleux B, Wathelet M (2018) Data-based diffraction kernels for surface waves from convolution and correlation processes through active seismic interferometry. Geophys J Int 214(2):1468–1480. https://doi.org/10.1093/gji/ggy211
Chmiel M, Mordret A, Boué P, Brenguier F, Lecocq T, Courbis R, Hollis D, Campman X, Romijn R, Van der Veen W (2019) Ambient noise multimode Rayleigh and Love wave tomography to determine the shear velocity structure above the Groningen gas field. Geophys J Int 218(3):1781–1795. https://doi.org/10.1093/gji/ggz237
Cho I, Tada T, Shinozaki Y (2006) Centerless circular array method: inferring phase velocities of Rayleigh waves in broad wavelength ranges using microtremor records. J Geophys Res. https://doi.org/10.1029/2005jb004235
Claerbout JF (1968) Synthesis of a layered medium from its acoustic transmission response. Geophysics 33(2):264–269. https://doi.org/10.1190/1.1439927
Cotte N, Laske G (2002) Testing group velocity maps for Eurasia. Geophys J Int 150(3):639–650. https://doi.org/10.1046/j.1365-246X.2002.01719.x
Covellone BM, Savage B, Shen Y (2015) Seismic wave speed structure of the Ontong Java Plateau. Earth Planet Sci Lett 420:140–150. https://doi.org/10.1016/j.epsl.2015.03.033
Cox H (1973) Spatial correlation in arbitrary noise fields with application to ambient sea noise. J Acoust Soc Am 54(5):1289–1301. https://doi.org/10.1121/1.1914426
Crosbie KJ, Abers GA, Mann ME, Janiszewski HA, Creager KC, Ulberg CW, Moran SC (2019) Shear velocity structure from ambient noise and teleseismic surface wave tomography in the cascades around mount St Helens. J Geophys Res 124(8):8358–8375. https://doi.org/10.1029/2019jb017836
Cupillard P, Stehly L, Romanowicz B (2011) The one-bit noise correlation: a theory based on the concepts of coherent and incoherent noise. Geophys J Int 184(3):1397–1414. https://doi.org/10.1111/j.1365-246X.2010.04923.x
Dahlen FA, Tromp J (1998) Theoretical global seismology. Princeton University Press, Princeton, p 1025
de Ridder S, Dellinger J (2011) Ambient seismic noise Eikonal tomography for near-surface imaging at Valhall. Lead Edge 30(5):506–512. https://doi.org/10.1190/1.3589108
de Vos D, Paulssen H, Fichtner A (2013) Finite-frequency sensitivity kernels for two-station surface wave measurements. Geophys J Int 194(2):1042–1049. https://doi.org/10.1093/gji/ggt144
Dou S, Lindsey N, Wagner AM, Daley TM, Freifeld B, Robertson M, Peterson J, Ulrich C, Martin ER, Ajo-Franklin JB (2017) Distributed acoustic sensing for seismic monitoring of the near surface: a traffic-noise interferometry case study. Sci Rep 7(1):11620. https://doi.org/10.1038/s41598-017-11986-4
Duvall TL, Jeffferies SM, Harvey JW, Pomerantz MA (1993) Time-distance helioseismology. Nature 362(6419):430–432. https://doi.org/10.1038/362430a0
Dziewonski A, Anderson D (1981) Preliminary reference earth model. Phys Earth Planet Inter 25:297–356
Dziewonski AM, Hales AL (1972) Numerical analysis of dispersed seismic waves. In: Bolt BA (ed) Methods in computational physics: advances in research and applications, vol 11. Elsevier, Amsterdam, pp 39–85. https://doi.org/10.1016/B978-0-12-460811-5.50007-6
Eckart C (1953) The theory of noise in continuous media. J Acoust Soc Am 25(2):195–199. https://doi.org/10.1121/1.1907018
Ekström G, Tromp J, Larson EWF (1997) Measurements and global models of surface wave propagation. J Geophys Res 19(17):15705–15710
Ekström G, Ga Abers, Webb SC (2009) Determination of surface-wave phase velocities across USArray from noise and Aki’s spectral formulation. Geophys Res Lett 36(18):5–9. https://doi.org/10.1029/2009GL039131
Ekström G, Nettles M, Dziewoński AM (2012) The global CMT project 2004–2010: centroid-moment tensors for 13,017 earthquakes. Phys Earth Planet Inter 200–201:1–9. https://doi.org/10.1016/j.pepi.2012.04.002
Emry EL, Shen Y, Nyblade AA, Flinders A, Bao X (2019) Upper mantle earth structure in Africa from full-wave ambient noise tomography. Geochem Geophys Geosyst 20(1):120–147. https://doi.org/10.1029/2018gc007804
Fichtner A (2014) Source and processing effects on noise correlations. Geophys J Int 197(3):1527–1531. https://doi.org/10.1093/gji/ggu093
Fichtner A (2015) Source-structure trade-offs in ambient noise correlations. Geophys J Int 202(1):678–694. https://doi.org/10.1093/gji/ggv182
Fichtner A, Kennett BLN, Trampert J (2013) Separating intrinsic and apparent anisotropy. Phys Earth Planet Inter 219:11–20. https://doi.org/10.1016/j.pepi.2013.03.006
Fichtner A, Stehly L, Ermert L, Boehm C (2016) Generalised interferometry—I. Theory for inter-station correlations. Geophys J Int. https://doi.org/10.1093/gji/ggw420
Froment B, Campillo M, Roux P, Gouédard P, Verdel A, Weaver RL (2010) Estimation of the effect of nonisotropically distributed energy on the apparent arrival time in correlations. Geophysics 75(5):85–93. https://doi.org/10.1190/1.3483102
Fu L, Pan L, Li Z, Dong S, Ma Q, Chen X (2022) Improved high-resolution 3D vs model of long beach, CA: inversion of multimodal dispersion curves from ambient noise of a dense array. Geophys Res Lett. https://doi.org/10.1029/2021gl097619
Fukao Y, Nishida K, Suda N, Nawa K, Kobayashi N (2002) A theory of the earth’s background free oscillations. J Geophys Res 107(B9):2206
Fukao Y, Nishida K, Kobayashi N (2010) Seafloor topography, ocean infragravity waves, and background Love and Rayleigh waves. J Geophys Res 115(B4):04302. https://doi.org/10.1029/2009JB006678
Fukushima S, Shinohara M, Nishida K, Takeo A, Yamada T, Yomogida K (2022) Detailed s-wave velocity structure of sediment and crust off Sanriku, Japan by a new analysis method for distributed acoustic sensing data using a seafloor cable and seismic interferometry. Earth Planets Space 74(1):1–11. https://doi.org/10.1186/s40623-022-01652-z
Gabriels P, Snieder R, Nolet G (1987) In situ measurements of shear-wave velocity in sediments with higher-mode Rayleigh waves. Geophys Prospect 35(2):187–196. https://doi.org/10.1111/j.1365-2478.1987.tb00812.x
Galetti E, Curtis A, Baptie B, Jenkins D, Nicolson H (2016) Transdimensional Love-wave tomography of the British isles and shear-velocity structure of the east Irish sea basin from ambient-noise interferometry. Geophys J Int. https://doi.org/10.1093/gji/ggw286
Gao H, Shen Y (2014) Upper mantle structure of the cascades from full-wave ambient noise tomography: evidence for 3D mantle upwelling in the back-arc. Earth Planet Sci Lett 390:222–233. https://doi.org/10.1016/j.epsl.2014.01.012
Gao H, Shen Y (2015) A preliminary Full-Wave Ambient-Noise tomography model spanning from the Juan de Fuca and Gorda spreading centers to the Cascadia volcanic arc. Seismol Res Lett 86(5):1253–1260. https://doi.org/10.1785/0220150103
Gao H, Shen Y (2015) Validation of recent shear wave velocity models in the United States with full-wave simulation. J Geophys Res 120(1):344–358. https://doi.org/10.1002/2014jb011369
Gizon L, Birch AC (2002) Time–distance helioseismology: the forward problem for random distributed sources. Astrophys J 571(2):966–986. https://doi.org/10.1086/340015
Godin OA (2007) Emergence of the acoustic Green’s function from thermal noise. J Acoust Soc Am 121(2):96–102. https://doi.org/10.1121/1.2430764
Gouédard P, Stehly L, Brenguier F, Campillo M, Colin de Verdière Y, Larose E, Margerin L, Roux P, Sánchez-Sesma FJ, Shapiro NM, Weaver RL (2008) Cross-correlation of random fields: mathematical approach and applications. Geophys Prospect 56(3):375–393. https://doi.org/10.1111/j.1365-2478.2007.00684.x
Gouédard P, Seher T, McGuire JJ, Collins JA, van der Hilst RD (2014) Correction of ocean-bottom seismometer instrumental clock errors using ambient seismic noise. Bull Seism Soc Am 104(3):1276–1288
Green PJ (1995) Reversible jump Markov chain Monte Carlo computation and Bayesian model determination. Biometrika 82(4):711–732. https://doi.org/10.1093/biomet/82.4.711
Hamada K, Yoshizawa K (2015) Interstation phase speed and amplitude measurements of surface waves with nonlinear waveform fitting: application to USArray. Geophys J Int 202(3):1463–1482. https://doi.org/10.1093/gji/ggv213
Hanasoge SM (2013) Measurements and kernels for source-structure inversions in noise tomography. Geophys J Int 196(2):971–985. https://doi.org/10.1093/gji/ggt411
Hanasoge S, Gizon L, Sreenivasan KR (2016) Seismic sounding of convection in the sun. Annu Rev Fluid Mech 48(1):191–217. https://doi.org/10.1146/annurev-fluid-122414-034534
Haned A, Stutzmann E, Schimmel M, Kiselev S, Davaille A, Yelles-Chaouche A (2016) Global tomography using seismic hum. Geophys J Int 204(2):1222–1236. https://doi.org/10.1093/gji/ggv516
Haney MM, Mikesell TD, van Wijk K, Nakahara H (2012) Extension of the spatial autocorrelation (SPAC) method to mixed-component correlations of surface waves. Geophys J Int 191(1):189–206. https://doi.org/10.1111/j.1365-246X.2012.05597.x
Hannemann K, Krüger F, Dahm T (2014) Measuring of clock drift rates and static time offsets of ocean bottom stations by means of ambient noise. Geophys J Int 196(2):1034–1042
Harmon N, Rychert CA (2015) Seismic imaging of deep crustal melt sills beneath Costa Rica suggests a method for the formation of the Archean continental crust. Earth Planet Sci Lett 430:140–148. https://doi.org/10.1016/j.epsl.2015.07.062
Harmon N, Forsyth D, Webb S (2007) Using ambient seismic noise to determine short-period phase velocities and shallow shear velocities in young oceanic lithosphere. Bull Seismol Soc Am 97(6):2009–2023. https://doi.org/10.1785/0120070050
Harmon N, Rychert C, Gerstoft P (2010) Distribution of noise sources for seismic interferometry. Geophys J Int 183(3):1470–1484. https://doi.org/10.1111/j.1365-246X.2010.04802.x
Hasselmann K (1963) A statistical analysis of the generation of microseisms. Rev Geophys 1(2):177. https://doi.org/10.1029/RG001i002p00177
Herrmann RB (2013) Computer programs in seismology: an evolving tool for instruction and research. Seismol Res Lett 84(6):1081–1088. https://doi.org/10.1785/0220110096
Hirose T, Ueda H (2023) Continuous monitoring of instrumental clock errors at 50 volcanoes in Japan based on seismic interferometry. Earth Planets Space 75(1):1–12. https://doi.org/10.1186/s40623-023-01798-4
Hirose T, Nakahara H, Nishimura T, Campillo M (2020) Locating spatial changes of seismic scattering property by sparse modeling of seismic ambient noise cross-correlation functions: application to the 2008 Iwate-Miyagi Nairiku (M w 6.9), Japan, earthquake. J Geophys Res. https://doi.org/10.1029/2019jb019307
Hu S, Luo S, Yao H (2020) The frequency-Bessel spectrograms of multicomponent cross-correlation functions from seismic ambient noise. J Geophys Res. https://doi.org/10.1029/2020jb019630
Huang H, Yao H, van der Hilst RD (2010) Radial anisotropy in the crust of SE Tibet and SW China from ambient noise interferometry. Geophys Res Lett 37(21):1–5. https://doi.org/10.1029/2010GL044981
Ikeda T, Matsuoka T, Tsuji T, Hayashi K (2012) Multimode inversion with amplitude response of surface waves in the spatial autocorrelation method. Geophys J Int 190(1):541–552. https://doi.org/10.1111/j.1365-246X.2012.05496.x
IRIS DMC Data Services Products: EMC, A repository of Earth model. https://doi.org/10.17611/DP/EMC.1
Ishimaru A (1997) Wave propagation and scattering in random media. IEEE Press, New York
Janiszewski HA, Gaherty JB, Abers GA, Gao H, Eilon ZC (2019) Amphibious surface-wave phase-velocity measurements of the Cascadia subduction zone. Geophys J Int 217(3):1929–1948. https://doi.org/10.1093/gji/ggz051
Jaxybulatov K, Shapiro NM, Koulakov I, Mordret A, Landes M, Sens-Schonfelder C (2014) A large magmatic sill complex beneath the Toba caldera. Science 346(6209):617–619. https://doi.org/10.1126/science.1258582
Jiang C, Denolle MA (2022) Pronounced seismic anisotropy in Kanto sedimentary basin: a case study of using dense arrays, ambient noise seismology, and multi-modal surface-wave imaging. J Geophys Res. https://doi.org/10.1029/2022jb024613
Jiang C, Schmandt B, Farrell J, Lin F-C, Ward KM (2018) Seismically anisotropic magma reservoirs underlying silicic calderas. Geology 46(8):727–730. https://doi.org/10.1130/G45104.1
Jiang C, Schmandt B, Abers GA, Kiser E, Miller MS (2023) Segmentation and radial anisotropy of the deep crustal magmatic system beneath the cascades arc. Geochem Geophys Geosyst. https://doi.org/10.1029/2022gc010738
Kawano Y, Isse T, Takeo A, Kawakatsu H, Morishige M, Shiobara H, Takeuchi N, Sugioka H, Kim Y, Utada H, Lee S-M (2023) Seismic structure of the lithosphere-asthenosphere system beneath the oldest seafloor revealed by Rayleigh-wave dispersion analysis. J Geophys Res. https://doi.org/10.1029/2023jb026529
Kobayashi N, Nishida K (1998) Continuous excitation of planetary free oscillations by atmospheric disturbances. Nature 395(September):357–360. https://doi.org/10.1038/26427
Krischer L, Megies T, Barsch R, Beyreuther M, Lecocq T, Caudron C, Wassermann J (2015) ObsPy: a bridge for seismology into the scientific python ecosystem. Comput Sci Discov 8(1):014003. https://doi.org/10.1088/1749-4699/8/1/014003
Kubo R (1957) Statistical-Mechanical theory of irreversible processes. I. general theory and simple applications to magnetic and conduction problems. J Phys Soc Jpn 12(6):570–586. https://doi.org/10.1143/JPSJ.12.570
Landisman M, Dziewonski A, Satô Y (1969) Recent improvements in the analysis of surface wave observations. Geophys J Int 17(4):369–403. https://doi.org/10.1111/j.1365-246X.1969.tb00246.x
Laske G, Widmer-Schnidrig R (2015) 1.04—theory and observations: normal mode and surface wave observations. In: Schubert G (ed) Treatise on geophysics, 2nd edn. Elsevier, Oxford, pp 117–167. https://doi.org/10.1016/B978-0-444-53802-4.00003-8
Lehujeur M, Chevrot S (2020) Eikonal tomography using coherent surface waves extracted from ambient noise by iterative matched filtering—application to the large-N Maupasacq array. J Geophys Res. https://doi.org/10.1029/2020jb019363
Levshin AL, Barmin MP, Ritzwoller MH (2018) Tutorial review of seismic surface waves’ phenomenology. J Seismol 22(2):519–537. https://doi.org/10.1007/s10950-017-9716-7
Levshin, A SensKernel: 1-D seismic surface wave isotropicgroup/phase speed dispersion/eigenfunction/sensitivity kernel. https://github.com/NoiseCIEI/SensKernel
Levshin A, Ratnikova L, Berger J (1992) Peculiarities of surface-wave propagation across central Eurasia. Bull Seismol Soc Am 82(6):2464–2493. https://doi.org/10.1785/BSSA0820062464
Li J, Chen Y, Schuster GT (2020) Separation of multi-mode surface waves by supervised machine learning methods. Geophys Prospect 68(4):1270–1280. https://doi.org/10.1111/1365-2478.12927
Liang C, Langston C (2008) Ambient seismic noise tomography and structure of eastern North America. J Geophys Res 113(B3):1–18. https://doi.org/10.1029/2007JB005350
Lin F-C, Ritzwoller MH (2011) Apparent anisotropy in inhomogeneous isotropic media. Geophys J Int 186(3):1205–1219. https://doi.org/10.1111/j.1365-246X.2011.05100.x
Lin FC, Ritzwoller MH (2011) Helmholtz surface wave tomography for isotropic and azimuthally anisotropic structure. Geophys J Int 186(3):1104–1120. https://doi.org/10.1111/j.1365-246X.2011.05070.x
Lin F-C, Schmandt B (2014) Upper crustal azimuthal anisotropy across the contiguous U.S. determined by Rayleigh wave ellipticity. Geophys Res Lett 41(23):8301–8307. https://doi.org/10.1002/2014gl062362
Lin F-C, Moschetti MP, Ritzwoller MH (2008) Surface wave tomography of the western United States from ambient seismic noise: Rayleigh and Love wave phase velocity maps. Geophys J Int 173(1):281–298. https://doi.org/10.1111/j.1365-246X.2008.03720.x
Lin F-C, Ritzwoller MH, Snieder R (2009) Eikonal tomography: surface wave tomography by phase front tracking across a regional broad-band seismic array. Geophys J Int 177(3):1091–1110. https://doi.org/10.1111/j.1365-246X.2009.04105.x
Lin F-C, Ritzwoller MH, Shen W (2011) On the reliability of attenuation measurements from ambient noise cross-correlations. Geophys Res Lett. https://doi.org/10.1029/2011gl047366
Lin F-C, Schmandt B, Tsai VC (2012) Joint inversion of Rayleigh wave phase velocity and ellipticity using USArray: constraining velocity and density structure in the upper crust. Geophys Res Lett 39:1–7. https://doi.org/10.1029/2012GL052196
Lin F-C, Tsai VC, Ritzwoller MH (2012) The local amplification of surface waves: a new observable to constrain elastic velocities, density, and anelastic attenuation. J Geophys Res 117:B06302. https://doi.org/10.1029/2012JB009208
Lin F-C, Li D, Clayton RW, Hollis D (2013) High-resolution 3D shallow crustal structure in long beach, California: application of ambient noise tomography on a dense seismic array. Geophysics 78(4):45–56. https://doi.org/10.1190/geo2012-0453.1
Lin P-YP, Gaherty JB, Jin G, Collins JA, Lizarralde D, Evans RL, Hirth G (2016) High-resolution seismic constraints on flow dynamics in the oceanic asthenosphere. Nature 535(7613):538–541. https://doi.org/10.1038/nature18012
Liu X (2020) Finite-frequency sensitivity kernels for seismic noise interferometry based on differential time measurements. J Geophys Res. https://doi.org/10.1029/2019jb018932
Liu X, Ben-Zion Y (2013) Theoretical and numerical results on effects of attenuation on correlation functions of ambient seismic noise. Geophys J Int 194(3):1966–1983. https://doi.org/10.1093/gji/ggt215
Liu X, Beroza GC, Yang L, Ellsworth WL (2021) Ambient noise Love wave attenuation tomography for the LASSIE array across the Los Angeles basin. Sci Adv. https://doi.org/10.1126/sciadv.abe1030
Liu Q, Chen X, Gao L, Yu Z, Chen J (2023) Direct image dissimilarity inversion of ambient noise multimodal dispersion spectrograms. Bull Seismol Soc Am. https://doi.org/10.1785/0120230012
Lobkis OI, Weaver RL (2001) On the emergence of the green’s function in the correlations of a diffuse field. J Acoust Soc Am 110(6):3011. https://doi.org/10.1121/1.1417528
Longuet-Higgins MS (1950) A theory of the origin of microseisms. Philos Trans R Soc Lond 243(857):1–35. https://doi.org/10.1098/rsta.1950.0012
Lu, Y, Stehly, L, Brossier, R, Paul, A, AlpArray Working Group (2020) Imaging alpine crust using ambient noise wave-equation tomography. Geophys J Int 222(1):69–85. https://doi.org/10.1093/gji/ggaa145
Lynner C, Beck SL, Zandt G, Porritt RW, Lin FC, Eilon ZC (2018) Midcrustal deformation in the central Andes constrained by radial anisotropy. J Geophys Res 123(6):4798–4813. https://doi.org/10.1029/2017JB014936
Magrini F, Boschi L (2021) Surface-wave attenuation from seismic ambient noise: numerical validation and application. J Geophys Res. https://doi.org/10.1029/2020jb019865
Maraschini M, Foti S (2010) A Monte Carlo multimodal inversion of surface waves. Geophys J Int 182(3):1557–1566. https://doi.org/10.1111/j.1365-246X.2010.04703.x
Menke W, Jin G (2015) Waveform fitting of cross spectra to determine phase velocity using Aki’s formula. Bull Seismol Soc Am 105(3):1619–1627. https://doi.org/10.1785/0120140245
Miller D, Bennington N, Haney M, Bedrosian P, Key K, Thurber C, Hart L, Ohlendorf S (2020) Linking magma storage and ascent to eruption volume and composition at an arc caldera. Geophys Res Lett. https://doi.org/10.1029/2020gl088122
Montagner J-P (2015) Deep earth structure—upper mantle structure: global isotropic and anisotropic elastic tomography. In: Schubert G (ed) Treatise on geophysics, vol 1, 2nd edn. Elsevier, Amsterdam, pp 613–639. https://doi.org/10.1016/B978-0-444-53802-4.00016-6
Mordret A, Shapiro NM, Singh SS, Roux P, Barkved OI (2013) Helmholtz tomography of ambient noise surface wave data to estimate Scholte wave phase velocity at Valhall life of the field. Geophysics 78(2):99–109. https://doi.org/10.1190/geo2012-0303.1
Moschetti MP, Ritzwoller MH, Shapiro NM (2007) Surface wave tomography of the western United States from ambient seismic noise: Rayleigh wave group velocity maps. Geochem Geophys Geosyst. https://doi.org/10.1029/2007gc001655
Moschetti MP, Ritzwoller MH, Lin F-C, Yang Y (2010) Crustal shear wave velocity structure of the western United States inferred from ambient seismic noise and earthquake data. J Geophys Res. https://doi.org/10.1029/2010jb007448
Moschetti MP, Ritzwoller MH, Lin F, Yang Y (2010) Seismic evidence for widespread western-US deep-crustal deformation caused by extension. Nature 464(7290):885–889. https://doi.org/10.1038/nature08951
Nagaoka Y, Nishida K, Aoki Y, Takeo M, Ohminato T (2012) Seismic imaging of magma chamber beneath an active volcano. Earth Planet Sci Lett 333–334:1–8. https://doi.org/10.1016/j.epsl.2012.03.034
Nakahara H (2006) A systematic study of theoretical relations between spatial correlation and Green’s function in one-, two- and three-dimensional random scalar wavefields. Geophys J Int 165(3):1097–1105. https://doi.org/10.1111/j.1365-246X.2006.03170.x
Nakahara H, Emoto K, Nishimura T (2021) Extending the formulation of the spatial autocorrelation (SPAC) method to strain, rotation and tilt. Geophys J Int 227(1):287–302. https://doi.org/10.1093/gji/ggab217
Nakamura Y (1989) A method for dynamic characteristics estimation of subsurface using microtremor on the ground surface. Q Rep RTRI 30(1)
Nakanishi I, Anderson DL (1982) Worldwide distribution of group velocity of mantle Rayleigh waves as determined by spherical harmonic inversion. Bull Seismol Soc Am 72(4):1185–1194. https://doi.org/10.1785/BSSA0720041185
Nakata N (2020) Pseudo arrivals generated by frequency normalization for seismic interferometry with scattered waves—stationary-phase analysis. SEG Tech Program Expanded Abstr 2020:2085–2089. https://doi.org/10.1190/segam2020-3427903.1
Nakata N, Snieder R, Kuroda S, Ito S, Aizawa T, Kunimi T (2013) Monitoring a building using deconvolution interferometry. I: earthquake-data analysis. Bull Seismol Soc Am 103(3):1662–1678. https://doi.org/10.1785/0120120291
Nakata N, Gualtieri L, Fichtner A (2019) Seismic ambient noise. Cambridge University Press, Cambridge
Nayak A, Thurber CH (2020) Using multicomponent ambient seismic noise cross-correlations to identify higher mode Rayleigh waves and improve dispersion measurements. Geophys J Int 222(3):1590–1605. https://doi.org/10.1093/gji/ggaa270
Nimiya H, Ikeda T, Tsuji T (2020) Three-dimensional S wave velocity structure of central Japan estimated by surface-wave tomography using ambient noise. J Geophys Res 125(4):2019–019043. https://doi.org/10.1029/2019jb019043
Nimiya H, Ikeda T, Tsuji T (2023) Multimodal Rayleigh and Love wave joint inversion for s-wave velocity structures in Kanto basin, Japan. J Geophys Res. https://doi.org/10.1029/2022jb025017
Nishida K (2011) Two-dimensional sensitivity kernels for cross-correlation functions of background surface waves. C R Geosci 343(8–9):584–590. https://doi.org/10.1016/j.crte.2011.02.004
Nishida K (2013) Earth’s background free oscillations. Annu Rev Earth Planet Sci 41(1):719–740. https://doi.org/10.1146/annurev-earth-050212-124020
Nishida K (2014) Source spectra of seismic hum. Geophys J Int 199(1):416–429. https://doi.org/10.1093/gji/ggu272
Nishida K (2017) Ambient seismic wave field. Proc Jpn Acad Ser B Phys Biol Sci 93(7):423–448. https://doi.org/10.2183/pjab.93.026
Nishida K, Kobayashi N (1999) Statistical features of earth’s continuous free oscillations. J Geophys Res 104(B12):28741–28
Nishida K, Takagi R (2022) A global centroid single force catalog of p-wave microseisms. J Geophys Res. https://doi.org/10.1029/2021jb023484
Nishida K, Kobayashi N, Fukao Y (2002) Origin of earth’s ground noise from 2 to 20 mHz. Geophys Res Lett 29(10):1413
Nishida K, Kawakatsu H, Obara K (2008) Three-dimensional crustal S wave velocity structure in japan using microseismic data recorded by hi-net tiltmeters. J Geophys Res 113(B10):10302. https://doi.org/10.1029/2007JB005395
Nishida K, Kawakatsu H, Fukao Y, Obara K (2008) Background Love and Rayleigh waves simultaneously generated at the pacific ocean floors. Geophys Res Lett 35(16):16307. https://doi.org/10.1029/2008gl034753
Nishida K, Montagner J-P, Kawakatsu H (2009) Global surface wave tomography using seismic hum. Science 326(5949):112. https://doi.org/10.1126/science.1176389
Nolet G (2008) A breviary of seismic tomography: imaging the interior of the earth and sun. Cambridge University Press, Cambridge. https://doi.org/10.1017/CBO9780511984709
Obermann A, Hillers G (2019) Chapter two—seismic time-lapse interferometry across scales. In: Schmelzbach C (ed) Advances in geophysics, vol 60. Elsevier, Amsterdam, pp 65–143. https://doi.org/10.1016/bs.agph.2019.06.001
Okada H, Sakajiri N (1983) Estimates of an s-wave velocity distribution using long-period microtremors. Geophys Bull Hokkaido Univ 42:119–143
Oppenheim AV, Schafer RW (2014) Discrete-time signal processing. Pearson, Essex
Pedersen HA, Mattern F, Poli P, Stehly L (2023) Imaging with seismic noise: improving extraction of body wave phases from the deep earth through selective stacking based on H/V ratios. Geophys J Int. https://doi.org/10.1093/gji/ggac388
Peterson JR (1993) Observations and modeling of seismic background noise. U.S. Geol Surv Open File Rep 93–322:1–94. https://doi.org/10.3133/ofr93322
Prieto GA, Lawrence JF, Beroza GC (2009) Anelastic earth structure from the coherency of the ambient seismic field. J Geophys Res 114(B7):1–15. https://doi.org/10.1029/2008JB006067
Prieto GA, Denolle M, Lawrence JF, Beroza GC (2011) On amplitude information carried by the ambient seismic field. C R Geosci 343(8–9):600–614. https://doi.org/10.1016/j.crte.2011.03.006
Qin T, Lu L, Ding Z, Feng X, Zhang Y (2022) High-resolution 3D shallow S wave velocity structure of Tongzhou, subcenter of Beijing, inferred from multimode Rayleigh waves by beamforming seismic noise at a dense array. J Geophys Res. https://doi.org/10.1029/2021jb023689
Rawlinson N (2023) Surface wave tomography code. http://rses.anu.edu.au/~nick/surftomo.html. Accessed 9 Aug 2023
Rawlinson N, Sambridge M (2004) Wave front evolution in strongly heterogeneous layered media using the fast marching method. Geophys J Int 156(3):631–647. https://doi.org/10.1111/j.1365-246X.2004.02153.x
Rawlinson N, Pozgay S, Fishwick S (2010) Seismic tomography: a window into deep earth. Phys Earth Planet Inter 178(3–4):101–135. https://doi.org/10.1016/j.pepi.2009.10.002
Ritzwoller MH (2002) Global surface wave diffraction tomography. J Geophys Res 107(B12):1–13. https://doi.org/10.1029/2002JB001777
Ritzwoller M, Feng L (2019) Overview of pre- and post-processing of ambient-noise correlations. In: Nakata N, Gualtieri L, Fichtner A (eds) Seismic ambient noise. Cambridge University Press, Cambridge, pp 144–187. https://doi.org/10.1017/9781108264808.007
Ritzwoller MH, Lin F-CC, Shen W (2011) Ambient noise tomography with a large seismic array. C R Geosci 343(8–9):558–570. https://doi.org/10.1016/j.crte.2011.03.007
Romanowicz B (2003) Global mantle tomography: progress status in the past 10 years. Annu Rev Earth Planet Sci 31(1):303–328. https://doi.org/10.1146/annurev.earth.31.091602.113555
Romanowicz B (2020) Surface waves. In: Gupta HK (ed) Encyclopedia of solid earth geophysics. Springer, Cham, pp 1–13. https://doi.org/10.1007/978-3-030-10475-7_143-1
Romanowicz B (2021) Seismic tomography of the earth’s mantle. In: Alderton D, Elias SA (eds) Encyclopedia of geology, 2nd edn. Academic Press, Oxford, pp 587–609. https://doi.org/10.1016/B978-0-08-102908-4.00169-7
Rost S, Thomas C (2002) Array seismology: methods and applications. Rev Geophys. https://doi.org/10.1029/2000RG000100
Russell JB, Gaherty JB (2021) Lithosphere structure and seismic anisotropy offshore eastern North America: implications for continental breakup and ultra-slow spreading dynamics. J Geophys Res. https://doi.org/10.1029/2021jb022955
Sager K, Ermert L, Boehm C, Fichtner A (2017) Towards full waveform ambient noise inversion. Geophys J Int 212(1):566–590. https://doi.org/10.1093/gji/ggx429
Sager K, Boehm C, Ermert L, Krischer L, Fichtner A (2020) Global-scale full-waveform ambient noise inversion. J Geophys Res. https://doi.org/10.1029/2019jb018644
Saito M (1988) DISPER80; a subroutine package for calculation of seismic normal-mode solutions. Seismological algorithms; computational methods and computer programs. Academic Press, San Diego, pp 293–319
Sánchez-Sesma FJ, Rodríguez M, Iturrarán-Viveros U, Luzón F, Campillo M, Margerin L, García-Jerez A, Suarez M, Santoyo MA, Rodríguez-Castellanos A (2011) A theory for microtremor H/V spectral ratio: application for a layered medium. Geophys J Int 186(1):221–225. https://doi.org/10.1111/j.1365-246X.2011.05064.x
Sato H, Fehler MC, Maeda T (2012) Seismic wave propagation and scattering in the heterogeneous earth. Springer, Heidelberg, p 496
Sato H (2019) Isotropic scattering coefficient of the solid earth. Geophys J Int 218(3):2079–2088. https://doi.org/10.1093/gji/ggz266
Savage MK, Lin F-C, Townend J (2013) Ambient noise cross-correlation observations of fundamental and higher-mode Rayleigh wave propagation governed by basement resonance. Geophys Res Lett 40(14):3556–3561. https://doi.org/10.1002/grl.50678
Saygin E, Kennett BLN (2012) Crustal structure of Australia from ambient seismic noise tomography. J Geophys Res 117(1):1–15. https://doi.org/10.1029/2011JB008403
Saygin E, Kennett BLN (2010) Ambient seismic noise tomography of Australian continent. Tectonophysics 481(1):116–125. https://doi.org/10.1016/j.tecto.2008.11.013
Schuster GT (2009) Seismic interferometry. Cambridge University Press, Cambridge. https://doi.org/10.1017/cbo9780511581557
Sens-Schönfelder C (2008) Synchronizing seismic networks with ambient noise. Geophys J Int 174(3):966–970. https://doi.org/10.1111/j.1365-246X.2008.03842.x
Sens-Schönfelder C, Wegler U (2006) Passive image interferometry and seasonal variations of seismic velocities at Merapi volcano, Indonesia. Geophys Res Lett 33(21):21302. https://doi.org/10.1029/2006GL027797
Sens-Schönfelder C, Wegler U (2006) Radiative transfer theory for estimation of the seismic moment. Geophys J Int 167(3):1363–1372. https://doi.org/10.1111/j.1365-246X.2006.03139.x
Sens-Schönfelder C, Wegler U (2011) Passive image interferometry for monitoring crustal changes with ambient seismic noise. C R Geosci 343(8–9):639–651. https://doi.org/10.1016/j.crte.2011.02.005
Sethian JA (1996) A fast marching level set method for monotonically advancing fronts. Proc Natl Acad Sci U S A 93(4):1591–1595. https://doi.org/10.1073/pnas.93.4.1591
Shapiro NM, Campillo M (2004) Emergence of broadband Rayleigh waves from correlations of the ambient seismic noise. Geophys Res Lett 31(7):1615–1619. https://doi.org/10.1029/2004GL019491
Shapiro NM, Singh SK (1999) A systematic error in estimating surface-wave group-velocity dispersion curves and a procedure for its correction. Bull Seismol Soc Am 89(4):1138–1142. https://doi.org/10.1785/BSSA0890041138
Shapiro NMNM, Ritzwoller MHH (2002) Monte-Carlo inversion for a global shear-velocity model of the crust and upper mantle. Geophys J Int 151(1):88–105. https://doi.org/10.1046/j.1365-246X.2002.01742.x
Shapiro NM, Campillo M, Stehly L, Ritzwoller MH (2005) High-resolution surface-wave tomography from ambient seismic noise. Science 307(5715):1615–1618. https://doi.org/10.1126/science.1108339
Snieder R (2004) Extracting the Green’s function from the correlation of coda waves: a derivation based on stationary phase. Phys Rev E 69(4):046610. https://doi.org/10.1103/PhysRevE.69.046610
Snieder R (2006) Retrieving the Green’s function of the diffusion equation from the response to a random forcing. Phys Rev E 74(4):046620. https://doi.org/10.1103/PhysRevE.74.046620
Snieder R, Larose E (2013) Extracting earth’s elastic wave response from noise measurements. Annu Rev Earth Planet Sci 41(1):183–206. https://doi.org/10.1146/annurev-earth-050212-123936
Snieder R, Wapenaar K (2010) Imaging with ambient noise. Phys Today 63(9):44–49. https://doi.org/10.1063/1.3490500
Snieder R, Sheiman J, Calvert R (2006) Equivalence of the virtual-source method and wave-field deconvolution in seismic interferometry. Phys Rev E 73(6 Pt 2):066620. https://doi.org/10.1103/PhysRevE.73.066620
Socco LV, Foti S, Boiero D (2010) Surface-wave analysis for building near-surface velocity models—established approaches and new perspectives. Geophysics 75(5):75–8375102. https://doi.org/10.1190/1.3479491
Spetzler J, Trampert J, Snieder R (2002) The effect of scattering in surface wave tomography. Geophys J Int 149(3):755–767
Spica Z, Perton M, Legrand D (2017) Anatomy of the Colima volcano magmatic system, Mexico. Earth Planet Sci Lett 459:1–13. https://doi.org/10.1016/j.epsl.2016.11.010
Spica Z, Perton M, Nakata N, Liu X, Beroza GC (2018) Shallow VS imaging of the Groningen area from joint inversion of multimode surface waves and H/V spectral ratios. Seismol Res Lett. https://doi.org/10.1785/0220180060
Taira T, Yoshizawa K (2020) Upper-mantle discontinuities beneath Australia from transdimensional Bayesian inversions using multimode surface waves and receiver functions. Geophys J Int 223(3):2085–2100. https://doi.org/10.1093/gji/ggaa442
Takagi R, Nishida K (2022) Multi-mode dispersion measurement of surface waves extracted by multi-component ambient noise cross-correlation functions. Geophys J Int. https://doi.org/10.1093/gji/ggac225
Takagi R, Nishida K, Aoki Y, Maeda T, Masuda K, Takeo M, Obara K, Shiomi K, Sato M, Saito K (2015) A single bit matters: coherent noise of seismic data loggers. Seismol Res Lett 86(3):901–907. https://doi.org/10.1785/0220150030
Takagi R, Nakahara H, Kono T, Okada T (2014) Separating body and Rayleigh waves with cross terms of the cross-correlation tensor of ambient noise. J Geophys Res 119(3):2005–2018. https://doi.org/10.1002/2013JB010824
Takagi R, Nishida K, Maeda T, Obara K (2018) Ambient seismic noise wavefield in japan characterized by polarization analysis of hi-net records. Geophys J Int 215(3):1682–1699. https://doi.org/10.1093/gji/ggy334
Takagi R, Uchida N, Nakayama T, Azuma R, Ishigami A, Okada T, Nakamura T, Shiomi K (2019) Estimation of the orientations of the s-net cabled Ocean-Bottom sensors. Seismol Res Lett 90(6):2175–2187. https://doi.org/10.1785/0220190093
Takagi R, Toyokuni G, Chikasada N (2021) Ambient noise correlation analysis of s-net records: extracting surface wave signals below instrument noise levels. Geophys J Int 224(3):1640–1657. https://doi.org/10.1093/gji/ggaa548
Takeo A, Nishida K, Isse T, Kawakatsu H, Shiobara H, Sugioka H, Kanazawa T (2013) Radially anisotropic structure beneath the Shikoku basin from broadband surface wave analysis of ocean bottom seismometer records. J Geophys Res 118(6):2878–2892. https://doi.org/10.1002/jgrb.50219
Takeo A, Kawakatsu H, Isse T, Nishida K, Sugioka H, Ito A, Shiobara H, Suetsugu D (2016) Seismic azimuthal anisotropy in the oceanic lithosphere and asthenosphere from broadband surface wave analysis of OBS array records at 60 ma seafloor. J Geophys Res 121(3):1927–1947. https://doi.org/10.1002/2015JB012429
Takeo A, Forsyth DW, Weeraratne DS, Nishida K (2014) Estimation of azimuthal anisotropy in the NW pacific from seismic ambient noise in seafloor records. Geophys J Int 199(1):11–22. https://doi.org/10.1093/gji/ggu240
Takeo A, Kawakatsu H, Isse T, Nishida K, Shiobara H, Sugioka H, Ito A, Utada H (2018) In situ characterization of the Lithosphere–Asthenosphere system beneath NW pacific ocean via broadband dispersion survey with two OBS arrays. Geochem Geophys Geosyst. https://doi.org/10.1029/2018GC007588
Takeo A, Nishida K, Aoyama H, Ishise M, Kai T, Kurihara R, Maeda T, Mizutani Y, Nakashima Y, Nagahara S, Wang X, Ye L, Akuhara T, Aoki Y (2022) S-wave modelling of the Showa-Shinzan lava dome in Usu Volcano, northern Japan, from seismic observations. Geophys J Int 230(3):1662–1678. https://doi.org/10.1093/gji/ggac111
Tanimoto T (1990) Modelling curved surface wave paths: membrane surface wave synthetics. Geophys J Int 102:89–100. https://doi.org/10.1111/j.1365-246X.1990.tb00532.x
Tanimoto T, Anderson DL (1985) Lateral heterogeneity and azimuthal anisotropy of the upper mantle: Love and Rayleigh waves 100–250 s. J Geophys Res 90(B2):1842. https://doi.org/10.1029/jb090ib02p01842
Tanimoto T, Um J (1999) Cause of continuous oscillations of the earth. J Geophys Res 104(B12):28723–28739. https://doi.org/10.1029/1999JB900252
Tarantola A (2005) Inverse problem theory and methods for model parameter estimation. Other titles in applied mathematics. Society for Industrial and Applied Mathematics, Philadelphia. https://doi.org/10.1137/1.9780898717921
Tarantola A, Valette B (1982) Generalized nonlinear inverse problems solved using the least squares criterion. Rev Geophys 20(2):219. https://doi.org/10.1029/RG020i002p00219
Tauzin B, Pham T-S, Tkalčić H (2019) Receiver functions from seismic interferometry: a practical guide. Geophys J Int 217(1):1–24. https://doi.org/10.1093/gji/ggz002
Thurber C, Ritsema J (2015) Theory and observations-seismic tomography and inverse methods. Elsevier, Amsterdam, pp 307–337. https://doi.org/10.1016/B978-0-444-53802-4.00009-9
Tian D, Uieda L, Leong WJ, Schlitzer W, FroÅNhlich Y, Grund M, Jones M, Toney L, Yao J, Magen Y, Tong 1924 J-H, Materna K, Belem A, Newton T, Anant A, Ziebarth M, Quinn J, Wessel P (2023) PyGMT: A Python 1925 Interface for the Generic Mapping Tools. https://doi.org/10.5281/zenodo.8303186
Tokimatsu K, Tamura S, Kojima H (1992) Effects of multiple modes on Rayleigh wave dispersion characteristics. J Geotech Eng 118(10):1529–1543. https://doi.org/10.1061/(asce)0733-9410(1992)118:10(1529)
Tomar G, Shapiro NM, Mordret A, Singh SC, Montagner J-P (2017) Radial anisotropy in Valhall: ambient noise-based studies of Scholte and Love waves. Geophys J Int 208(3):1524–1539. https://doi.org/10.1093/gji/ggw480
Tomar G, Stutzmann E, Mordret A, Montagner J-P, Singh SC, Shapiro NM (2018) Joint inversion of the first overtone and fundamental mode for deep imaging at the Valhall oil field using ambient noise. Geophys J Int 214(1):122–132. https://doi.org/10.1093/gji/ggy122
Trabant C, Hutko AR, Bahavar M, Karstens R, Ahern T, Aster R (2012) Data products at the IRIS DMC: stepping stones for research and other applications. Seismol Res Lett 83(5):846–854. https://doi.org/10.1785/0220120032
Tribaldos RV, Ajo-Franklin JB (2021) Aquifer monitoring using ambient seismic noise recorded with distributed acoustic sensing (DAS) deployed on dark fiber. J Geophys Res. https://doi.org/10.1029/2020jb021004
Tromp J, Dahlen FA (1992) Variational principles for surface wave propagation on a laterally heterogeneous Earth—II. Frequency-domain JWKB theory. Geophys J Int 109(3):599–619. https://doi.org/10.1111/j.1365-246X.1992.tb00120.x
Tromp J, Fa Dahlen (1992) Variational principles for surface wave propagation on a laterally heterogeneous Earth-I. Time-domain JWKB theory. Geophys J Int 109(3):581–598. https://doi.org/10.1111/j.1365-246X.1992.tb00119.x
Tromp J, Fa Dahlen (1993) Variational principles for surface wave propagation on a laterally heterogeneous Earth-III. Potential representation. Geophys J Int 112(2):195–209. https://doi.org/10.1111/j.1365-246X.1993.tb01449.x
Tromp J, Luo Y, Hanasoge S, Peter D (2010) Noise cross-correlation sensitivity kernels. Geophys J Int 183(2):791–819. https://doi.org/10.1111/j.1365-246X.2010.04721.x
Tsai VC (2011) Understanding the amplitudes of noise correlation measurements. J Geophys Res 116(B9):09311. https://doi.org/10.1029/2011JB008483
Tsai VC, Moschetti MP (2010) An explicit relationship between time-domain noise correlation and spatial autocorrelation (SPAC) results. Geophys J Int. https://doi.org/10.1111/j.1365-246X.2010.04633.x
Ueno T, Saito T, Shiomi K, Haryu Y (2015) Monitoring the instrument response of the high-sensitivity seismograph network in Japan (Hi-net): effects of response changes on seismic interferometry analysis. Earth Planets Space 67(1):135. https://doi.org/10.1186/s40623-015-0305-0
van der Walt S, Colbert SC, Varoquaux G (2011) The NumPy array: a structure for efficient numerical computation. Comput Sci Eng 13(2):22–30. https://doi.org/10.1109/mcse.2011.37
Viens L, Perton M, Spica ZJ, Nishida K, Yamada T, Shinohara M (2022) Understanding surface wave modal content for high-resolution imaging of submarine sediments with distributed acoustic sensing. Geophys J Int 232(3):1668–1683. https://doi.org/10.1093/gji/ggac420
Virtanen P, Gommers R, Oliphant TE, Haberland M, Reddy T, Cournapeau D, Burovski E, Peterson P, Weckesser W, Bright J, van der Walt SJ, Brett M, Wilson J, Millman KJ, Mayorov N, Nelson ARJ, Jones E, Kern R, Larson E, Carey CJ, Polat I, Feng Y, Moore EW, VanderPlas J, Laxalde D, Perktold J, Cimrman R, Henriksen I, Quintero EA, Harris CR, Archibald AM, Ribeiro AH, Pedregosa F, van Mulbregt P, SciPy 1.0 Contributors (2020) SciPy 1.0: fundamental algorithms for scientific computing in Python. Nat Methods 17(3):261–272. https://doi.org/10.1038/s41592-019-0686-2
Wang J, Wu G, Chen X (2019) Frequency-Bessel transform method for effective imaging of higher-mode Rayleigh dispersion curves from ambient seismic noise data. J Geophys Res 124(4):3708–3723. https://doi.org/10.1029/2018jb016595
Wang K, Liu Q, Yang Y (2019) Three-dimensional sensitivity kernels for multicomponent empirical Green’s functions from ambient noise: Methodology and application to adjoint tomography. J Geophys Res 124(6):5794–5810. https://doi.org/10.1029/2018jb017020
Wang Y, Lin F-C, Schmandt B, Farrell J (2017) Ambient noise tomography across mount St. Helens using a dense seismic array. J Geophys Res 122(6):4492–4508. https://doi.org/10.1002/2016JB013769
Wang K, Jiang C, Yang Y, Schulte-Pelkum V, Liu Q (2020) Crustal deformation in southern California constrained by radial anisotropy from ambient noise adjoint tomography. Geophys Res Lett. https://doi.org/10.1029/2020gl088580
Wapenaar K, Draganov D, Snieder R, Campman X, Verdel A (2010) Tutorial on seismic interferometry: part 1-basic principles and applications. Geophysics 75(5):75–195
Wapenaar K, Slob E, Snieder R, Curtis A (2010) Tutorial on seismic interferometry: part 2-underlying theory and new advances. Geophysics 75(5):75–211
Weaver RL (2011) On the amplitudes of correlations and the inference of attenuations, specific intensities and site factors from ambient noise. C R Geosci 343(8):615–622. https://doi.org/10.1016/j.crte.2011.07.001
Weaver R, Froment B, Campillo M (2009) On the correlation of non-isotropically distributed ballistic scalar diffuse waves. J Acoust Soc Am 126(4):1817. https://doi.org/10.1121/1.3203359
Webb SC (1998) Broadband seismology and noise under the ocean. Rev Geophys 36(1):105–142
Wegler U, Sens-Schönfelder C, Sens-Schönfelder C (2007) Fault zone monitoring with passive image interferometry. Geophys J Int 168(3):1029–1033. https://doi.org/10.1111/j.1365-246X.2006.03284.x
Wessel P, Luis JF, Uieda L, Scharroo R, Wobbe F, Smith WHF, Tian D (2019) The Generic Mapping Tools Version 6. Geochem Geophys Geosyst 20(11):5556–64. https://doi.org/10.1029/2019gc008515
White MCA, Fang H, Nakata N, Ben-Zion Y (2020) PyKonal: a python package for solving the Eikonal equation in spherical and cartesian coordinates using the fast marching method. Seismol Res Lett. https://doi.org/10.1785/0220190318
Wiener N (1947) Cybernetics: or control and communication in the animal and the machine. MIT Press, Cambridge
Williams EF, Fernández-Ruiz MR, Magalhaes R, Vanthillo R, Zhan Z, González-Herráez M, Martins HF (2021) Scholte wave inversion and passive source imaging with ocean-bottom DAS. Lead Edge 40(8):576–583. https://doi.org/10.1190/tle40080576.1
Woodhouse JH, Dziewonski AM (1984) Mapping the upper mantle: Three-dimensional modeling of earth structure by inversion of seismic waveforms. J Geophys Res 89(B7):5953–5986. https://doi.org/10.1029/jb089ib07p05953
Yamaya L, Mochizuki K, Akuhara T, Nishida K (2021) Sedimentary structure derived from multi-mode ambient noise tomography with dense OBS network at the Japan trench. J Geophys Res. https://doi.org/10.1029/2021jb021789
Yang X, Gao H (2018) Full-wave seismic tomography in the northeastern United States: new insights into the uplift mechanism of the Adirondack mountains. Geophys Res Lett 45(12):5992–6000. https://doi.org/10.1029/2018gl078438
Yang Y, Ritzwoller MH, Levshin AL, Shapiro NM (2007) Ambient noise Rayleigh wave tomography across Europe. Geophys J Int 168(1):259–274. https://doi.org/10.1111/j.1365-246X.2006.03203.x
Yang Y, Ritzwoller MH, Lin F-C, Moschetti MP, Shapiro NM (2008) Structure of the crust and uppermost mantle beneath the western United States revealed by ambient noise and earthquake tomography. J Geophys Res. https://doi.org/10.1029/2008jb005833
Yang Y, Langston CA, Powell CA, Thomas WA (2022) Full waveform ambient noise tomography for the northern Mississippi embayment. J Geophys Res. https://doi.org/10.1029/2021jb022267
Yao H, van der Hilst RD, Montagner J-P (2010) Heterogeneity and anisotropy of the lithosphere of SE Tibet from surface wave array tomography. J Geophys Res. https://doi.org/10.1029/2009JB007142
Yao H, Gouédard P, Collins JA, McGuire JJ, van der Hilst RD (2011) Structure of young east pacific rise lithosphere from ambient noise correlation analysis of fundamental- and higher-mode Scholte-Rayleigh waves. C R Geosci 343(8–9):571–583. https://doi.org/10.1016/j.crte.2011.04.004
Yoshizawa K, Kennett BLN (2002) Non-linear waveform inversion for surface waves with a neighbourhood algorithm-application to multimode dispersion measurements. Geophys J Int 149(1):118–133. https://doi.org/10.1046/j.1365-246X.2002.01634.x
Yoshizawa K, Kennett BLN (2004) Multimode surface wave tomography for the Australian region using a three-stage approach incorporating finite frequency effects. J Geophys Res 109(B2):1–19. https://doi.org/10.1029/2002JB002254
Yoshizawa K, Kennett BLN (2005) Sensitivity kernels for finite-frequency surface waves. Geophys J Int 162(3):910–926. https://doi.org/10.1111/j.1365-246X.2005.02707.x
Zagoskin A (2014) Quantum theory of many-body systems. Springer, New York. https://doi.org/10.1007/978-3-319-07049-0
Zhao K, Yang Y, Luo Y (2020) Broadband finite frequency ambient noise tomography: a case study in the western United States using USArray stations. J Geophys Res. https://doi.org/10.1029/2019jb019314
Zheng S, Sun X, Song X, Yang Y, Ritzwoller MH (2008) Surface wave tomography of China from ambient seismic noise correlation. Geochem Geophys Geosyst 9(5):1–8. https://doi.org/10.1029/2008GC001981
Zhou L, Song X, Weaver RL (2020) Retrieval of amplitude and attenuation from ambient seismic noise: synthetic data and practical considerations. Geophys J Int 222(1):544–559. https://doi.org/10.1093/gji/ggaa194
Acknowledgements
The authors thank many people for maintaining the networks and making the data readily available. The authors thank N. Nakata, K. Yoshizawa, and T. Tanimoto for constructive comments that significantly improved the quality of the manuscript. The preprocessing and postprocessing of the data analysis were carried out using ObsPy (Krischer et al. 2015), NumPy (van der Walt et al. 2011), pyGMT (Tian et al. 2023, Wessel et al. 2019), and SciPy (Virtanen et al. 2020).
Funding
K. Nishida was supported by JSPS KAKENHI (Grand No. 21K03715), R. Takagi was supported by JSPS KAKENHI (Grand No. 23K03522), and A. Takeo was supported by JSPS KAKENHI (Grand No. 21K14009).
Author information
Authors and Affiliations
Contributions
KN contributed to conceptualization; RT and AT contributed to the writing of the original draft preparation. All authors read, commented on, and approved the final manuscript.
Corresponding author
Ethics declarations
Conflict of interests
The authors declare that they have no conflict of interest.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Nishida, K., Takagi, R. & Takeo, A. Ambient noise multimode surface wave tomography. Prog Earth Planet Sci 11, 4 (2024). https://doi.org/10.1186/s40645-023-00605-8
Received:
Accepted:
Published:
DOI: https://doi.org/10.1186/s40645-023-00605-8
