A simple method for taxon-specific purification of diatom frustules from ocean sediments using a cell sorter
Progress in Earth and Planetary Science volume 10, Article number: 13 (2023)
It is necessary to purify diatom frustules by taxon to perform accurate geochemical analyses of diatom fossils preserved in sediments. However, the small size of diatoms has hitherto prevented taxon-specific purification; therefore, previous geochemical analyses of diatom frustules have been performed with mixtures of various taxa. In this study, we developed a taxon-selective collection method of diatom fossils that uses a cell sorter. The experimental material comprised six samples from a sediment core of Hole U1538A in the Scotia Sea, Atlantic sector of the Southern Ocean drilled during the International Ocean Discovery Program Expedition 382. Following conventional pretreatments (removal of organic matter and carbonates as well as clay minerals), we conducted cell sorter experiments focusing on the optical and fluorescence characteristics of the diatom fossils. We succeeded in selectively isolating with high purity five diatom taxa representing the Southern Ocean diatom flora: (1) discoid diatoms (mainly Thalassiosira) with a moderate degree of fluorescence; (2) Fragilariopsis (mainly Fragilariopsis kerguelensis), which exhibits the highest fluorescence values; (3) Rhizosolenia; (4) Eucampia antarctica; and (5) needle-shaped diatoms (Thalassiothrix). This taxon-specific diatom purification method will enable more accurate geochemical analyses, such as the oxygen isotope ratio (δ18O) of diatom frustules, which is likely to lead to significant advances in paleoceanography, especially at high latitudes or in upwelling zones where diatoms are abundant. This method will also be useful in paleolimnology, ocean biology, and phycology.
Fossil diatoms are important paleoenvironmental indicators, and many paleoceanographic studies have been carried out using their assemblage compositions (e.g., Smol and Stoermer 2010). In addition to assemblage-based studies, a considerable number of geochemical studies using diatom frustules (e.g., of oxygen isotope composition [δ18O]) have been conducted over the last few decades. In general, calcareous microfossils are rare or almost barren in high-latitude oceans (Dutkiewicz et al. 2016); therefore, δ18O data of diatom frustules have been regarded as an important alternative paleoenvironmental indicator to δ18O of foraminiferal shells (Labeyrie 1974; Juillet-Leclerc and Labeyrie 1987; Shemesh et al. 1992, 1995, 2002; Hodell et al. 2001; Swann et al. 2006; Swann and Leng 2009). Other examples of geochemical studies on diatom frustules include the measurement of the silicon isotope composition (δ30Si) of diatom frustules as a proxy for local silicic acid utilization (De la Rocha et al. 1998; De la Rocha 2006; Reynolds et al. 2008; Maier et al. 2013). In addition, the carbon and nitrogen isotopic compositions (δ13C and δ15N) of organic matter occluded within diatom frustules are regarded as proxies for the carbon and nitrogen cycles (Singer and Shemesh 1995; Sigman et al. 1999; Crosta and Shemesh 2002; Studer et al. 2015). However, in most previous studies, geochemical measurement of diatom frustules has been carried out on samples of mixed diatom taxa because the conventional methods (e.g., chemical treatment with hydrogen peroxide [H2O2] and hydrochloric acid [HCl]) do not allow isolation of diatom frustules by taxon.
Each diatom taxon has different ecological characteristics (e.g., blooming season and habitat depth); thus, it is necessary to collect diatom frustules by taxon for accurate geochemical analysis of diatoms. In other words, restricting the number of species is essential for obtaining more accurate paleoenvironmental information and avoiding mixed information from various seasons/depths. However, because of the small size of diatom valves (several tens of micrometers), isolation of any taxon by morphological features using conventional methods has been very challenging (cf. hand-picking under a stereomicroscope, which is a widely accepted method for foraminifer-based studies).
In recent years, flow cytometry, in the form of a cell sorter, has been applied to geological samples to isolate target particles, such as micromanganese nodules (Uramoto et al. 2019), diatom fossils (Tennant et al. 2013a; Ijiri et al. 2021), and fossil pollen (Tennant et al. 2013b; Zimmerman et al. 2018; Tunno et al. 2021; Kasai et al. 2021; Yamada et al. 2021). A cell sorter is an instrument that can separate microparticles by their optical characteristics, reflecting the material’s size, structure, or chemical composition (fluorescence). Cell sorters were initially used in the life sciences to collect living cells selectively. By focusing on optical scattering, which reflects differences in the size and structure of diatoms, Ijiri et al. (2021) established a method to purify discoid diatoms using a cell sorter. However, purification of other diatom taxa, such as pennate diatoms, has not yet been achieved, and thus far, it has not been possible to isolate diatom frustules by taxon selectively.
By fully utilizing the capability of a cell sorter to distinguish particles by their optical characteristics (i.e., focusing on both scattering and fluorescence signals from particles), we have established a purification method to selectively obtain various diatom taxa with high purity (ca. 85%–100%). This method is based on discovering that diatom frustules of different taxa exhibit distinct optical characteristics (Sect. 3.1). Five diatom taxa were successfully purified in this study: Thalassiosira spp., Fragilariopsis spp., Eucampia antarctica, Rhizosolenia spp., and Thalassiothrix spp.
2.1 Sediment samples
For the development of the purification method, we used six sediment samples from a sediment core at Hole U1538A, retrieved from the Scotia Sea, Atlantic sector of the Southern Ocean (57° 26.5248′ S, 43° 21.4691′ W; water depth, 3130.58 m; core length, 676.0 m) during the International Ocean Discovery Program (IODP) Expedition 382 (Fig. 1). The studied samples range from 382-U1538A-1-1, 24–25 cm (0.24 m below seafloor [mbsf]) to 382-U1538A-5-6, 24–25 cm (43.42 mbsf). We selected these samples to confirm that the method developed in this study could be applied to various types of sediment. The approximate age of the sediment core was estimated by paleomagnetic/biostratigraphic analysis and from physical properties such as magnetic susceptibility (Weber et al. 2021). The upper two samples (0.24 and 1.73 mbsf) correspond to the Holocene, the middle two (15.10 and 17.54 mbsf) to the last glacial period, and the lower two (42.54 and 43.42 mbsf) to the last interglacial (Fig. 1). The analyzed interval of the sediment core consists of interbedded dark greenish-gray diatom oozes (interglacial periods) with variable terrigenous components and biosilica-rich/bearing silty clays (glacial periods) (Weber et al. 2021).
2.2 Pretreatment of the sediment samples
We pretreated the samples to concentrate the diatom frustules. We followed the pretreatment method of Ijiri et al. (2021), with slight modifications, but omitted the elutriation process (enriching discoid diatoms, which corresponds to “Step 2” of Ijiri et al. 2021) to preserve the diverse diatom taxa in the samples (Fig. 2). Because the elutriation process is time-consuming, its omission markedly reduces the time needed for the pretreatment. In brief, the samples were pretreated as follows (Fig. 2): organic matter and carbonates were removed by 30% H2O2 and 5% HCl. The H2O2 and HCl treatments were carried out separately (i.e., not with a mixed solution). The samples were sieved through 63, 45, 32, and 20 µm stainless-steel meshes in succession (with the 63 µm sieve being first and the 20 µm sieve being last) to obtain the 20–32 µm fraction. The use of 63 and 45 μm meshes was intended to improve the recovery of the 20–32 μm fraction: if a sediment sample is processed through a 32 µm sieve without pre-sieving, large particles (> 45 μm) clog the mesh so that smaller particles (< 32 µm), which would usually pass through the sieve, also remain on the sieve. The 20–32 µm fraction was selected so that the particles would not jam in the nozzle of the cell sorter (diameter 100 µm). Then clay minerals were removed by heavy-liquid separation using sodium polytungstate (SPT; 3Na2WO4·9WO3·H2O) solution (2.1 g/cm3) (Morley et al. 2004). Finally, the extracted sample was sieved again through 20 µm mesh to remove any particles that might clog the flow path of the cell sorter.
2.3 Microscopic observation
To determine the optical characteristics of the diatom frustules, we observed the pretreated samples under a fluorescence microscope (BX53) equipped with a mercury lamp (BH2-RFL-T3) and a WIB filter unit (U-MWIB, excitation filter: 460–495 nm, emission filter: > 510 nm) (Olympus, Tokyo, Japan). Approximately 0.2 mL of pretreated sample was picked up in a micropipette and placed on a glass slide. Microscopic observations were carried out at 200 × magnification (Fig. 3).
2.4 Flow cytometry/cell sorter
For the cell sorter experiments for taxon-specific sorting of diatom frustules, we used a Moflo XDP cell sorter (Beckman Coulter, Brea, CA, USA) located at the Kochi Core Center, Japan. The cell sorter collects optical signals from the subject particles, including forward scatter (FSC), side scatter (SSC), and fluorescence signals (Tennant et al. 2013a; Uramoto et al. 2019). The cell sorter has a detector in front of the laser beam (input wavelength: 488 nm), which measures FSC, and several detectors to the side, which measure SSC and fluorescence (Additional file 1: Fig. S1). FSC is a light signal detected along the laser path that is primarily caused by light diffraction around the particles and mainly reflects the size of the particles. SSC is a signal detected at a 90° angle relative to the laser beam. The source of the SSC signal is refraction or reflection from the interface between the laser beam and the particles. The complex structure of diatoms can be reflected in the wide range of SSC signals. In addition to FSC and SSC, the cell sorter detects fluorescence signals from the sample particles. Flow cytometric analysis and sorting with FL1 and FL4 filters to detect fluorescence signals were also carried out, because the fluorescence characteristics of diatom frustules may differ depending on the taxon. The FL1 detector detects a fluorescence signal with a wavelength of 530 nm (full width at half maximum 40 nm), which corresponds to green in visible light, whereas detector FL4 detects a fluorescence signal with a wavelength longer than 740 nm (Additional file 1: Fig. S1). Note that the fluorescence observed by the microscope does not always match the fluorescence observed by the cell sorter. To carry out the experiments under the same device conditions (i.e., to align fluctuation of the laser beam), we used commercial fluorescent beads (Flow-Check Fluorospheres 6605359, Beckman Coulter, Brea, CA, USA) to calibrate the laser and detector settings, which included FSC, SSC, and fluorescence filters. We did not perform any fluorescence correction, a common mathematical method to handle spectral overlap between fluorophores.
The Moflo XDP cell sorter is a “jet-in-air”-type cell sorter in which a water stream is ejected from a narrow nozzle into the air. By diluting the sample suspension so that only one particle passed the laser at a time, we collected optical information on each particle in the suspension. Following Ijiri et al. (2021), we used a solution of 1% NaCl in Milli-Q water for the sheath fluid, and the pretreated sample was suspended in SPT solution (1.1 g/mL) and introduced to the cell sorter. Specific ranges of values can be selected for the optical/fluorescence data, and particles within these ranges are sorted away from the sample stream and collected, leaving the unwanted detritus to be routed to waste. A group of particles to be sorted is specified by an arbitrarily drawn polygon on the sample data, such as the FSC–SSC plot and FL1–FL4 plot (e.g., Fig. 4). The polygon is called a “region.” The cell sorter can also sort by combining multiple regions created on multiple data plots; for example, sorting using a region on the FSC–SSC plot, which reflects the optical characteristics of the sample particles (size and internal structure), and a region on the FL1–FL4 plot, which reflects the fluorescence characteristics of the sample particles. This sorting yields particles that satisfy both the desired optical and fluorescence characteristics. A combination of multiple regions is referred to as a “composite region” in this study.
After processing through the cell sorter, the obtained diatom assemblages were analyzed. Microslides for the diatom analyses were prepared using a photocuring adhesive (Nichika Inc., Kyoto, Japan). All diatoms on one microslide were identified at the species level until 50–100 valves had been counted (Additional file 2: Tables S1–S6). We also analyzed strewn slides of the original sediment samples (i.e., microslides of bulk sediment samples without chemical pretreatment). The original diatom assemblage compositions are presented in Additional file 1: Fig. S2 and Additional file 2: Table S7. A single centric diatom was counted as one when more than half of the valve was observed. A pennate diatom specimen was counted as one when two apices were observed. In addition, the number of fragments of the needle-shaped diatom Thalassiothrix (i.e., Thalassiothrix specimen without valve apices) on the microslides after the cell sorter experiments was also counted (Additional file 2: Tables S1–S6).
3 Results and discussion
3.1 Sample optical characteristics and cell sorter tuning
We confirmed that the diatom morphologic features, including shape, size, and structure (e.g., the arrangement pattern of areolae), are different among taxa, which created different reflection and scattering patterns in the cell sorter analysis. More importantly, we found that the diatoms sometimes exhibited markedly different fluorescence features (Fig. 3). Specifically, the genus Fragilariopsis showed high fluorescence intensity (visible as bright green in Fig. 3). However, discoid diatoms showed a considerable variation in fluorescence intensity (i.e., the majority of discoid diatoms had far weaker fluorescence intensities than Fragilariopsis, but with some exceptions; Fig. 3). In addition, specimens of Eucampia antarctica and needle-shaped diatoms (Thalassiothrix) showed relatively weak fluorescence intensities (Fig. 3). These observations suggest that the fluorescence characteristics and the morphologic/optical signal are important parameters separating these taxa.
Through many cycles of flow cytometric sorting and microscopic observation, we determined the optical parameters FSC and SSC, which reflect diatom morphology, and the FL1 and FL4 filters, which reflect the fluorescence characteristics of diatom frustules. Because the morphology of diatom frustules was too complex to predict the flow cytometric characteristics from the microscopic observations, we repeated the sorting and observation cycles to build “an empirical rule”. After the sorting trials, we identified the sorting regions, shown in Fig. 4 and Additional file 1: Fig. S3 (Regions 1–45; Table 1). As mentioned in Sect. 2.4, these regions specify the group of particles to be sorted. We also conducted sorting experiments using composite regions, in which multiple regions were combined, to obtain particles satisfying specific optical and fluorescence characteristics. The coordinates of the designated sort regions’ upper right and lower left points are listed in Additional file 2: Table S8. These parameters vary depending on the instruments’ optical alignments and detector settings (such as the voltage applied to the photomultiplier). Even with the same instrument and the same sample, slight differences of optical alignment can produce shifts in the flow cytometer plot; therefore, we adjusted the region settings sample-by-sample, including several rounds of sorting (ca. 50 particles) and checking under the microscope, after which we finalized the sorting region for that sample. Therefore, the position (parameter values) of each finalized region on the plots shown in Fig. 4 differs between samples. Regions occurring in the FSC–SSC plot reflect the particles’ optical characteristics, and those in the FL1–FL4 plot reflect fluorescence signals (Fig. 4). Hereinafter, “region” is abbreviated to “R”.
3.2 General results of the sorting experiments
Through the cell sorter experiments, which included sorting of each designated region and composite regions, we succeeded in the purification/enrichment of five diatom taxa that represent Southern Ocean assemblages: discoid diatoms (mainly Thalassiosira); Fragilariopsis (mainly Fragilariopsis kerguelensis); Rhizosolenia; Eucampia antarctica; and needle-shaped diatoms (mainly Thalassiothrix) (Figs. 5–7, Additional file 1: Figs. S4–S6). In addition, light microscopic observation showed that almost no “non-diatom particles” were present in the samples after sorting. To confirm the method’s applicability to collect these diatom taxa selectively, we sorted the diatoms in each of the six samples in the various regions (Fig. 4 and Additional file 1: Fig. S3). In the following section, the diatom assemblages obtained during the sorting experiments in each region and composite regions are described. Note that the term “relative abundance” indicates the relative frequency of each diatom taxon in the diatom assemblage, not in the total particles.
3.3 Diatom assemblages obtained from sample-adjusted sorting regions
In the Holocene sample (U1538A-1-2, 24–25 cm), sorting of R1 (moderate FSC values) yielded a diatom assemblage mainly composed of discoid diatoms (Thalassiosira). The relative abundance of this taxon was 75.2% (Fig. 4a). In contrast, the main components of the diatom assemblage obtained from R2 sorting were pennate diatoms such as Fragilariopsis kerguelensis (31.9%) and Thalassiothrix antarctica (50.0%) (Fig. 4a). R3, from which we obtained a Rhizosolenia-dominated assemblage (94.7%), was characterized by higher SSC values (Fig. 4a). We also defined a region (R4) that had high FSC values, which was mainly composed of discoid diatoms. Of the regions identified in the FL1–FL4 plot, the diatom assemblage obtained by sorting of R5 (with a moderate degree of fluorescence) was composed of discoid diatoms, whereas the main component of the assemblage from R6 (with high FL1 values) was Fragilariopsis kerguelensis (Fig. 4b). We also obtained Thalassiothrix-rich (needle-shaped diatoms) and Rhizosolenia-rich assemblages from sorting of R7 (the lowest FL1 values) and R8 (slightly higher FL1 and FL4 values), respectively (Fig. 4b). In addition, we conducted sorting experiments in composite regions. Specifically, sorting of the composite region R1 × R5 resulted in isolation of discoid diatoms with high purity (relative abundance 95.6%; Fig. 5). Sorting of the composite region R2 × R6 yielded highly pure assemblages of Fragilariopsis (relative abundance 99.0%; Fig. 5). We also obtained an assemblage dominated by needle-shaped diatoms (Thalassiothrix, relative abundance 86.9%) by sorting the composite region R2 × R7 (Fig. 5). In addition, we succeeded in isolating Rhizosolenia with high purity (95.2%) by sorting the composite region R3 × R8 (Fig. 5).
In the last glacial sample (U1538A-3-1, 24–25 cm), we designated eight regions for sorting (R9 to R16; Fig. 4c, d). The diatom assemblage from R9 (moderate FSC values) was composed of discoid diatoms (57.6%) and Eucampia antarctica (31.2%) (Fig. 4c). In contrast, R10 (low FSC values) assemblages contained greater relative abundances of pennate diatoms (Fragilariopsis 23.8%, Thalassiothrix 35.6%) (Fig. 4c). We also obtained Eucampia-dominated assemblages from R11 (higher SSC) and R12 (high FSC) (Fig. 4c). In the sorting of R13 (moderate FL1 fluorescence), we recognized an assemblage mainly composed of discoid diatoms and Eucampia (Fig. 4d); in contrast, we observed markedly higher abundances of Fragilariopsis in the R14 (high FL1) assemblage (Fig. 4d: 57.3%). Both R15 (lowest FL1) and R16 (lower FL1) yielded Eucampia-dominated assemblages, although the R16 assemblage contained slightly higher proportions of Rhizosolenia (Fig. 4d). In addition, sorting of the composite region R9 × R13 yielded purified discoid diatoms (relative abundance 86.8%; Fig. 6). We also obtained highly pure assemblages of Fragilariopsis by sorting the composite region R10 × R14 (relative abundance 97.4%; Fig. 6).
In the last interglacial sample (U1538A-5-6, 24–25 cm), eight sorting regions were defined (R17 to R24). Sorting of R17 (moderate FSC values) yielded abundant discoid diatoms (83.9%; Fig. 4e), whereas sorting of R18 (low FSC values) produced an assemblage dominated by pennate diatoms (Fragilariopsis 25.0%, Thalassiothrix 63.3%) (Fig. 4e). The assemblage from R19 (high SSC values) showed high proportions of Rhizosolenia (20.6%) and Eucampia (40.2%) (Fig. 4e). In addition, a discoid-diatom-rich assemblage was obtained from the sorting of R20 (high FSC) (Fig. 4e). For the FL1–FL4 plot, the diatom assemblages of R21 (moderate FL1) and R22 (high FL1) showed very high abundances of discoid diatoms (90.9%) and Fragilariopsis (92.6%), respectively (Fig. 4f). The assemblages from R23 (lowest FL1) and R24 (low FL1) were composed of Thalassiothrix (needle-shaped diatoms) and Eucampia (Fig. 4f). In addition, we obtained purified assemblages of discoid diatoms (96.4%), Fragilariopsis (97.9%), and Thalassiothrix (90.5%) by sorting experiments of composite regions R17 × R21, R18 × R22, and R18 × R23, respectively ( Fig. 7).
3.4 Purification/enrichment of representative diatom taxa
In this section, the regions and composite regions described above are grouped based on the optical characteristics of the particles (“description of particle groups” in Table 1 ), and the results obtained for each group are compared and described.
R1, R9, and R17 had moderate FSC values (on the order of 103), and discoid diatoms comprised the majority of this moderate-FSC group (Fig. 4; Table 1). The relative abundance of discoid diatoms was 57.6–83.9% (Fig. 4), markedly higher than their relative abundances in the original assemblages (Additional file 1: Fig. S2).
R2, R10, and R18 had lower FSC values than the moderate-FSC group (Fig. 4; Table 1). Higher abundances of pennate diatoms characterized this low-FSC group. The relative abundance of Fragilariopsis was 23.8–31.9% in the low-FSC group, but was less than 5% in the moderate-FSC group. Apart from Fragilariopsis, the low-FSC group contained needle-shaped diatoms such as Thalassiothrix (35.6–63.3%) and discoid diatoms (4.2–31.7%) (Fig. 4).
R3, R11, and R19 had higher SSC values than the other regions (Fig. 4; Table 1 and Additional file 2: Table S8). The assemblages of the high-SSC group varied among the samples. In the Holocene sample, the genus Rhizosolenia constituted the majority of the high-SSC Group (Fig. 4a). In the last glacial period sample, the high-SSC group was characterized by abundant Eucampia antarctica (Fig. 4c); in contrast, the high-SSC group for the last interglacial sample yielded diatom assemblages with ca. 20% Rhizosolenia (Fig. 4e). The higher abundance of Rhizosolenia in the high-SSC group was consistent with the taxon having a more complex valve structure and morphology than other taxa (e.g., the discoid diatom Thalassiosira and the pennate diatom Fragilariopsis). The difference in the relative abundance of Rhizosolenia in the high-SSC group assemblages seems to be due to differences in the compositions of the original assemblages (i.e., Rhizosolenia was most abundant in Holocene samples) (Additional file 1: Fig. S2; Additional file 2: Table S7).
R4, R12, and R20 had the highest FSC values (Fig. 4; Table 1). Although the diatom assemblages of this high-FSC group varied greatly among samples, all samples showed an increased percentage of Eucampia antarctica relative to the original samples (Fig. 4; Additional file 1: Fig. S2). In the sample from the last glacial, the high-FSC group consisted almost entirely of Eucampia antarctica (Figs. 4 and 6).
R5, R13, and R21 contained particles that emit moderate fluorescence (Fig. 4b, d, f, Table 1), and this moderate-FL1 group was mainly composed of discoid diatoms (Fig. 4): specifically, the relative abundances of discoid diatoms were ca. 70–90% in the Holocene and last interglacial samples (Fig. 4b, f) and ca. 40% in the last glacial sample (Fig. 4d).
R6, R14, and R22 had the highest FL1 values among the designated sorting regions (Fig. 4; Table 1), meaning that the diatoms of the high-FL1 group emit high fluorescence in the wavelength region 510–550 nm (Additional file 1: Fig. S1), which corresponds to green in visible light (Fig. 3). In all samples, the high-FL1 group was composed mainly of Fragilariopsis kerguelensis. This result is consistent with the microscopic observations described in Sect. 3.1 that most of the Fragilariopsis spp. specimens showed high fluorescence (i.e., high FL1 values), whereas the fluorescence intensity of discoid diatoms varied (Fig. 3).
Particles in R7, R15, and R23 had relatively lower FL1 values (Fig. 4b, d, f; Table 1). The diatom assemblages of the low-FL1 group varied among samples: needle-shaped diatoms (Thalassiothrix) were abundant in the Holocene and last interglacial samples (Fig. 4b, f), whereas Eucampia antarctica dominated the R15 assemblage in the last glacial sample (Fig. 4d). This result is consistent with the microscopic observation that Thalassiothrix and Eucampia emit relatively weak fluorescence (Fig. 3).
Particles in R8, R16, and R24 had relatively higher fluorescence values than the low-FL1 group (Fig. 4; Additional file 2: Tables S1 and S8), and are referred to here as the low–mid FL1 group. The diatom assemblages in the low–mid FL1 group showed higher abundances of Rhizosolenia than those from other regions, although the magnitude of the increase varied from sample to sample. Specifically, the Holocene sample yielded a Rhizosolenia-rich assemblage (Fig. 4b). In contrast, the last glacial sample was composed mainly of Eucampia antarctica (Fig. 4d). The last interglacial sample also showed a slight increase in Rhizosolenia; however, needle-shaped diatoms (Thalassiothrix) were dominant (Fig. 4f).

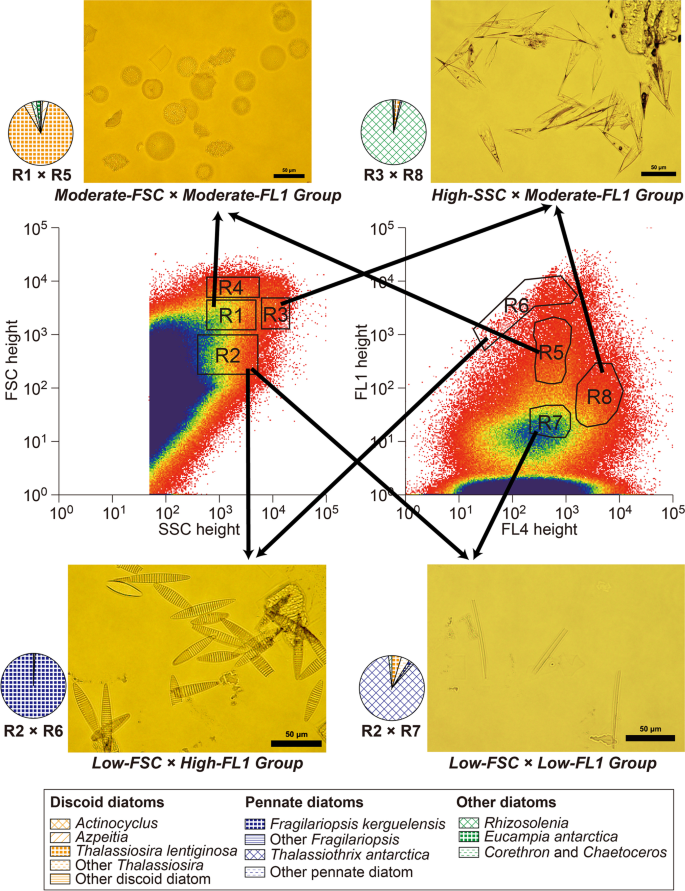

As mentioned above, we also conducted sorting experiments using composite regions to obtain particles exhibiting both optical and fluorescence characteristics of interest. Sorting of the moderate-FSC and moderate-FL1 groups (i.e., sorting with composite regions R1 × R5, R9 × R13, and R17 × R21) yielded discoid diatoms with high purity (relative abundance 86.8–96.4%; Figs. 5, 6, 7).
Sorting of composite regions to obtain particles that exhibit low-FSC and high-FL1 characteristics (i.e., composite regions R2 × R6, R10 × R14, and R18 × R22) yielded highly pure assemblages of Fragilariopsis kerguelensis, the most abundant diatom taxon in the Southern Ocean (relative abundance 97.4–99.0%; Figs. 5, 6, 7). As described above, Fragilariopsis, discoid diatoms, and needle-shaped diatoms were present in variable proportions in the low-FSC group assemblages (R2, R10, and R18; Fig. 4a, c, e). By utilizing the fluorescence characteristics, we selectively sorted Fragilariopsis kerguelensis with high purity (Figs. 5, 6, 7) while removing discoid and needle-shaped diatoms that emit relatively weak fluorescence (Fig. 3).
For the Holocene and last interglacial samples, we obtained highly pure assemblages of needle-shaped diatoms (Thalassiothrix, relative abundance ca. 90%) by sorting the composite regions to obtain particles with both low FSC and low FL1 (i.e., composite regions R2 × R7 and R18 × R23) (Figs. 5 and 7). Thus, application of fluorescence characteristics allowed us to remove other pennate and discoid diatoms from the low-FSC group assemblages (R2 and R18) and purify needle-shaped diatoms. In addition, for the Holocene sample, we succeeded in isolating Rhizosolenia with high purity (95.2%) by sorting particles that satisfy the characteristics of both high-SSC and low–mid-FL1 group with the composite region R3 × R8 (Fig. 5).
In summary, we succeeded in purifying five diatom taxa that are major components of the Southern Ocean diatom flora and confirmed the applicability of this new purification protocol through cell sorter experiments on six samples (Figs. 5, 6, 7 and Additional file 1: Figs. S3–S5, Tables 1 and 2 and Additional file 2: Tables S1–S6). Specifically: (1) discoid diatoms were purified using composite regions to sort particles with both moderate FSC and moderate FL1 values; (2) purification of Fragilariopsis (mainly Fragilariopsis kerguelensis) was achieved by sorting the composite regions of low FSC and high FL1; (3) sorting of the composite regions with both high SSC and low–mid FL1 yielded Rhizosolenia-dominated assemblages from the Holocene samples; (4) sorting of high-FSC group particles yielded purified Eucampia antarctica from the glacial samples; and (5) sorting composite regions to obtain low-FSC and low-FL1 particles achieved purification of needle-shaped diatoms (Thalassiothrix) from the interglacial samples.
We established a taxon-specific diatom purification method using conventional pretreatments and a cell sorter. The improvements in this study relative to the previous method of Ijiri et al. (2021) are: (1) the new method is more straightforward, with one fewer pretreatment step (omission of the elutriation process); and (2) the new method can selectively isolate a variety of taxa, in contrast to the previous method that could isolate only discoid diatoms.
The purification method established in this study has many potential applications. First, it contributes to paleoceanography, especially in high-latitude and upwelling regions where diatoms are abundant. Purification of selected diatom taxon will enable measurement of geochemical proxies such as δ18O, δ31Si, δ13C, and δ15N of diatom frustules more accurately, removing biases caused by differences in the ecological preferences of each taxon.
This method can also be applied to improve efficiency in various studies involving morphological analysis of selected diatom taxa. For example, several attempts have used morphological variations of diatom taxa such as Fragilariopsis kerguelensis and Eucampia antarctica as paleoenvironmental indicators to reconstruct oceanic fronts, sea-surface temperature, or sea-ice distribution in the geological past (Kaczmarska et al. 1993; Cortese and Gersonde 2007; Cortese et al. 2012; Allen 2014; Kloster et al. 2018, 2019). By using the new method to enrich a target diatom taxon and then mounting the specimens on a microslide, the time required for microscopic observation (to find and analyze the target taxon under the microscope) can be drastically reduced, especially when the targeted diatom is scarce in samples.
It is also worth emphasizing that the new method successfully purifies Rhizosolenia and Thalassiothrix. These taxa are the main contributors to primary/export production during summer blooming seasons in the pelagic and coastal oceans (Kemp et al. 2000, 2010); thus, further research using the new method will yield insights into a new aspect of biogeochemical cycles.
Moreover, the method can be extended to other research fields. Possible applications include the extraction of target diatom taxa from living samples for isolating and culturing. In addition, the method would allow non-experts to obtain rough estimations of assemblage compositions because flow cytometric data show the relative abundances of the target particles (Fig. 4; Additional file 2: Table S8). For example, a higher relative abundance of Eucampia antarctica can be inferred from the higher density of particles in the high-FSC group (cf. R12 in Fig. 4c). A prominent peak (i.e., high particle density) of the high-FSC group in a glacial sample (Fig. 6) is consistent with the high abundance of Eucampia antarctica in the original sample (Additional file 1: Fig. S2; Additional file 2: Table S7).
Taxon-specific purification of diatoms is crucial for accurate geochemical analysis of diatom frustules; however, owing to the small size of diatoms, taxon-by-taxon purification has not been achieved so far. In the present study, we developed a purification method for various diatom taxa that uses a cell sorter. After pretreatment (removal of organic matter, carbonates, and clay minerals, followed by sieving), we conducted many cycles of sorting focusing on both optical characteristics (FSC and SSC) and fluorescence characteristics (FL1 and FL4 filters). We selectively sorted five diatom taxa with high purity (ca. 85–100%). Specifically, (1) discoid diatoms were purified using composite regions to sort particles with both moderate FSC and moderate FL1 values; (2) purification of Fragilariopsis specimens (mainly Fragilariopsis kerguelensis) was achieved by sorting the composite regions with low FSC and high FL1; (3) sorting of the composite regions that satisfy high SSC and low–mid FL1 characteristics extracted Rhizosolenia with high purity; (4) high-FSC group particles consisted of purified Eucampia antarctica; and (5) sorting of composite regions to obtain low-FSC and low-FL1 particles achieved purification of needle-shaped diatoms (Thalassiothrix) (Figs. 5, 6, 7 and Additional file 1: Figs. S3–S5, Additional file 2: Tables S1–S6). Establishing a diatom purification method allows “taxon-specific analysis” in various research fields such as paleoceanography, paleolimnology, ocean biology, and phycology. One example of an impact of this work is improved accuracy of geochemical analysis of diatom frustules, leading to the advancement of paleoceanography, especially for high-latitude and upwelling regions where diatoms are abundant.
