Mars core structure—concise review and anticipated insights from InSight

Progress in Earth and Planetary Science20174:24

https://doi.org/10.1186/s40645-017-0139-4

Received: 10 February 2017

Accepted: 17 August 2017

Published: 6 September 2017

Abstract

This review summarizes the knowledge of Mars’ interior structure, its inferred composition, and the anticipated seismological properties arising from its composition with particular focus on Mars’ core. The emphasis on the core stems from the unusual morphology of the liquidus diagram of iron at moderate pressures when enriched in sulfur. From a fairly detailed liquidus diagram constructed from experimental studies, I identify a set of processes that could act within Mars’ core: an iron “snow” from the core-mantle boundary’s surface and a Fe 3−x S 2 “ground fog” forming at the base of the core. Depending on temperature and bulk sulfur composition, these could form an inner core or could stratify the outer core by enriching it in sulfur, or both. Core stratification could be one explanation for the extinction of Mars’ magnetic field early in the planet’s history, and I demonstrate the feasibility of this mechanism. The crystallization processes in the core could be observable in the seismic data that the future Mars geophysical mission, InSight, is planned to provide. The core size, the presence of an inner core, and the wavespeed profile of the outer core, whose radial derivative provides a proxy for changes in composition, are key observables to seek.

Graphical abstract

Keywords

Mars InSight Dynamo Core Fe-FeS phase relations Stratification

Introduction

The Earth’s density distribution is known principally through the eigenfrequencies of its whole-body oscillations excited by large earthquakes (Dziewonski and Anderson 1981; Masters and Gubbins 2003). The interior structure of Mars is not as well known as the Earth due to the lack of this type of seismic information. This was not for lack of trying, however. The Viking Lander instrument package included a seismometer, but it was not deployed on the ground. Its placement on the lander deck led to high noise levels due to wind-induced motion of the probe and thus low signal-to-noise levels for seismic signals (Lorenz and Nakamura 2013). Only one potential earthquake was recorded (by the Viking 2 lander; the Viking 1 instrument failed), limiting the seismicity to levels significantly lower than the Earth. The putative earthquake was shallow and located about 100 km from the lander (Anderson et al. 1977). The small event was not energetic enough to set the body of the planet vibrating; hence, no inferences on internal structure were possible.

Consequently, physical parameters provided by astronomical and orbital measurements yield the only constraints on Mars’ internal structure. According to Rivoldini et al. (2011), they are the bulk planet density 3934.97 ± 1.2 kg m −3, the mean moment of inertia I/(Mr 2) 0.3645 ± 0.0005, and the elastic tidal Love number k 2 0.159 ± 0.009. The k 2 value itself indicates that the core is at least partially liquid and in a range of 1520–1840 km (Yoder et al. 2003). Using these further properties to constrain internal structure requires a mineralogical and thermal model of the planet; hence, the estimates in Table 1 are model dependent.
Table 1

Mars internal properties

Property

Model

Value

95% conf. range

Core radius (km)

Median (cold)

1810

1701

1900



Median (hot)

1784

1673

1879



Average

1797



Core mass fraction

Median (cold)

0.2404

0.2095

0.2683



Median (hot)

0.2327

0.2171

0.2474



Average

0.2366



Core-mantle boundary P (GPa)

Median (cold)

19.0

17.8

20.4



Median (hot)

19.4

18.1

20.0



Average

19.2


Mars’ core (radius 1600–1810 km according to Konopliv et al. (2006)) is about half the radius of Earth’s (3480 km according to PREM (Dziewonski and Anderson 1981)), and the planetary radius (3389.5 km according to Seidelmann et al. (2002)) is also about half of Earth’s (6371 km again according to PREM). Hence, the interior structure of Mars is roughly a half-sized scale model of the Earth (Fig. 1), and the core occupies an eighth of the planetary volume. Mars’ core mass is about 0.24 of the planetary mass (Table 1), and Earth’s core mass fraction is 0.32 (Stacey 1992). The pressure at the center of the planet 37–38 GPa (Rivoldini et al. 2011) is much lower than Earth’s central pressure of 364 GPa (Dziewonski and Anderson 1981). The InSight mission, due for launch in May 2018 (originally March 2016) and to reach Mars in November 2018, is a lander designed as a geophysical observatory (Banerdt et al. 2013). Its instrument package includes a heat flow sensor, a seismometer, a magnetometer, wind and temperature sensors, and a radio transponder for lander range tracking that will supply geodetic data. Unlike the Viking missions, the seismometer is deployed separately on the surface next to the lander. Some quite basic seismic observations will significantly constrain compositional and structural models of Mars’ interior. Here, I will review the key observations and what they will tell us about alternative interior structures. The review is concise, forfeiting a broad topical survey to focus instead on how the seismological information will elucidate core structure. The reviews of InSight mission seismology objectives found in Panning et al. (2015, 2017) cover aspects of marsquake location precision and silicate mantle structure.
Fig. 1

Comparison of sizes and interior features of Earth and Mars. Mars is almost a half-size scale model of the Earth, except for its thicker crust (Rivoldini et al. 2011) and its probable absence of an inner core

Review

Composition

The composition of Earth’s core, like Mars’, is not directly observable. The core’s seismic wavespeeds do provide significant constraints on composition due to the velocity-density systematics discovered by Birch (1952), who showed that there were systematic relations between the density and liquid seismic velocity depending on mean atomic weight. While the density-seismic velocity relation of the Earth’s core, as revealed by its seismic wavespeed profile, was close to that experimentally determined for pure iron, it did not coincide. Thus, Birch estimated that there was 10 wt% lighter material alloyed with the core’s iron, an estimate not much improved after 60 years of further study. Denied this information about Mars’ core, the inferences become more tenuous and model dependent, but comparison with Earth suggests the level of detail that will emerge once Mars is studied seismologically.

There are two main sources of compositional information: geochemical/cosmochemical and geophysical. The models underlying the use of the geophysical information provide a range of potential compositions for the core, as shown in Fig. 2. The models start with a bulk composition based on CI chondrites or the composition of SNC meteorites (believed to be Mars crustal fragments excavated by impacts on Mars), a mineralogical model for the composition as a function of pressure and temperature, and then attempt to match planetary mass, radius, and moment of inertia by varying a quasi-adiabatic temperature profile through the planet. Core metal is taken to be Fe-Ni alloy with added light elements S, C, Si, O, N, and H. Rivoldini et al. (2011) models only considered sulfur as an alloying element. This is almost certainly wrong, but Rivoldini et al. (2011) argue for its likelihood, partly on the basis of the antipathy that S and Si have in iron (Kilburn and Wood 1997) and the fact that, at low pressure, O solubility in liquid metal is low (Rubie et al. 2004). (Systematic depletions of siderophile elements in the Earth’s core, for example, suggest that it harbors significant amounts of P, Sb, Se, Te, Ag, and Ge, in addition to Ni and S and the possible, but thermodynamically unlikely, Si and O for these conditions (Rubie et al. 2004; Wood et al. 2006). These are in fact the bases for cosmochemical estimates of the Earth’s core composition (Allègre et al. 1995; McDonough and Sun 1995)). Martian meteorites themselves suggest a core composition of 11–15 wt% S (Dreibus and Wänke 1987; Lodders and Fegley 1997). Nevertheless, Rivoldini et al.’s (2011) modeling efforts revise this to 15–17 wt% S in the core. I consider the range to be, conservatively, 11–17 wt%. Earlier estimates for Mars’ core from various sources yield a range of 14–17 wt% (and one as low as 10.5 wt%), yet all suggest much more than is believed to be in Earth’s core: 1.7 wt% (Dreibus and Palme 1996).

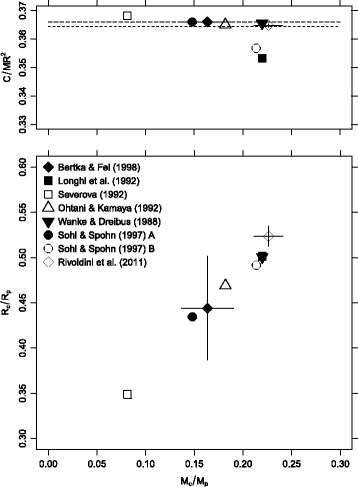

Fig. 2

Dependence of internal properties on compositional models for Mars. Top panel shows polar moment of inertia C/Mr 2 for each of seven models, characterized by their fraction of core mass to total planetary mass M c /M p . Bottom panel shows core radius as a fraction of planetary radius for each compositional model. Horizontal lines in upper panel are upper limit for C/Mr 2 (Esposito et al. 1992) and its recently determined value from the Mars Reconnaissance Orbiter mission (Konopliv et al. 2011)

Phase relations

Figure 3 shows the approximate melting relations in the Fe-FeS system derived from various sources (Fe melting curve (Nguyen and Holmes 2004), Fe-FeS melting relations (Fei et al. 1997; Fei et al. 2000; Morard et al. 2008; Buono and Walker 2015)). For the conditions in Mars’ core, the first solids to crystallize are likely to be Fe 3−x S 2 if the composition is relatively rich in sulfur and Fe otherwise. In either case, Fe 3S will be the dominant crystalline phase in Mars’ inner core after the core entirely solidifies and if it undergoes subsolidus equilibration. A naive reading of the lack of a present-day magnetic field (Acuña et al. 1999) is that an inner core is absent, incapable of releasing compositional buoyancy to drive a dynamo. A more complex view attributes the end of Mars’ dynamo era to substantial stagnation of the core, leading to an annular dynamo (Takahashi and Matsushima 2006) becoming too thin to sustain activity (Olson and Christensen 2002; Christensen and Aubert 2006). The solids that do crystallize in the core lead to quite different outcomes compared to the Earth due to the difference in core composition. Figure 4 shows the conditions for core crystallization. If core CMB temperature T CMB is less than 1300 K, the core will be completely solid. This is ruled out by value of the k 2 tidal Love number, placing a firm lower bound on T CMB. If T CMB > 1550 K, the core will be completely liquid. More interesting phenomena arise when 1300 ≤ T CMB ≤ 1500 K. In all cases, Fe will crystallize at the top of the core, forming an iron “snow” (Stewart et al. 2007). Moreover, if T CMB < 1450 K, Fe 3−x S 2 will crystallize at the core’s center and produce a phenomenon akin to ground fog on Earth. Unlike the water droplets making up fog, the solid is considerably more S-rich (28 wt% S compared with the liquid’s 14–16 wt% S) sinking and depleting the remaining liquid in S. If well-mixed, this will effectively foster further Fe crystallization because the remaining liquid will crystallize iron. If not well-mixed, the lowermost core will stratify due to Fe-rich liquid left there by Fe 3−x S 2 crystallization. The inverse will happen near the CMB: denser Fe will snow downwards in the core and leave the outermost liquid richer in S. If convection is not vigorous enough, the stratification could stabilize the core into compositionally distinct layers, in which convection occurs only in the steadily shrinking well-mixed central zone. This might quell dynamo activity and end Mars’ magnetic era (Weiss et al. 2002; Williams and Nimmo 2004), like what may be occurring in Ganymede (Rückriemen et al. 2015).

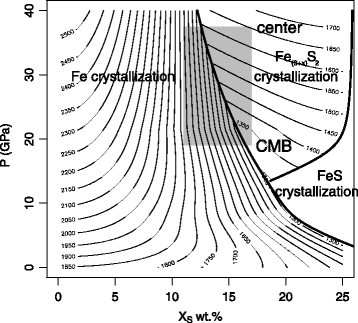

Fig. 3

Melting relations in the Fe-FeS system in the pressure and compositional range suitable for Mars’ core. Isotherms show temperature (K) of appearance of first solid in the system depending on the composition and pressure. Thick lines delimit fields of first crystallizing solid: Fe, FeS, and Fe 3−x S 2 (Fe-FeS eutectic on left and incongruent melting of Fe 3−x S 2 on right). Gray box shows likely pressure and compositional range for core. Intersection of box with isotherms shows that for any crystallization of solids in the inner core, temperatures must be less than 1650 K. First solids to crystallize will be Fe 3−x S 2 if in S-rich compositions and will be Fe if S-poor. When eutectic reached, crystallizing solids will vary depending on subsolidus phase diagram but will ultimately be Fe + Fe 3S or Fe 3−x S 2+Fe 3S (Fei et al. 2000)

Fig. 4

Liquidus curves for a suite of fixed compositions in Mars’ core (solid lines; these are iso-compositional sections through Fig. 3), superimposed with various adiabatic temperature profiles initiated at the core-mantle boundary (dashed lines; ranges shown for 1.2≤γ≤1.6 for each labeled T CMB) and extending through the core. Fe crystallizes where the liquidus curve slope is negative, whereas Fe 3−x S 2 crystallizes if the slope is positive (Fig. 3). For T CMB < 1300 K, the core is solid, whereas if T CMB > 1450 K it is liquid. At any T CMB < 1850 K, the top of the core crystallizes an Fe ‘snow’; if, moreover, T CMB < 1450 K, the base crystallizes an Fe 3−x S 2 “ground fog.” Adiabats calculated using d log(T)/dz=γ g(r)/V P 2(r) with z the depth below the CMB using data from Rivoldini et al. (2011)

The route to Mars’ core stratification may be visualized with the help of Fig. 5. The figure shows the areas affected by the crystallization of solids as a function of temperature at the CMB. It is derived from Fig. 3 by fixing a CMB temperature and following an adiabat with γ=1.4 (see Fig. 4) down into the core (upward in pressure) and plotting the S content at the liquidus for the different crystallizing phases (Fe and Fe 3−x S 2). For adiabatic temperature profiles initiated there at temperatures cooler than 1575 K, the top of the core will snow iron downwards (Stewart et al. 2007). At CMB temperatures less than 1420 K, solid Fe 3−x S 2 will simultaneously crystallize at the bottom of the core. The combined effects will enrich the remaining core liquid in Fe, due to crystallization at the center, and to snow Fe downward from above due to the crystallization at the surface. If equilibrium conditions prevail, the snow would descend until it was dissolved back into the remaining liquid and the liquid would adopt an outwardly increasing S enrichment profile controlled by the Fe solubility along the adiabat. The isotherms of Fe 3−x S 2 crystallization show that the inner core size increases rapidly as the CMB temperature drops: for example, if the bulk S content is 15 wt%, the inner core will grow from 0 to 500 km in radius with a CMB temperature change of about 80 K. These phenomena will have a detectable effect on the seismological structure of the core, which is the next topic in this review.
Fig. 5

Crystallization process of Mars’ core. Contours show pressure (left scale) and radius (right scale) where crystallization takes place along an adiabat extending from the CMB (horizontal gray line, labeled with T CMB). Dotted lines show Fe crystallization conditions, whereas dashed lines show Fe 3−x S 2 crystallization conditions. Gray box shows pressure/radius range of the core, and the anticipated compositional range of the core; range of radii of solid inner core crystallized from the liquid of 15 wt% S (vertical line) indicated by italic labels within the box. The dashed adiabatic temperature contours show that the core will grow rapidly with small changes in CMB temperature. The dotted Fe crystallization contours show that an iron ‘snow’ will form at the top of the core at temperatures below 1575 K. The range of inner core radii arises from alternative compositions of the solid core: Fe 3 S 2 or Fe 3S

Seismology

For comparison, I focus on two seismological models of Mars’ interior developed by Sohl and Spohn (1997) and by Rivoldini et al. (2011). The approaches they took to construct the models were similar, using meteorite-based compositional information to predict the mineral assemblages as a function of radius and hence the radial density profile, refining the internal temperature profiles until a match was achieved to the basic planetological data (radius, moment of inertia and k 2 Love number). As a side effect of these calculations, the models also provide seismic wavespeed profiles.

Sohl and Spohn (1997) essentially took a single compositional model due to Wänke and Dreibus (1988) and relied on either the chondritic Fe/Si ratio (1.71) to fix the bulk the mantle/core partitioning of iron (and thus the oxidation state of the mantle) or relied on matching the rotational moment of inertia, C, to its upper limit of 0.366×Mr 2 as then known from available data. It was not possible to satisfy both constraints simultaneously, so they provided two solutions, A and B. I show here for comparison model A because its philosophy is most similar to those explored by the following alternative.

Rivoldini et al. (2011) used a Bayesean approach to solving the internal structure problem. They used updated astronomical and geodetic data for Mars and a wider suite of composition models advanced by meteoriticists as well as researchers who explored the phase relations in the silicates comprising Mars’ mantle and the metal content of its core. Aggregates of solutions were developed that fit the observational data within each compositional model, and assuming temperature profiles through the planet that were “hot” and “cold.” The statistics of the aggregate solutions provided confidence levels for each model, one of which is shown in Table 1.

I compare Sohl and Spohn (1997) model A with Rivoldini et al. (2011) “cold” profile in the Dreibus and Wänke (1985) compositional model because these represent similar geotherms and similar bulk compositions. Thus the essential differences are the advance in the state of physical knowledge and the methodology improvement (due to increased computing power) between the modeling efforts. The resulting wavespeed and density profiles are shown in Fig. 6. The main difference between them is their core size. With a chondritic Fe/Si ratio, their model B core (1667 km; not shown) is larger and similar to Rivoldini et al. (2011) core size, 1731 km. The two models’ crust thicknesses are similar, 100 km. The mantle seismic wavespeed profiles differ because Sohl and Spohn (1997) use a simplified peridotitic mantle model and first-order discontinuities at the transitions between the olivine polymorphs (olivine, wadsleyite, and ringwoodite), whereas Rivoldini et al. (2011) use a more complete mantle model and allow for two-phase regions through the polymorph transition intervals. There is no transition to bridgmanite in either model. Mantle densities are broadly similar. The smaller core of Sohl and Spohn (1997) model requires it to have a higher density to match the planetary mass. Hence, there is less light element in the core, and wavespeeds are correspondingly higher.
Fig. 6

Radial wavespeed and density profiles of two Mars internal structure models, Rivoldini et al. (2011) (R11DW black) and Sohl and Spohn (1997) (SS97a gray). The most pronounced difference between them is their core size. Other important seismological details are that R11DW’s core wavespeed is lower than V S at the base of the mantle, whereas SS97a’s is slightly higher

To illustrate the first-order information that seismology will yield about Mars’ core, I show the travel time curves for selected arrivals of interest to constrain internal structure. Figure 7 shows two diagrams for the Sohl and Spohn (1997) model, with and without an inner core. The model is meant only to be illustrative; the inner core is only a scaled version of Earth’s inner core transplanted to Mars, with similarly scaled radius and V P jump; a more realistic model will be examined below. The diagrams show a pronounced difference in travel times. The geometries of the individual curves are key structural information about the interior, as indicated in the figure caption.
Fig. 7

Ray paths (top) and calculated travel times (bottom) in the Sohl and Spohn (1997) model A, with (right) and without (left) an inner core. The inner core’s properties are only scaled version of the Earth’s inner core and only meant to be indicative of the change in the travel time curves, and not otherwise physically justified. The horizontal axis is distance from an earthquake source at 0, measured in degrees of arc around the planet. The lag time until an arrival is seen is the time plotted on the vertical axis. Each type of seismic wave arrival traces a continuous path as a function of distance. Curves with positive slopes travel directly between the source and receiver (along the minor arc, to distances <180°). Curves with negative slopes travel the long way around the sphere (along the major arc to distances >180°). Each wave type is labeled with its name (see the “Appendix” section for nomenclature). The core’s low wavespeeds with respect to the mantle cause a P-wave arrival shadow, the gap between P and PKP between 120– 180° (top left). The main difference is that the inner core reflection PKiKP (and PKIKP) illuminates the shadow region when an inner core is present (top right). SKS and SKKS illuminate the core, but the ranges of the SKS (>160°) and SKKS (>300°) arrivals are truncated by the presence of an inner core

A comparison of the travel time curves and their associated ray paths provides further insights as to how different models lead to different travel time curves. Figure 8 compares Sohl and Spohn (1997) model A (SS97a) with Rivoldini et al. (2011) model based on the Dreibus and Wänke (1985) compositional model (R11DW). The first difference between the models is the near-constant V P in the shallow mantle of R11DW. These lead to straight-line ray paths, and a slope for the P travel time curve that is less curved than the corresponding curve for SS97a. The second difference is that of core size. PcP (a core-reflected P-wave) arrives earlier when the core is larger. This constrains the core size, and hence the Fe/Si ratio of the planet. The final difference is the travel time curve for SKKS. Due to the lower core V P compared to V S at the base of the mantle, there is a shadow (gap) in the travel time curve for SKS and SKKS. The very small increase at the core-mantle boundary in the SS97a model eliminates the shadow (see Fig. 7) and leads to a “whispering gallery” effect at the top of the core (wave fronts may travel horizontally just under the boundary), illuminating its structure up the the outermost core surface. In contrast, with R11DW, the outermost outer core’s structure will be less visible. Owing to SKS’ high amplitude (Panning et al. 2017) and polarization in the vertical plane, it should be visible with the InSight instrumentation. This arrival’s travel time curve will probably be the main way to determine core structure since the PKP amplitude is considerably lower.

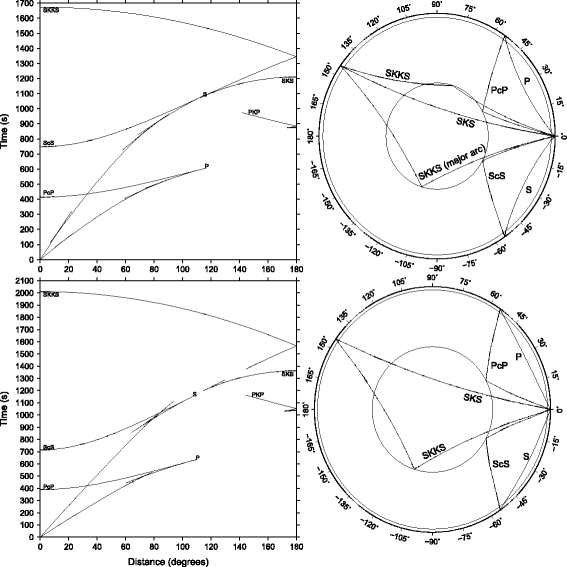

Fig. 8

Travel time curves (left) and ray paths (right) for two different Mars seismic models. (Top panels) Sohl and Spohn (1997) model A (SS97a); (bottom panels) Rivoldini et al. (2011) model based on the Dreibus and Wänke (1985) compositional model (R11DW). The diagram shows how the combination of core sizes and wavespeeds at the top of the outer core relative to V S at the base of the mantle affect the gross form of the seismic wave arrivals. The right panels show rays emanating from a seismic source at 0° to stations at 55 and 145°. R11DW features a core shadow to SKS and SKKS due to its lower core wavespeeds, one effect of which is that minor arc SKKS disappears at 130°. The core size affects the travel time of the core reflected arrivals PcP and ScS

Figure 9 shows the sensitivity limits of various core-related arrivals given the design criteria of the sensors on the InSight lander. One obvious difference is that of the two models, SS97a leads to more visible core arrivals. This is essentially due to the size of the velocity jump at the CMB: larger velocity jumps lead to stronger reflections (PcP, ScS) at short range, and more efficient propagation into the core (SKS, SKKS) at long range. It appears that short-range (5°–15°) ScS and ScP observations will give the best information about core size. However, longer-range ScP, ScS (20°–75°) and SKS or SKKS (>75°) may also provide valuable constraints on core size. Unfortunately, core arrivals are so weak that they require large earthquakes (in excess of 6.0 M w ) and low environmental noise for detection. Taylor et al. (2013) estimate from faults in Mars’ Cerberus Fossae region that 0.2–500 detectable earthquakes of this size could occur per Earth year, suggesting that optimism is warranted for constraining the core’s size. Cerberus Fossae is around 25° from the InSight landing site on Elysium Planita, putting the marsquake region at a range of relatively high sensitivity for ScS and ScP core reflections (Fig. 9).
Fig. 9

Detection limits of selected core-related arrivals needed to determine core radius and outer core structure. Various curves show the expected acceleration levels expected for a 1015 N-m source recorded at various ranges (in degrees of great circle arc) from the seismometer. The sensitivity levels of the InSight SP and VBB instruments are shown as horizontal lines (Lognonné et al. 2014). For methods used, see the “Appendix” section

Stratification of the core may result if a favorable combination of temperature and composition prevails (Fig. 5). The temperatures anticipated at the CMB for Rivoldini et al. (2011) models are between 1700–2100 K, and for Sohl and Spohn (1997) models are 1750–1950 K. These are too high for any inner core formation (Fig. 4). However, these models were constructed without including the mineralogy for Fe 3−x S 2 or Fe 3S forming the inner core, and the consequences of its crystallization for stratification. (Rivoldini et al. (2011) explored inner core sizes but assumed Fe as the only constituent solid.) Without exploring the resulting core structure’s compatibility with the I/(Mr 2) and k 2 constraints (but see the post-hoc justification later), I calculate the seismic signature of a stratified model with an inner core. Some simplifications are in order to avoid burdening the review with excessive details of thermophysical properties and equations of state; a brief summary appears in the “Appendix” section. I use the estimated thermophysical properties of Fe 3 S 2 and Fe 3S (Saxena and Eriksson 2015) to calculate the density of the solid and compare it with liquid density estimates from previous core models (Rivoldini et al. 2011; Sohl and Spohn 1997). The densities at Mars’ center are 7701 kg m −3 (Fe 3 S 2) and and 8330 kg m −3 (Fe 3S) are greater than the liquid densities (6600–7300 kg m −3), so the crystals would sink. The resulting inner core size depends on whether Fe 3 S 2 or Fe 3S (or a mixture of both) is the stable high-pressure assemblage at Mars’ center. The assemblage itself depends on both the precise phase relations (Fei et al. 2000; Saxena and Eriksson 2015) and the presence of other alloying elements such as Ni (Stewart et al. 2007), so a range of inner core sizes results from a single bulk core composition and CMB temperature (Fig. 5). Rivoldini et al. (2011) models found a range of core radii (of pure Fe) of 500±500 and 600 ± 500 km depending on the CMB temperature, 1700 and 2100 K, respectively. For a core with 15 wt% S, the ICB radius may be as large as 500 km if Fe 3 S 2, suggesting that a more sulfur-rich solid in the core is also capable of satisfying the I/(Mr 2) and k 2 constraints.

To show the features resulting from a stratified core, I construct a core structural model that contains an inner core and a sulfur-rich layer at the top of the core from the liquidus relations shown in Fig. 5. The CMB temperature is 1350 K. At a bulk core composition of 15 wt% sulfur, the inner core size is 490 km. Because crystallization of Fe at this temperature deflects the core liquid’s sulfur content to the adiabat, the topmost 200 km of the core will be stratified. Depletion of sulfur at the base through crystallization of Fe 3 S 2 and at the top by Fe pumping down the adiabat reduces the bulk liquid S content slightly to 14.5 wt%. The liquid part of the core is 1111 km. Figure 10 shows the structure, travel time curves, and ray paths compared with R11DW.

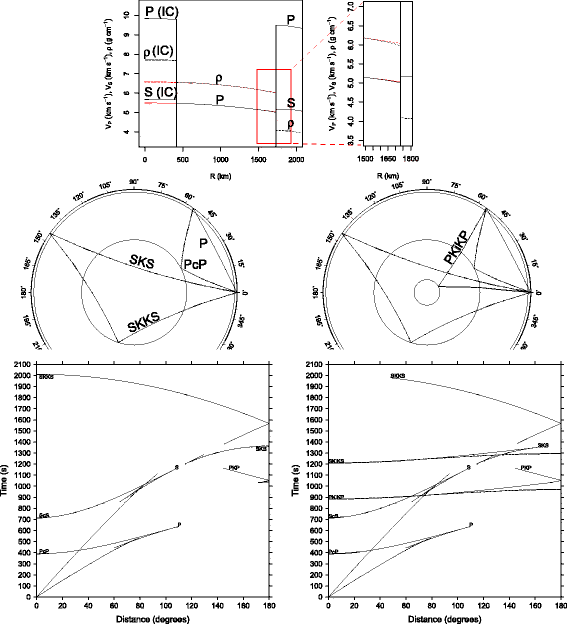

Fig. 10

Mars core structure when stratification and crystallization of an inner core occur simultaneously. Top panels show size of inner core (assumed Fe 3 S 2) and slight perturbation to density and P wave speed at the top of the outer core when stratification enriches sulfur in the core, lowering both density ρ and P wave speed in the outer core relative to unstratified state (red lines). The profiles of P, S and ρ in the inner core are labeled with (IC) for clarity; the unstratified P and ρ profiles (red) continue smoothly to Mars’ center. The inset (top right) of the boxed area near the CMB expands the density and P wavespeed profiles to emphasize their subtle structural changes. Bottom panels show ray paths and travel times for unstratified (left) and stratified (right) cases. The stratification itself is unobservable because P wavespeeds are already lower than S in the mantle, blocking minor-arc SKKS (Fig. 8, top). The only visible consequence of stratification is the presence of the inner core itself, indicated by the existence of PKiKP (and its extension to 180° as PKIKP)

The effect of stratification is the wavespeed and density reduction in the core in the 200 km nearest to the CMB. Density is affected most strongly: it is reduced by about 1% relative to the ambient core density. The effect on wavespeeds is much smaller, and serves to reduce them, marginally changing the ray geometry of SKS and SKKS at the CMB but not changing the form of the travel time curves. If the increased sulfur content raised wavespeeds above the shear wave speed at the base of the mantle, minor arc SKKS would re-emerge (see the SS97a model in Fig. 8), but this is not predicted by the core liquid model used (see the “Appendix” section). Panning et al.’s (2017) seismic wavespeed model brings mantle shear-wave speeds very close to core compressional wave speed, holding out the hope that the shallow core may be illuminated better by SKS and SKKS.

The Brunt-Väisälä frequency of the stratified layer is 0.4 mHz (0.7 h period), suggesting strong stratification resistant to convection (Loper 2000). A simple calculation shows how difficult it would be to disrupt the stratification. The density change δ ρ/ρ due to a temperature change Δ T is α Δ T, whereas the density change due to a compositional gradient in the radial range Δ r is ρ −1(d ρ/dr)Δ r. Equating these and taking the radial derivative, The temperature gradient required to eradicate the density gradient is therefore dT/dr=(α ρ)−1 d ρ/dr. Using characteristic values α ≈ 4.7×10−5 K−1, ρ ≈ 6400 kg m −3 (Table 2), and d ρ/dr ≈ 0.875 kg m −3 km −1 (Fig. 6) a temperature gradient of 2.9 K km −1 is required. If the core’s thermal conductivity is 30 W m −1 K −1, this would entail a core heat flux of 87 mW m −2 or 0.88 TW, in the range of sublithospheric heat flux estimates of 15–40 mW m −2 (0.69–1.84 TW) (Ruiz et al. 2011). Hence, the core heat flux required to disrupt layering entails the unlikely requirement of zero radiogenic heat production in Mars’ mantle. It is also a higher core heat flux than encountered in any of the post-plate tectonic Mars mantle evolution scenarios explored by Nimmo and Stevenson (2000) and Williams and Nimmo (2004).
Table 2

Mars thermophysical properties relevant for dynamo activity

Symbol

Quantity

Value

Units and scale

Source

Ω

Rotational frequency

1.28126

×10−5 s −1

(Turcotte and Schubert 2002)

R i

Inner core radius

100

km



R o

Outer radius of convective region

1100

km



D

Convective region thickness



=R i R o

g 0

Gravitational acceleration at top of convective region

1.99

m s −2



α

Thermal expansivity

4.7

×10−5 K −1

(Helffrich and Kaneshima 2004) for Fe-11wt%S

T o

Temperature at top of convective region

1850

K

Rivoldini et al. (2011) adiabat

T CMB

CMB temperature

1700

K

(Rivoldini et al. 2011)

C P

Heat capacity

600

J kg −1 K −1

(Helffrich and Kaneshima 2004) for Fe-11wt%S

ρ

Density

6390

kg m −3

(Rivoldini et al. 2011)

ν

Viscosity

1

×10−6 m 2 s −1

(Christensen and Aubert 2006)

κ

Thermal diffusivity

2

×10−5 m 2 s −1

(Christensen and Aubert 2006)

k

thermal conductivity in convective region

30

W m −1 K −1

(Stacey 1992)

E

Ekman number

8.05

×10−14

=ν(Ω D 2)−1

E k

Thermal Ekman number

1.61

×10−12

=κ(Ω D 2)−1

\(Ra_{Q,c}^{*}\)

Modified critical Rayleigh number

9.19

×10−9

=Ra c EE k (Christensen and Aubert 2006);



Ra c from Al-Shamali et al. (2004)

\(Ra_{Q,c}^{*} = {1 \over {4 \pi R_{o} R_{i}}} {{\alpha g_{0} Q_{adv}} \over {\rho C_{P} \Omega ^{3} D^{2}}}\); \(Q_{ad} = k {{\alpha g_{0} T} \over C_{P}}\). Total heat flux Q=Q adv +Q ad ; heat flow excess to operate dynamo Q e =Q adv /Q

The clearest evidence for stratification is the presence of an inner core. Figure 5 shows that crystallization at the base of Mars’ core occurs only at low temperatures below 1420 K. At these temperatures, Fe would already be snowing from the CMB region, forming the stratified layer. Hence, if an inner core exists, the core must be stratified (with the proviso that S is the major alloying element and present in the concentration range of 11–17 wt%). It is possible to stratify without an inner core if the CMB temperature is less than 1850 K at the lowest expected sulfur content, 11 wt%, but this lies well below the limits found by geophysical modeling (Rivoldini et al. 2011). In the range 11–14 wt% sulfur, an effectively pure iron inner core could form below a substantially stratified liquid in the temperature range 1375–1575 K enriched in sulfur by up to 2.5 wt% over the bulk core content.

Between 1575–1850 K, there would be no inner core but a stratified outer core, whose stratification depth varies with temperature. Detecting the stratification could be difficult for the reason discussed above concerning the relative wavespeed of S at the base of the mantle to P in the liquid outer core.

Functioning dynamos in small planetary bodies appear to be a common outcome of the accretion process (Monteux et al. 2011). In Mars’ case, dynamo activity ended early in the planet’s history (Acuña et al. 1999). Perhaps this was mediated by impacts as, for example, Monteux et al. (2015) envisage, but internal processes might also curtail dynamo activity. I explore this possibility in the following paragraph.

Temperatures at the CMB are expected to be in the range of 1700–2100 K based on the internal planetary models cited earlier. In this range, core stratification is possible if the bulk sulfur content is less than 13 wt%. At the lowest temperature and lowest sulfur content (11 wt%), about half of the core’s depth would be stratified (Fig. 5), and any dynamo would have to operate within a radius of 1000 km. The heat flux required to operate a thermal dynamo would also have to be carried conductively through a thick stagnant layer. One can use dynamo scaling relations developed by Christensen and Aubert (2006) to decide whether dynamo extinction through a change in conductive heat transport is possible. The relations are strictly valid for annular dynamos, so I assume a small inner core of 100 km radius and a well-mixed liquid region extending to 1100 km radius. This roughly corresponds to a scenario where the T CMB is 1700 K and the bulk sulfur content is 11 wt%; the top of the core will be enriched to 13 wt%. Using the thermophysical values given in Table 2, I calculate the amount of heat flux in excess of the adiabat to drive a dynamo by heat alone at the critical Rayleigh number, \(R a^{*}_{C}\). The details are relegated to the table for completeness; the result is simply that a heat flow excess Q e of at least 1.8% over the adiabatic flow in the convective region is required. This heat flow must be carried through the stagnant layer conductively, along an unknown temperature profile (either superadiabatic or subadiabatic depending on T CMB compared with the temperature in the convective region). However, the liquid will be increasingly sulfur rich, changing the thermal conductivity and hence its capacity to transport heat from below. Using Gomi et al. (2013) model for thermal conductivity dependence on impurities in liquid iron, a 2 wt% increase in sulfur content will reduce k by 2.2%, which is slightly more than the excess heat (1.8%) required to operate a critical dynamo. Thus, the growth of the sulfur-rich stratified layer acts to quell dynamo action in the core both by shrinking the dynamo region (increasing \(Ra^{*}_{Q,c}\)), and by inhibiting its ability to cool itself (decreasing Q adv ).

The calculation for the chosen parameters yield only a marginal suppression of dynamo activity and are uncertain. The main control over whether it arises in Mars is the core’s bulk sulfur content: the higher it is, the less extensive stratification will be, but the more likely an inner core will be.

Stratification will be difficult to observe directly. However, Birch’s homogeneity test (Birch 1952) of the core wavespeed profile, once it is determined, may yield a verdict on the core’s chemical composition. Figure 11 shows a profile of the homogeneity index η B =dK/dP+g −1 d Φ/dr (Dziewonski and Anderson 1981) for a synthetic Mars core wavepseed model based on Rivoldini et al. (2011) (see the “Appendix” section for methods used). η B ≈ 1 indicates adiabatic compression of a homogeneous substance. The homogeneity index is roughly 1 in the unstratified part of the core but changes substantially through the stratified region, even though the wavespeeds only change slightly, with no major changes in the shape of the travel time curves. If a good radial wavespeed model is available for the core, this test could reveal whether the core is stratified, and therefore unable to fully convect. This would be a strong constraint on Mars’ evolution from the timing of the disappearance of its magnetic field.

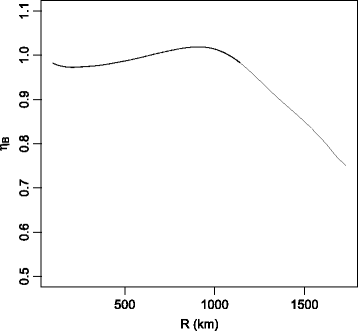

Fig. 11

Plot of homogeneity index for stratified core based on Rivoldini et al. (2011) model. The index η B is 1 for self-compression of a homogeneous substance. The bulk sulfur content is 11 wt%, and T CMB = 1700 K. This causes the topmost 500 km of the core to be enriched in sulfur compared to the bulk. The index is approximately 1 in the innermost part of the outer core, but uniformly decreases in the topmost 500 km of the outer core where the sulfur concentration increase changes the wavespeed more strongly than the increase in pressure in a homogeneous material does

Conclusions

This review summarized the knowledge of Mars’ interior structure, its inferred composition, and its conjectured seismological properties arising from compositional possibilities. From the fairly detailed liquidus diagram summarizing the existing experimental studies, I discussed the set of processes that could act within Mars’ core: an iron “snow” from the core-mantle boundary’s surface and a Fe 3−x S 2 “ground fog” forming at the base of the core. The temperature and compositional range at which these crystallization processes operate can imprint the core with identifiable structural features. From the seismic wavespeed and density profiles, I examined the key raypaths for the likely set of seismic wave arrivals and assessed their ability to diagnose chemical and thermal conditions in Mars’ core.

In the near future, after InSight places a seismometer on Mars and records sufficient seismic activity on and within the planet, the resulting data will allow stronger inferences about its composition and evolution to be made. The most important datum to extract will be the radius of Mars’ core that will be evident from PcP (and ScS) travel times. This will provide first-order constraints on the planetary Fe/Si ratio. The next most important seismic observation will be the presence or absence of an inner core. If an inner core is detected, temperatures in Mars’ core must be much lower than expected (1375–1420 K at the CMB). Wavespeeds in the core, particularly those derived from SKS and SKKS, should be able to constrain the extent of any stratification in the outer core, and, if present, restrict internal conditions to a combination of the bulk sulfur composition and CMB temperature. Finally, provided that sufficiently large seismic events can set the body of the planet oscillating, records of the long-period vibrational eigenfrequencies will yield independent constraints on the planet’s density structure. Most planetary probes yield surprises, and there is no reason to expect Mars to fail to astonish.

Appendix

Methods used

Nomenclature for ray paths. A ray path is broken into segments, each described by a letter tabulated below. Each segment either starts at the earthquake focus or at one of the main seismic discontinuities in a planet: (1) the surface; (2) the core-mantle boundary (CMB); (3) the inner core-outer core boundary (ICB). Table 3 is a partial list that omits symbols not discussed in the review. See, for example, Shearer (2009) Chapter 4.9 for an extended discussion with more examples.

Table 3

Symbols used to describe rays

Symbol

Use

P

A downgoing P wave in the mantle

S

A downgoing S wave in the mantle

K

A P wave in the outer core

I

A P wave in the inner core

c

A reflection from the CMB topside

i

A reflection from the ICB topside

Starting from the focus, a wave leaves it as either a P or an S wave. As the wave meets one of the boundaries, it is either transmitted or reflected there and a new symbol describes the next segment in the path. Thus PKIKP is a P wave that crosses the outer core (K) to the inner core (I), where it reaches its maximum depth and turns upward to cross back into the core (K) and the mantle (P). Similarly, SKKS starts as S at the source, enters the core (K), reflects off the bottom of the CMB (K) and leaves the core as an S wave that travels to the surface.

Seismic wave amplitudes. The amplitude of a seismic wave is governed by the intensity of the seismic source, the relative impedance of the material at the source and the receiver, geometric focusing (and defocusing) by shrinkage and expansion of wavefronts by the radial structure of the medium, and by reflections and conversions of seismic waves at major boundaries crossed by the wave front (such as the core-mantle boundary). All except the first and the last of these factors is expressed in the following relation (Shearer 2009):
$$ {\hat{E} (\Delta) \over E_{s}} ~ = ~ {p v^{2}_{src} \over 4 \pi r^{2}_{src} r^{2}_{rec} \sin \Delta \cos {\theta}_{src} \cos {\theta}_{rec}} \left |{dp \over d \Delta}\right | ~ ~ ~. $$
(1)

The subscripts src and rec designate quantities evaluated at the source and the receiver, respectively. p is the spherical wave slowness, v is the wave speed, r is the radius, Δ is the angular separation between the source and receiver, and θ is the wavefront normal angle with respect to the radially downward direction. Specifically, \({\hat {E} (\Delta) \over E_{s}}\) is the energy per unit of wavefront relative to the intensity of the source. The seismic wave amplitude is the square root of this quantity.

The effect of reflections and conversions at major boundaries (the core-mantle boundary in Mars’ case) is accounted for by using the Zöppritz equations evaluated with appropriate material properties at the boundary and incoming and outgoing wavefront normal angles (Young and Braile 1976). These are combined with the geometric focusing and turned into a ratio of the amplitude of an arrival interacting with the core (PcP, SKKS, etc.) to the direct P or S wave arriving at the same distance.

The source intensity is obtained from Teanby and Wookey (2011) who calculated the seismic acceleration vs distance relation for an isotropic compressional energy source in Mars model at a range of source moments. I use the rule of thumb for crustal earthquakes on Earth (Hardebeck and Shearer 2003) to scale the P source intensity to an S source intensity; those authors found empirical agreement with the theoretical relation of the S intensity being 10 times the P intensity.

Again following Teanby and Wookey (2011), the detection threshold a peak is (Havskov and Alguacil 2004):
$$ a_{peak} ~ = ~ {5 \over 4} n_{rms} [ \Delta f ]^{1/2} ~ ~ ~, $$
(2)

where Δ f is the noise bandwidth, chosen to be (4–0.4) Hz (Teanby and Wookey 2011). Given the reported SP and VBB instrument sensitivities n rms of 10−8m s −2 Hz −1/2 and 10−9m s −2 Hz −1/2 (Lognonné et al. 2014), these provide the positions of the lines in Fig. 9. The source moment is converted to a moment magnitude using its defining relation (Hanks and Kanamori 1979).

Table 4

Thermophysical properties

Symbol

Property

Value

Scale and units



Fe 3 S 2

Fe 3S



V 0

Molar volume

32.848

27.370

cc mol −1

α

Thermal expansivity

1

1

×10−5 K −1

K 0

Isothermal bulk modulus

300

150

GPa

K

Pressure derivative of bulk modulus

6

3.67



Reference state 1 bar and 1350 K. γ=1.4 for all phases; δ T =K for all phases too

Seismic wavespeeds in the inner core. Saxena and Ericsson (2015) estimated the thermophysical properties for Fe 3 S 2 and Fe 3S at a reference state of 1 bar and 1350 K. I use those reference state values, listed in Table 4, to calculate the seismic wavespeed at core pressures and temperatures. A third order Birch-Murnaghan equation of state is used, as described in Helffrich and Connolly (2009), but with the finite strain-based thermal expansivity pressure dependence as used by Helffrich (2017). The solid equation of state gives both density ρ, isothermal bulk modulus K, and thermal expansivity α at high pressure and temperature. The seismic wavespeed is calculated from V P = [(K s +4/3μ)/ρ]1/2, where the adiabatic bulk modulus K s =K(1+T α γ). A Poisson solid is assumed in order to estimate the shear modulus μ, yielding μ=K s /3.

Velocity profiles in a stratified core. Liquid metal seismic wavespeeds in the Fe-S system are calculated using the model of Helffrich and Kaneshima (2004). Deviations of V P and ρ from a homogenous sulfur concentration in the core are calculated down an adiabat footed at the CMB. The deviations δ V P (r) and δ ρ(r) are expressed as multiplicative factors and applied to the V P and ρ profiles from Rivoldini et al. (2011) to harmonize the different methods used to calculate wavespeeds in the two studies.

Core liquidus. To approximately model the core’s liquidus we account for the melting depression due to the presence of a light element in the core. Because sulfur is cosmochemically abundant, lowers iron’s freezing point, and is experimentally investigated, we use data for the Fe-FeS eutectic to account for this effect on the formation of the inner core.

The calculated melting temperature of pure iron (Alfè et al. 2002), calibrated with shock melting results for iron (Nguyen and Holmes 2004) provide the melting temperature for pure iron. I parameterize the liquidus temperature as a function of composition for high iron concentrations using the Fe-FeS eutectic compositions and temperatures investigated as a function of pressure from various sources (Buono and Walker 2015; Chudinovskikh and Boehler 2007; Fei et al. 1997, 2000, Morard et al. 2008). The pressure and compositionally dependent melting temperature is parameterized as
$$ T(P,X) ~ = ~ T_{Fe} (P)-c X^{2} ~ ~ ~, $$
(3)

where T Fe is the iron melting curve and c is a pressure-dependent coefficient required to make T(P,X) be the eutectic temperature T e (P) at the eutectic composition X e (P). The parabolic dependence is in contrast to Dumberry and Rivoldini 2015 who made a linear interpolation between the pure Fe melting point and the eutectic. For Mars’s core, P and T is in the experimentally determined range (Chudinovskikh and Boehler 2007; Morard et al. 2008). I similarly parameterize the liquidus temperature of Fe (3−x) S 2 from Fei et al. (1997, 2000), Stewart et al. (2007) and Morard et al. (2008) to determine the liquidus P-T-X relations for Fe (3−x) S 2. Stewart et al. (2007) showed Ni to have an insignificant effect on the melting relations, so its presence is neglected. Due to lack of compositional information, I assume the the incongruent melting Fe (3−x) S 2 to FeS + liquid reaches an asymptotic composition of 26 wt% S along Morard et al. (2008) melting curve. In contrast, Dumberry and Rivoldini (2015) assumed that the eutectic composition decreased exponentially with pressure towards a value of 11 wt% S (compare Fig. 3), and did not parameterize the incongruent melting of Fe (3−x) S 2 at all.
