ESR signal intensity of quartz in the fine-silt fraction of riverbed sediments from the Yangtze River: a provenance tracer for suspended particulate matter
© The Author(s). 2017
Received: 14 April 2016
Accepted: 8 February 2017
Published: 22 February 2017
The Asian summer monsoon exerts a strong influence on the hydrologic cycle in East Asia. Moreover, the distribution of heavy precipitation in the Yangtze River basin, which covers a large area of South China, is sensitive to changes in monsoon intensity. Thus, the paleo-distribution of heavy precipitation in the Yangtze basin is key in reconstructing the paleo-monsoon intensity. In this study, we established proxies for distinguishing sediments from the northwestern and southeastern parts of the Yangtze River basin, with the goal of using them to reconstruct the paleo-distribution of heavy precipitation in the basin based on changes in the provenance of detrital sediments, as determined using sediment records at the river mouth. The proxies included the electron spin resonance (ESR) signal intensity and the crystallinity index (CI) of quartz in modern riverbed sediments along the mainstream and tributaries of the Yangtze River. The data revealed that the fine-silt fraction of the sediments (which represents suspended particulate matter, SPM) from each major tributary can be distinguished on the basis of ESR signal intensity and CI values. The values for each tributary reflect the age and type of bedrock in the tributary basin and show distinct regional variations according to the distribution of geological blocks within the Yangtze basin. In addition, the analyzed ESR signal intensity and CI values of the fine-silt fraction of riverbed sediments below mainstream–tributary junctions agree well with values calculated according to a simple mixing model of SPM discharged from the tributaries and the mainstream.
KeywordsYangtze River Riverbed sediment Suspended particulate matter Provenance Electron spin resonance Crystallinity index
The Yangtze River is the longest river in Asia (length >6300 km), draining an area of 1.81 × 106 km2 (Hu et al. 2009) and with an annual water discharge of 910 km3/year, which is the fifth largest in the world (Yang et al. 2002). More than 400 million people live in the Yangtze River drainage basin, and many large cities are situated along its mainstream (Zong and Chen 2000). According to historical records, more than 200 large floods have occurred on the Yangtze River over the last 2000 years, severely affecting the economies and lives of people in the region (Dai and Lu 2010). Because the drainage basin occupies a substantial portion of South China, which is under a temperate climate, more than 60% of the total precipitation within the drainage basin is discharged through the Yangtze River (Xu et al. 2010). Also, a positive correlation exists between annual and monthly precipitation in the basin and discharge of the Yangtze River (Xu et al. 2010). Water discharge of the Yangtze River during summer accounts for 71% of the annual discharge (Chen et al. 2001). During summer, precipitation in the middle to lower parts of the Yangtze drainage basin is affected by the East Asian summer monsoon (EASM), whereas precipitation in the uppermost part of the Yangtze River basin is sourced from the Indian summer monsoon (ISM), whose frontal position is connected to the EASM front (Wang and Lin 2002); thus, water discharge of the Yangtze River during summer reflects the amount of precipitation sourced from these monsoons. The EASM is characterized by a seasonal northwestward migration of its precipitation front, and the timing and extent of the migration are associated with migration of the westerly jet axis (Tada et al. 2016). Zhang et al. (2008) reported that inter-annual changes in the intensity of the EASM, which are defined by the strength of the northward wind around China, are associated with spatial changes in the location of the high-precipitation area, with its northwestward penetration being greatest during times of strong EASM convection. Thus, the reconstruction of past spatiotemporal changes in areas of heavy precipitation and flood within the Yangtze drainage basin is critical for understanding the long-term behavior of the EASM and ISM.
Suspended particulate matter (SPM) constitutes more than 95% of the sediments discharged from the Yangtze River (Chen et al. 2001). Because discharge of the Yangtze River reflects precipitation amounts in the drainage basin (Xu et al. 2010), and because a strong positive relationship exists between discharge and sediment load (Chen et al. 2001), we hypothesize that changes in the SPM provenance reflect changes in the distribution of high-precipitation areas. Based on this reasoning, changes in the provenance of sedimentary materials recorded at the Yangtze rivermouth could enable us to reconstruct the spatiotemporal variability of heavy-precipitation areas within the Yangtze drainage basin. Application of this technique to sediment archives collected from an area immediately outside the rivermouth is the ultimate goal of this study.
To identify the provenance of SPM, we analyzed the electron spin resonance (ESR) signal intensity and the crystallinity index (CI) of detrital quartz in three size fractions of riverbed sediments: 4–16, 16–63, and >63 μm. The ESR signal intensity and CI values have been used to distinguish sources of sediments, such as eolian dusts from various deserts in western China (e.g., Nagashima et al. 2007; Sun et al. 2007). We focused on the quartz fraction because it is the most common mineral in detrital materials and is resistant to physical and chemical weathering. Moreover, its specific gravity is close to the average of detrital materials, meaning that size-sorting effects are minimal. The objectives of this study were to (i) characterize quartz in the sediments discharged from each tributary of the Yangtze River based on ESR signal intensity and CI values and (ii) test whether the relative contribution of detrital materials derived from different tributaries is accurately reflected in ESR signal intensity and CI values of quartz in sediments deposited along the mainstream and discharged from the rivermouth.
The upper part, or the Chuanjiang, is defined as the mainstream between Yibin and Yichang, the latter being located just below the outlet of the Three Gorges. In the upper part, the mainstream runs through the southern part of the Sichuan Basin, then flows into the Three Gorges (Fig. 1). The length of the upper part is ~800 km and its drainage area is 5.2 × 105 km2 (Hu et al. 2009), constituting 29% of the entire Yangtze River drainage basin. In the Sichuan Basin, the riverbed slope is 0.1–0.2‰ and the valley depth is 200–300 m; both the riverbed slopes and the depths of valleys are smaller in the upper part than in the uppermost part. In the Three Gorges, the maximum riverbed slope and valley depth increase to 0.4‰ and 1000 m, respectively (Chen et al. 2001; USGS 2004). The channel width in the upper part is 0.5–1.5 km and water depth is 5–20 m (Chen et al. 2001). In the Sichuan Basin portion of the upper part, two major tributaries, the Minjiang and Jialingjiang, flow into the mainstream from the north and one major tributary, the Wujiang, flows into the mainstream from the south. Construction of the Three Gorges Dam (TGD) was completed in 2003 on the mainstream at the outlet of the Three Gorges, upstream of Yichang.
The middle part, or the middle Yangtze, is defined as the mainstream between Yichang and Hukou, the latter being located just downstream of the Poyang Lake outlet. The length of the middle part is 950 km and its drainage area is 6.8 × 105 km2, constituting 38% of the entire Yangtze River drainage basin (Chen et al. 2001). As it flows across the Jianghan Plain, the mainstream is characterized by a 10 km scale meandering channel, and the plain includes many lakes that originated as cutoff channels. The riverbed slope of the mainstream deceases dramatically in the middle part, to 0.02–0.03‰, and the channel widens to 1–2 km, with a depth of 6–15 m (Chen et al. 2001). Three major tributaries flow into the mainstream in the middle part, the Hanjiang from the north and tributaries through the Dongting Lake and Poyang Lake drainages from the south (Fig. 1). The Dongting Lake drainage, with an area of 2.7 × 105 km2 (Hayashi et al. 2008), gathers waters from four major tributaries. In addition, three natural channels flow from the mainstream into Dongting Lake, known as the “Three Channels” or “Three Outlets” (Dai et al. 2005; Yin et al. 2007). Thus, some water and SPM in the upper part of the mainstream flow into Dongting Lake through these three channels (Dai et al. 2005). The area of the Poyang Lake drainage basin is 1.6 × 105 km2, and its largest tributary is the Ganjiang (Hu et al. 2007).
The lower part, or the lower Yangtze, is defined as the mainstream between Hukou and the rivermouth. Its length is 930 km and its drainage area is 1.2 × 105 km2 (Chen et al. 2001), constituting 7% of the entire Yangtze River drainage basin. The mainstream in this part flows across flat plains and past low hills and is characterized by numerous braided channels (Chen et al. 2001). The riverbed slope in the lower part decreases to 0.01‰, and the channel width widens to an average of 2–4 km, reaching a width of 15 km in the estuary region; the channel depth increases to 10–20 m (Chen et al. 2001). Although many lakes are situated near the mainstream, no large tributary exists in the lower part.
The northwestern part of the upper Yangtze drainage basin, which is drained by the Daduhe (the largest tributary of the Minjiang; Fig. 1), is also underlain by the Songpan–Garze terrane, where it is composed mainly of Triassic turbiditic rocks that are partly intruded by Late Triassic or Early Jurassic granites (Reid et al. 2005a; Roger et al. 2008). The upper part of the Jialingjiang drainage basin belongs to the South Qinling orogenic belt, consisting of Meso–Neoproterozoic basement that was weakly metamorphosed during the Neoproterozoic, shallow-marine deposits of Neoproterozoic–Devonian age, and Triassic granitoids (Meng and Zhang 2000; Qin et al. 2010; Dong et al. 2011). The central to southeastern Sichuan Basin, which is drained by the middle to lower part of the Jialingjiang and the lower part of the Wujiang, is widely covered by thick terrestrial mudstone and sandstone deposited during the Jurassic–Cretaceous (Hao et al. 2008; Ma et al. 2008). The upper part of the Wujiang drainage basin is underlain by Permian–Triassic limestones and dolomitic limestones with minor basalts. Cambrian and Ordovician carbonates and Silurian sandstones are exposed mainly in the lower part of the Wujiang drainage basin (Han and Liu 2004; Wang et al. 2010).
In the middle Yangtze drainage basin, Quaternary sediments transported by the Yangtze are widely deposited along the mainstream, particularly across the Jianghan Plain between the mainstream and the Hanjiang. The upper part of the Hanjiang drainage basin belongs to the Qinling orogenic belt and is composed of Neoproterozoic basement and Neoproterozoic–Devonian sediments (Qin et al. 2010). Quaternary loess deposits also occur in some parts of the upper Hanjiang drainage basin (Zhang et al. 2012). The Jianghan Plain forms the middle to lower part of the Hanjiang drainage basin. Most of the Dongting Lake drainage basin belongs to the eastern part of the Yangtze Block. The Proterozoic basement of the Yangtze Block has been subjected to low-grade metamorphism. Cambrian and Ordovician carbonate rocks, Devonian sandstone and shale, and Cretaceous red-colored sandstone are the main rocks exposed in this region (Chen and Jahn 1998; Wang et al. 2010, 2013). The drainage basin of Poyang Lake and the easternmost part of the Dongting Lake drainage basin belong to the Cathaysia Block, which is composed of Neoproterozoic conglomerate and sandstone, lower Paleozoic siliciclastics, Jurassic granites, and Cretaceous red-colored sandstone (Wang et al. 2007a, 2013).
In the lower Yangtze drainage basin, Quaternary sediments derived from the upper and middle Yangtze were deposited along the mainstream. The southern part of the lower Yangtze drainage basin belongs to the Cathaysia Block (Wang et al. 2007a, 2013).
In summary, the bedrock of the uppermost and upper Yangtze drainage basins is relatively young and is composed mainly of Mesozoic strata, while the northernmost and southern parts of the upper Yangtze drainage basin are composed mainly of Paleozoic strata, and the middle and lower Yangtze drainage basins are composed mainly of Paleozoic–Proterozoic strata (Fig. 2). Thus, the strata in the Yangtze drainage basin tend to increase in age downstream. Regarding rock types, sedimentary and low-grade metasedimentary rocks are exposed mainly in the uppermost and upper parts of the basin, whereas crystalline plutonic rocks are more common in the middle and lower parts of the basin.
Dongting Lake, which drains into the middle part of the mainstream, has played an important role in the sediment budget of the Yangtze (Dai et al. 2005). In particular, below the Three Gorges, turbid water from the upper part flows not only into the mainstream of the Yangtze but also into channels flowing into Dongting Lake, known as the Three Outlets (Dai et al. 2005; Yin et al. 2007). Therefore, Dongting Lake receives sediments from the mainstream above the Three Gorges through the Three Outlets, in addition to sediment originating from its own tributaries. Thus, the sediments discharged from Dongting Lake to the mainstream are a mixture of sediments from the upper part of the mainstream and from tributaries flowing into Dongting Lake itself. According to observational data, the volume of sediments accumulating in Dongting Lake is proportional to the inflow volume from the Three Outlets: it is estimated that 87% of sediments flowing into the Three Outlets were deposited in the Dongting Lake area during 1950–2002 (Dai et al. 2005).
Since the 1950s, when observations of sediment load began, sediment discharge in the mainstream at Datong has shown a decreasing trend, owing to reservoir construction and the National Soil Conservation Project, particularly in the Jialingjiang drainage basin (Yang et al. 2006; Hu et al. 2011). Moreover, the start of operations of the TGD in 2003 significantly changed the sediment budget in the mainstream below the TGD (Figs. 3 and 4). Before the start of TGD operations, the total sediment input into the Three Gorges area was 489 Mt/year, which nearly balanced the sediment load of 492 Mt/year at Yichang (Yang et al. 2007). However, since operation of the TGD, 80.3% (188 Mt/year) of the sediments flowing into the Three Gorges area (234 Mt/year) have been trapped by the TGD (Yang et al. 2014). The sediment budget in the middle and lower parts of the Yangtze also changed after 2003 on account of the TGD, because of decreased sediment loads from the upper to the middle and lower parts (Chang et al. 2010). Specifically, the middle and lower parts have experienced erosion of 63 Mt/year since the start of TGD operations in 2003, whereas prior to 2003, these regions experienced a net sediment accumulation of 36.1 Mt/year (Dai et al. 2005; Yang et al. 2014). In the 2010s, more than 10 hydropower reservoirs were proposed in the uppermost part of the basin. Five dams had been constructed on the mainstream by 2012, including the Xiangjiaba and Xiluodu Dams between the Yibin and Yalongjiang tributaries, and the Longkaikou, Jinangqiao, and Ahai Dams between the Yalongjiang and Big Bend (Hennig et al. 2013). Operation of the Jinangqiao Dam began prior to 2010, while construction of the other dams started in the early 2010s. These dams are expected to influence the sediment budget in the uppermost Yangtze in the near future.
Riverbed sediments were sampled mainly from the riverside of the mainstream and major tributaries of the Yangtze in July and September 2011 and in February and October 2012. Sediments from the mainstream were sampled at locations a few hundred meters to a few kilometers above and below the junctions with major tributaries to evaluate the effects of sediment mixing between the mainstream and the tributaries. Sediments from the tributaries were sampled at locations several kilometers upstream of the junction with the mainstream so as to prevent contamination of sediments from the mainstream. Our data show that in the lower part, the SPM consists of fine silt particles with a mean diameter of ~10 μm throughout the year (Hassan et al. 2010; Mao et al. 2011). Furthermore, SPM accounts for 98% of the sediment discharge from the Yangtze rivermouth (Yang et al. 2002). For these reasons, we sampled silty sediments wherever possible and otherwise sampled sandy sediments.
We also analyzed three SPM samples (JSJ-GLS, JSJ110701, and YZ110703-03; Additional file 1) obtained at the same locations and on the same days as the riverbed samples were taken. Then, we examined if the composition of the fine-silt fraction of the riverbed samples could be used as a proxy of the SPM.
Samples were pretreated prior to grain size separation based on methods presented by Rea and Janecek (1981) and Tada et al. (2000). Approximately 3 g of dry sample was placed into each of two plastic centrifuge tubes. In the first step, carbonates were removed by immersion in 50 ml of 20% acetic acid at room temperature for 8 h. After removing carbonates, the supernatants were drained. Approximately 50 ml of deionized water was added, and the tubes were centrifuged twice at 3000 rpm to remove any remaining acetic acid. In the second step, organic matter was removed by immersion in ~50 ml of 10% hydrogen peroxide at 60 °C for more than 20 h until all bubbling ceased. After the supernatant was drained, ~50 ml of deionized water was added and the tubes were centrifuged twice at 3000 rpm. In the third step, Fe and Mn oxides were removed using a mixture of 0.3 mol/l sodium citric acid and 0.1 mol/l sodium hydrogen carbonate at a ratio of 8:1, followed by the addition of 3 g of sodium hydrosulfite. The tubes were heated at 80 °C for 8 h. Then, the supernatant was removed, 50 ml of deionized water was added, and the tubes were centrifuged twice.
These pretreated samples were kept wet until the grain-size separation procedure. Grain size separation was conducted by the settling method based on Stokes’ law at 4 and 16 μm. Separation at 63 μm for the >16 μm fraction was also conducted using a sieve. Although we did not sieve the upper limit of the >63 μm fraction, the grain size in the sand fraction was not larger than 2–3 mm, based on macroscopic observation. The riverbed sediments were separated into four size fractions: <4 μm (clay), 4–16 μm (fine-silt), 16–63 μm (coarse-silt), and >63 μm (sand); the latter three fractions were analyzed. The SPM samples were separated into two size fractions: <4 and >4 μm, and the latter was analyzed. The <4 μm (clay) fraction was not analyzed, either in the riverbed sediments or in the SPM. After completion of the separation procedures, each fraction was dried and weighed.
The ESR signal intensity of quartz was used to constrain the provenance of quartz in the sediments. The ESR signal intensity of the E1′ center of quartz reflects the number of unpaired electrons accompanied by an oxygen vacancy (Feigl et al. 1974; Toyoda and Naruse 2002). As these oxygen vacancies in quartz are formed mainly by natural radiation generated by radioactive elements in the host rock, the ESR signal intensity increases with the age of the host rock (Toyoda and Naruse 2002).
Prior to the ESR signal intensity measurement, electron holes were created in dried sediment grains by irradiating with 2.5 kGy 60Co γ-rays at room temperature, at the Takasaki Advanced Radiation Research Institute, National Institutes for Quantum and Radiological Science and Technology, Takasaki, Japan, according to the method of Toyoda and Hattori (2000). Then, ~0.1 g of sample was heated at 300 °C for 15 min to convert the oxygen vacancy of quartz to the E1′ center. The ESR measurements were conducted using an ESR spectrometer (FA-100, JEOL) at the Department of Earth and Planetary Science, University of Tokyo, Tokyo, Japan. The measurement conditions were a microwave strength of 0.01 mW, a measurement range of 5 × 1 mT, a measurement time at room temperature of 2 min, and a sample weight of 0.1 ± 0.001 g. The ESR signal intensity of the bulk sample was normalized by the weight percent of quartz in the sample to obtain the ESR signal intensity of the quartz (unit, 1.3 × 1015 spins/g) (Toyoda and Hattori 2000).
To evaluate the reproducibility of the ESR signal intensity data, we selected two γ-ray-irradiated samples (consisting of the fine-silt fractions of samples YZ1210-4 and YZ110703-04m2; Additional file 1), split each sample into three subsamples, packed each subsample into a discrete holder, and then measured the ESR signal intensity of quartz in each subsample. The standard error (95%) for each sample was calculated based on three measurements on each of the three subsamples (nine measurements in total). The reproducibility of the ESR signal intensity results was represented by a standard error of 1.3 for sample YZ110703-04m2 and 3.0 for sample YZ1210-4. We adopted the average of these standard errors (2.2) as the reproducibility of the ESR signal intensity data obtained in this study.
X-ray powder diffraction analysis
The quartz content (QC) was determined using X-ray power diffraction (XRD) to calculate the ESR signal intensity of quartz. The CI was also determined by XRD, to correct for crystallinity effects on the quartz peak height. The CI is an index of the degree of crystallization of quartz, as it reflects conditions of crystallization, such as cooling speed and crystallization temperature (Murata and Norman 1976). The CI values were calculated as the degree of the quartz peak split at 67.74° 2θ, based on the definition of Murata and Norman (1976). The CI was also used to constrain the provenance of quartz. Prior to the XRD measurements, two size fractions (16–63 and >63 μm) were ground to powder for ~15 min using an agate mortar; the fine-silt fraction (4–16 μm) was not ground, as it was considered sufficiently small for XRD analysis. To measure the QC, 10.0 wt.% of silicon powder was added to the samples as an internal standard. The XRD measurement (X’pert Plus, PANalytical) was conducted at the Department of Earth and Planetary Science, University of Tokyo. The XRD measurements were repeated three times with repacking, each time using CuKα X-rays, at a voltage of 45 kV and a current of 40 mA; results for each sample were averaged. The divergence and anti-scatter slits were 1.52 and 3 mm in width, respectively. The measurement ranges were 20–30° 2θ for QC and 66–71° 2θ for CI. The QC was calculated as the ratio of the silicon and quartz peak heights at 27.9° 2θ and 20.9° 2θ. The QC was also corrected for the effect of crystallinity based on the method of Isozaki (2009).
The reproducibility of the CI values was evaluated for two γ-ray-irradiated samples (the fine-silt fractions of samples YZ1210-4 and YZ110703-04m2; Additional file 1). We collected three subsamples from each of the two irradiated samples. Each subsample was split and packed into an XRD holder and measured by XRD. The CI value for each subsample was calculated as the average of three measurements. Therefore, we collected nine CI measurements for each irradiated sample, and the standard error for each irradiated sample was based on the three CI measurements of the subsamples. The standard error was 0.23 for sample YZ1210-4 and 0.34 for sample YZ110703-04m2. We adopted the average of these standard errors (0.29) as the reproducibility of the CI values.
Results and Discussion
ESR signal intensity of quartz in riverbed sediments
Fine-silt (4–16 μm) fraction
Coarse-silt (16–63 μm) fraction
Figure 5b shows the geographical distribution of ESR signal intensities of quartz in the coarse-silt fraction in the Yangtze drainage basin. Samples collected from the mainstream show ESR signal intensities of 0.0–5.8, with an average of 2.6. Samples collected from the Yalongjiang and Minjiang show ESR signal intensities of 0.0–2.4, with an average of 1.2, which is similar to values from the upper part of the mainstream, while samples collected from the Jialingjiang and Wujiang show ESR signal intensities of 3.4–9.5, with an average of 5.2, which is higher than values from the upper part of the mainstream. Samples collected from tributaries in the middle part show a wide range of ESR signal intensities, from 0.0 to 30.2, with an average of 11.2, which is higher than values from the middle part of the mainstream.
Sand (>63 μm) fraction
Figure 5c shows the geographical distribution of ESR signal intensities of quartz in the sand fraction of riverbed samples from the Yangtze drainage basin. Samples collected from the mainstream show ESR signal intensities of 0.0–6.9, with an average of 1.6. The ESR signal intensities of samples collected from the mainstream increase from 0.0–0.9 in the uppermost part to 1.8–4.8 in the lower part, except in the uppermost part above Big Bend, where values are in the range of 2.2–6.9. Samples collected from tributaries in the uppermost and upper parts show lower ESR signal intensities (0.0–2.9, with an average of 1.1) than those observed in the uppermost and upper parts of the mainstream. Samples collected from tributaries in the middle part show a wide range of ESR signal intensities, from 0.0 to 15.6, with an average of 5.4, which is higher than values from the middle and lower parts of the mainstream.
CI of quartz in riverbed sediments
Fine-silt (4–16 μm) fraction
Samples collected from the mainstream show CI values of 6.8–9.0, with an average of 8.4, and display no obvious downstream trends. In the uppermost and upper parts, samples collected from the Yalongjiang and Daduhe show low CI values of 8.2–8.3, while samples collected from the Minjiang, Jialingjiang, and Wujiang show relatively high CI values of 8.6 to 8.9, with an average of 8.7. Samples collected from the tributaries in the middle part show a wide range of CI values of 8.0–8.9, with an average of 8.5. Among the tributaries, some samples from the Minjiang, Wujiang, Dongting Lake tributaries, and Poyang Lake tributaries show relatively high CI values of ~9.
Coarse-silt (16–63 μm) fraction

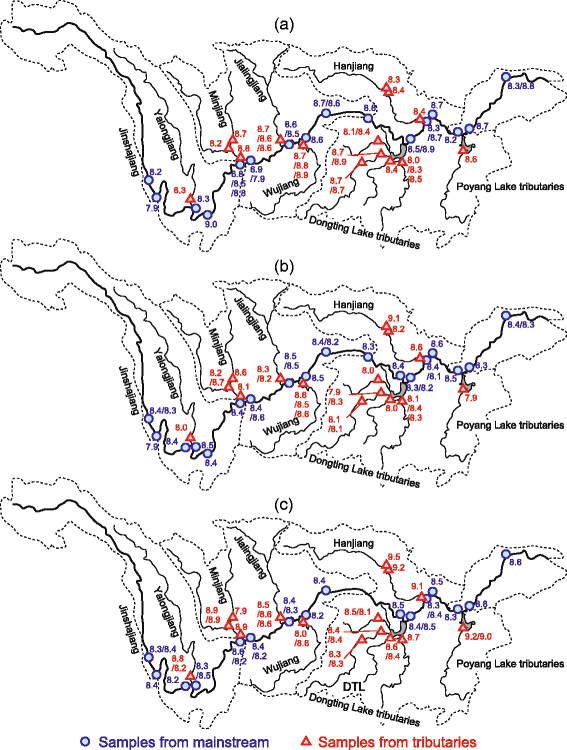

Figure 6b shows the geographical distribution of CI values of quartz in the coarse-silt fraction in the Yangtze drainage basin. Samples collected from the mainstream show CI values of 7.9–8.6, with an average of 8.4 and show no clear downstream trends. Samples collected from the tributaries in the uppermost and upper parts show a wide range of CI values, from 7.9 to 8.7, with an average of 8.4. Samples from tributaries in the middle part also show a wide range of CI values, from 7.9 to 9.1, with an average of 8.3. Among the tributaries, a sample from the Hanjiang is characterized by relatively high CI values of ~9, while samples from the Dongting Lake and Poyang Lake tributaries are characterized by low CI values of ~8.
Sand (>63 μm) fraction
Figure 6c shows the geographical distribution of CI values of quartz in the sand fraction in the Yangtze drainage basin. Samples collected from the mainstream show CI values of 8.2–8.8 with an average of 8.4 and a slightly increasing downstream trend from 8.3 to 8.7, although with some scatter. Samples collected from the tributaries in the uppermost and upper parts show a wide range of CI values, from 7.8 to 8.9, with an average of 8.5. Samples from tributaries in the middle part also show a wide range of CI values, from 8.1 to 9.5, with an average of 8.7. Among the tributaries, some samples from the Minjiang, Dongting Lake, Hanjiang, and Poyang Lake tributaries are characterized by relatively high CI values of ~9.
Comparisons of ESR signal intensities among the three size fractions
Comparison of ESR signal intensities between the fine-silt fraction of riverbed samples and that of SPM samples
Although the modal diameter of SPM is within the range of the fine-silt (4–16 μm) fraction, the coarse-silt (16–63 μm) and very fine sand (63–125 μm) fractions are also transported as suspension in addition to the clay (<4 μm) and fine-silt (4–16 μm) fractions (Mao et al. 2010; Gao et al. 2015). Therefore, we examined whether the fine-silt fraction of riverbed samples could be used as a proxy for SPM, by comparing their ESR signal intensities.
Three SPM samples were analyzed for comparison of their ESR signal intensities with those of riverbed sediments; the SPM and riverbed samples were collected at the same locality and on the same day. The ESR signal intensities of the SPM samples of 7.9, 5.6, and 3.4 (JSJ-GLS, JSJ110701, and YZ110703-03, respectively; Additional file 1) agree within errors with the intensities of the corresponding riverbed samples of 8.7, 2.3, and 3.9 (samples UYZ110911-01m, YZ110701-01c, and YZ110703-04m, respectively; Additional file 1). Thus, the ESR signal intensities of quartz in the fine-silt (4–16 μm) riverbed sediments basically could be used as a proxy for the SPM samples.
Relationship between ESR signal intensity and CI values of riverbed sediments, and the ages and types of bedrock in tributary basins
The ESR signal intensity increases with increasing age of the host rock (Toyoda and Naruse 2002). According to Toyoda (1992), the Cenozoic granites show E1′ center densities of <1.3 × 1015 spins/g while the Proterozoic granites show E1′ center densities of >1.3 × 1016 spins/g. Because the units of ESR signal intensity are defined as 1.3 × 1015 spins/g, the ESR signal intensities of the Cenozoic rocks are less than ~1, those of Mesozoic rocks are from ~1 to ~3, those of upper Paleozoic rocks are from ~3 to ~10, and those of Proterozoic rocks are greater than ~10 (Toyoda and Hattori 2000). Based on these general patterns, we categorized ESR signal intensities into three classes: low (<3; roughly corresponding to Cenozoic and Mesozoic rocks), medium (3–10; roughly corresponding to Paleozoic rocks), and high (>10; roughly corresponding to Proterozoic rocks). However, we recognize the need to take into account the rock type dependency of the ESR signal intensity caused by differences in radionuclide activity in different rocks.
We also categorized CI values into three classes based on the 1st quartile (8.2) and 3rd quartile (8.7) of all fractions: low CI values are <8.2, medium CI values are from 8.2 to 8.7, and high CI values are >8.7.
Relationship between ESR signal intensity and CI values of the fine-silt (4–16 μm) fraction of sediments in tributaries and the geological blocks in their drainage basins
Quartz grains in riverbed sediments can be a mixture of different source rocks within a given drainage basin, and thus, ESR signal intensity and CI values of the riverbed sediments do not necessarily represent those of a single geological block or source rock. However, in the discussion that follows, we assume that the range of ESR signal intensity and CI values in riverbed samples collected from a given geological block represent the minimum range of values in the various source rocks within that block.
Figure 8a shows ESR signal intensity and CI values of quartz in the fine-silt fraction of river sediments, with symbols indicating the geological block(s) exposed in the drainage basin of the sample. As shown in the “Results and Discussion” section, the fine-silt fraction could well represent the composition of SPM in the Yangtze River. Here, we discuss the features of ESR signal intensity and CI values in the fine-silt fraction as proxies for the SPM provenance.
Samples derived from SG exhibit low to medium ESR signal intensities (0.0–5.3) and medium CI values (8.2–8.8). The SG is composed mainly of Mesozoic shallow-marine sediments, including sandstones and carbonates (Enkelmann et al. 2007; Liu et al. 2011), which is consistent with low ESR signal intensities.
Qamdo Block and Yidun Arc
Samples derived from QY exhibit medium ESR signal intensities (~8) and low CI values (7.8–8.2). The Yidun Arc, which occupies a large part of QY, is composed of Paleozoic melange and Permian–Tertiary shales and sandstones that yield upper Paleozoic to Proterozoic zircon ages (Wang et al. 2000; Reid et al. 2005b; Deng et al. 2014); these ages are consistent with medium ESR signal intensities of ~8.
Qinling orogenic belt
Samples derived from QL exhibit medium ESR signal intensities (~9) and medium CI values (~8.4). The QL is composed mainly of Neoproterozoic turbidites, phyllite, and sandstone; Silurian slate and sandstone; Devonian schist; and Triassic granite (Meng and Zhang 2000; Dong et al. 2011; Dong and Santosh 2016). Because the QL block in the Yangtze drainage basin was not metamorphosed after the Neoproterozoic (Dong et al. 2011; Dong and Santosh 2016), the rocks in QL are assumed to yield quartz showing an upper Paleozoic–Proterozoic age when quartz grains were originally formed. This age is consistent with ESR signal intensity of ~9.
Samples derived from YZ exhibit high ESR signal intensities (12–23) and medium to high CI values (8.3–9.0). The YZ is composed mainly of Proterozoic basement that experienced low-grade metamorphism before the Neoproterozoic and lower Paleozoic sandstones, mudstones, and carbonates (Chen and Jahn 1998; Wang et al. 2010, 2013). As the lower Paleozoic sandstones in YZ are assumed to be derived from the Proterozoic basement and/or granites in the Cathaysia Block (Wang et al. 2010), both Proterozoic basement and Paleozoic clastic rocks seem to have a Proterozoic source rock age. This inference is consistent with the high ESR signal intensity values observed in the block (>10).
A sample from CX shows a high ESR signal intensity of 12.2 and a medium CI value of 8.6. The CX is composed mainly of Proterozoic basement, lower Paleozoic siliciclastics, and Cretaceous red-colored sandstones (Wang et al. 2007a, 2013). Cretaceous sandstones were probably derived from the YZ basement, which are Proterozoic in age (as mentioned above), which is consistent with the observed ESR signal intensity of >10.
Quaternary sediments in the middle to lower parts
These types of sediment are thought to have been transported by the Yangtze mainstream (Yin et al. 2007; Dai and Lu 2010). Therefore, the Quaternary (Q) sediments in the middle and lower parts could be represented by riverbed sediments deposited in the middle part of the mainstream, where ESR signal intensities are low (~3) and CI values are moderate (~8.4).
Mixing of various source rocks
Samples derived from QY + SG (from the Jinshajiang) show low to medium ESR signal intensities (0.0–3.2) and medium to high CI values (8.3–9.0), which are close to the values observed in SG. Because 80% of the sediments discharged from the Jinshajiang are derived from the SG region in the lower part of the Jinshajiang (Liu et al. 2011), it is reasonable that ESR signal intensity and CI values of samples derived from QY + SG are strongly affected by SG values. Samples derived from QL + SG (from the Jialingjiang) show a wide range of ESR signal intensities (1.4–10.9) and medium CI values (~8.6). These values lie between those of SG and QL, supporting the idea that the sediments of QL + SG are mixtures of sediments derived from QL and SG. A sample derived from QL + Q (from the Hanjiang) shows a medium ESR signal intensity of 3.3 and a medium CI value of 8.4. Samples derived from YZ + Q obtained from the Dongting Lake tributaries show low to high ESR signal intensities of 0–14. Samples derived from CX + Q obtained in the Poyang Lake tributaries show low to medium ESR signal intensities of 0–6. Because sediments of Q have similar ESR signal intensity and CI values to samples from the middle part of the mainstream, the ESR signal intensity and CI values of QL + Q, YZ + Q, and CX + Q lie along the mixing lines between QL and Q, YZ and Q, and CX and Q, respectively. Therefore, the ESR and CI values of the samples can be explained by a mixing of the values of individual geological blocks.
In summary, our data demonstrate that the ESR signal intensity of the fine-silt fraction (4–16 μm) extracted from riverbed samples collected on each geological block are consistent with the ages of the dominant rock types in that block.
Differences in ESR signal intensity and CI values among the three size fractions representing each geological block
Figure 8 shows clear differences in ESR signal intensity and CI values among the three sediment size fractions, with the nature of the differences depending on the composition of the geological blocks. Thus, in this subsection, we discuss the differences in ESR signal intensity and CI values among the three size fractions representing each geological block.
Qamdo Block and Yidun Arc
Compared with the fine-silt fraction, the sand fraction of samples from QY shows lower or similar ESR signal intensities (2.2–6.9) and slightly higher CI values (~8.3), while the coarse-silt fraction shows values intermediate between those of the sand and fine-silt fractions (Fig. 8a–c). Clastic sediments from QY yield Proterozoic to upper Paleozoic zircon ages (Wang et al. 2000; Deng et al. 2014) that are consistent with the medium ESR signal intensities observed in the fine-silt fraction. On the other hand, coarse clastic sediments or Mesozoic granite–granodiorite may have contributed to low ESR signal intensities in the sand fraction, although it is difficult to specify the source rock of each fraction due to the structural complexity of QY (Reid et al. 2005a).
The coarse-silt fraction of samples derived from SG shows low ESR signal intensities (0.0–2.4) and low to medium CI values (8.0–8.7) as compared with the sand fraction, which also shows low ESR signal intensities (0.0–2.9) but a wide range of CI values (7.8–8.9) (Fig. 8b, c). As the three size fractions derived from SG show similar ESR signal intensity and CI values, they are inferred to be derived from the same rocks.
Qinling orogenic belt
Compared with the fine-silt fraction, the coarse-silt fraction of samples derived from QL shows similar to higher ESR signal intensities (7.8–19.3) and lower to similar CI values (7.8–8.4), whereas the sand fraction shows similar to higher ESR signal intensities (5.9–9.8) and higher CI values (9.2–9.5) (Fig. 8a–c). The high CI values of the sand and coarse-silt fractions suggest that Neoproterozoic and Triassic granite in the South Qinling area or Quaternary loess in the Hanjiang drainage basin contributed to the coarse-silt and sand fractions (Meng and Zhang 2000; Dong et al. 2011; Zhang et al. 2012; Dong and Santosh 2016).
Compared with the fine-silt fraction, the sand and coarse-silt fractions of samples derived from YZ show lower to similar ESR signal intensities (3.4–30.0) and lower to similar CI values (8.1–8.6) as (Fig. 8a–c). Silicate rocks of YZ are dominantly composed of Proterozoic basement that was metamorphosed during the Neoproterozoic, lower Paleozoic slate and sandstone, Mesozoic sandstone, and Mesozoic granite (Wang et al. 2013). Based on the high ESR signal intensity and medium to high CI values, the fine-silt fraction seems to have been derived from the Proterozoic basement. In the YZ area, lower Paleozoic sandstones seem to be derived from the Proterozoic basement of the Cathaysia Block (CX) and they show high ESR signal intensity and low CI values, while Mesozoic granites show low ESR signal intensity and high CI values (Wang et al. 2010, 2013). Therefore, the lower ESR signal intensities and CI values of the coarse-silt and sand fractions than the fine-silt fraction in YZ could be explained by contributions from Mesozoic granites and Paleozoic sandstones.
The sand fraction of samples derived from CX shows lower ESR signal intensities (4.8–6.6) and higher CI values (9.0–9.2) than those of the fine-silt fraction. The presence of granites that intermittently intruded into CX during the Neoproterozoic–Jurassic (Wang et al. 2013) might explain the higher CI values in the coarser sediment fractions.
We suggested that detrital quartz grains of different sizes are derived from different sources. To test this possible explanation for differences in ESR signal intensity and CI values, it is necessary to perform an ESR analysis of quartz, combined with petrological observations of quartz grains in all varieties of potential source rocks in each geological block.
Classification of tributaries based on ESR signal intensity and CI values of the fine-silt fraction of sediments discharged from each tributary
The upper part of the Jinshajiang is characterized by medium ESR signal intensities (7.5–8.7) and low CI values (7.9–8.2), reflecting the presence of clastic sediments with upper Paleozoic to Proterozoic ages. The characteristics of this group are nearly equivalent to those of the QY. The western tributaries are characterized by low ESR values (0.0–3.2) and a wide range of CI values (7.8–9.0), reflecting the presence of Mesozoic shallow-marine sediments in the basins, including sandstone and carbonates. This group is characterized by a dominant contribution from SG. The northeastern tributaries are characterized by a wide range of ESR values (1.5–11.0) and medium CI values (8.3–8.7), reflecting the presence of both Mesozoic shallow-marine sediments derived from SG and upper Paleozoic clastic rocks and Proterozoic basement from QL. The southeastern tributaries are characterized by high ESR values (11.3–23.4) and low–medium CI values (8.4–8.9), representing the presence of Proterozoic basement in YZ and CX. Because contributions of sediment from the lower part of the Yangtze are negligible, they are not discussed here.
Predicted changes in the ESR signal intensity in sediments of the Yangtze mainstream below its junction with major tributaries
We calculated the theoretical (predicted) ESR signal intensity of quartz in the fine-silt fraction of the sediments in the mainstream immediately below junctions with major tributaries by applying a simple mixing ratio approach, to examine whether ESR signal intensity values of sediments reflect mixing ratios of sediments discharged from the mainstream and tributary immediately above the junctions. We used the sediment (SPM) budget at the junctions as determined from modern (post-TGD) observational data (Fig. 4), in addition to the analyzed ESR signal intensities of quartz in the fine-silt fraction of the sediments from each tributary and from sites along the mainstream immediately above the junctions, as end-members for determining mixing ratios and for calculating the predicted ESR signal intensities of quartz downstream from the junctions. The results are compared with the analyzed ESR signal intensities for the fine-silt fraction of samples collected from mainstream sites immediately below the junctions.
Ranges of ESR and CI values for each tributary in the fine-silt fraction (4–16 μm)
ESR signal intensity
The ESR signal intensity and CI values for the fine-silt fraction of quartz in sediments from below the junctions of the mainstream and tributaries were calculated as the weighted averages of the values in sediments from immediately above the junction in the mainstream and the tributary, respectively. In the calculations, we assume that sediments from the mainstream and the tributary are sufficiently mixed below the junction to apply the simple mixing ratio approach. Underlined variables in the following equations indicate observed or analyzed data.
As the grain size distribution of SPM changes seasonally and in different parts of the Yangtze (Mao et al. 2010), the value of f fs could also change depending on the season and the part of interest. We estimated the value of f fs as follows.
Regarding seasonal variations, we assumed that summertime values of f fs provide a reasonable representation of the annual average, as roughly 90% of the annual sediment yield from the Yangtze River occurs during the summer (Hu et al. 2011). To evaluate the value of f fs , we analyzed the grain size distribution of SPM in samples taken at Yichang and Nanjing during the same season and year as samples collected for our riverbed sampling. The values of f fs at Yichang and Nanjing were 32 and 34%, respectively. These ratios of the fine-silt fraction in SPM are consistent with those at Yichang and Datong, respectively, as determined by Gao et al. (2015). Because the values of f fs at Yichang and Nanjing are similar, we adopted the average value of f fs obtained at Yichang and Nanjing, of 33%, as the value of f fs in Eqs. (1) and (2).
Using Eqs. (1) to (6), the ESR signal intensities below each junction were predicted at the mainstream junctions with the Minjiang, Jialingjiang, Wujiang, and Poyang Lake. The junctions with the Yalongjiang and Dongting Lake were excluded from the analysis, as riverbed sediments in the mainstream are lacking above the junctions with these tributaries. The junction with the Hanjiang was also excluded, as the sample collected from the mainstream above the junction showed an unusual ESR signal intensity of 0.0. Because this sample was collected from meter-scale bedded sediments exposed above the river surface, this sample could represent past sediments deposited during a flood and could thus show a low ESR signal intensity reflecting a specific source area, such as the SG block.
Predicted and analyzed ESR signal intensity of the mainstream below the junction with tributaries
ESR signal intensity
On the other hand, the analyzed ESR signal intensity below the junction with the Wujiang is larger than predicted (and beyond the analytical error). At this junction, the sampling site on the mainstream was located 40 km below the Wujiang (LYZ120212-01a; Additional file 1), and it is possible that a local river, the Longhe, which drains into the mainstream from the same side as the Wujiang at a location less than 1 km above the sampling site, influenced the results. As the geology of the Longhe drainage basin is similar to that of the Wujiang, it is likely that detrital material from the Longhe is also characterized by high ESR values (as are the Wujiang sediments). This material may have affected the ESR signal intensity values of sample LYZ120212-01a, on account of the proximity of the Longhe to the sampling site. Thus, the analyzed ESR signal intensity of sample LYZ120212-01a is likely to be higher than predicted because of the effects of the high ESR signal intensities of sediments from the Longhe.
Estimated ESR signal intensity and CI values of quartz in the fine-silt fraction of modern sediments along the mainstream of the Yangtze
As discussed above, the analyzed ESR signal intensities of samples collected from sites below junctions with major tributaries reflect the relative contributions of sediments from the mainstream and the tributary above the junction. Using such an approach, we can also estimate changes in ESR signal intensities of the fine-silt fraction of sediments along the mainstream from the uppermost part to the rivermouth. This approach could further validate whether ESR signal intensities in the fine-silt fraction of the sediments at the rivermouth can be used to predict sediment budgets in the Yangtze drainage basin in the past.
The following assumptions were made in performing the calculations which predict the ESR signal intensity along the mainstream: (a) sediments from the mainstream and tributaries are sufficiently mixed below junctions, (b) sediment input from small tributaries is negligible, and (c) quartz contents do not change during transport as SPM along the mainstream.
We first performed calculations for the junction of the Jinshajiang and Minjiang and predicted the ESR signal intensity below the junction using Eqs. (1) to (6) (see above). Next, we predicted the ESR signal intensity at the junction of the Yangtze mainstream and the Jialingjiang using the same equations; however, the ESR signal intensity of the mainstream above the junction was assumed to be the same as the predicted value below the previous junction (i.e., the junction of the Jinshajiang and Minjiang). Then, similar calculations were repeated at every junction with a major tributary (i.e., at the junctions with the Wujiang, Dongting Lake, Hanjiang, and Poyang Lake tributaries).
The amount of eroded sediments on the mainstream between Yichang and Hankou and between Hankou and Datong were assumed to be 47 and 17 Mt/year, respectively (Fig. 4). In our calculations, erosion between Yichang and Hankou was split equally into two parts: from Yichang to Yueyang (outlet of Dongting Lake) and from Yueyang to Hankou. The ESR signal intensity and CI values for the sediments eroded between Yichang and Yueyang, Yueyang and Hankou, and Hankou and Datong were assumed to be the same as those of sediments passing through Yichang, Yueyang, and Hankou before TGD construction, respectively, as the sediments were deposited along the middle to lower part of the mainstream before TGD construction (Fig. 3). The ESR signal intensity and CI values at Yichang, Yueyang, and Hankou prior to the TGD were estimated using the same calculations (Eqs. (1) to (6)) and the sediment budget shown in Fig. 3.
Predicted and analyzed ESR and CI values along the mainstream in the fine-silt fraction (4–16 μm)
ESR signal intensity
Above MJ (Jinshajiang)
Below MJ/above JLJ
Below JLJ/above WJ
Below WJ/TGD input
Upper area of TGD
If the sediment budget shown in Fig. 4 properly reflects the volume of sediments transported along the mainstream, then we should expect that predicted average ESR signal intensity and CI values after mixing will be within the analytical error of the analyzed ESR signal intensities of the riverbed sediments. Figure 11 shows that the predicted average ESR signal intensities (solid circles) agree well with the analyzed ESR signal intensities (within the reproducibility of the ESR analysis of ±2.2; open circles with errors) at 8 out of 10 locations, indicating that the predicted average ESR signal intensities can be used to predict the ESR signal intensities of the riverbed sediments.
Two predicted ESR signal intensity values, below the junctions with the Dongting Lake and Poyang Lake tributaries, are beyond the acceptable error range of the analyzed values. Lane et al. (2008) reported that several to tens of kilometers of distance are necessary for river waters to completely mix after two rivers merge. Sampling sites on the mainstream below the junctions with Dongting Lake, which show higher than predicted ESR values, are located on the tributary-merging side of the mainstream 8 km below the junction. As previously described, the ESR signal intensities for sediments from Dongting Lake are characterized by values that are higher than those of the mainstream. Thus, it is likely that samples below the junction with Dongting Lake are influenced by sediments derived from the lake, which show ESR values higher than those of the mainstream above the junction. This problem could be resolved by taking samples from sites at sufficient distances from the junctions with tributaries.
On the other hand, the analyzed ESR signal intensities in the middle to lower parts tend to be lower than predicted values. These lower values could be the result of erosion along the middle to lower parts of the mainstream. For example, the meter-scale bedded sediments above the junction with the Hanjiang are readily eroded and show ESR signal intensity values of 0.0; such sediments could strongly modify the signal in the SPM fraction in the mainstream. Our present predictions of ESR signal intensity along the mainstream assume that the ESR signal intensity of eroded sediments in the middle to lower parts corresponds to the average ESR signal intensity of ~4 that was observed at Yichang or Yueyang. However, if we assume that all eroded sediments have ESR signal intensities of 0, the predicted average ESR signal intensity would be 4.6, which is very close to the analyzed values. Thus, the effects of eroded sediments on the ESR signal intensity values observed in the middle to lower parts could explain the departures between predicted and analyzed ESR values in these sections of the mainstream.
He et al. (2015), in a study of the geochemistry of riverbed sediments in the Yangtze basin, reported that Nd and Sr isotope ratios varied in different parts of the Yangtze depending on the nature of the geological block(s) in each part of the basin and that the riverbed sediments in the middle to lower parts of the mainstream were derived mainly from the Songpan–Garze terrane and Yangtze Block; this result is consistent with our results shown in Fig. 8a. While they reported an absence of coherent downstream variations in isotope ratios in the mainstream, they also did not take into account the effects of eroding sediments along the middle to lower parts of the river, as discussed above. Thus, our results based on mixing calculations do not necessarily contradict their results.
In summary, the average predicted ESR signal intensities of the fine-silt fraction along the modern mainstream are consistent with analyzed values, when incomplete mixing of tributary waters and eroded materials are taken into account. Therefore, ESR signal intensities of the sediments at the rivermouth should record the relative contributions of sediments discharged from each part of the Yangtze River basin.
Distinguishing the provenance of the fine-silt fraction of sediments in the Yangtze drainage basin using ESR signal intensity data from sediments at the rivermouth
In this section, we examine whether it is possible to distinguish the provenance of the fine-silt fraction of sediments at the rivermouth using ESR signal intensity and CI values, especially the relative contributions of sediments from two tributary groups within the Yangtze drainage basin: the western plus northeastern tributaries and the southeastern tributaries, as shown in Fig. 9.
These calculations were performed for each of the minimum, average, and maximum ESR signal intensities listed in Table 1. The ESR signal intensity of sediments discharged from the western plus northeastern tributary group shows an average of 4.3, a minimum of 2.5, and a maximum of 6.3, while those from the southeastern tributary group show an average of 14.3, a minimum of 12.8, and a maximum of 16.3. Thus, the ESR signal intensities of the two groups do not overlap one another. Assuming that the sediments at the rivermouth represent a mixture of these two end-members, we can therefore use the ESR signal intensity to estimate the relative contributions of sediments from the western plus northeastern tributaries and the southeastern tributaries to the total sediment load at the rivermouth.
Meteorological data suggest that changes in the strength of the EASM correspond to changes in the spatial distribution of monsoon precipitation in the Yangtze drainage basin. Thus, reconstruction of temporal changes in the provenance of sediments in the basin could be a useful approach for reconstructing changes in EASM intensity in the past, based on sediment records preserved at the rivermouth.
In this study, riverbed sediments taken from the Yangtze mainstream and its major tributaries were analyzed in terms of their ESR signal intensity and CI values of quartz in three different size fractions of sediment, to distinguish the sources of sediments derived from the different regions of the Yangtze drainage basin. The results suggest that sediment from the different tributaries can be categorized into four groups based on the geological block(s) exposed within the drainage basins of each tributary and that each group exhibits a characteristic distribution of ESR signal intensity and CI values. The first group, corresponding to the Yidun Arc and the southwestern margin of the Yangtze Block, is characterized by intermediate ESR values (~7) and low CI values (7.9–8.2). The second group, corresponding to the Songpan–Garze terrain, is characterized by lower ESR values (<5) and a wide range of CI values (8–9). The third group, corresponding to the Qinling orogenic belt, is characterized by a wide range of ESR values (1–10) and a narrow range of CI values (8.5–8.9). The fourth group, corresponding to the southeastern parts of the Yangtze and Cathaysia Blocks, is characterized by high ESR values (>10) and CI values of 8–9.
Theoretical predictions of ESR signal intensities below the junctions of the mainstream and major tributaries were calculated as weighted averages based on quartz discharge levels of the mainstream and each tributary, measured just above the junction. These predicted ESR signal intensities were compared with the measured ESR signal intensities of sediments collected from the mainstream just below the junctions with the tributaries. The analyzed values are in good agreement with the predicted values, within the reproducibility of the ESR analysis, indicating that the analyzed ESR signal intensities of sediments accurately represent the relative contributions of quartz from the mainstream and the tributaries.
In addition, changes in ESR signal intensity and CI values along the mainstream were estimated based on values for quartz in the fine-silt fraction discharged from the major tributaries, assuming complete mixing of sediments from the mainstream and each tributary immediately below the junction. The predicted average ESR signal intensities of riverbed samples are in good agreement with analyzed ESR signal intensities of the same samples, within the reproducibility of the ESR analysis, except for some samples that are insufficiently mixed or affected by smaller tributaries. Thus, we conclude that ESR signal intensity and CI values can be used to estimate the mixing ratios of the fine-silt fraction of sediments from the different tributaries in the Yangtze drainage basin, thereby raising the possibility that changes in the spatial distribution of precipitation within the Yangtze drainage basin can be reconstructed from sediment records at the rivermouth.
East Asian summer monsoon
Electron spin resonance
Indian summer monsoon
Qinling orogenic belt
Qamdo Block plus Yidun Arc
Suspended particle matter
Three Gorges Dam
X-ray powder diffraction
The authors thank P. Wang, S. Li, and the car drivers for their assistance during the field trips in China and K. Nagashima and A. Karasuda for their assistance with the ESR and XRD analyses in Japan. The staff at the Takasaki Advanced Radiation Research Institute, National Institutes for Quantum and Radiological Science and Technology (QST), assisted with γ-ray irradiation. We also thank Y. Saito, an anonymous reviewer, and H. Kawahata (Editor of PEPS) for their critical reading of the manuscript and many constructive suggestions.
This study was supported by the Japan Society for the Promotion of Science (JSPS) KAKENHI Grant Number 23221002 to RT and a Japan–China bilateral joint research project awarded to RT from JSPS and also jointly supported by the National Basic Research Program of China (973 program 2015CB953804) to HZ.
RT designed and directed the projects on the Japan side, helped with the collection of samples, and supervised KS. KS collected the riverbed samples, helped collect the SPM samples, conducted ESR and XRD measurements (including pretreatments and irradiation), and wrote the draft manuscript. HZ designed and directed the projects on the China side and assisted in the collection of samples. TI helped collect samples in Jul 2011 and Feb 2012. CL and MH planned the field trips in 2011 and 2012, collected SPM samples, helped collect the riverbed samples, and arranged the transportation of samples. KW collected samples in Oct 2012 and helped arrange the transportation of samples. YS helped with the sampling in Sep 2011. All authors read and approved the manuscript.
The authors declare that they have no competing interests.
