The geospace response to variable inputs from the lower atmosphere: a review of the progress made by Task Group 4 of CAWSES-II

  • Jens Oberheide1Email author,
  • Kazuo Shiokawa2,
  • Subramanian Gurubaran3,
  • William E Ward4,
  • Hitoshi Fujiwara5,
  • Michael J Kosch6, 7, 8,
  • Jonathan J Makela9 and
  • Hisao Takahashi10
Progress in Earth and Planetary Science20152:2

DOI: 10.1186/s40645-014-0031-4

Received: 31 May 2014

Accepted: 7 December 2014

Published: 11 February 2015


The advent of new satellite missions, ground-based instrumentation networks, and the development of whole atmosphere models over the past decade resulted in a paradigm shift in understanding the variability of geospace, that is, the region of the atmosphere between the stratosphere and several thousand kilometers above ground where atmosphere-ionosphere-magnetosphere interactions occur. It has now been realized that conditions in geospace are linked strongly to terrestrial weather and climate below, contradicting previous textbook knowledge that the space weather of Earth's near space environment is driven by energy injections at high latitudes connected with magnetosphere-ionosphere coupling and solar radiation variation at extreme ultraviolet wavelengths alone. The primary mechanism through which energy and momentum are transferred from the lower atmosphere is through the generation, propagation, and dissipation of atmospheric waves over a wide range of spatial and temporal scales including electrodynamic coupling through dynamo processes and plasma bubble seeding. The main task of Task Group 4 of SCOSTEP's CAWSES-II program, 2009 to 2013, was to study the geospace response to waves generated by meteorological events, their interaction with the mean flow, and their impact on the ionosphere and their relation to competing thermospheric disturbances generated by energy inputs from above, such as auroral processes at high latitudes. This paper reviews the progress made during the CAWSES-II time period, emphasizing the role of gravity waves, planetary waves and tides, and their ionospheric impacts. Specific campaign contributions from Task Group 4 are highlighted, and future research directions are discussed.


Geospace Thermosphere Ionosphere Tides Planetary waves Gravity waves Traveling ionospheric disturbances Traveling atmospheric disturbances


The space weather of Earth's upper neutral and ionized atmosphere is strongly influenced by energy injections at high latitudes connected with magnetosphere-ionosphere coupling and solar radiation variability at extreme ultraviolet wavelengths. A variety of new evidence obtained over the past few years now demonstrates unequivocally that the geospace environment also owes a substantial amount of its variability to waves forced in the lower parts of Earth's atmosphere, that is, the troposphere and stratosphere. This paradigm shift in understanding the causes of geospace variability was made possible by the advent of satellite missions like Imager for Magnetopause-to-Aurora Global Exploration (IMAGE) (Burch 2000), Thermosphere Ionosphere Mesosphere Energetics and Dynamics (TIMED) (Yee et al. 1999), CHAllenging Minisatellite Payload (CHAMP) (Reigber et al. 2006), Gravity Recovery and Climate Experiment (GRACE) (Tapley et al. 2004), and Constellation Observing System for Meteorology (COSMIC) (Anthes et al. 2008), advanced ground-based observing capabilities like Poker Flat Advanced Modular Incoherent Scatter Radar (PFISR) (e.g., Nicolls and Heinselman 2007) and airglow observing networks (e.g., Shiokawa et al. 2009; Makela et al. 2009), and the development of ‘whole atmosphere’ general circulation models from the ground to the ionosphere such as Whole Atmosphere Community Climate Model - thermosphere extension (WACCM-X) (Liu et al. 2010a), Whole Atmosphere Model (WAM)/Coupled Thermosphere Ionosphere Plasmasphere Electrodynamics Model (CTIPe) (Fuller-Rowell et al. 2010), and ground-to-topside model of Atmosphere and Ionosphere for Aeronomy (GAIA) (Jin et al. 2011). See the list of abbreviations at the end of the paper. It is by now without dispute that geospace owes much of its longitudinal, seasonal-latitudinal, and day-to-day variability to meteorological weather processes in the troposphere and stratosphere (e.g., Immel et al. 2006; Forbes et al. 2006; Oberheide et al. 2006b; Hagan et al. 2007; Goncharenko et al. 2010; Fritts and Lund 2011; Maute et al. 2012; and references therein). The primary mechanism through which energy and momentum are transferred from the lower atmosphere is through the propagation and dissipation of atmospheric waves, including electrodynamic coupling through dynamo processes and instability seeding. Table 1 summarizes the basic characteristics of the three most important classes of atmospheric waves: gravity waves (GWs), atmospheric tides, and planetary waves (PWs).
Table 1

Basic characteristics of atmospheric waves


Gravity (buoyancy) waves

Atmospheric tides

Planetary waves

Spatial scale

Local; 10 to 1,000 s of kilometers

Global; 10,000 s of kilometers

Global; 10,000 s of kilometers

Temporal scale

Minutes to hours

1 day or harmonics

Days to weeks


Mechanical distortions, latent heating

Solar heating, latent heating

Mechanical distortions, baroclinic instabilities

CAWSES-II Task Group 4 (TG4; What is the geospace response to variable inputs from the lower atmosphere?) was therefore charged to elucidate the dynamical coupling from the low and middle atmosphere to the geospace (i.e., the upper atmosphere, ionosphere, and magnetosphere), for various wave frequencies and scales, and for equatorial, middle, and high latitudes. As meeting the challenge clearly requires a systems approach involving experimentalists, data analysts, and modelers from different communities, an essential part of TG4 was to encourage interactions between atmospheric scientists and plasma scientists on all occasions. To distinguish geospace variability due to solar and magnetospheric driving from above from processes propagating from below, and in order to dissect the problem into solvable pieces, four projects were formed to respectively address each of the following science questions: (1) How do atmospheric waves connect tropospheric weather with ionosphere/thermosphere variability? (2) What is the relation between atmospheric waves and ionospheric instabilities? (3) How do the different types of waves interact as they propagate through the stratosphere to the ionosphere? (4) How do thermospheric disturbances generated by auroral processes interact with the neutral and ionized atmosphere?

Several observational campaigns were conducted within each project, supported by regular workshops, conference sessions, and business meetings. Results were not only disseminated through the peer-reviewed literature but also to the broader CAWSES community through quarterly TG4 newsletters. This paper describes these activities and reviews the progress made over the CAWSES-II period from 2009 to 2013. Each project and its scientific outcomes are described in a separate section. The manuscript concludes with a general discussion of the outcomes, the scientific challenges for the future, new satellite missions, and SCOSTEP's new VarSITI program. More results related to TG4 can be found in the four special issues listed in Table 2 and in a special issue of Earth, Planets and Space dedicated to results presented at the International CAWSES-II Symposium (2014) held at Nagoya University, Japan, 18 to 22 November 2013.


Project 1: How do atmospheric waves connect tropospheric weather with ionosphere/thermosphere variability?

The impact of atmospheric waves on ionospheric structure and variability has been realized for quite some time. Hines (1960) in his pioneering work was the first to propose GW as the cause of ‘irregular motions’ in the thermosphere and ionosphere. Since then, numerous studies have revealed that GWs are present at heights up to the upper thermosphere and connected them to medium-scale traveling ionospheric disturbances (MSTIDs), ionospheric irregularities, and plasma instabilities. See for example the more recent review by Fritts and Lund (2011) and references therein. Before CAWSES-II, it was already known that GW from convection and jet streams in the lower atmosphere propagate into the mesosphere, dissipate their energy near the mesopause region, and/or penetrate into the thermosphere. However, despite some speculation about the initiation of various plasma instabilities by GW, the relation between GW and MSTID, day-to-day variability and zonal separation of plasma bubbles, and the scale size and propagation of sporadic-E patches were not understood. The examination of the relationship between these phenomena and an improved understanding of the importance of GW in ionosphere/thermosphere dynamics were objectives for CAWSES-II.

The idea that global winds in the ionosphere may be a source of disturbance electric fields and currents goes back at least to the dynamo theory by Stewart (1882); the connection to Sun-synchronous (migrating) atmospheric tides forced by solar radiation absorption was discussed by Fejer (1964). As tidal theory and observational diagnostics progressed, it was realized that non Sun-synchronous (nonmigrating) tides forced by deep tropical convection are equally important for explaining longitudinal and local time variations in bulk neutral and plasma properties of the ionosphere/thermosphere system. Satellite diagnostics (Forbes et al. 2006; Oberheide et al. 2006b; Sagawa et al. 2005; Immel et al. 2006) and models (Hagan and Forbes 2002; Hagan et al. 2007) resulted in a basic quantitative knowledge of tidal forcing, propagation, and morphology in the mesosphere and lower thermosphere, the ionosphere, and a basic qualitative knowledge about the coupling into the F-region through E-region dynamo modulation. It should be noted that important contributions came from CAWSES-I activities, for example, from the CAWSES tidal campaigns (Ward et al. 2010) that effectively resolved the long-standing issue between ground-based radar and satellite optical measurements of winds. See also Kishore Kumar et al. (2013) for a recent comparison between radar, satellite, and model results obtained during the first CAWSES tidal campaign in 2005. Major challenges for CAWSES-II included the elucidation of tidal structures in the altitude range between 110 (upper altitude observed by TIMED) and 400 km (in situ tidal diagnostics from CHAMP) where suitable satellite observations are lacking, temporal variations of the tides on timescales ranging from days to solar cycle, a better separation of E-region dynamo modulation vs tidal coupling at F-region heights, an assessment of the tidal impacts on the energy balance and composition of the thermosphere, and wave-wave and wave-mean flow interactions. Similar questions are applied to PW as well, with special interest in their role in connecting polar stratospheric warmings with F-region low latitude plasma density variability (Goncharenko and Zhang 2008), as further detailed in project 3.

Gravity waves

Gravity waves generated by convective systems, hurricanes, and surface perturbations such as earthquakes and tsunamis may seed plasma bubbles in the ionosphere through Rayleigh-Taylor instability. Figure 1 shows GW in airglow images at 630 nm (approximately 250 km) caused by the tsunami from the catastrophic Tohoku earthquake on 11 March 2011 when it passed the Hawaiian Islands. See Makela et al. (2011) for details and also for a movie that includes the ionospheric response in total electron content (TEC). The ionospheric response over Japan (Figure 2) for the same event shows very pronounced concentric waves in TEC that propagate in the radial direction with a velocity between 138 and 3,457 m/s with an ‘ionospheric epicenter’ about 170 km southeast from the earthquake epicenter (Tsugawa et al. 2011). The initial signatures in Figure 2 with a propagation velocity of 3,457 m/s are most likely caused by a Rayleigh wave (a type of surface wave during earthquakes), followed by acoustic waves triggered by the Rayleigh wave. Finally, medium-scale concentric waves with a propagation velocity of 138 to 423 m/s were detected 300 km away from the ionospheric epicenter (Figure 2g,h). They are the result of GW forced by the surface displacement (Matsumura et al. 2011).
Figure 1

GW in airglow images at 630 nm caused by the tsunami from the Tohoku earthquake. Example of 630.0 nm images processed using length-8 FIR filters with passbands of (left) 0.3 to 1.7 mHz, (middle) 0.3 to 1.0 mHz to highlight the 26.2-min period waves, and (right) 1.0 to 1.7 mHz to highlight the 14.2-min period waves. The red line in each image indicates the tsunami location at the time of the image. The green line in the left panel indicates a path perpendicular to the airglow wave fronts. Adapted with permission from Makela et al. (2011). See also the movie in the electronic supplement to Makela et al. (2011).

Figure 2

Time series (a)-(h) of detrended TEC during the Tohoku Earthquake on March 11, 2011. The star and cross marks represent the epicenter and the ionospheric epicenter, respectively. Gray circles are about the ionospheric epicenter. Adapted with permission from Tsugawa et al. (2011).

Nishioka et al. (2013) discussed similar concentric waves in the ionospheric TEC variation over the North-American continent as an indicator of thermospheric gravity waves generated by the 2013 Moore EF5 tornado. Fukushima et al. (2012) showed correlation of MSTIDs observed by a 630 nm airglow imager over Indonesia with tropospheric convective activity but with the average horizontal wavelength of the MSTIDs increasing with decreasing solar activity. These findings suggest that the observed MSTIDs in the equator are caused by secondary gravity waves in the thermosphere, possibly generated by tropospheric convective activity. Smith et al. (2013) reported on thermospheric secondary GWs generated from mountain wave breaking in the upper mesosphere using a simultaneous observation of 630 nm and 557.7 nm airglow images over New Zealand.

Progress in gravity wave theory (e.g., Vadas and Liu 2009; Vadas and Crowley 2010; Yiğit et al. 2012; Gavrilov and Kshetvetskii 2014) now provides a much clearer picture of how gravity waves from the lower atmosphere can reach thermospheric altitudes, involving a multitude of possible pathways including direct propagation, reflection in the upper atmosphere, and the generation of secondary waves through upper mesospheric and thermospheric body forces (Figure 3). As a result, substantial neutral horizontal wind and plasma density variations from a single convective plume are predicted to occur as far away as adjacent continents, pointing to local wave sources having a global impact: a significant challenge for the interpretation of observations. An example of the ionospheric response to convective activity over Brazil on 1 October 2005 is shown in Figure 4 which is adapted from Vadas and Liu (2013). Thermospheric body forces resulting from convective plumes are computed with the Vadas model. Their incorporation into the Thermosphere-Ionosphere-Mesosphere-Electrodynamics General Circulation Model (TIME-GCM) results in large-scale traveling ionospheric disturbances. Of note is that the hmF2′ perturbations are generally anticorrelated with the foF2′ and TEC′ perturbations. This indicates that field-aligned transport instead of chemistry (i.e., [e ] + [O+] recombination) may be the dominant coupling mechanism into the plasma. Observing such signatures still poses a significant challenge. Corresponding temperature perturbations in the thermosphere (not shown) will be observed from geostationary orbit in the near future by the Global-scale Observations of the Limb and Disk (GOLD) instrument (a UV imager to be launched in 2017; Eastes et al. 2008). For the ionospheric signatures, much progress can be expected from Swarm, an ESA constellation mission (Haagmans et al. 2013) that was launched in 2013. The role of GW for ionospheric instability seeding was the focus of TG4 project 2 and is further discussed in the corresponding section later in this paper.
Figure 3

Sketch of possible pathways of a GW. Sketch of possible pathways of a GW from a single convective plume including direct propagation (solid line), creation of body forces (grey ellipses), and subsequent generation of secondary GW with possible reflection (dotted and dashed-dotted lines). Adapted with permission from Vadas and Crowley (2010).

Figure 4

TIME-GCM response to convective activity over Brazil. (a) F2 plasma frequency perturbation (foF2′ in megahertz), (b) TEC perturbation (in TECU), (c) hmF2 perturbation (in kilometer), and (d) hmF2 altitude (in kilometer). These quantities are shown every 2 h from 22:30 to 28:30 UT, as labeled. 1 TECU = 1016 electrons m−2. The contour lines are separated by 0.1 MHz, 0.2 TECU, 5 km, and 20 km in panels a to d, respectively. Note that panels a to c show the perturbed minus the unperturbed TIME-GCM solutions, while panel d shows only the perturbed TIME-GCM solution. Adapted with permission from Vadas and Liu (2013).


The components of the tidal spectrum that follow the apparent westward propagation of the Sun relative to the Earth's surface are called migrating tides, and the non-Sun-synchronous components are called nonmigrating tides. Migrating tides are predominantly forced by solar radiation absorption in tropospheric water vapor and stratospheric ozone. Nonmigrating tides are thought to have two major sources: non-linear wave-wave interaction processes in the strato-/mesosphere (Hagan and Roble 2001) and latent heating due to large-scale deep convection in the tropical troposphere (Hagan and Forbes 2002, 2003). Deep convection largely depends on land-sea differences and sea-surface temperatures. Variations in the periodic absorption of solar radiation at the surface thus transform to a longitudinal structure in raindrop formation (heat release) at roughly the same local time of the day that acts as an efficient forcing mechanism for a number of nonmigrating tides including the diurnal eastward propagating tide of zonal wavenumber 3 (DE3). Note that the DE3 appears as a zonal wavenumber 4 (wave-4) longitudinal structure when observed at constant local solar time, e.g., by precessing satellites in a low Earth orbit. This is simply a result of its eastward propagation and frequency.

Figure 5 summarizes the pre-CAWSES-II knowledge of the cause-and-effect chain between latent heat forcing, tidal propagation, and coupling into the ionosphere, based on various satellite observations. The most striking pattern is a 4-peaked ‘wave-4’ longitudinal modulation that is apparent in deep convective cloud occurrence, E-region zonal winds, thermospheric constituents, F-region electron and ion density, and upper thermosphere neutral mass density. Nonmigrating tidal winds in the low and middle latitude E-region move the partially ionized plasma through Earth's magnetic field while the electrons with their high gyro frequency/collision frequency ratio remain fixed to the magnetic field lines. An electromotive force is thus created with ensuing electric currents and polarization electric fields. The E-region dynamo polarization fields are further transmitted along magnetic field lines into the overlying F-region where they drive vertical (approximately 20 m/s) and horizontal (approximately 100 m/s) plasma drifts, which influence many important ionospheric processes. For example, vertical ExB drifts drive the plasma fountain, which results in dense bands of plasma centered near ±15 to 20 magnetic latitude. This equatorial ionization anomaly can be seen in the top center panel of Figure 5 as the two bluish bands north and south of the equator. The occurrence of the two ionization crests is predominantly the result of migrating solar tidal winds in the E-region, while the apparent longitudinal modulation in these bands is the result of nonmigrating tides excited by latent heat release in the tropical troposphere. For example, electron density varies by a factor of 2 to 3 as a function of longitude along the crests of the equatorial ionization anomaly at ±15 magnetic latitude (top left panel in Figure 5) and reflects the large-scale convective activity in the low-latitude troposphere. This surprising discovery that global conditions in the ionosphere and thermosphere are linked strongly to the terrestrial weather and climate below was initiated by IMAGE satellite observations of the F-region plasma density (Sagawa et al. 2005; Immel et al. 2006).
Figure 5

Sketch of meteorological impacts on geospace due to non-Sun-synchronous (nonmigrating) tides. Sketch of meteorological impacts on geospace due to non-Sun-synchronous (nonmigrating) tides as observed by different satellites in various neutral and plasma parameters. The COSMIC figure is adapted with permission from Lin et al. (2007), the IMAGE figure is adapted with permission from Immel et al. (2006), the TIMED figure uses data from Oberheide et al. (2011a,b), and the SNOE figure is adapted with permission from Oberheide and Forbes (2008). Deep convective cloud data are from the ISCCP climatology. CHAMP neutral density data are provided by Dr X. Zhang and Dr. S. L. Bruinsma.

This general picture has been confirmed during the CAWSES-II period by coupled ionosphere/thermosphere models (e.g., Jin et al. 2011; Maute et al. 2012) and studies using satellites, e.g., in temperature (Forbes et al. 2009), infrared cooling (Oberheide et al. 2013), and plasma density (Chang et al. 2013). However, it has now been realized that alternative effects, in addition to the E-region dynamo modulation, may contribute to the coupling between the tides and the ionospheric plasma: for instance neutral density variations, changes in thermospheric atomic oxygen to nitrogen ratio, and meridional winds at F-region altitudes (Liu et al. 2009; England et al. 2010; Maute et al. 2012; see also the review article by England (2012)).

It should also be noted that tidal wind shears in the E-region play a significant role in forming ionospheric intermediate layers, called sporadic E. See for example the early work by Fujitaka and Tohmatsu (1973) and the review by Haldoupis (2011). Much progress in this field, particularly in investigating the spatio-temporal distribution of occurrence frequency, has been made during the CAWSES-II period. Important contributions came from the concurrent analysis of COSMIC radio occultation and TIMED tidal diagnostics. For example, it has now been realized that, in addition to the diurnal and semidiurnal tides, the terdiurnal migrating tide plays an appreciable role in the sporadic E formation (Fytterer et al. 2014). There is also growing evidence for an important role of nonmigrating tides on the sporadic E formation but this topic needs to be studied further in the future.

Some progress was also made in elucidating day-to-day tidal variability. Forbes et al. (2011) combined CHAMP and GRACE exosphere temperatures to perform daily tidal fits for selected time periods and found mainly solar-driven variability with a strong correlation with the 27-day solar rotation period (Figure 6). Using combined WACCM-X/TIME-GCM simulations with constant solar and geomagnetic conditions but realistic tropospheric weather patterns, Liu et al. (2013a,b) showed day-to-day tidal amplitude variability on the order of 50% for the DW1, DE2, and DE3 tidal components in thermospheric winds, respectively. This in turn produced ExB vertical drift variability of the same magnitude and clearly indicates that tropospheric weather variability imposes a significant day-to-day variability on the ionosphere. At lower altitudes (mesosphere), Nguyen and Palo (2013) combined sounding the atmosphere using broadband emission radiometry (SABER) and microwave limb sounder (MLS) temperature data to derive day-to-day migrating diurnal tide variability at low latitudes and found amplitude changes of up to 15 K from one day to another. This is of the same order as variability deduced from ‘deconvolution’ approaches (Oberheide et al. 2002) using SABER alone (Figure 7). The causes for this variability still need to be understood. It is not yet clear what the relative roles of tropospheric source variability and modulations imposed by wave-wave and wave-mean flow interaction processes are in causing this variability. Addressing this challenge is not only a matter of diagnosing short-term tidal variability from the data but will also require a concentrated effort by the modeling community. For example, a comparison of the diurnal tide in models and ground-based observations conducted as part of the 2005 equinox CAWSES tidal campaign (Ward et al. 2010) points to considerable differences in model magnitudes and vertical wavelengths suggesting that inconsistencies in model forcing, dissipation, and background winds exist (Chang et al. 2012).
Figure 6

Migrating diurnal tide exosphere temperature amplitudes and phases. Migrating diurnal tide exosphere temperature amplitudes (top) and phases (bottom) from daily CHAMP-GRACE fits (left) and NRLMSISE00 (right) for the period 3 November 2003 to 14 January 2004. The solid line indicates the daily F10.7 solar flux, which ranges from 86 sfu (min) to 190 sfu (max). Adapted with permission from Forbes et al. (2011).

Figure 7

Day-to-day DE3 tidal amplitude variability in 2008 at 100 km from SABER. Day-to-day DE3 tidal amplitude variability in 2008 at 100 km from SABER using a ‘deconvolution’ approach, plotted as a function of day of year and latitude. White color indicates data gaps.

On longer time-scales, it has become clear that changes in global-scale weather patterns impose a considerable variability in the thermosphere and ionosphere. A compelling example that has recently attracted attention is the effect of the El Niño Southern Oscillation (ENSO). Pedatella and Forbes (2009a) found a high correlation between the Oceanic Niño Index (ONI) and longitudinal foF2 variability from low latitude ionosondes and associated this with ENSO-related changes in DE3 convective tidal heating. In a follow-up modeling study using WACCM, Pedatella and Liu (2012) showed that ENSO imposes a tidal temperature variability on the order of 10% to 30% during northern hemisphere winter. Interestingly, they found an enhanced DW1 and SW4 during the El Niño phase but a reduced DE2 and DE3. The latter components are enhanced during the La Niña phase. This is consistent with recent TIMED Doppler interferometer (TIDI) diagnostics focused on ENSO variability (Warner and Oberheide 2014). The ENSO-imposed variability is generally smaller than the short-term tidal variability but similar to variability due to the quasi-biannual oscillation (QBO) determined by Oberheide et al. (2009). The ionospheric response to ENSO still needs to be studied in detail. A preliminary analysis (Figure 8) based on the COSMIC-based TEC tides from Chang et al. (2013) and the TIDI-, Tropical Rainfall Measuring Mission (TRMM)-, and Modern-Era Retrospective Analysis for Research and Applications (MERRA)-based tidal wind and heating diagnostics from Warner and Oberheide (2014) indicates a consistent 50% enhancement in DE3 during the La Niña phase of the strong 2009 to 2011 ENSO and no response during the El Niño phase.
Figure 8

DE3 amplitude anomaly in TEC, E-region zonal wind, and tidal heating. DE3 amplitude anomaly (deviation with respect to the 2007 to 2011 climatological monthly means) in TEC (>200 km) from COSMIC at 15°N magnetic latitude (solid line), TIDI zonal winds at 100 km (averaged between 0°N to 20°N, dotted line), and TRMM- and MERRA-based convective and radiative DE3 heating, averaged from 3 to 16 km (plus symbols). Note the 50% enhancement in winter 2010/11 (La Niña phase) and the lack of any response in winter 2009/10 (El Niño phase).

Tropospheric tidal forcing does not respond appreciatively to the solar cycle, and the E-region dynamo tidal winds remain more or less unaffected (Oberheide et al. 2009). In the thermosphere above 120 km, however, increasing background temperatures during higher solar activity cause more tidal dissipation because of the temperature dependence of thermal conductivity. For example, DE3 amplitudes during solar minimum are much larger than during solar maximum: a factor of 3 in the zonal wind, 60% in temperature and a factor of 5 in density (Oberheide et al. 2009; Häusler et al. 2013). On the other hand, relative TEC tidal amplitudes from COSMIC (Chang et al. 2013) do not show any solar cycle dependence. This can be understood as the result of the absence of any solar cycle dependence in the zonal wind tides in the dynamo region which are the main driver of ionospheric tidal variability.

Connecting tides observed in the mesosphere lower thermosphere (MLT) region and those in the upper thermosphere and thus making the full connection to tropospheric weather from a purely observational point is still hampered by the lack of global wind or temperature observations in the ‘thermospheric gap’ between TIMED observations (reliable below 110 km) and in situ observations from satellites like CHAMP, GRACE, or the new Swarm mission at altitudes generally above 200 km. For example, much of the tidal characteristics in this height region rely on fits to TIMED observations such as the Climatological Tidal Model of the Thermosphere (CTMT, Oberheide et al. 2011a) that uses the observed tides in the MLT region as a constraint for a physics-based empirical model or general circulation models like WACCM-X (Liu et al. 2010a). The only dataset to date that turned out to be suitable for thermospheric tidal diagnostics came from HRDI and WINDII on UARS observations with tidal ‘deconvolution’ applied (Lieberman et al. 2013a). Figure 9 exemplifies this for the DE3 using HRDI/WINDII diagnostics from 60 to 250 km compared to CTMT. While CTMT does a reasonable prediction in this example, other components are not well reproduced, particularly DW2 and D0 that have additional in situ thermospheric sources, as shown by Jones et al. (2013) using the TIME-GCM. The existence of in situ thermospheric tidal sources for DW2 and D0 was confirmed by Forbes et al. (2014) who used the CTMT and combined CHAMP/GRACE tidal diagnostics to study tidal penetration to the upper thermosphere.
Figure 9

DE3 amplitudes from CTMT and WINDII. (Left) DE3 amplitudes (m/s) computed from CTMT averaged over September to November and mapped to 17:00 to 07:00 local time difference at 22.5°E. (Right) Same as left but from HRDI and WINDII analysis. White areas are data gaps. Adapted with permission from Lieberman et al. (2013).

In continuation of the CAWSES-I tidal campaigns (Ward et al. 2010), TG4 continued the data analysis (e.g., Chang et al. 2012; Kishore Kumar et al. 2013) and conducted an additional campaign in August to October 2011. These campaign data still need to be analyzed and results will be published elsewhere. Although requiring a significant international effort, observational campaigns such as these for various tropospheric and stratospheric conditions (ENSO, QBO) are important for developing and confirming our understanding of tidal variability. See for example the recent modeling results by Gan et al. (2014) that highlight interannual variability in satellite-borne tidal diagnostics and in a general circulation model nudged to observed meteorological reanalysis data. It should also be noted that tides provide the link between the ‘weather’ of the polar stratosphere and ionospheric variability close to the geomagnetic equator, e.g., during sudden stratospheric warmings (SSW) as a result of planetary wave - tidal interaction. This is further elaborated on in project 3.

Project 2: What is the relation between atmospheric waves and ionospheric instabilities?

Equatorial plasma instabilities, commonly referred to as equatorial spread-F, plasma bubbles, or depletions can cause radio signals propagating through the disturbed region to scintillate resulting in a distortion or loss of signal. First observed by Booker and Wells (1938), they have been extensively studied due to the increasing importance of satellite-based communications and positioning. Much has been learned over the decades about the growth mechanism and occurrence variability on a seasonal timescale. Dungey (1956) suggested the Rayleigh-Taylor instability as the generating process during post-sunset at the magnetic equator. At this time and location, since the bottom side of the F layer has recombined while the entire F layer itself has been raised by the pre-reversal enhancement, a very sharp vertical density gradient is created that is unstable to vertical perturbations in the ionosphere. Identifying the contribution of atmospheric waves as a perturbation source and studying the resulting instabilities was the leading motivation for two observational campaigns carried out as part of TG4 activities.

The SpreadFEx-2 campaign

Based on the success of the first SpreadFEx campaign held in northeastern Brazil (e.g., Fritts et al. 2008), which focused on studying the interaction between the neutral atmosphere and ionosphere, especially during periods of ionospheric irregularities, a second set of campaigns, called SpreadFEx-2, was carried out in 2009 and 2010. A total of eight institutions participated in these campaigns, deploying instruments to the sites detailed in Table 3. The addition of the coherent electromagnetic radio tomography (CERTO) beacon receivers and deployment of multiple wide-angle imaging systems added the possibility of performing tomographic inversions of the ionosphere during periods of ionospheric irregularities while the deployment of Fabry-Pérot interferometers (FPIs) added the capability to directly measure neutral winds and temperatures and study the relationship between the neutral and plasma state.
Table 2

Special issues with significant TG4 contributions




TG4 relation

Coupling between the lower and upper atmosphere

JGR Space Physics


General topic

Coupling between the Earth's atmosphere and its plasma environment

Space Science Review, Vol. 168, Issue 1-4, 2012


ISSI workshop, see TG4 newsletter vol. 3

Recent progress in the vertical coupling in the atmosphere-ionosphere system

J. Atmos. Sol. Terr. Phys., Vol. 90-91, pages 1-222, December 2012


4th IAGA/ICMA/CAWSES-II TG4 workshop on vertical coupling

Recent advances in equatorial, low-, and mid-latitude aeronomy

J. Atmos. Sol. Terr. Phys., Vol. 103, pages 1-194, October 2013


ISEA-13 conference

The campaigns were operated from early September until the end of November in both 2009 and 2010. These months correspond to the beginning of the ‘spread-F’ season, so called since this is when the occurrence of ionospheric irregularities (known as spread-F or equatorial plasma bubbles) is more common. Combining data from the imaging systems and FPIs, the coupling of the neutrals and plasma during periods of equatorial plasma bubbles (EPBs) was studied. Chapagain et al. (2012) found that the zonal neutral winds and EPB zonal drift velocity, which is assumed to be indicative of the background plasma drift velocity, were tightly correlated, especially beginning several hours after sunset. The zonal velocities showed similar patterns of both nightly and night-to-night variability, indicating that the F-region dynamo was fully developed. Earlier in the evening, however, the EPB zonal speed was found to be slower than the background neutral winds, indicating that during the period of bubble development, the F-region dynamo might not be fully activated. Examples of the comparisons made during the SpreadFEx-2 2009 campaign are shown in Figure 10. These examples show the overall similarity between the winds and EPB drift velocities as well as the variability in both of these parameters on a night-to-night basis. Histograms showing the difference between the measured winds and estimated EPB drift velocities are shown in Figure 11 and show the good agreement between the two zonal speeds seen later in the evening (after 23 LT).
Figure 10

Comparisons of thermospheric neutral winds and equatorial plasma bubble drift velocities. Comparisons of thermospheric neutral winds (red) and equatorial plasma bubble drift velocities (blue) collected during the SpreadFEx-2 campaign in 2009. Adapted with permission from Chapagain et al. (2012).

Figure 11

Histogram of differences between the thermospheric neutral wind and equatorial plasma bubble drift velocities. Binned by local time. Total number of coincident observations in each bin is indicated by the blue line, referenced to the right hand axis.

The data collection that begun under the SpreadFEx-2 campaigns has been continued through 2013, allowing for the study of the low latitude thermosphere through the transition from the deep solar minimum toward the solar maximum of solar cycle 24. A summary of the zonal and meridional thermospheric neutral winds as well as thermospheric neutral temperatures approximately 250 km through the end of 2013 are presented in Figure 12. Analysis of the data collected through the end of July 2012 by Makela et al. (2013) showed the expected strong dependence of the neutral temperature on the solar flux, with the average temperature increasing by several hundred Kelvin over the study period. However, a solar flux dependence was not seen in the neutral winds, at least over the range of solar fluxes observed during the period. Strong seasonal and day-to-day variability, however, is seen in the data indicating the influence of tidal and, possibly, gravity waves in the thermospheric neutral flows. The collection of this type of multi-year dataset will provide important validation to models of the thermosphere and ionosphere being developed. Such a validation study for the WAM using the dataset that begun under the CAWSES SpreadFEx-2 campaign is presented in Meriwether et al. (2013).
Figure 12

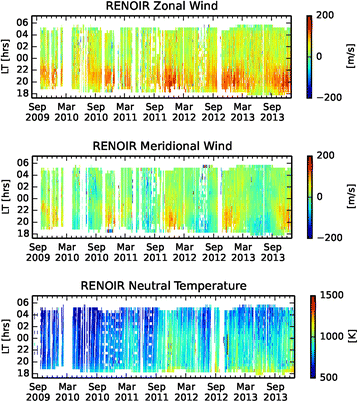

Climatologies of thermospheric neutral winds and neutral temperatures. Climatologies of thermospheric neutral winds (zonal - top; meridional - middle) and neutral temperatures (bottom) collected by the RENOIR FPIs through the end of 2013.

The LONET campaign

The LONgitudinal NETwork (LONET) campaign was carried out as a TG4 activity during the September to November period in 2010 and 2011 with the goal of creating a robust, global, multi-instrument database to study the longitudinal variability of planetary-scale waves. Table 3 lists the observation sites and instrumentation (13 ionosondes, 1 meteor radar, 2 MF radars, and 1 optical Fabry-Pérot interferometer) participating in LONET. TEC data obtained from the COSMIC satellite were also included. As can be seen from Table 4, the data collected in 2010 were more complete than 2011 in terms of the longitudinal coverage. Figure 13 shows the observation sites distributed along the equator marked on a map. The rectangular boxes depict COSMIC TEC data sampling along the magnetic equator. The ground-based data collection was limited in South America, Asia, and Oceania. No data were available from the African continent.
Table 3

Spread FEx2 observation sites


(Latitude longitude)





Meteor radar

VHF radar

CERTO receiver

GPS receiver

3 point sounding

São Luís

(2.6°S, 44.2°W)








(3.9°S, 38.4°W)




(7.4°S, 36.5°W)


All sky 6300, OH


OH temperature



Transmission receiver











All sky 6300, OH







Campina Grande





C. Paulista

(22.7°S, 45.0°W)


All sky 6300, OH










UI and Clemson







Figure 13

Ground-based observation sites and COSMIC TEC data sampling areas along the geomagnetic equator for LONET campaign.

As the first step in understanding the longitudinal variability of waves, the LONET team studied whether any global-scale periodic oscillations were present in the observed parameters and how the amplitude of those oscillations varied with longitude. From the temporal variations of the ionospheric parameters foF2, h′F, TEC, and mesospheric winds, the 2- to 16-day oscillations were studied using wavelet analysis. In Figure 14, the wavelet power spectra for the three parameters, h′F at Fortaleza (FZA, 321.6°E), TEC at around 345°E, and MF radar zonal wind component at Pameungpeuk (107.7°E) are presented for the period consisting of day of year (DOY) 240 to 330. The h′F and TEC are approximately in the same longitudinal zone. Among the common oscillations seen in these parameters is a distinct 16-day period oscillation during DOY 260 to 300.
Figure 14

Wavelet spectral density for 2- to 32-day period oscillations during the LONET campaign in 2010. (Top) h′F at Fortaleza, (middle) COSMIC TEC at 345°E, and (bottom) mesospheric zonal wind (89 km height) at Pameungpeuk.

In order to further investigate the 16-day oscillation, the amplitude and phase of the oscillation observed in the h′F parameter observed by the network of ionosondes participating in the LONET campaign are plotted in Figure 15 for Fortaleza (FZA, top) to Darwin (DWN, second from the bottom). The mesospheric wind components (zonal winds at 89 km altitude), obtained from the MF radar at Pameungpeuk (PAM), are also shown (bottom) for reference. From the PAM wind oscillations in Figures 14 and 15, clear evidence of a 16-day oscillation during the period DOY 260 to 320 centered at around DOY 290 is found. The h′F at Fortaleza shows clear 16-day oscillations during the same period with an amplitude that reaches approximately 4 km. However, the amplitudes of oscillation in the Indian and Asian sectors are somewhat lower compared to the American sites.
Figure 15

16-day period oscillations of h′F and mesospheric winds. 16-day period oscillations of h′F and mesospheric winds (bottom) during the LONET campaign period in 2010.

In Figure 16, we plot the results of a 16-day harmonic analysis of the COSMIC TEC data for different longitudinal zones. Each line corresponds to a given longitudinal zone, starting at 195°E (top) to 345°E (middle) to 165°E (bottom). During DOY 270 to 300, the 16-day oscillation feature can clearly be seen. The phase of the maximum is slightly shifted from DOY 290 at 15°E to DOY 300 at 195°E, indicating that the phase is propagating westward. These observations suggest that the 16-day oscillations might be generated by the Rossby mode 16-day planetary wave (Forbes 1995). Furthermore, there appear to be low amplitude regions (195 to 255°E) and high amplitude regions (315 to 105°E) in the global distribution of the oscillations. The Rossby 16-day waves normally appear in the troposphere to mesosphere mainly through the wind field and propagate into the lower thermosphere, modulating the ionosphere (Lastovicka 2006). The present results provide further understanding regarding the latitudinal and longitudinal variability of the 16-day waves.
Figure 16

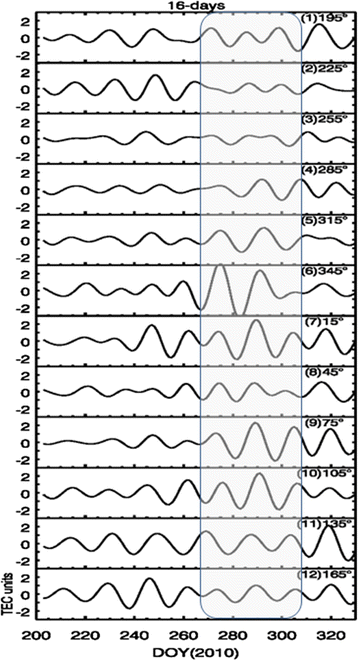

16-day period oscillations of COSMIC TEC during the LONET campaign period in 2010.

In addition to the ionospheric data presented above, data on geomagnetic field variations were also collected during the campaign period. The results of comparison with the ionospheric parameters will be presented elsewhere. Longitudinal variability of the spread F activity was also investigated using ground-based TEC observation over South America. Large day-to-day variability of spread F activity was observed, and the results were presented in the CAWSES TG4 News letter (vol. 7, page 5, 2012).

Progress of understanding for plasma bubble seeding by GWs

During the CAWSES-II interval, and in addition to the abovementioned campaigns, several additional interesting results were obtained relevant to the relation between atmospheric waves and ionospheric instabilities. Takahashi et al. (2009) showed a positive correlation between plasma bubble spacing and the spatial scale of mesospheric GW, which were observed simultaneously using airglow imagers in 630 nm and OH airglow emissions. Makela et al. (2010) found that the distribution of periodic spacing of equatorial plasma bubble compares favorably to the spectrum of GW-induced traveling ionospheric disturbances (TIDs) measured by Vadas and Crowley (2010) from a similar geographic latitude in the northern hemisphere. These results suggest that the periodic spacing of plasma bubbles are determined by GWs in the lower thermosphere. Several other studies also suggest seeding of plasma bubbles by GWs in the lower thermosphere (e.g., Taori et al. 2010, 2011; Paulino et al. 2011).

Distinct from these small-scale (approximately 100 km) GWs, large-scale wave structures (LSWSs, approximately 1,000 km) have been considered as another controlling factor of the plasma bubble/equatorial spread F (ESF) generation (e.g., Tsunoda 2005). Thampi et al. (2009) and Tsunoda et al. (2010) demonstrated that a close relationship exists between LSWS and the generation of ESF when the post-sunset rise (PSSR) of the F layer was absent. Tsunoda et al. (2011) showed that the amplification of LSWS in the late afternoon mostly occurs during the post-sunset rise of the equatorial F layer. Narayanan et al. (2014) showed that the occurrences of ionogram satellite traces, which are used as a proxy of LSWS, were followed by ESF in about 71% of the cases, supporting the view that LSWS appears to be an important parameter in the formation of ESF.

It is also interesting to note that Otsuka et al. (2012) and Shiokawa et al. (2014) reported observations of the dissipation of plasma bubbles in the field-of-view of 630 nm airglow images due to collision of the bubbles with a mid-latitude MSTID and a large-scale TAD, respectively. In both cases, the bubbles seem to be dissipated by polarization electric field associated with these waves in the ionosphere and thermosphere. This process suggests an additional role of GWs in the ionosphere, namely the suppression of ionospheric instabilities.

Project 3: How do the different types of waves interact as they propagate through the stratosphere to the ionosphere?

A variety of satellite- and ground-based data sets along with model simulations have been used during the CAWSES-II time frame to delineate how large-scale waves propagate through the middle atmosphere to the ionosphere. Several dedicated campaigns, e.g., coordinated ISR observations during SSWs, and workshops (Table 2) involved the TG4 community and were supported by TG4.
Table 4

LONET campaign observation sites









Ionosonde/foF2, h′F








Karim Kuyeng/Chau








Inez Batista


C. Paulista






Inez Batista


São Luís






Inez Batista
















A.K. Patra


Cocos Islands






Phil Wilkinson










Bac Lieu














Guozhu Li








Guozhu Li
















Phil Wilkinson

Meteor radar/wind









MF radar/wind

















FPI (thermospheric winds)









COSMIC satellite data (TEC)




Geomag. ±20




PW signatures in the ionosphere

For example, the global distribution and the climatological features of the 5- to 6-day planetary waves derived from SABER/TIMED temperature measurements over the height range 20 to 120 km for a full 6-year period were delineated by Pancheva et al. (2010). This study determined that the 5-day wave, the gravest symmetric wave number 1 Rossby wave, has a vertically propagating phase structure with a mean vertical wavelength of approximately 50 to 60 km, whereas the 6-day wave is an equatorially trapped wave number 1 eastward propagating wave with a mean vertical wavelength of approximately 25 km. Liu et al. (2010a,b) attributed temporal hmF2 ‘wave-4’ variations diagnosed from COSMIC data to the interaction of the DE3 with the 5- and 2-day planetary waves. In another study, Mukhtarov et al. (2010) reported on the climatology of stationary planetary waves with zonal wave numbers 1 and 2 observed in SABER/TIMED temperatures for the same period. Further, using COSMIC data on ionospheric parameters, foF2 and hmF2 and electron density at fixed altitudes and the SABER temperature data, Pancheva and Mukhtarov (2012) diagnosed the global-scale spatial and temporal variability of the approximately 23-day zonally symmetric planetary wave during the Northern winter of 2008/2009. The ionospheric oscillations were shown to be forced by planetary waves propagating from below. Pedatella and Forbes (2009b) demonstrated the presence of 16-day waves that were simultaneously observed in the CHAMP electron densities at 350 km, total electron content from global positioning system (GPS) observations, and in SABER temperature data at altitudes of 110 km, indicating that vertically propagating planetary waves induce significant variability in the low latitude F-region ionosphere and that these effects are seen at all longitudes. Recently, Chang et al. (2013) analyzed COSMIC TEC data and found strong stationary planetary wavenumber 4 (SPW4) signals (Figure 17), most likely caused by a strong SPW4 in neutral zonal wind in the E-region (Oberheide et al. 2011b) that in turn is the result of a modulation of the migrating diurnal tide DW1 by the DE3 nonmigrating tide (Hagan et al. 2009).
Figure 17

Relative SPW4 TEC amplitude in percent from COSMIC as a function of latitude and year. TEC was computed from the observed electron densities above 200 km. Adapted with permission from Chang et al. (2013).

While the presence of PW signatures in the ionospheric plasma is without dispute and the same neutral/plasma coupling processes as for the tides (predominantly E-region dynamo modulation, see project 1) are thought to apply to PWs as well, the mechanism through which they enter the E-region is still under debate. For example, planetary waves do not penetrate much above 100 km, but instead are thought to impose their periodicities on the ionosphere and thermosphere by modulating the tides and gravity waves that do penetrate to higher altitudes. Other mechanisms include secondary PW forcing. For instance, Lieberman et al. (2013b) using MLS, SABER, and TIDI data, along with Navy Operational Global Atmospheric Prediction System - Advanced Level Physics-High Altitude (NOGAPS-ALPHA) model simulations found observational evidence for wintertime SPWs in the lower thermosphere forced in part by drag imparted by gravity waves that have been modulated by underlying stratospheric SPWs. Their results supported earlier model and case studies by Liu and Roble (2002), Smith (2003), and Oberheide et al. (2006a) that already suggested the plausibility of this mechanism.

SSW impact on the ionosphere and thermosphere

A prime example for tidal modulation by PWs occurs during sudden stratospheric warmings. An SSW is an extreme atmospheric disturbance event that results in a warmer polar stratosphere and reversed zonal mean flow at mid-latitudes and provides the link between the ‘weather’ of the polar stratosphere and ionospheric variability close to the geomagnetic equator. As a consequence of publication of the observational evidence for the ionospheric signatures associated with a SSW event by Goncharenko and Zhang (2008), several studies in the recent past have addressed the effect of SSW on the ionosphere due to planetary wave propagation from below. It is now understood that the planetary waves modulate the propagation characteristics of predominantly the semidiurnal migrating tide, enhancing its amplitude, and thereby modulating the E-region ionospheric dynamo, vertical plasma drifts, and plasma density in the F-region, in a manner similar to the effects of nonmigrating tides (Liu et al. 2010b; Fuller-Rowell et al. 2011; Chau et al. 2012; Jin et al. 2012). This is exemplified in Figure 18 in which GAIA model simulations are compared with COSMIC and SABER satellite observations during the January 2009 SSW.
Figure 18

Comparison of the amplitude of the SW2 semidiurnal migrating tidal component. Comparison of the amplitude of the SW2 semidiurnal migrating tidal component at different altitudes extracted from GAIA model simulations (left) and from COSMIC and SABER satellite observations (right). Adapted from the Jin et al. TG4 Newsletter 13 (2013) article using results from Jin et al. (2012).

A recent ground-based study by Laskar et al. (2014) conducted in the Indian sector suggests that the 16-day modulation of the semidiurnal tide is particularly strong during strong SSW events and as such exerts a significant impact on ionospheric variability even during high solar activity. Although SSWs only happen at most a few times per year, they nevertheless provide an excellent opportunity to test current theories of neutral-plasma coupling on a global scale and for testing the predictive capabilities of space weather models, as SSWs can be forecasted on a 1-week timescale (Fuller Rowell et al. 2011; Wang et al. 2014).

Pancheva and Mukhtarov (2011) presented for the first time the global spatial (latitude and altitude) structure of the mean ionospheric response to SSW events during winters of 2007/2008 and 2008/2009 using COSMIC foF2 and hmF2 and electron density data at fixed altitudes. Several studies were carried out to understand the processes underlining the SSW control of the electrodynamics at low latitudes. Chau et al. (2009) provided strong evidence indicating that the distinctive behavior of the vertical ExB drifts over the magnetic equator during daytime was associated with a minor SSW. Following this work, Chau et al. (2010) identified SSW signatures in several ionospheric parameters using the incoherent scatter radar (ISR) electron density and temperature measurements from the Arecibo Observatory, as well as relative TEC variations derived from a dual-frequency GPS receiver. To examine the response of the mid-latitude ionosphere to SSW, Goncharenko et al. (2013) undertook a case study of the day-to-day variability in the ion temperature at altitudes between 200 and 400 km and detected disturbances at tidal periods as well as at non-tidal and multi-day periods. As planetary waves are not expected to reach middle and upper thermospheric altitudes, as noted in the previous subsection, these results have once again raised questions about the underlying mechanisms coupling the lower and upper atmosphere.

A TIME-GCM simulation by Liu and Roble (2002) revealed that the resonant SPW amplification prior to the peak warming causes a deceleration of the mean wind in the high latitude winter stratopause and mesosphere and reverses to westward with a critical layer near the zero wind line. This changes the filtering of gravity waves by allowing more eastward GW to propagate into the MLT region and a resulting change of the meridional circulation in the upper mesosphere from poleward/downward to equatorward/upward with corresponding stratospheric warming, mesospheric cooling, and thermospheric warming patterns in the mean temperatures at high latitudes during SSWs. At low latitudes, this temperature pattern reverses and produces a thermospheric cooling and consequently a thermospheric density decrease at a fixed altitude by reducing the scale height.

SSW and lunar tides

Recent ground-based and satellite magnetometer observations in conjunction with other ionospheric measurements have provided insights of how lunar tidal modulation during SSW events can drive the spatio-temporal variabilities of the equatorial electrojet and the electrodynamics (Fejer et al. 2010, Park et al. 2012, Yamazaki et al. 2012). However, Stening (2011) argued against a strong lunar tidal contribution to the observed variability during SSWs since strong lunar tidal signals exist during non-SSW periods so that these correlations might be coincidental. Fuller-Rowell et al. (2011) indeed found SSW-induced phase shifts in the semidiurnal solar tide consistent with an apparent lunar tidal signal using WAM simulations, but it should be noted that the model did not include the semidiurnal lunar tide as an input. Wang et al. (2014) in a coupled WAM/ionosphere model simulation also found a phase shift of the SW2 solar component during SSWs caused by SSW-induced variability in its main source, stratospheric ozone, and/or additional middle atmosphere circulation changes. On the other hand, Pedatella et al. (2014) reported notable enhancements of the semidiurnal lunar tide during SSW events in WACCM-driven TIME-GCM simulations and a better agreement with COSMIC electron density observations when the lunar tide was included in the model. It must thus be concluded that the impact of lunar tides on ionospheric variability during SSWs is not yet finally resolved and requires further studies by the aeronomy community over the coming years. It should also be noted that there is increasing evidence that the ionospheric plasma variability during SSWs is not solely caused by E-region electric field variability but also by variability in F-region meridional neutral winds and thermospheric composition changes (e.g., Pedatella et al. 2014). This is consistent with the earlier modeling work by England et al. (2010) and Maute et al. (2012) that was focused on nonmigrating tides.

SSW and GW

Small-scale variability of the upper atmosphere driven by major atmospheric disturbances from below like SSW has also gathered attention recently. Adopting a first principle nonlinear hydrostatic GCM extending from the lower atmosphere to the thermosphere, Yiğit et al. (2014) investigated the influence of small-scale gravity waves originating in the lower atmosphere on the variability of the high latitude thermosphere during an SSW event. The numerical experiments revealed that the gravity wave penetration into the thermosphere increased the momentum deposition rates above 150 km in the high latitude northern hemisphere by up to a factor of 3 to 6 during the warming. This demonstrates that gravity wave-induced variations during SSWs constitute a significant source of high latitude thermospheric variability.

Project 4: How do thermospheric disturbances generated by auroral processes interact with the neutral and ionized atmosphere?

Upper thermosphere

From the CHAMP satellite observations, Lühr et al. (2004) showed the existence of strong heating in the cusp (and/or near the cusp) region. This heating causes upwelling of the air and enhancement of the neutral mass density in the altitude region of about 400 km. In addition, the CHAMP satellite observed some thermospheric disturbances during geomagnetically disturbed periods. For example, Ritter et al. (2010) identified substorm-related thermospheric density and wind disturbances from the CHAMP observations. They reported mass density enhancements, a density bulge propagating as a traveling atmospheric disturbance (TAD), and wind variations during a substorm event. Liu and Yamamoto (2011) reported geomagnetic storm effects on the formation and characteristics of the mid-latitude summer nighttime anomaly (MSNA), which is a phenomenon during which the diurnal variation of the plasma density maximizes at night instead of day. They pointed out the role of the effective neutral wind in the formation of MSNA. Some results obtained from the CHAMP observations were summarized in the review paper presented by Lühr et al. (2012).

Vickers et al. (2013) developed a new technique to obtain thermospheric neutral density at approximately 350 km altitude from incoherent scatter radar data. In situ comparisons with the CHAMP satellite show good agreement. Vickers et al. (2014) used this technique on the EISCAT Svalbard radar for the period 2000 to 2013 and showed that F10.7 solar irradiance is a very good proxy for thermospheric density variations with only a small seasonal dependence. In addition, the long-term trend of declining thermospheric density was observed.

Co-rotating interaction region (CIR) and subsequent high speed solar wind stream (HSS) is one of important causes of the thermospheric disturbances in association with auroral phenomena during a solar minimum period (e.g., Thayer et al. 2008; Lei et al. 2011; Verbanac et al. 2011). Pedatella and Forbes (2011) described responses of the ionosphere and thermosphere to high speed solar wind streams from the DMSP F13 satellite observations and the Thermosphere-Ionosphere-Electrodynamics General Circulation Model (TIE-GCM) simulations. They concluded that the disturbance dynamo would be an important mechanism for driving the electrodynamic response at dawn and dusk to recurrent geomagnetic activity driven by HSS. Gardner et al. (2012) investigated the HSS heating effects from numerical simulations and observations with the EISCAT Svalbard radar (ESR) and PFISR. They showed that the HSS heating can cause temperature enhancement as high as 100 K at high latitudes, but the global increase in thermospheric temperature would be low.

Coronal mass ejections (CMEs) are also one of the important causes of the geomagnetic storms. The thermospheric density variations during CME- and CIR-induced geomagnetic activities were compared by Chen et al. (2012). The total changes in the thermospheric density observed during periods of CIR storms were greater than those of the CME storms because the CIR storms lasted longer than CME storms, while the CME storms were stronger than the CIR storms on average.

For smaller scale waves, several airglow imagers investigated thermospheric and ionospheric waves identified as MSTIDs near the auroral zone through the 630 nm airglow emissions at altitudes of 200 to 300 km. Kubota et al. (2011) reported characteristics of MSTIDs observed by an airglow imager at Alaska. They concluded that these southwestward-moving MSTIDs are not caused by ionospheric instabilities, as usually suggested at middle latitudes, but are likely to be caused by auroral disturbances as TADs because the observed background thermospheric wind was poleward, stabilizing the ionospheric instability. On the other hand, Shiokawa et al. (2013) reported similar southwestward-moving MSTIDs over Norway and northern Canada and suggested that they are caused mainly by the Perkins and E-F coupling instabilities (Perkins 1973; Yokoyama et al. 2009) similar to those at middle latitudes and that an additional source by atmospheric gravity waves from lower altitudes also comes into play. Shiokawa et al. (2012, 2013) reported sudden movements of these MSTIDs at subauroral latitudes concurrent with auroral activity, indicating instantaneous penetration of auroral electric fields to subauroral latitudes.

MLT region

Dynamics and Energetics of the Lower Thermosphere in Aurora (DELTA) and DELTA-2 campaigns were carried out in December 2004 and January 2009, respectively. Simultaneous observations with the EISCAT radar, FPI, and sounding rockets were successfully made during the two campaigns. For example, Kurihara et al. (2009) identified temperature enhancement in the lower thermosphere in association with the auroral heating during the DELTA campaign. Oyama et al. (2010) also reported lower thermospheric wind fluctuations measured with an FPI during pulsating aurora at Tromsø, Norway, in the period of the DELTA-2 campaign (Figure 19). Some studies concerning the occurrence of atmospheric gravity waves in the polar thermosphere in response to auroral activity were summarized in the review paper of Oyama and Watkins (2012).
Figure 19

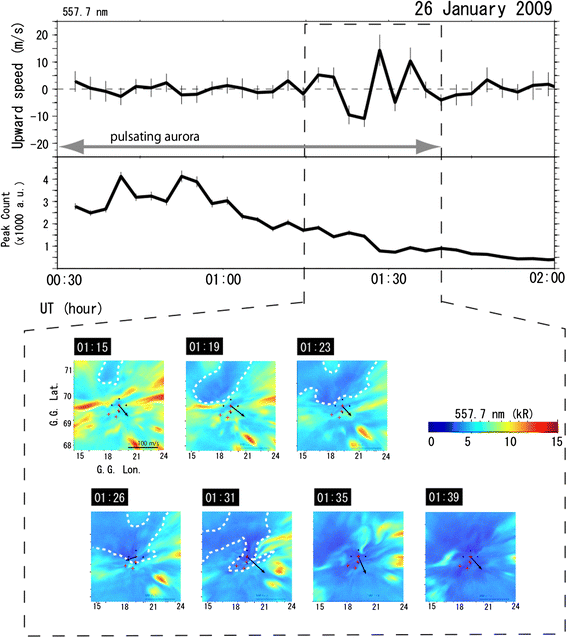

Temporal variations in the vertical wind speed and the fringe peak count at the zenith. Top and middle panels show the temporal variations in the vertical wind speed and the fringe peak count at the zenith, respectively, measured with the FPI (557.7 nm) from 00:30 to 02:00 UT on 26 January 2009. Vertical bars are the 2 sigma uncertainty (see in the text of Oyama et al. 2010). The bottom color panels show the horizontal aurora images taken with the ASC at 557.7 nm from 01:15 to 01:39 UT during pulsating aurora (corresponding time interval is marked by black dashed line in the top two panels). The color scale of optical intensity is shown at the right middle. These images are mapped in geographic coordinate assuming the peak emission height is 110 km. The five black dots and the four red crosses indicate the location of the FPI and the EISCAT UHF radar observation positions, respectively. The black arrows correspond to the horizontal component of the FPI-derived neutral wind velocity (the scale is presented at the right bottom corner of the first panel from the left). White dashed lines in the colored panels are drawn to easily identify the darker area. Adapted with permission under Creative Commons Attribution 3.0 License from Oyama et al. (2010).

Following initial studies of thermospheric meso-scale variability using tristatic Fabry-Pérot interferometer (FPI) observations at EISCAT (Aruliah et al. 2004, 2005), the neutral wind variations in the vicinity of an auroral arc were studied by some researchers. Oyama et al. (2009) showed spatial evolution of frictional heating and increases in ion flow and temperature in the vicinity of an auroral arc from observations with the Sondrestrom incoherent-scatter radar and the Reimei satellite. They clarified localized ionospheric structures associated with localized soft particle precipitation or F-region ionization, suggesting the presence of a narrow thermospheric wind shear of about 10 km width. Kosch et al. (2010) reported the first observational results of the E-region neutral wind fields and their interaction with auroral arcs during geomagnetically quiet conditions at Mawson, Antarctica, with a scanning Doppler imager (SDI). The 144° field-of-view Doppler images of the sky over Mawson are shown in Figure 20. They found that E-region wind could rotate 90° within approximately 10 min when close to (within approximately 50 km) of an auroral arc and then recover to the background flow when the arc disappeared. The F-region wind remained unaffected. This was attributed to the electric field associated with auroral arcs causing localized strong ion drag. Anderson et al. (2011) performed bistatic FPI observations of F-region thermospheric vertical winds in Antarctica. They found strong upward winds poleward of the auroras as well as correlated vertical wind responses over horizontal distances of approximately 150 to 480 km.
Figure 20

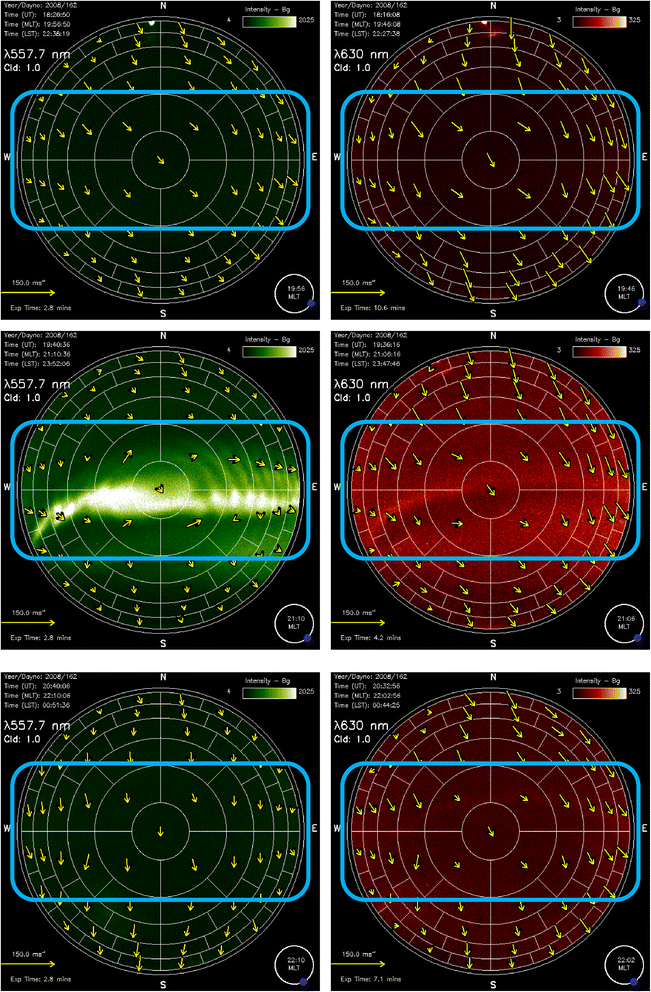

The 144° field-of-view Doppler images of the sky over Mawson. The right column shows F layer 630 nm Doppler images, the left column shows E layer 557.7 nm Doppler images on 10 June 2008. Each plot is labeled with UT. The optical intensity is not calibrated. The optical data are plotted in geographic coordinates with horizontal wind vectors overlaid for each zone (yellow). The wind vectors are centered on their measurement points. The vector for the zenith sector shows the average wind field, not the vertical wind. The top row (18:16 to 18:27 UT) shows before the arc appeared, the middle row (19:36 to 19:40 UT) shows when the arc appeared, and the bottom row (20:33-20:40 UT) shows after the arc disappeared. The blue box highlights the region of interest.

Kosch et al. (2011) made meso-scale observations of the ionosphere and thermosphere with the EISCAT Svalbard radar and SDI, partly in the vicinity of an auroral arc, within the polar cap at approximately 110 km altitude. They found that Joule heating had a meso-scale (approximately 64 km) spatial variability of up to >100% even during steady-state geomagnetic conditions. Figure 21 shows the spatial distribution of Joule heating in 22.5° sectors about the EISCAT Svalbard radar projected to 110 km for 23:36 to 23:54 UT on 2 February 2010. They estimated the E-region ion-neutral collision frequency at 112.8 (±0.8) km altitude by combining E- and F-region ion flow with E-region neutral flow data and found good agreement with the MSIS model. Anderson et al. (2013) also made observations of the ionosphere and thermosphere with PFISR and SDI. They found the neutral wind dynamo contribution to Joule heating was 36% to 64% on average and was positive when the horizontal magnetic field perturbation was weak (|ΔH| < approximately 40 nT) and vice versa. They estimated the F-region ion - neutral collision frequency at 260 km altitude using the ambipolar diffusion equation - and also found good agreement with the MSIS model.
Figure 21

The spatial distribution of Joule heating in 22.5° sectors. The spatial distribution of Joule heating in 22.5° sectors about the EISCAT Svalbard radar projected to 110 km 23:36 to 23:54 UT on 2 February 2010. The aurora (areas in green color) is overlaid for 110 km altitude.

Recently, Xu et al. (2013) showed longitudinal variations of the thermospheric temperature from satellite observations with SABER and Michelson Interferometer for Passive Atmospheric Sounding (MIPAS) and simulations with TIE-GCM. Their simulations clarified that auroral heating would cause the observed longitudinal temperature variations. In addition, the satellite observations indicated that impacts of auroral heating on the neutral atmosphere can penetrate down to about 105 km. The lidar observations are quite useful to study thermospheric disturbances in the MLT region. For example, Chu et al. (2011) observed temperature enhancements caused by Joule heating and fast gravity waves propagating from the lower atmosphere in the neutral Fe layers (110 to 155 km) in Antarctica. Tsuda et al. (2013) showed decreases in sodium density in association with auroral particle precipitation from simultaneous and common volume observations by the EISCAT VHF radar and a sodium lidar at Tromsø, Norway.

Model simulations in association with auroral/high latitude phenomena

Some general circulation models (GCMs) have been developed to understand the energetics, dynamics, and composition variations of the upper atmosphere. These simulations clarified disturbances in the polar ionosphere and thermosphere in association with auroral activity and/or high latitude energy inputs. For example, Qian et al. (2010) simulated thermospheric response to recurrent geomagnetic forcing with the NCAR TIE-GCM. Neutral density and nitric oxide (NO) cooling rates were simulated for the declining phase of solar cycle 23. The simulated results were compared to neutral density derived from satellite drag and to NO cooling measured by TIMED/SABER. Gardner and Schunk (2011) performed numerical simulations to investigate characteristics of the large-scale gravity waves with a high-resolution global thermosphere-ionosphere model which can represent global distributions of mass density, temperature, and all three components of the neutral wind at altitudes from 90 to 500 km without the assumption of hydrostatic equilibrium. They noted that a secondary wave was generated which propagated around the entire globe, while the original gravity wave was localized. Deng et al. (2011) also investigated nonhydrostatic effects in the thermosphere from Global Ionosphere Thermosphere Model (GITM). Their simulations demonstrated that most of the nonhydrostatic effects at high altitudes (300 km) arise from sources below 150 km and propagated vertically through the acoustic wave. Basic structures of the polar ionosphere and thermosphere during solar minimum and geomagnetically quiet periods were investigated by Fujiwara et al. (2012) from the EISCAT Svalbard radar observations (March 2007 to February 2008) and simulations with a whole atmosphere GCM. Their results indicated that both the ions and neutrals would show larger variations than those described by the empirical models, suggesting significant heat sources in the polar cap region even under solar minimum and geomagnetically quiet conditions. In addition to the global model simulations, de Larquier et al. (2010) performed one- and two-dimensional numerical simulations with a finite-difference time-domain (FDTD) model to provide quantitative interpretation of the recently reported infrasound signatures from pulsating aurora. They discussed pressure perturbations caused by particle heating due to pulsating aurora (heat source is located between 90 and 110 km on average). The simulation results were roughly an order of magnitude smaller than those observed, suggesting the need for an additional source, e.g., Joule heating.


Scientific outcome and challenges

Overall, TG4 brought together the historically separate neutral atmosphere and plasma communities in a way that allowed for much progress in understanding how neutral variability originating in the lower atmosphere impacts and interacts with Earth's ionosphere, from low to polar latitudes and from the troposphere to the F-region. For example, the role of waves due to convection, polar stratosphere dynamics, or auroral processes in causing substantial ionospheric variability through dynamo processes and Rayleigh-Taylor instabilities is now much better understood than before. This was achieved through a combination of dedicated campaign activities and workshops resulting in four special issues in the peer-reviewed literature (Table 2). The aeronomy community is well on its way to separating ionospheric variability introduced by driving from below and from the magnetosphere and Sun above, an essential task toward achieving predictability of space weather. In this respect, it is important to note that the solar activity at the beginning of the CAWSES-II period was extremely quiet, allowing the pure effects from the lower atmosphere to be observed in isolation without disturbances from above.

There are a number of critically important open questions toward the goal of achieving space weather predictability. Significant amounts of variability remain unexplained and/or are very difficult to detect and interpret, for example, the imprints of convectively forced gravity waves in the thermosphere. Short-term tidal variability in the neutrals and plasma is largely unknown because of the lack of suitable satellite data since local time coverage by a single satellite is limited. It is not clear what is more important: wave propagation into the thermosphere and then into to the ionosphere; or electrodynamic coupling between the E- and F-region and then into the thermosphere. The dynamics community still knows little about interactions between the various types of waves (tides, PWs, and GWs) and the mean flow. A major observational and technological challenge is the lack of global wind observations, day and night, throughout the 120 to 400 km region.

As overviewed below, new space-borne and ground-based assets, along with progress in geospace modeling, will help to close this knowledge gap that is also targeted through elements of SCOSTEP's new VarSITI program.

Program outreach

As a dedicated effort of the international scientific community, and in accordance with SCOSTEP's mission not only to run scientific programs but also to promote solar-terrestrial physics and dissemination of the derived knowledge for the benefit of society, Task Group 4 published a quarterly newsletter. Each newsletter was about eight pages long with updates on recent campaign activities, short news, and a portrait of a young scientist. All articles were written to be understandable for non-specialist and published on the task group wiki ( and through an extensive mailing list. A total of 13 issues have been published with 64 articles from authors from 20 different countries, including 10 articles featuring young scientists. TG4 also organized and/or supported 12 dedicated workshops and special sessions and held annual business meetings during major conferences.

New and future satellite missions

Space agencies and national science foundations in the U.S., Europe, and Asia by now recognize the importance of lower atmosphere driving of the ionosphere-thermosphere system not only as a domain of compelling scientific inquiry but also as highly relevant for understanding and predicting space weather; a task highly relevant for technological societies.

In the United States, the Decadal Survey on Solar and Space Physics 2013 to 2022 conducted by the National Academy of Sciences (National Research Council 2013) recognized the realization that weather systems in the troposphere impact space weather through tides and gravity waves as one of the significant discoveries in the past decade, making ‘the comprehensive understanding of the variability in space weather driven by lower-atmosphere weather on Earth’ its second highest priority and recommended a dedicated satellite constellation (DYNAMIC) to be launched around the year 2020. While NASA budget constraints may delay the implementation of DYNAMIC; two new satellite missions dedicated to ionosphere-thermosphere physics, ICON and GOLD, will be launched in 2017. Both ICON and GOLD can be seen as pathfinder missions for DYNAMIC. ICON will collect data from a low Earth orbit to compare the impacts of direct solar driving and lower atmosphere driving on variability in the ionosphere/thermosphere system, and GOLD will image the thermosphere from a geostationary orbit, allowing for an unprecedented global view of short-term variability.

A very exciting new mission, launched on 22 November 2013, is the European Space Agency (ESA) Swarm mission. Swarm is a unique three satellite constellation with two satellites orbiting at 480 km and one at 510 km to measure Earth's magnetic field, the electric field in the ionosphere, and thermospheric density and winds. See the special issue in Earth, Planets and Space on Swarm Science Data Processing and Products - the Swarm Satellite Constellation Application and Research Facility (2013) for details. Each of the identical Swarm satellites has a vector and scalar magnetometer, a Langmuir probe, an accelerometer, and GPS instrumentation on board, similar to the tremendously successful CHAMP satellite. During its anticipated 10-year mission, the Swarm data will allow the ionosphere/thermosphere community to obtain an unprecedented view of small-scale structures in the thermosphere and the ionospheric plasma.

Due to the success of COSMIC (a particularly important dataset for the ionosphere/thermosphere community because of its global electron density profiles from radio occultation), the United States and Taiwan will launch COSMIC-2 between 2015 and 2018. COSMIC-2 consists of six satellites in a low-inclination orbit (launch in 2015) and another six satellites in high inclination orbits (launch in 2018).

Along with emerging cubesat and nanosat capabilities, these new space-borne assets will form the backbone of studying the signatures and impact of lower atmosphere variability versus magnetosphere/solar-driven variability in the next decade. Their synergistic use will most likely allow the community to make significant progress toward understanding geospace as a system and also toward predictability of space weather, a significant need for a technological society. A particular challenge, however, will remain: global thermospheric winds throughout the whole thermosphere during day- and nighttime; dataset airglow interferometers cannot provide. The implementation of new emerging technologies, such as the Doppler wind and temperature sounder (DWTS; Gordley and Marshall 2011; Lieberman et al. 2012), will be needed.

New ground-based assets

Ground-based facilities are powerful tools to measure vertical coupling from the atmosphere to geospace. They are basically radio techniques (various types of radars, ionosondes, satellite beacon receivers including Global Navigation Satellite System (GNSS) receivers, natural/artificial wave receivers, and magnetometers) and optical techniques (imagers and interferometers for airglow and aurora; and lidars). Figure 22 summarizes the altitude ranges and measurement parameters of various ground-based techniques. Because a single instrument covers only a certain range of altitudes and can measure a limited set of physical parameters, it is essential to combine several types of instruments at the same place to understand the connection from the troposphere to geospace. Multi-point networks of these various instruments are becoming available, providing global information of these parameters, e.g., Yumoto (2011) - MAGDAS and Yizengaw and Moldwin (2009) - AMBER for magnetometers, Makela et al. (2009) - RENOIR, Shiokawa et al. (2009) - OMTIs, Makela et al. (2012) - NATION, and Meriwether et al. (2014) - Peruvian FPIs for optical instruments, and Cohen et al. (2010) - AWESOME for LF/VLF receivers. It is also important to combine these ground-based observations with satellite measurements to separate temporal and spatial variations.
Figure 22

Various ground-based instruments to observe the upper atmosphere, their altitude ranges, and parameters of measurements.

One of the great progress of ground-based observation during CAWSES-II was that the multi-point GNSS receiver network is becoming a powerful tool to provide two-dimensional images of the ionospheric total electron content in the spatial resolution of less than approximately 100 km, as shown in Figure 2 as a striking example of tsunami- and tornado-induced gravity wave penetration to the ionosphere (Tsugawa et al. 2011; Nishioka et al. 2013). Such high-resolution TEC maps become available not only over Japan and US, but also in other places, e.g., over South America (Takahashi et al. 2014) and Europe (Otsuka et al. 2013). The number of GNSS receivers will grow further even after the CAWSES-II era and will become an important facility to monitor ionospheric disturbances.

The widest altitude coverage from the troposphere to the ionosphere can be achieved by powerful facilities of incoherent scatter (IS)/mesosphere-stratosphere-troposphere (MST) radars. Currently, major facilities of IS/MST radars are available at Resolute Bay (RISR), Poker Flat (PFISR), Sondrestrom, Milstone Hill, Arecibo, and Jicamarca in the American longitudinal sector; Irkutsk, Shigaraki (MU), Wuhan, Gadanki, and Kototabang (EAR) in the Asian sector; and Svalbard (ESR), Scandinavia (EISCAT), Andøya (MAARSY), Kharkov, and Syowa (PANSY) in the European sector. The EISCAT radar will be renewed into the EISCAT_3D radar (Wannberg et al. 2010) to obtain three-dimensional information of plasma-neutral interaction in the auroral ionosphere/thermosphere. This renewal will also stimulate measurements of tropospheric and stratospheric parameters using its powerful facilities. The Equatorial Atmosphere Radar (EAR) is planned to be renewed to the EMU (Equatorial Middle and Upper atmosphere) radar with more than five times larger transmission power to perform IS observations of the ionosphere.

VarSITI - SCOSTEP's 2014 to 2018 program

The new 2014 to 2018 SCOSTEP program Variability of the Sun and Its Terrestrial Impact (VarSITI) will focus on the unusual low solar activity during solar cycle 24 and its consequences on Earth. One of the four VarSITI projects is called Role of the Sun and the Middle Atmosphere/Thermosphere/Ionosphere in Climate (ROSMIC) and is directed toward identifying the effects of external forcing on and predicting the effects of internal changes to the atmosphere/ionosphere. One goal of ROSMIC is to understand the impact of the Sun on the terrestrial middle atmosphere/lower thermosphere/ionosphere relative to anthropogenic forcing including coupling within the atmosphere-ionosphere system. As such, ROSMIC continues the science investigations related to understanding the geospace response to lower atmosphere variability that were carried out during CAWSES-II, using similar approaches such as observing campaigns, workshops, etc.



African Meridian B-Field Education and Research


Atmospheric Weather Electromagnetic System for Observation Modeling and Education


Climate and Weather of the Sun-Earth System


coherent electromagnetic radio tomography


CHAllenging Minisatellite Payload


co-rotating interaction region


coronal mass ejection


Constellation Observing System for Meteorology


Coupled Thermosphere Ionosphere Plasmasphere Electrodynamics Model


Climatological Tidal Model of the Thermosphere


diurnal stationary tide of zonal wavenumber 0


diurnal eastward propagating tide of wavenumber 2


diurnal eastward propagating tide of wavenumber 3


Dynamics and Energetics of the Lower Thermosphere in Aurora


Defense Meteorological Satellite Program


day of year


diurnal westward propagating tide of wavenumber 1


diurnal westward propagating tide of wavenumber 2




Doppler wind and temperature sounder


dynamical atmosphere ionosphere coupling


European Incoherent Scatter Scientific Association


El Niño Southern Oscillation


equatorial plasma bubble


European Space Agency


Fabry-Pérot interferometer


finite-difference time-domain




Ground-to-Topside Model of Atmosphere and Ionosphere for Aeronomy


General Circulation Model


Global Ionosphere Thermosphere Model


Global-scale Observations of the Limb and Disk


Global Navigation Satellite System


global positioning system


Gravity Recovery and Climate Experiment


gravity wave


high-resolution Doppler interferometer


high speed solar wind stream


Ionospheric Connection Explorer


Imager for Magnetopause-to-Aurora Global Exploration


incoherent scatter radar


International Satellite Cloud Climatology


LONgitudinal NETwork


large-scale wave structure


MAGnetic Data Acquisition System


Modern-Era Retrospective Analysis for Research and Applications


Michelson Interferometer for Passive Atmospheric Sounding


microwave limb sounder


mesosphere lower thermosphere


midlatitude summer nighttime anomaly


medium-scale traveling ionospheric disturbance


National Aeronautics and Space Administration


North American Thermosphere Ionosphere Observation Network


National Center for Atmospheric Research


Navy Operational Global Atmospheric Prediction System - Advanced Level Physics-High Altitude


Optical Mesosphere Thermosphere Imagers


Oceanic Niño Index




Poker Flat Advanced Modular Incoherent Scatter Radar


planetary wave


quasi-biannual oscillation


The Remote Equatorial Nighttime Observatory of Ionospheric Regions


Role of the Sun and the Middle Atmosphere/Thermosphere/Ionosphere in Climate


sounding the atmosphere using broadband emission radiometry


Scientific Committee on Solar-Terrestrial Physics


scanning Doppler imager


stationary planetary wave


sudden stratospheric warming


semidiurnal westward propagating tide of wavenumber 4


traveling atmospheric disturbance


total electron content


Task Group 4


TIMED Doppler interferometer


Thermosphere-Ionosphere-Electrodynamics General Circulation Model


Thermosphere-Ionosphere-Mesosphere-Electrodynamics General Circulation Model


Thermosphere Ionosphere Mesosphere Energetics and Dynamics


Tropical Rainfall Measuring Mission


Variability of the Sun and Its Terrestrial Impact


very high frequency


Whole Atmosphere Community Climate Model - thermosphere extension


Whole Atmosphere Model


wind imaging interferometer



JO, KS, and SG are grateful for the enthusiasm and contributions of all 250 members of TG4, especially the project leaders W. Ward, M. A. Abdu, J. Chau, J. Makela, H. Takahashi, D. Pancheva, M. Yamamoto, H. Fujiwara, and M. Kosch. Our special acknowledgement goes to Dr. Michi Nishioka who edited the quarterly newsletter. JM and HT thank all of the LONET and SpreadFEx-2 campaign participants. JM and HT acknowledge the COSMIC data center team who provided the TEC data. The Pameungpeuk MF radar data were provided through IUGONET under agreement of RISH, Kyoto University. JO was supported by NSF award 1139048 and NASA grants NNX11AJ13G and NNH12CF66C. KS is supported by the JSPS Grants-in-Aid for Scientific Research (20244080, 23403009, and 25247080), JSPS Core-to-Core Program, B. Asia-Africa Science Platforms, and the STEL Cooperative and IUGONET Projects from MEXT, Japan.

Authors’ Affiliations

Department of Physics and Astronomy, Clemson University
Solar-Terrestrial Environment Laboratory, Nagoya University
Indian Institute of Geomagnetism
Department of Physics, University of New Brunswick
Faculty of Science and Technology, Seikei University
South African National Space Agency
Lancaster University
Currently at National Institute of Polar Research
University of Illinois at Urbana-Champaign
Instituto Nacional de Pesquisas espaciais


  1. Anderson C, Davies T, Conde M, Dyson P, Kosch MJ (2011) Spatial sampling of the thermospheric vertical wind field at auroral latitudes. J Geophys Res 116, A06320, doi:10.1029/2011JA016485Google Scholar
  2. Anderson C, Kosch MJ, Nicolls MJ, Conde M (2013) Ion-neutral coupling in the earth's thermosphere, estimate from concurrent radar and optics observations over Alaska. J Atmos Sol Terr Phys 105–106:313–324, doi:10.1016/j.jastp.2013.04.005View ArticleGoogle Scholar
  3. Anthes RA, Ector D, Hunt DC, Kuo YH, Rocken C, Schreiner WS et al (2008) The COSMIC/FORMOSAT-3 mission: early results. Bull Amer Meteor Soc 89:313–333, doi:10.1175/BAMS-89-3-313View ArticleGoogle Scholar
  4. Aruliah AL, Griffin EM, McWhiter I, Aylward AD, Ford EAK, Charalambous A et al (2004) First tristatic studies of meso-scale ion-neutral dynamics and energetic in the high-latitude upper atmosphere using co-located FPIs and EISCAT radar. Geophys Res Lett 31, L03802, doi:10.1029/2003GL018469View ArticleGoogle Scholar
  5. Aruliah AL, Griffin EM, Aylward AD, Ford EAK, Kosch MJ, Davis CJ et al (2005) First direct evidence of meso-scale variability on ion-neutral dynamics using co-located tristatic FPIs and EISCAT radar in northern Scandinavia. Ann Geophys 23:147–162View ArticleGoogle Scholar
  6. Booker HG, Wells HW (1938) Scattering of radio waves by the F-region of the ionosphere. J Geophys Res 43:249–256View ArticleGoogle Scholar
  7. Burch JL (2000) IMAGE mission overview. Space Science Reviews 91(1–14):2000Google Scholar
  8. Chang LC, Ward WE, Palo SE, Du J, Wang DY, Liu HL et al (2012) Comparison of diurnal tide in models and ground-based observations during the 2005 equinox CAWSES tidal campaign. J Atmos Sol Terr Phys 78–79:19–30, doi:10.1016/j.jastp.2010.12.0104View ArticleGoogle Scholar
  9. Chang LC, Lin CH, Yue J, Liu JY, Lin JT (2013) Stationary planetary wave and nonmigrating tidal signatures in ionospheric wave 3 and wave 4 variations in 2007-2011 FORMOSAT-3/COSMIC observations. J Geophys Res Space Phys 118(10):6651–6665, doi:10.1002/jgra.50583View ArticleGoogle Scholar
  10. Chapagain NP, Makela JJ, Meriwether JW, Fisher DJ, Buriti RA, Medeiros AF (2012) Comparison of nighttime zonal neutral winds and equatorial plasma bubble drift velocities over Brazil. J Geophys Res 117, A06309, doi:10.1029/2012JA017620Google Scholar
  11. Chau JL, Fejer BG, Goncharenko LP (2009) Quiet variability of equatorial E x B drifts during a sudden stratospheric warming event. Geophys Res Lett 36, L05101, doi:10.1029/2008GL036785View ArticleGoogle Scholar
  12. Chau JL, Aponte NA, Cabassa E, Sulzer MP, Goncharenko LP, Gonzalez SA (2010) Quiet time ionospheric variability over Arecibo during sudden stratospheric warming events. J Geophys Res 115:A00G06, doi:10.1029/2010JA015378Google Scholar
  13. Chau JL, Goncharenko LP, Fejer BG, Liu HL (2012) Equatorial and low latitude ionospheric effects during sudden stratospheric warming events. Space Sci Rev 168:385–417, doi:10.1007/s11214-011-9797-5View ArticleGoogle Scholar
  14. Chen G, Xu J, Wang W, Lei J, Burns AG (2012) A comparison of the effects of CIR- and CME-induced geomagnetic activity on thermospheric densities and spacecraft orbits: case studies. J Geophys Res 117, A08315, doi:10.1029/2012JA017782Google Scholar
  15. Chu X, Yu Z, Gardner CS, Chen C, Fong W (2011) Lidar observations of neutral Fe layers and fast gravity waves in the thermosphere (110-155 km) at McMurdo (77.8°S, 166.7°E), Antarctica. Geophys Res Lett 38(23), L23807, doi:10.1029/2011GL050016View ArticleGoogle Scholar
  16. Cohen MB, Inan US, Paschal EW (2010) Sensitive broadband ELF/VLF radio reception with the AWESOME instrument. IEEE Trans On Geosci Remote Sens 48(1):3–17, doi:10.1109/TGRS.2009.2028334View ArticleGoogle Scholar
  17. de Larquier S, Pasko VP, Stenbaek-Nielsen HC, Wilson CR, Olson JV (2010) Finite-difference time-domain modeling of infrasound from pulsating auroras and comparison with recent observations. Geophys Res Lett 37, L06804, doi:10.1029/2009GL042124Google Scholar
  18. Deng Y, Fuller-Rowell TJ, Akmaev RA, Ridley AJ (2011) Impact of the altitudinal Joule heating distribution on the thermosphere. J Geophys Res 116, A05313, doi:10.1029/2010JA016019Google Scholar
  19. Dungey JW (1956) Convective diffusion in the equatorial F-region. J Atmos Sol Terr Phys 9:304–310View ArticleGoogle Scholar
  20. Eastes RW, McClintock WE, Codrescu MV, Aksnes A, Anderson D, Andersson L et al (2008) Global-scale Observations of the Limb and Disk (GOLD): new observing capabilities for the ionosphere-thermosphere. In: Kintner PM, Coster AJ, Fuller-Rowell T, Mannucci J, Mendillo M, Heelis R (eds) Midlatitude ionospheric dynamics and disturbances, vol 181, Geophysical Monograph Series. American Geophysical Union, Washington DC, pp 319–326View ArticleGoogle Scholar
  21. England SL (2012) Review of the effects of non-migrating atmospheric tides on Earth's low-latitude ionosphere. Space Sci Rev 168(1–4):211–236, doi:10.1007/s11214-011-9842-4View ArticleGoogle Scholar
  22. England SL, Immel TJ, Huba JD, Hagan ME, Maute A, DeMajistre R (2010) Modeling of multiple effects of atmospheric tides on the ionosphere: an examination of possible coupling mechanisms responsible for the longitudinal structure of the equatorial ionosphere. J Geophys Res 115, A05308, doi:10.1029/2009JA014894Google Scholar
  23. Fejer JA (1964) Atmospheric tides and associated magnetic effects. Rev Geophys 2(2):275–309View ArticleGoogle Scholar
  24. Fejer BG, Olson ME, Chau JL, Stolle C, Lühr H, Goncharenko LP et al (2010) Lunar-dependent equatorial ionospheric electrodynamic effects during sudden stratospheric warmings. J Geophys Res 115:A00G03, doi:10.1029/2010JA015273Google Scholar
  25. Forbes JM (1995) Tidal and Planetary Waves. In: Johnson RM, Killeen TL (eds) The upper mesosphere and lower thermosphere: a review of experimental and theory. geophysical monograph series, vol 87. American Geophysical Union, Washington DC, pp 67–87View ArticleGoogle Scholar
  26. Forbes JM, Russell J, Miyahara S, Zhang X, Palo S, Mlynczak M et al (2006) Troposphere-thermosphere tidal coupling as measured by the SABER instrument on TIMED during July-September 2002. J Geophys Res 111:A10S06, doi:10.1029/2005JA011492Google Scholar
  27. Forbes JM, Bruinsma SL, Zhang X, Oberheide J (2009) Surface-exosphere coupling due to thermal tides. Geophys Res Lett 36, L15812, doi:10.1029/2009GL038748View ArticleGoogle Scholar
  28. Forbes JM, Zhang X, Bruinsma S, Oberheide J (2011) Sun-synchronous thermal tides in exosphere temperature from CHAMP and GRACE accelerometer measurements. J Geophys Res 116, A11309, doi:10.1029/2011JA016855View ArticleGoogle Scholar
  29. Forbes JM, Zhang X, Bruinsma SL (2014) New perspectives on thermospheric tides: 2. penetration to the upper thermosphere. Earth Planets Space 66:122, doi:10.1186/1880-5981-66-122View ArticleGoogle Scholar
  30. Fritts DC, Lund TS (2011) Gravity wave influences in the thermosphere and ionosphere: observations and recent modeling. In: Abdu MA, Pancheva D (eds) Aeronomy of the Earth's atmosphere and ionosphere. IAGA Special Sopron Book Series, vol 2. Springer Science+Business Media, ᅟ, pp 109–130, doi:10.1007/978-94-007-0326-1_8View ArticleGoogle Scholar
  31. Fritts DC, Vadas SL, Riggin DM, Abdu MA, Batista IS, Takahashi H et al (2008) Gravity wave and tidal influences on equatorial spread F based on observations during the spread F experiment (SpreadFEx). Ann Geophys 26:3235–3252, doi:10.5194/angeo-26-3235-2008View ArticleGoogle Scholar
  32. Fujitaka K, Tohmatsu T (1973) A tidal theory of the ionospheric intermediate layer. J Atmos Terr Phys 33:425–438View ArticleGoogle Scholar
  33. Fujiwara H, Nozawa S, Maeda S, Ogawa Y, Miyoshi Y, Jin H et al (2012) Polar cap thermosphere and ionosphere during the solar minimum period: EISCAT Svalbard radar observations and GCM simulations. Earth Planets Space 64:459–465, doi:10.5047/eps.2011.05.023View ArticleGoogle Scholar
  34. Fukushima D, Shiokawa K, Otsuka Y, Ogawa T (2012) Observation of equatorial nighttime medium-scale traveling ionospheric disturbances in 630-nm airglow images over 7 years. J Geophys Res 117, A10324, doi:10.1029/2012JA017758View ArticleGoogle Scholar
  35. Fuller-Rowell T, Wu F, Akmaev R, Fang TW, Araujo-Pradere E (2010) A whole atmosphere model simulation of the impact of a sudden stratospheric warming on thermosphere dynamics and electrodynamics. J Geophys Res 115:A00G08, doi:10.1029/2010JA015524Google Scholar
  36. Fuller-Rowell T, Wang H, Akmaev R, Wu F, Fang TW, Iredell M et al (2011) Forecasting the dynamic and electrodynamic response to the January 2009 sudden stratospheric warming. Geophys Res Lett 38, L13102, doi:10.1029/2011GL047732Google Scholar
  37. Fytterer T, Arras C, Hoffmann P, Jacobi C (2014) Global distribution of the migrating terdiurnal tide seen in sporadic E occurrence frequencies obtained from GPS radio occultations. Earth Planets Space 66:79, doi:10.1186/1880-5981-66-79View ArticleGoogle Scholar
  38. Gan Q, Du J, Ward WE, Beagley SR, Fomichev VI, Zhang S (2014) Climatology of the diurnal tides from eCMAM30 (1979 to 2010) and its comparisons with SABER. Earth Planets Space 66:103, doi:10.1186/1880-5981-66-103View ArticleGoogle Scholar
  39. Gardner LC, Schunk RW (2011) Large-scale gravity wave characteristics simulated with a high-resolution global thermosphere-ionosphere model. J Geophys Res 116, A06303, doi:10.1029/2010JA015629Google Scholar
  40. Gardner L, Sojka JJ, Schunk RW, Heelis R (2012) Changes in thermospheric temperature induced by high-speed solar wind streams. J Geophys Res 117, A12303, doi:10.1029/2012JA017892View ArticleGoogle Scholar
  41. Gavrilov NM, Kshetvetskii SP (2014) Three-dimensional numerical simulation of nonlinear acoustic-gravity wave propagation from the troposphere to the thermosphere. Earth Planets Space 66:88, doi:10.1186/1880-5981-66-88View ArticleGoogle Scholar
  42. Goncharenko L, Zhang SR (2008) Ionospheric signatures of sudden stratospheric warming: Ion temperature at middle latitude. Geophys Res Lett 35, L21103, doi:10.1029/2008GL035684View ArticleGoogle Scholar
  43. Goncharenko LP, Chau JL, Liu HL, Coster AJ (2010) Unexpected connections between the stratosphere and ionosphere. Geophys Res Lett 37, L10101, doi:10.1029/2010GL043125View ArticleGoogle Scholar
  44. Goncharenko LP, Hsu VW, Brum CGM, Zhang SR, Fentzke JT (2013) Wave signatures in the midlatitude ionosphere during a sudden stratospheric warming of January 2010. J Geophys Res 118:472–487, doi:10.1029/2012JA018251View ArticleGoogle Scholar
  45. Gordley LL, Marshall BT (2011) Doppler wind and temperature sounder (DWTS): a new approach using gas filter radiometry. J Appl Rem Sens 5:053570, doi:10.1117/1.3666048View ArticleGoogle Scholar
  46. Haagmans R, Bock R, Rider H (2013) Swarm: ESA's magnetic field mission. In: ESA communications, BR-302, September 2013, 2nd edn.. ISBN 978-92-9221-067-0Google Scholar
  47. Hagan ME, Forbes JM (2002) Migrating and nonmigrating diurnal tides in the middle and upper atmosphere excited by tropospheric latent heat release. J Geophys Res 107(D24):4754, doi:10.1029/2001JD001236View ArticleGoogle Scholar
  48. Hagan ME, Forbes JM (2003) Migrating and nonmigrating semidiurnal tides in the upper atmosphere excited by tropospheric latent heat release. J Geophys Res 108(A2):1062, doi:10.1029/2002JA009466View ArticleGoogle Scholar
  49. Hagan ME, Roble RG (2001) Modeling the diurnal tidal variability with the National Center for Atmospheric Research thermosphere-ionosphere-mesosphere-electrodynamics general circulation model. J Geophys Res 106(A11):24,869–24,882View ArticleGoogle Scholar
  50. Hagan ME, Maute AI, Roble RG, Richmond AD, Immel TJ, England SL (2007) Connections between deep tropical clouds and the Earth's ionosphere. Geophys Res Lett 34, L20109, doi:10.1029/2007GL030142View ArticleGoogle Scholar
  51. Hagan ME, Maute AI, Roble RG (2009) Tropospheric tidal effects on the middle and upper atmosphere. J Geophys Res 114, A01302, doi:10.1029/2008JA013637Google Scholar
  52. Haldoupis C (2011) Midlatitude sporadic E. A typical paradigm of atmosphere-ionosphere coupling. Space Sci Rev 168:441–461, doi:10.1007/s11214-011-9786-8View ArticleGoogle Scholar
  53. Häusler K, Oberheide J, Lühr H, Koppmann R (2013) The geospace response to nonmigrating tides. In: Lübken FJ (ed) Climate and Weather of the Sun-Earth System (CAWSES), Springer Atmospheric Sciences Series, vol 21., pp 481–504. ISBN 978-94-007-4348-9View ArticleGoogle Scholar
  54. Hines CO (1960) Internal gravity waves at ionospheric heights. Can J Phys 38(11):1441–1481View ArticleGoogle Scholar
  55. Immel TJ, Sagawa E, England SL, Henderson SB, Hagan ME, Mende SB et al (2006) Control of equatorial ionospheric morphology by atmospheric tides. Geophys Res Lett 33, L15108, doi:10.1029/2006GL026161View ArticleGoogle Scholar
  56. International CAWSES-II Symposium (2014). Special Issue in Earth Planets Space 66. In: Yamamoto M, Shiokawa K, Nakamura T, Gopalswamy N (eds)
  57. Jin H, Miyoshi Y, Fujiwara H, Shinagawa H, Terada K, Terada N et al (2011) Vertical connection from the tropospheric activities to the ionospheric longitudinal structure simulated by a new Earth's whole atmosphere-ionosphere coupled model. J Geophys Res 116, A01316, doi:10.1029/2010JA015925Google Scholar
  58. Jin H, Miyoshi Y, Pancheva D, Mukhtarov P, Fujiwara H, Shinagawa H (2012) Response of migrating tides to the stratospheric sudden warming in 2009 and their effects on the ionosphere studied by a whole atmosphere-ionosphere model GAIA with COSMIC and TIMED/SABER observations. J Geophys Res 117(A10), A10323, doi:10.1029/2012JA017650View ArticleGoogle Scholar
  59. Jones M Jr, Forbes JM, Hagan ME, Maute A (2013) Non-migrating tides in the ionosphere-thermosphere: in situ versus tropospheric sources. J Geophys Res Space Phys 118(5):2438–2451, doi:10.1002/jgra.50257View ArticleGoogle Scholar
  60. Kishore Kumar G, Singer W, Oberheide J, Grieger N, Batista PP, Riggin DM et al (2013) Diurnal tides at low latitudes: radar, satellite, and model results. J Atmos Sol Terr Phys 118:96–105, doi:10.1016/j.jastp.2013.07.005View ArticleGoogle Scholar
  61. Kosch MJ, Anderson C, Makarevich RA, Carter BA, Fiori RAD, Conde M et al (2010) First E region observations of mesoscale neutral wind interaction with auroral arcs. J Geophys Res 115, A02303, doi:10.1029/2009JA014697Google Scholar
  62. Kosch M, Yiu I, Anderson C, Tsuda T, Ogawa Y, Nozawa S et al (2011) Meso-scale observations of Joule heating near an auroral arc and ion-neutral collision frequency in the polar cap E-region. J Geophys Res 116, A05321, doi:10.1029/2010JA016015Google Scholar
  63. Kubota M, Conde M, Ishii M, Murayama Y, Jin H (2011) Characteristics of nighttime MSTID/AGW observed over Alaska. J Geophys Res 116, A05307, doi:10.1029/2010JA016212Google Scholar
  64. Kurihara J, Oyama S, Nozawa S, Tsuda TT, Fujii R, Ogawa Y et al (2009) Temperature enhancements and vertical winds in the lower thermosphere associated with auroral heating during the DELTA campaign. J Geophys Res 114, A12306, doi:10.1029/2009JA014392View ArticleGoogle Scholar
  65. Laskar FI, Pallamraju D, Veenadhari B (2014) Vertical coupling of atmospheres: dependence on strength of sudden stratospheric warming and solar activity. Earth Planets Space 66:94, doi:10.1186/1880-5981-66-94View ArticleGoogle Scholar
  66. Lastovicka J (2006) Forcing of the ionosphere by waves from below. J Atmos Sol Terr Phys 68:479–497, doi:10.1016/j.jastp.2005.01.018View ArticleGoogle Scholar
  67. Lei J, Thayer JP, Wang W, McPherron RL (2011) Impact of CIR storms on thermosphere density variability during the solar minimum of 2008. Sol Phys 274:427–437, doi:10.1007/s11207-010-9563-yView ArticleGoogle Scholar
  68. Lieberman RS, Oberheide J, Gordley LL, Marshall BT (2012) Recovery of planetary-scale waves in stratospheric, mesospheric, and lower thermospheric winds and temperature from the Doppler wind and temperature sounder. J Appl Remote Sens 6(1):063570, doi:101117/1.JRS.6.063570View ArticleGoogle Scholar
  69. Lieberman RS, Oberheide J, Talaat ER (2013a) Nonmigrating diurnal tides observed in global thermospheric winds. J Geophys Res Space Phys 118:7384–7397, doi:10.1002/2013JA018975View ArticleGoogle Scholar
  70. Lieberman RS, Riggin DM, Siskind DE (2013b) Stationary waves in the wintertime mesosphere: evidence for gravity wave filtering by stratospheric planetary waves. J Geophys Res Atmos 118:3139–3149, doi:10.1002/jgrd.50319View ArticleGoogle Scholar
  71. Lin CH, Wang W, Hagan ME, Hsiao CC, Immel TJ, Hsu ML et al (2007) Plausible effect of atmospheric tides on the equatorial ionosphere observed by the FORMOSAT-3/COSMIC: three-dimensional electron density structures. Geophys Res Lett 34, L11112, doi:10.1029/2007GL029265View ArticleGoogle Scholar
  72. Liu HL, Roble RG (2002) A study of a self-generated stratospheric sudden warming and its mesospheric/lower thermospheric impacts using the coupled TIMEGCM/CCM3. J Geophys Res 107(D23):1–18, doi:10.1029/2001JD001533Google Scholar
  73. Liu H, Yamamoto M (2011) Weakening of the mid-latitude summer nighttime anomaly during geomagnetic storms. Earth Planets Space 63:371–375, doi:10.5047/eps.2010.11.012View ArticleGoogle Scholar
  74. Liu H, Yamamoto M, Lühr H (2009) Wave-4 pattern of the equatorial mass density anomaly: a thermospheric signature of tropical deep convection. Geophys Res Lett 36, L18104, doi:10.1029/2009GL039865View ArticleGoogle Scholar
  75. Liu G, Immel TJ, England SL, Kumar KK, Ramkumar G (2010a) Temporal modulations of the longitudinal structure in F2 peak height in the equatorial ionosphere as observed by COSMIC. J Geophys Res 115, A04303, doi:10.1029/2009JA014829Google Scholar
  76. Liu G, Immel TJ, England SL, Kumar KK, Ramkumar G (2010b) Temporal modulation of the four-peaked longitudinal structure of the equatorial ionosphere by the 2 day planetary wave. J Geophys Res 115, A12338, doi:10.1029/2010JA016071View ArticleGoogle Scholar
  77. Liu HL, Foster BT, Hagan ME, McInerney JM, Maute A, Qian L et al (2010c) Thermosphere extension of the whole atmosphere community climate model. J Geophys Res 115, A12301, doi:10.1029/2010JA015586View ArticleGoogle Scholar
  78. Liu HL, Wang W, Richmond AD, Roble RG (2010d) Ionospheric variability due to planetary waves and tides for solar minimum conditions. J Geophys Res 115:A00G01, doi:10.1029/2009JA015188Google Scholar
  79. Liu H, Jin H, Miyoshi Y, Fujiwara H, Shinagawa H (2013a) Upper atmosphere response to stratosphere sudden warming: local time and height dependence simulated by GAIA model. Geophys Res Lett 40:635–640, doi:10.1002/grl.50146View ArticleGoogle Scholar
  80. Liu HL, Yudin VA, Roble RG (2013b) Day-to-day ionospheric variability due to lower atmosphere perturbations. Geophys Res Lett 40:665–670, doi:10.1002/grl.50125View ArticleGoogle Scholar
  81. Lühr H, Rother M, Kohler W, Ritter P, Grunwaldt L (2004) Thermospheric up-welling in the cusp region: evidence from CHAMP observations. Geophys Res Lett 31(6), L06805, doi:10.1029/2003GL019314View ArticleGoogle Scholar
  82. Lühr H, Park J, Ritter P, Liu H (2012) In-situ CHAMP observations of the ionosphere-thermosphere coupling. Space Sci Rev 168(1–4):237–260, doi:10.1007/s11214-011-9798-4View ArticleGoogle Scholar
  83. Makela JJ, Meriwether JW, Lima JP, Miller ES, Armstrong SJ (2009) The remote equatorial nighttime observatory of ionospheric regions project and the international heliospherical year. Earth Moon Planets 104(1–4):211–226, doi:10.1007/s11038-008-9289-0View ArticleGoogle Scholar
  84. Makela JJ, Vadas SL, Muryanto R, Duly T, Crowley G (2010) Periodic spacing between consecutive equatorial plasma bubbles. Geophys Res Lett 37, L14103, doi:10.1029/2010GL043968Google Scholar
  85. Makela JJ, Lognonné P, Hébert H, Gehrels T, Rolland L, Allgeyer S et al (2011) Imaging and modeling of the ionospheric airglow response over Hawaii to the tsunami generated by the Tohoku earthquake of 11 March 2011. Geophys Res Lett 38:L00G02, doi:10.1029/2011GL047860View ArticleGoogle Scholar
  86. Makela JJ, Meriwether JW, Ridley AJ, Ciocca M, Castelaz MW (2012) Large-scale measurements of thermospheric dynamics with a multisite Fabry-Pérot interferometer network: overview of plans and results from midlatitude measurements. Int J Geophys Article ID ᅟ:Article ID 872140, doi:10.1155/2012/872140Google Scholar
  87. Makela JJ, Fisher DJ, Meriwether JW, Buriti RA, Medeiros AF (2013) Near-continual ground-based nighttime observations of thermospheric neutral winds and temperatures over equatorial Brazil from 2009 to 2012. J Atmos Sol Terr Phys 103:94–102, doi:10.1016/j.jastp.2012.11.019View ArticleGoogle Scholar
  88. Matsumura M, Saito A, Ieymori T, Shinagawa H, Tsugawa T, Otsuka Y et al (2011) Numerical simulations of atmospheric waves excited 2011 off the Pacific coast of Tohoku earthquake. Earth Planets Space 63(7):885–889, doi:10.5047/eps.2011.07.015View ArticleGoogle Scholar
  89. Maute A, Richmond AD, Roble RG (2012) Sources of low-latitude ionospheric ExB drifts and their variability. J Geophys Res 117, A06312, doi:10.1029/2011JA017502Google Scholar
  90. Meriwether JW, Makela JJ, Fisher DJ, Buriti RA, Medeiros AF, Akmaev RA et al (2013) Comparisons of thermospheric wind and temperature measurements in equatorial brazil to whole atmosphere model predictions. J Atmos Sol Terr Phys 103:103–112, doi:10.1016/j.jastp.2013.04.002View ArticleGoogle Scholar
  91. Meriwether JW, Makela JJ, Ridley A, Hampton DL, Gerrard A, Ciocca M et al (2014) Observations from a network of Fabry-Pérot interferometers and the HOPE-A probe. Paper presented at AGU Chapman Conference on Magnetosphere-Ionosphere Coupling in the Solar System, Yosemite National Park, CAGoogle Scholar
  92. Mukhtarov P, Pancheva D, Andonov B (2010) Climatology of the stationary planetary waves seen in the SABER/TIMED temperatures (2002-2007). J Geophys Res 115, A06315, doi:10.1029/2009JA015156Google Scholar
  93. Narayanan VL, Sau S, Gurubaran S, Shiokawa K, Balan N, Emperumal K et al (2014) A statistical study of satellite traces and subsequent evolution of equatorial spread F based on ionosonde observations over dip equatorial site Tirunelveli, India. Earth Planets Space 66:160View ArticleGoogle Scholar
  94. National Research Council (2013) Solar and space physics: a science for a technological society. The National Academies Press, Washington DC. ISBN 978-0-309-16428-3Google Scholar
  95. Nguyen V, Palo SE (2013) Technique to produce daily estimates of the migrating diurnal tide using TIMED/SABER and EOS Aura/MLS. J Atmos Sol Terr Phys 105–106:39–53, doi:10.1016/j.jastp.2013.07.008View ArticleGoogle Scholar
  96. Nicolls MJ, Heinselman CJ (2007) Three-dimensional measurements of traveling ionospheric disturbances with the Poker Flat Incoherent Scatter Radar. Geophys Res Lett 34, L21104, doi:10.1029/2007GL031506View ArticleGoogle Scholar
  97. Nishioka M, Tsugawa T, Kubota M, Ishii M (2013) Concentric waves and short-period oscillations observed in the ionosphere after the 2013 Moore EF5tornado. Geophys Res Lett 40:5581–5586, doi:10.1002/2013GL057963View ArticleGoogle Scholar
  98. Oberheide J, Forbes JM (2008) Thermospheric nitric oxide variability induced by nonmigrating tides. Geophys Res Lett 35, L16814, doi:10.1029/2008GL034825View ArticleGoogle Scholar
  99. Oberheide J, Hagan ME, Roble RG, Offermann D (2002) Sources of nonmigrating tides in the tropical middle atmosphere. J Geophys Res 107(D21):4567, doi:10.1029/2002JD002220View ArticleGoogle Scholar
  100. Oberheide J, Liu HL, Gusev O, Offermann D (2006a) Mesospheric surf zone and temperature inversion layers in early November 1994. J Atmos Sol Terr Phys 68(15):1752–1763, doi:10.1016/j.jastp.2005.11.013View ArticleGoogle Scholar
  101. Oberheide J, Wu Q, Killeen TL, Hagan ME, Roble RG (2006b) Diurnal nonmigrating tides from TIMED Doppler interferometer wind data: monthly climatologies and seasonal variations. J Geophys Res 111:A10S03, doi:10.1029/2005JA011491Google Scholar
  102. Oberheide J, Forbes JM, Häusler K, Wu Q, Bruinsma SL (2009) Tropospheric tides from 80-400 km: propagation, inter-annual variability and solar cycle effects. J Geophys Res 114:D00I05, doi:10.1029/2009JD012388Google Scholar
  103. Oberheide J, Forbes JM, Zhang X, Bruinsma SL (2011a) Climatology of upward propagating diurnal and semidiurnal tides in the thermosphere. J Geophys Res 116, A11306, doi:10.1029/2011JA016784View ArticleGoogle Scholar
  104. Oberheide J, Forbes JM, Zhang X, Bruinsma SL (2011b) Wave-driven variability in the ionosphere-thermosphere-mesosphere system from TIMED observations: what contributes to the ‘wave-4’? J Geophys Res 116, A01306, doi:10.1029/2010JA015911Google Scholar
  105. Oberheide J, Mlynczak MG, Mosso CN, Schroeder BM, Funke B, Maute A (2013) Impact of tropospheric tides on the nitric oxide 5.3 μm infrared cooling of the low-latitude thermosphere during solar minimum conditions. J Geophys Res 118:7283–7293, doi:10.1002/2013JA019278View ArticleGoogle Scholar
  106. Otsuka Y, Shiokawa K, Ogawa T (2012) Disappearance of equatorial plasma bubble after interaction with mid-latitude medium-scale traveling ionospheric disturbance. Geophys Res Lett 39, L14105, doi:10.1029/2012GL052286View ArticleGoogle Scholar
  107. Otsuka Y, Suzuki K, Nakagawa S, Nishioka M, Shiokawa K, Tsugawa T (2013) GPS observations of medium-scale traveling ionospheric disturbances over Europe. Ann Geophys 31:163–172, doi:10.5194/angeo-31-163-2013View ArticleGoogle Scholar
  108. Oyama S, Watkins BJ (2012) Generation of atmospheric gravity waves in the polar thermosphere in response to auroral activity. Space Sci Rev 168(1–4):463–473, doi:10.1007/s11214-011-9847-zView ArticleGoogle Scholar
  109. Oyama S, Tsuda TT, Sakanoi T, Obuchi Y, Asamura K, Hirahara M et al (2009) Spatial evolution of frictional heating and the predicted thermospheric-wind effects in the vicinity of an auroral arc measured with the Sondrestrom incoherent-scatter radar and the Reimei satellite. J Geophys Res 114, A07311, doi:10.1029/2009JA014091Google Scholar
  110. Oyama S, Shiokawa K, Kurihara J, Tsuda TT, Nozawa S, Ogawa Y et al (2010) Lower-thermospheric wind fluctuations measured with an FPI during pulsating aurora at Tromso, Norway. Ann Geophys 28:1847–1857, doi:10.5194/angeo-28-1847-2010View ArticleGoogle Scholar
  111. Pancheva D, Mukhtarov P (2011) Stratospheric warmings; the atmosphere-ionosphere coupling paradigm. J Atmos Sol Terr Phys 73:1697–1702, doi:10.1016/j.jastp.2011.03.006View ArticleGoogle Scholar
  112. Pancheva D, Mukhtarov P (2012) Planetary wave coupling of the atmosphere-ionosphere system during the Northern winter of 2008/2009. Adv Space Res 50:1189–1203, doi:10.1016/j.asr.2012.06.023View ArticleGoogle Scholar
  113. Pancheva D, Mukhtarov P, Andonov B, Forbes JM (2010) Global distribution and climatological features of the 5-6-day planetary waves seen in the SABER/TIMED temperatures (2002-2007). J Atmos Sol Terr Phys 72:26–37, doi:10.1016/j.jastp.2009.10.005View ArticleGoogle Scholar
  114. Park J, Lühr H, Kunze M, Fejer BG, Min KW (2012) Effect of sudden stratospheric warming on lunar tidal modulation of the equatorial electrojet. J Geophys Res 117, A03306, doi:10.1029/2011JA017351Google Scholar
  115. Paulino I, Takahashi H, Medeiros AF, Wrasse CM, Buriti RA, Sobral JHA et al (2011) Mesospheric gravity waves and ionospheric plasma bubbles observed during the COPEX campaign. J Atmos Sol Terr Phys 73:1575–1580, doi:10.1016/j.jastp.2010.12.004View ArticleGoogle Scholar
  116. Pedatella NM, Forbes JM (2009a) Interannual variability in the longitudinal structure of the low-latitude ionosphere due to the El Niño - Southern Oscillation. J Geophys Res 114, A12316, doi:10.1029/2009JA014494View ArticleGoogle Scholar
  117. Pedatella NM, Forbes JM (2009b) Modulation of the equatorial F-region by the quasi-16-day planetary wave. Geophys Res Lett 36, L09105, doi:10.1029/2009GL037809View ArticleGoogle Scholar
  118. Pedatella NM, Forbes JM (2011) Electrodynamic response of the ionosphere to high-speed solar wind streams. J Geophys Res 116, A12310, doi:10.1029/2011JA017050View ArticleGoogle Scholar
  119. Pedatella NM, Liu HL (2012) Tidal variability in the mesosphere and lower thermosphere due to the El Niño - Southern Oscillation. Geophys Res Lett 39, L19802, doi:10.1029/2012GL053383Google Scholar
  120. Pedatella NM, Liu HL, Sassi F, Lei J, Chau JL, Zhang X (2014) Ionosphere variability during the 2009 SSW: influence of the lunar semidiurnal tide and mechanisms producing electron density variability. J Geophys Res 119:ᅟ, (in press), doi:10.1002/2014JA019849Google Scholar
  121. Perkins F (1973) Spread F and ionospheric currents. J Geophys Res 78:218–226View ArticleGoogle Scholar
  122. Qian L, Solomon SC, Mlynczak MG (2010) Model simulation of thermospheric response to recurrent geomagnetic forcing. J Geophys Res 115, A10301, doi:10.1029/2010JA015309View ArticleGoogle Scholar
  123. Reigber C, Lühr H, Grunwaldt L, Förste C, König R, Massmann H et al (2006) CHAMP Mission 5 Years in Orbit. In: Flury J, Reigber C, Rothacher M, Boedecker G, Schriber U (eds) Observation of the Earth System from Space, Springer, pp 3-15, doi:10.1007/3-540-29522-4_1.
  124. Ritter P, Lühr H, Doornbos E (2010) Substorm-related thermospheric density and wind disturbances derived from CHAMP observations. Ann Geophys 28:1207–1220, doi:10.5194/angeo-28-1207-2010View ArticleGoogle Scholar
  125. Sagawa E, Immel TJ, Frey HU, Mende SB (2005) Longitudinal structure of the equatorial anomaly in the nighttime ionosphere observed by IMAGE/FUV. J Geophys Res 110, A11302, doi:10.1029/2004JA010848View ArticleGoogle Scholar
  126. Shiokawa K, Otsuka Y, Ogawa T (2009) Propagation characteristics of nighttime mesospheric and thermospheric waves observed by optical mesosphere thermosphere imagers at middle and low latitudes. Earth Planets Space 61:479–491View ArticleGoogle Scholar
  127. Shiokawa K, Mori M, Otsuka Y, Oyama S, Nozawa S (2012) Motion of high-latitude nighttime medium-scale traveling ionospheric disturbances associated with auroral brightening. J Geophys Res 117, A10316, doi:10.1029/2012JA017928View ArticleGoogle Scholar
  128. Shiokawa K, Mori M, Otsuka Y, Oyama S, Nozawa S, Suzuki S et al (2013) Observation of nighttime medium-scale travelling ionospheric disturbances by two 630-nm airglow imagers near the auroral zone. J Atmos Sol Terr Phys 103:184–194, doi:10.1016/j.jastp.2013.03.024View ArticleGoogle Scholar
  129. Shiokawa K, Otsuka Y, Lynn KJ, Wilkinson P, Tsugawa T (2104) Airglow-imaging observation of plasma bubble disappearance at geomagnetically conjugate points. Earth Planets Space (in press)
  130. Smith AK (2003) The origin of stationary waves in upper mesospheric winds. J Atmos Sci 54:2129–2145, doi:10.1175/1520-0469(2003)060<3033:TOOSPW>2.0.CO;2View ArticleGoogle Scholar
  131. Smith SM, Vadas SL, Baggaley WJ, Hernandez G, Baumgardner J (2013) Gravity wave coupling between the mesosphere and thermosphere over New Zealand. J Geophys Res Space Phys 118(5):2694–2707, doi:10.1002/jgra.50263View ArticleGoogle Scholar
  132. Stening RJ (2011) Lunar tide in the equatorial electrojet in relation to stratospheric warmings. J Geophys Res 116, A12315, doi:10.1029/2011JA017047View ArticleGoogle Scholar
  133. Stewart B (1882) Terrestrial magnetism. Encyclopedia Britannica, vol 16, 9th edn., pp 159–184Google Scholar
  134. Swarm Science Data Processing and Products – the Swarm Satellite Constellation Application and Research Facility (2013) ᅟ. In: Special issue in Earth Planets Space 65(11):1185-1398Google Scholar
  135. Takahashi H, Taylor MJ, Pautet PD, Medeiros AF, Gobbi D, Wrasse CM et al (2009) Simultaneous observation of ionospheric plasma bubbles and mesospheric gravity waves during the SpreadFEx Campaign. Ann Geophys 27:1477–1487View ArticleGoogle Scholar
  136. Takahashi H, Costa S, Otsuka Y, Shiokawa K, Monico JFG, Paula E et al (2014) Diagnostics of equatorial and low latitude ionosphere by TEC mapping over Brazil. Adv Space Res 54(3):385–394, doi:10.1016/j.asr.2014.01.032View ArticleGoogle Scholar
  137. Taori A, Makela JJ, Taylor M (2010) Mesospheric wave signatures and equatorial plasma bubbles: a case study. J Geophys Res 115, A06302, doi:10.1029/2009JA015088Google Scholar
  138. Taori A, Patra AK, Joshi LM (2011) Gravity wave seeding of equatorial plasma bubbles: an investigation with simultaneous F region, E region, and middle atmospheric measurements. J Geophys Res 116, A05310, doi:10.1029/2010JA016229Google Scholar
  139. Tapley BD, Bettadpur S, Watkins M, Reigber C (2004) The gravity recovery and climate experiment: mission overview and early results. Geophys Res Lett 31, L09607, doi:10.1029/2004GL019920View ArticleGoogle Scholar
  140. Thampi SV, Yamamoto M, Tsunoda RT, Otsuka Y, Tsugawa T, Uemoto J et al (2009) First observations of large-scale wave structure and equatorial spread F using CERTO radio beacon on the C/NOFS satellite. Geophys Res Lett 36, L18111, doi:10.1029/2009GL039887View ArticleGoogle Scholar
  141. Thayer JP, Lei J, Forbes JM, Sutton EK, Nerem RS (2008) Thermospheric density oscillations due to periodic solar wind high-speed streams. J Geophys Res 113, A06307, doi:10.1029/2008JA013190Google Scholar
  142. Tsuda TT, Nozawa S, Kawahara TD, Kawabata T, Saito N, Wada S et al (2013) Decrease in sodium density observed during auroral particle precipitation over Tromso, Norway. Geophys Res Lett 40:4486–4490, doi:10.1002/grl.50897View ArticleGoogle Scholar
  143. Tsugawa T, Saito A, Otsuka Y, Nishioka M, Maruyama T, Kato H et al (2011) Ionospheric disturbances detected by GPS total electron content observation after the 2011 off the Pacific coast of Tohoku earthquake. Earth Planets Space 63:875–879, doi:10.5047/eps.2011.06.035View ArticleGoogle Scholar
  144. Tsunoda RT (2005) On the enigma of day-to-day variability in equatorial spread F. Geophys Res Lett 32, L08103, doi:10.1029/2005GL022512View ArticleGoogle Scholar
  145. Tsunoda RT, Bubenik DM, Thampi SV, Yamamoto M (2010) On large-scale wave structure and equatorial spread F without a post-sunset rise of the F layer. Geophys Res Lett 37, L07105, doi:10.1029/2009GL042357Google Scholar
  146. Tsunoda RT, Yamamoto M, Tsugawa T, Hoang TL, Tulasi Ram S, Thampi SV et al (2011) On seeding, large-scale wave structure, equatorial spread F, and scintillations over Vietnam. Geophys Res Lett 38, L20102, doi:10.1029/2011GL049173View ArticleGoogle Scholar
  147. Vadas SL, Crowley G (2010) Source of the traveling ionospheric disturbances observed by the ionospheric TIDDBIT sounder near Wallops Island on 30 October 2007. J Geophys Res 115, A07324, doi:10.1029/2009JA015053Google Scholar
  148. Vadas SL, Liu HL (2009) The generation of large-scale gravity waves and neutral winds in the thermosphere from the dissipation of convectively-generated gravity waves. J Geophys Res 114, A10310, doi:10.1029/2009JA014108View ArticleGoogle Scholar
  149. Vadas SL, Liu HL (2013) Numerical modeling of the large-scale neutral and plasma responses to the body forces created by the dissipation of gravity waves from 6 h of deep convection in Brazil. J Geophys Res Space Phys 118:2593–2617, doi:10.1002/jgra.50249View ArticleGoogle Scholar
  150. Verbanac G, Vršnak B, Živković S, Hojsak T, Veronig AM, Temmer M (2011) Solar wind high-speed streams and related geomagnetic activity in the declining phase of solar cycle 23. Astro Astrophys 533:ᅟ, doi:10.1051/0004-6361/201116615Google Scholar
  151. Vickers H, Kosch MJ, Sutton E, Ogawa Y, La Hoz C (2013) Thermospheric atomic oxygen density estimates using the EISCAT Svalbard radar. J Geophys Res 118:1319–1330, doi:10.1002/jgra.50169View ArticleGoogle Scholar
  152. Vickers H, Kosch MJ, Sutton E, Bjoland L, Ogawa Y, La Hoz C (2014) A solar cycle of upper thermosphere density observations from the EISCAT Svalbard radar. J Geophys Res Space Physics 119:6833–6845, doi:10.1002/2014JA019885View ArticleGoogle Scholar
  153. Wang H, Akmaev RA, Fang TW, Fuller-Rowell TJ, Wu F, Maruyama N et al (2014) First forecast of a sudden stratospheric warming with a coupled whole-atmosphere/ionosphere model IDEA. J Geophys Res Space Phys 119:2079–2089, doi:10.1002/2013JA019481View ArticleGoogle Scholar
  154. Wannberg UG, Andersson H, Behlke R, Belyey V, Bergqvist P, Borg J et al (2010) EISCAT_3D: a next-generation European radar system for upper-atmosphere and geospace research. Radio Sci Bull 332:75–88Google Scholar
  155. Ward WE, Oberheide J, Goncharenko LP, Nakamura T, Hoffmann P, Singer W et al (2010) On the consistency of model, ground-based, and satellite observations of tidal signatures: Initial results from the CAWSES tidal campaigns. J Geophys Res 115, D07107, doi:10.1029/2009JD012593Google Scholar
  156. Warner K, Oberheide J (2014) Nonmigrating tidal heating and MLT tidal wind variability due to the El Niño - Southern Oscillation. J Geophys Res Atmospheres 119:1249–1265, doi:10.1002/2013JD020407View ArticleGoogle Scholar
  157. Xu J, Smith AK, Wang W, Jiang G, Yuan W, Gao H et al (2013) An observational and theoretical study of the longitudinal variation in neutral temperature induced by aurora heating in the lower thermosphere. J Geophys Res Space Phys 118:7410–7425, doi:10.1002/2013JA019144View ArticleGoogle Scholar
  158. Yamazaki Y, Richmond AD, Yumoto K (2012) Stratospheric warmings and the geomagnetic lunar tide: 1958-2007. J Geophys Res 117, A04301, doi:10.1029/2012JA017514Google Scholar
  159. Yee JH, Cameron GE, Kusnierkiewicz DY (1999) Overview of TIMED. Proc SPIE 3756:244, doi:10.1117/12.366378View ArticleGoogle Scholar
  160. Yiğit E, Medvedev AS, Aylward AS, Ridley AA, Harris MJ, Moldwin MB et al (2012) Dynamical effects of internal gravity waves in the equinoctial thermosphere. J Atmos Sol Terr Phys 90–91:104–116, doi:10.1016/j.jastp.2011.11.014View ArticleGoogle Scholar
  161. Yiğit E, Medvedev AS, England SL, Immel TJ (2014) Simulated variability of the high-latitude thermosphere induced by small-scale gravity waves during a sudden stratospheric warming. J Geophys Res Space Phys 119:357–365, doi:10.1002/2013JA019283View ArticleGoogle Scholar
  162. Yizengaw E, Moldwin MB (2009) African Meridian B-Field Education and Research (AMBER) array. Earth Moon Planets 104(1–4):237–246, doi:10.1007/s11038-008-9287-2View ArticleGoogle Scholar
  163. Yokoyama T, Hysell DL, Otsuka Y, Yamamoto M (2009) Three-dimensional simulation of the coupled Perkins and Es-layer instabilities in the nighttime midlatitude ionosphere. J Geophys Res 114, A03308, doi:10.1029/2008JA013789Google Scholar
  164. Yumoto K (2011) Update on MAGDAS activities around the globe during ISWI. 2011 IEEE International Conference on Space Science and Communication: ‘Towards Exploring the Equatorial Phenomena’ IconSpace 2011 Proc art. no. 6015894, 254–257


© Oberheide et al.; licensee Springer. 2015

This is an Open Access article distributed under the terms of the Creative Commons Attribution License (, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited.
